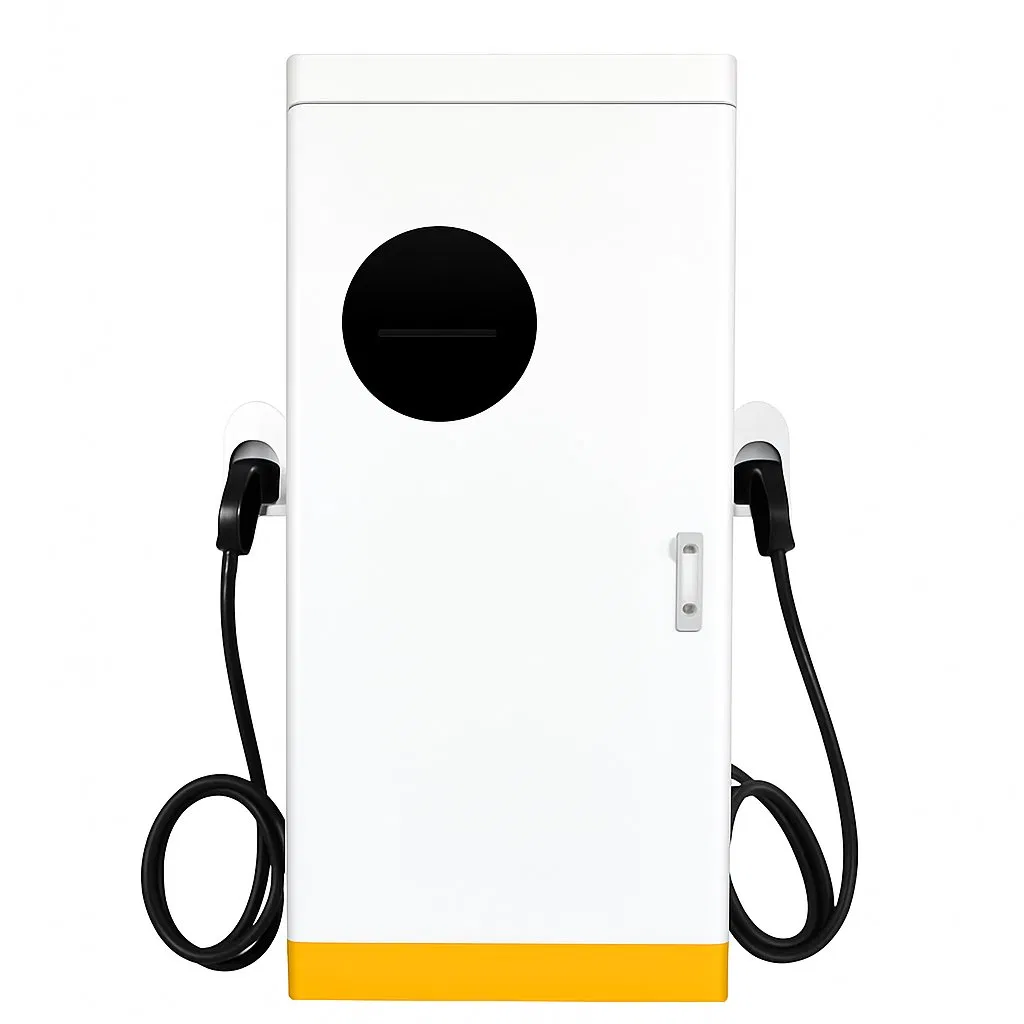

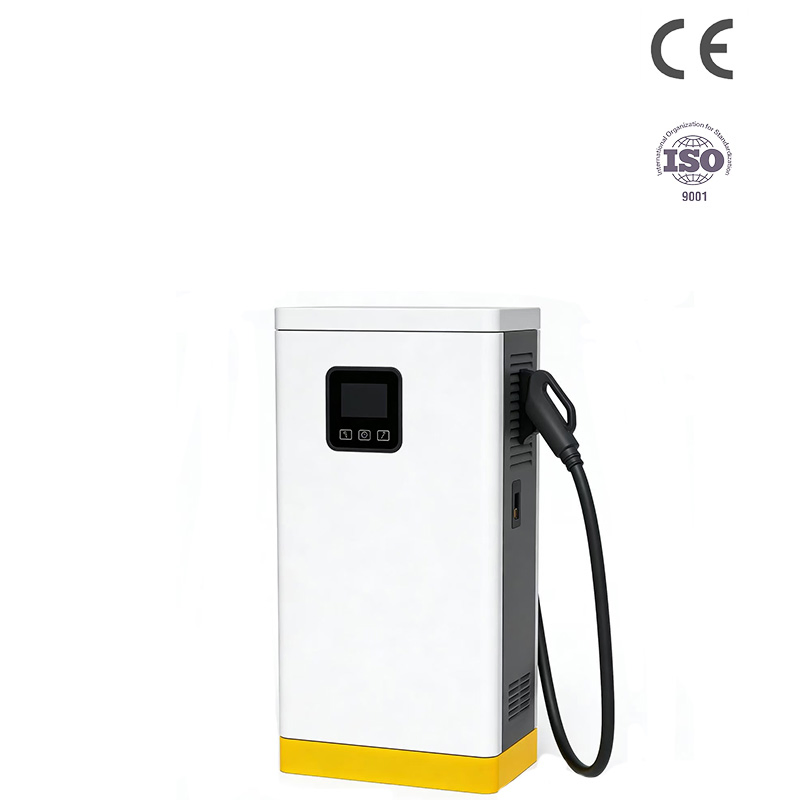

RFID Enabled EV Charging Station with Secure Access Control
Product Description
i
Basic Information
| Model NO. | QSCDZ |
|---|---|
| Rated Current | 2A; 63A; 100A; 200A; 300A |
| Rated Power | 7kw; 11kw; 22kw; 60kw; 120kw; 180kw; 240kw |
| Protection Grade | IP54 (Indoor/Semi-Outdoor); IP65 (Universal Outdoor) |
| Service Life | 8 - 10 Years |
| Charging Type | AC Charging; DC Charging; AC&DC Integrated Charging |
| Charging Efficiency | ≥93% (AC); ≥95% (DC) |
| Power Factor | ≥0.95 (Rated Load) |
| Harmonic Distortion | ≤5% (Total Harmonic Distortion) |
| Functionality | Voice Broadcast, Remote Control Supported |
| Transport Package | Wooden Box |
★
Product Description
Charging Station Core Benefits
- Flexible Expansion & Wide Compatibility
- Certified Safety & Rock-Solid Reliability
- Effortless Operation & Low-Maintenance Design
- Consistently Stable Performance for Efficient Charging

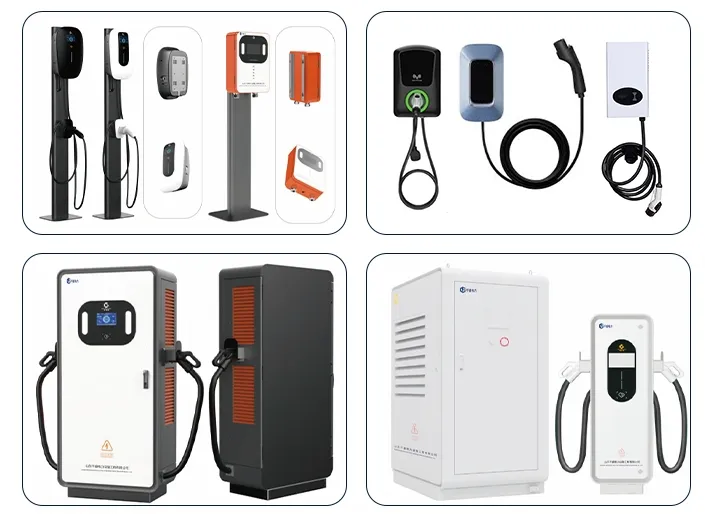

Installation Options
Our series includes multiple models with two primary options: wall-mounted and floor-standing. Wall-mounted models are space-saving for residential use, while floor-standing units offer higher power for commercial rapid charging.
⚙
Technical Specifications

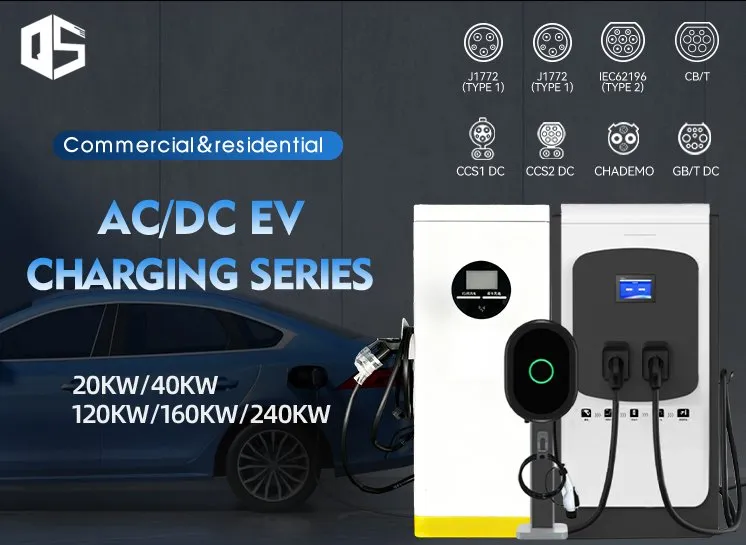

| Power Range | 20KW / 40KW / 120KW / 160KW / 240KW |
|---|---|
| Input Rating | 110V/220V/380V ±15% |
| Working Frequency | 50/60 ±10% |
| Output Voltage | 200 ~ 1000V |

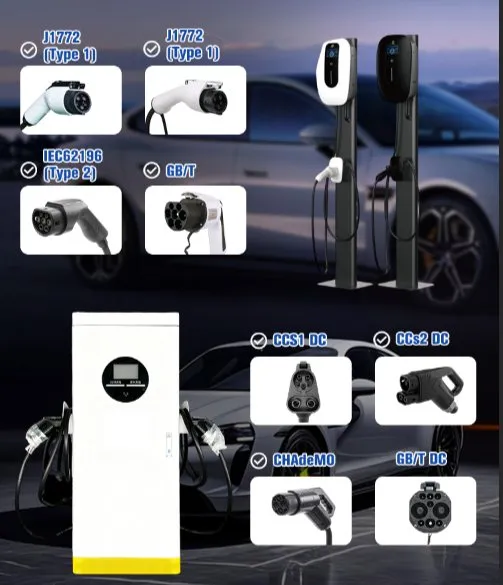

| Connectors | CCS1, CCS2, GB/T, J1772, IEC62196, CHADEMO |
| Display | 7" LCD Touch Screen |
| Communication | 4G / Ethernet (OCPP 1.6J / 2.0) |
| Operating Temp | -20℃ to +50℃ |
| Protection | IP55 Rated |
❤
Best Sellers

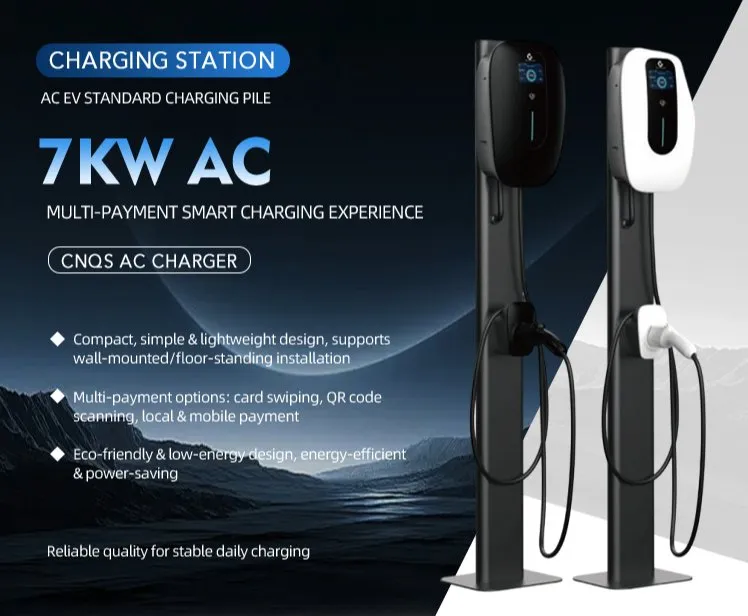

7KW AC Smart Charger
- Compatible with CE/UL/PSE/KC certifications
- Supports ISO 15118-20 + PNC Plug & Charge
- V2G Vehicle-to-Grid protocol support
- MID/UL 2735 metrology billing accuracy ±0.5%

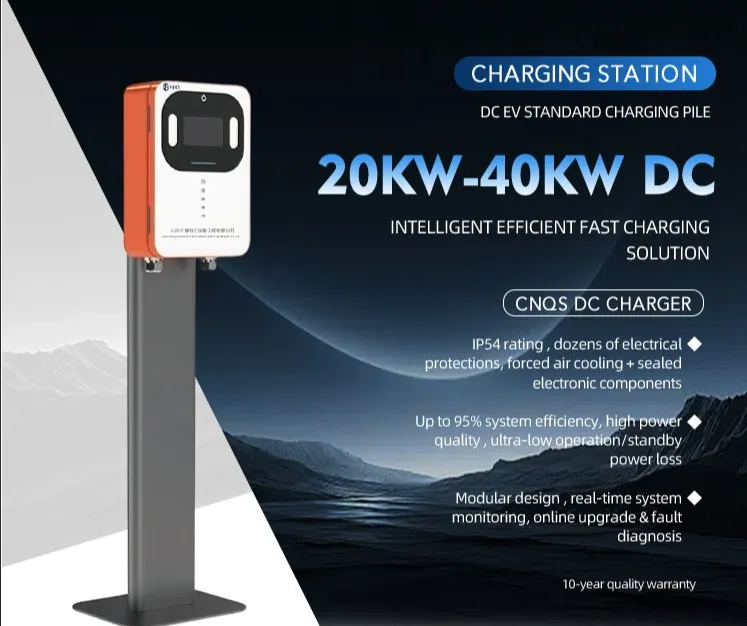

20KW-40KW DC Fast Charger
- 80% power replenished in 30 mins
- IP65 dustproof & waterproof (-30℃ to 60℃)
- Supports Apple Pay / Google Pay / Credit Cards
- 99.2% fault repair rate with remote diagnosis

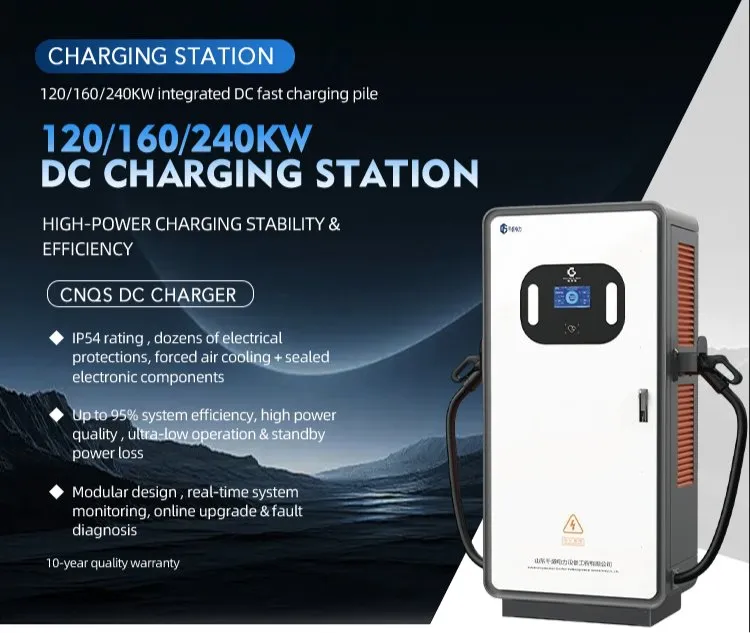

120KW/160KW/240KW Station
- Dual-gun simultaneous charging & modular design
- 120kW: 300+km range in 30 mins
- 240kW: 80% battery in 15 mins
- Dynamic power allocation for fleet hubs
⋮
Product Details

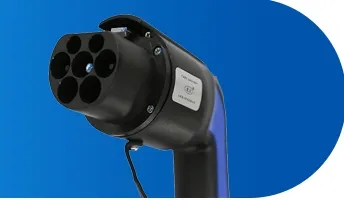

- Multi-standard fast charging connectors (CCS2/Type2/CHAdeMO).

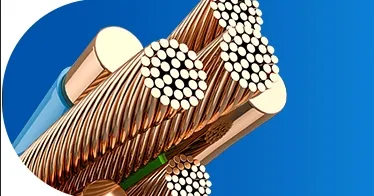

- Thickened high-temperature resistant special cables, anti-aging & anti-stretching.
- Customizable cable length with self-locking anti-drop connectors.
✔
Manufacturing & Logistics
🏢

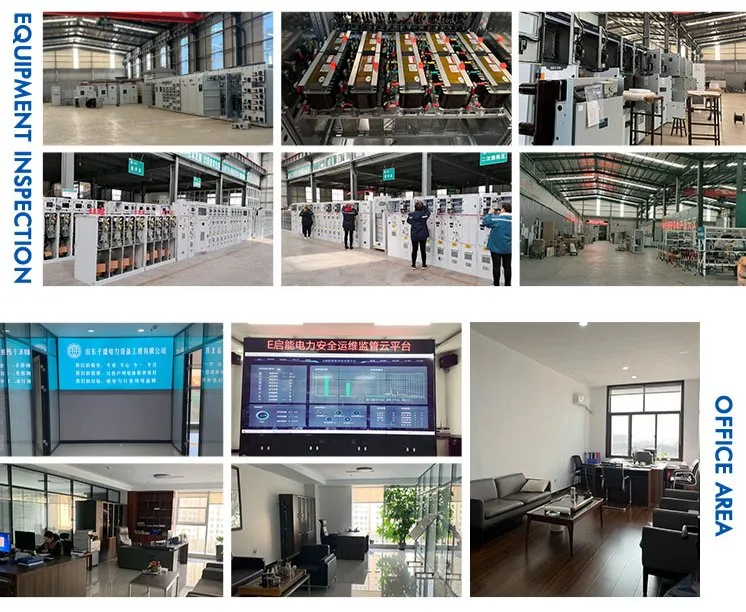

Professional Manufacturer Profile

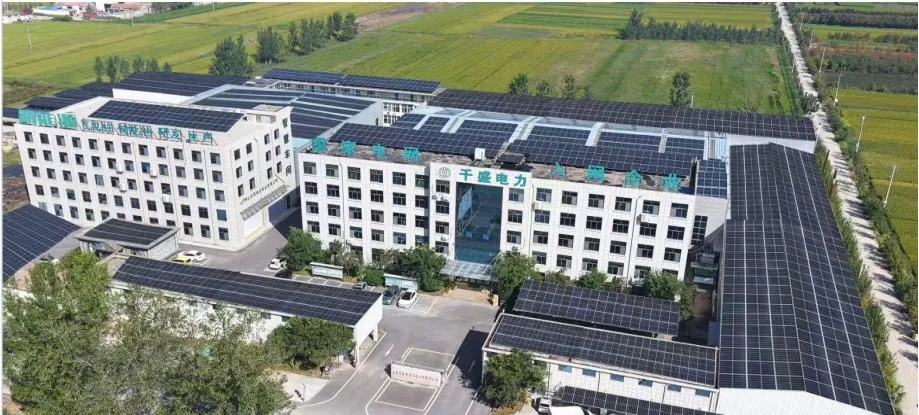

We are an experienced power equipment manufacturer with over 20 years of expertise, serving global markets with reliable power distribution and new energy solutions. Our facility covers over 16,000 square meters and employs nearly 100 dedicated staff members.
Our philosophy is integrity-based and technology-driven, focusing on sustainable growth and customer satisfaction. We adhere to the tenet: Safe Production, Quality First.
?
Frequently Asked Questions
1. What situations are not covered by the warranty?
Warranty exclusions include human-induced damage, unauthorized disassembly or modification, use of non-genuine parts, improper installation, external voltage abnormalities, and natural disasters (fire, earthquake, etc.).
2. Is regular maintenance service provided?
Yes, we provide free annual inspections including electrical safety testing, part tightening, and software updates. Quarterly maintenance packages are also available for commercial chargers to minimize downtime.
3. Does the service comply with local data security requirements?
Absolutely. Our systems are fully compliant with EU GDPR and local safety certifications (CE/UL/PSE). All maintenance data is encrypted to protect user privacy.
4. Can the warranty period be extended?
Yes, paid extensions are available. We offer 2-year extensions for residential models and 1-3 year extensions for commercial chargers, covering the main unit and core components.
5. Is the after-sales service universal across different regions?
Our global warranty system covers major markets in Europe, America, Asia-Pacific, and the Middle East. Standard local services are available using your equipment serial number and certificate.
6. What is the typical service life of the charging units?
Under standard operating conditions and with regular maintenance, our charging piles are designed for a service life of 8 to 10 years.
