Product Description

📊

Basic Information

Model NO.MS08A-06

LocationPublic Use

InterfacesMultiple Charges

Start ModeRFID / Mobile / Credit Card

Dimensions700mm X 400mm X 1700mm

Weight225kg

Cable Length5m

ConnectorsGBT, CCS2, CCS1, CHAdeMO, NACS

Output Voltage200 - 1000VDC

Rated Power≤240kw

ProtectionIP54 / IK10

HS Code8504409999

💡

Product Description

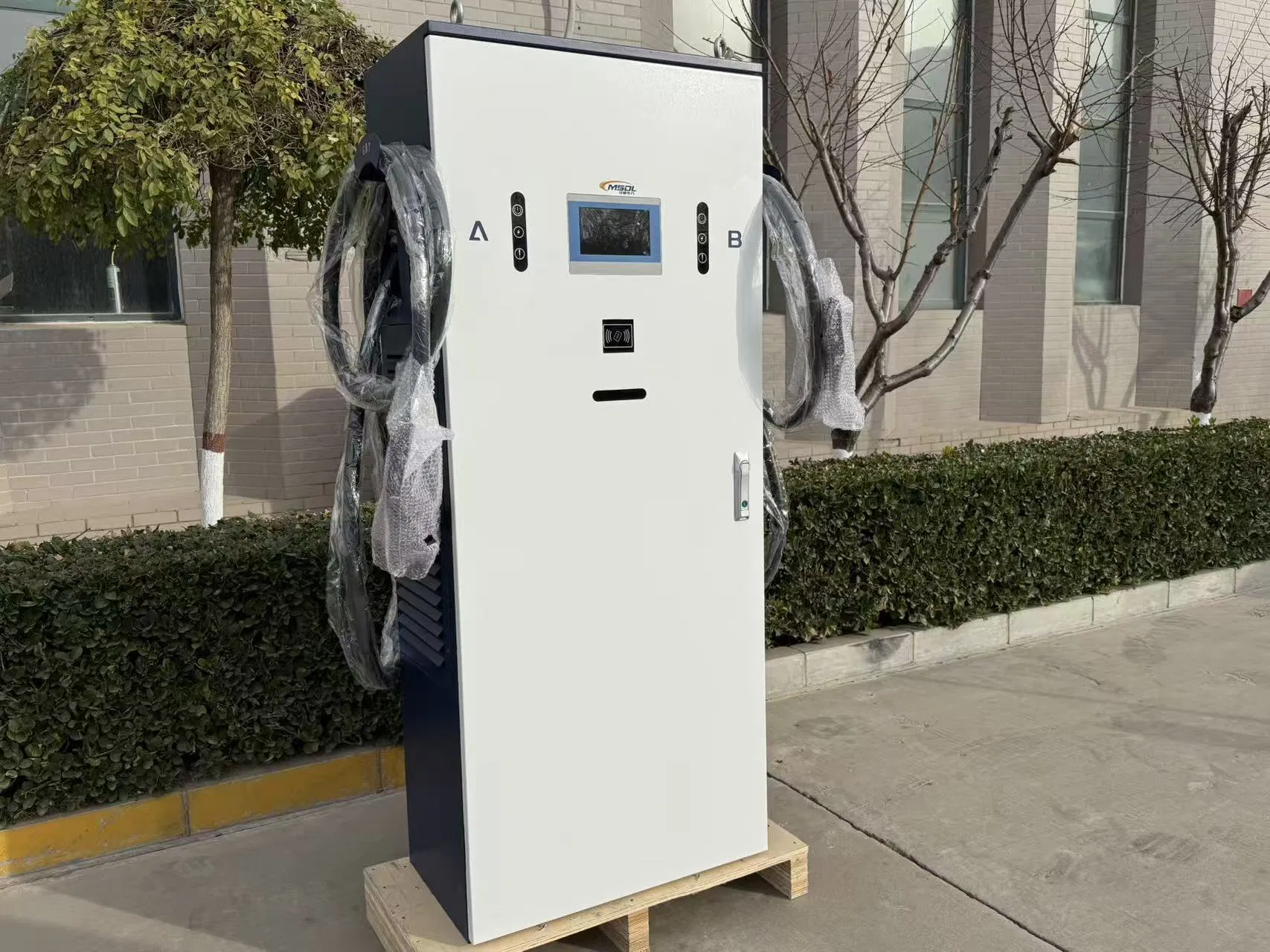

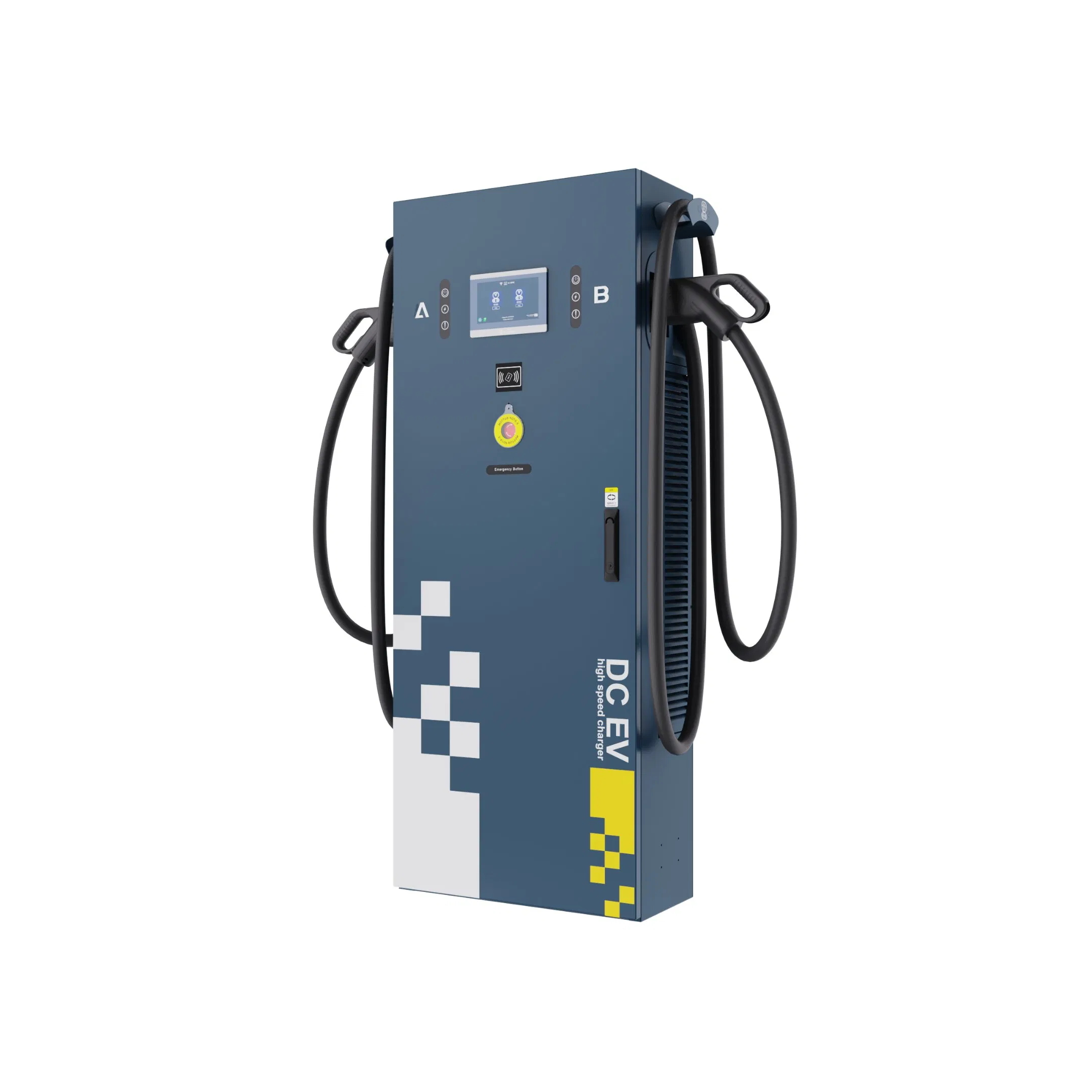

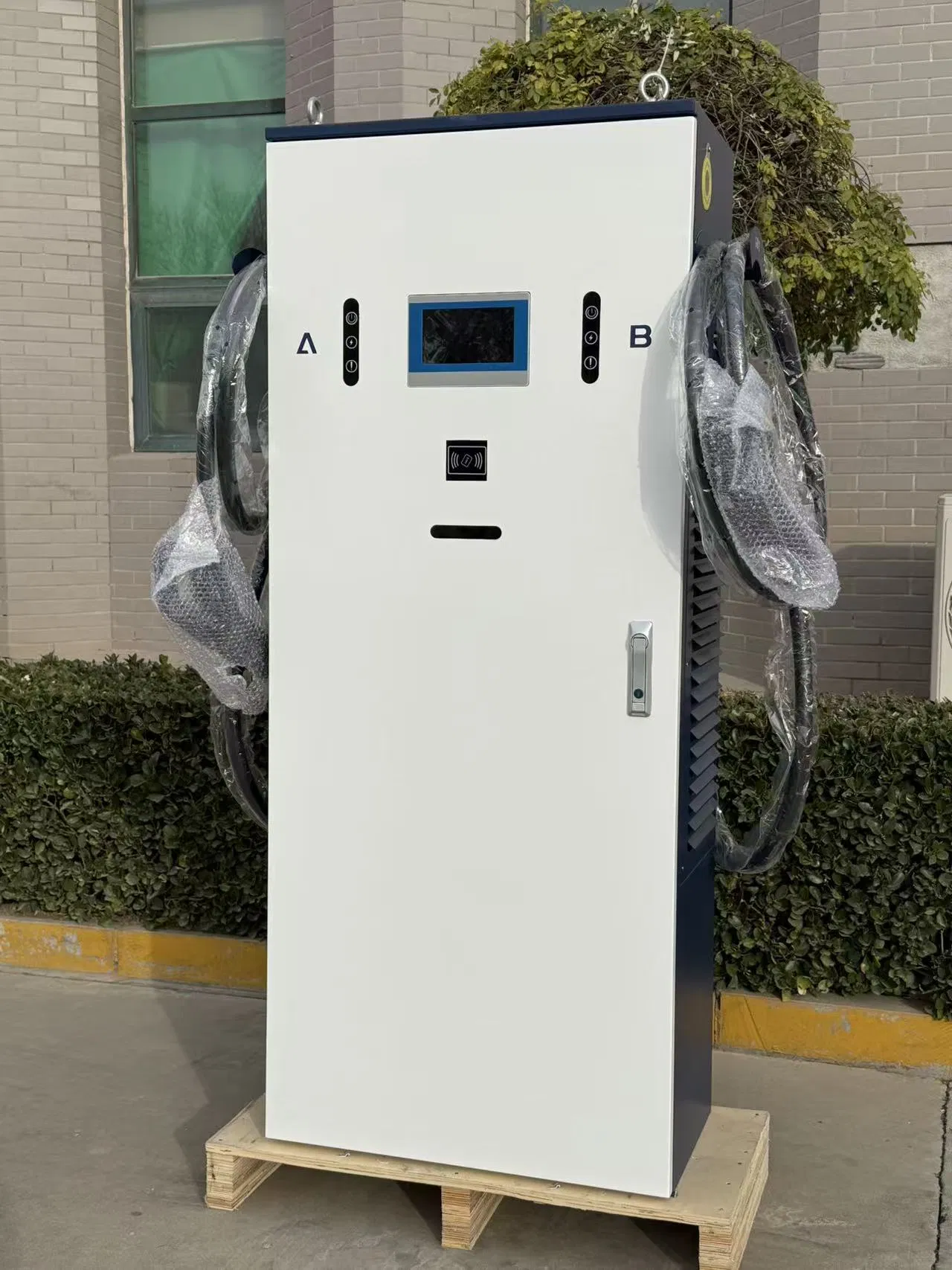

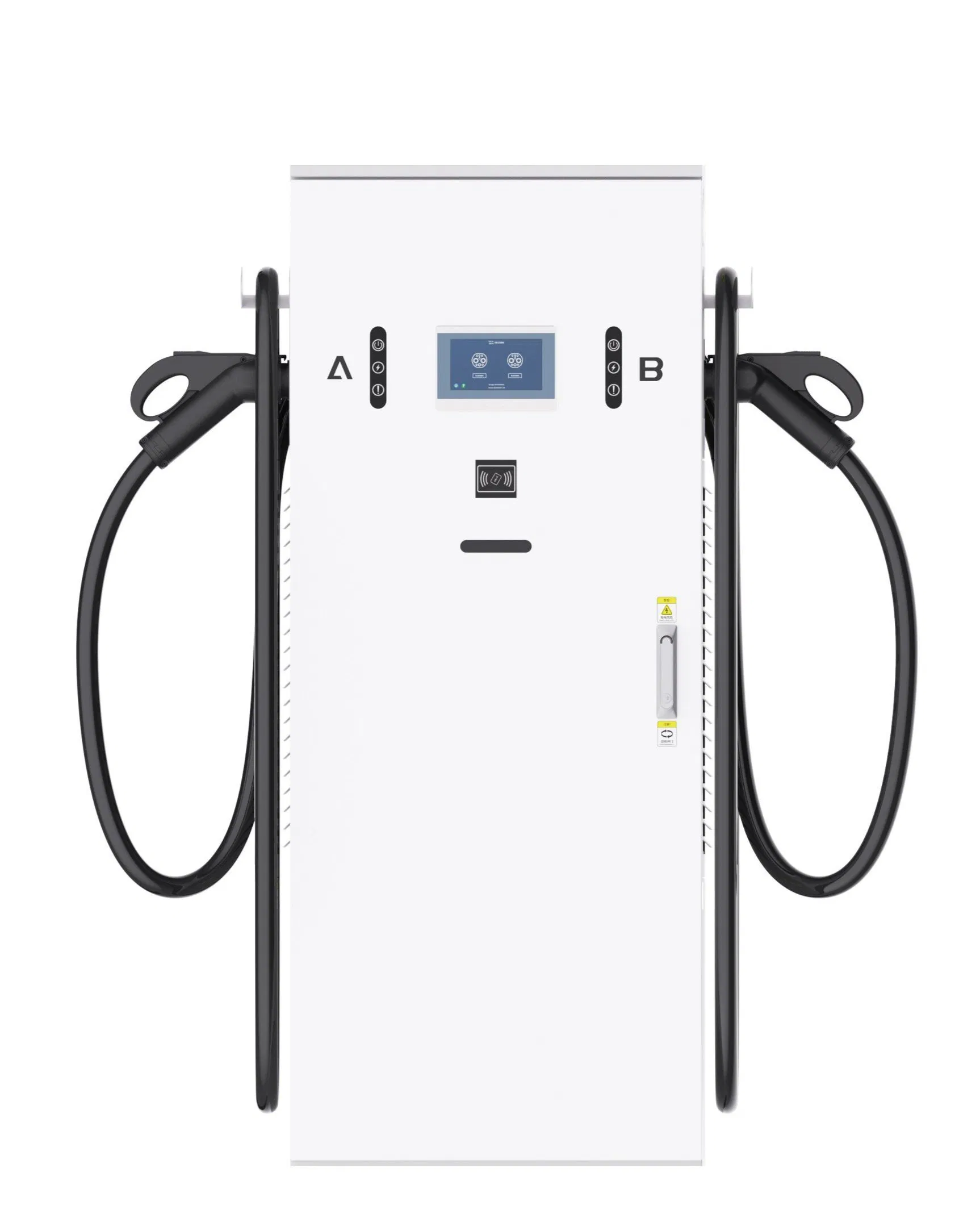

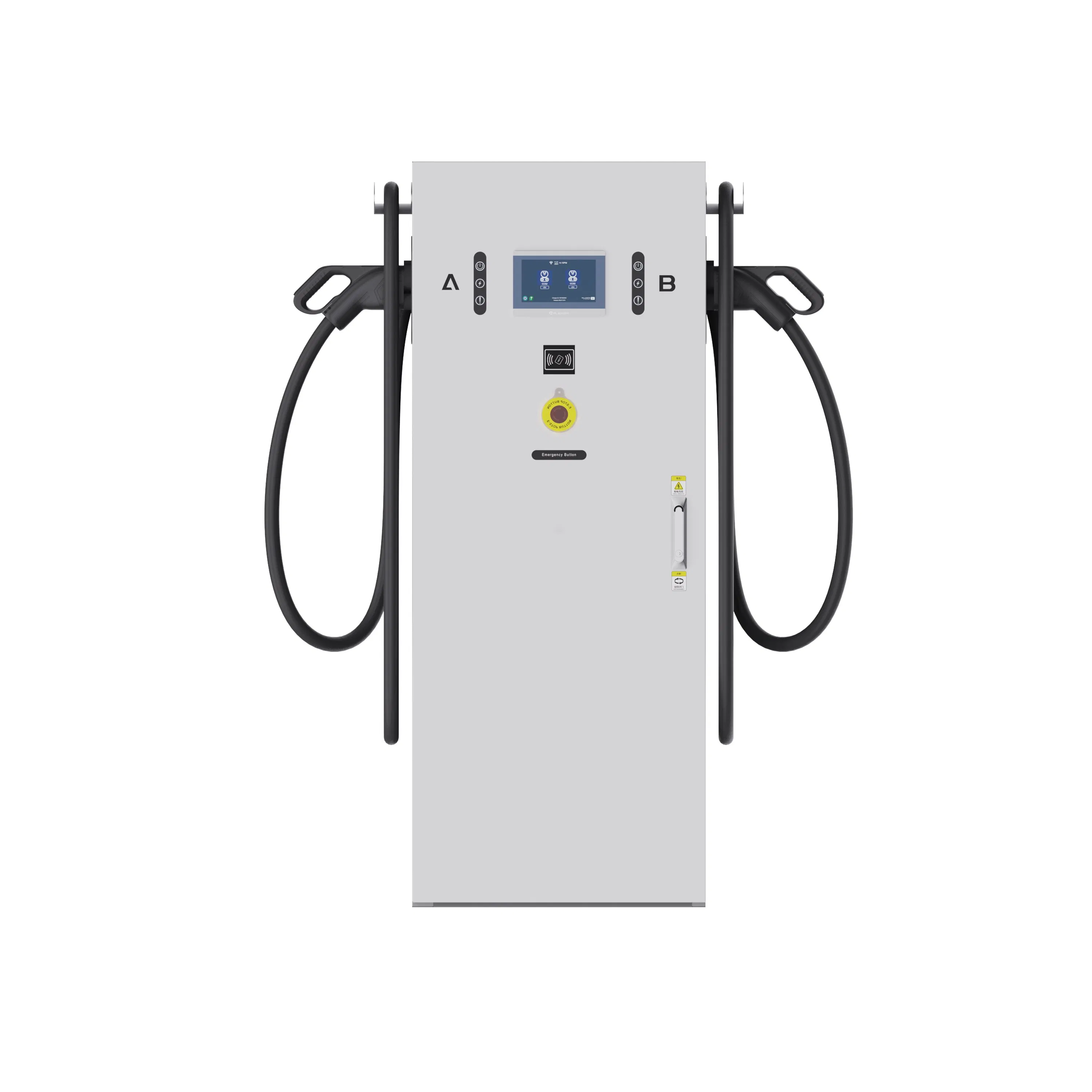

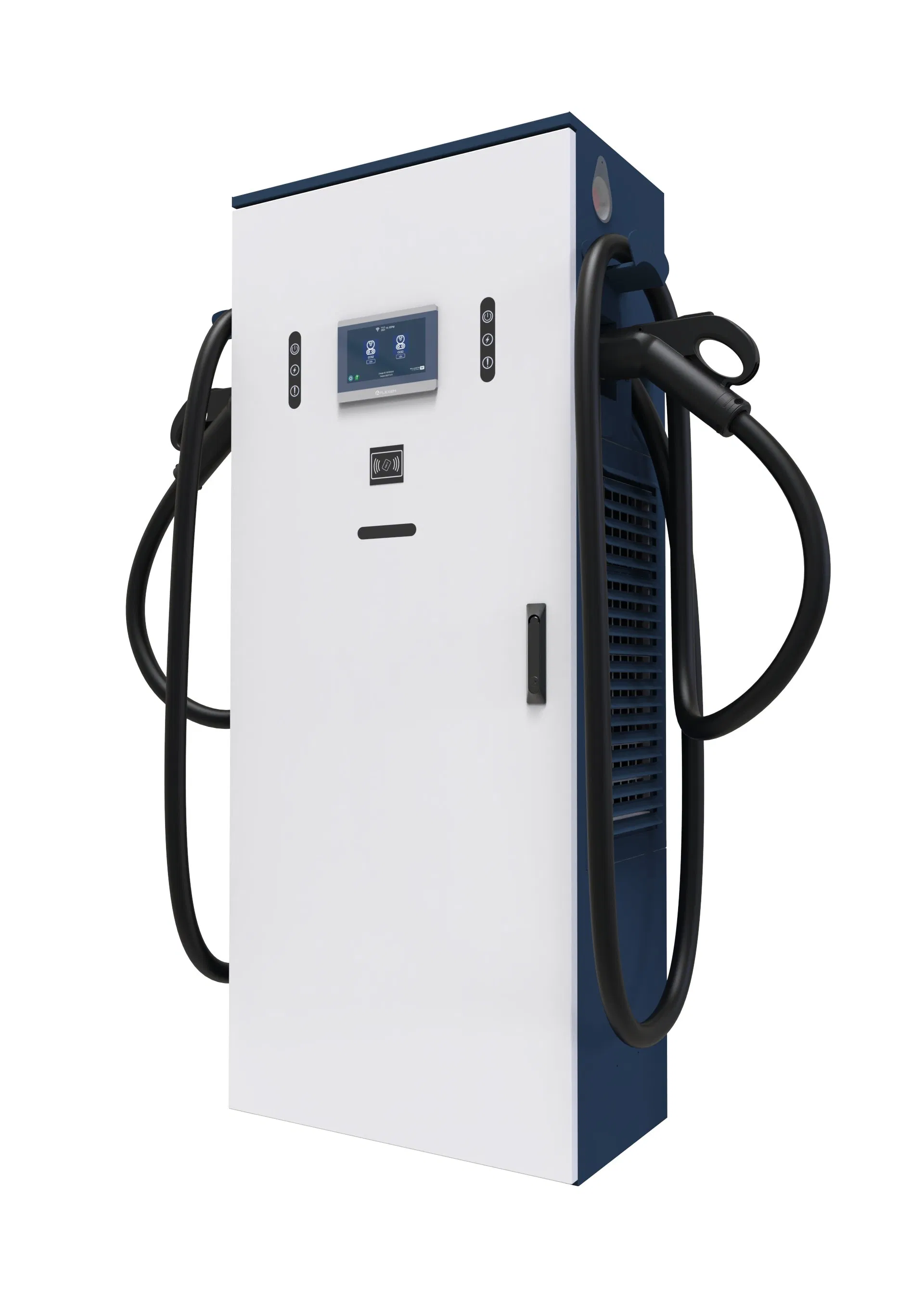

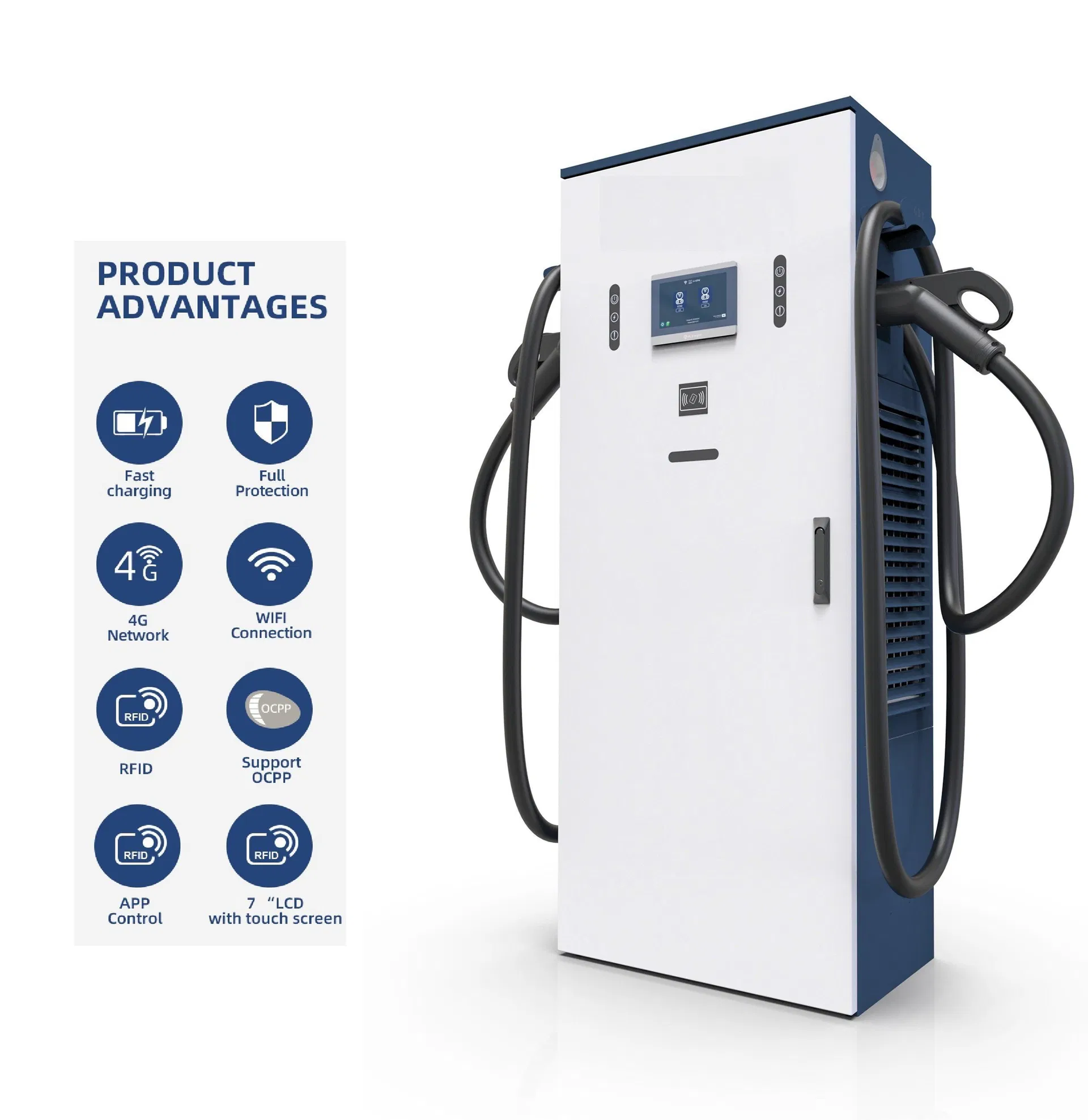

120kW Series DC EV Charger

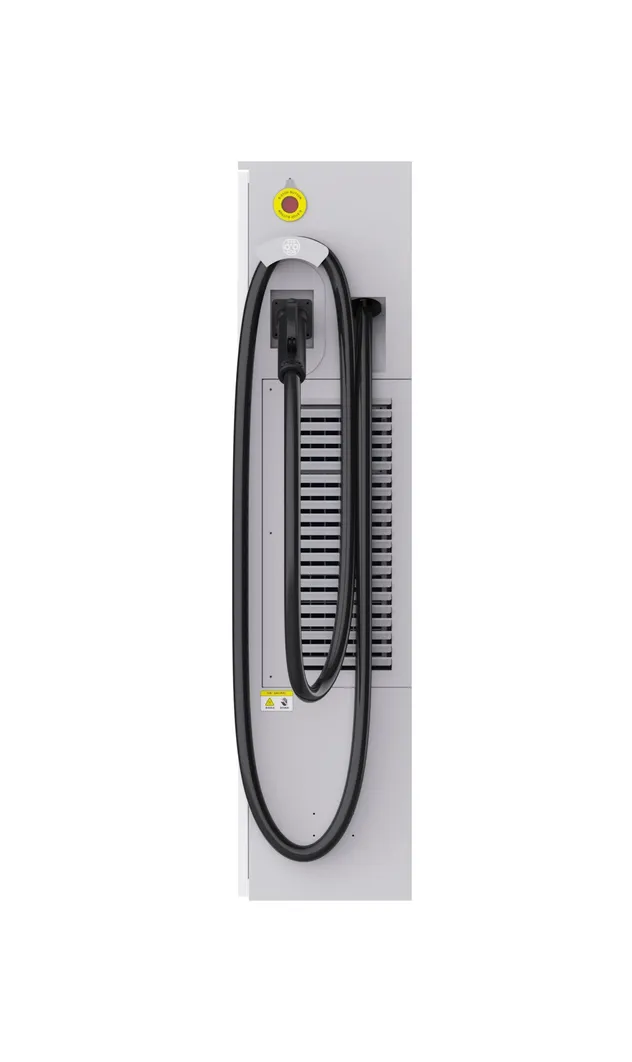

This 120kW series DC EV charger focuses on "small footprint and high adaptability" — its compact cabinet has extremely low requirements for installation sites, making it suitable for towns, narrow spaces, and batch deployment scenarios. It adopts a full front-opening door design, providing ample operating space for maintenance and enhancing post-operation convenience.

In terms of performance, it supports parallel charging and adjustable output power, with a rated power of 120kW and a peak efficiency of over 96%. Equipped with air-cooled heat dissipation, it operates stably in a wide temperature range of -30°C to 75°C. Features include a 7-inch touch screen, built-in RFID reader, and compatibility with the OCPP protocol. With an IP54 protection rating and multiple safety safeguards, it is ideal for both commercial and public charging stations.

⚙️

Technical Specification

Category	Parameter	Value

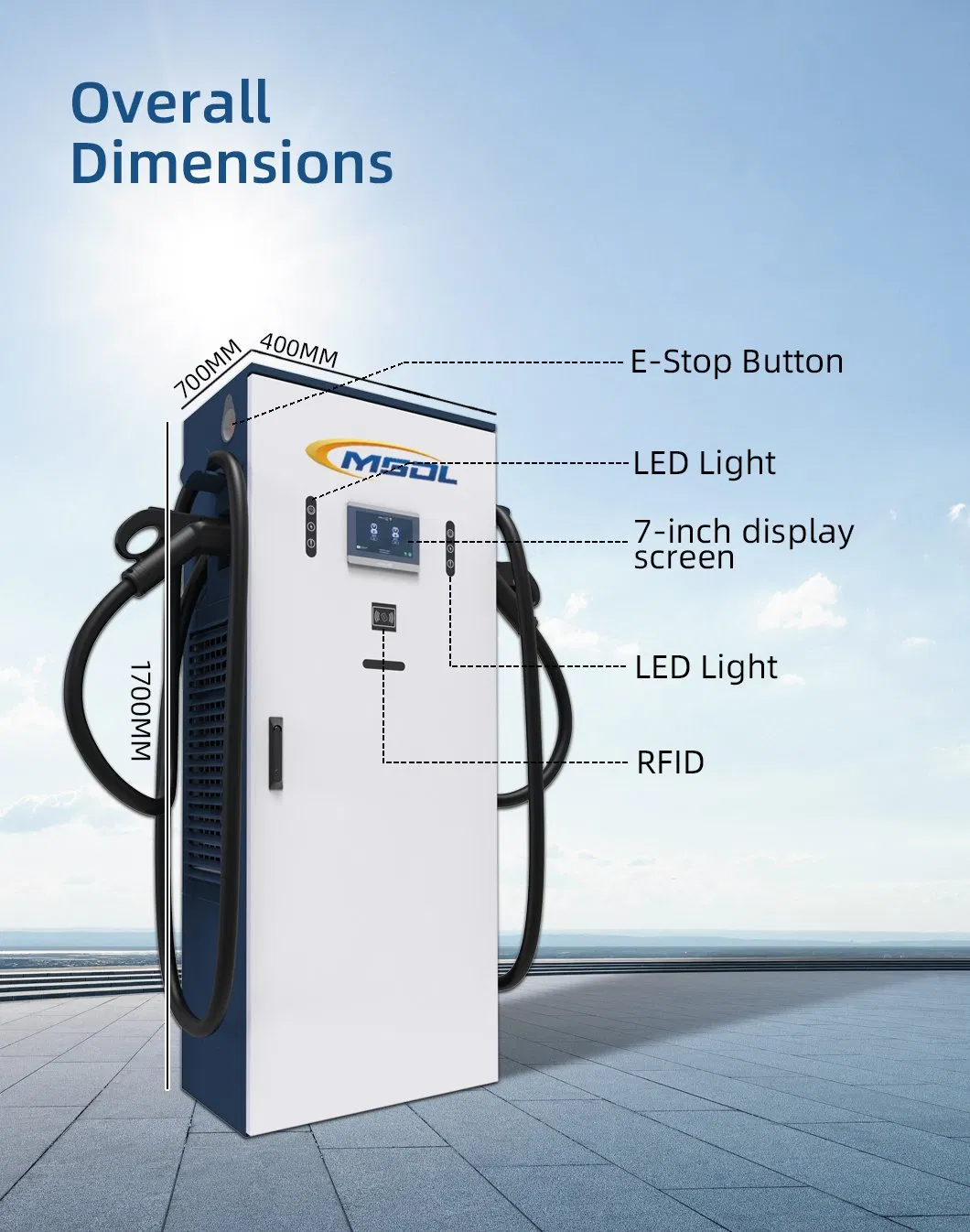

Appearance	Dimensions (L x D x H)	700mm x 400mm x 1700mm
	Weight	250kg
	Cable Length	5m - 7m

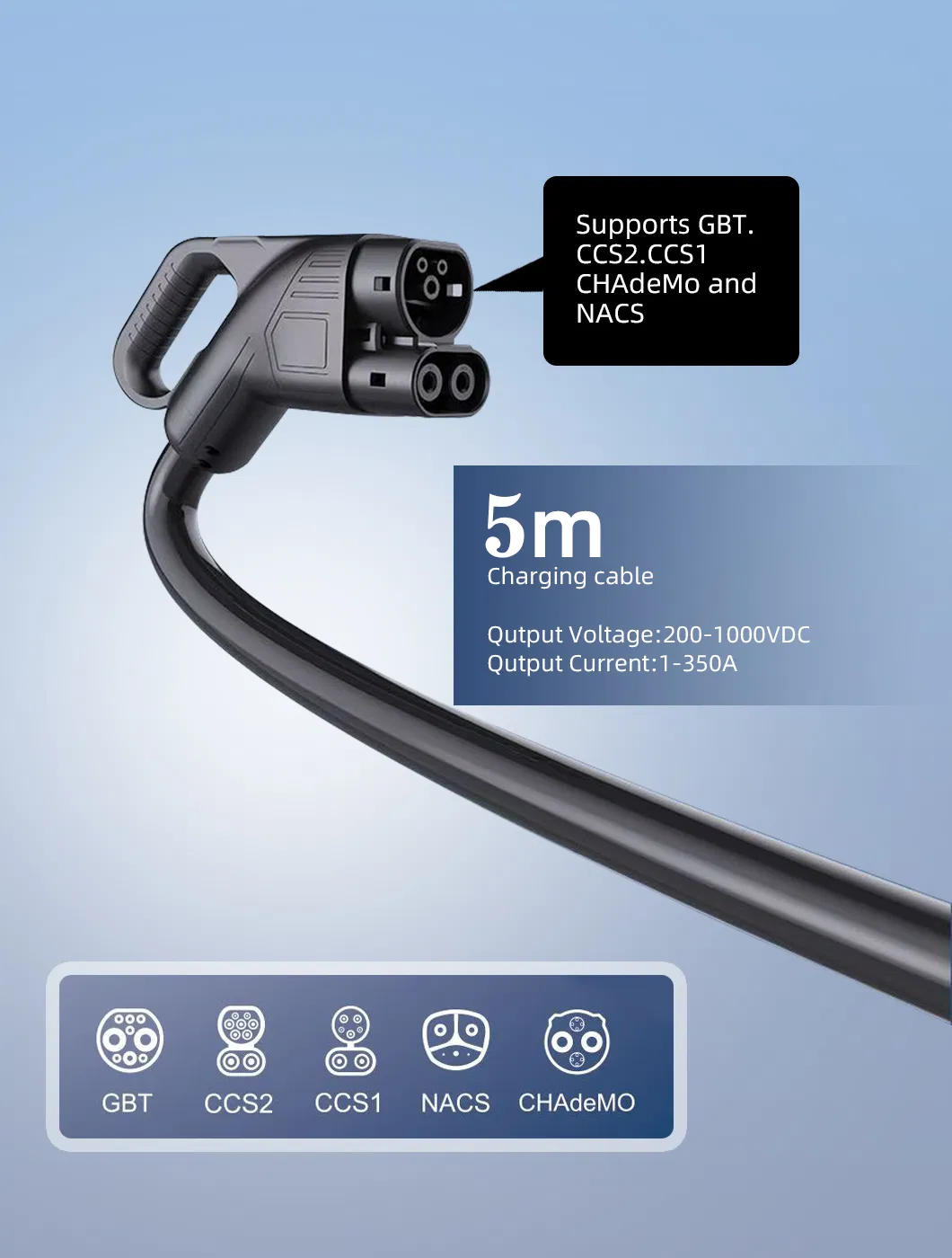

	Connectors	GBT, CCS2, CCS1, CHAdeMO, NACS
Electrical	Input Voltage	400VAC / 480VAC (3P+N+PE)
	Output Voltage	200 - 1000VDC
	Rated Power	40kW - 240kW
	Peak Efficiency	≥96%
	Power Factor	>0.99
Function	Display	7'' LCD Touch Screen
	Communication	OCPP 1.6J, WiFi, Ethernet, 4G
	Access Control	RFID (ISO/IEC 14443A/B), POS Optional

❓

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a professional manufacturer of new and sustainable energy applications with over 8 years of industry experience.

What is the warranty period for the chargers?

We provide a warranty of 12 to 60 months. During this period, we offer technical support and free replacement parts for any manufacturing issues.

How are the products packaged for shipping?

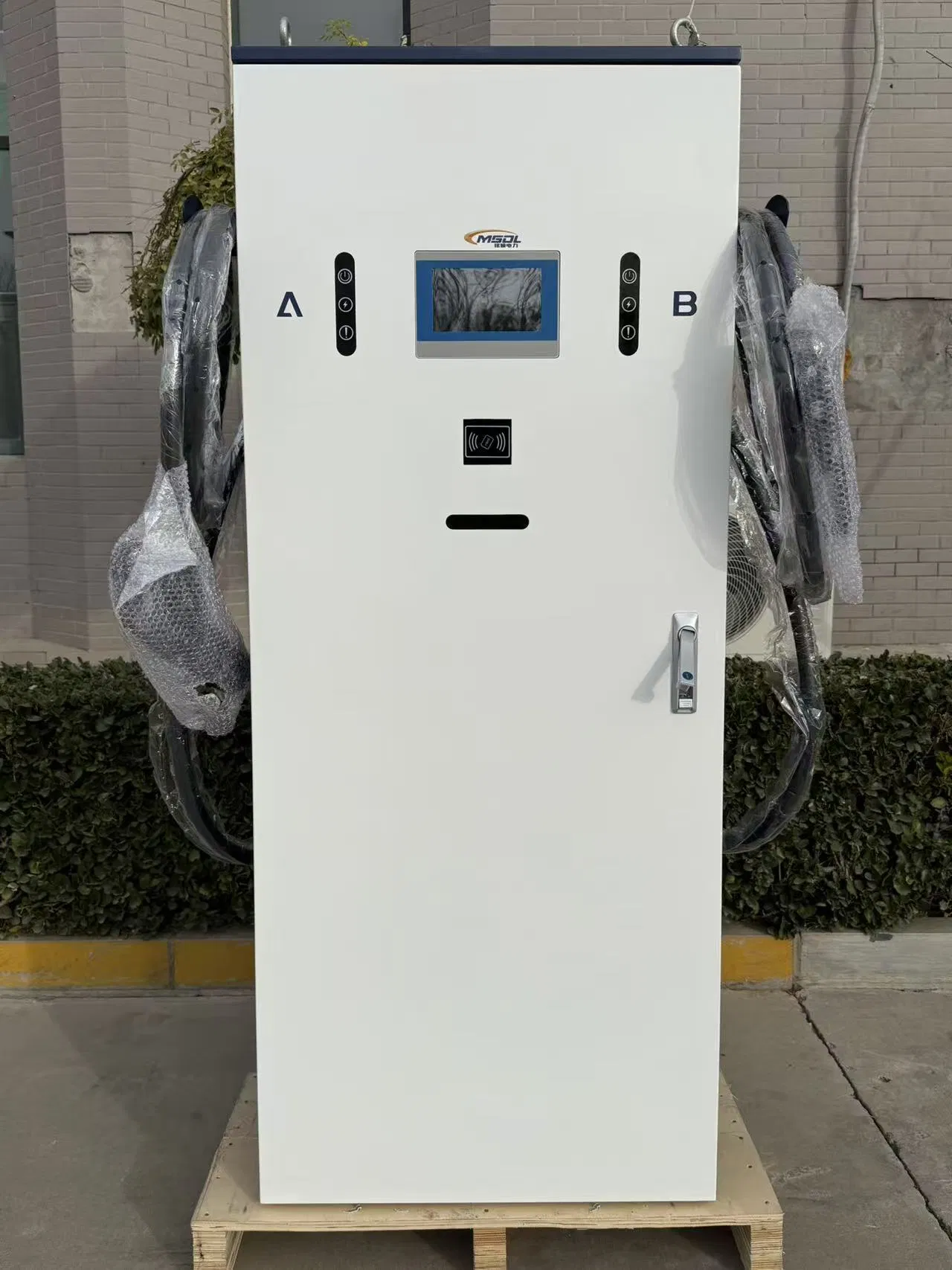

Our products are packed using standard wooden boxes or reinforced cartons to ensure safety during international transit.

What is the typical delivery time?

Generally, it takes 5 to 25 working days after receiving the advance payment, depending on the order quantity and specific item configuration.

Do you test the goods before delivery?

Yes, we conduct 100% rigorous testing on all our goods before they leave the factory to ensure optimal performance and safety.

What is the difference between a Movable Charger and a Wallbox?

Movable chargers are designed for flexibility and mobility (temporary power top-ups), while Wallbox chargers are fixed installations mounted on walls or pillars for permanent use.
