60-80kw Charging Station DC EV Charger for DC Charging Evs RFID Access Control
Product Description
Model NO.
MS08A-05
Rated Power
60-80kw
Output Voltage
200 - 1000VDC
Input Voltage
400VAC / 480VAC (3p+N+PE)
Connectors

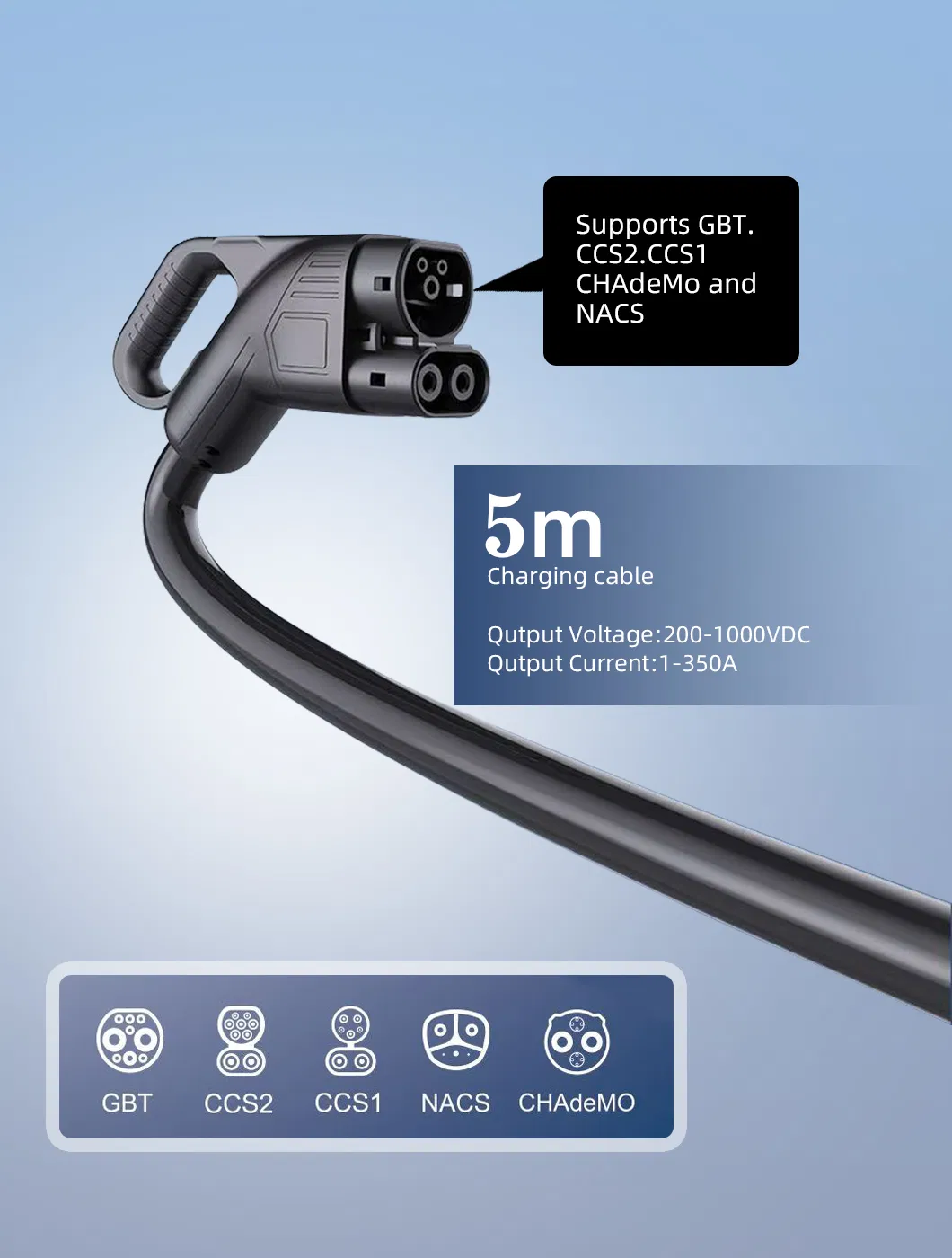

Gbt, CCS2, CCS1, Chademo, Nacs
Dimensions
600mm X 700mm X 1870mm
Weight
200kg
Ingress Protection
IP54 Ik10
Start Mode
RFID, Credit Card, Mobile Remote
Cooling
Air Cooled

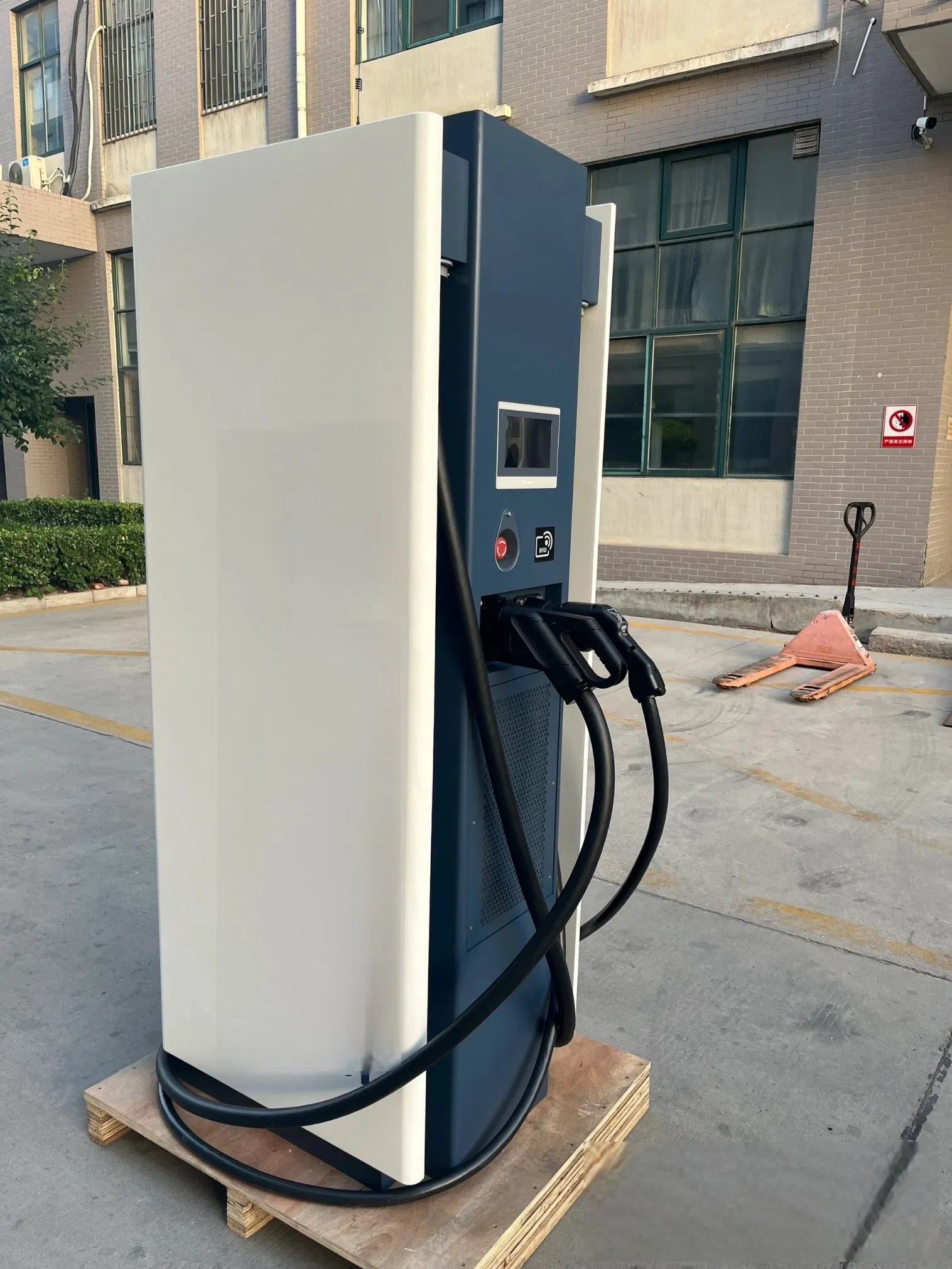

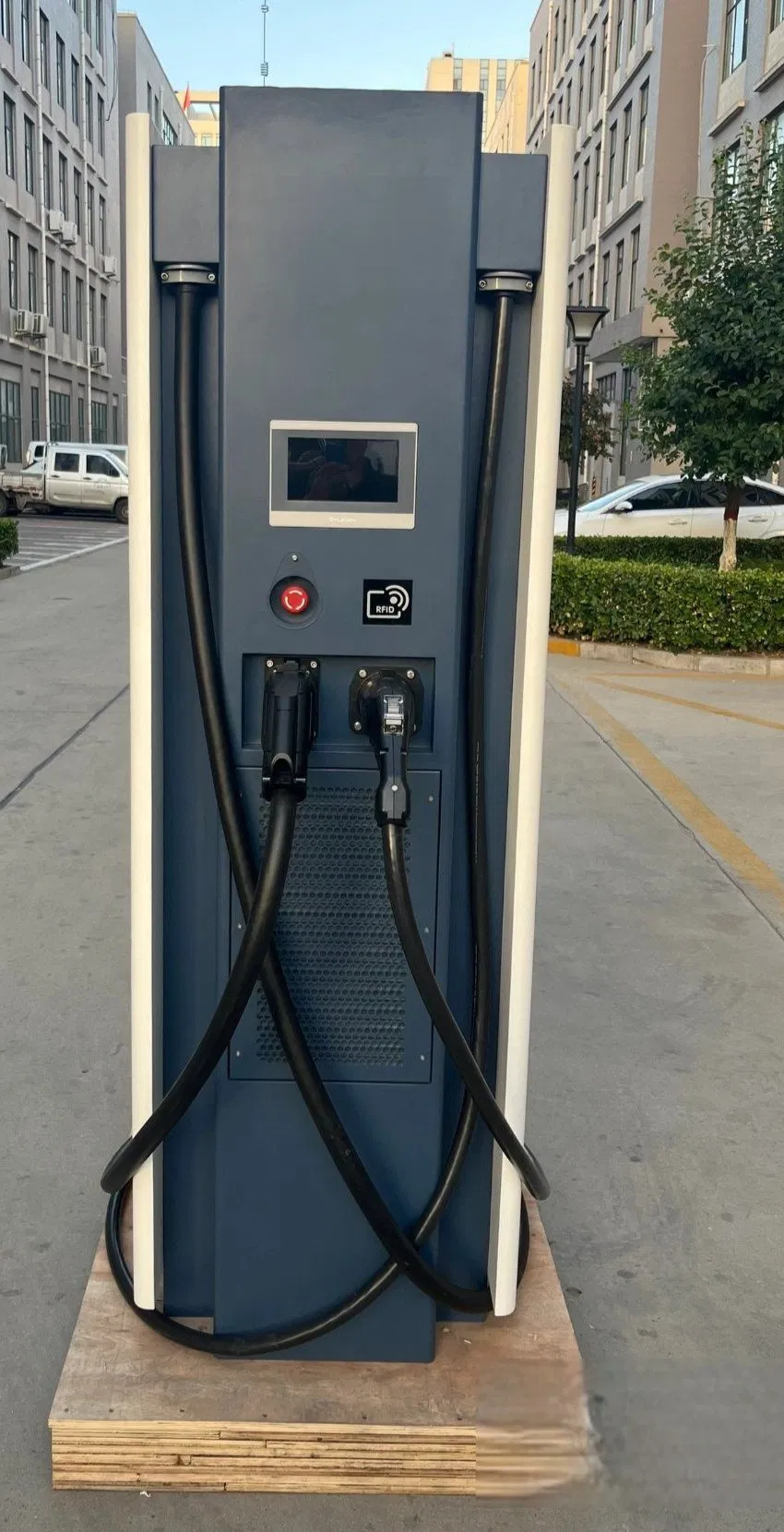

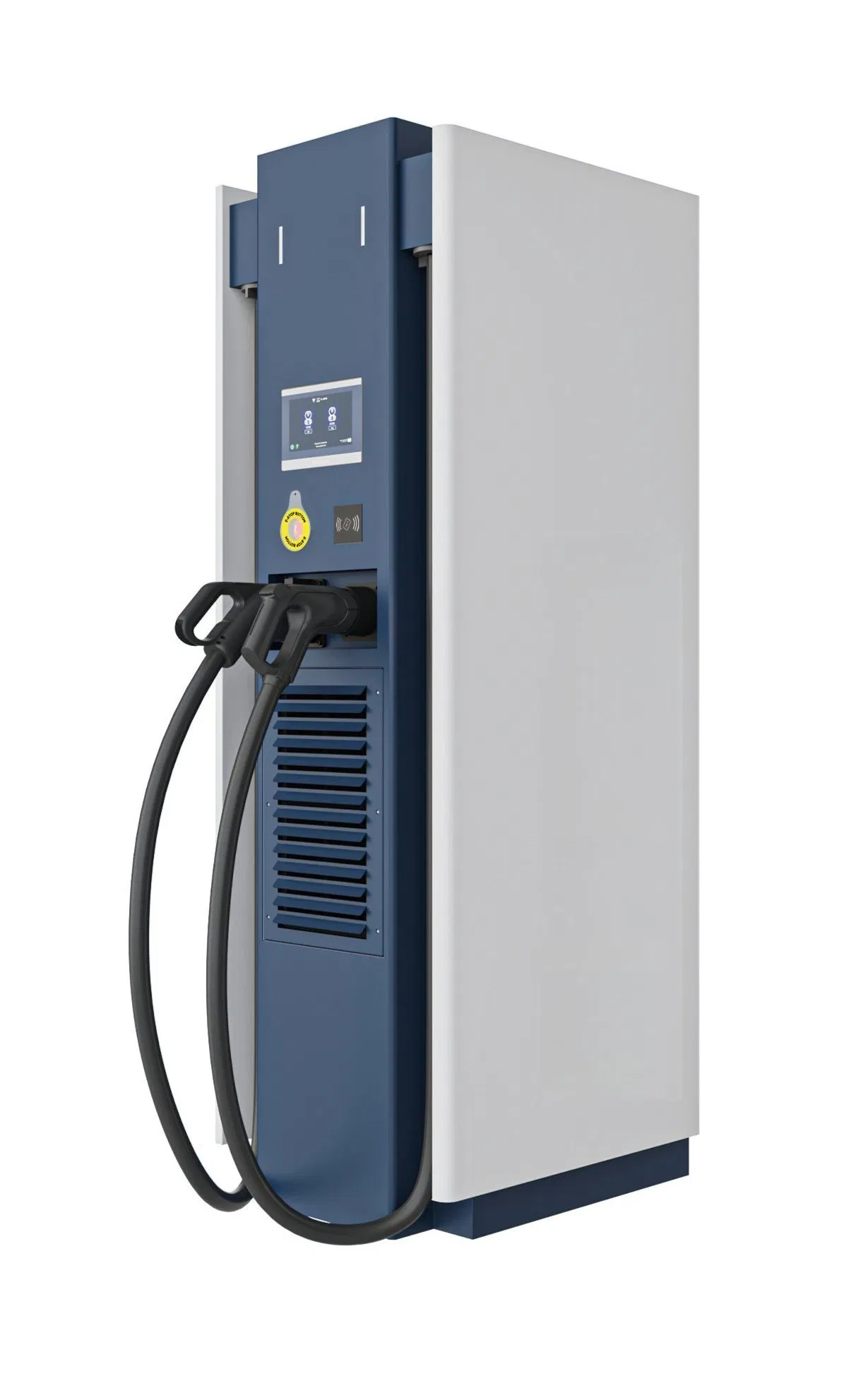

60-80kW Series DC EV Charger

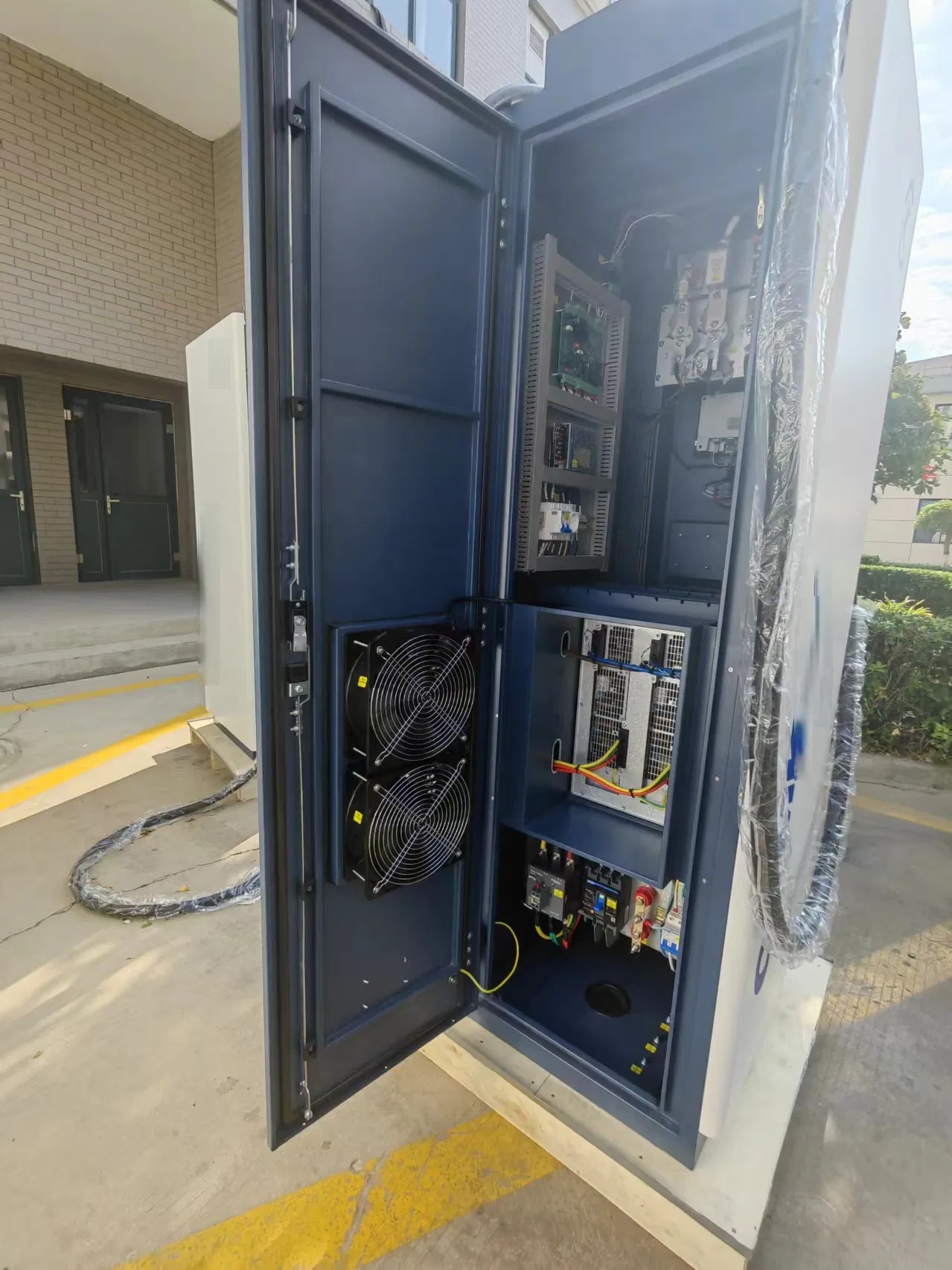

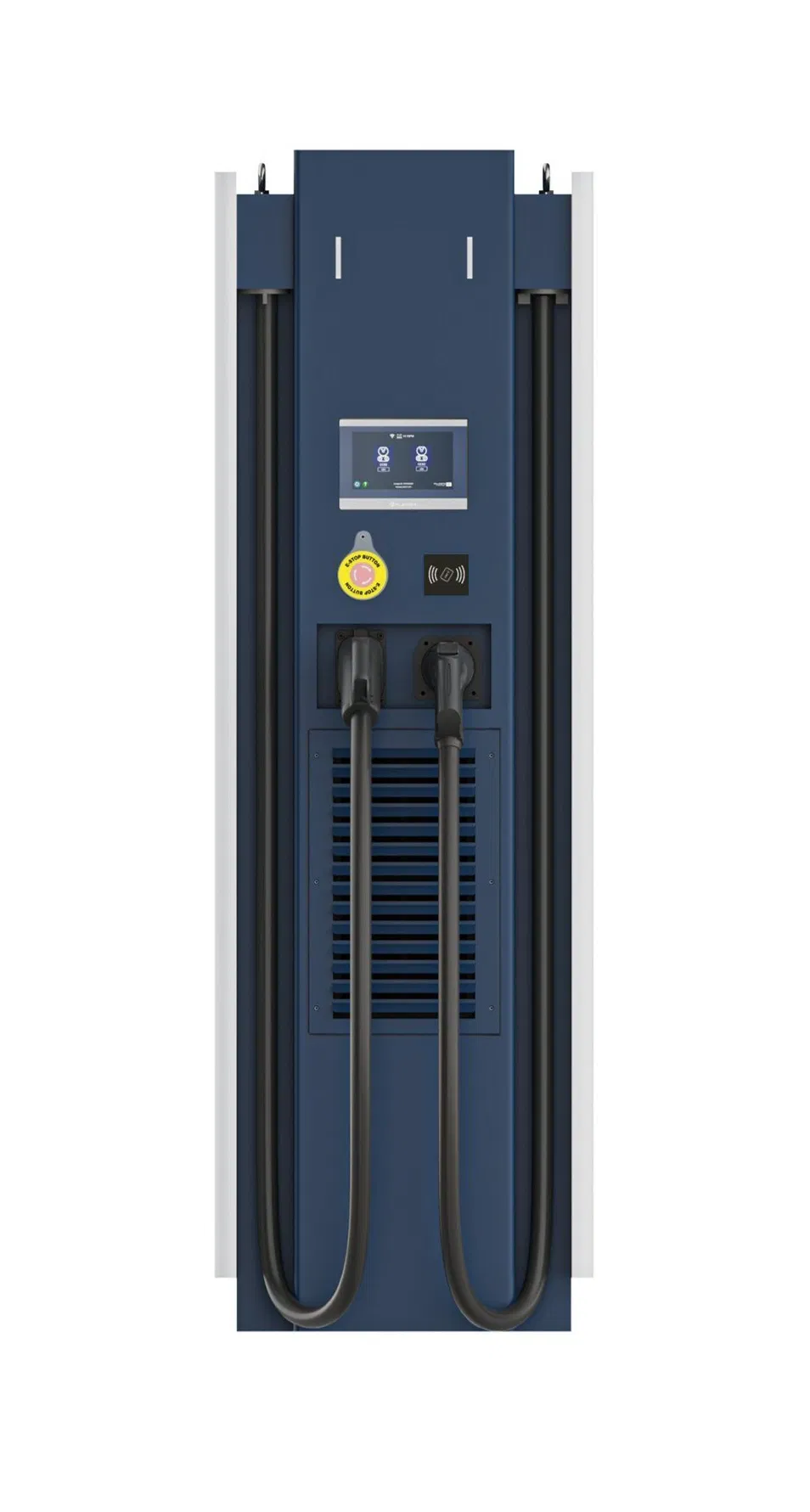

This series DC EV charger features a tech-savvy and stylish cabinet design, balancing aesthetics and practicality. The charging gun cable can be semi-stored in the cabinet's groove, while the protective panels enhance durability and texture. Designed with a front-opening door structure, it allows for flexible deployment in space-constrained environments.

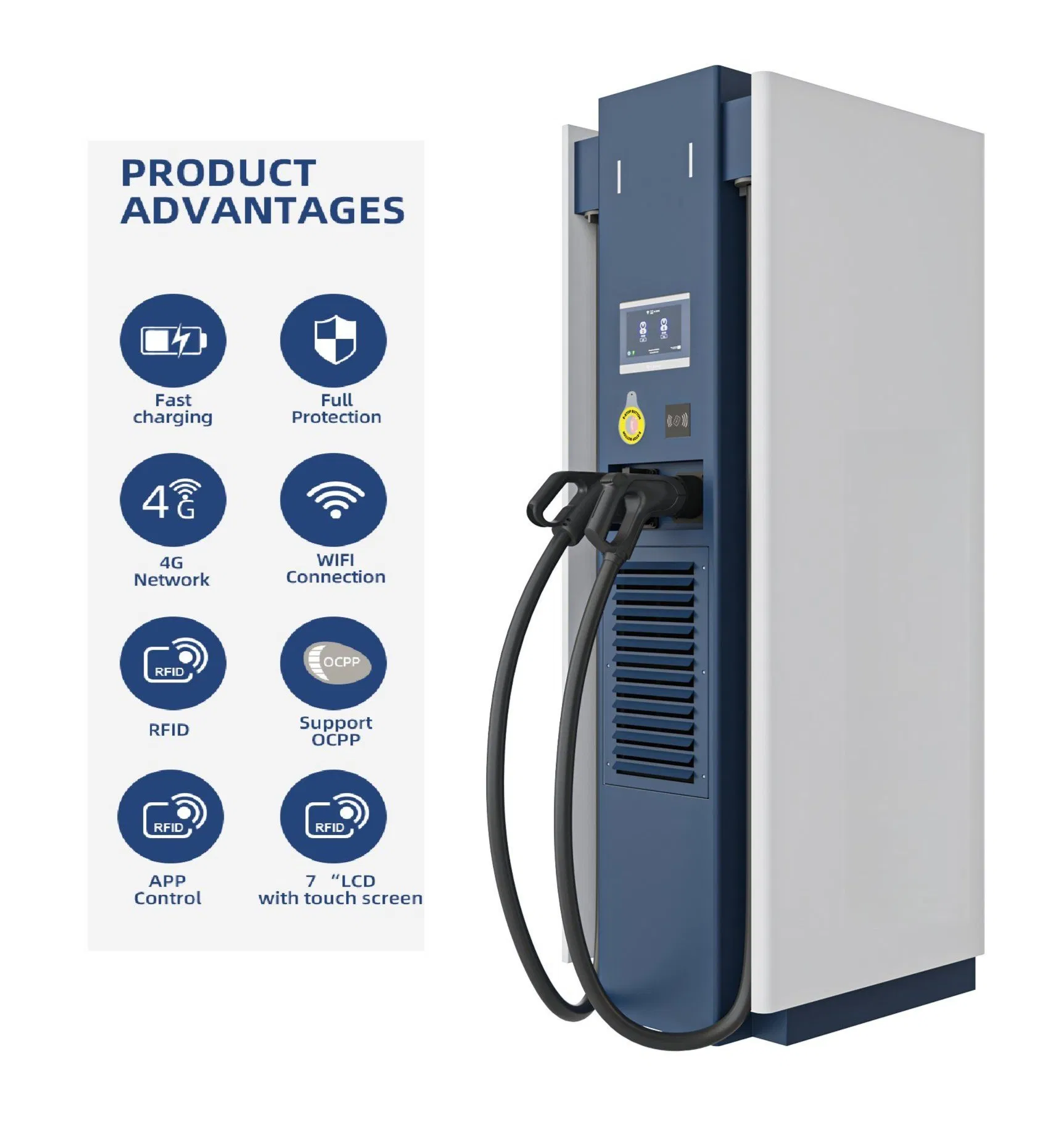

High Efficiency: Peak efficiency ≥96% with adjustable power options.
Wide Range: Output voltage 200-1000VDC for various vehicle types.
Smart Control: 7-inch touch screen with OCPP protocol compatibility.
| Structure | Dimensions (L x D x H) | 600mm x 700mm x 1870mm |
| Weight | 200kg | |
| Cable Length | 5m | |
| Connectors | GBT, CCS2, CCS1, CHAdeMO, NACS | |
| Electrical | Input Voltage | 400VAC / 480VAC (3P+N+PE) |
| Output Voltage | 200 - 1000VDC | |
| Efficiency | Peak efficiency ≥96% | |
| Power Factor | >0.99 | |
| Environment | Operating Temp | -30°C to 75°C |
| Altitude | < 2000m | |
| Protection | IP54 || IK10 |
What is the standard warranty for the chargers?
We offer a warranty period of 12-60 months. During this time, we provide technical support and free replacement of parts for any quality-related issues.
What are the delivery terms and timelines?
Generally, production takes 5 to 25 working days after receiving the advance payment. Specific delivery times depend on the order quantity and items. We support EXW, FOB, CIF, DDU, and DDP terms.
Do you test all products before shipping?
Yes, we conduct 100% testing on all goods before delivery to ensure performance and safety standards are met.
What is the difference between a Movable Charger and a Wallbox?
The main difference is application. Movable chargers are portable for flexible power top-ups anywhere, while wall-mounted chargers are fixed to structures for permanent charging spots.
What is the range of power output you can provide?
We can produce a wide range of charging solutions from 20kW up to 1.5MW systems.
What payment methods do you accept?
Our standard terms are T/T 30%-50% as a deposit, with the remaining 50% balance due before delivery. Photos of products and packaging are provided before final payment.
