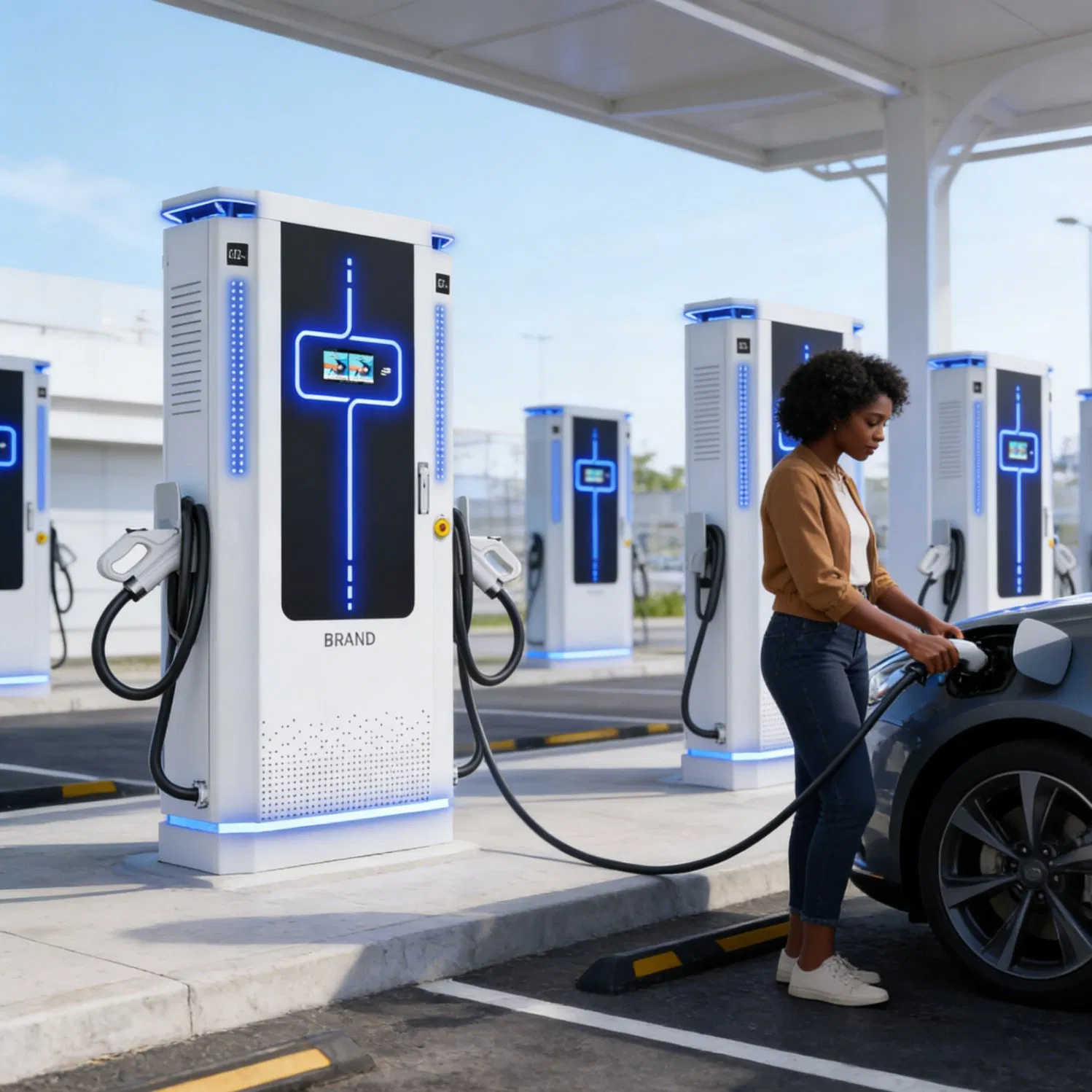

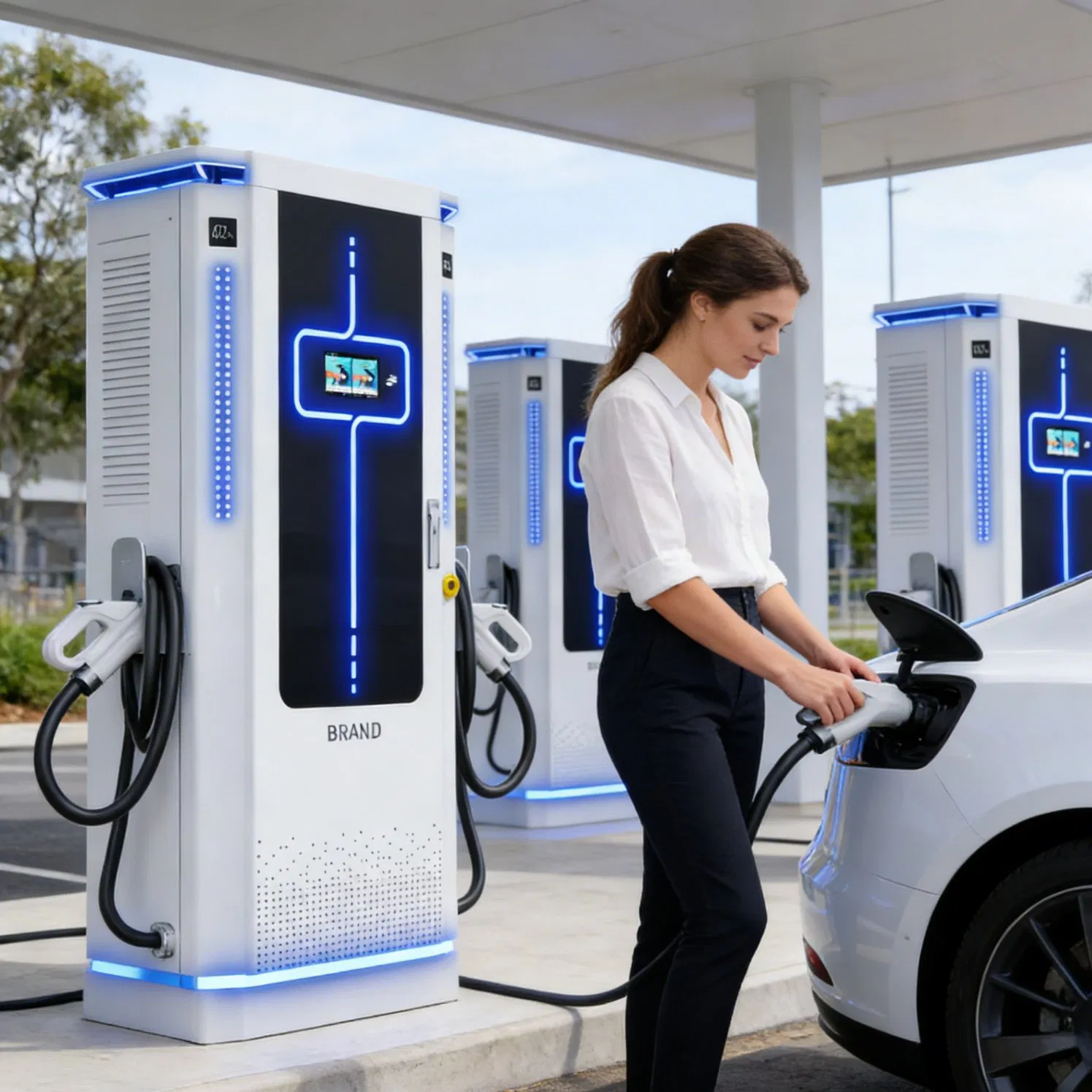

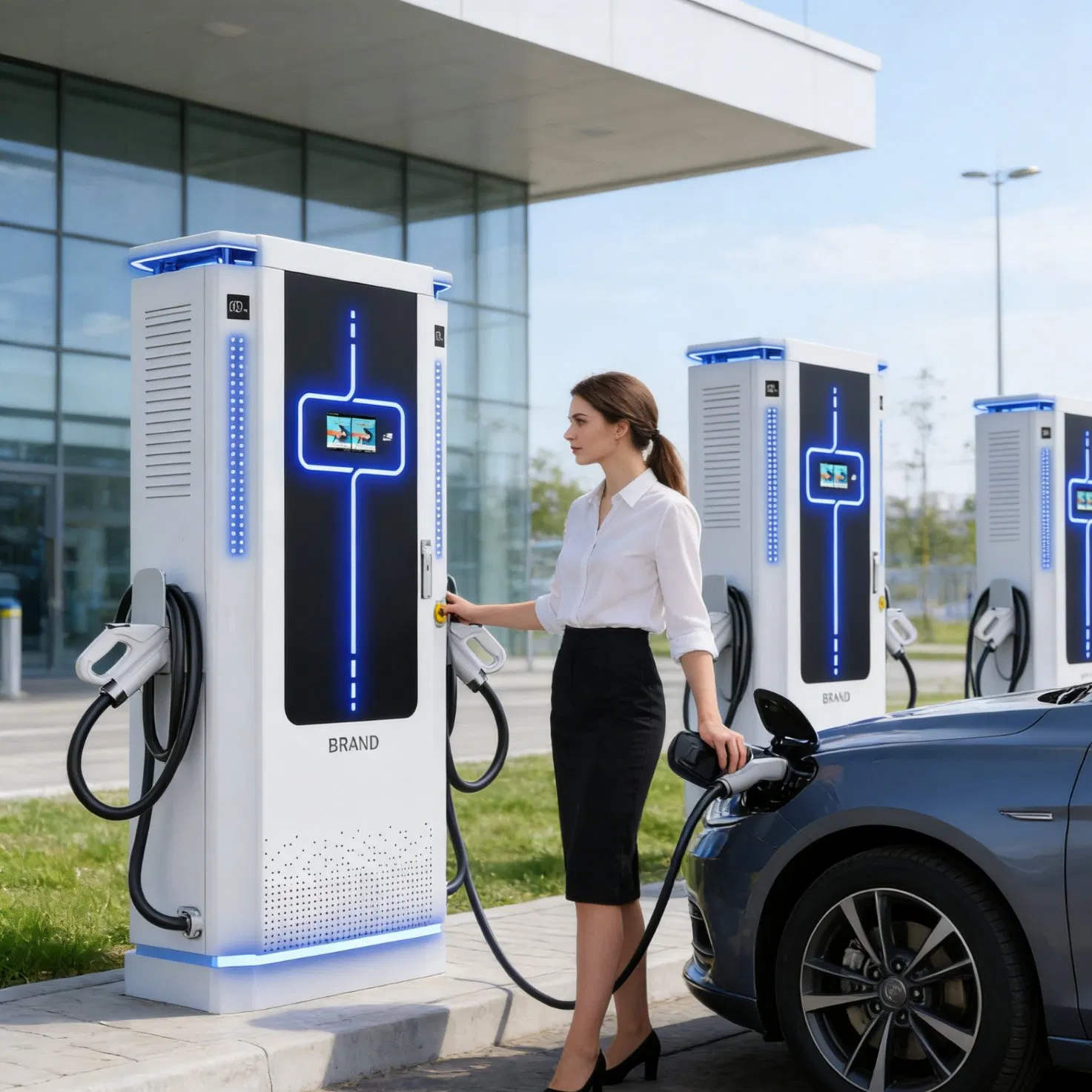

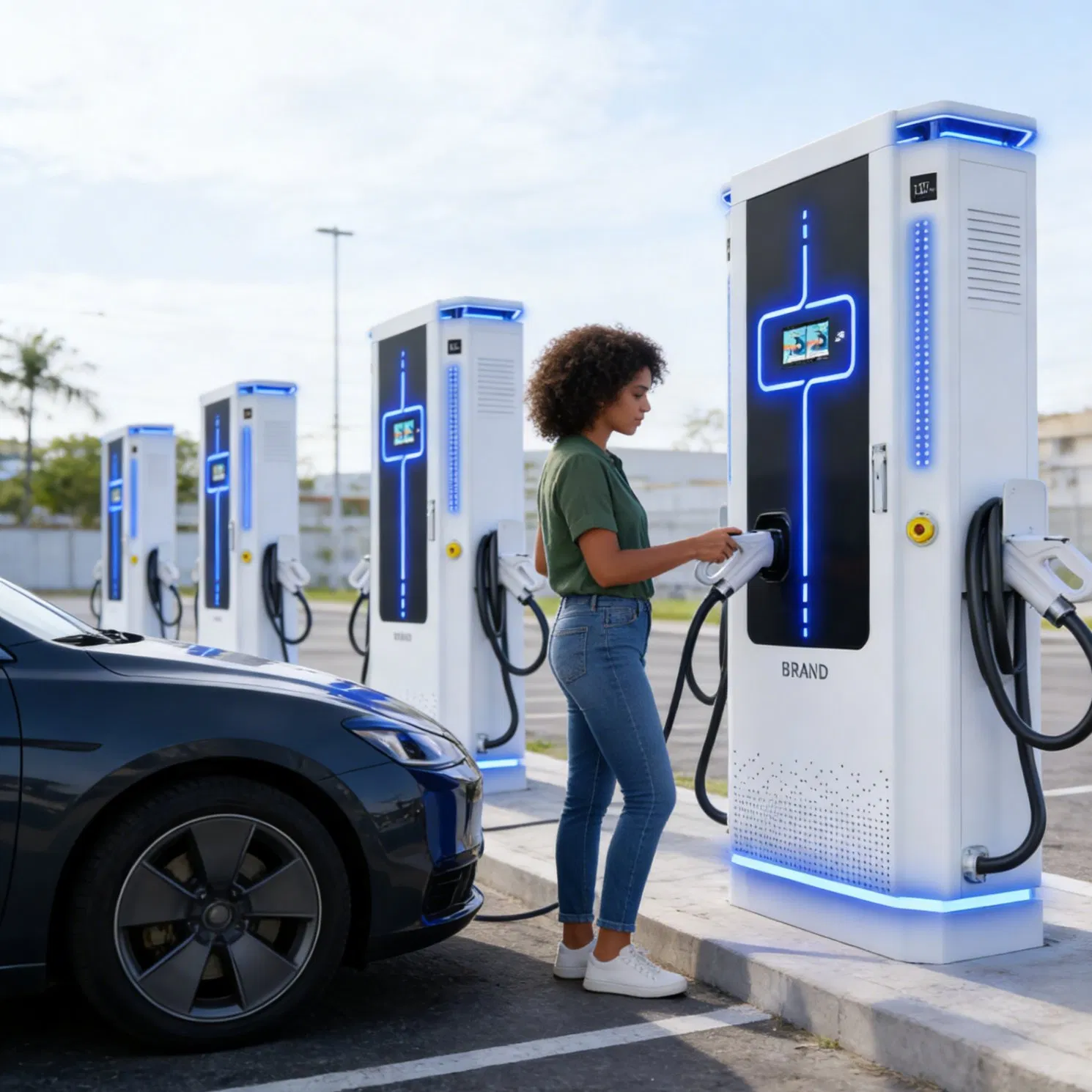

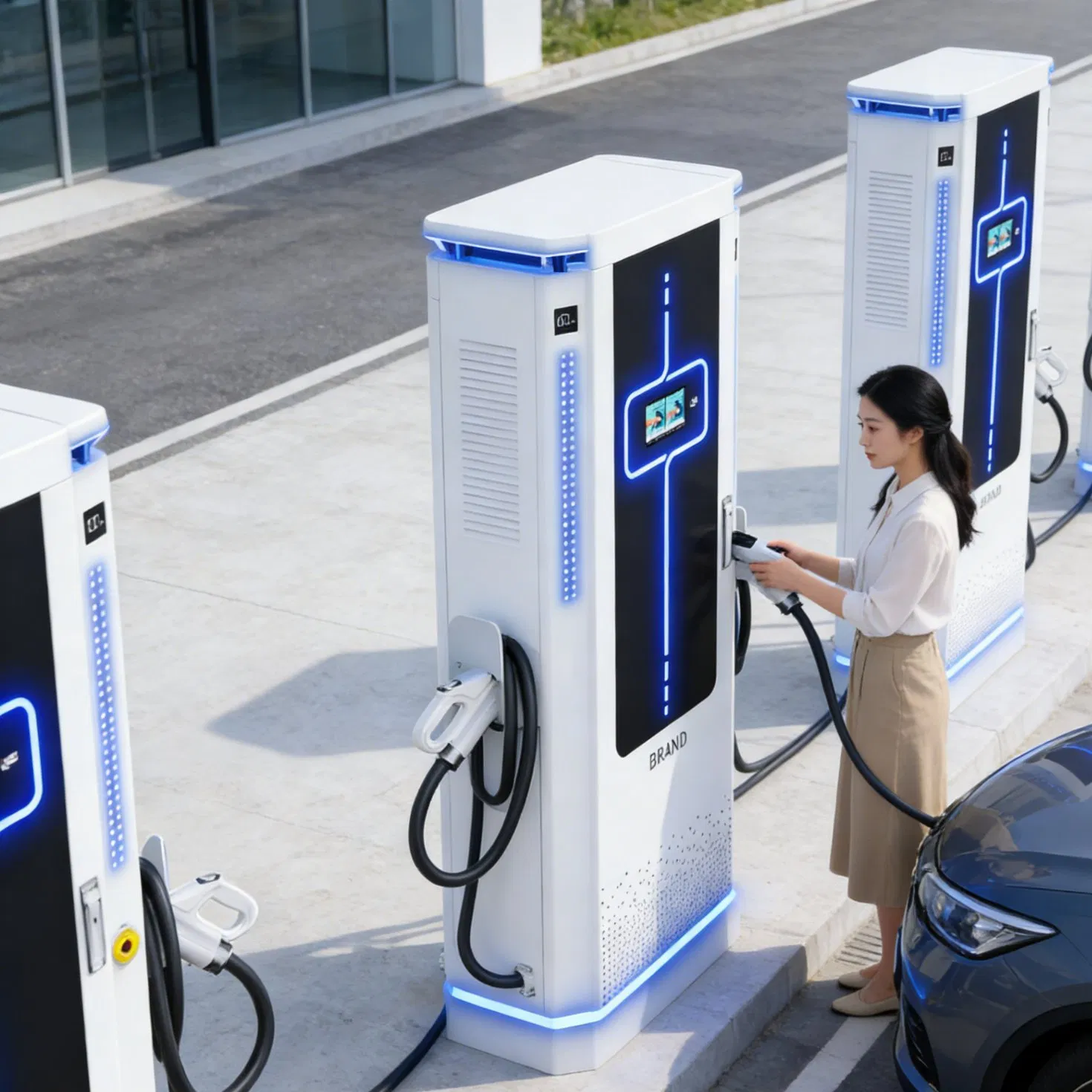

Italian Ztl Zone 80kw DC EV Charger for Historic Centers with Limited Access Control
Product Description
i
Basic Information
Model NO.
60KW-600KW
Location
Public Use
Charging Interfaces
One Pile with Multiple Charges
Start Mode
RFID, Credit Card, Mobile App
Rated Power
40kw to 600kw
Weight
194kg-274kg
Protection Level
IP54
Origin
China
✔
Product Description

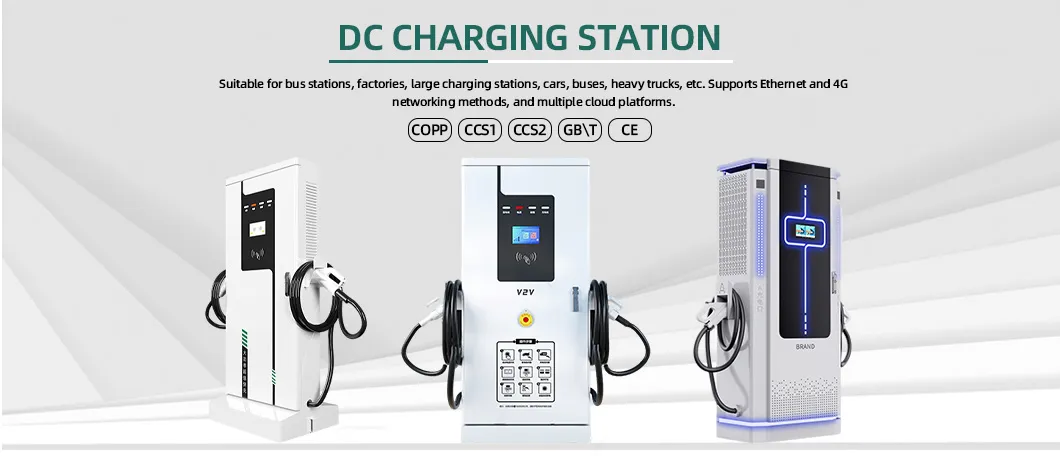

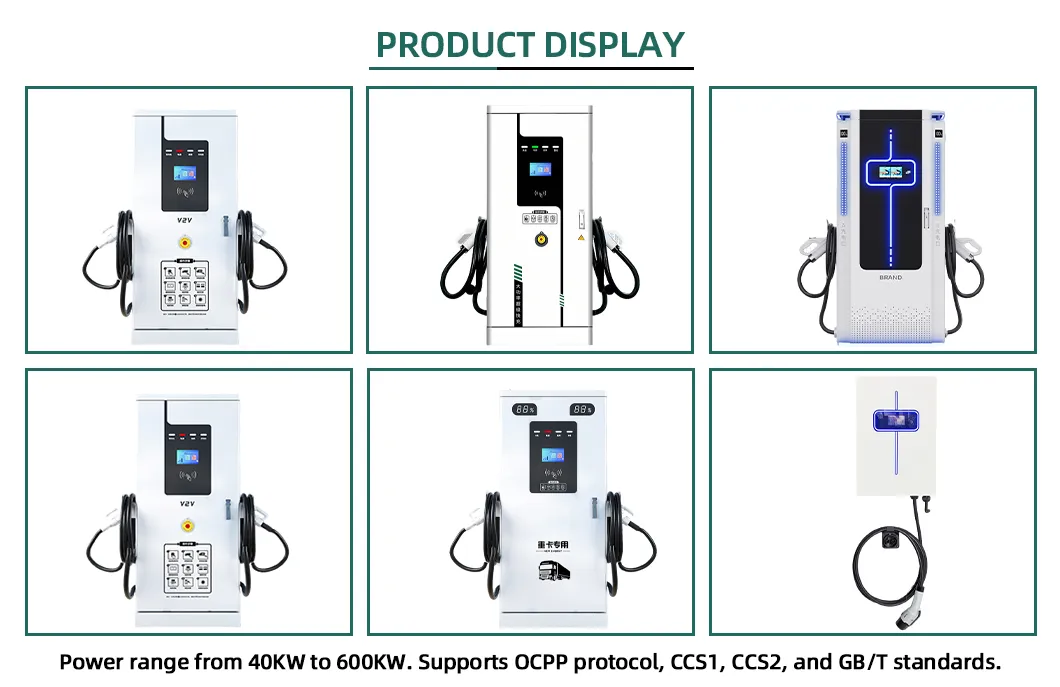

Power range from 40KW to 600KW. Supports OCPP protocol, CCS1, CCS2, and GB/T standards. Features IP54 waterproof rating, with a continuous adjustable voltage range of 50-1000V. Constant power voltage range is 200-1000V. Supports simultaneous charging with two guns. Suitable for bus stations, factories, large charging stations, cars, buses, heavy trucks, etc. Supports Ethernet and 4G networking methods, and multiple cloud platforms. Includes gun temperature monitoring, short circuit, over-temperature, over-current, leakage, over/under-voltage protection, and lightning protection.
⚙

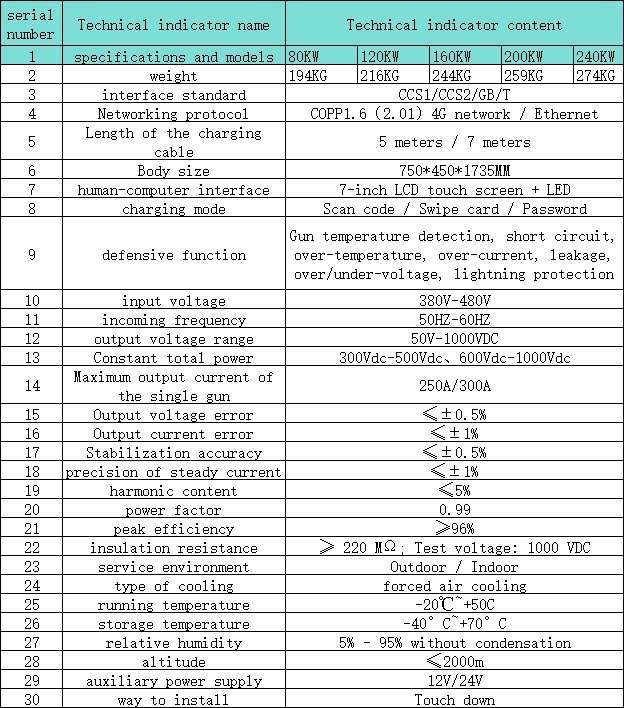

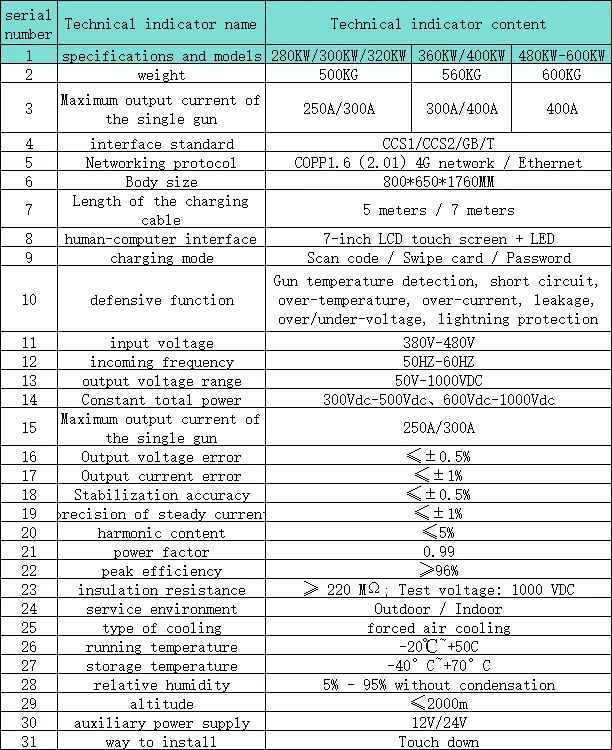

Technical Specification
| Product Model | 40KW-600KW | Dimension | 750x410x1700(mm) |
| Rated Power | 40KW-600KW | Weight | 194KG-274KG |
| Design Standard | CCS1, CCS2, GB/T | Cable Length | 5 meters |
| Charging Mode | Scan code, RFID, VIN, Password | HMI | 7-inch Touch Screen + LED |
| Connectivity | 4G / Ethernet | Cloud Platform | OCPP 1.6 / 2.0.1 |
▶
Video Showcase
★
Company Profile
We are an AAA-rated credit enterprise, holding ISO400, ISO900, ISO1400, ISO500, and ISO certifications. We possess numerous software copyrights and third-party inspection reports for our equipment. Our team actively participates in international exhibitions and maintains partnerships with renowned global enterprises.
✈
Packaging & Shipping
We adopt robust packaging methods to protect equipment for sea, air, and land transportation.
?
Frequently Asked Questions
Q1: Are you a factory or a trading company?
A: We are a manufacturer, and you are welcome to visit our factory at any time!
Q2: What products can you provide?
A: We offer a range of wallbox/portable AC EV chargers (3.5kw-44kw), floor-mounted fast DC charging stations (30kw-480kw), mobile chargers with energy storage, and solar system products.
Q3: Can you put our logo on the products?
A: Yes, we provide OEM services to include your design and logo on our products.
Q4: What are your terms of trade?
A: We support multiple trade terms including EXW, CFR, CIF, FOB, DDP, and DDU.
Q5: How about your delivery time?
A: Generally, it takes 7 to 35 days after receiving your advance payment, depending on the item and quantity ordered.
Q6: Do you test all goods before delivery?
A: Yes, we conduct a comprehensive final inspection of all goods before they are shipped to ensure quality.
