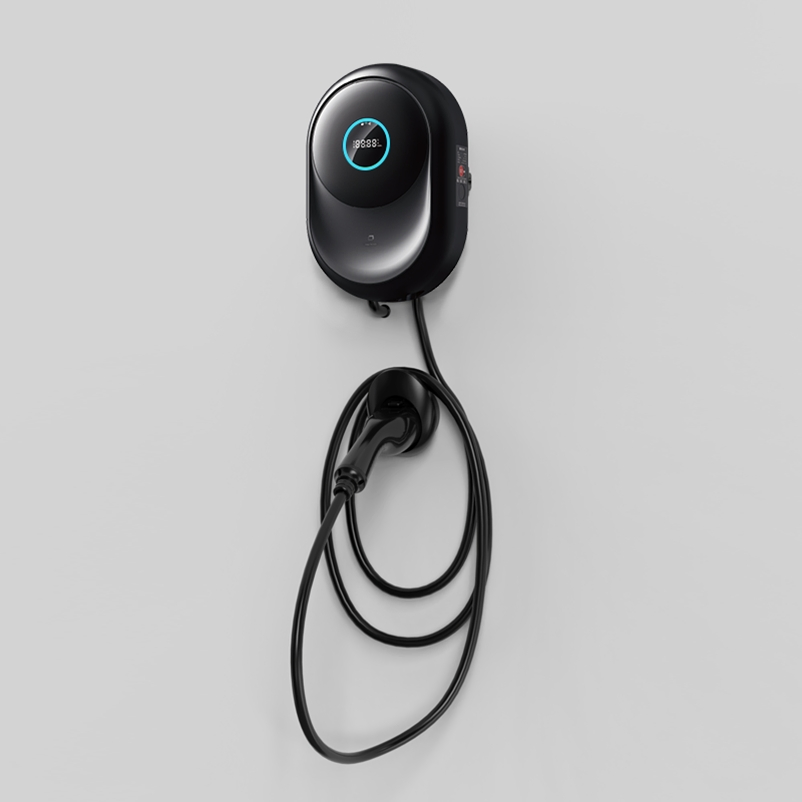

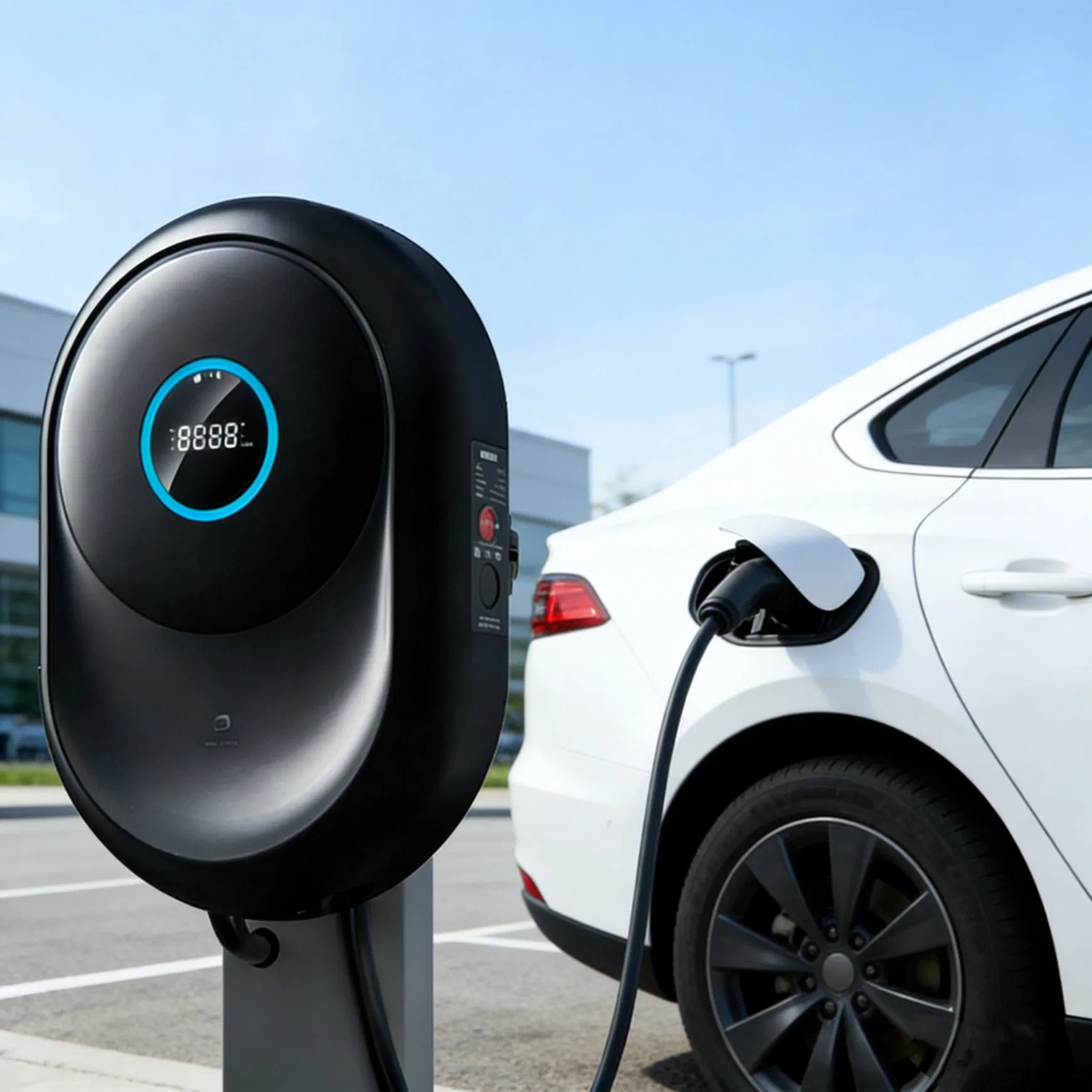

Does This Electric Vehicle Charger Installation Fit 32A Type 1 Chargers with RFID Access Control?
Product Description

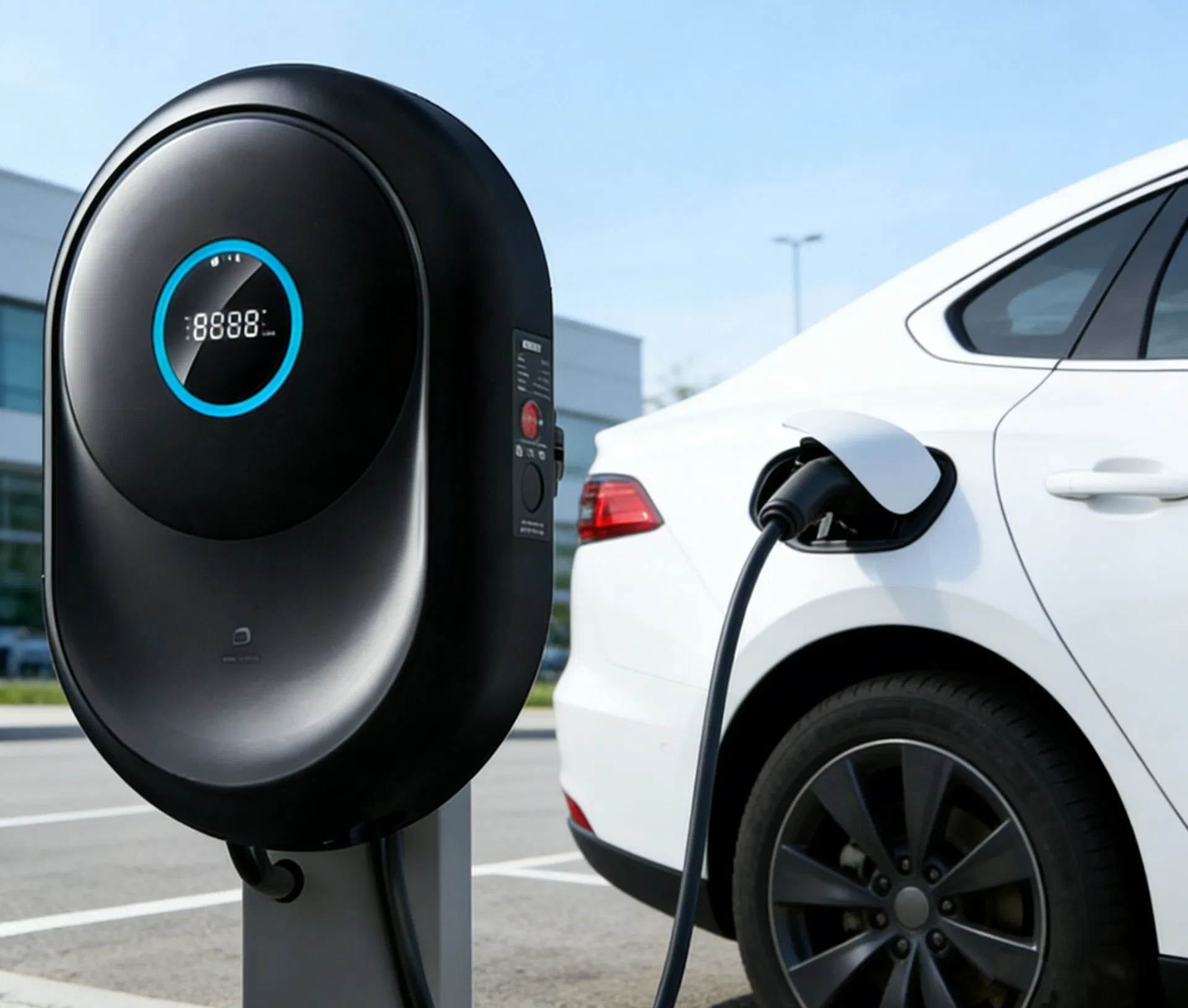

Model
ZD06
Interfaces
One Pile with One Charge

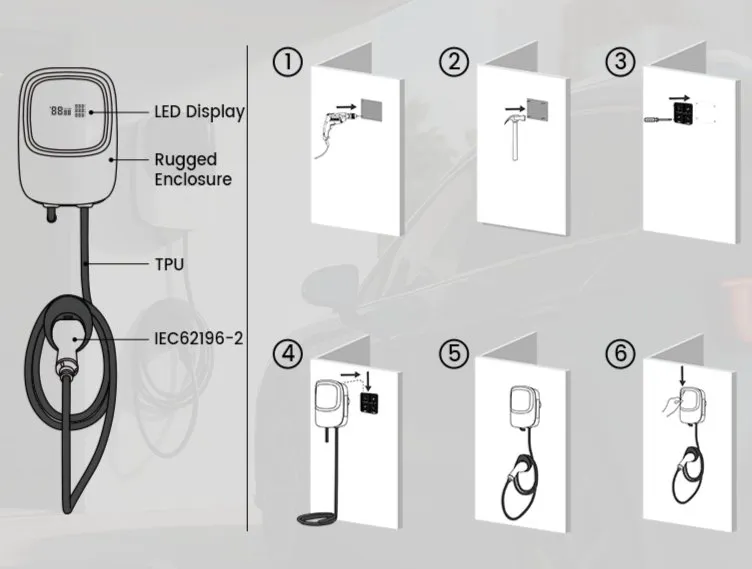

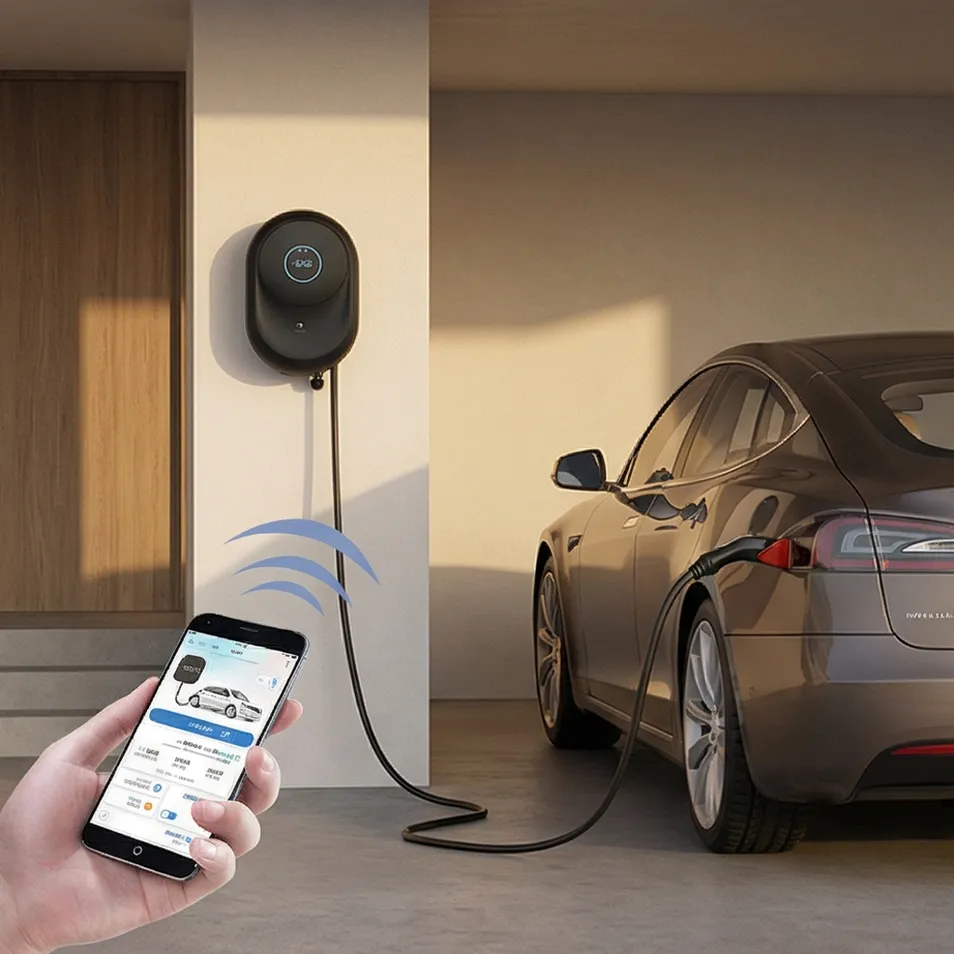

Installation
Wall Mounted

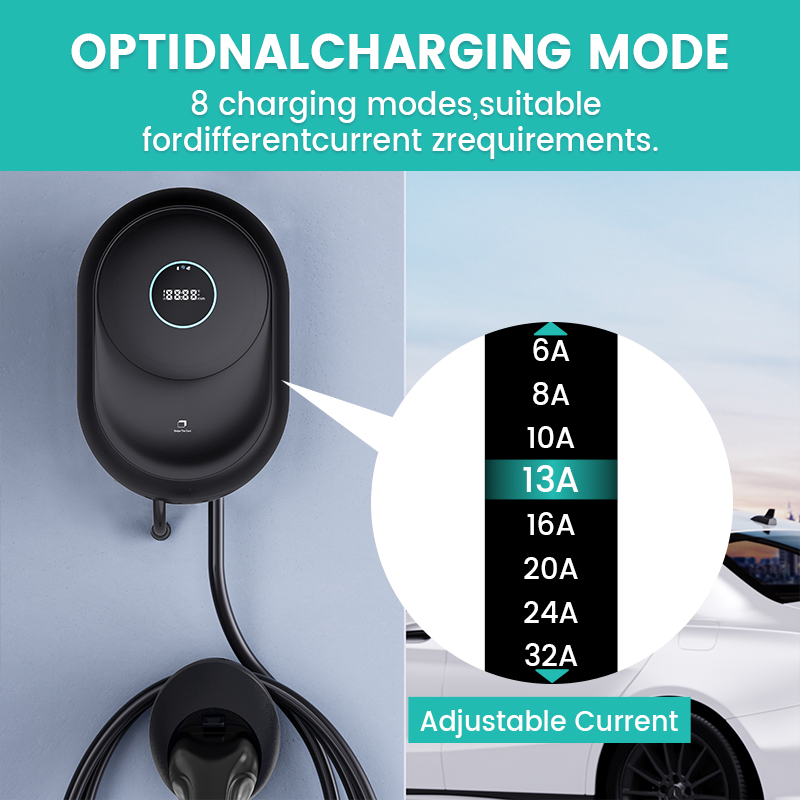

Adjustable Current
8-10-13-16-32A
Phase
Single-Phase/Three-Phase
Rated Voltage
110V/230V±10%
Protection Grade
IP65 / IK10

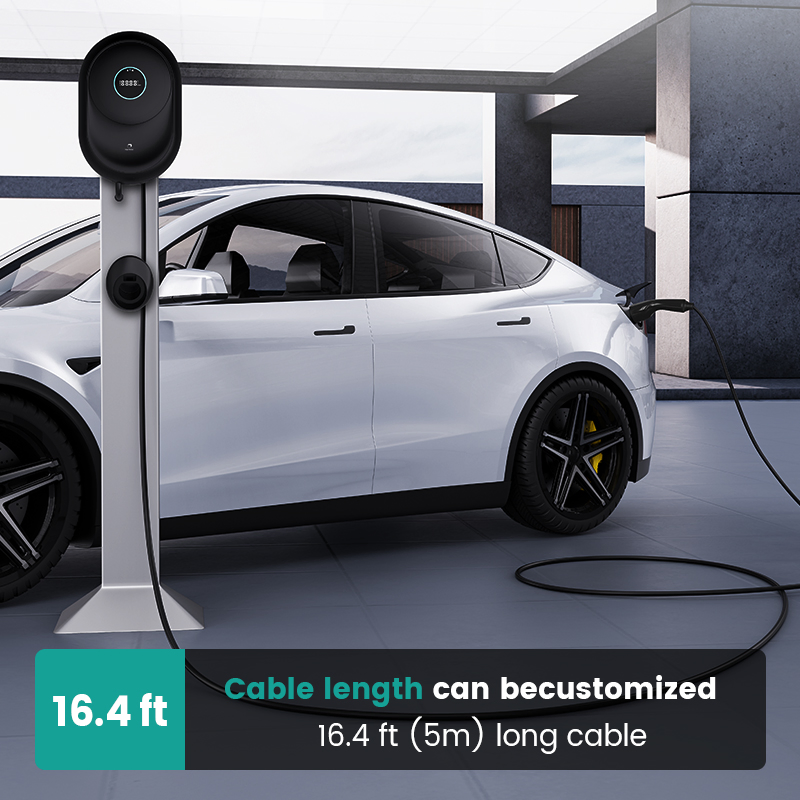

Cable Length
5 Meters / OEM
RCD Type
Type A+6mA DC
Plug Type
Type 2 / Type 1 / GBT / NACS
We specialize in electric vehicle charging solutions, producing TYPE 1/TYPE 2/GBT/NACS AC charging stations. Customization options for logo, packaging, and patterns are available.
✓
Universal Compatibility: Suitable for every electric car with standard charging plugs.
✓
Superior Protection: IP65 water/dust resistance and IK10 impact rating.
✓

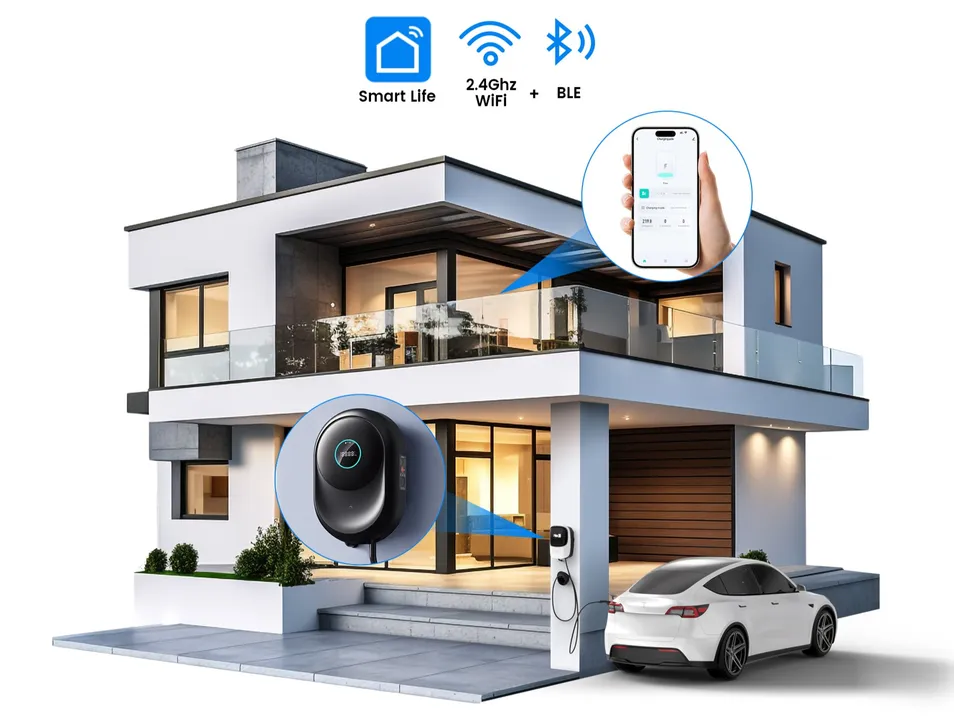

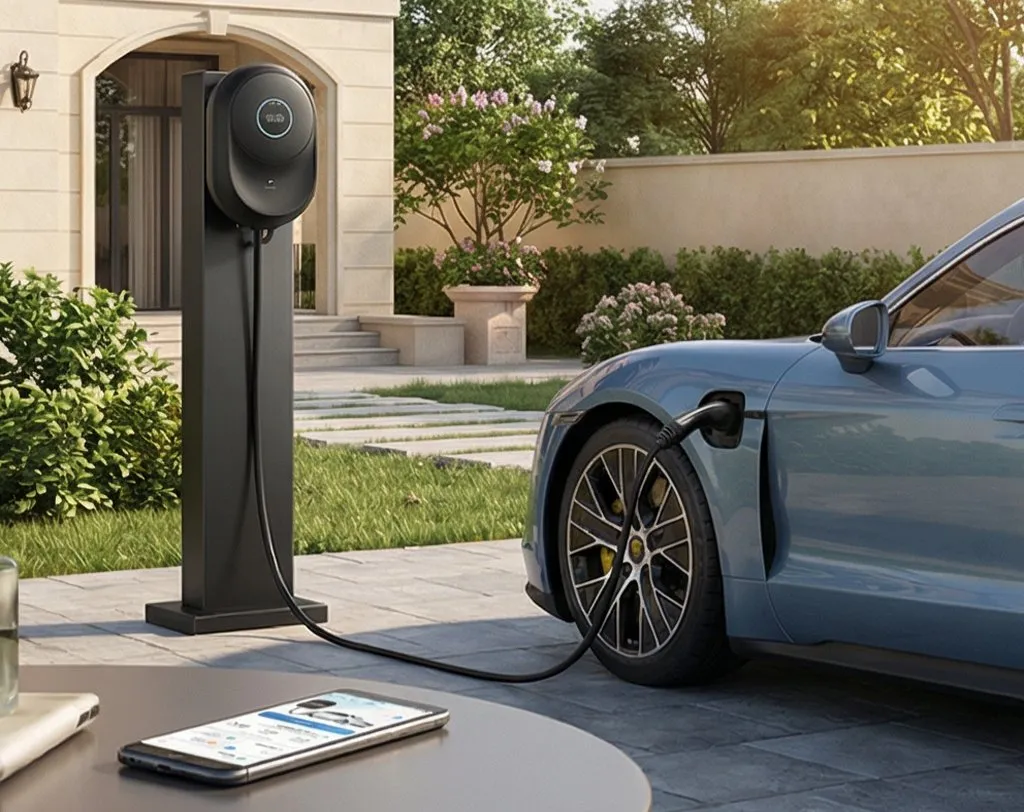

Smart Control: Manage via RFID Card, Bluetooth, or WiFi via a free mobile App.
✓
Safety First: Built-in RCD (30mA AC + 6mA DC) and surge protection.
ID

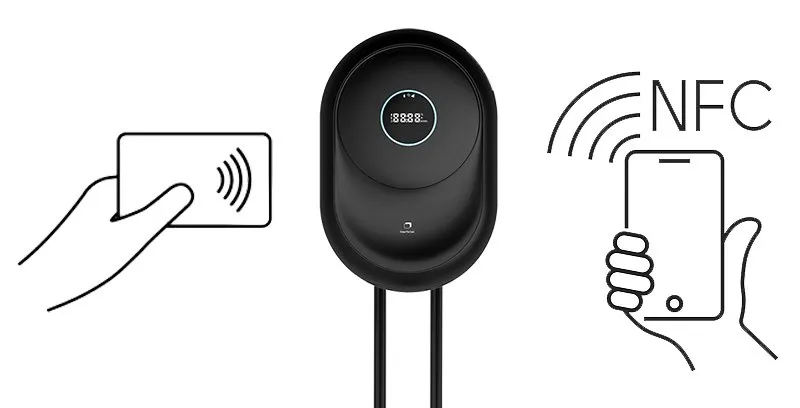

RFID & NFC: Simple swipe to activate. Anti-theft function included. Perfect for basements with weak signals.
P
OCPP Protocol: Supports commercial management platforms for remote monitoring and billing.
| Electrical Parameters | |
|---|---|
| Rated Voltage | 100V/240V AC ± 10% |
| Rated Current (Type 2/GBT) | 32A Single-phase / 16A Three-phase / 32A Three-phase |

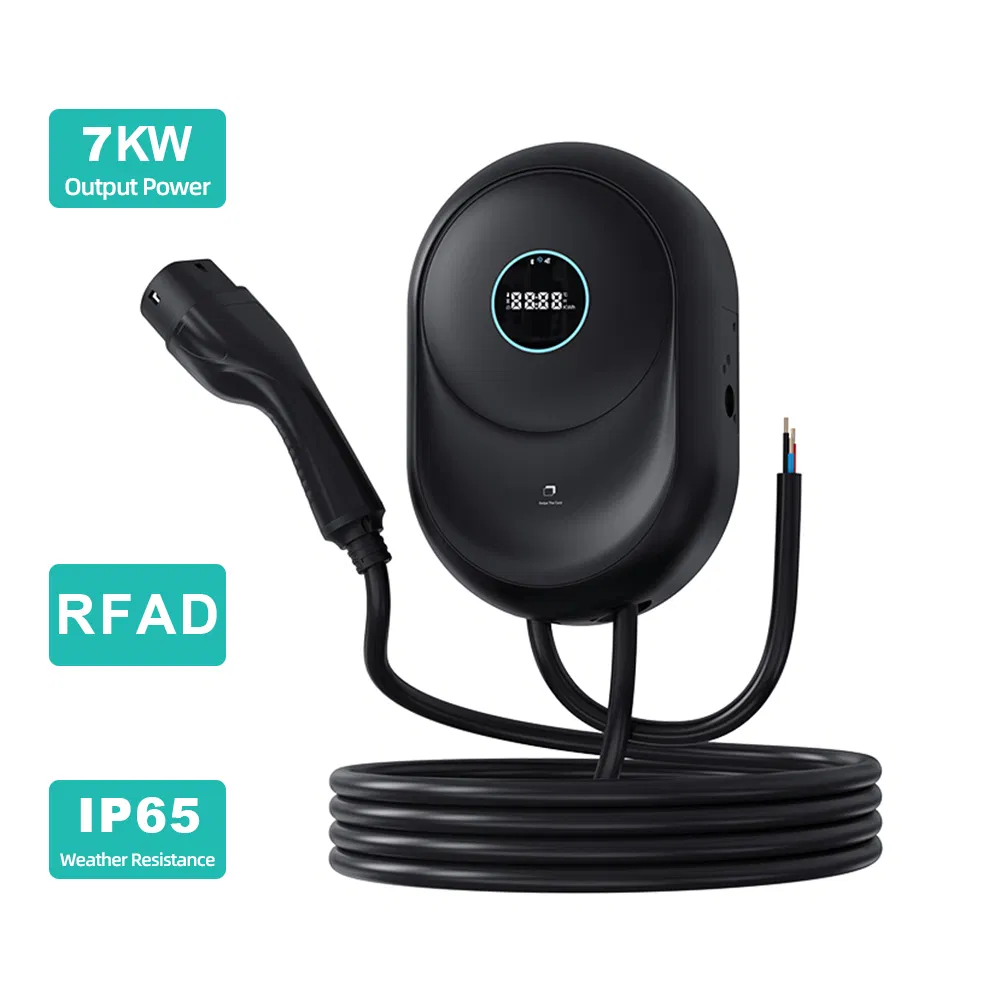

| Rated Power | 7kW / 11kW / 22kW |
| Rated Current (Type 1/NACS) | 32A / 40A / 48A |
| Frequency | 47~63Hz |
| Control Mode | Plug & Play / RFID / APP / OCPP / DLB |
| Environment & Safety | |
| Protection Rating | IP65 / IK10 |
| Working Temp | -20ºC ~ +50ºC |
| Certificates | CE, FCC, ISO9001, ROHS, UKCA |

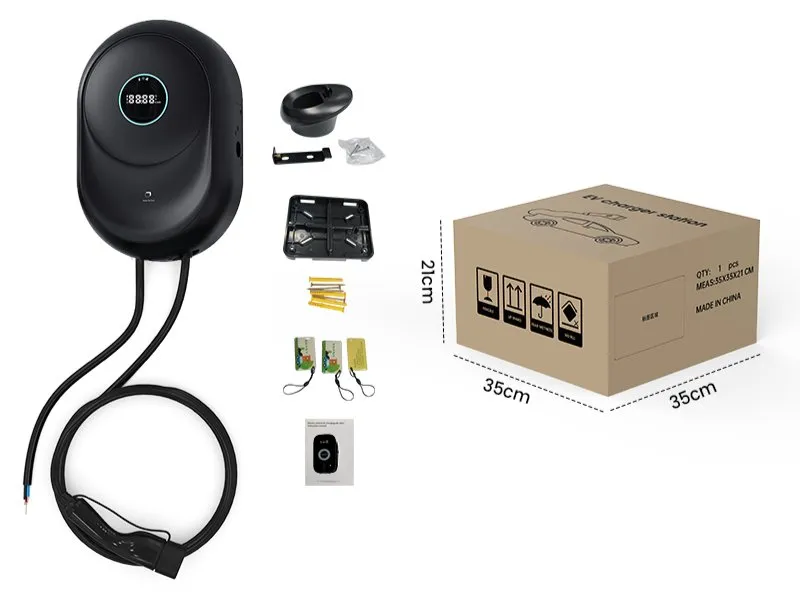

Standard Package:
1× EV Charger Station, 1× Wall Bracket, 1× Backboard, 3× RFID Cards, 1× Manual, 1× Airplane Box.
1× EV Charger Station, 1× Wall Bracket, 1× Backboard, 3× RFID Cards, 1× Manual, 1× Airplane Box.
OEM Services:
Custom Logo, Private Packaging, Custom Cable Length, Specific Socket/Plugs.
Custom Logo, Private Packaging, Custom Cable Length, Specific Socket/Plugs.

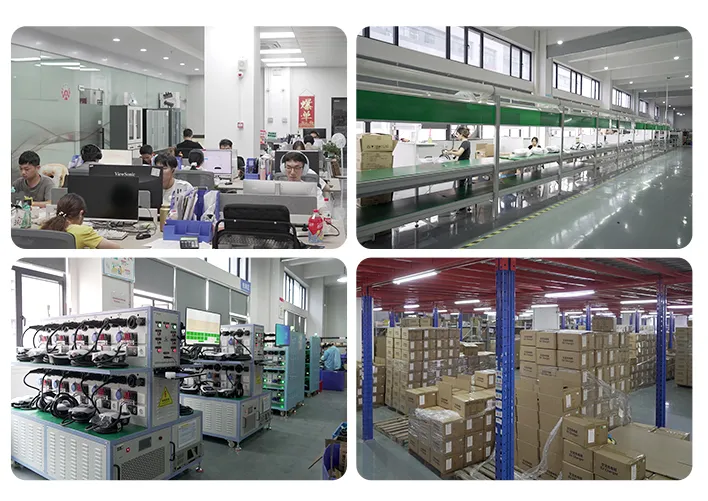

We are a high-tech enterprise focusing on R&D and production of NEV charging equipment. With a 4,400+ sqm factory and 200+ professionals, we ensure strict quality control and technical advancement.
Do you provide OEM/ODM services?
Yes, we provide specific solutions for customized requirements including branding and technical specifications.
Can you produce based on samples?
Yes, we can produce according to your physical samples or technical drawings, including building necessary molds.
What is your sample policy?
We can provide regular samples, with the customer covering the sample and courier costs.
How do you ensure product quality before delivery?
We conduct 100% testing on all goods before they are dispatched from our facility.
What is the warranty period for the EV charger?
We provide a standard 2-year warranty. Personalized solutions for extended warranties are available based on regional requirements.
Are the chargers suitable for outdoor use?
Yes, our chargers feature IP65 protection, making them resistant to water, dust, and oil for outdoor environments.
