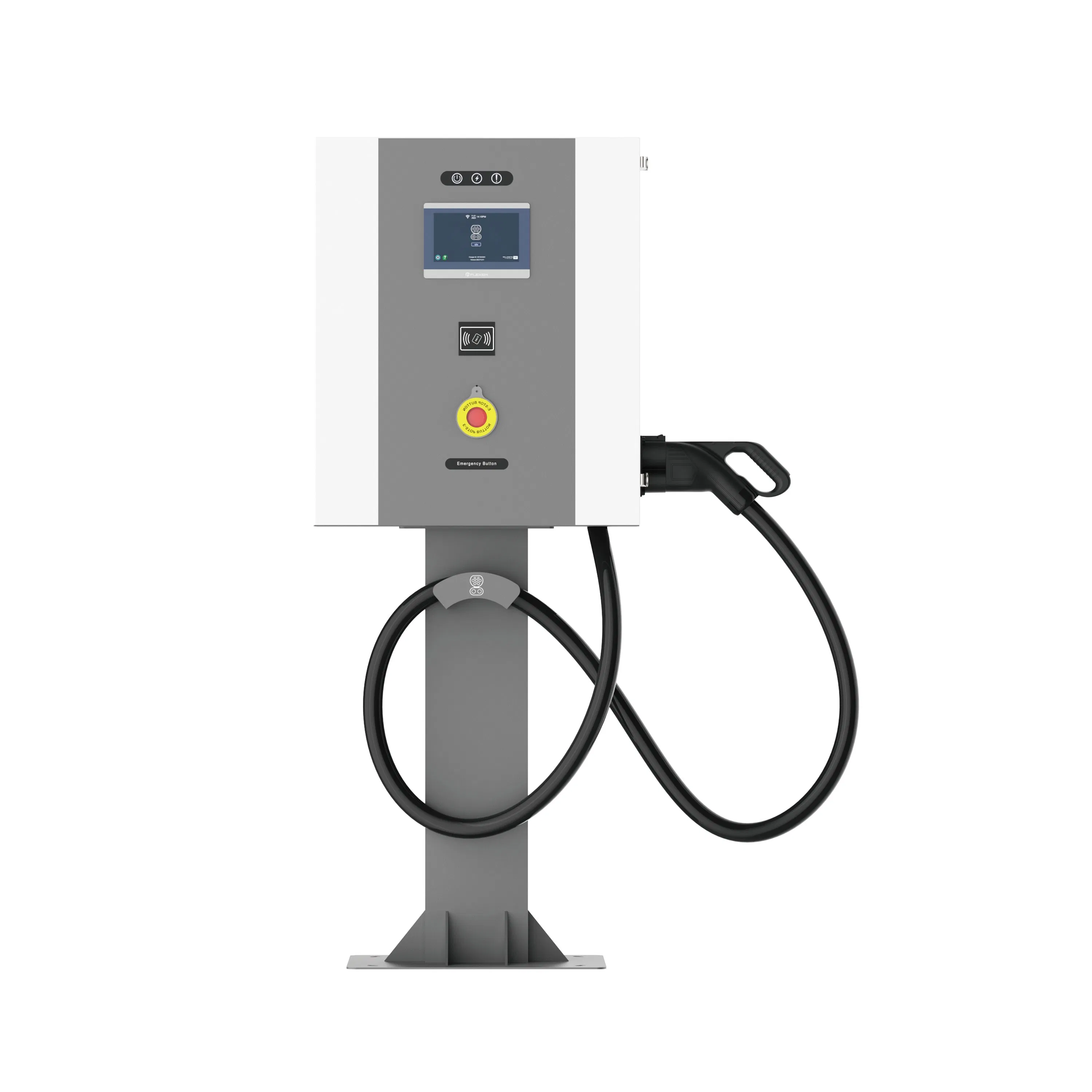

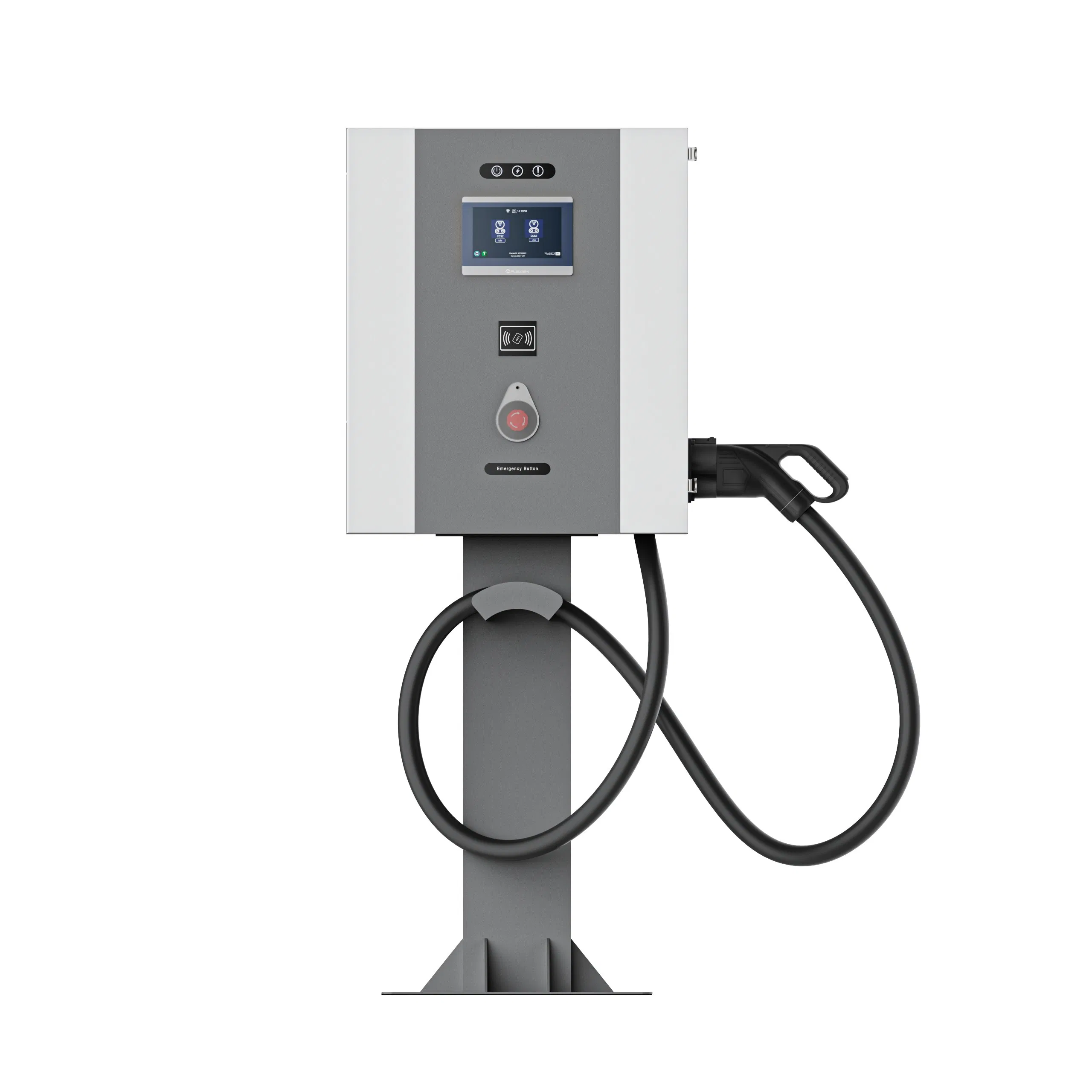

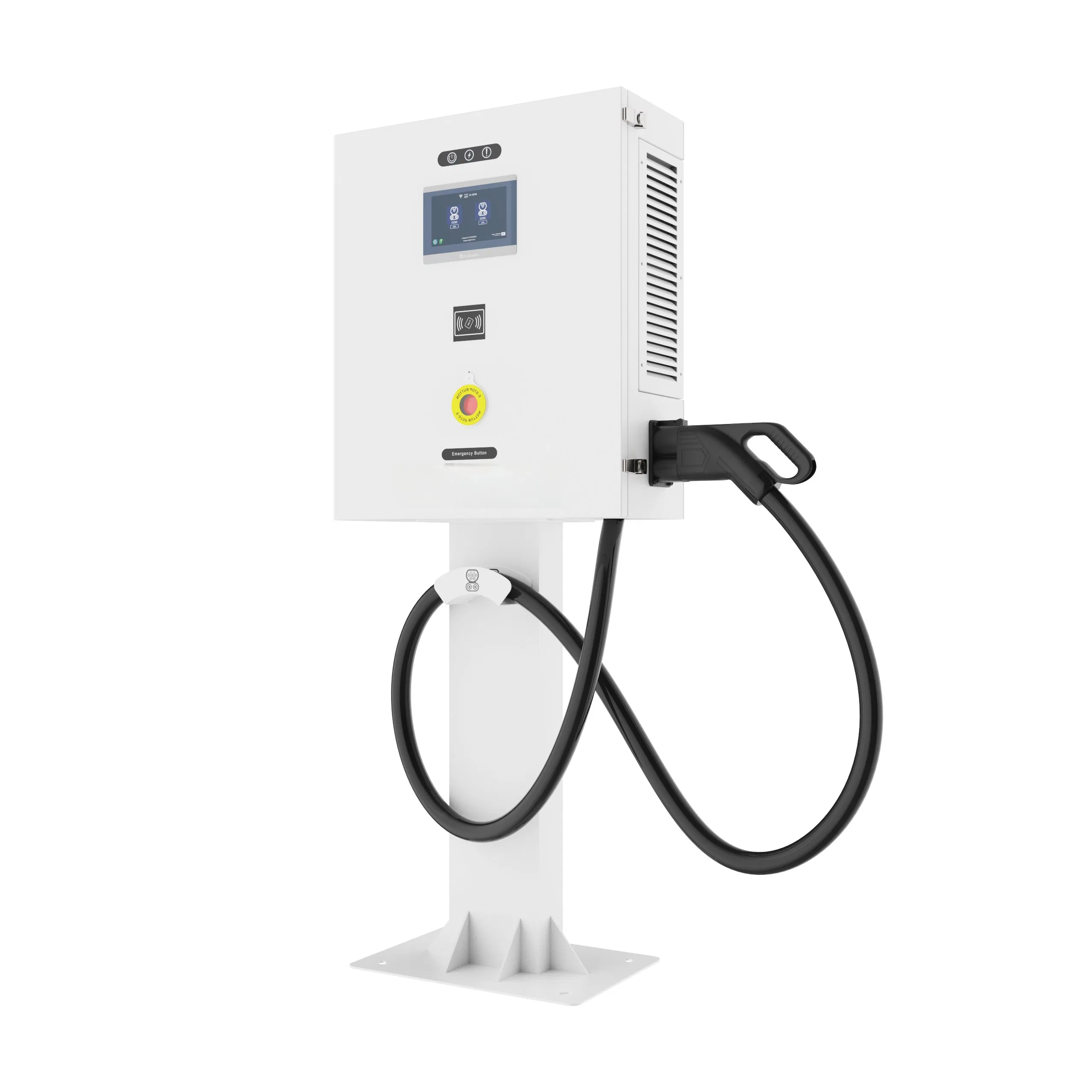

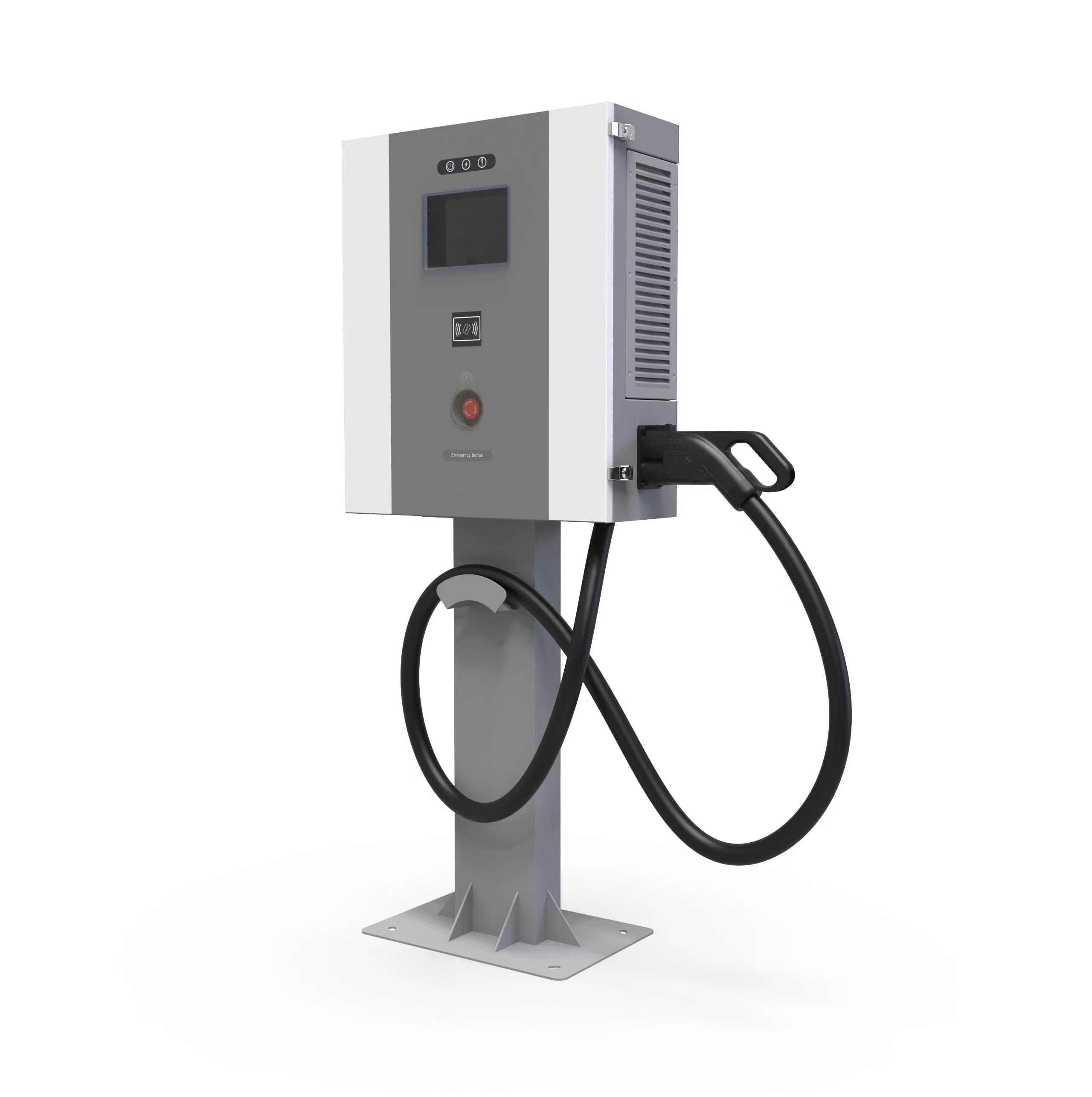

High-Efficiency 40kw DC EV Charger with RFID Access Control
Product Description
Model NO.
MS08A-04
Location
Public Use
Charging Interfaces
One Pile with One Charge
Start Mode
RFID, Credit Card, Mobile Remote
Dimensions (L*D*H)
650mm X 260mm X 750mm
Weight
88kg(Wall) / 106kg(Column)
Output Voltage
200 - 1000VDC
Rated Power
20-40kW
Ingress Protection
IP54 / IK10
Input Voltage
400VAC / 480VAC

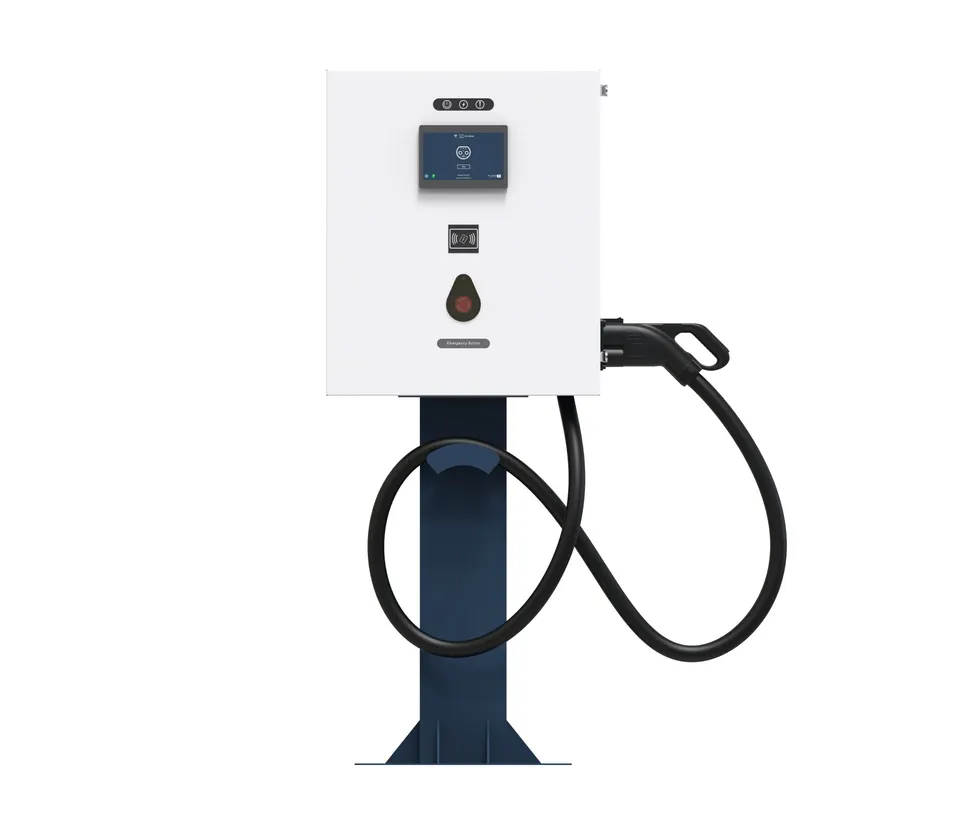

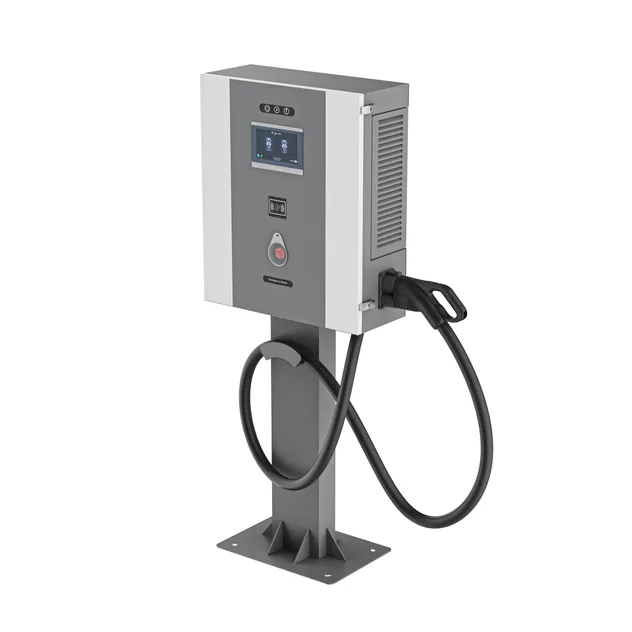

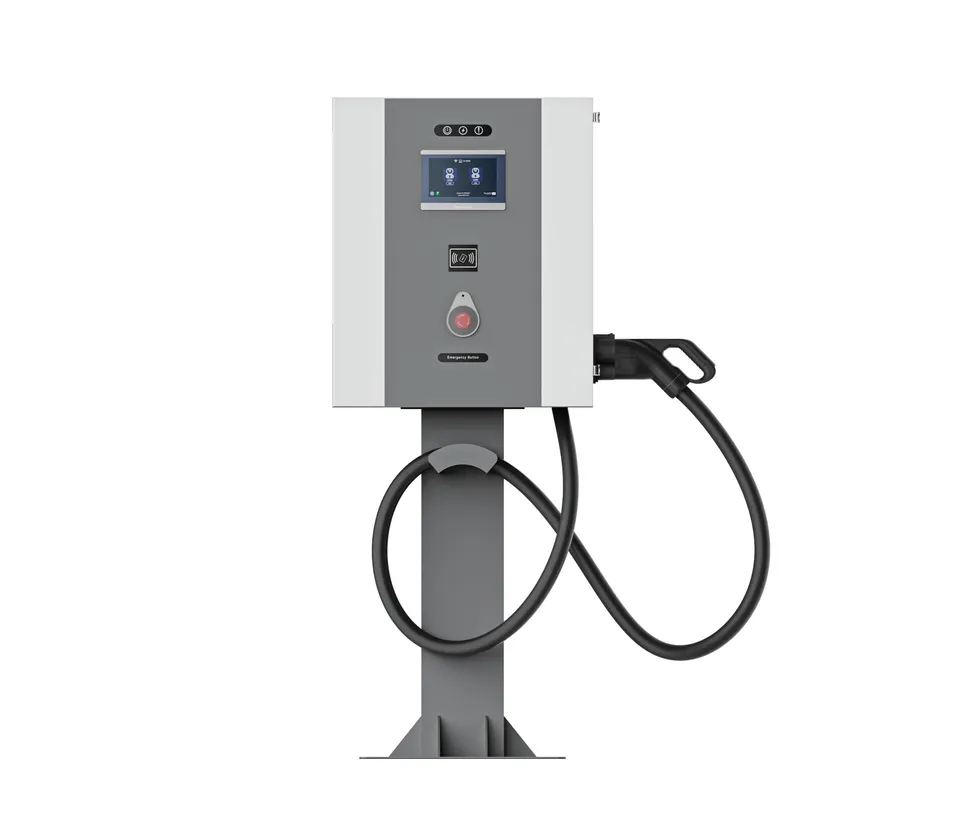

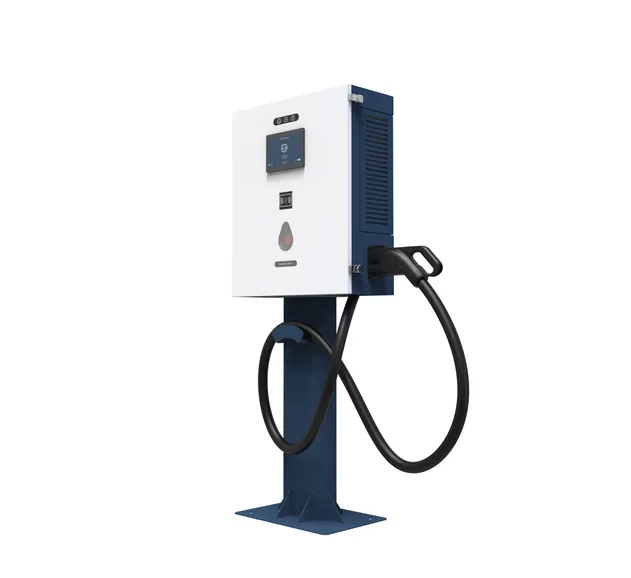

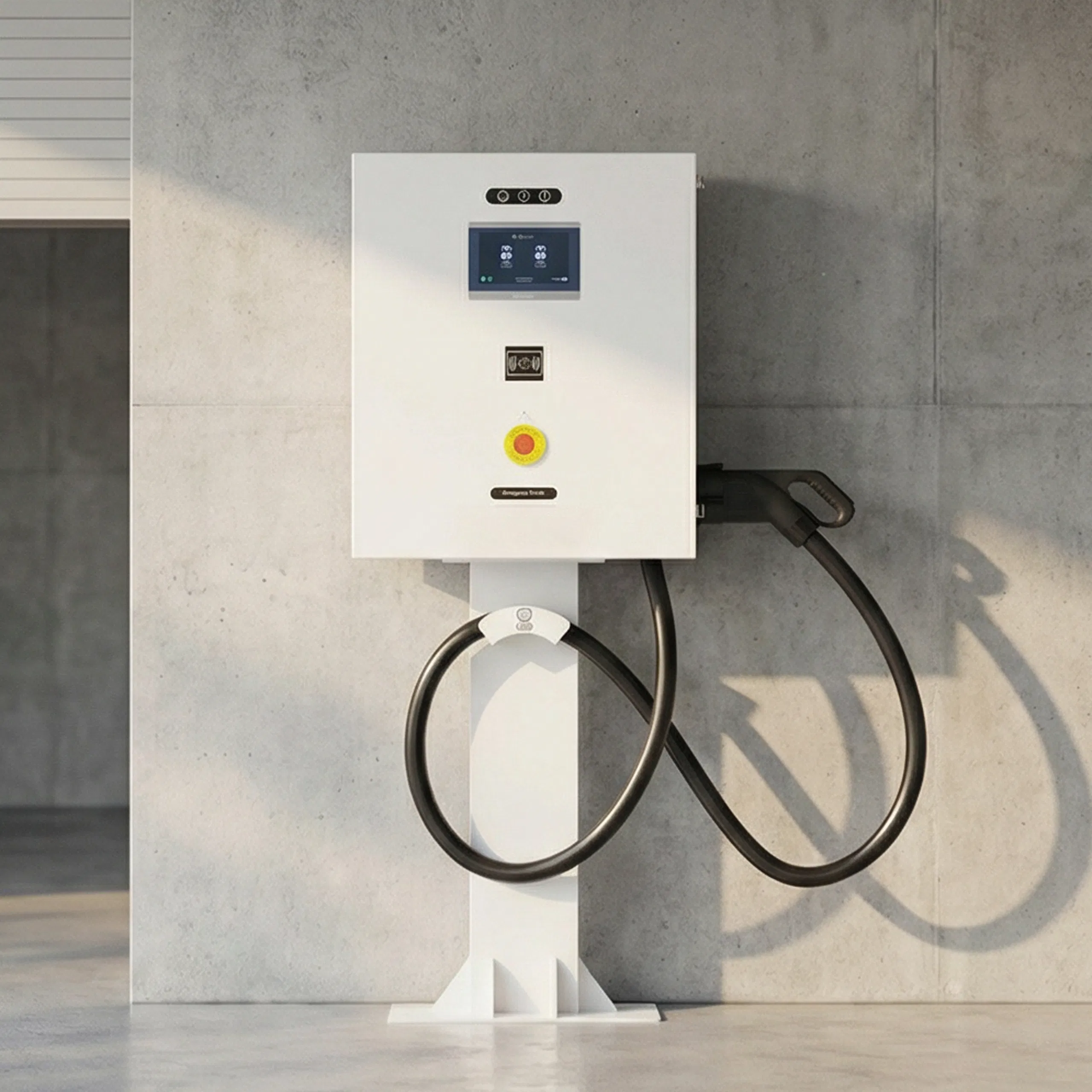

20kW-40kW Wall-Mounted DC Charging Station
Designed with a "minimalist-first" philosophy, this DC charging station features a classic black-and-white color scheme. Through distinct functional zones and bold color contrasts, it achieves a clean, sharp aesthetic with a distinctly modern feel. We deliberately eliminated redundant decorative elements, allowing the product to return to its core charging function.
1
Streamlined Interaction: Users simply press the physical button on the side to initiate charging with a single press—no complex settings required.
2
Smart Status LED: High-brightness LED indicators ensure charging progress and any abnormalities are immediately apparent.
3
Integrated Cable Management: Standard cable holder with a sturdy latch securely tucks away the cable, preventing sagging, tangling, or crushing.
| Connectors | GBT, CCS2, CCS1, CHAdeMO, NACS |
| Input Frequency | 50/60Hz |
| Peak Efficiency | ≥ 96% |
| Power Factor | > 0.99 |
| Cooling Method | Air Cooled |
| Operating Temperature | -30°C to 75°C |
| Safety Protection | Overvoltage, Lightning, Overcurrent, Leakage, Waterproof protection |
| Emergency Stop | Manual Button Disables Output Power |
How long is the product warranty?
The warranty ranges from 12 to 60 months. During this period, we provide technical support and free replacement of parts for any quality issues.
What are the available power outputs?
We can produce a wide range of power outputs from 20kW up to 1.5MW to meet different charging requirements.
What is the typical delivery time?
Generally, it takes 5 to 25 working days after receiving the advance payment. The specific time depends on the order items and quantity.
Do you test the products before delivery?
Yes, 100% of our goods undergo rigorous testing before delivery to ensure safety and functionality.
What is the difference between a Movable and Wallbox charger?
The main difference is the application scenario. Portable chargers are designed for mobility and temporary use, while wall-mounted (Wallbox) chargers are fixed to structures for permanent charging points.
What safety protections are included?
The charger includes overvoltage, lightning, overcurrent, leakage, and waterproof protection, along with an emergency stop button for immediate power disablement.
