Premium Wattsaving EV Charging Station - Fast Charge Technology Made in China
Product Description
i
Basic Information
Model NO.
WE X7
Location
Private Use
Interfaces
One Pile with One Charge
⚡
Electrical Characteristics
| Product Model | WE X7 |
| Rated Input/Output Voltage | 220VaC 1P+N+PE |
| Rated Input/Output Current | 32A |

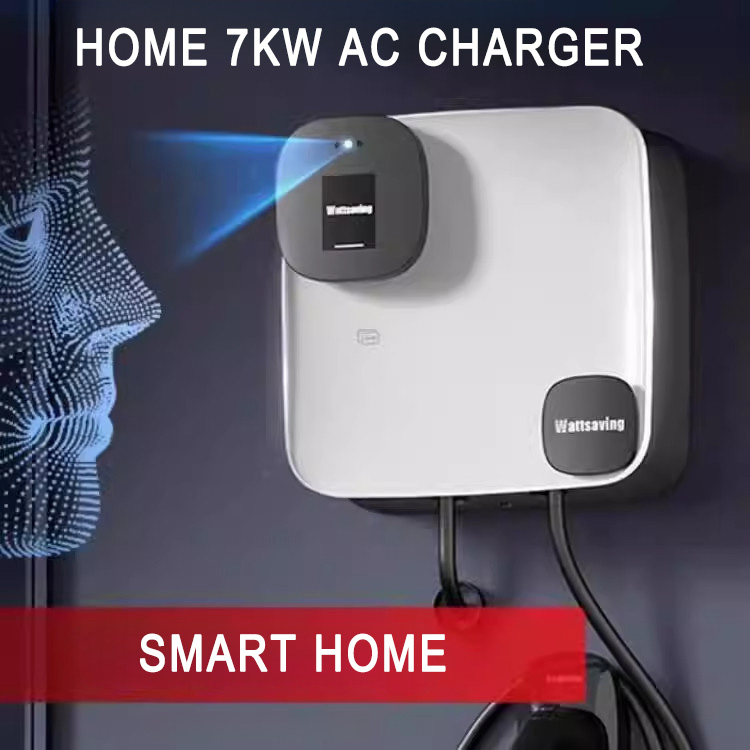

| Output Power | 7kW Max |
| Frequency | 45-65HZ |
| Residual Current Detection | AC 30mA+DC 6mA |
| Standby Power Consumption | 5W |
| Protection Functions | Overcurrent, earth leakage, overtemperature, short-circuit, electrostatic discharge, relay sticking, overvoltage, undervoltage, lightning, overcharge, flame retardant, anti-theft charging, waterproof, dustproof, ground continuity protection |
| Measurement Accuracy | Level 2 |
| Wireless Connectivity | Bluetooth/4G |
| Human-Machine Interaction | |

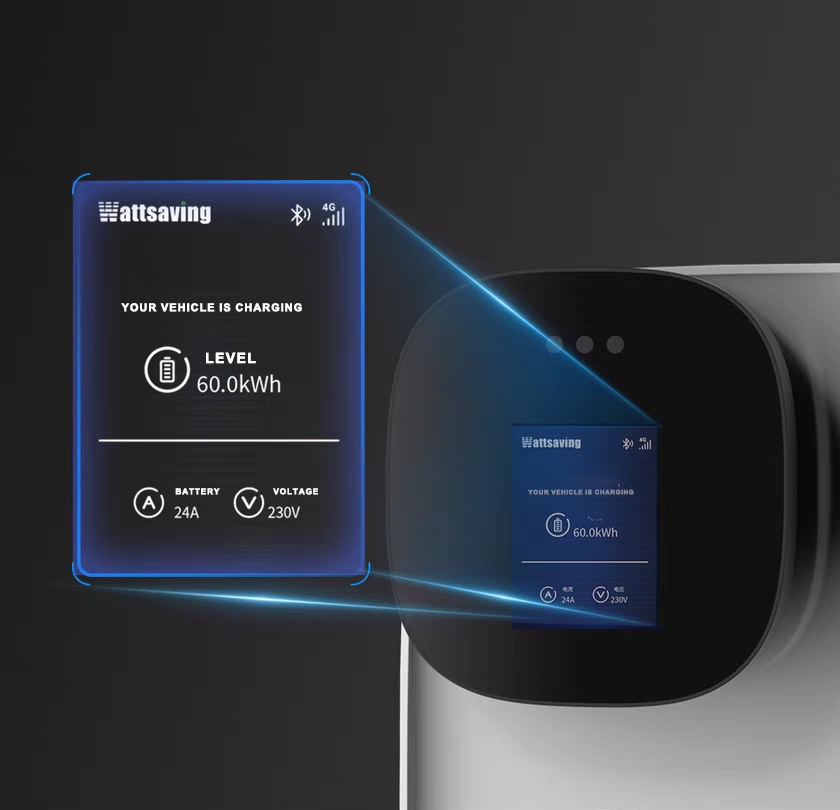

| Display Function | 2.8-inch LCD screen |

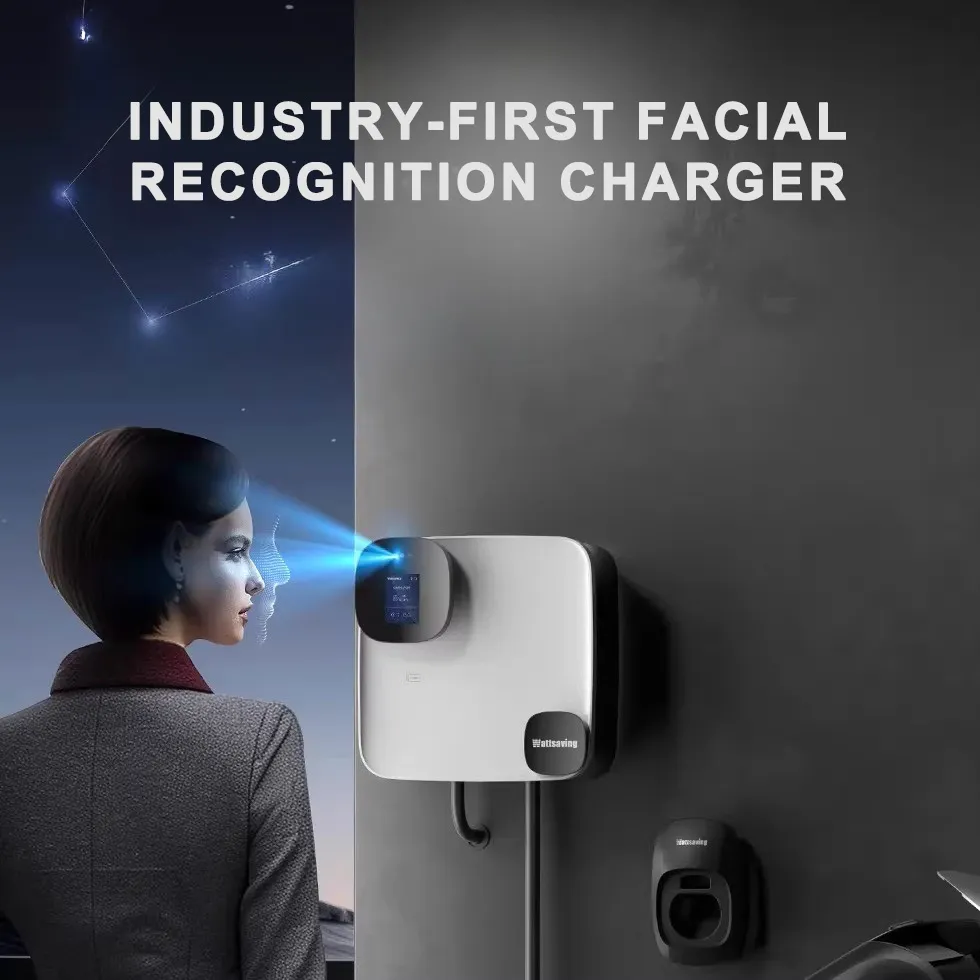

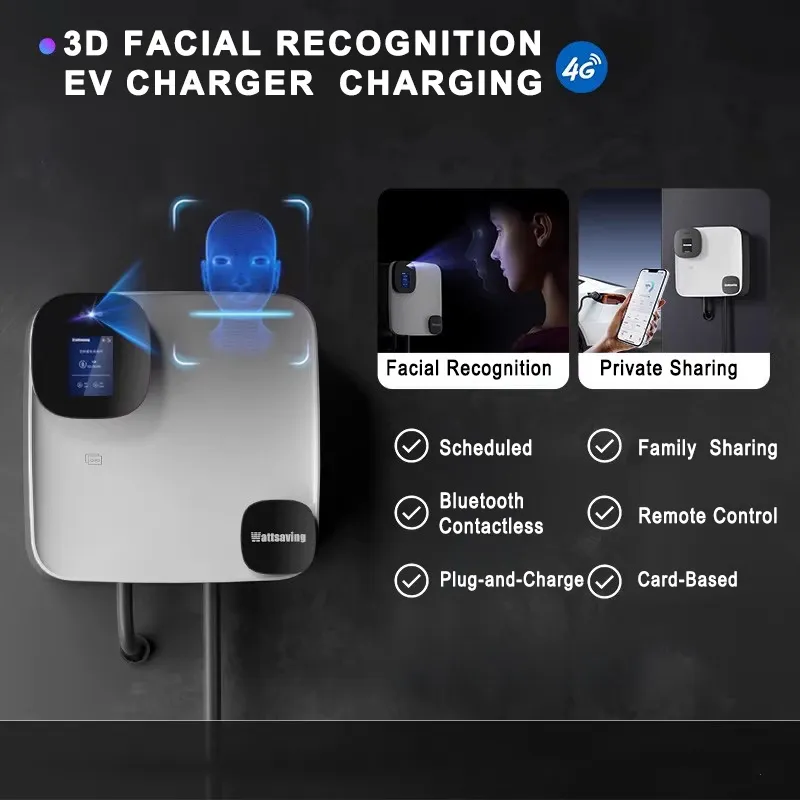

| Startup Method | Face recognition charging / Scheduled charging / App charging / Contactless charging / Card swipe charging / Plug-and-charge |
| Appearance Structure | |
| Housing Material | PC: UV-resistant flame retardant rating UL94V-0 |
| Dimensions (HxWxD) | 290mm X290mm X120mm |
| Net Weight | 6 kg |
| Cable Length | 5 m |
| Operating Environment | |
| Operating Temperature | -30 °C to +55 °C |
| Protection Rating | IP65 (Indoor/Outdoor) |
| Cooling Method | Natural cooling |
Smart and Secure Access Control
This street light features high brightness, energy saving, environmental protection, and easy installation. It has a waterproof rating of IP67 and has passed CE certification. It is suitable for schools, parks, roadsides, factories, squares, etc.
Easy and Fast Charging Experience
This street light features high brightness, energy saving, environmental protection, and easy installation. It has a waterproof rating of IP67 and has passed CE certification.
Remote Control and Smart Management

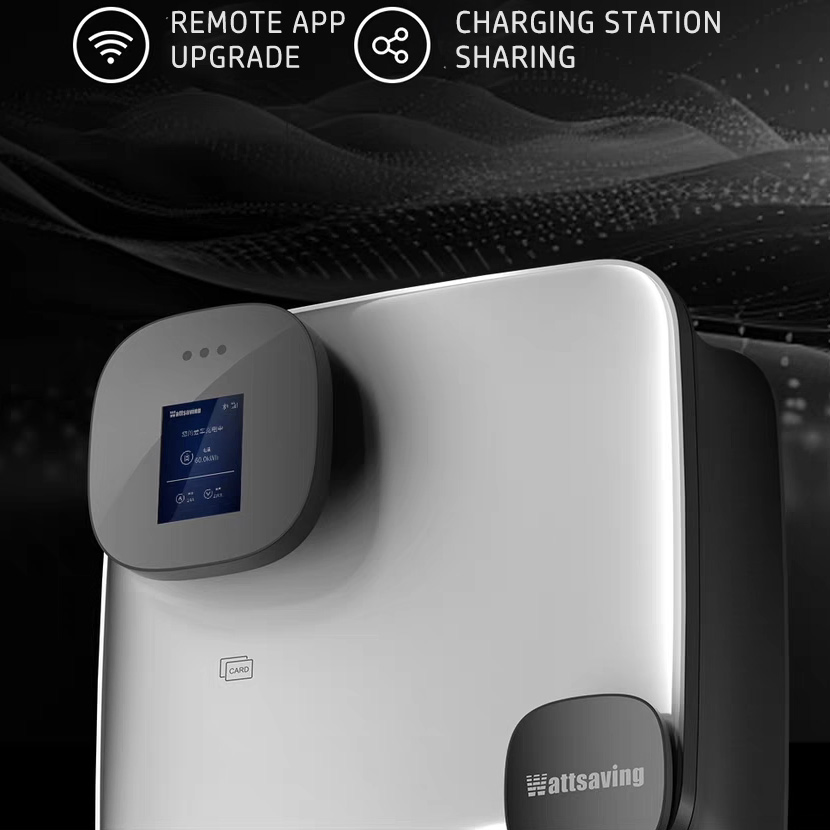

Through remote control functions, users can start, stop, and monitor charging sessions anytime and anywhere via a mobile app or centralized management system, improving convenience and operational efficiency.
Multi-User Sharing for Home and Business
Designed for multi-user scenarios, the charger supports private sharing and family sharing, making it ideal for households, residential communities, offices, and fleet operations.
?
Frequently Asked Questions
Q1: What is the maximum output power of the WE X7?
The WE X7 provides a maximum output power of 7kW with a rated current of 32A, suitable for fast home or private charging.
Q2: Can the charging station be installed outdoors?
Yes, it features an IP65 protection rating, making it completely waterproof and dustproof for both indoor and outdoor environments.
Q3: How can I start the charging process?
The station supports multiple startup methods including Face Recognition, Mobile App, RFID Card Swipe, Scheduled Charging, and simple Plug-and-Charge.
Q4: What safety protections are built into the device?
It includes overcurrent, overvoltage, undervoltage, short-circuit, earth leakage (AC 30mA + DC 6mA), lightning protection, and flame retardant housing.
Q5: Does it support remote monitoring?
Yes, with Bluetooth and 4G connectivity, you can remotely start, stop, and monitor your charging sessions through a dedicated app.
Q6: What is the operating temperature range?
The device is designed to operate reliably in extreme conditions, ranging from -30 °C to +55 °C.
