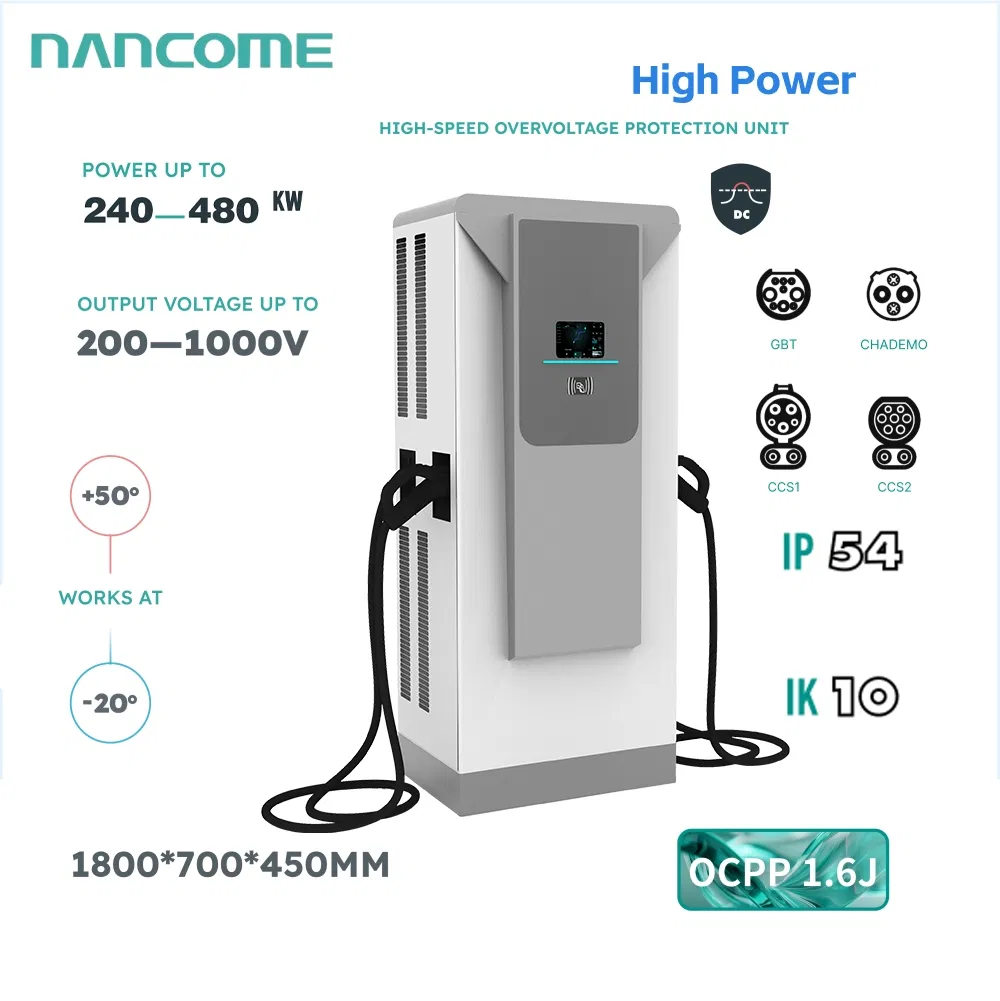

Nancome High-Efficiency High Power Charging Station for Logistics EV Charging with 360kw
Product Description
Basic Information
Model NO.
DCLZK002
Location
Public Use
Charging Interfaces
Multiple Charges
Start Mode
Credit Card, Mobile Remote, RFID
Charge Method
Quick Charge
Voltage Range
AC380V±20%
Rated Output Power
240kw/320kw/360kw/480kw
Protection Level
IP54
Networking
WiFi/Ethernet/4G
Operating Environment
Indoor/Outdoor
Charging Cable
5m
Origin
Made in China
Technical Parameters
| Voltage Range | AC380V±20% | Input Connection | 3P+N+PE |
| Operating Frequency | 45-65HZ | Power Factor | ≥99% |
| Input Current | 0-1000A | Output Power | 240KW/320KW/360KW/480KW |
| Output Voltage | DC200-1000V | Output Current | 0-300A |
| Altitude | ≤2000M | Cable Type | Air cooling |
| Dimensions | 700x600x1800mm | Gross Weight | About 500KG |
Product Gallery
Frequently Asked Questions
Are you a factory or a trading company?
We are a manufacturer, welcome to visit our factory at any time!
What products can I buy from you?
We mainly offer wallbox/Portable AC EV chargers (3.5kw-44kw), integrated floor-mounted fast DC Charging stations (30kw-480kw), mobile chargers with energy storage batteries, and Solar System products.
Can you provide custom designs and logos?
Yes, we can provide designs according to your requirements and put your logo on the products.
What are the available delivery methods?
By air, sea, or truck via DHL, TNT, UPS, FEDEX. We choose the best shipment method according to the actual situation.
What is the warranty policy?
We provide a two-year warranty for the whole machine and cover transportation costs for hardware replacements. Software includes a lifetime warranty with remote technical support.
Do the products meet local standards?
Our products have passed relevant certifications recognized globally and by local governments, ensuring compliance with local customs clearance requirements.
