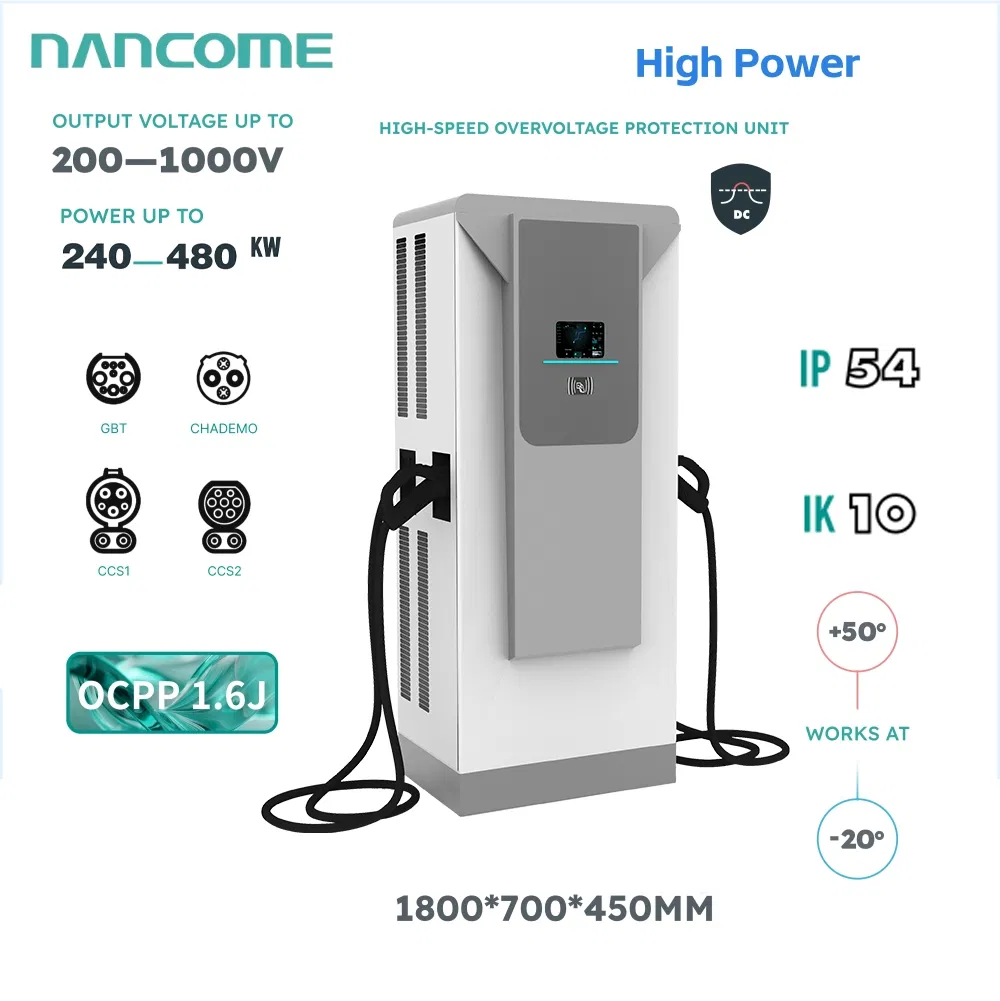

Nancome Heavy-Duty High Power Charging Station for Construction EV Charging with 320kw
Product Description
Basic Info.
Model NO.
DCLZK002
Location
Public Use
Interfaces
One Pile with Multiple Charges
Start Mode
Credit Card, Mobile Remote, RFID
Charge Method
Quick Charge
Voltage Range
AC380V±20%
Rated Power
240kw/320kw/360kw/480kw
Protection
IP54
Networking
WiFi/Ethernet/4G
Environment
Indoor/Outdoor
Cable Length
5m
Origin
Made in China
⚡
High Power Performance: Supports output ratings from 240kW up to 480kW, designed for heavy-duty construction and public EV charging infrastructure.
Product Parameters
| Voltage Range | AC380V±20% | Input Connection | 3P+N+PE |
| Operating Frequency | 45-65HZ | Power Factor | ≥99%, @normal output power |
| Input Current | 0-1000A | Output Power | 240KW/320KW/360KW/480KW |
| Voltage Range (DC) | DC200-1000V | Output Current | 0-300A |
| Cable Type | Aircooling | Altitude | ≤2000M |
| Dimensions | 700x600x1800mm | Gross Weight | About 500KG |
| Charging Mode | Local/Offline/OCPP Network | Payment | RFID/POS/Cloud-Based |
Product Description
Packaging & Delivery
Package Size
102.00cm * 78.00cm * 203.00cm
Gross Weight
500.000kg
Transport Package
1PCS/Carton
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a professional manufacturer specializing in EV charging solutions.
What types of EV chargers do you offer?
We offer a wide range of products including Wallbox/Portable AC chargers (3.5kw-44kw), integrated floor-mounted fast DC charging stations (30kw-480kw), and mobile chargers with energy storage.
Can you provide customized designs and logos?
Yes, we support OEM/ODM services. We can implement your specific design and place your logo on the products.
What are the available trade and payment terms?
We support EXW, CFR, CIF, DAP, DDU, and DDP trade terms. Payment methods include T/T, Credit Card, Western Union, and Bank Transfer.
What is the warranty policy for your charging stations?
We provide a two-year warranty for the entire machine. Our software comes with a lifetime warranty, and our technical team provides remote video guidance support.
Do your products meet international standards for customs?
Yes, our products have passed relevant certifications recognized globally, ensuring full compliance with local customs clearance requirements.
