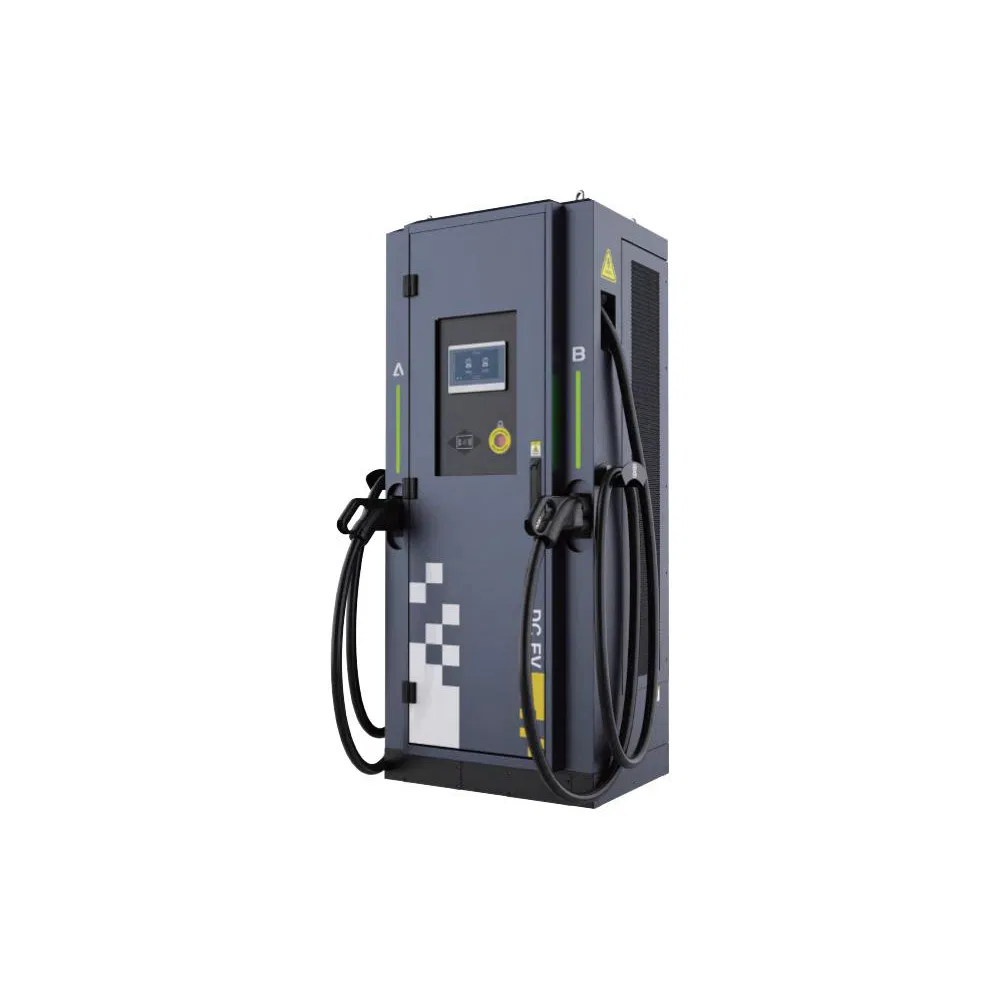

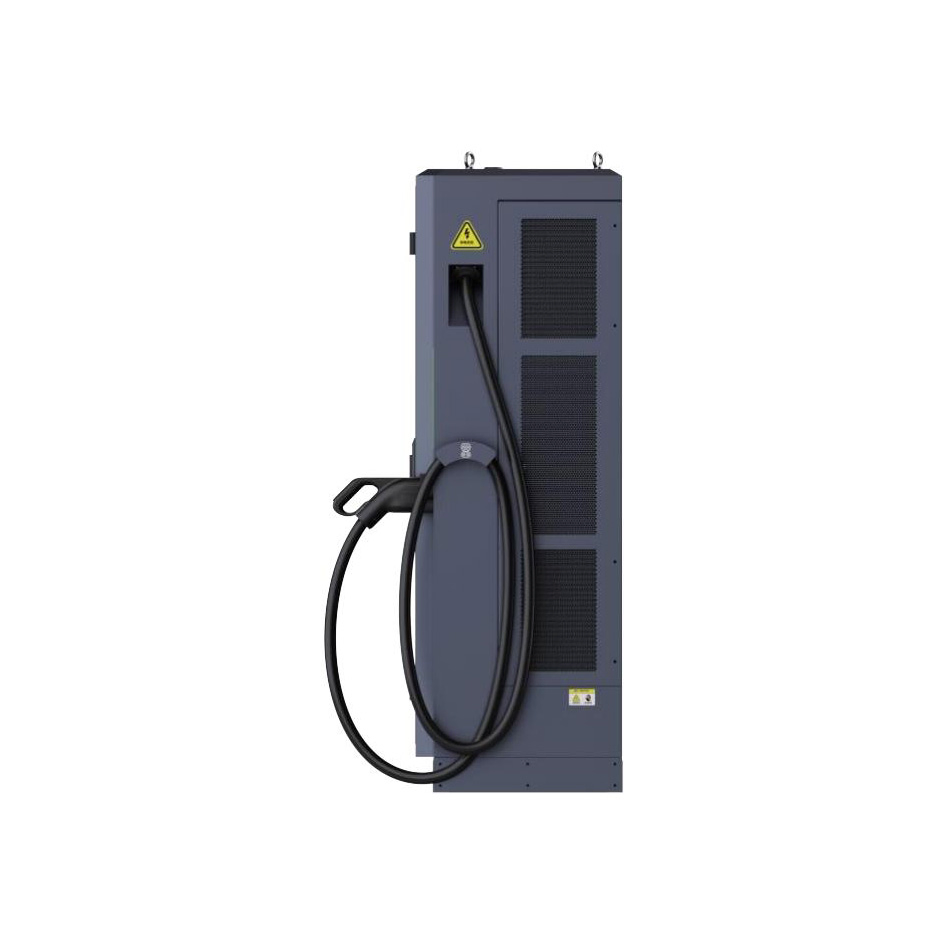

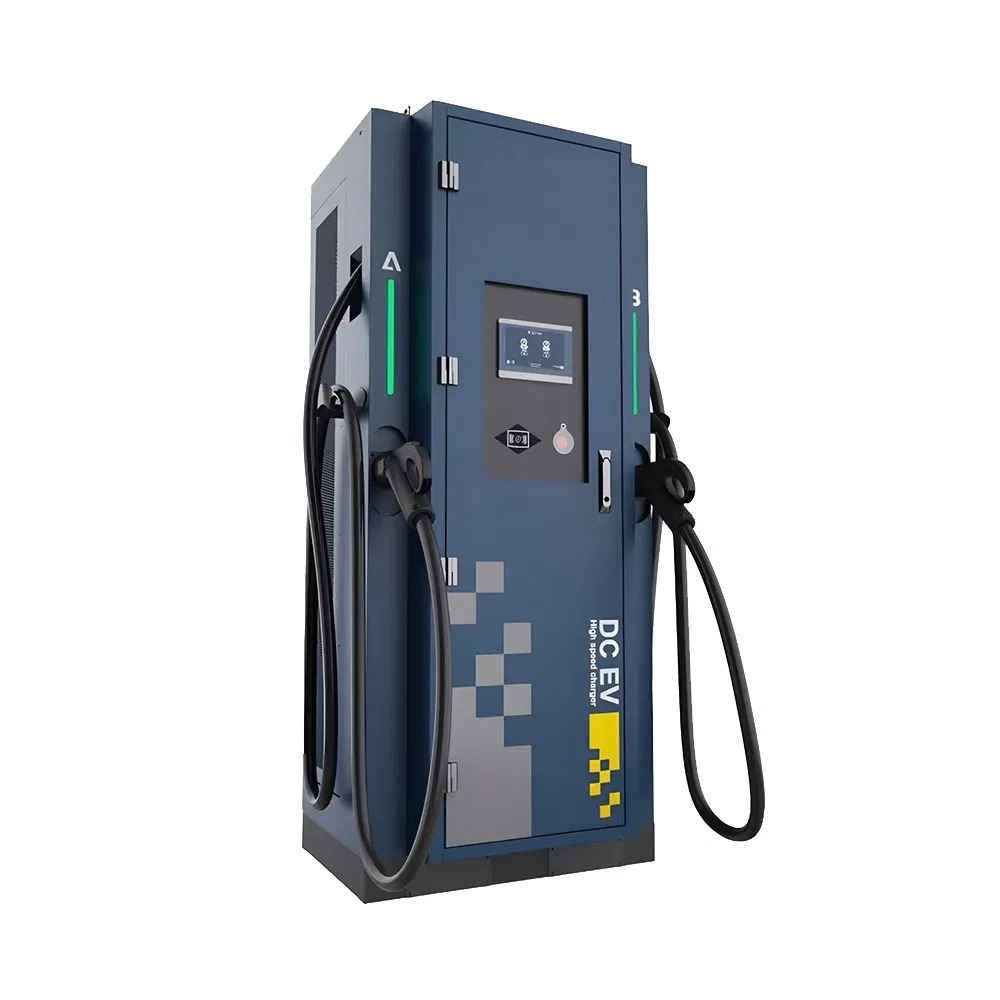

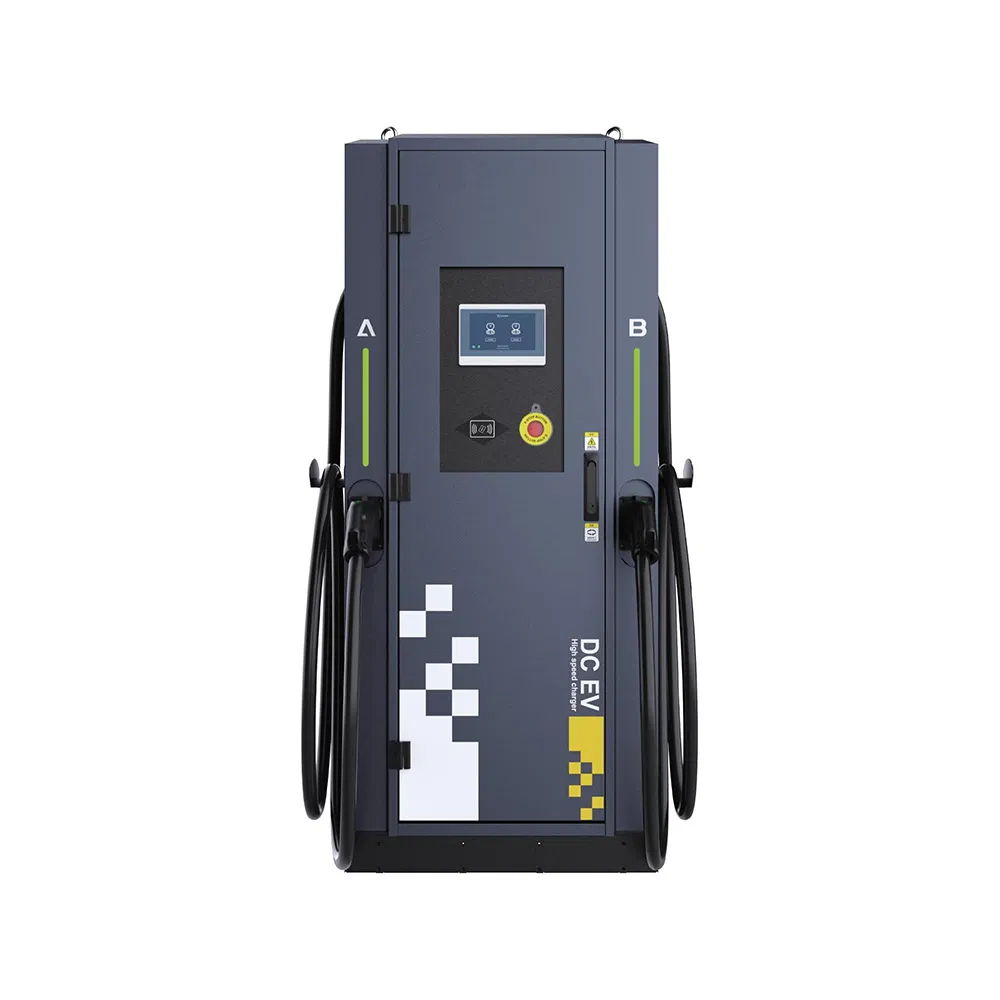

40kw to 240kw Integrated DC Fast Charging Pile Commercial Electric Car Charging Station CCS2 Double Gun EV Charger with 7 Inch LCD Screen
Product Description
Basic Information
Model NO.BHDC-BH-10B
LocationPublic Use
InterfacesOne Pile with Multiple Charges
Start ModeRFID, Credit Card, Mobile App
Output Voltage200 - 1000VDC
Output Power40kw - 240kw
Current0 to 800A

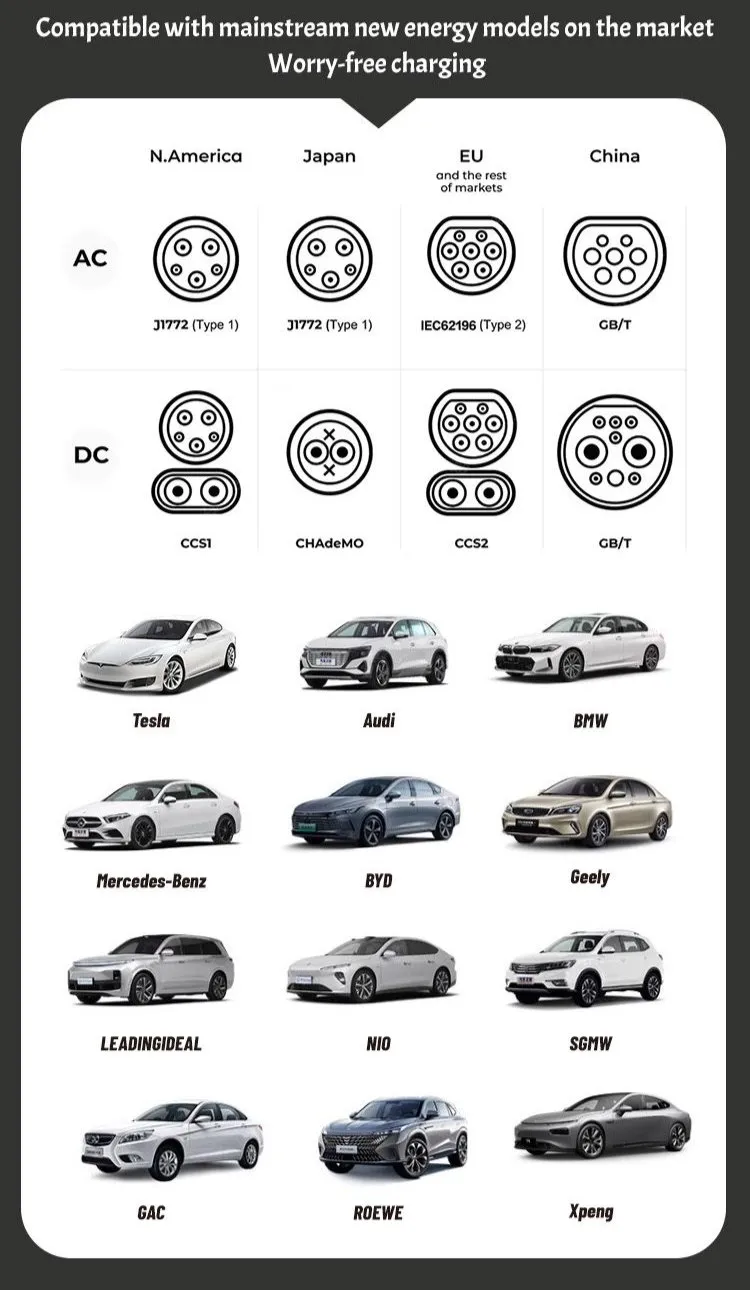

ConnectorsCCS1, CCS2, CHAdeMO, GBT, NACS
CoolingAir / Liquid Cooled
ProtectionIP54 / IK10
Display7'' LCD Touch Screen
Dimensions745mm x 630mm x 1750mm
Product Introduction

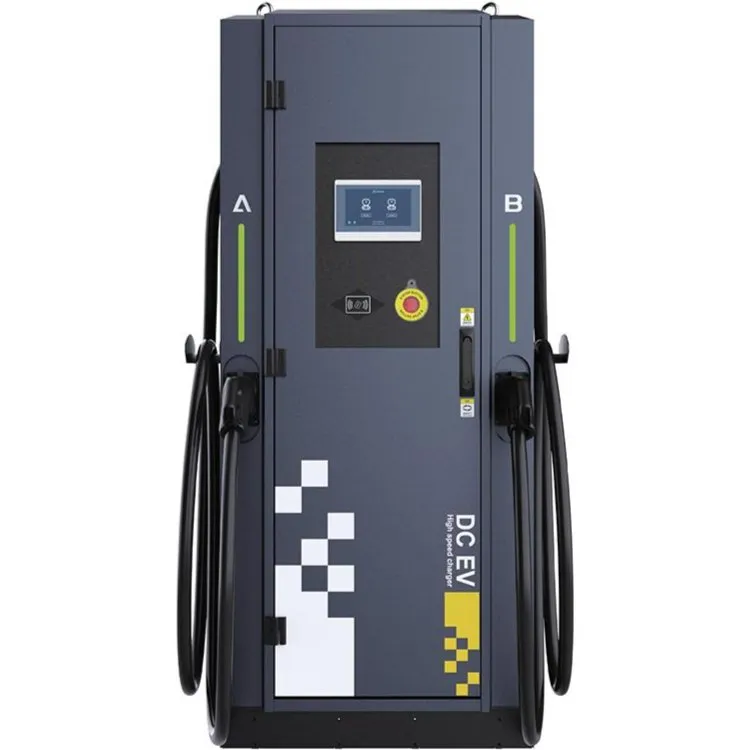

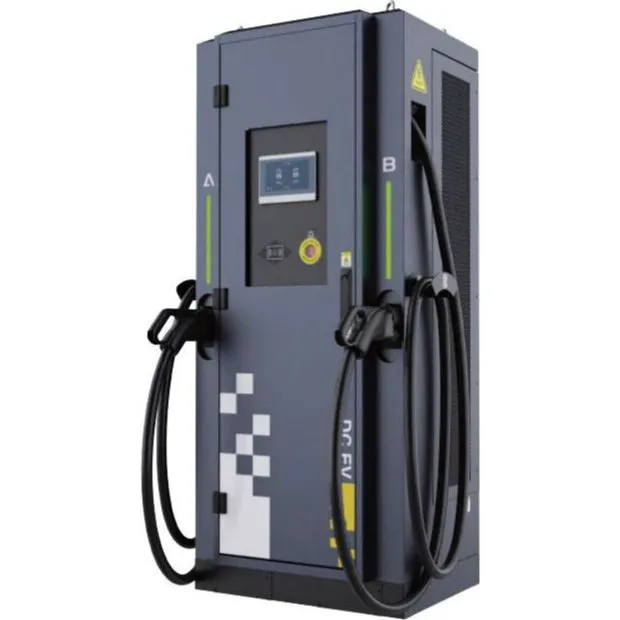

40-240kW Series DC EV Charger
This series of commercial charging piles boasts a rugged design and can be scaled up to 240kW. Featuring fast charging speeds and dual-gun support, it enables quick charging for high-power, large-battery vehicles. Equipped with an advanced control system, it supports intelligent scheduling, remote monitoring, and fault diagnosis via OCPP 1.6J. Through cloud platform connectivity, operators can monitor real-time status and perform remote upgrades.
Our Partners
Product Parameters
| Category | Specifications | Data Parameters |
|---|---|---|
| Appearance | Dimensions | 745mm x 630mm x 1750mm |
| Weight | 300kg | |
| Connectors | CCS1 / CCS2 / CHAdeMO / GBT / NACS | |
| Electrical | Input Voltage | 400VAC / 480VAC (3P+N+PE) |
| Output Voltage | 200 - 1000VDC | |
| Rated Power | 40-240kW | |
| Efficiency | ≥94% at nominal power | |
| Design | Communication | OCPP 1.6J / Ethernet / 4G / WiFi |
| Display | 7'' LCD with touch screen | |
| Protection | IP54 / IK10 |

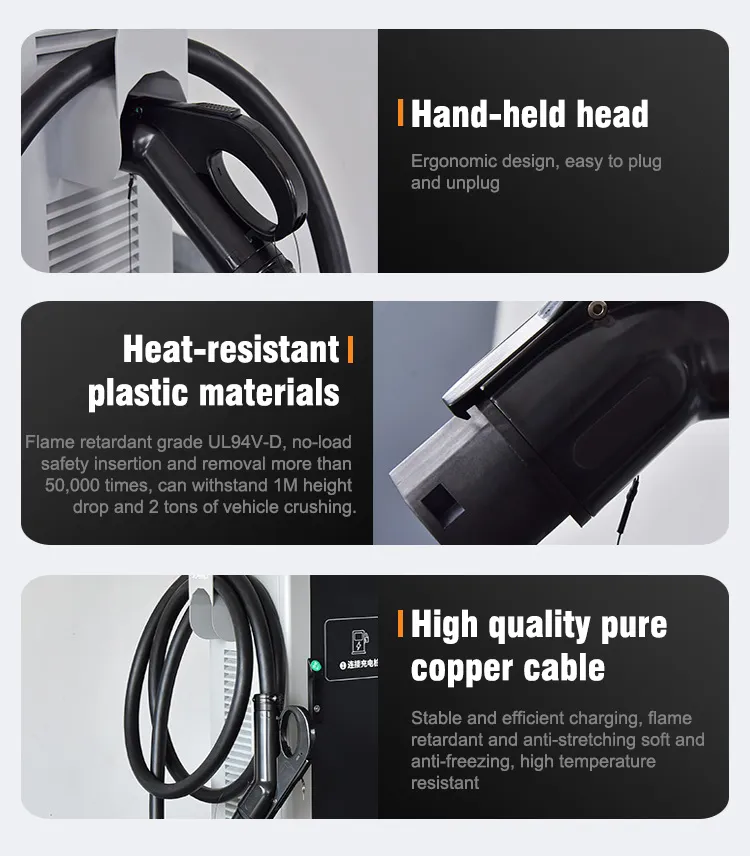

Product Features

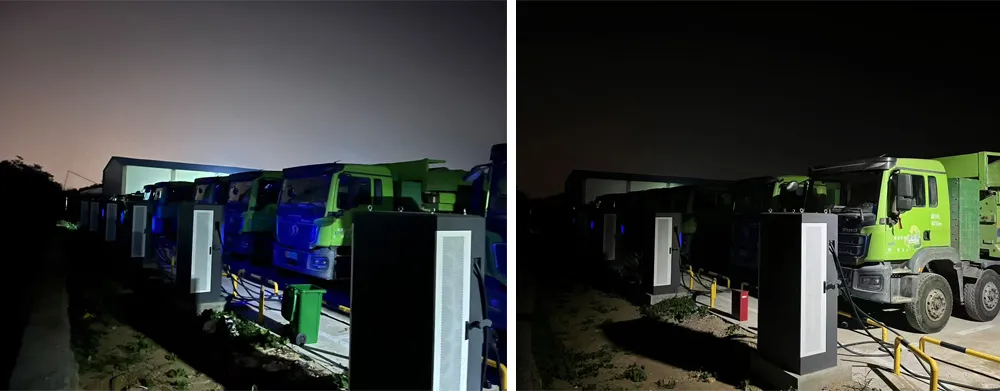

Application Scenarios
- Public Charging Piles: City parking lots, gas stations, and commercial centers.
- Highway Charging Stations: Fast charging for long-distance travel and range improvement.

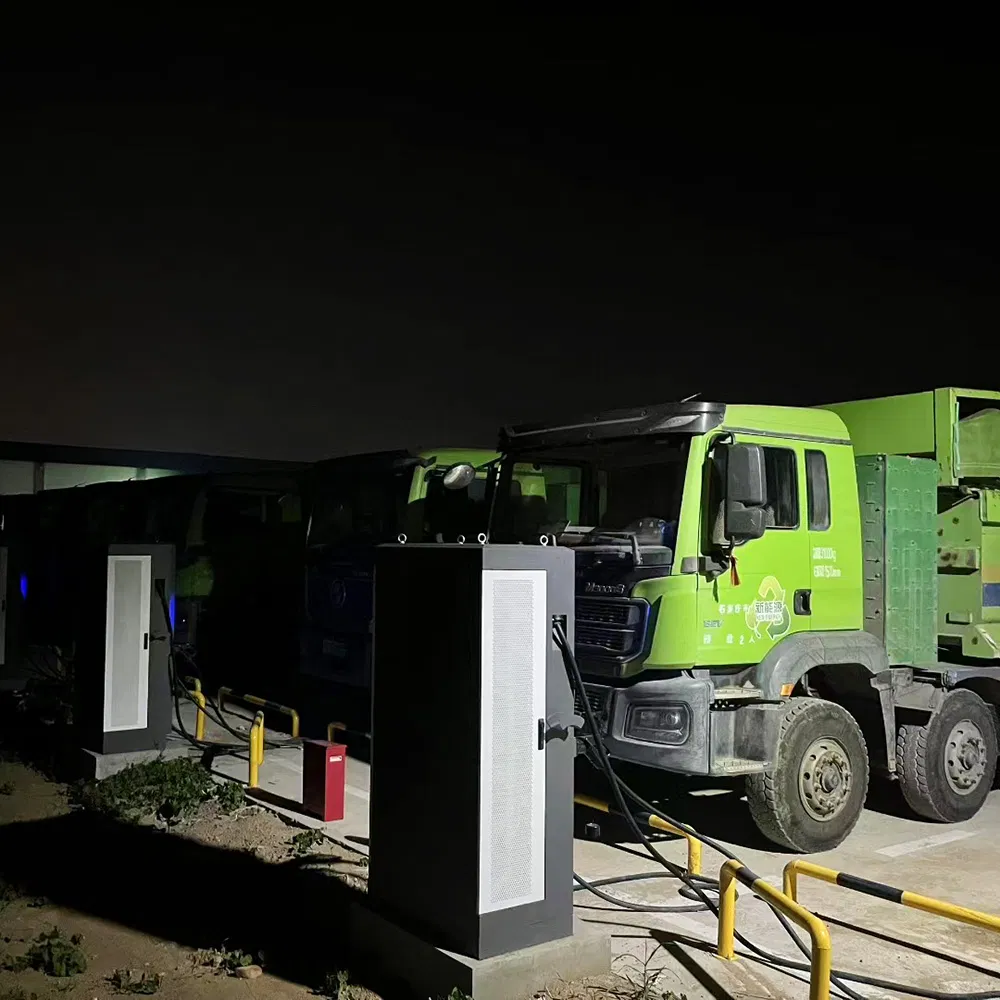

- Logistics Parks: Efficient charging and management for commercial logistics fleets.
- EV Leasing Places: Convenient charging solutions for rental vehicle turnaround.
- Enterprises & Institutions: Internal charging services for employees and corporate image enhancement.

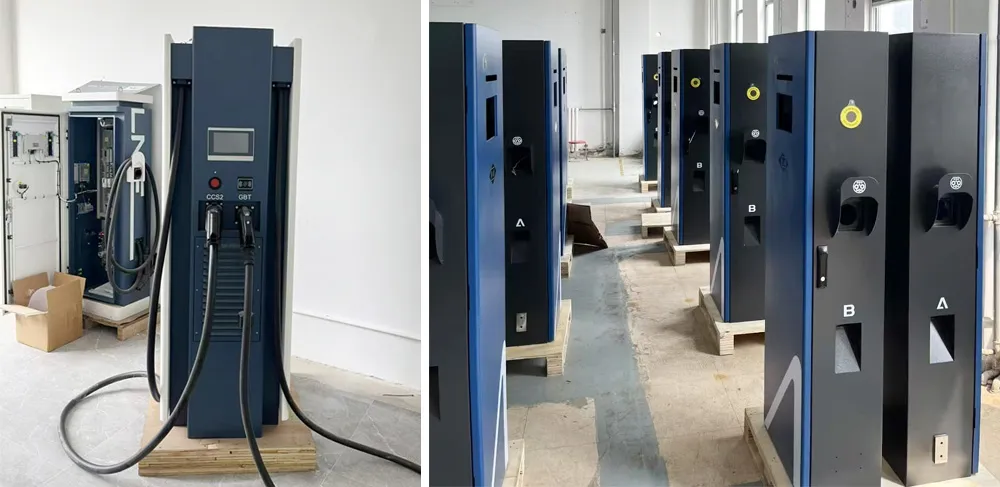

Production & Logistics
Frequently Asked Questions
Q: What is the maximum power output for this charging pile?
A: The power range is scalable from 40kW up to 240kW, depending on your specific requirements and configuration.
Q: Which charging connector standards are supported?
A: Our chargers support all major global standards including CCS1, CCS2, CHAdeMO, GBT, and NACS.
Q: Can it withstand harsh outdoor weather conditions?
A: Yes, it is rated IP54 for ingress protection and IK10 for impact resistance, making it suitable for various outdoor environments.
Q: What are the available payment and start methods?
A: Users can start charging via RFID card authentication, mobile remote operation, or optional credit card payment systems.
Q: Does the system support remote monitoring?
A: Yes, it uses the OCPP 1.6J communication protocol, allowing operators to monitor status, perform fault diagnosis, and upgrade software remotely.
Q: What cooling technology is integrated?
A: We offer both high-efficiency air-cooled and advanced liquid-cooled power electronics options to ensure stable performance.
