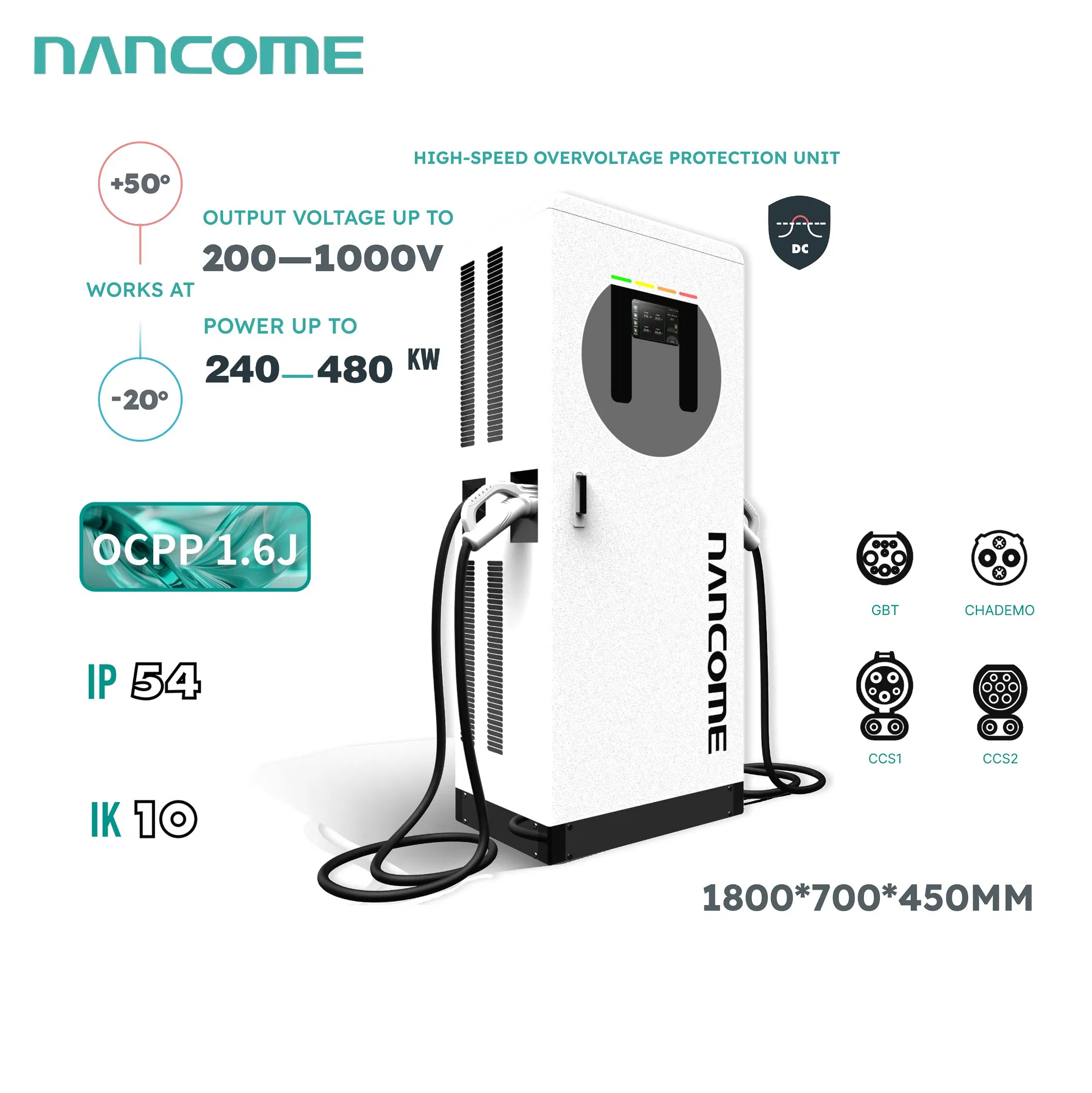

Advanced High Power Charging Station for Logistics EV Charging with 480kw
Product Description
📊 Basic Information
Model NO.
DCLZK002
Location
Public Use
Charging Interfaces
One Pile with Multiple Charges
Start Mode
Credit Card, Mobile App, RFID
Charge Method
Quick Charge
Voltage Range
AC380V±20%
Rated Output Power
240kw/320kw/360kw/480kw
Protection Level
IP54
Networking
WiFi/Ethernet/4G
Operating Environment
Indoor/Outdoor
⚙️ Product Parameters
| Voltage Range | AC380V±20% | Input Connection | 3P+N+PE |
| Operating Frequency | 45-65HZ | Power Factor | ≥99% |
| Input Current | 0-1000A | Output Power | 240KW-480KW |
| DC Voltage Range | DC200-1000V | Output Current | 0-300A |
| Humidity Range | 5~90RH% | Altitude | ≤2000M |
| Machine Dimensions | 700x600x1800mm | Cable Type | Aircooling (5m) |

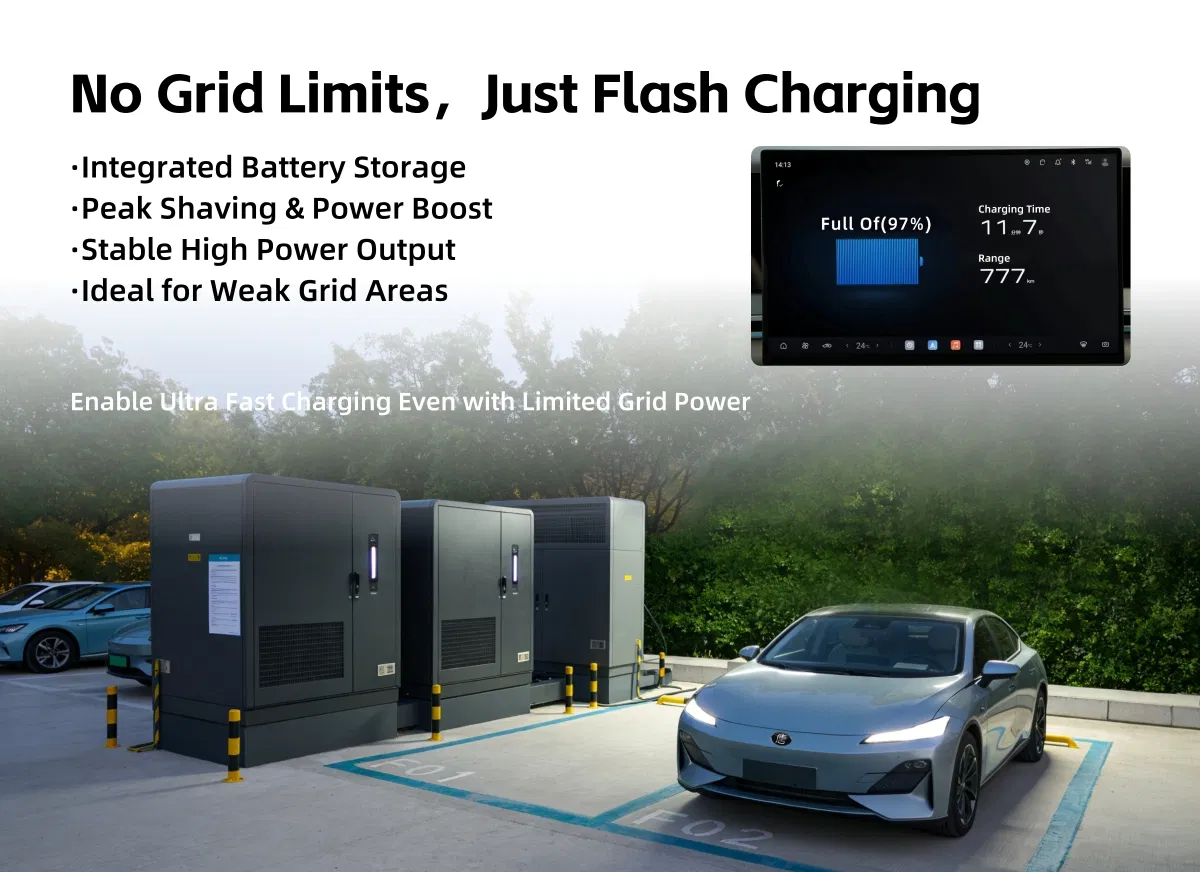

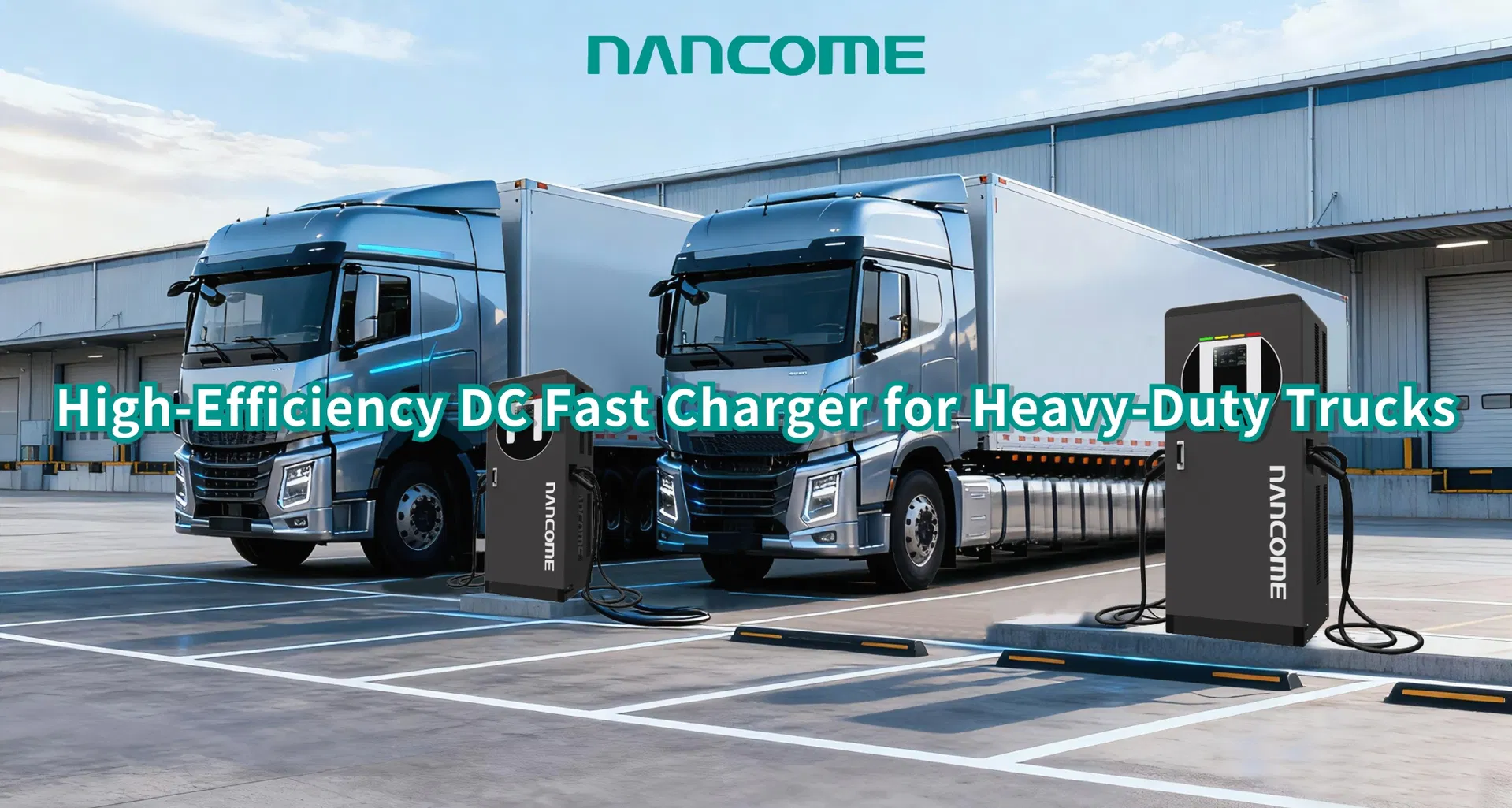

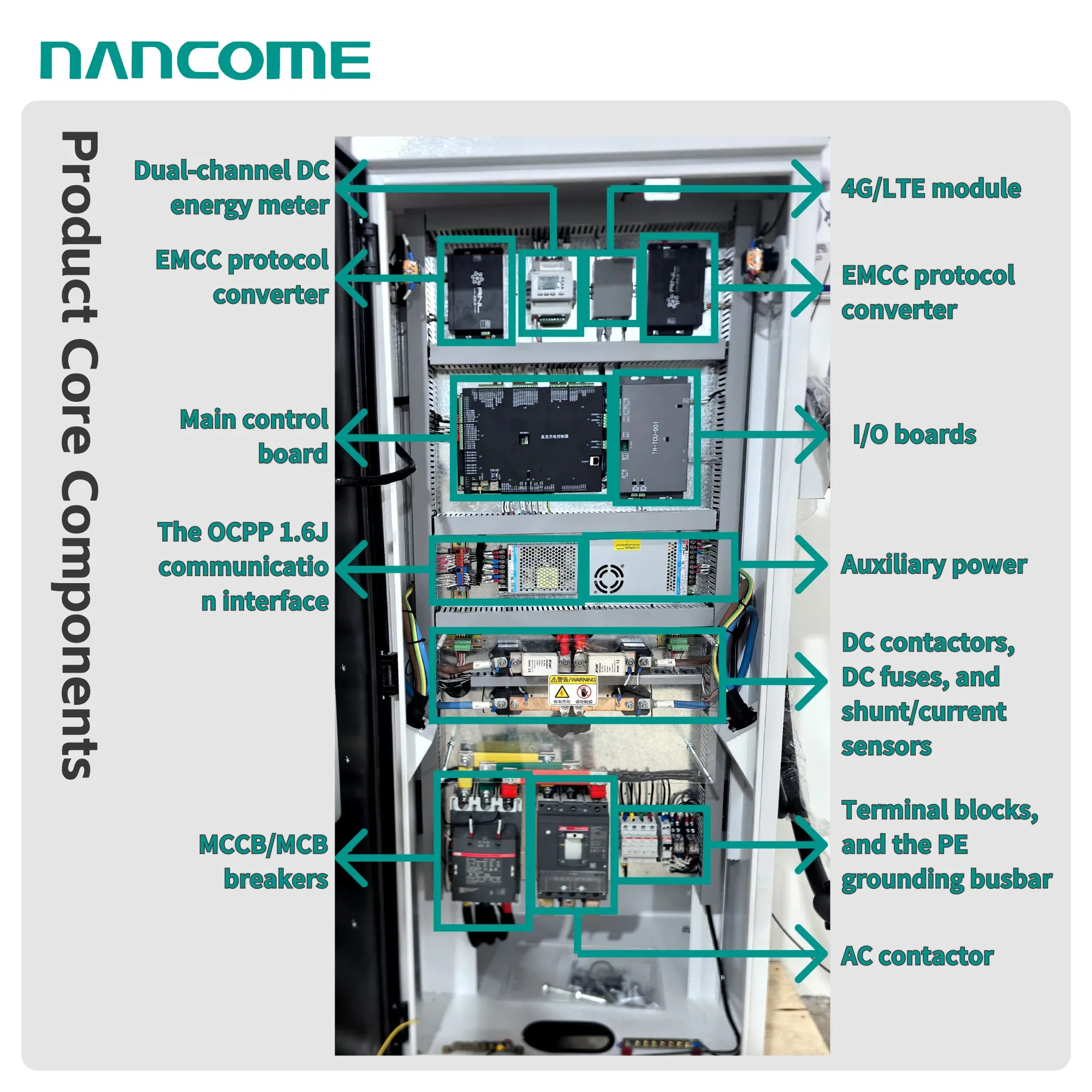

🖼️ Product Display
❓ Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a specialized manufacturer. You are welcome to visit our production facility at any time to see our high-power charging technology in action.
What types of EV chargers do you provide?
We offer a full range of solutions including AC Wallboxes (3.5kw-44kw), floor-mounted fast DC charging stations (30kw-480kw), and mobile chargers with energy storage.
Can you handle custom designs and branding?
Yes, we support OEM/ODM services. We can customize the design and place your logo on the products to meet your specific brand requirements.
What are your standard trade and payment terms?
We support various trade terms including EXW, CFR, CIF, DAP, DDU, and DDP. We accept multiple payment methods such as T/T, Credit Card, PayPal, and Western Union.
How long is the warranty period?
We provide a two-year warranty for the complete machine and offer lifetime software support. During the warranty, we cover hardware replacement costs in case of failure.
Do your products meet international standards?
Absolutely. Our products have passed relevant certifications recognized globally. We ensure all packaging and documentation meet local customs clearance requirements.
