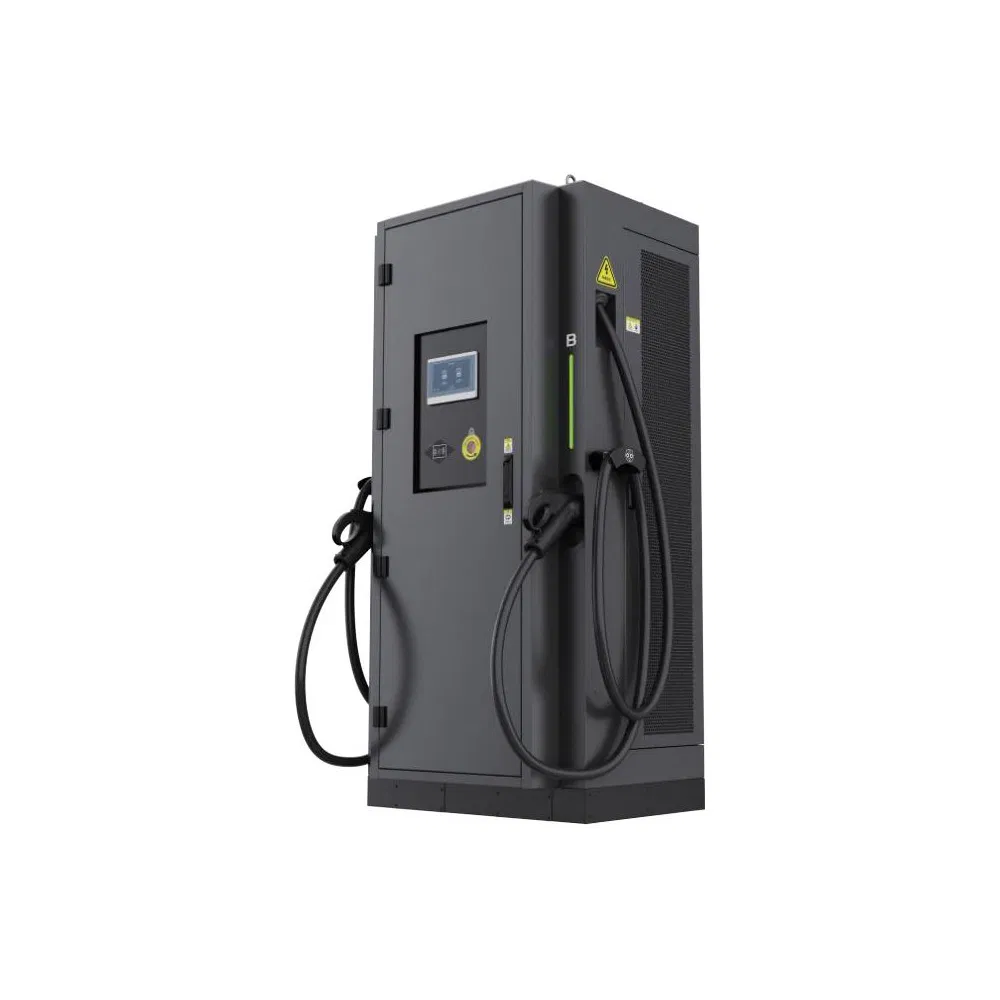

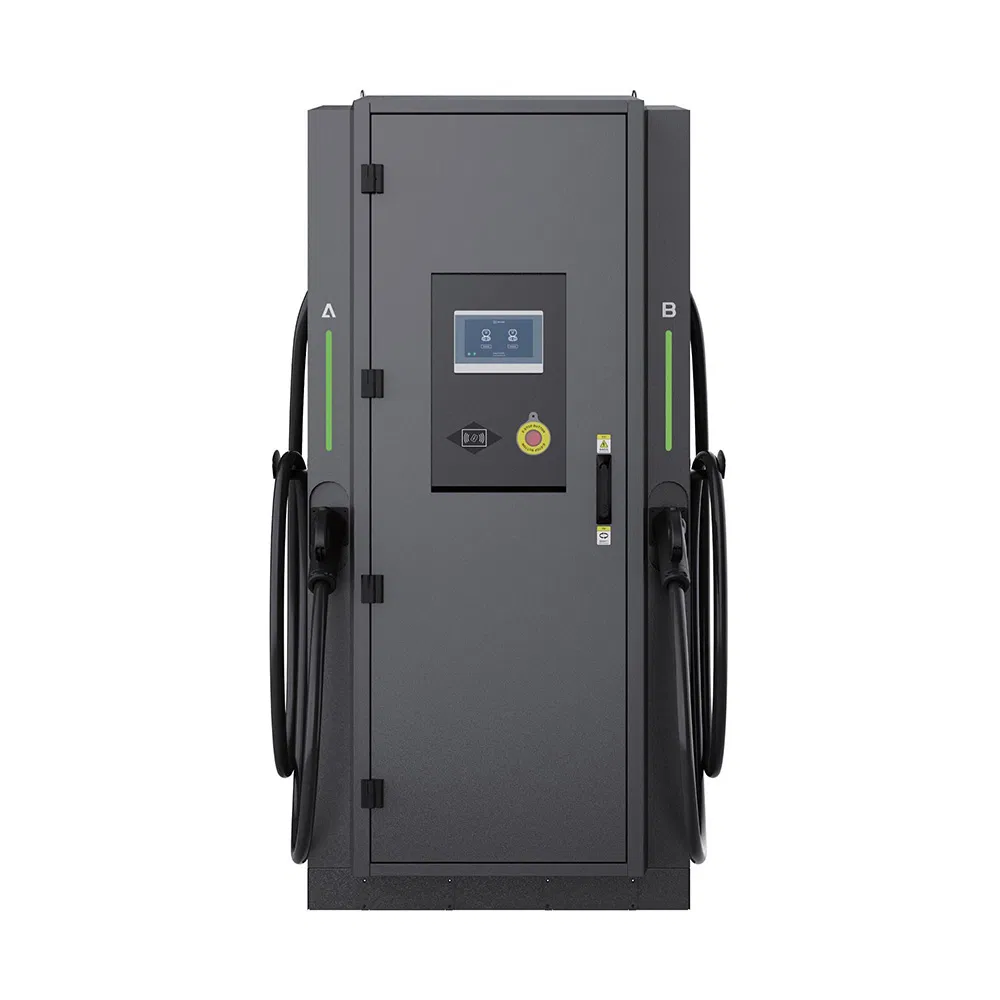

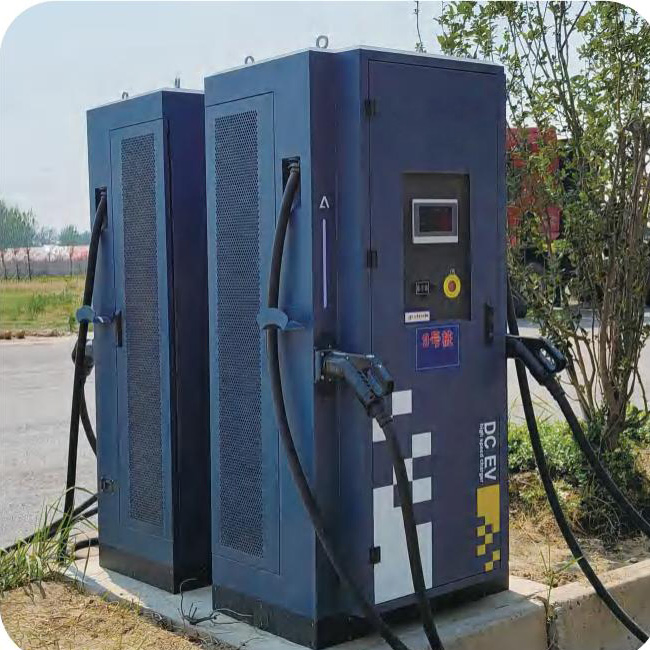

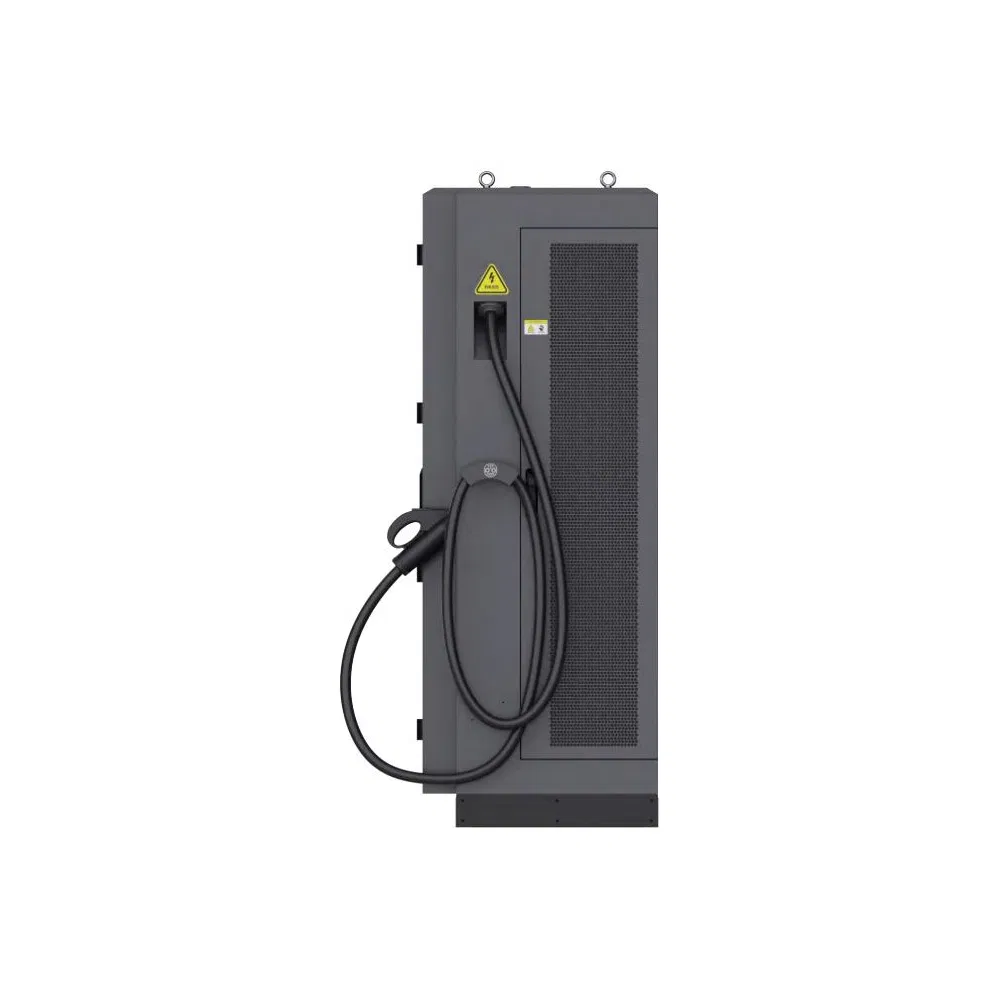

Efficient Charge 240kw-400kw DC Fast Charging Pile IP54 Waterproof Integrated Electric Car Charging Station Level 3 DC EV Charger
Product Description
i Basic Information
Model NO.BHDC-BH-10A
LocationPublic Use
Charging InterfacesOne Pile with Multiple Charges
Start ModeCredit Card, Mobile Remote, RFID
IP GradeIP54 / IK10
Output Voltage200 - 1000VDC
Output Power240kw - 400kw
ConnectorsCCS1, CCS2, Chademo, GBT, NACS
CoolingAir Cooled / Liquid Cooled
ProtocolOCPP 1.6J
★ Product Introduction
240-400kW Series DC EV Charger
This series of DC charging piles boasts a rugged design and can be scaled up to 320kW (liquid cooled DC electric car charging pile 400KW). The charging piles feature fast charging speeds and support dual-gun charging, enabling quick charging for high-power, large-battery-capacity vehicles.
Equipped with an advanced control system and communication module, it supports intelligent scheduling, remote monitoring, and fault diagnosis. Through cloud platform connectivity, operators can monitor real-time status and perform remote maintenance and upgrades.
🤝 Our Partners
⚙ Product Parameters
| Category | Specifications | Data Parameters |
|---|---|---|
| Appearance | Dimensions (L x D x H) | 900mm x 700mm x 1900mm |
| Weight | 400kg | |
| Connectors | CCS1 || CCS2 || CHAdeMO || GBT || NACS | |
| Electrical | Input Voltage | 400VAC / 480VAC (3P+N+PE) |
| Output Voltage | 200 - 1000VDC (Constant power: 300 - 1000VDC) | |
| Rated Power | 240-400kW | |
| Efficiency | ≥94% at nominal output power | |
| Functional | Display / RFID | 7’’ LCD touch screen / ISO/IEC 14443A/B |
| Communication | Ethernet / 3G / 4G / Wifi (OCPP 1.6J) | |
| Safety | Protection | Overvoltage, Lightning, Overcurrent, Leakage, Waterproof |
| Emergency Stop | Button Disables Output Power |

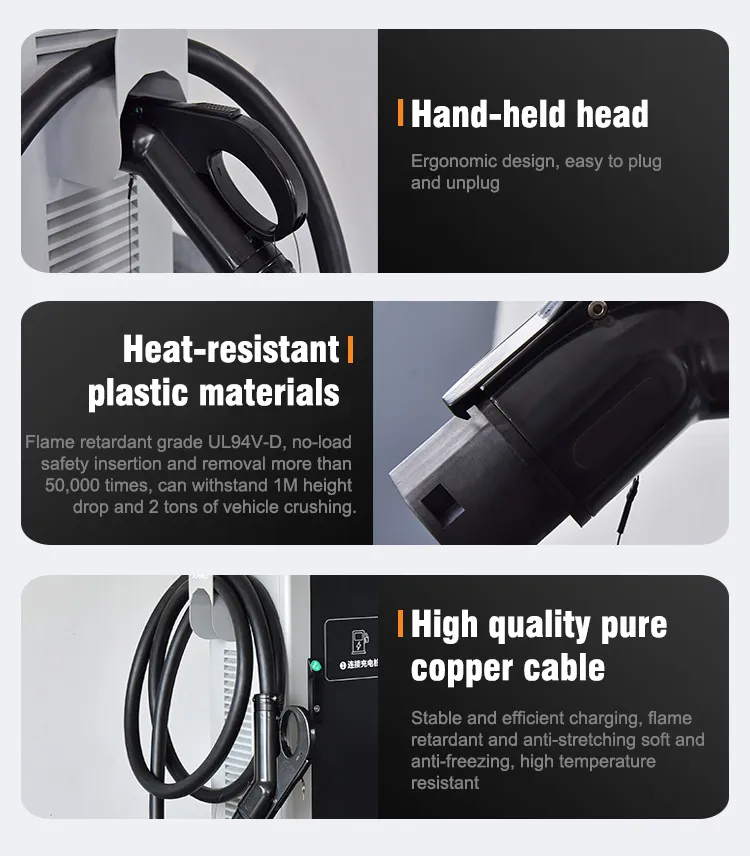

✔ Product Features

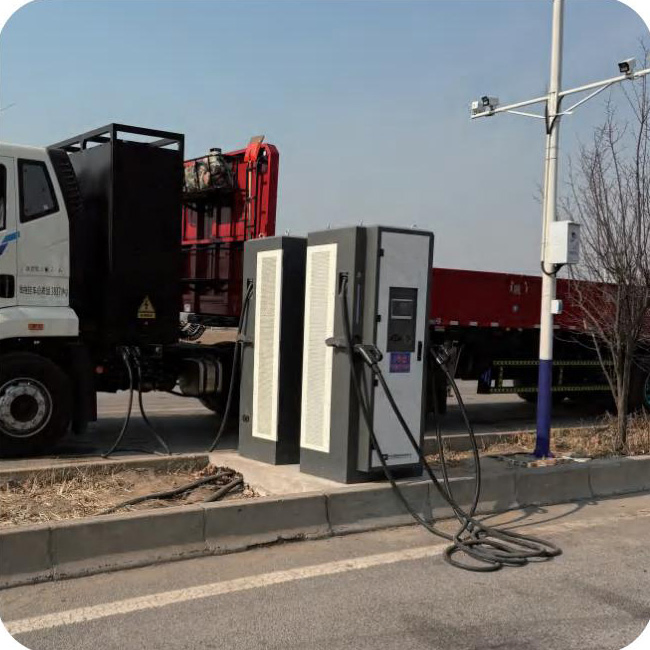

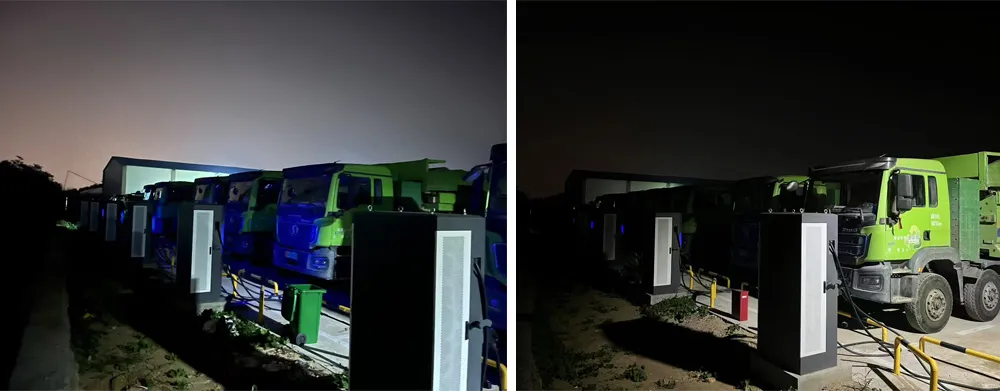

📍 Application Scenarios
-
1Public Charging PilesSet up in public parking lots, gas stations, and commercial centers for urban EV owners.
-
2Highway Charging StationsFast charging services on highways to improve long-distance EV range.
-
3Logistics ParksDedicated charging services for logistics fleets to facilitate efficient operation management.
-
4Enterprise Internal UseInstalled at office buildings for employees and customers, enhancing corporate green image.
📦 Packaging & Shipping
Frequently Asked Questions
What is the maximum output power of this charging station?
This series supports a wide power range from 240kW up to 400kW (with liquid cooling technology), making it ideal for Level 3 ultra-fast charging.

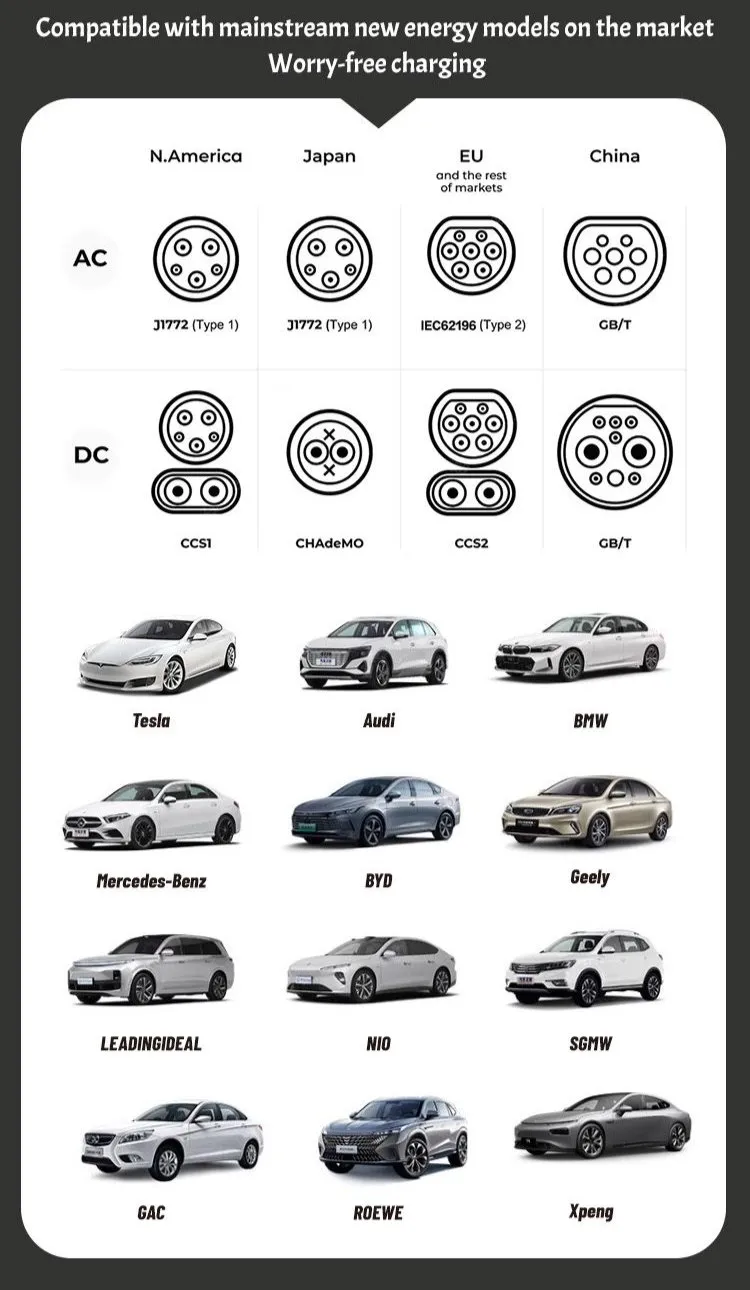

Which electric vehicle connectors are compatible?
The charger is highly versatile and supports CCS1, CCS2, CHAdeMO, GBT, and NACS connectors to serve various global EV standards.
Is the charging station protected against outdoor weather?
Yes, it features an IP54 ingress protection rating and IK10 impact resistance, ensuring reliable operation in harsh outdoor environments.
Does it support remote management and monitoring?
Absolutely. It uses the OCPP 1.6J communication protocol, allowing operators to monitor status, perform upgrades, and manage billing remotely via cloud platforms.
What are the available payment and start modes?
Users can start charging via RFID cards, credit card readers (optional), or mobile remote operation for a seamless user experience.
What cooling systems are used for the power electronics?
Depending on the power requirements, we offer both Air Cooled and Liquid Cooled solutions to ensure optimal thermal management and efficiency.
