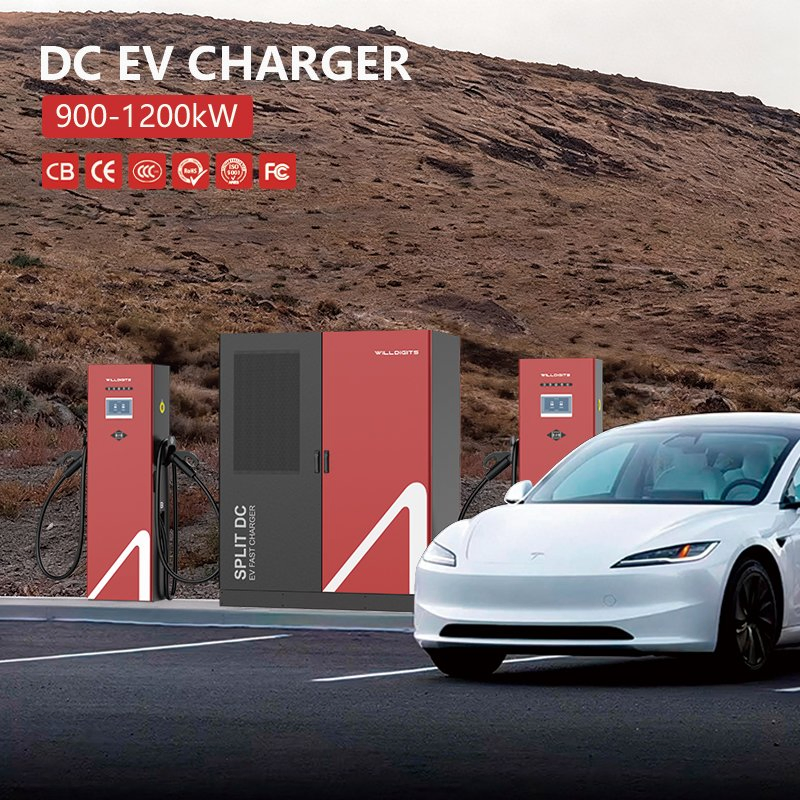

Willdigits 160-1200kw Split DC EV Charger Ocpp Compliant for Multi-Vehicle Charging
Product Description
⚡ Basic Information
Model NO.
WY13
Location
Public Use
Charging Interfaces
One Pile with Multiple Charges
Start Mode
RFID, Mobile Remote, Credit Card
Weight
550kg-750kg
Cable Length
5m
Input Voltage
400VAC / 480VAC (3p+N+PE)
Output Voltage
200 - 1000VDC
Rated Power
240-1920kw
Efficiency
Peak Efficiency ≥96%
Protection
IP54 IK10
Operating Temp
-30°C to 75°C
📘 Product Description

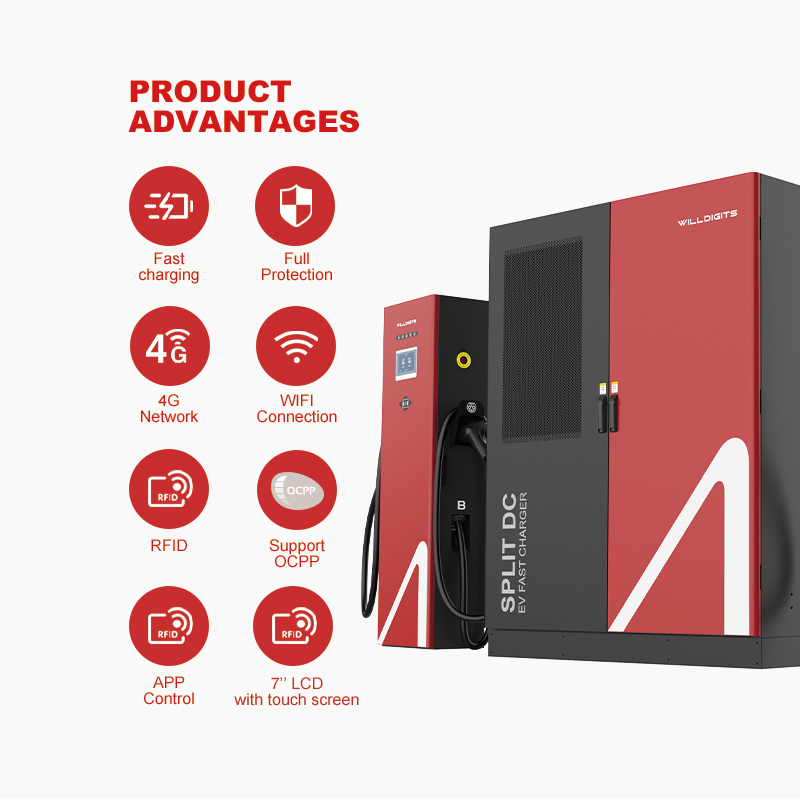

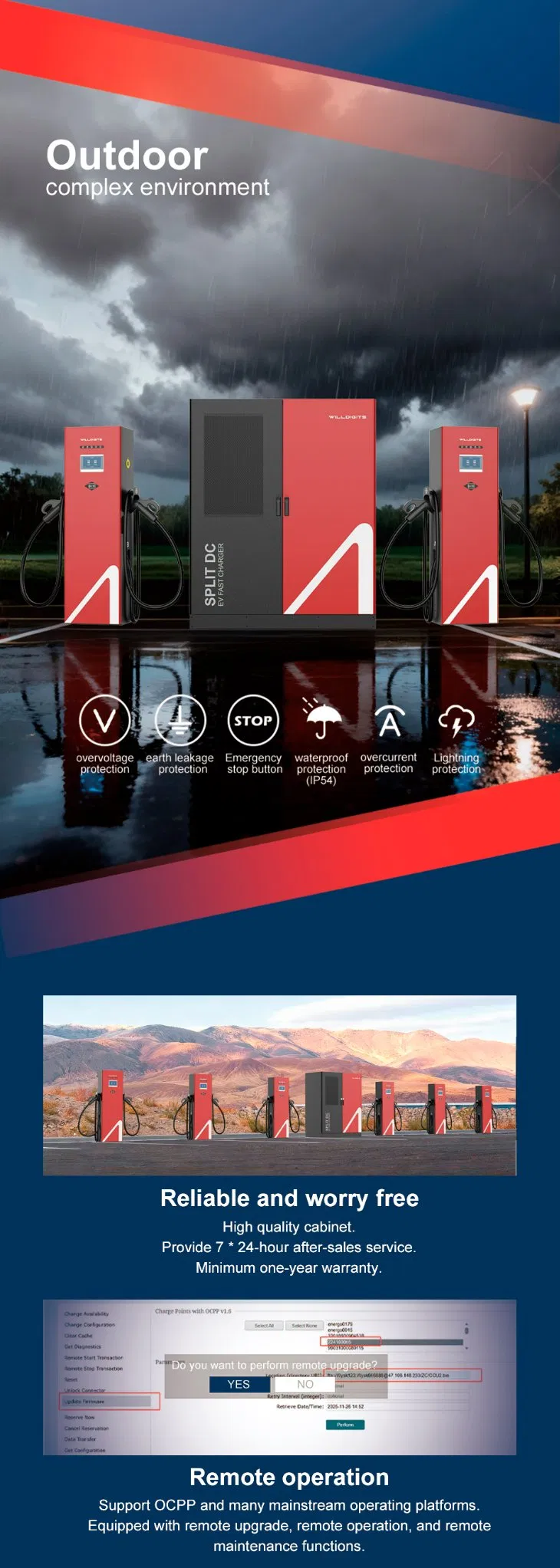

WY13 240-960kW Split-Type DC Charging Station: Pioneering the Future of Efficient Charging
This next-generation split-type DC fast charging station is specifically engineered for high-load, high-intensity operational environments. Its core advantage lies in advanced power pool technology and a modular architecture, supporting flexible power configurations from 240kW to 960kW. This perfectly adapts to diverse needs such as bus fleets, logistics hubs, highway service areas, and large public charging stations.
🚀

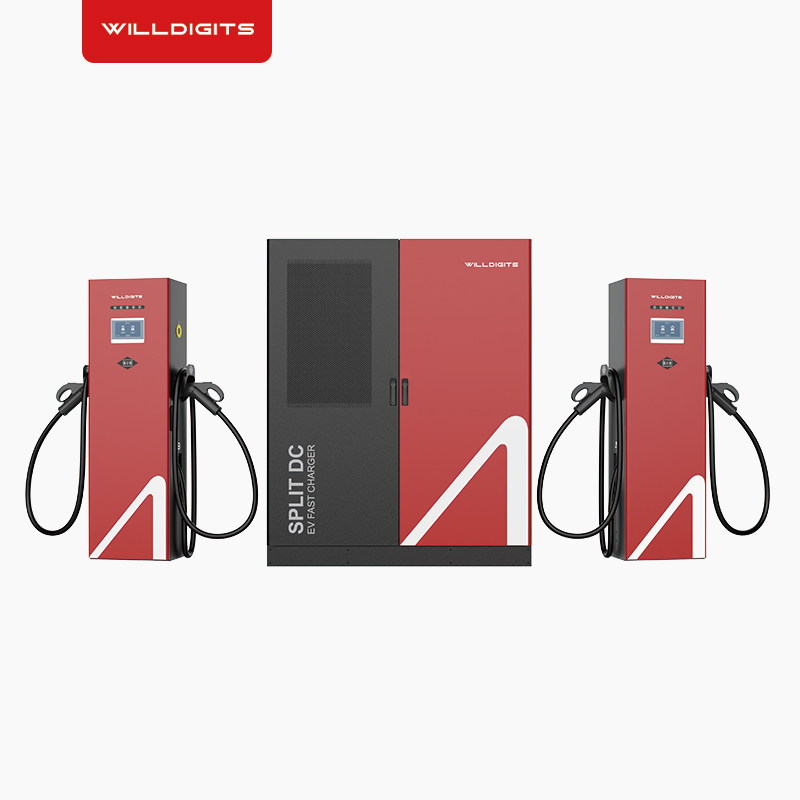

Intelligent Power Allocation: Featuring a "one-to-many" split design, it separates the intelligent power cabinet from the charging terminals. A single power cabinet can simultaneously supply multiple terminals, enabling dynamic and intelligent power resource allocation.
🛡️

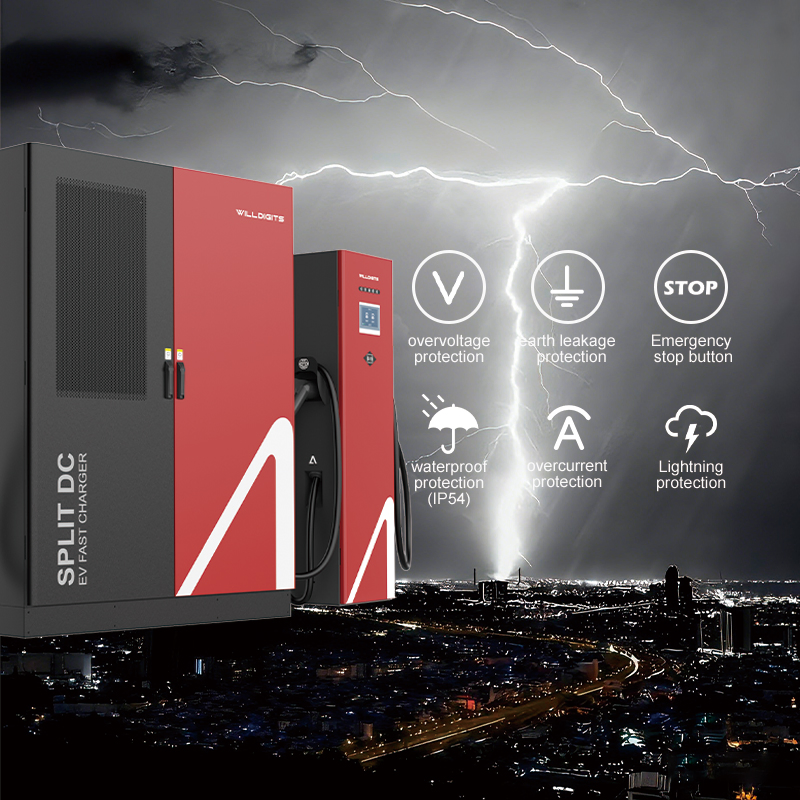

Safety & Reliability: Equipped with high-performance DC charging modules, these stations achieve conversion efficiencies exceeding 96%. Comprehensive protection features include overvoltage, overcurrent, overtemperature, and emergency shutdown.
📋 Technical Specifications
| Category | Parameter | Details |
|---|---|---|

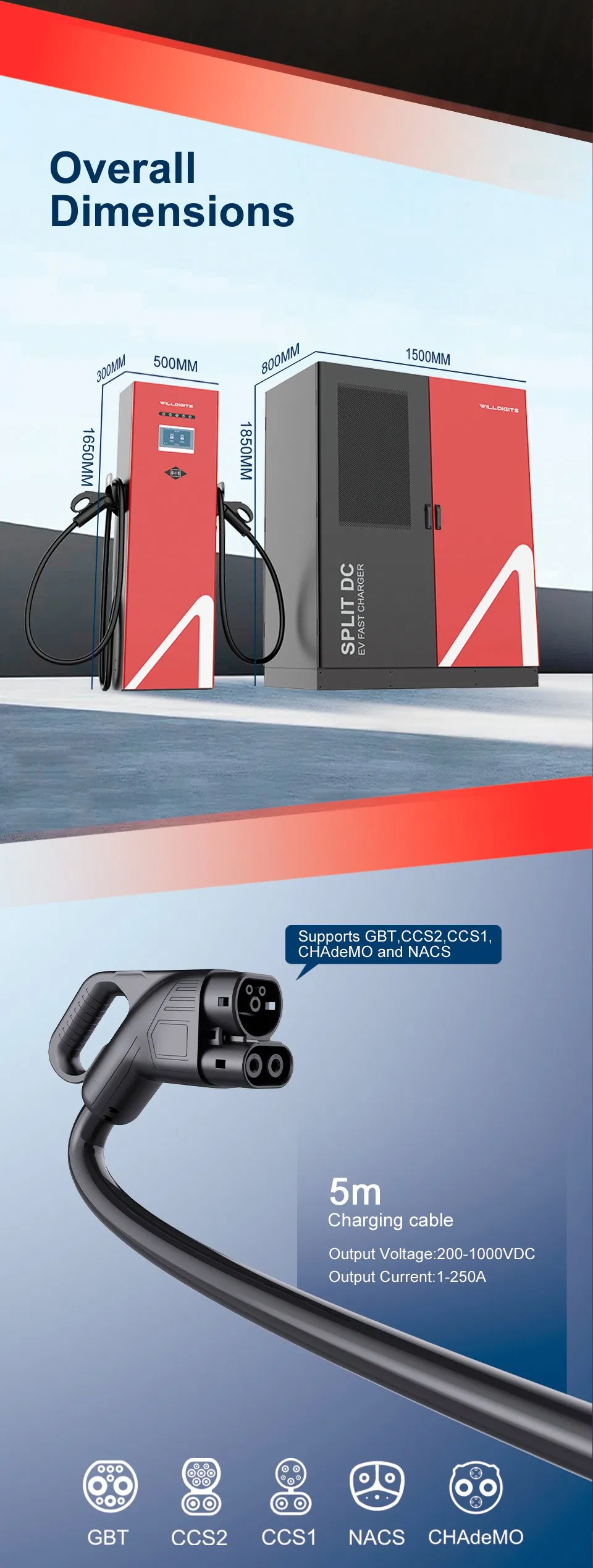

| Structure | Dimensions | 1500mm x 800mm x 1850mm (480kW) / 1900mm x 900mm x 1950mm (960kW) |
| Weight | 550kg — 750kg | |

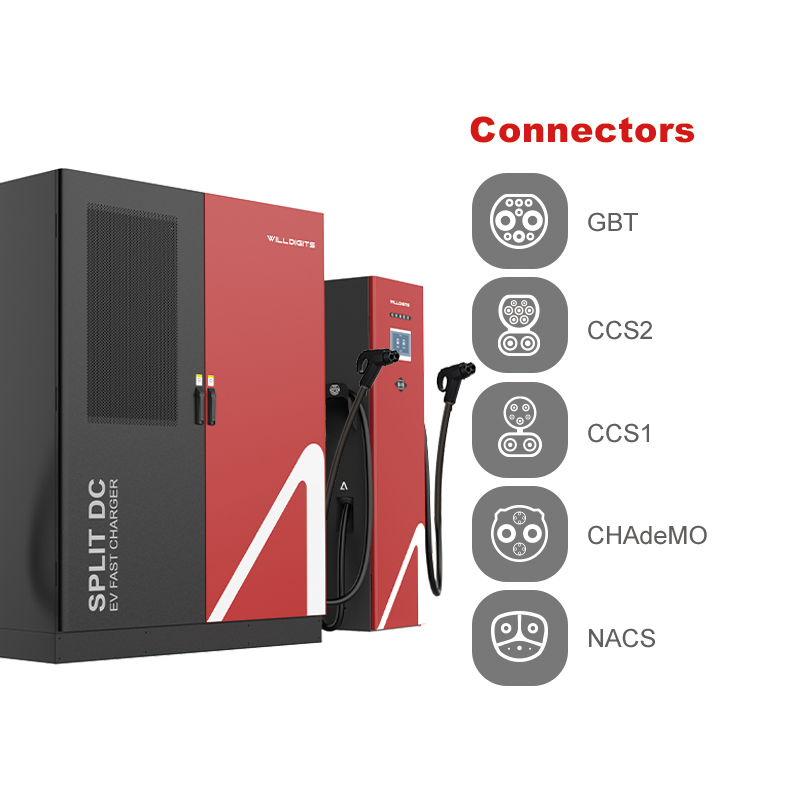

| Connectors | GBT, CCS2, CCS1, CHAdeMO, NACS | |
| Electrical | Input Voltage | 400VAC / 480VAC (3P+N+PE) |
| Output Voltage | 200 - 1000VDC | |
| Rated Power | 240-1920kW | |
| Efficiency | Peak efficiency ≥96% | |
| Environment | Operating Temp | -30°C to 75°C |
| Protection | IP54 || IK10 |
🏢 Professional Manufacturing
We are a high-tech enterprise dedicated to providing comprehensive energy solutions. Our team consistently prioritizes technology as our foundation, integrating R&D, design, manufacturing, sales, and service under one roof.
🛠️

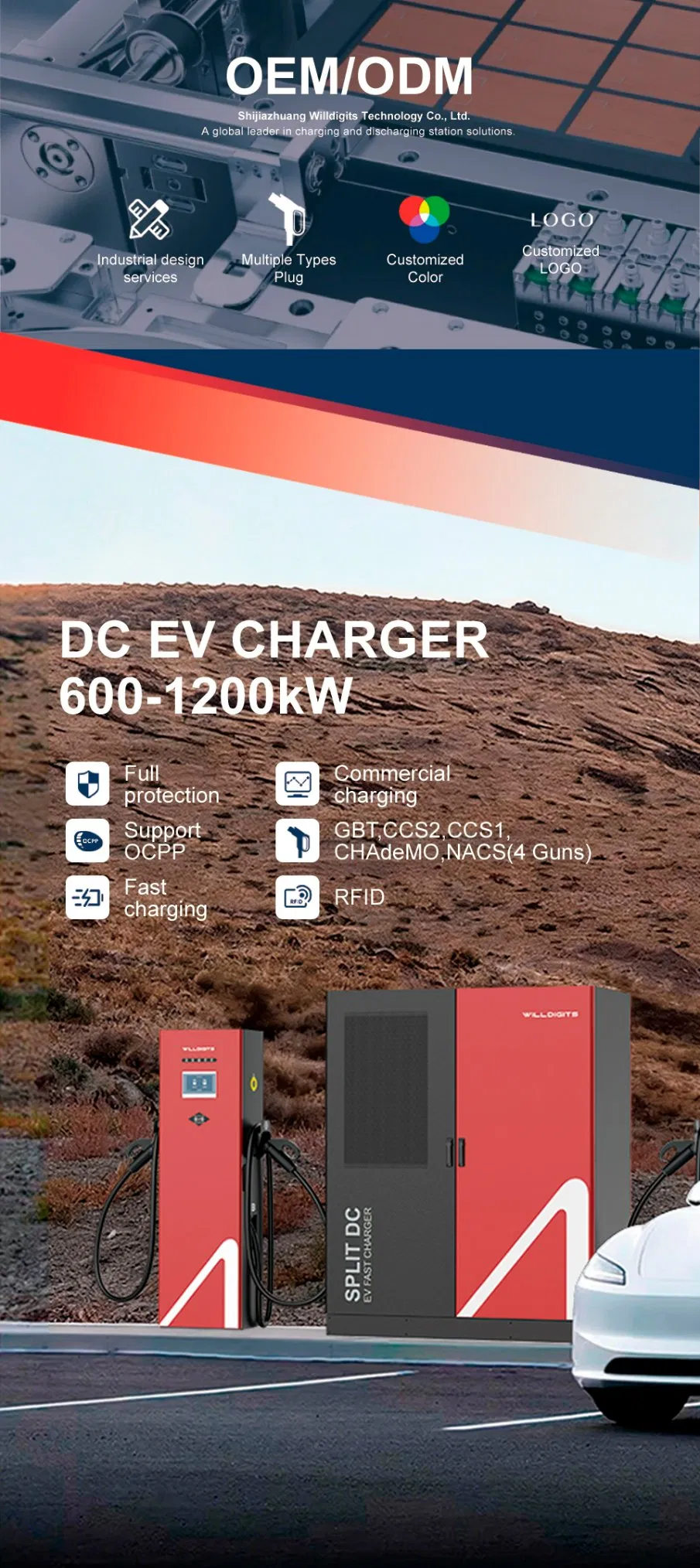

OEM/ODM Support: We provide technical support to dozens of charging pile manufacturers worldwide through independently developed products such as CCU, PCU, and SECC.
📦 Packing & Delivery
📜 Certifications
❓ Frequently Asked Questions
Are you a factory or trading company?
We are a professional manufacturer of new and sustainable energy applications for over 5 years.
What is the warranty period for your chargers?
The warranty ranges from 12 to 60 months. During this period, we provide technical support and replace parts free of charge.
What are your terms of packing?
We use standard wooden box packaging and standard carton packaging to ensure safety during transit.
How long is the typical delivery time?
Generally, it takes 5 to 25 working days after receiving your advance payment, depending on the order quantity.
Do you test all goods before delivery?
Yes, we conduct a 100% comprehensive test on all products before they are dispatched.
Can you produce according to specific samples?
Yes, we can manufacture products based on your samples or technical drawings to meet specific requirements.
