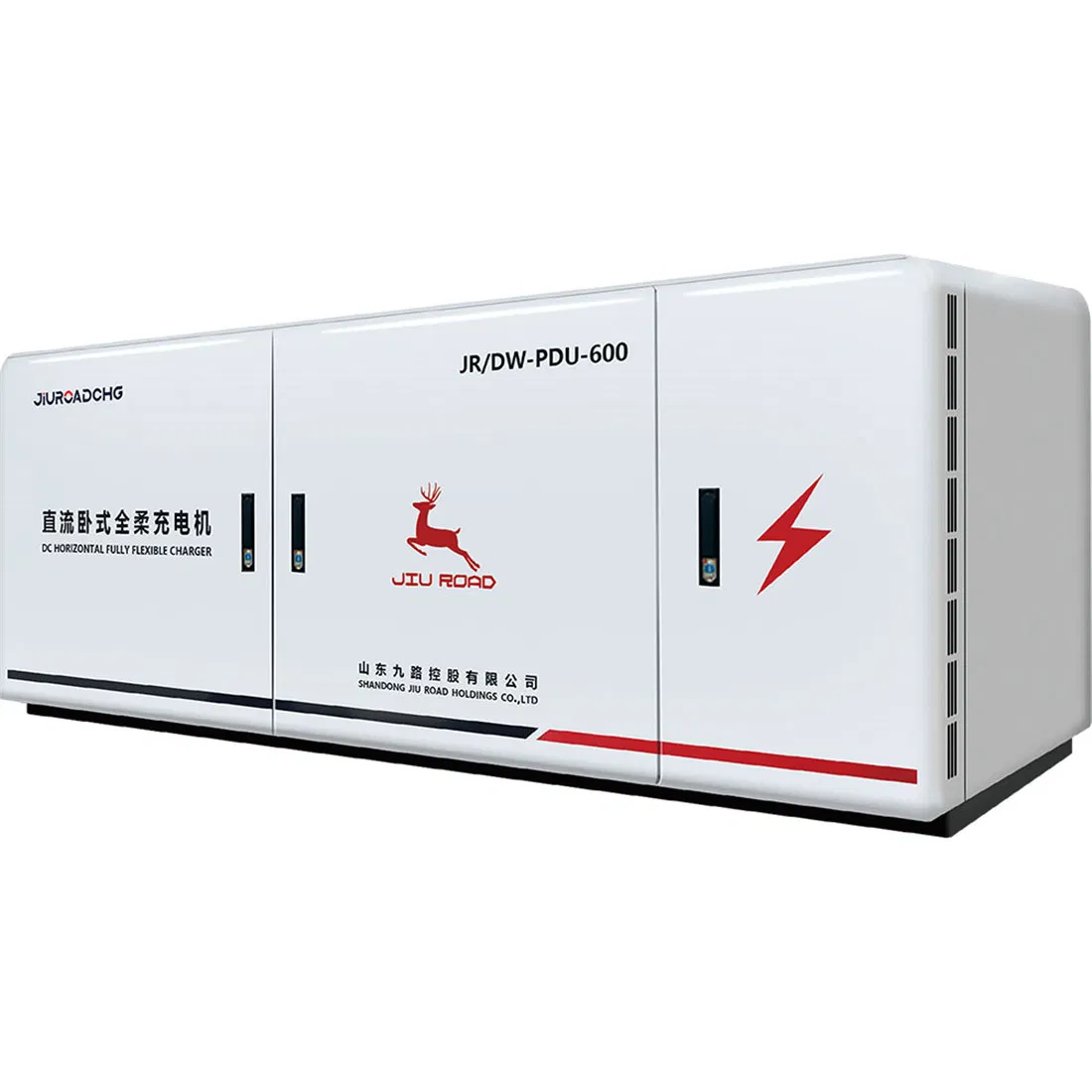

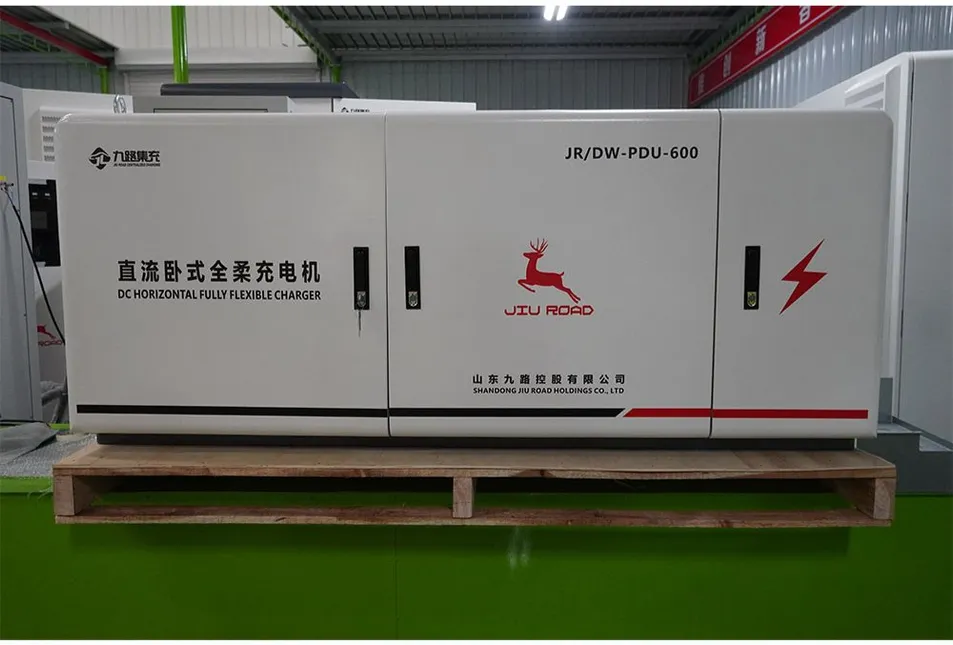

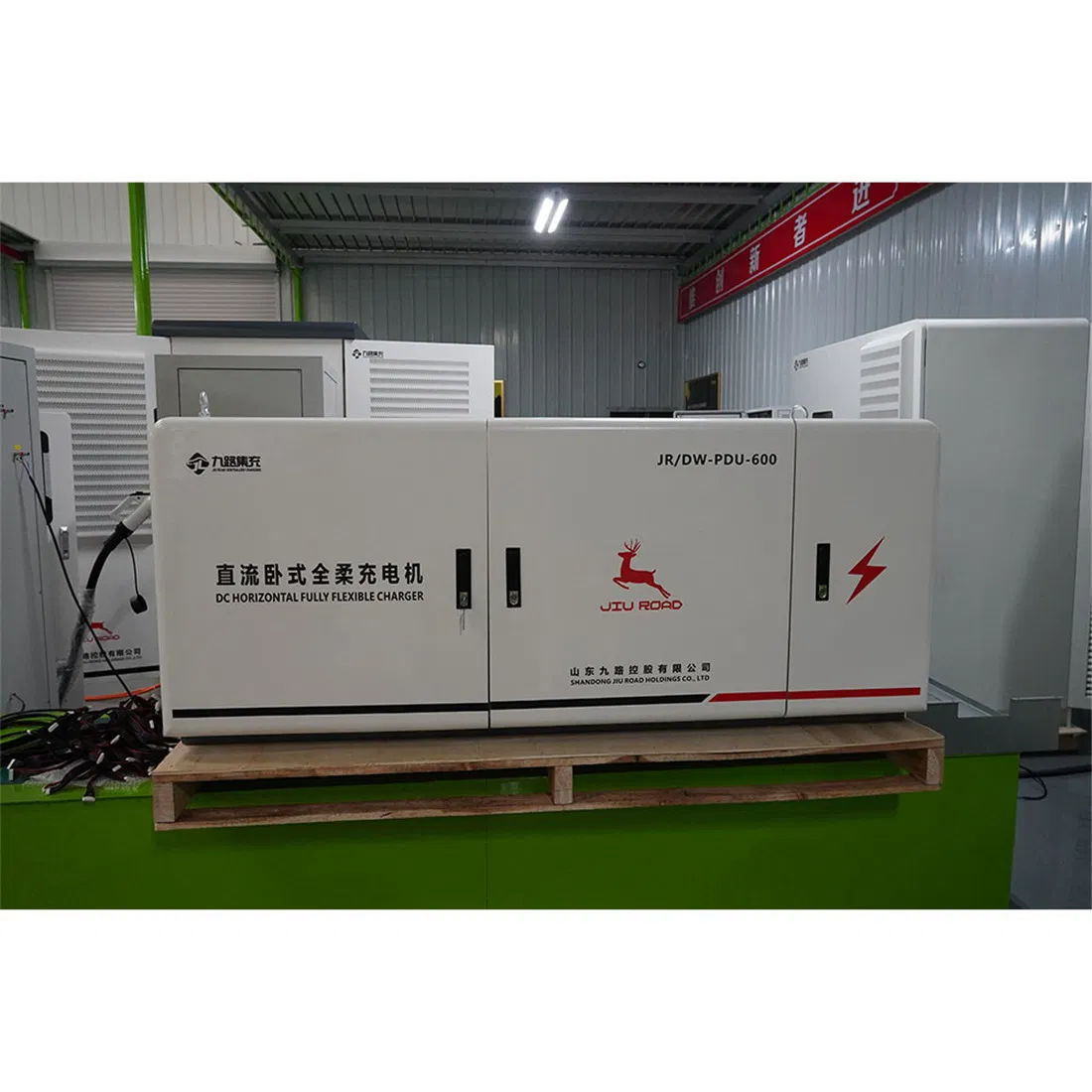

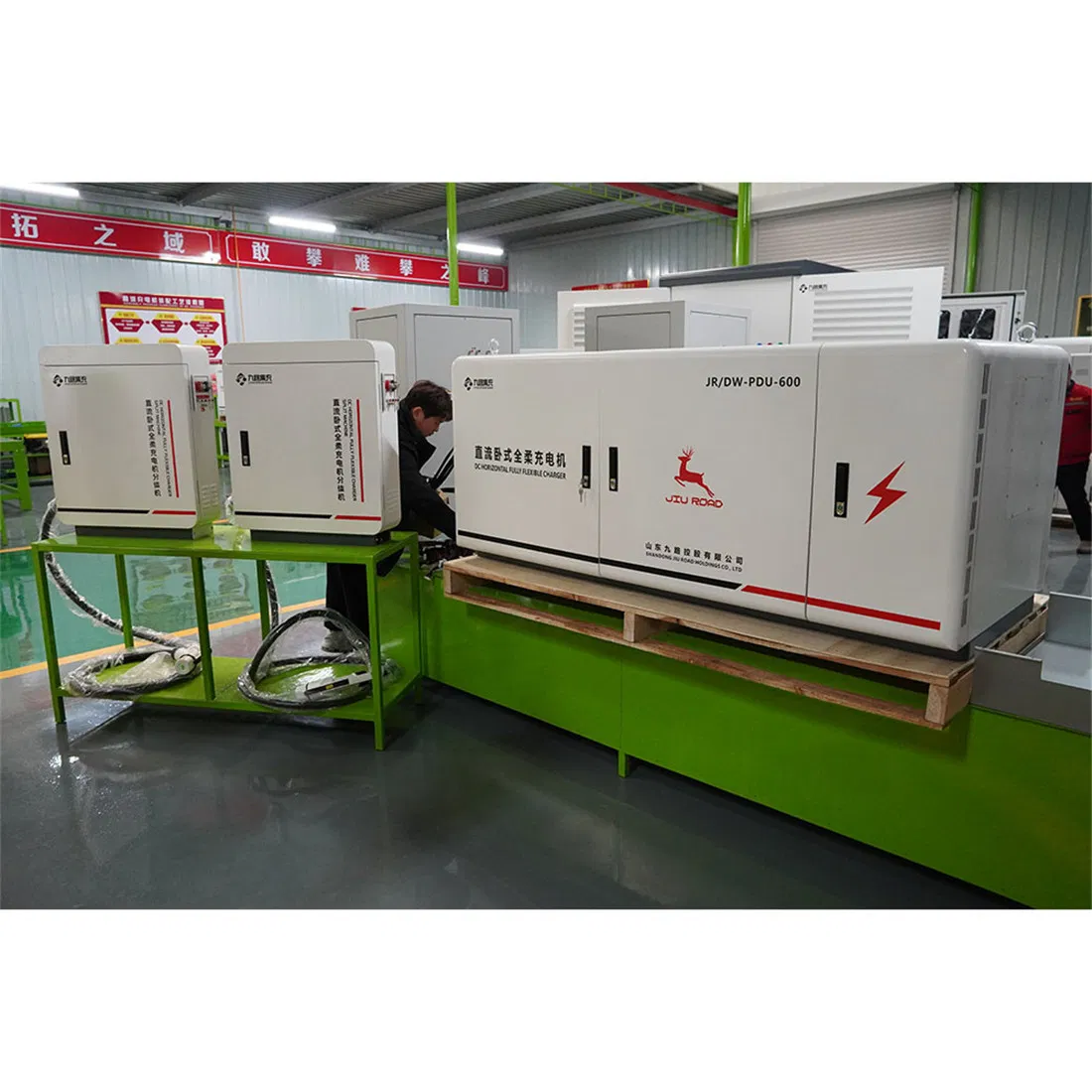

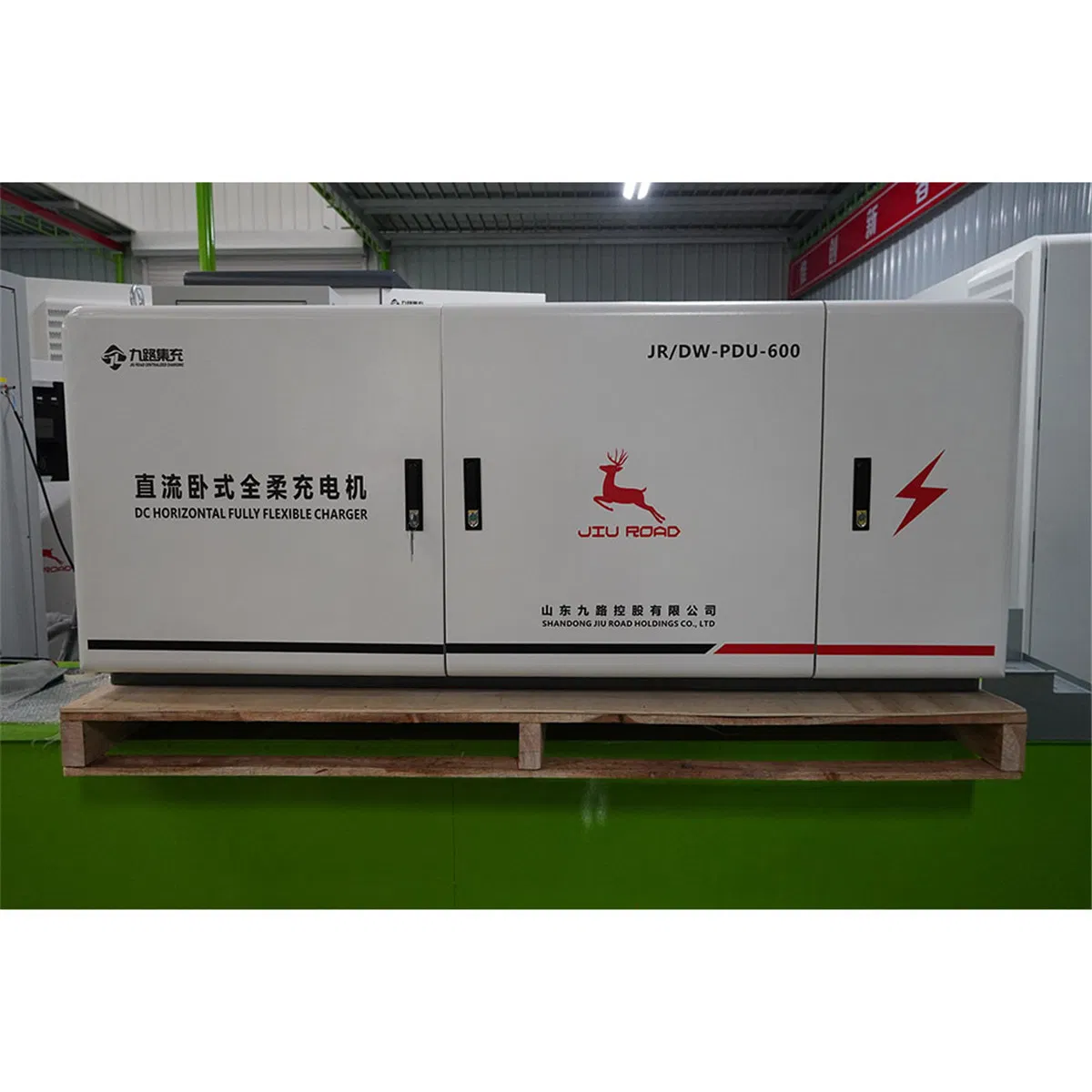

Intelligent Monitoring Multiple Guns Charging 600kw Horizontal Fully Flexible Split-Type DC Charger
Product Description
Basic Specifications
Product Introduction
Product Overview & Innovation: Designed to conquer the "zero-clearance" challenge in modern urban infrastructure, this charger is the definitive solution for underground parking and height-restricted sites. By adopting a horizontal low-profile power matrix, it seamlessly fits into spaces where standard vertical cabinets cannot, maximizing the commercial value of every square meter.
- Features & Functions: Ultra-slim, split-type topology with millisecond-level dynamic power switching and real-time load balancing across multiple terminals.
- Global Compatibility: Supports universal protocols including CCS2, CHAdeMO, and GB/T, ensuring 100% compatibility with global EV models.

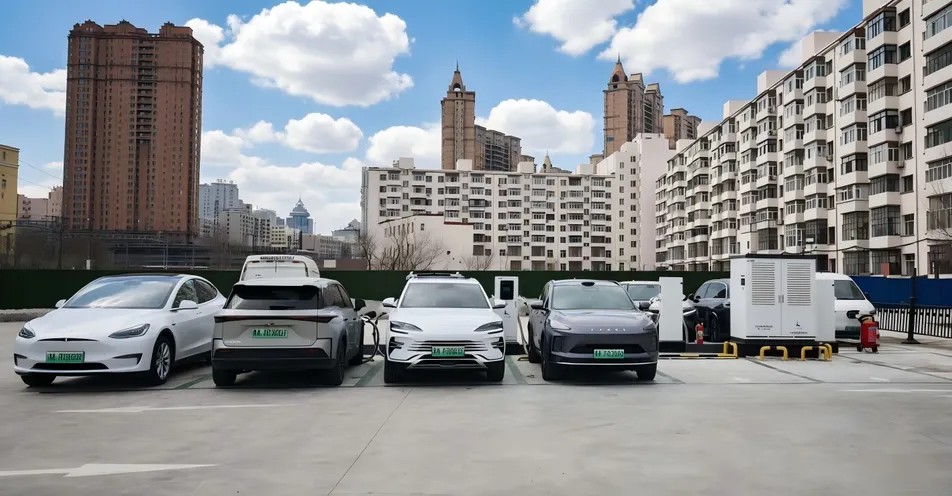

- Applications: Ideal for low-ceiling basements, narrow metropolitan alleys, integrated industrial workshops, and retrofitting older parking structures.
- Strategic Advantage: Drastically reduces civil engineering costs by eliminating the need for high-clearance spaces.
Technical Parameters
| Category | Parameter | Details |
|---|---|---|
| System Power | Rated Power | 600KW |
| Input Parameters | Rated Input Voltage | 380V AC |
| Input Voltage Range | 323VAC~437VAC | |
| Input Current Range | ≤1155A | |
| Output Parameters | Output Voltage Range | 150VDC~1000VDC |
| Constant Power Range | 300VDC~1000VDC | |
| Max Output Current | 2057A (System) | |
| Number of Outputs | 10 | |
| Basic Features | Peak Efficiency | ≥96% |
| Starting Method | Button, Password, QR Code, Card, VIN | |
| Communication | 4G Full Network / Ethernet | |
| Protection Level | IP54 | |
| Operating Temp | -25℃~50℃ |

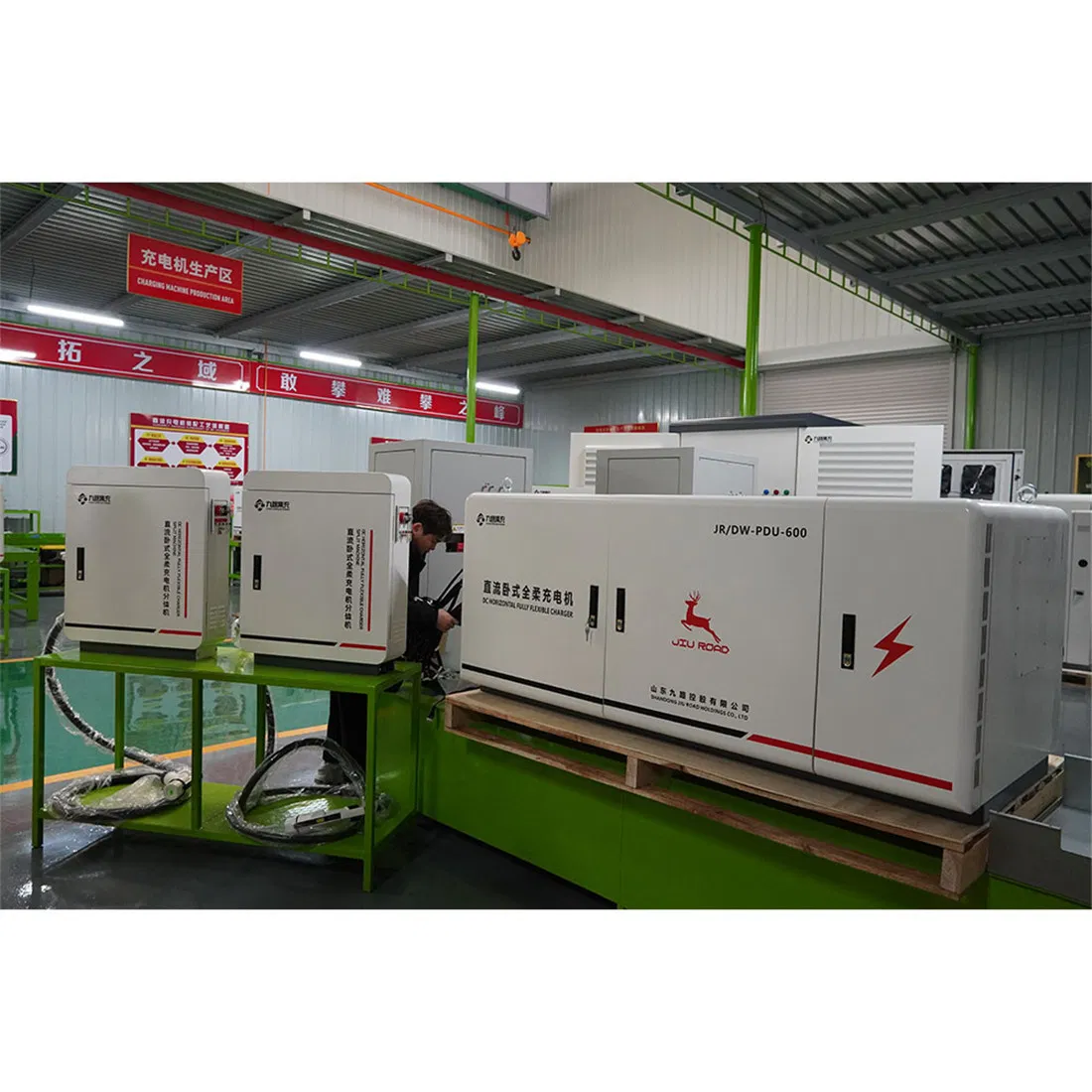

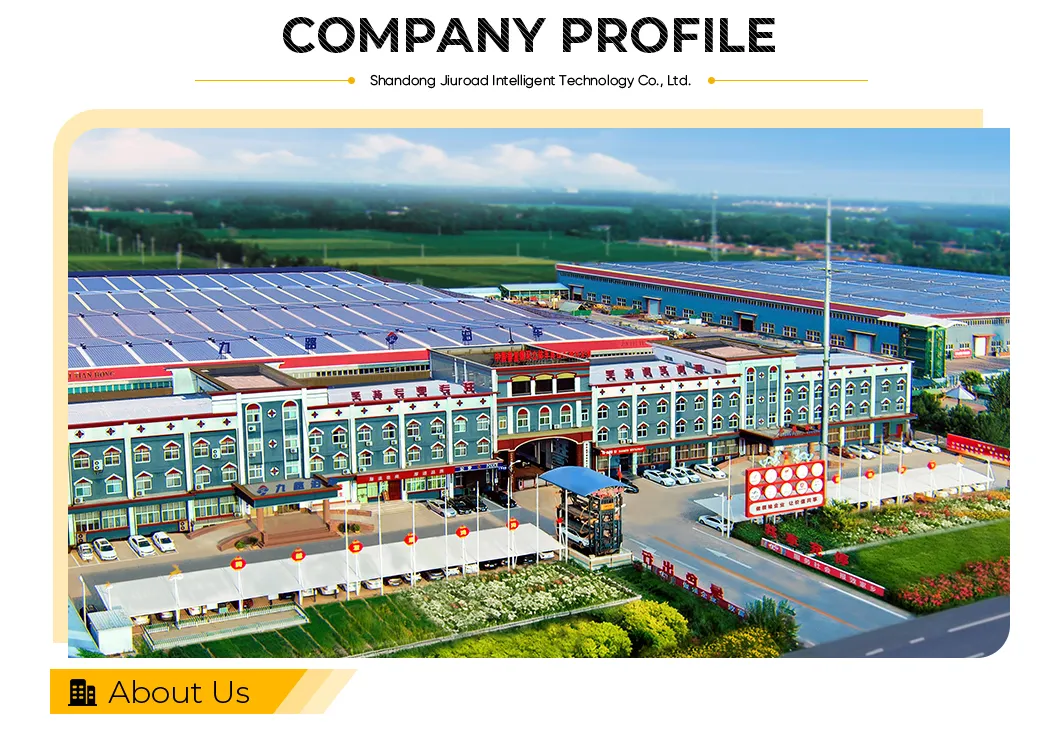

Manufacturing Excellence
As a global pioneer in high-end electric vehicle charging infrastructure and a recognized "Little Giant" Enterprise, we bring over 15 years of expertise in power electronics. Our R&D journey includes 127 meticulous scheme iterations and 16 core patented technologies, leading to the development of the World's First Integrated 3D Smart Charging Station.
Every power stack undergoes more than 50,000 extreme condition tests, ensuring flawless operation from desert heat to coastal humidity. Our systems are fully compliant with GB/T, IEC, SAE, and CHAdeMO standards with full OCPP compatibility.
Certifications & Global Presence

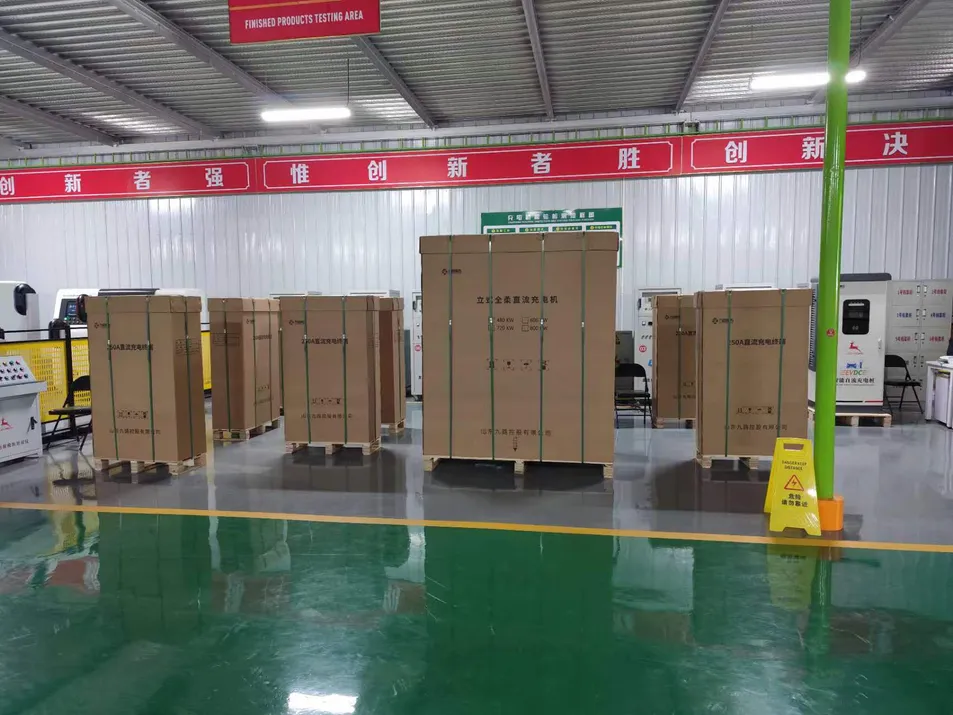

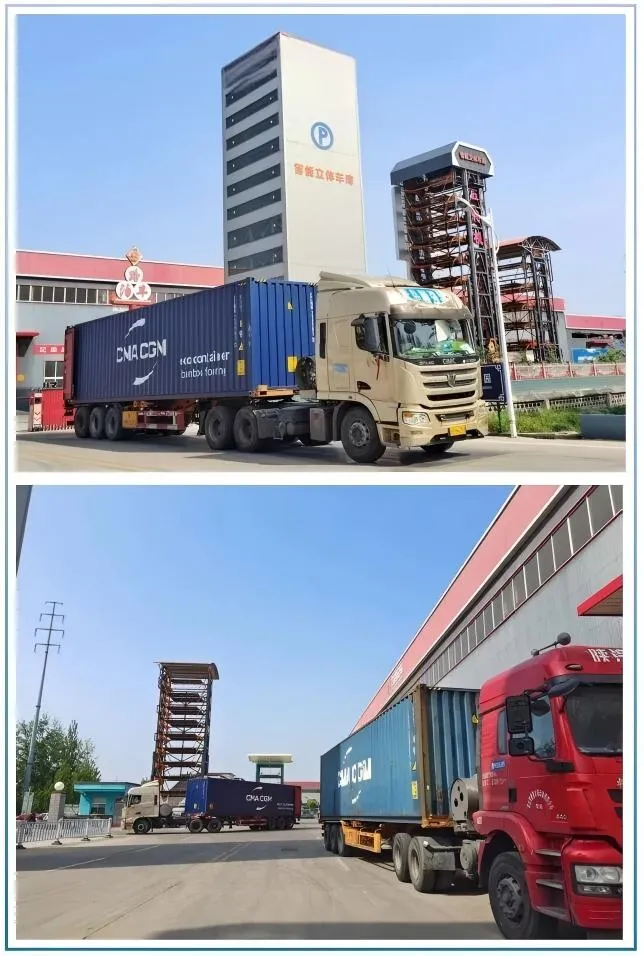

Packaging & Shipping
