Evd02 Wallbox 7kw/11kw/22kw Charging Power Enables RFID/APP Access Supports WiFi/4G and Ethernetconnection Car EV AC Fast Charger
Product Description

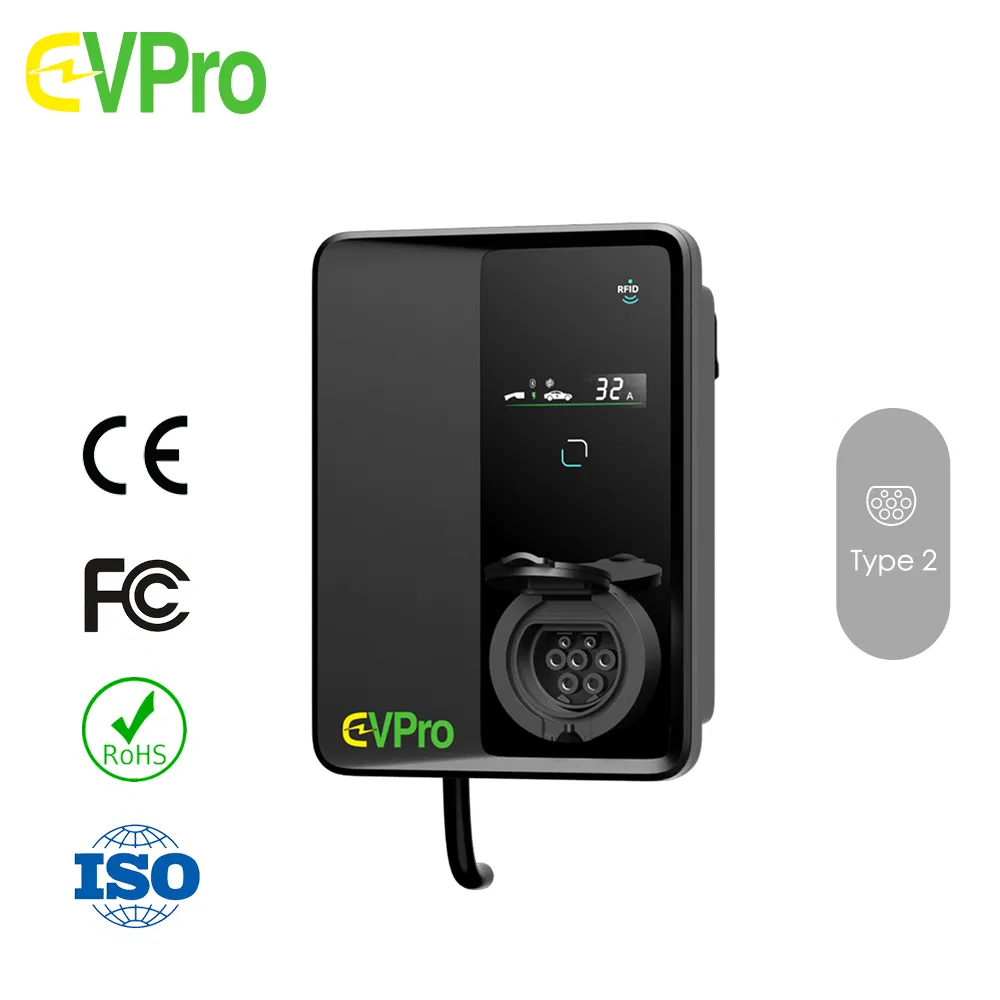

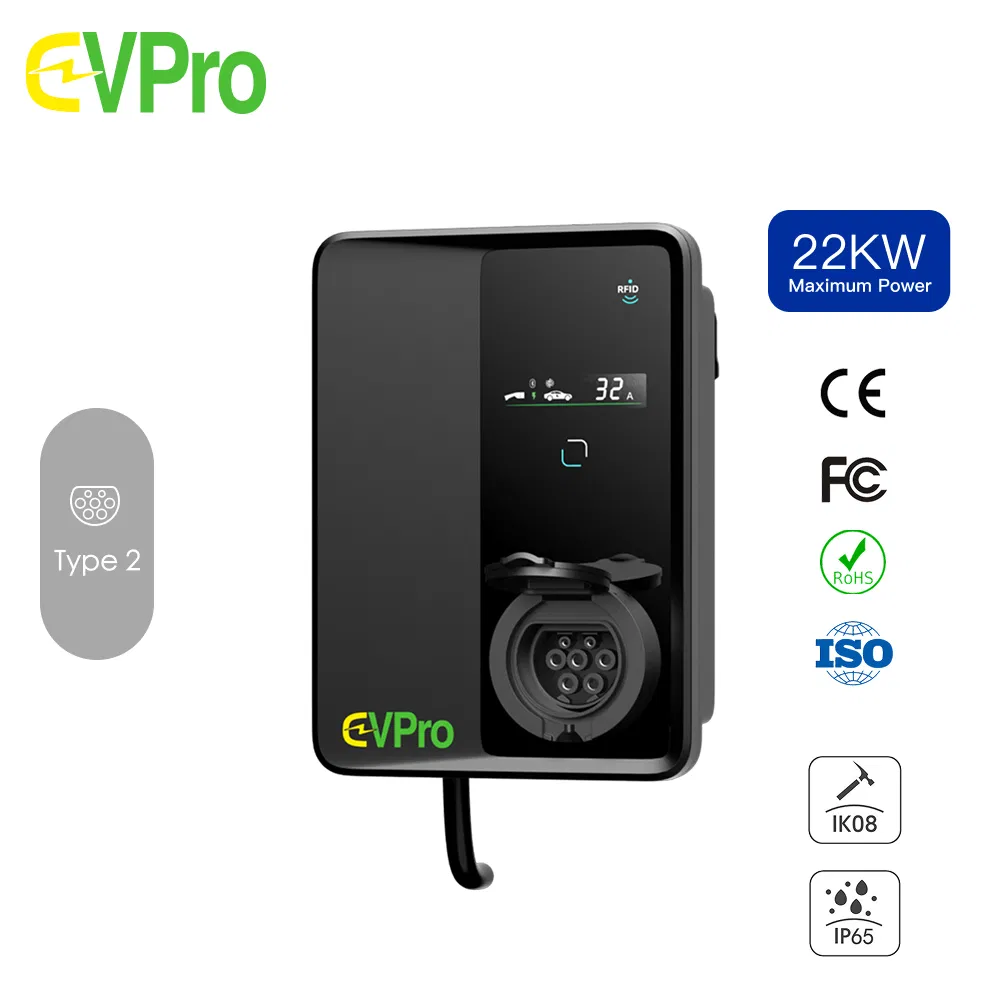

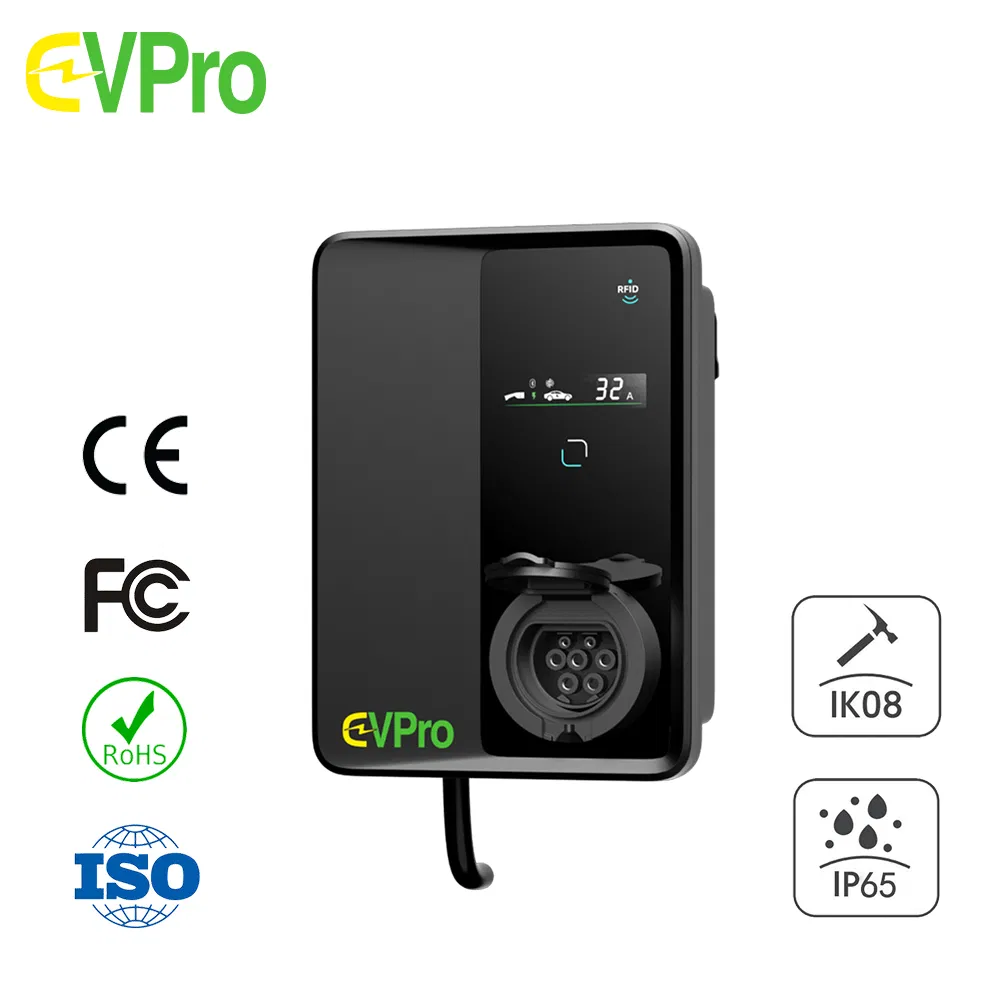

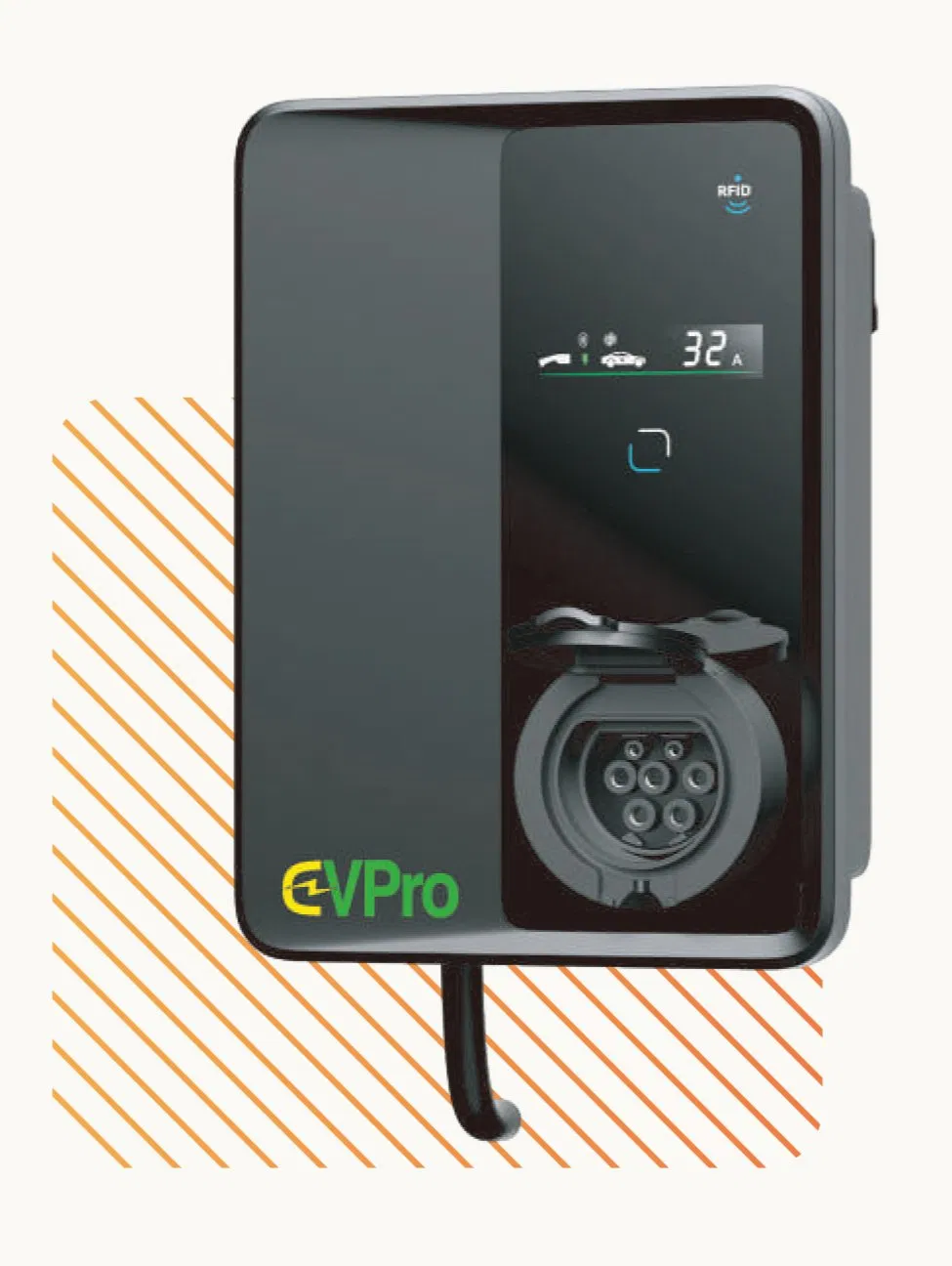

EVD02 Wallbox EV AC Charger
The EVD02 WALLBOX EV AC Charger boasts an innovative and intelligent design. It supports 7kW/11kW/22kW charging power, with an impact protection level of IK08 and a waterproof level of IP65. It enables RFID/APP access, supports WiFi, 4G, and Ethernet connection, is compatible with OCPP 1.6J, and meets certifications like IEC 62196, IEC 61851, and EN50620/EC62893.
- Innovative and intelligent design

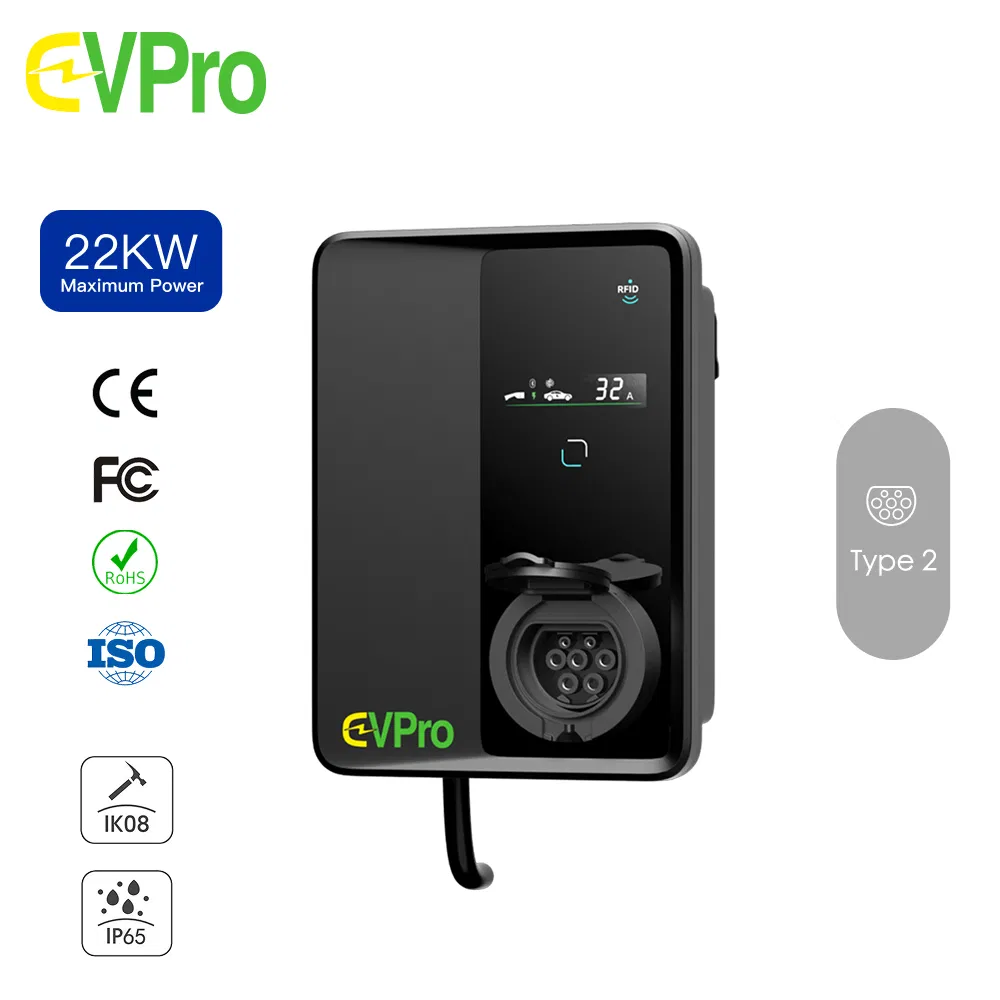

- Support 7kW/11kW/22kW charging power

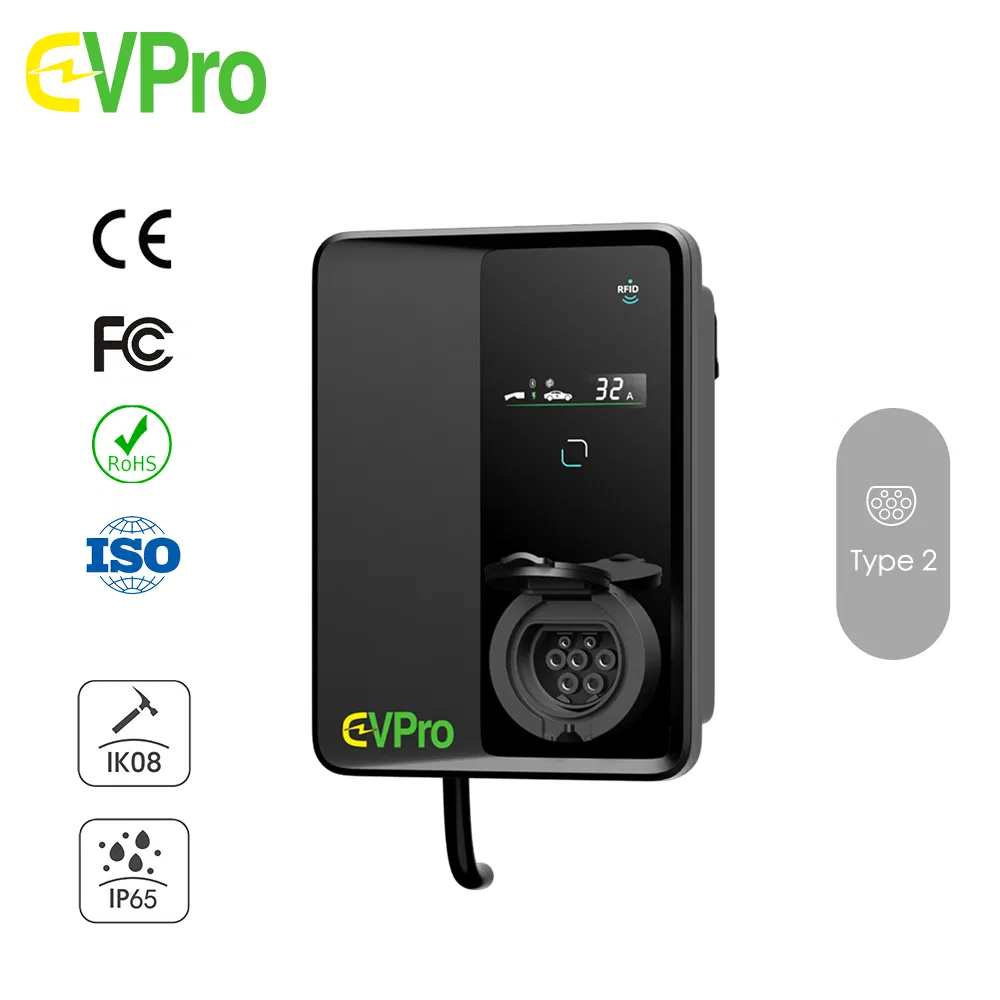

- Impact protection level: IK08
- Waterproof level: IP65
- Support RFID/APP
- Support WiFi, 4G, Ethernet Connection
- Support OCPP 1.6J
- Certifications: IEC 62196, IEC 61851, EN50620/IEC 62893
| Category | Data Parameters |
|---|---|
| Input/Output Voltage | Single Phase 230VAC |
| Input/Output Current | Single Phase 32A |
| Charging Power | 7kW, 11kW, 22kW |
| Interface Protocol | OCPP 1.6 |
| Standby Power | ≤ 6W |
| MTBF | 50,000 Hours |

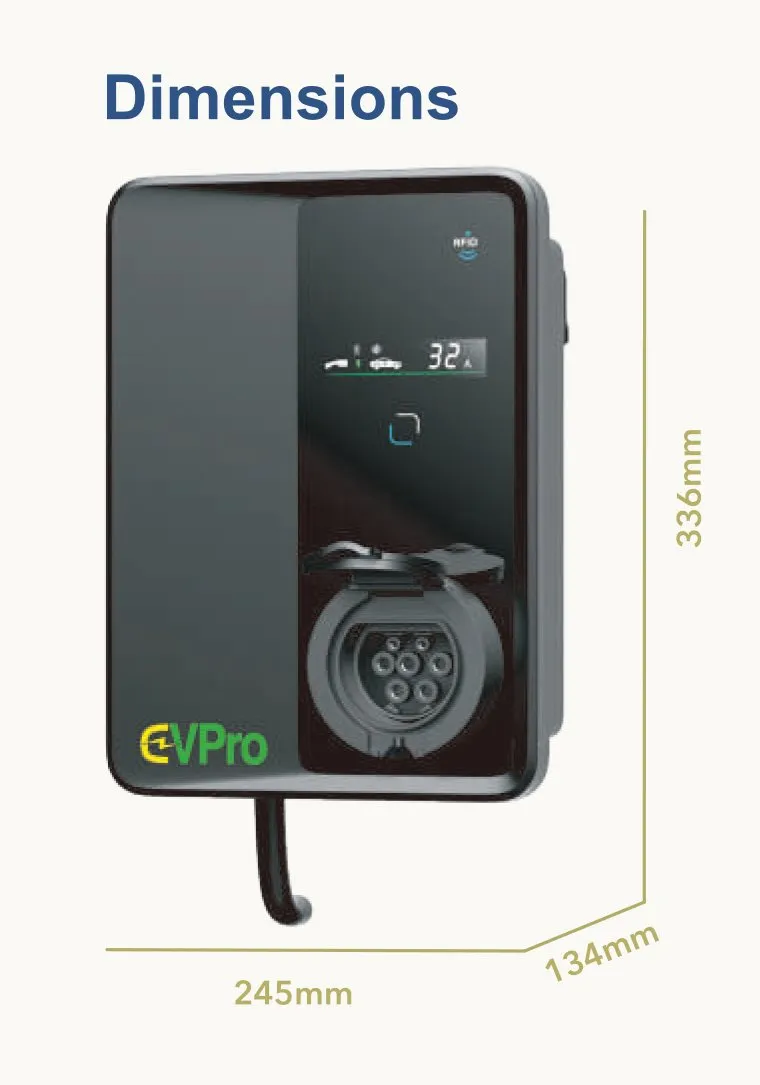

| Dimensions | 245*336*134mm |
| Ingress Protection | IP65 / IK08 |
| Display | Digital Screen |
| Activation Method | Plug and Play / RFID Card / APP |
| Communication | 4G / WiFi / Ethernet |
| Safety Protection | Over/Under Voltage, Over Current, Short Circuit, Grounding, Temperature |

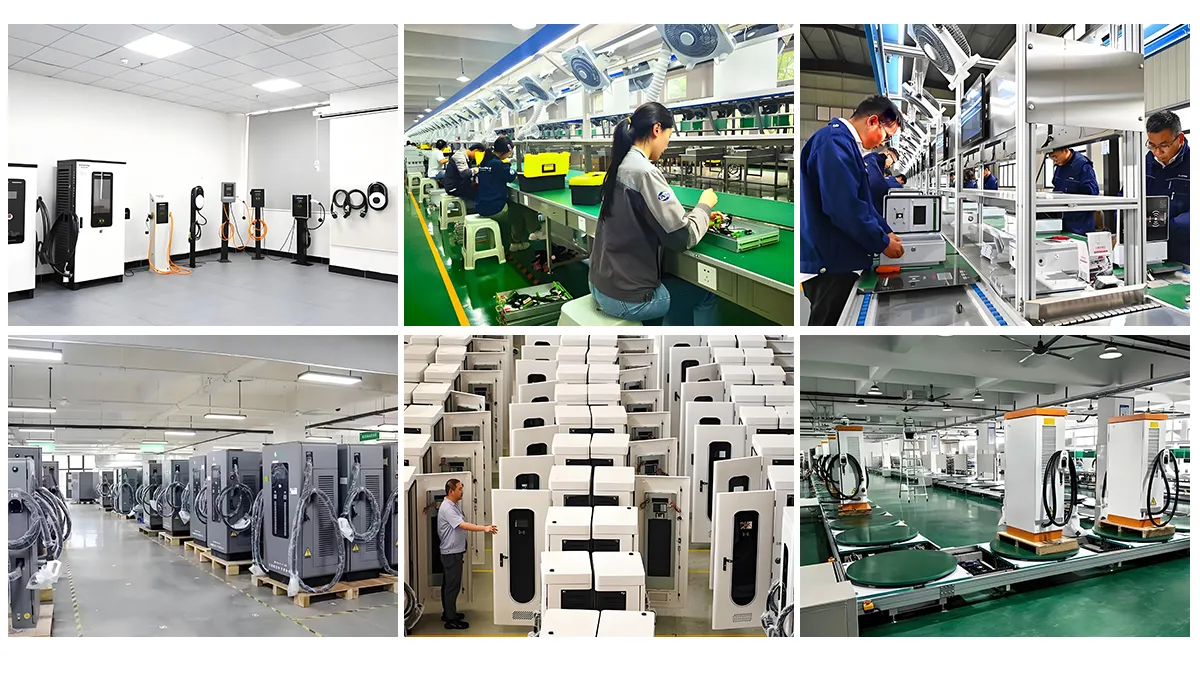

As a fully integrated provider, every stage of the EV charging ecosystem is controlled to deliver superior quality and cost-competitive solutions. Operating a dedicated manufacturing facility producing both AC and DC chargers with custom hardware configurations and rigorous quality control standards ensures products comply with IEC 61851 and IEC 62196 standards.
The core innovation is a smart, interconnected system that harnesses solar energy and utilizes artificial intelligence to manage power flows between solar panels, the electrical grid, building loads, and vehicle batteries. V2G capabilities transform EVs into mobile energy storage units that can feed power back into buildings or the grid when needed.
