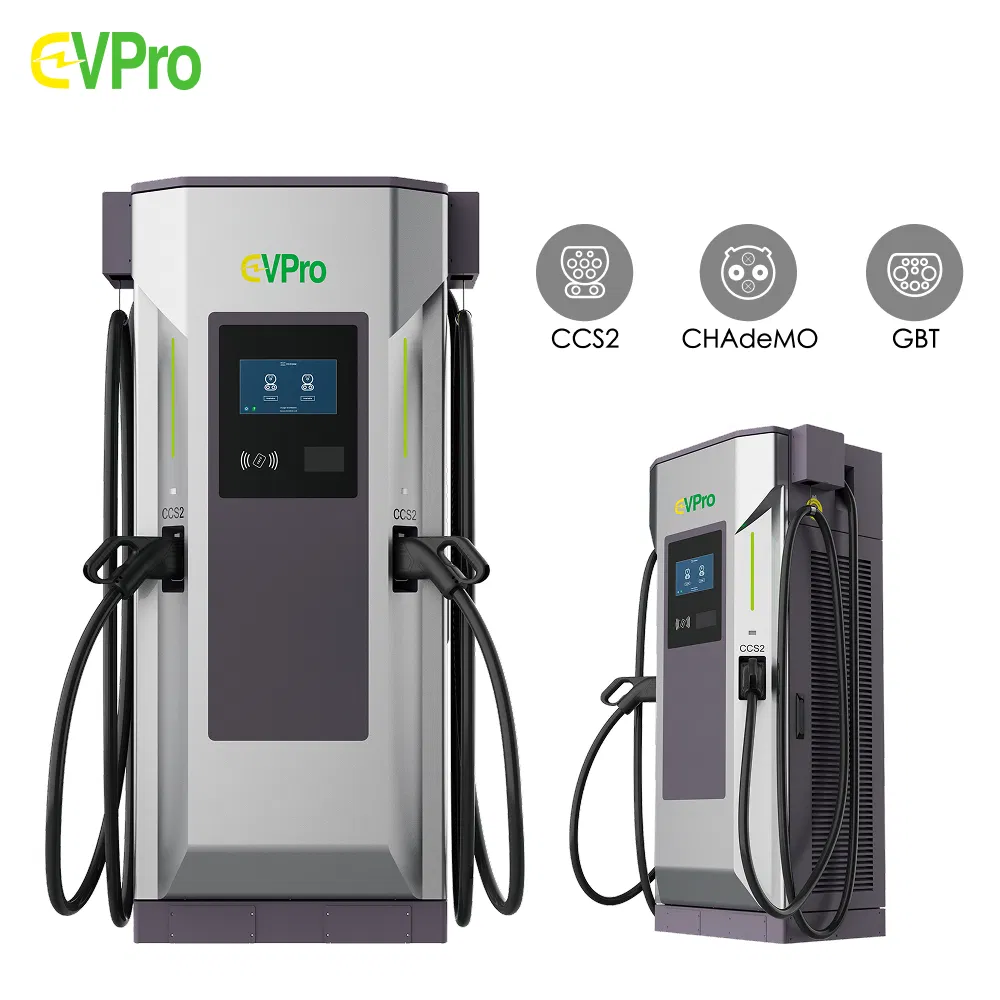

Evp 8300 CE Certified IP54 Waterproofing Moreday 250kw-480kw DC EV Fast Electric Car Charger with Excellent Design Delivering an Ideal EV Charging Solution
Product Description

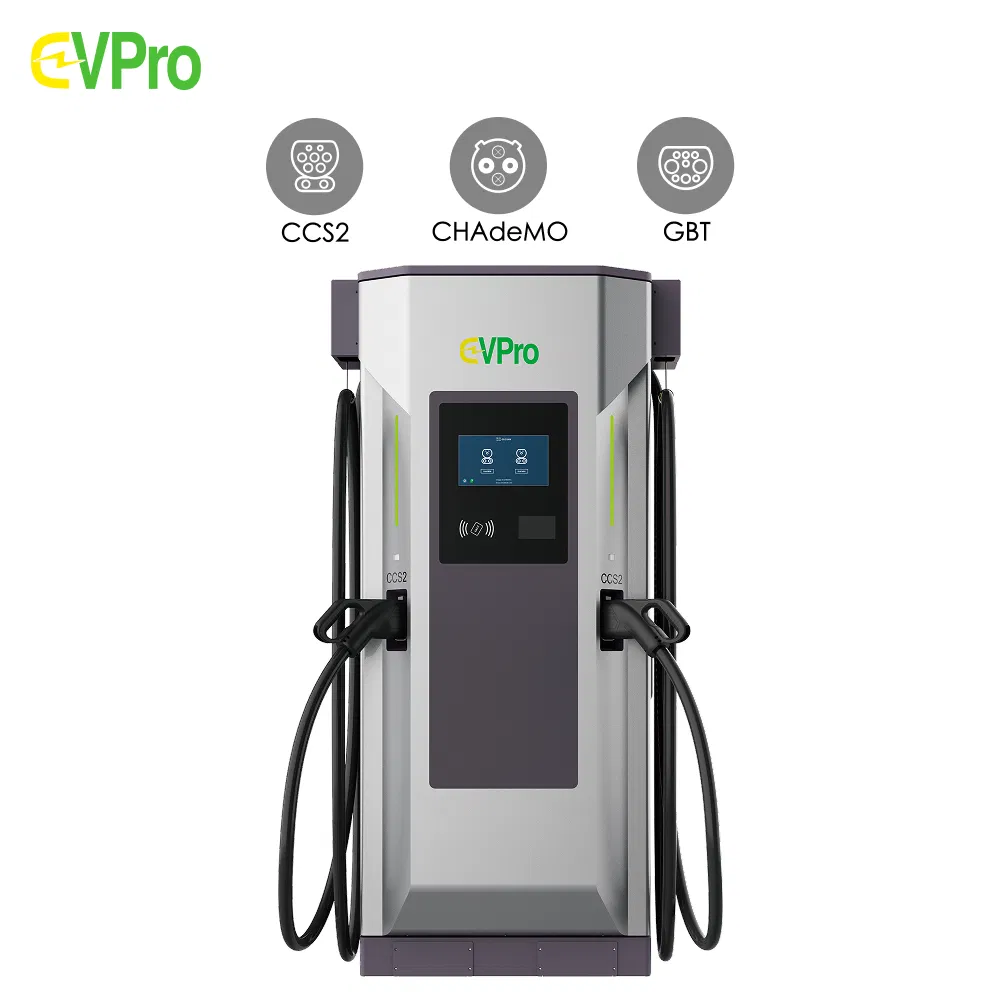

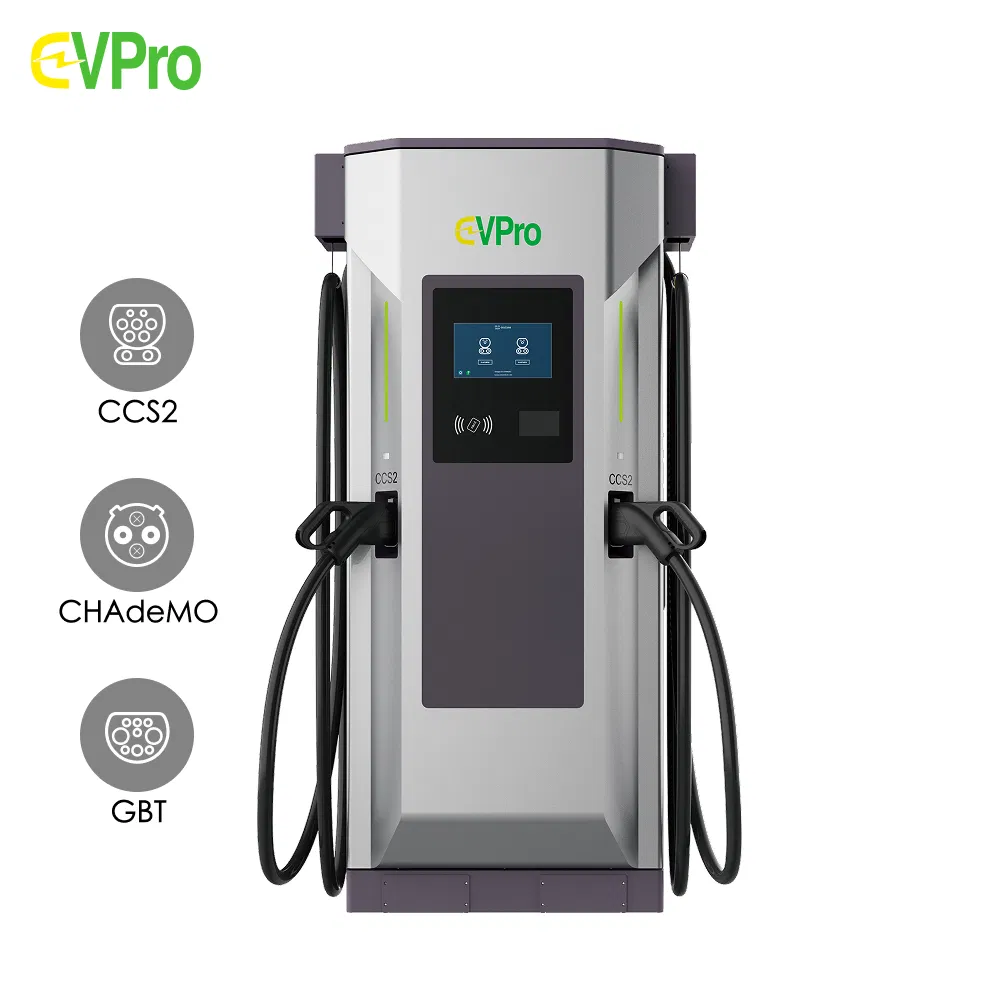

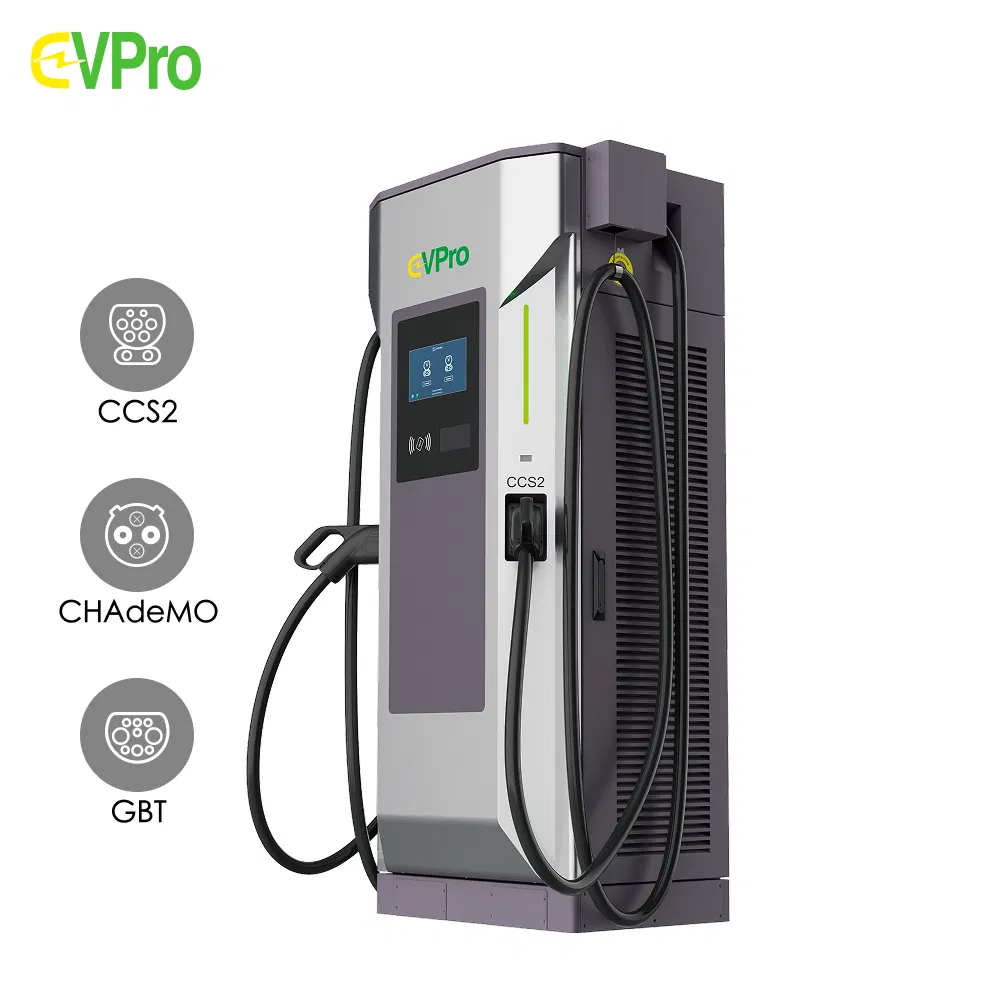

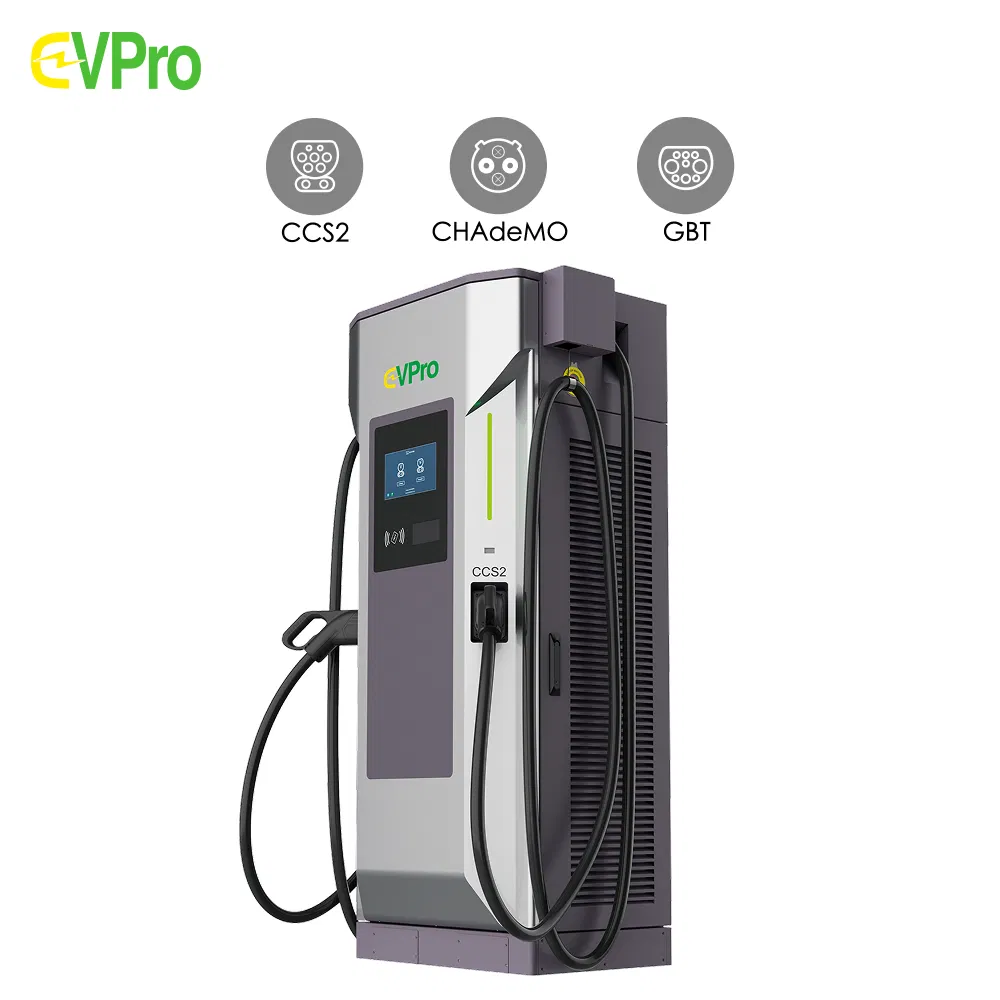

This high-performance Charger (40kW-360kW) offers IP54 waterproofing, CCS2/CHAdeMO/GB(T) compatibility, and dual-gun charging. Featuring a 10" touchscreen, multi-payment options (RFID/APP/Card), and 4G/5G connectivity, it is an IEC-certified safety solution with fire alerts and auto-suppression, delivering an ideal EV charging infrastructure.

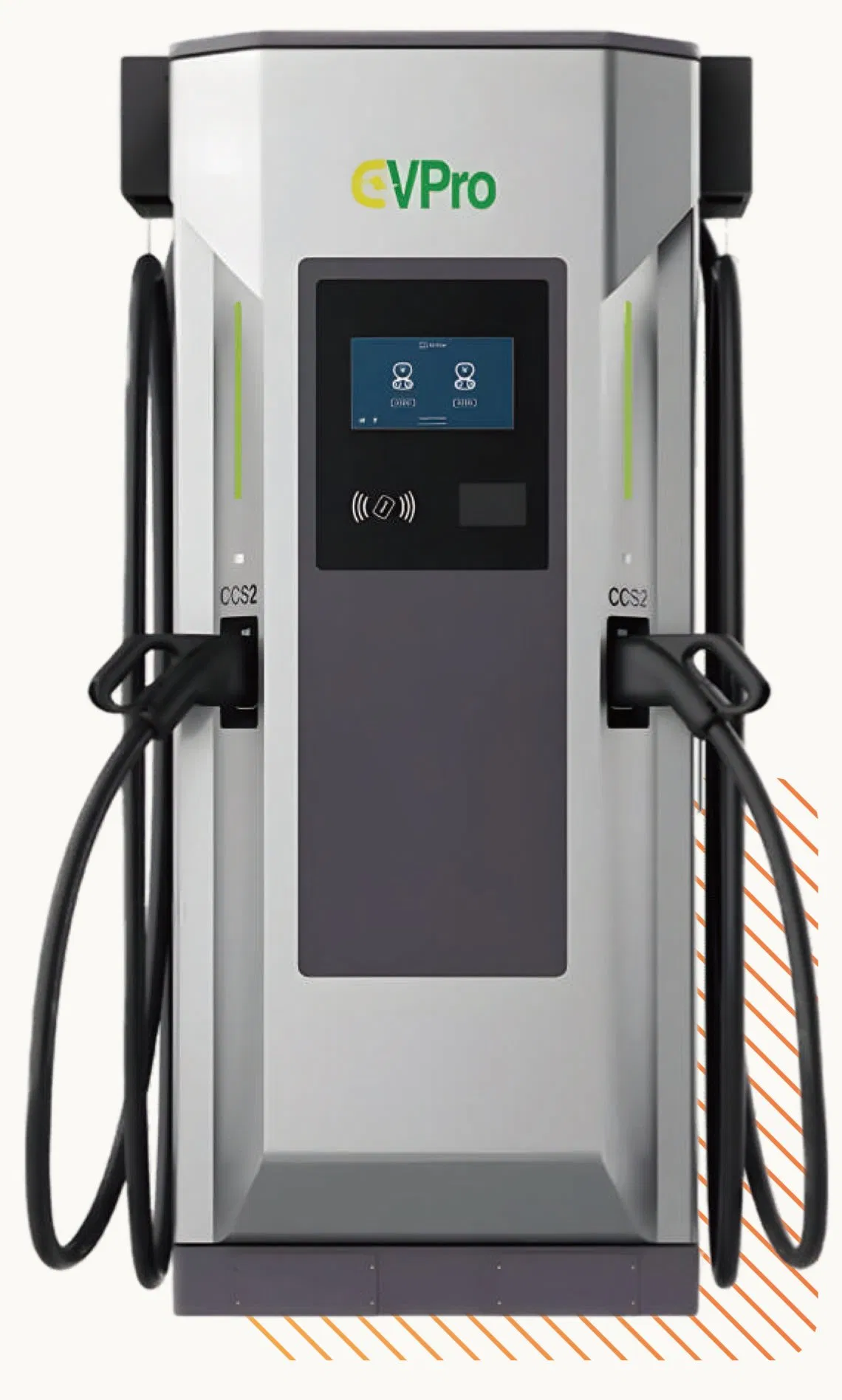

Supports dual charging guns to charge two EVs simultaneously with intelligent load balancing.
IP54 waterproof level and Type A RCD leakage protection for indoor and outdoor environments.
10" LCD Touch Screen with support for RFID, APP, Credit Card, and Octopus payments.
| Category | Data Parameters |
|---|---|
| Input | AC 400V ±10% 3P+N+PE 50/60Hz |
| Output Voltage | 200-1000V |
| Efficiency | >95% |
| Operating temperature | -30℃ to +60℃ |
| RFID system | ISO/IEC 14443A/B |

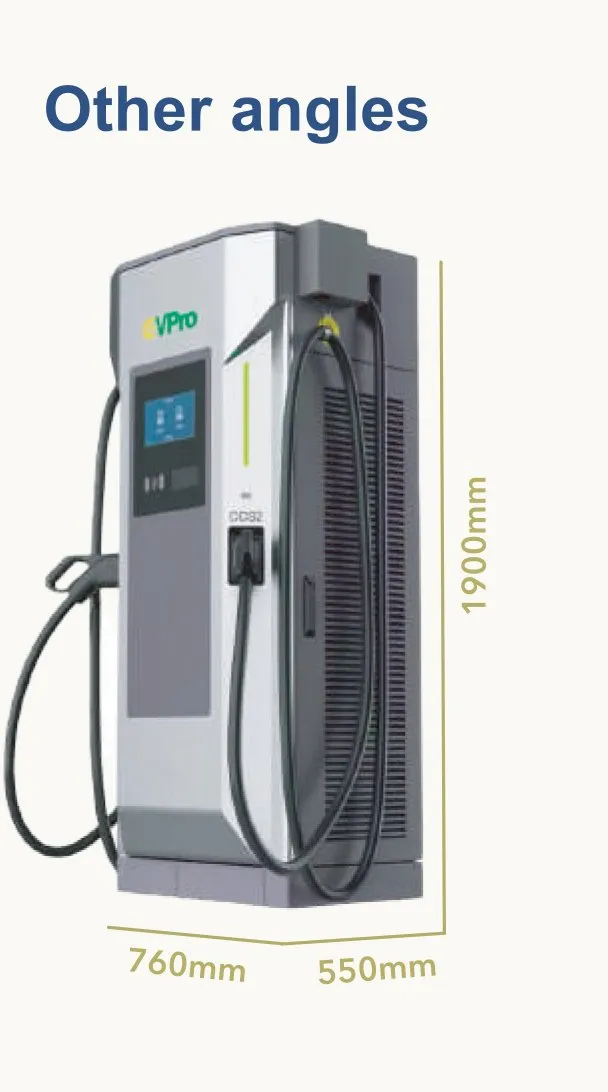

| Dimension (L×D×H) | 760*500*1900mm |
| Cooling | Air Blast Cooling |
| Communication Protocol | OCPP 1.6J |
| Safety Features | Over/Under Voltage, Over Current, Short Circuit, Emergency Stop |
Our EV charging ecosystem is built on a smart, interconnected system. By utilizing artificial intelligence, we dynamically manage power flows between solar panels, the electrical grid, and building loads. The V2G (Vehicle-to-Grid) capabilities transform EVs into mobile energy storage units that can feed power back into the grid when needed most.
