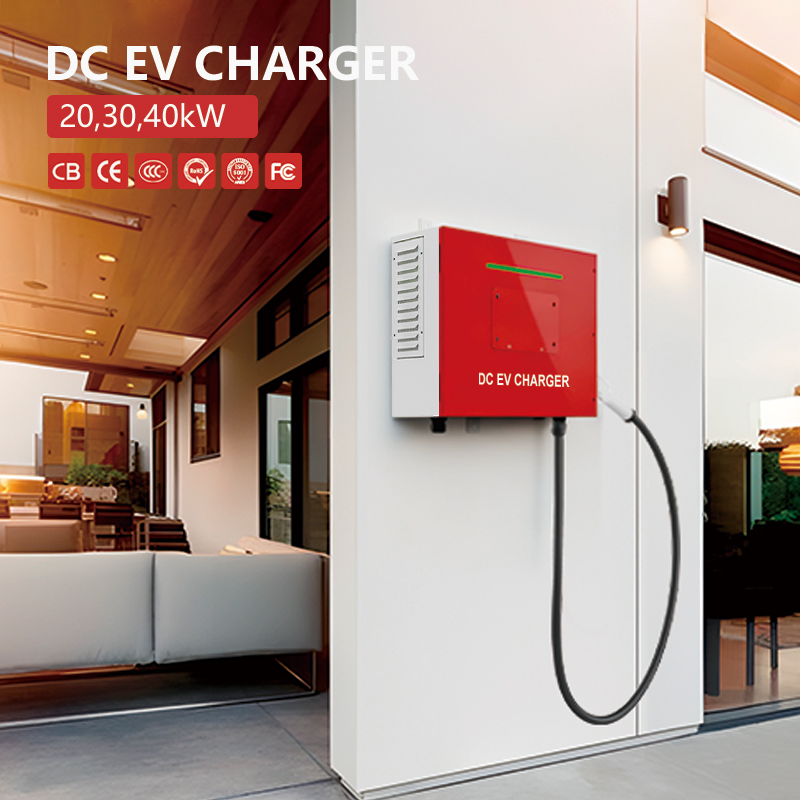

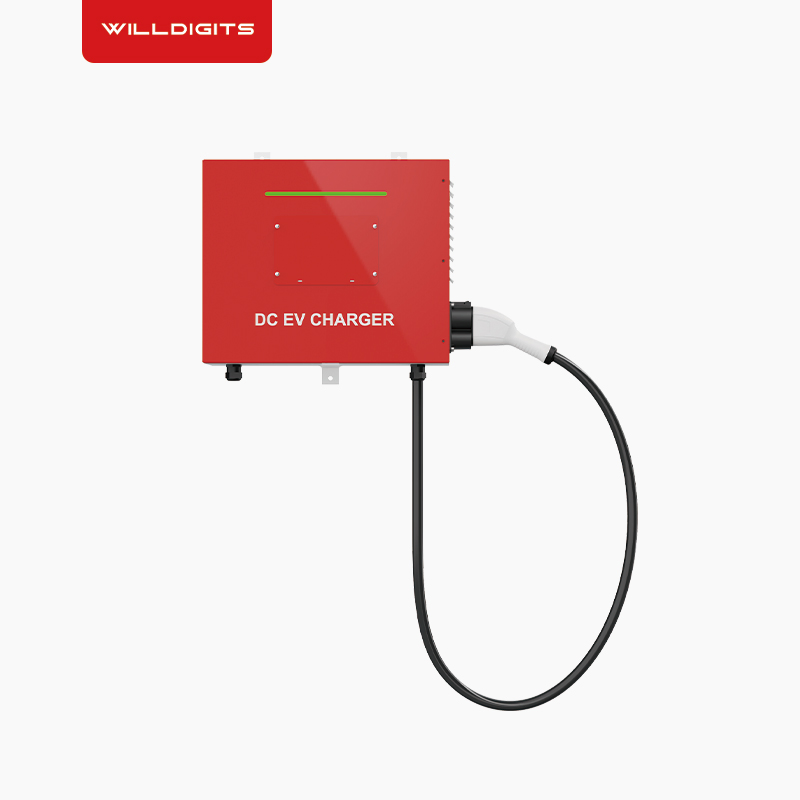

20kw 30kw 40kw Wall Mounted DC EV Charger with IP54 Ocpp Ota Evse
Product Description

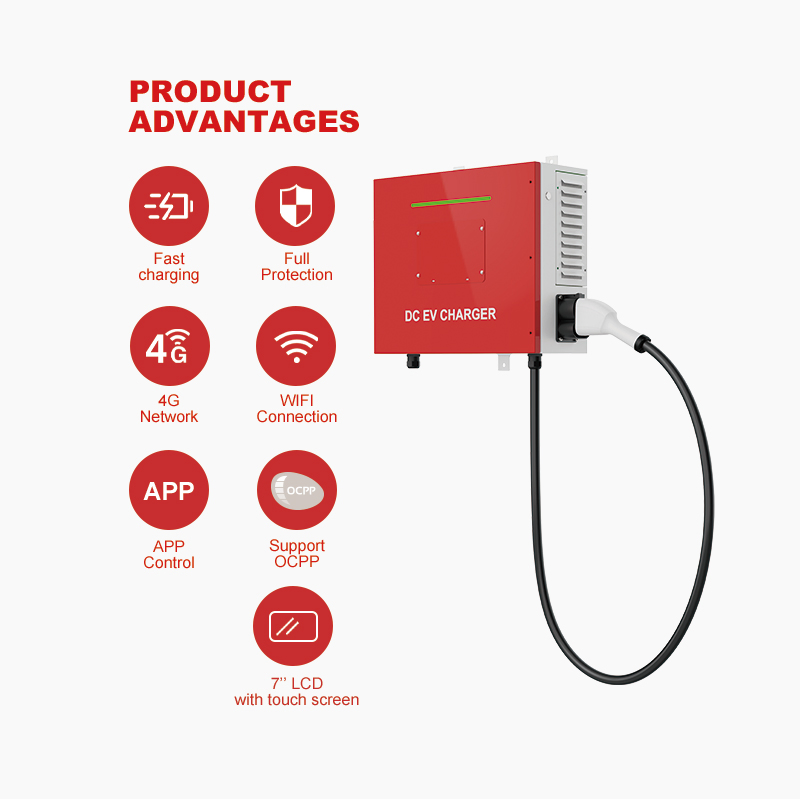

High-Power Wall Mounted DC EV Charger
This Future-Oriented High-Efficiency charging solution is designed for the rapidly developing electric vehicle industry. Our charging station's most revolutionary feature is its innovative coordinated output design, selectively or simultaneously supporting four mainstream charging interface standards: CCS2, GB/T, CHAdeMO, and NACS.
🌍
Global Compatibility
Supports CCS2, GB/T, CHAdeMO, and NACS standards.
⚡
High Efficiency
Peak efficiency ≥96% with 20kW-40kW rated power.
🛡️
IP54 Protection
Ingress protection IP54 and IK10 for public use.
Technical Specification
| Category | Parameter | Details |
|---|---|---|

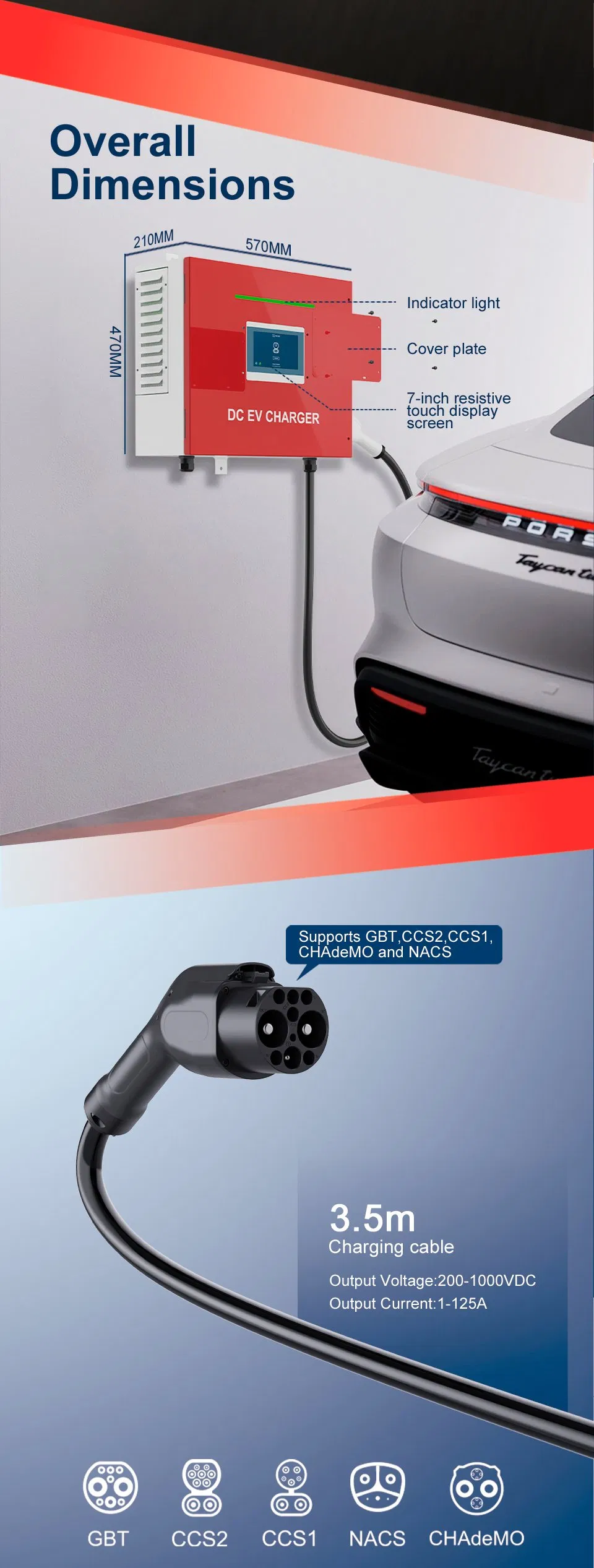

| Structure | Dimensions | 570mm x 210mm x 470mm |
| Weight | 40kg (wall-mounted) | |
| Cable Length | 3m | |

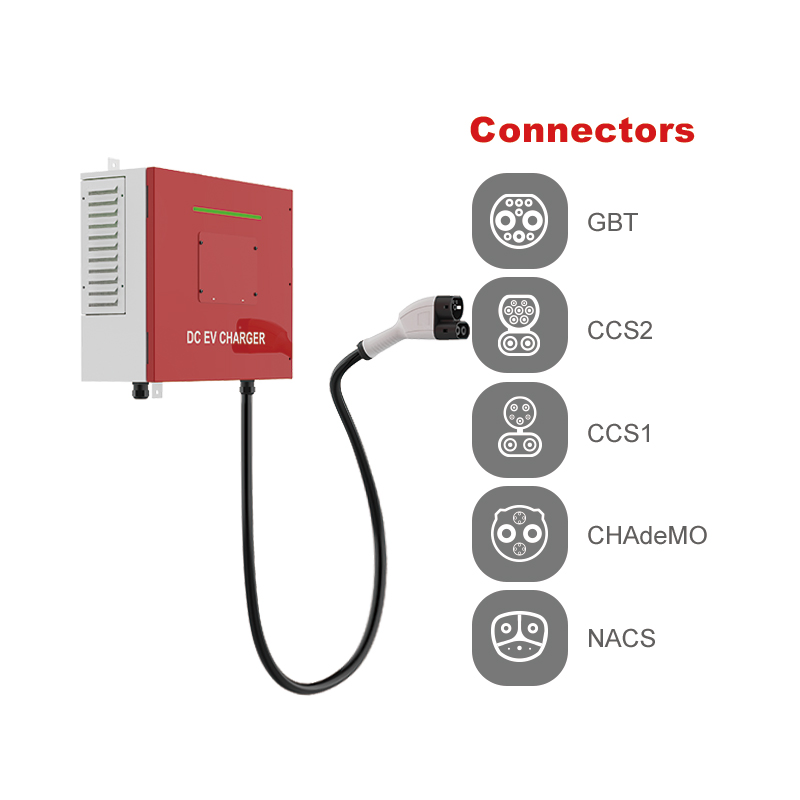

| Connectors | GBT, CCS2, CCS1, CHAdeMO, NACS | |
| Electrical | Input Voltage | 400VAC / 480VAC (3P+N+PE) |
| Output Voltage | 200 - 1000VDC | |
| Rated Power | 20-40kW | |
| Efficiency | Peak efficiency ≥96% | |
| Power Factor | >0.99 | |
| Interface | Display | 7’’ LCD with touch screen |
| Communication | WIFI / Ethernet / 3G/4G (Optional) | |

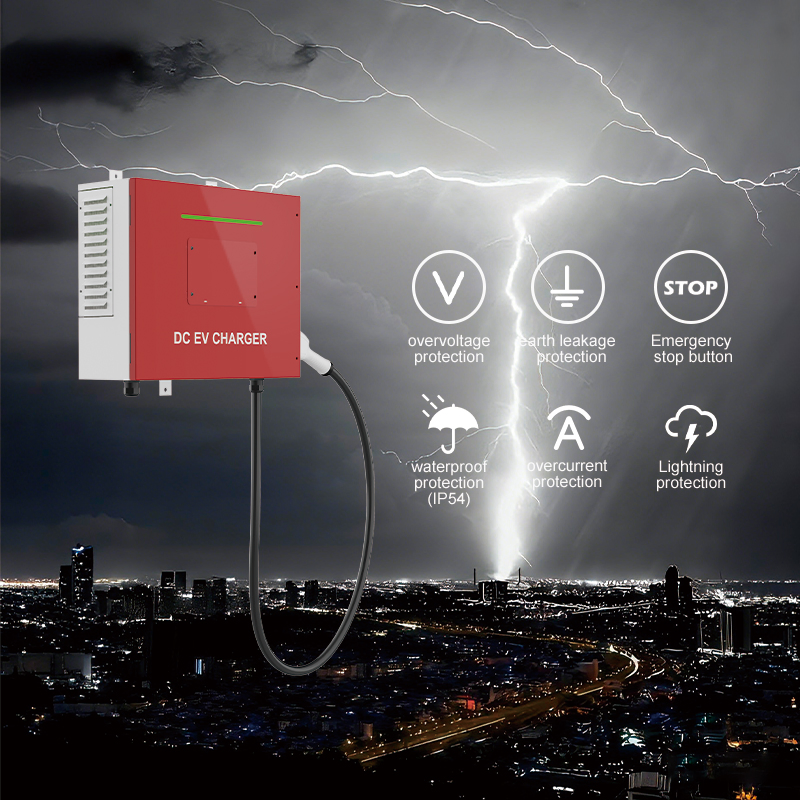

| Safety | Protection | Overvoltage, Lightning, Leakage, IP54, IK10 |
| Emergency | Emergency Stop Button Included |

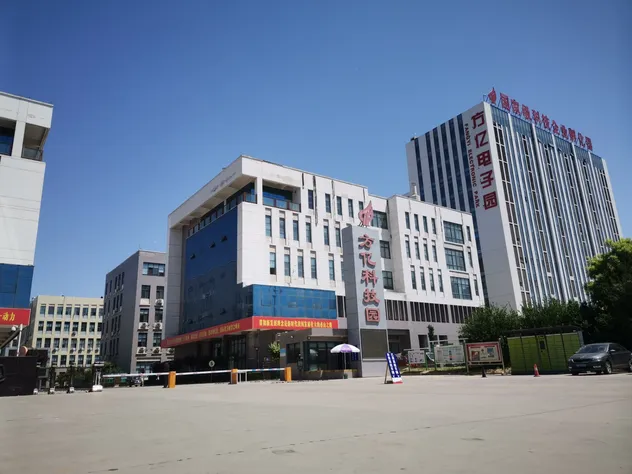

R&D and Production Excellence
We prioritize technology as our foundation, integrating design, manufacturing, and service. Our technical team constitutes over 50% of the workforce, ensuring robust technical support for charging infrastructure worldwide. We offer comprehensive OEM/ODM manufacturing services for complete systems, exporting products globally to markets including the US, Germany, and Southeast Asia.
Packing & Delivery
All products are packed using standard wooden boxes or reinforced cartons to ensure safety during international transit.
Frequently Asked Questions
What is the warranty period for the charging station?
The warranty is 12-60 months. During this period, we provide full technical support and replace parts free of charge if necessary.
What are your terms of packing?
We use standard wooden box packaging and standard reinforced carton packaging to prevent damage during transport.
What is the typical delivery time?
Generally, it takes 5 to 25 working days after receiving your advance payment. The specific time depends on the order quantity and items.
Do you test all goods before delivery?
Yes, we conduct a 100% comprehensive test on all products before they are dispatched.
What's the difference between a Movable Charger and a Wallbox?
Movable chargers are designed for mobility and temporary power top-ups, while wall-mounted chargers (Wallbox) are fixed installations for regular charging points.
Can you produce based on samples?
Yes, we can produce according to your provided samples or detailed technical drawings.
