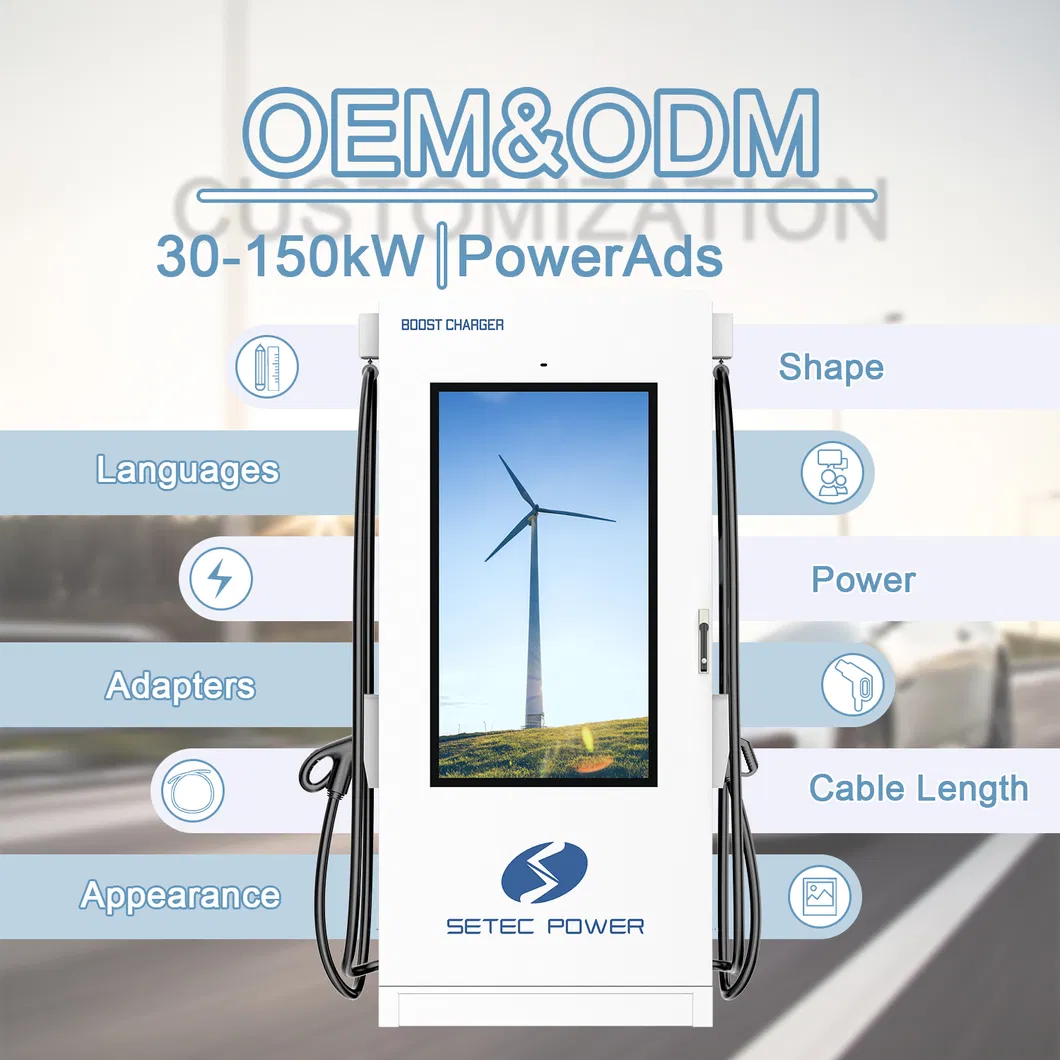

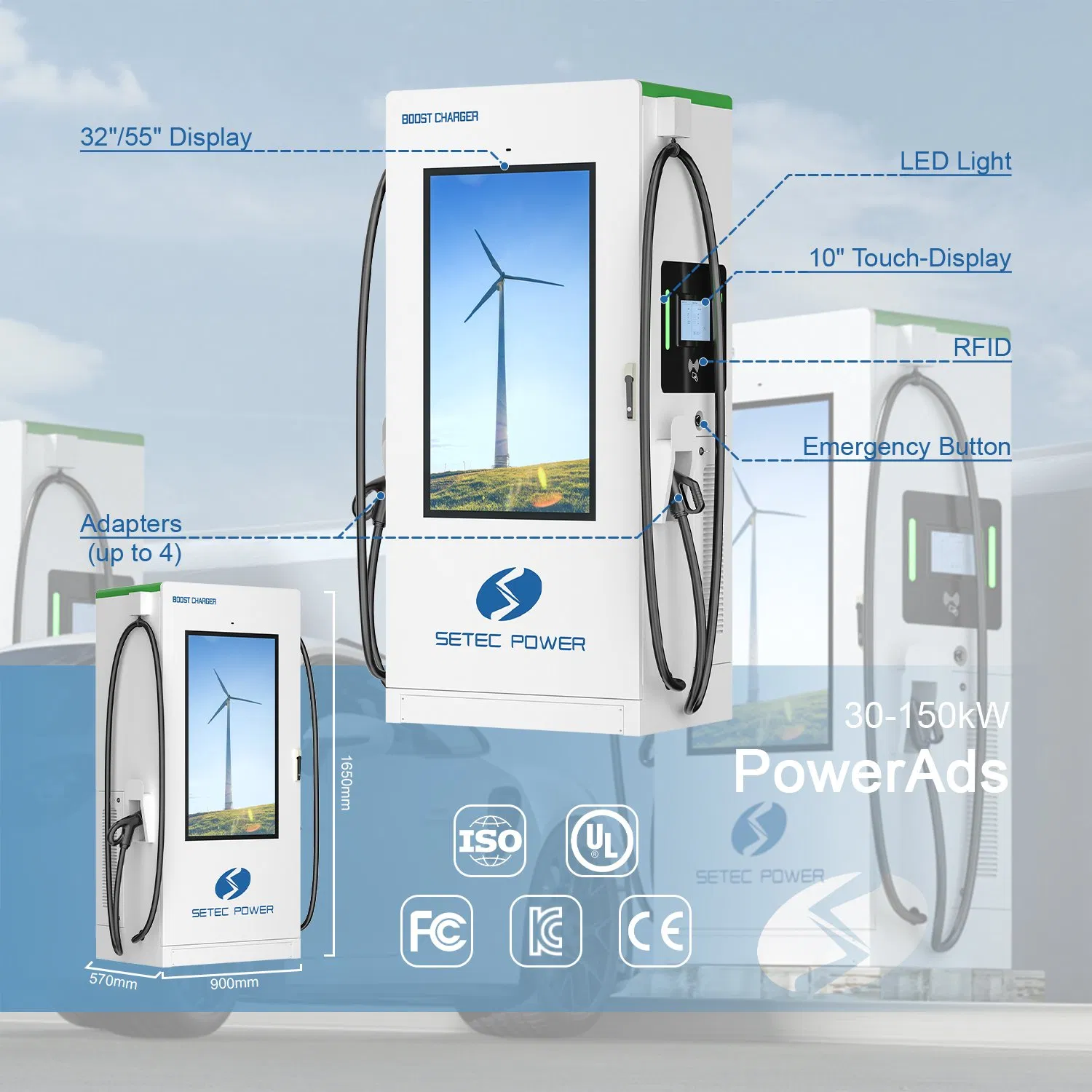

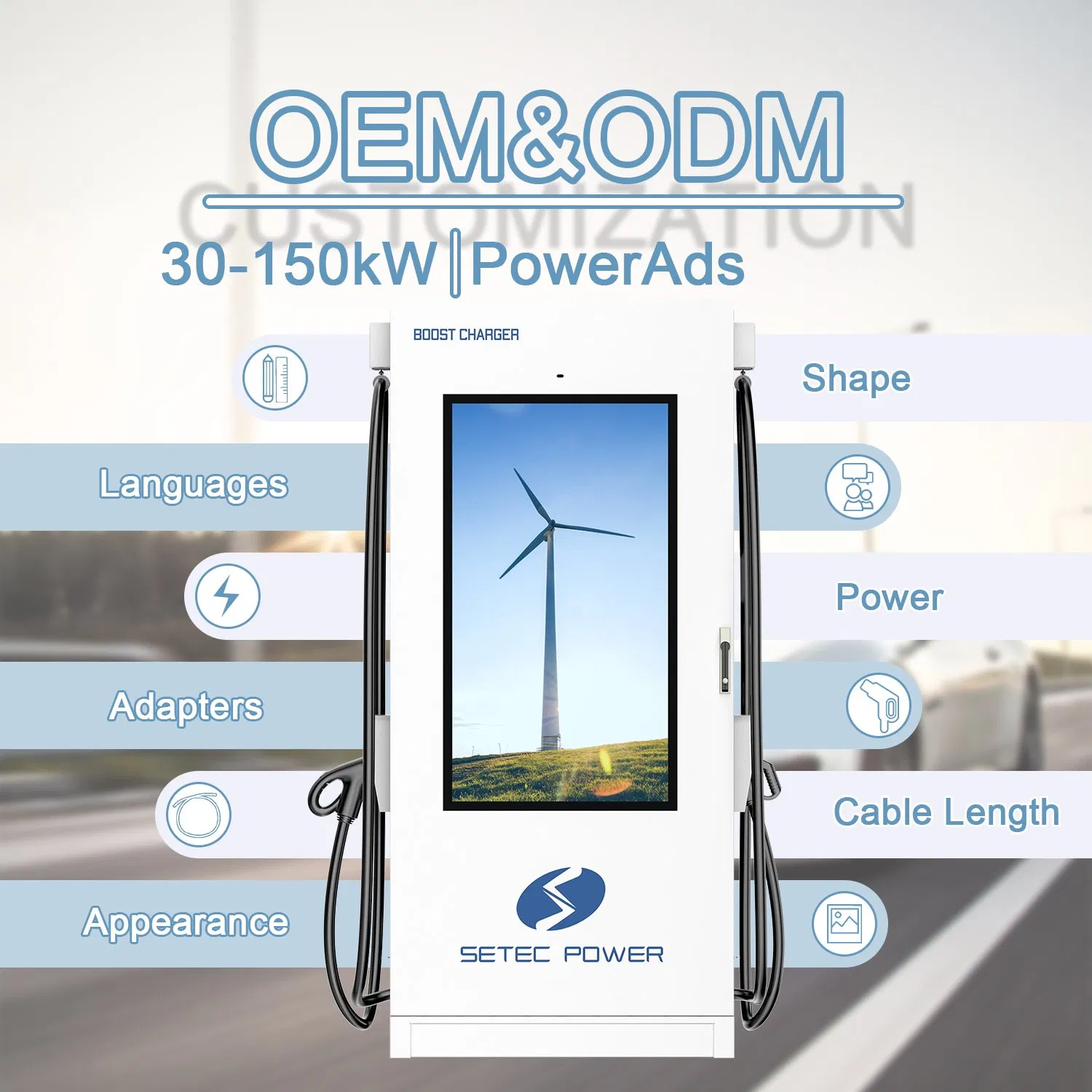

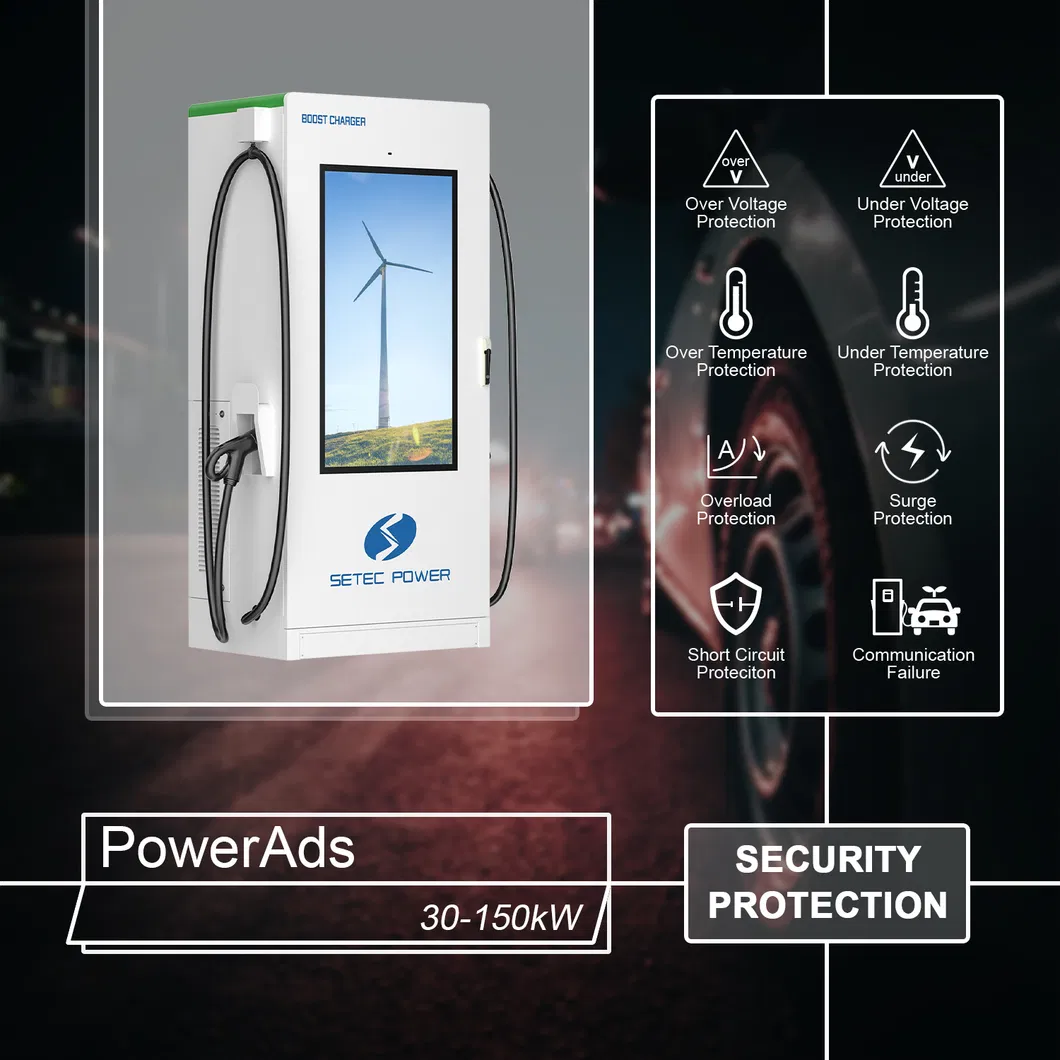

SETEC POWER Self-developed Modules Display Commercial Level 3 DC EV Charging Station for Electric Car PowerAds 30kW 60kW 90kW 120kW 150kW
Product Description
📋

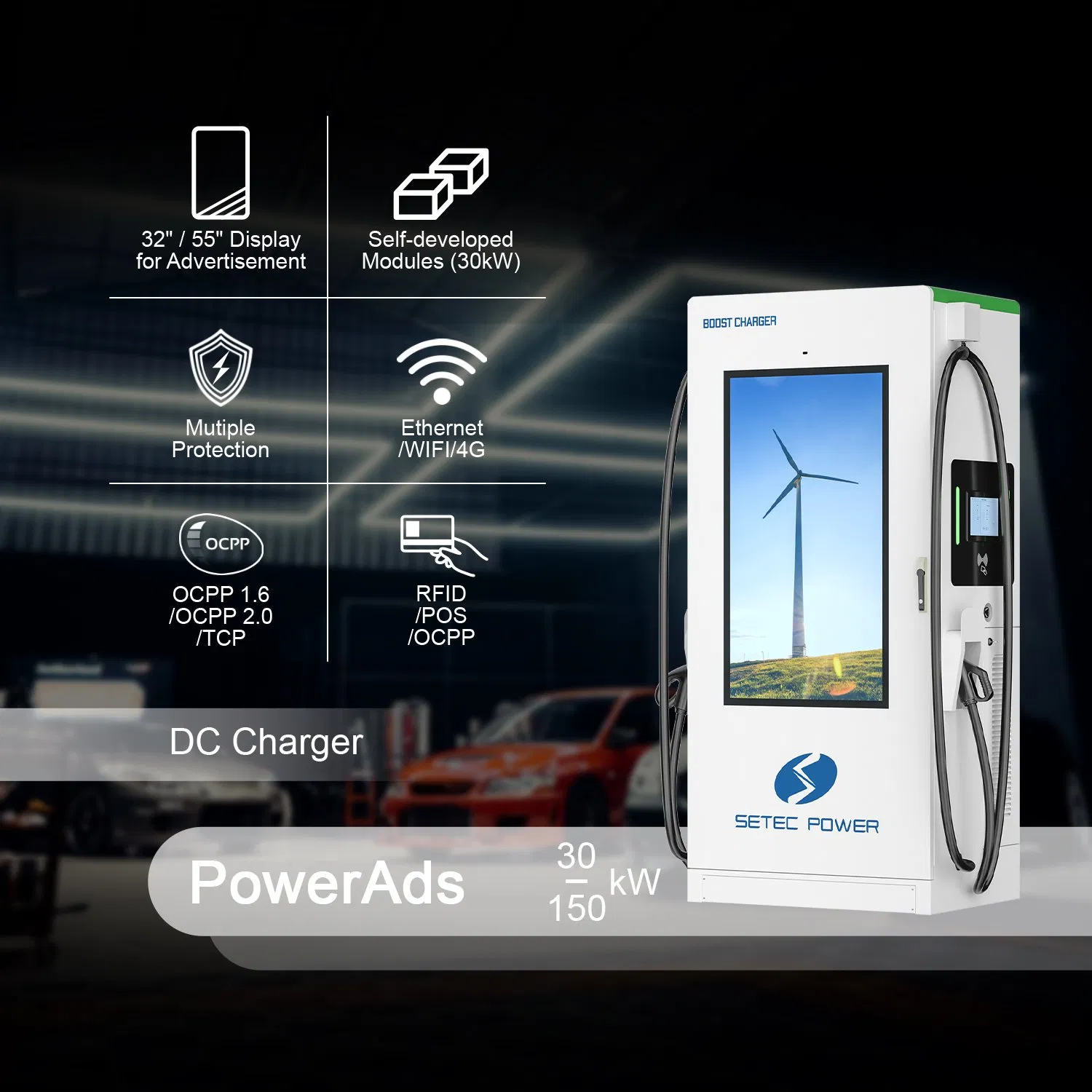

Basic Specifications
Location:
Public Use
Charging Interfaces:
One Pile with Multiple Charges
Start Mode:
RFID Authentic
Display:
32" / 55" Advertising Screen
Input Voltage:
480/380Vac Three-phase or DC
Output Voltage:
150-1000Vdc
Power Factor:
≥0.99
Efficiency:
≥95% (50%-100% load)
Network:
Ethernet / WIFI / 4G
Communication:
OCPP 1.6 / OCPP 2.0 / TCP
Protection Grade:
IP 54
Operation Temp:
-30℃ to +65℃

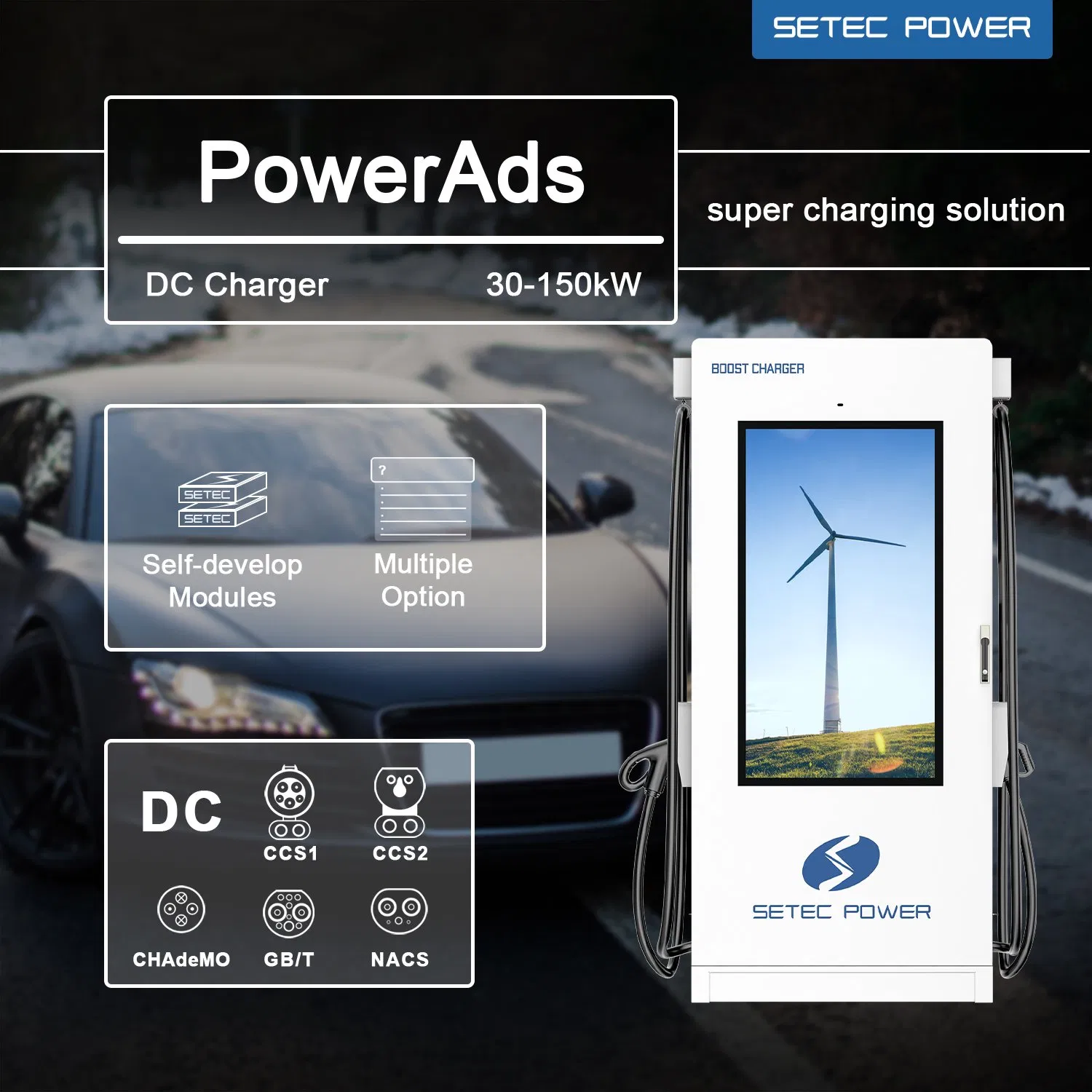

30kW 60kW 90kW 120kW 150kW CCS CHAdeMO GB/T NACS Advertising DC Electric Car Charging Station
⚙️
Technical Parameters
| Model Data | 30kW | 60kW | 90kW | 120kW | 150kW |
|---|---|---|---|---|---|
| Adapters | CCS1 / CCS2 / CHAdeMO / GB/T / NACS | ||||
| Output Current | 100A | 150A | 250A | 250/400/600A | |
| Power Modules | 30kW*1 | 30kW*2 | 30kW*3 | 30kW*4 | 30kW*5 |
| Touch Display | 10" Daylight Readable Interface | ||||
| MTBF | 100,000 hours | ||||
| Net Weight | 270kg | 290kg | 310kg | 330kg | 350kg |
🖼️
Product Gallery
🤝

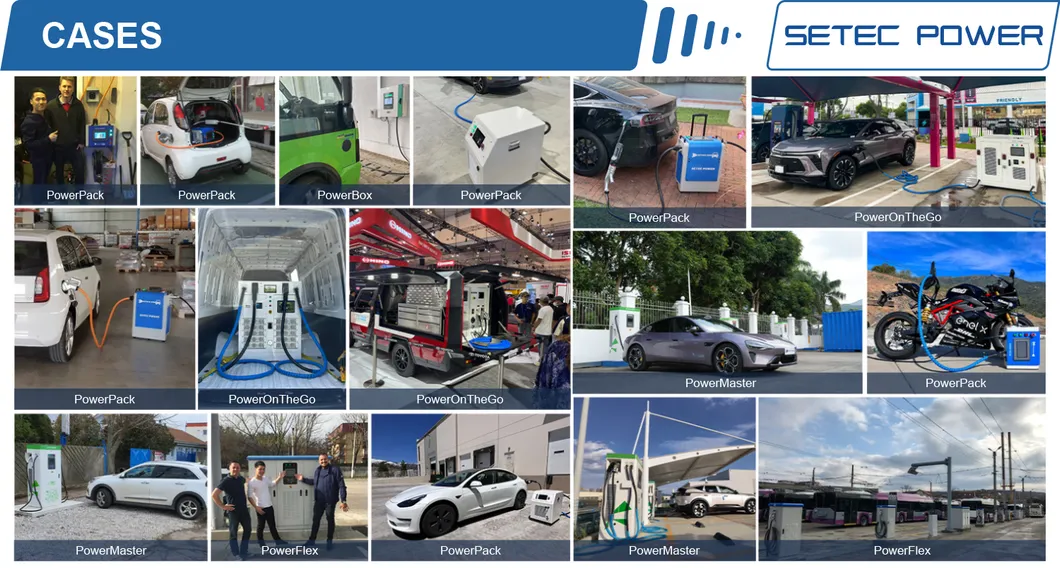

Global Presence & Cases
🏢

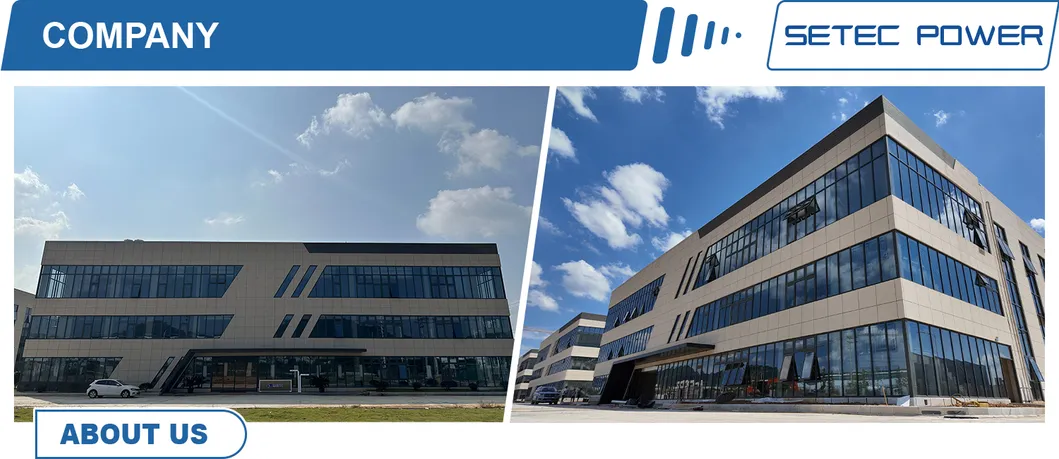

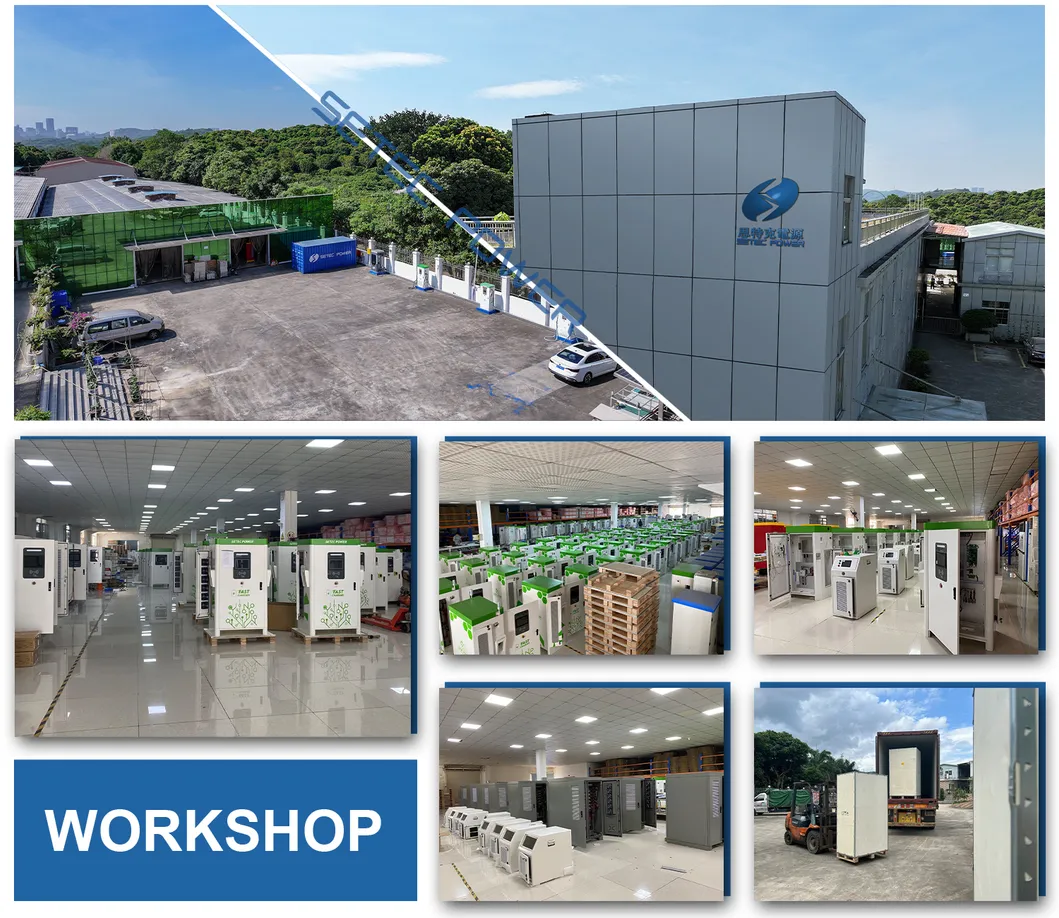

Manufacturing Excellence
Established in 2004, our enterprise is one of the earliest in China dedicated to the research and development of electric vehicle charging stations and customized solutions. We focus on creating innovative, high-quality products that lead the sustainable development of the EV industry.
Equipped with cutting-edge technology and over 80,000 square meters of production and R&D facilities, the company handles the entire process from design to production. With system certifications including UL, CNAS, ISO14001, and ISO9001, products are exported to over 120 countries and regions globally, including Europe, North America, the Middle East, and Asia.
🌍
Global Exhibitions
❓
Frequently Asked Questions
What charging standards are supported by this station?
The station is highly versatile and supports multiple international standards including CCS1, CCS2, CHAdeMO, GB/T, and NACS.
What are the advertising screen options available?
The unit features a large secondary display available in 32-inch or 55-inch sizes, ideal for commercial advertising and public information.
Can the output power be adjusted?
Yes, we offer multiple power configurations including 30kW, 60kW, 90kW, 120kW, and 150kW based on the number of 30kW internal power modules installed.

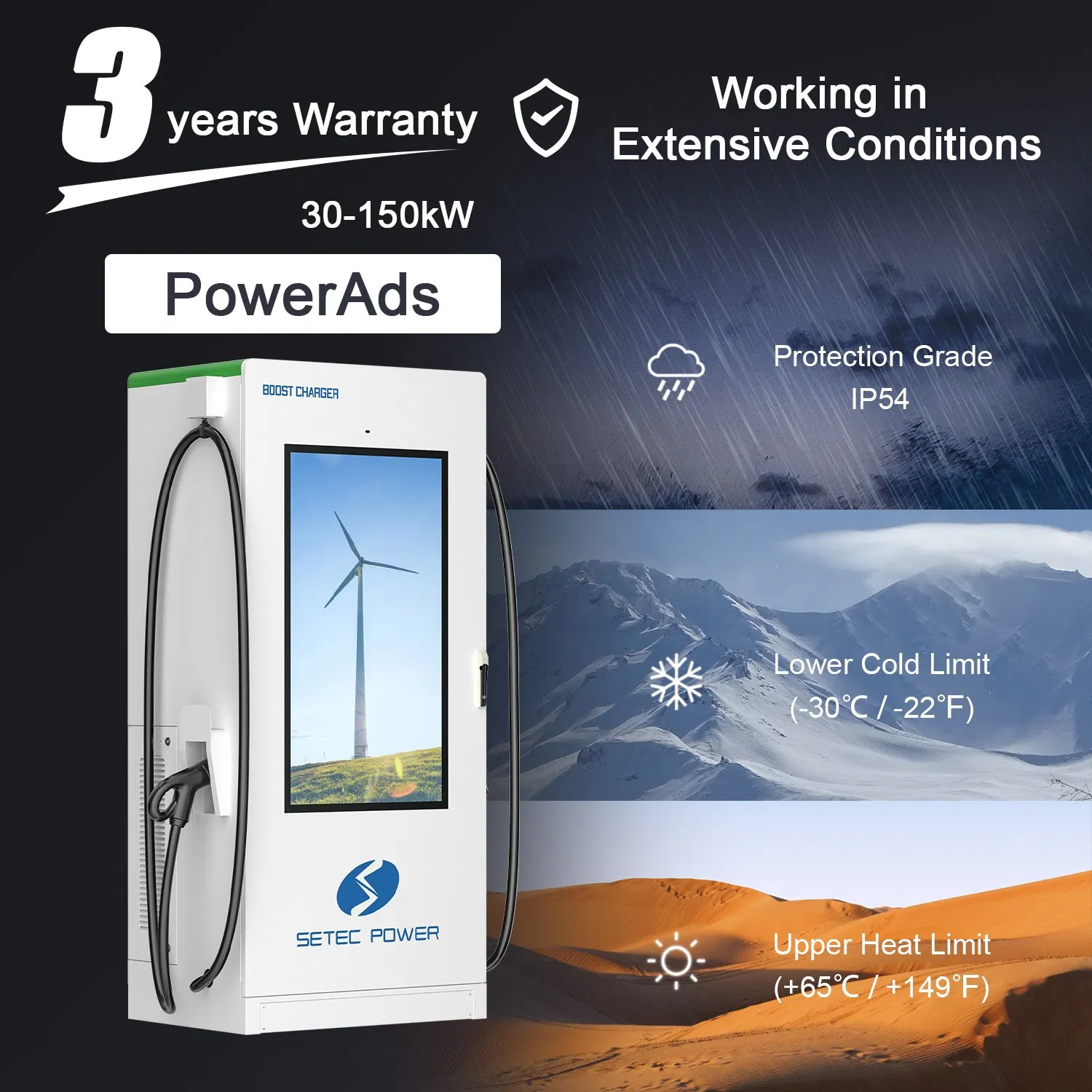

Is the charging station suitable for outdoor installation?
Absolutely. It is rated at IP54 for protection against dust and water, and it can operate in temperatures ranging from -30℃ to +65℃.
How do users pay for charging services?
The station supports various payment and authentication methods including RFID cards, POS terminal integration, and OCPP-based mobile app payments.
What kind of network connectivity is provided?
It supports Ethernet, WIFI, and 4G connectivity to ensure seamless communication with management platforms via OCPP 1.6 or 2.0.
