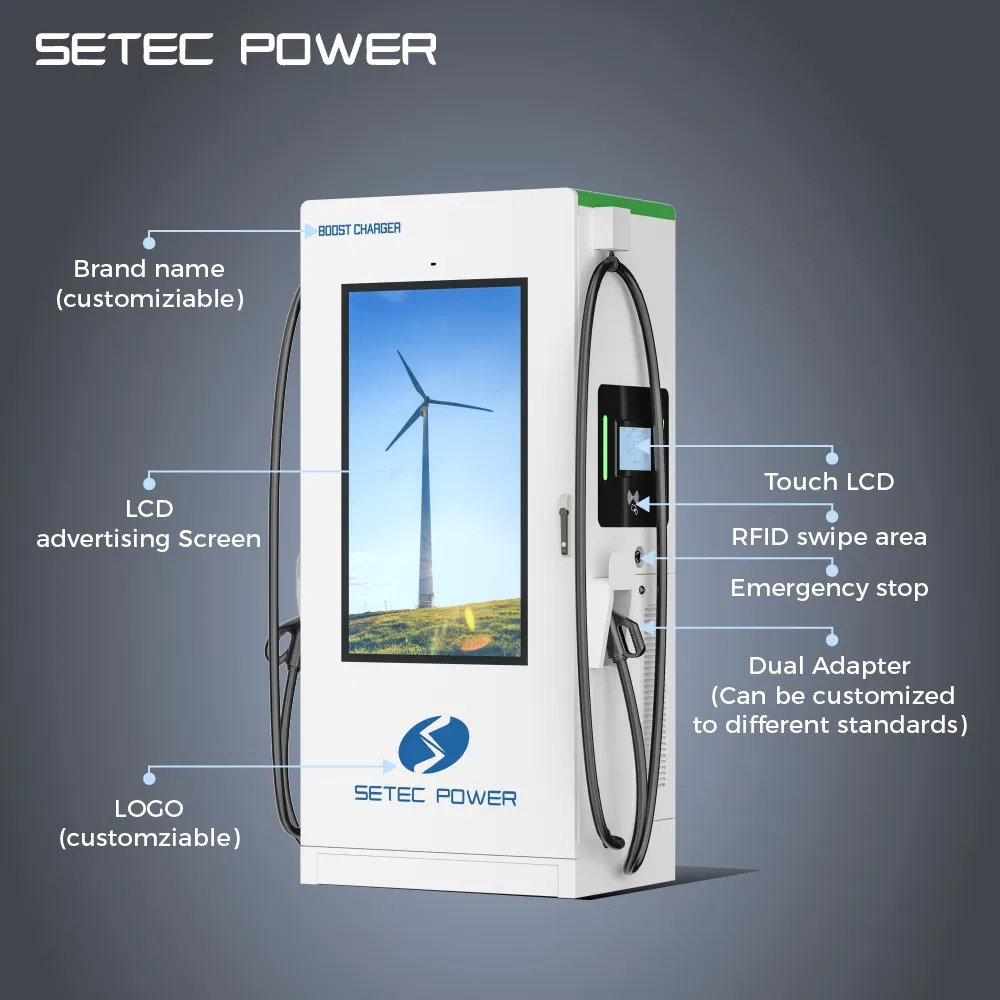

Level 3 60-360kW DC EV Charger Best Commercial Ev Charging Stations With 55 inch Screen
Product Description
1
Overview & Basic Info
Location
Public Use
Charging Interfaces
One Pile with Multiple Charges
Start Mode
RFID Authentic
Display
32" / 55"
Input Voltage
480/380Vac Three-phase or DC
Output Voltage
150-1000Vdc
Output Current
250/400/600A
Power Factor
≥0.99
Efficiency
≥95% (50%-100% load)
Network
Ethernet / WIFI / 4G
Communication
OCPP 1.6 / OCPP 2.0 / TCP
Protection Grade
IP 54
Operation Temp
-30ºC to +65ºC
Cooling Method
Fan Cooling
Origin
China
2
Technical Parameters
| Category | Model Item | Specification (240kW) |
|---|---|---|
| OPTIONAL | Display | 32" / 55" |

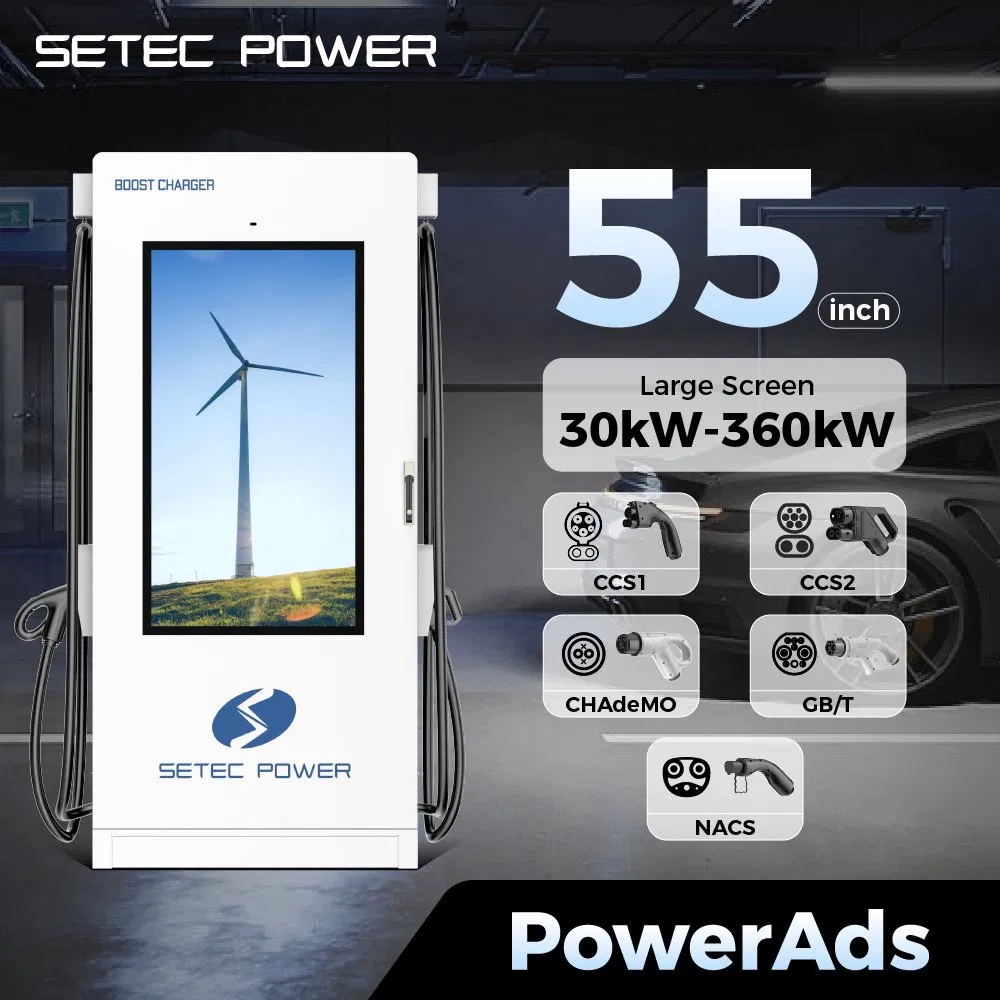

| Adapters | CCS1 / CCS2 / CHAdeMO / GB/T / NACS | |
| Input Voltage | 480/380Vac Three-phase or DC | |
| Electrical | Input Frequency | 50/60Hz (±10%) |
| Output Voltage | 150-1000Vdc | |
| Output Current | 250/400/600A | |
| Performance | Power Factor | ≥0.99 |
| Efficiency | ≥95% (50%-100% load) | |

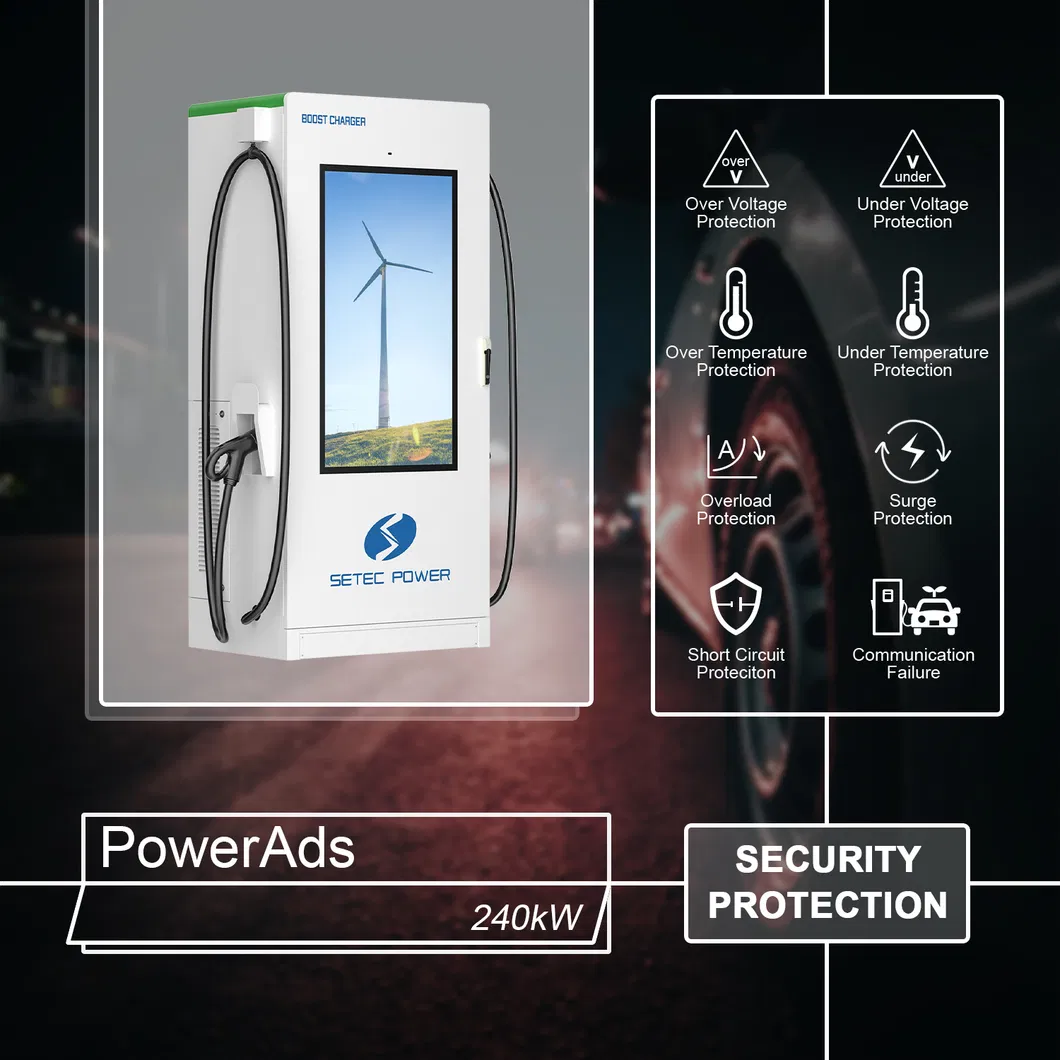

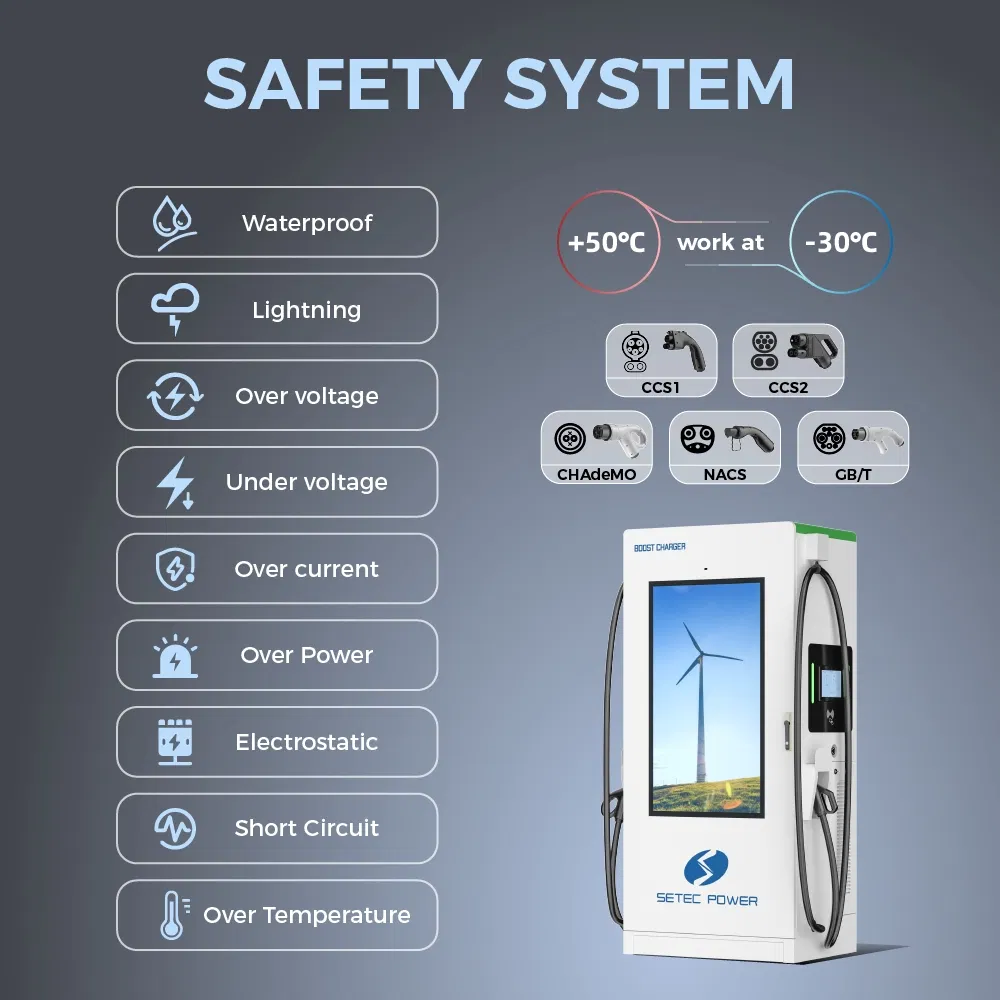

| Security | Multiple Protection | Over/Under Voltage, Overload, Short Circuit, Over/Under Temp, Surge |
| MTBF | 100,000 hours | |
| Protection Grade | IP 54 |
3
Product Gallery
4

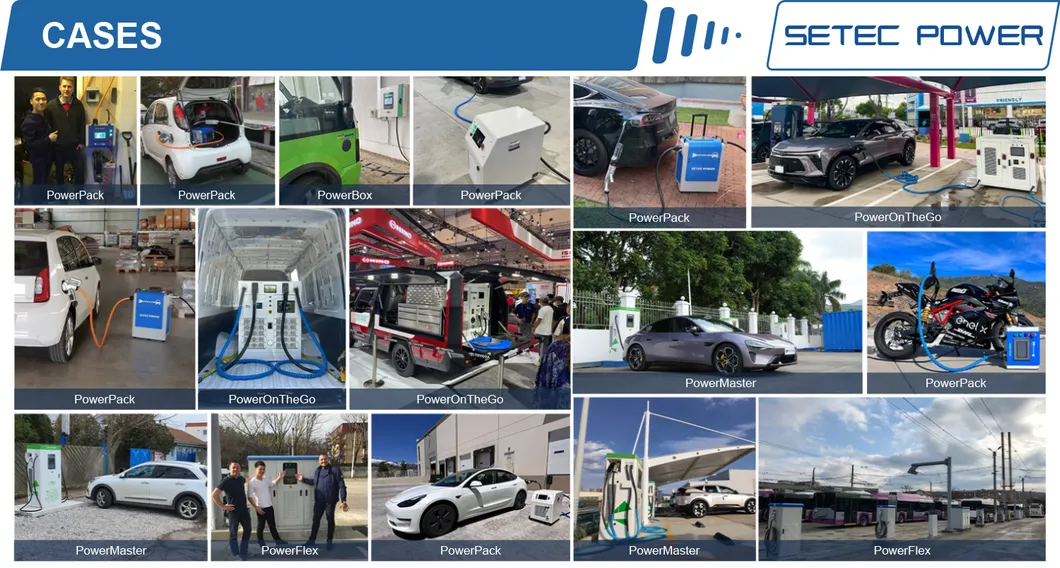

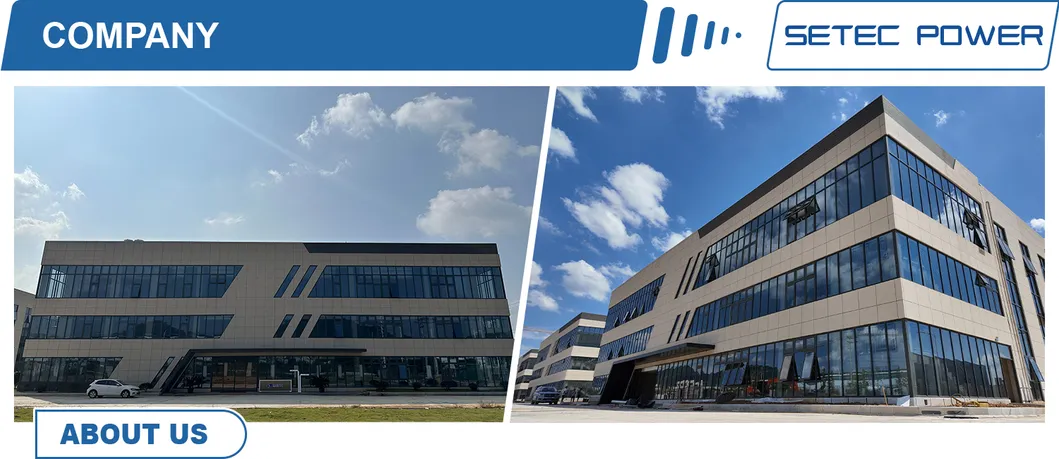

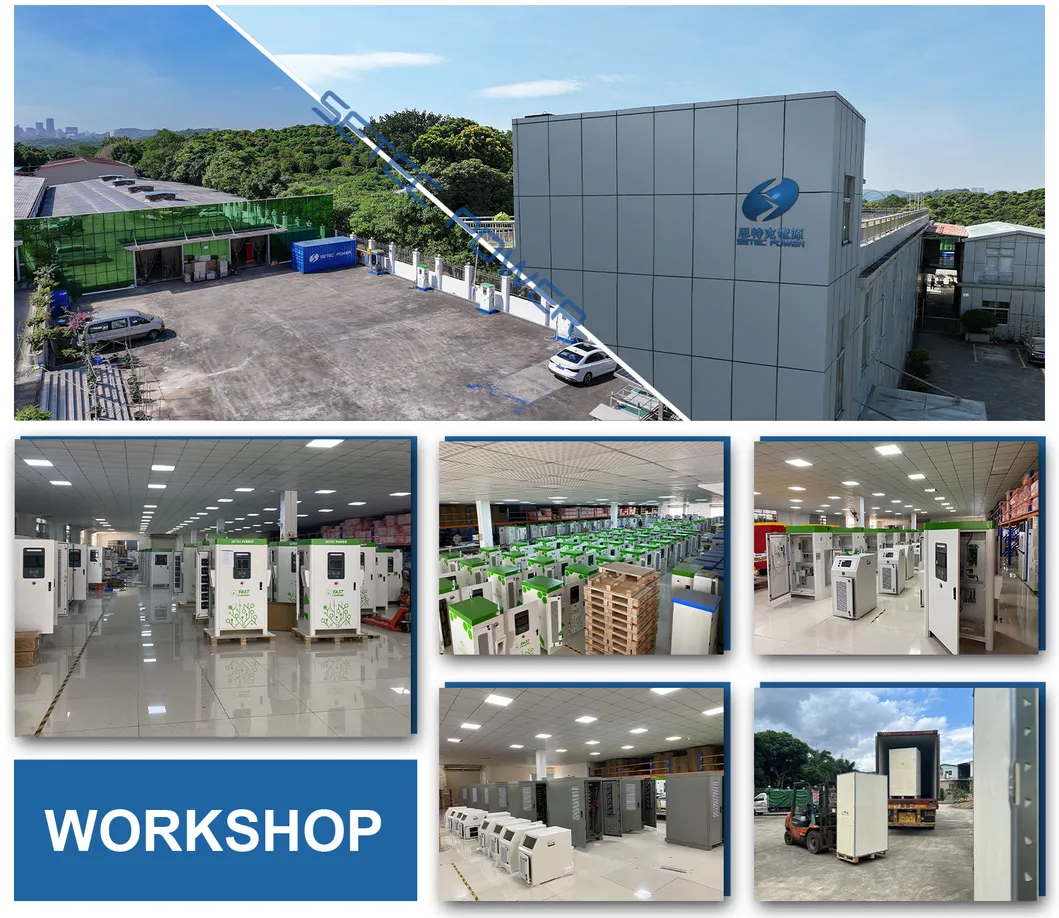

Company Profile & Cases
Established in 2004, the company is one of the earliest enterprises in China dedicated to the research and development of electric vehicle charging stations and customized solutions for their construction and operation. The company is dedicated to creating innovative and high-quality products in the field of electric vehicle charging stations and plays a leading role in the sustainable development of the industry.
As an industry leader equipped with cutting-edge technology, with 80,000+ square meters of production and R&D facilities, the focus remains on the entire process of research, development, design, and production of electric vehicle charging equipment. Numerous system certifications such as UL, CNAS, ISO14001, and ISO9001 have been obtained. Currently, products have been exported to Europe, North America, the Middle East, Asia, Africa, and other 120+ countries and regions.
5
Certificates & Exhibition
?
Frequently Asked Questions
What is the output voltage range of this DC charger?
The charger supports a wide output voltage range from 150Vdc to 1000Vdc, making it compatible with various electric vehicle battery systems.

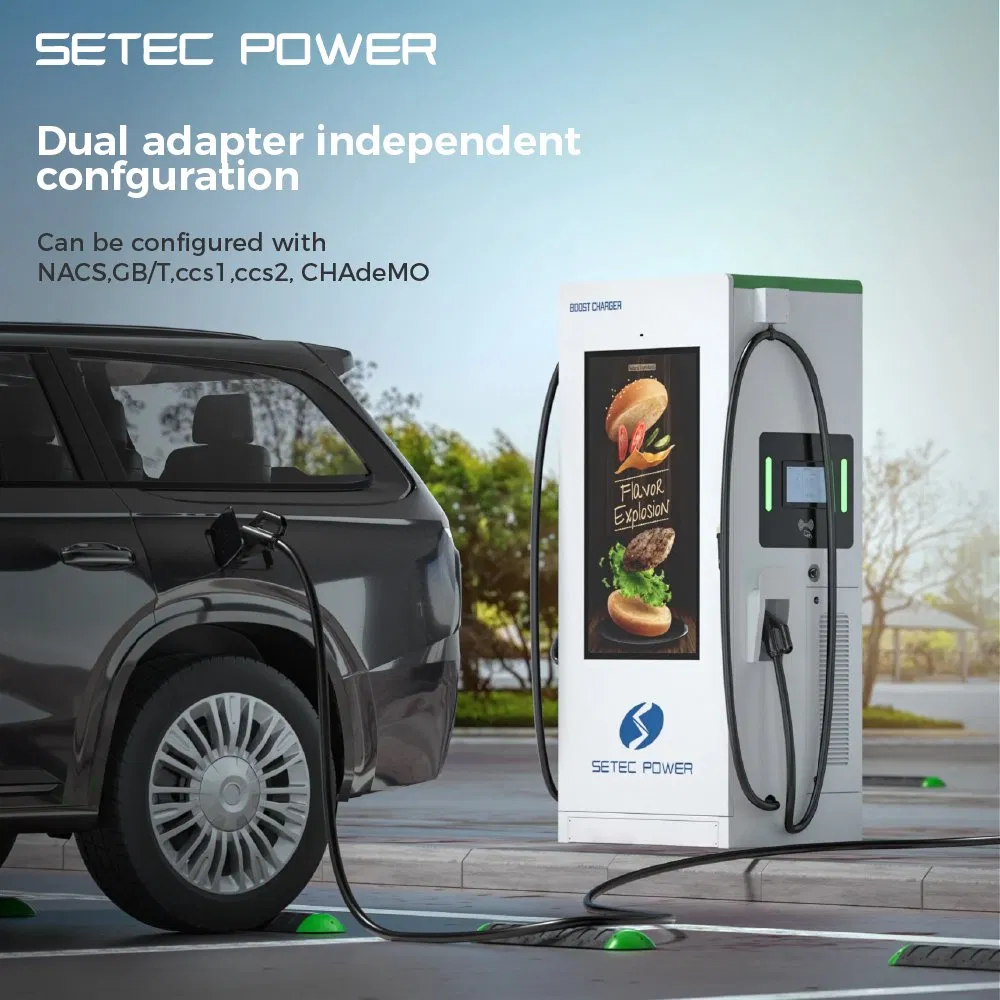

Which charging interfaces are available?
We offer multiple optional adapters including CCS1, CCS2, CHAdeMO, GB/T, and NACS to meet global standards.

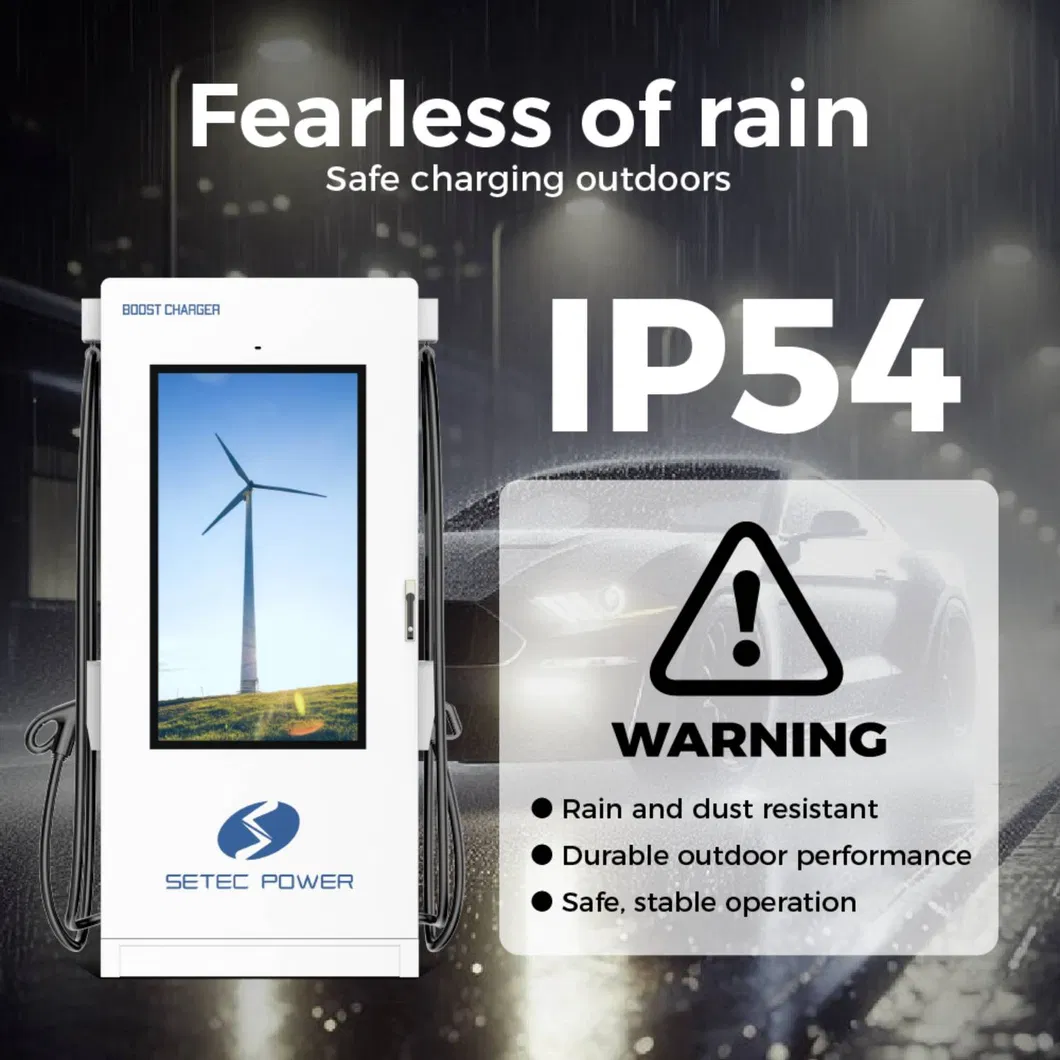

What is the protection level for outdoor use?
The equipment features an IP54 protection grade, ensuring reliable operation in various outdoor environments.
Does the charger support remote monitoring?
Yes, it supports Ethernet, WIFI, and 4G network connectivity with OCPP 1.6 and OCPP 2.0 protocols for remote management.

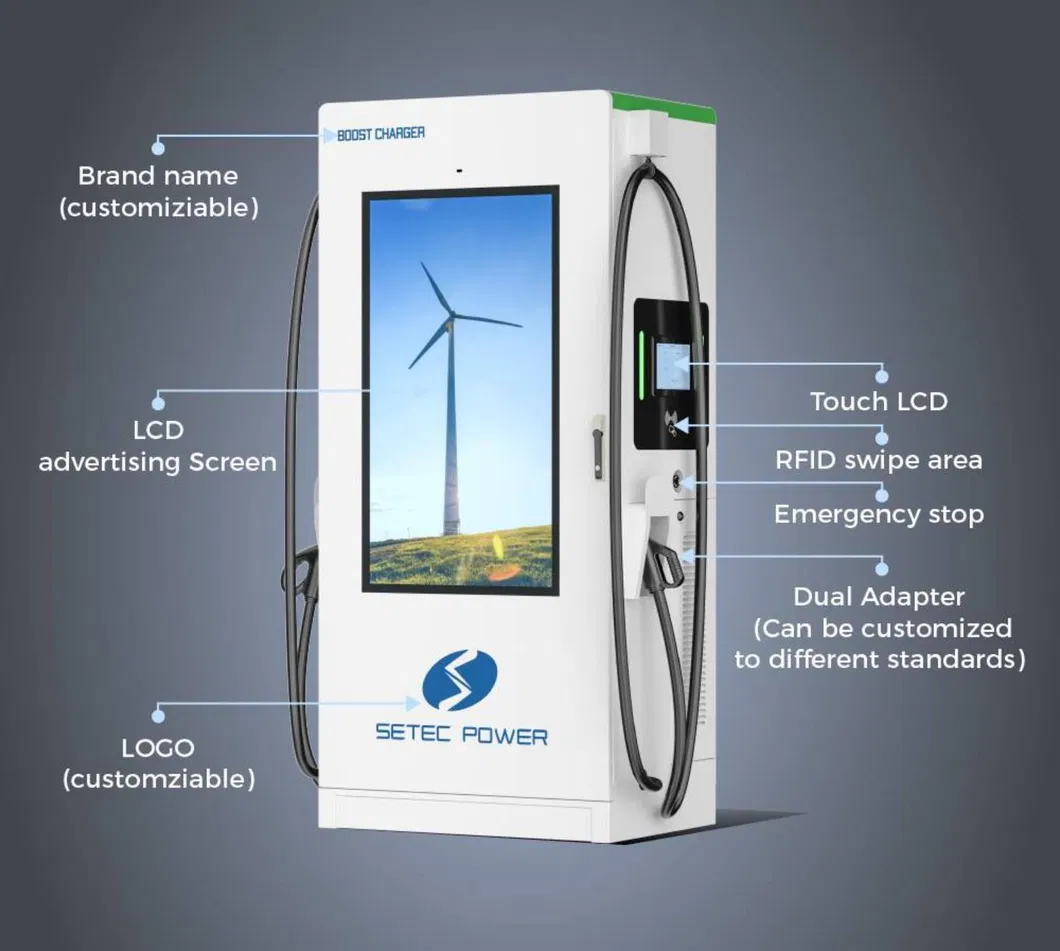

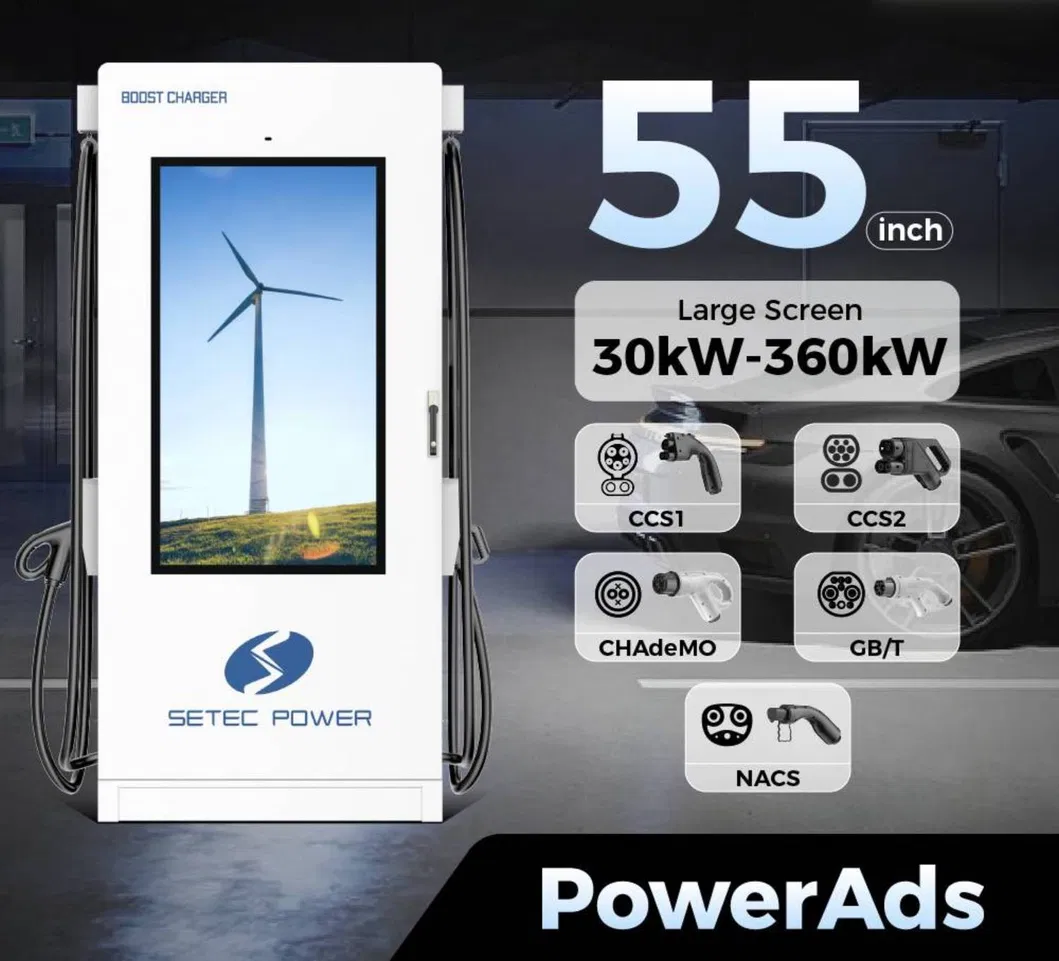

What are the available screen sizes for the display?
The charger can be equipped with either a 32-inch or a 55-inch daylight-readable touch display for advertising and user interaction.
What is the standard warranty period?
The product comes with a standard 2-year warranty, ensuring long-term reliability and support.
