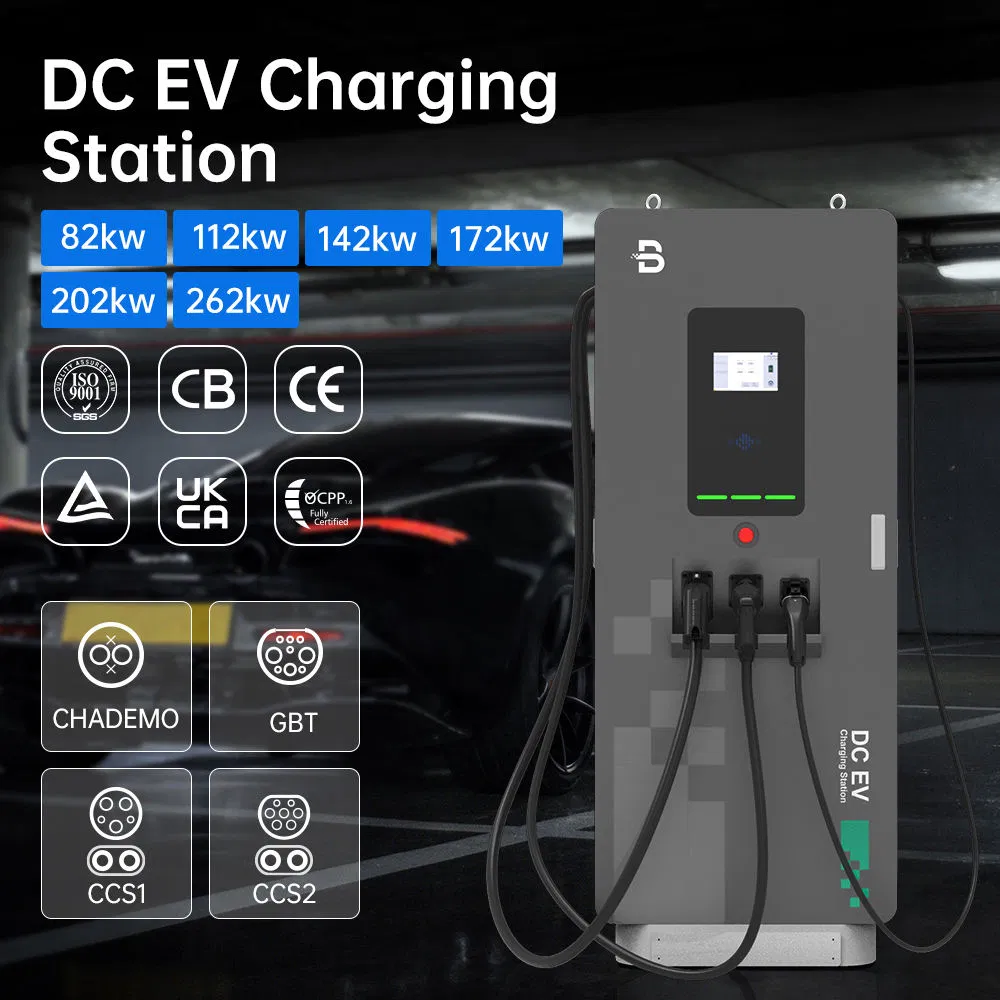

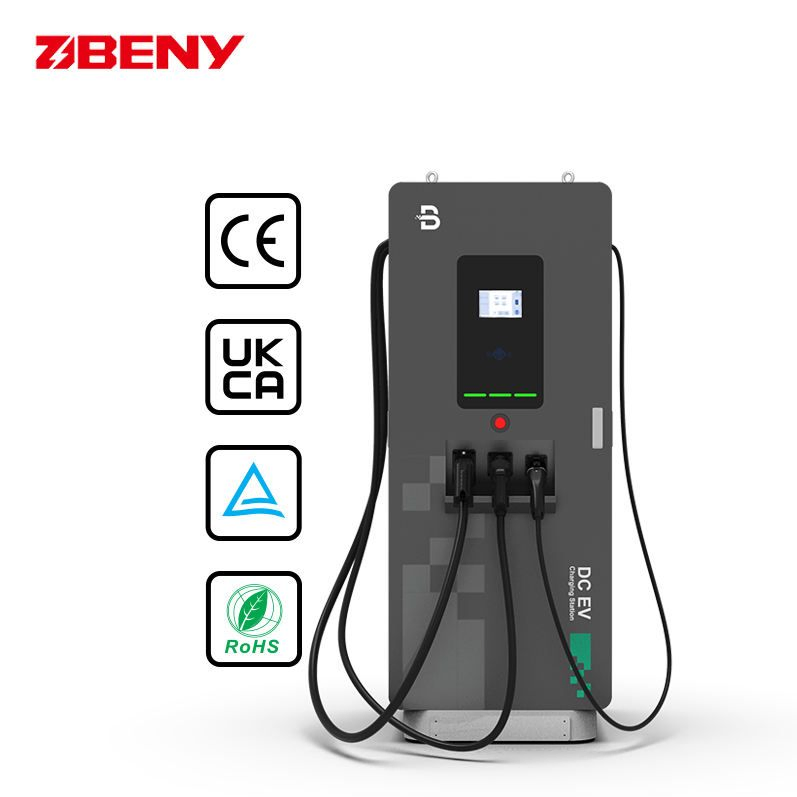

Beny Commercial Level 3 30kw-262kw Energy Storage DC 172kw EV Car Charger Fast Electric Vehicle EV Charger Charging Station
Product Description
Basic Information
Model NO.
BADC-D172
Location
Public Use
Interfaces
One Pile with Multiple Charges
Start Mode
Mobile Remote, RFID Authentic
Interface Standard
CCS1, CCS2, GB/T, Chademo
Output Power
82kw - 262kw
Output Current
Up to 250A
AC Input Voltage
AC380V±15%, 3p+N+Peac
Mounting
Floor-Stand
Network
4G/Ethernet
Certificate
CE, CB, Ukca, TUV, Rcm
Protocol
Ocpp1.6j
Protection
IP55, Ik10
Warranty
2 Years
Product Description
Why Choose Our Solutions
We are a leading brand in annually producing hundreds of thousands of quality DC protection products and EV charging stations for complete and reliable solar photovoltaic, battery energy storage, and EV charging system. Our products are certified by UL, SAA, CB, CE, TUV, UKCA, ISO, and RoHS.

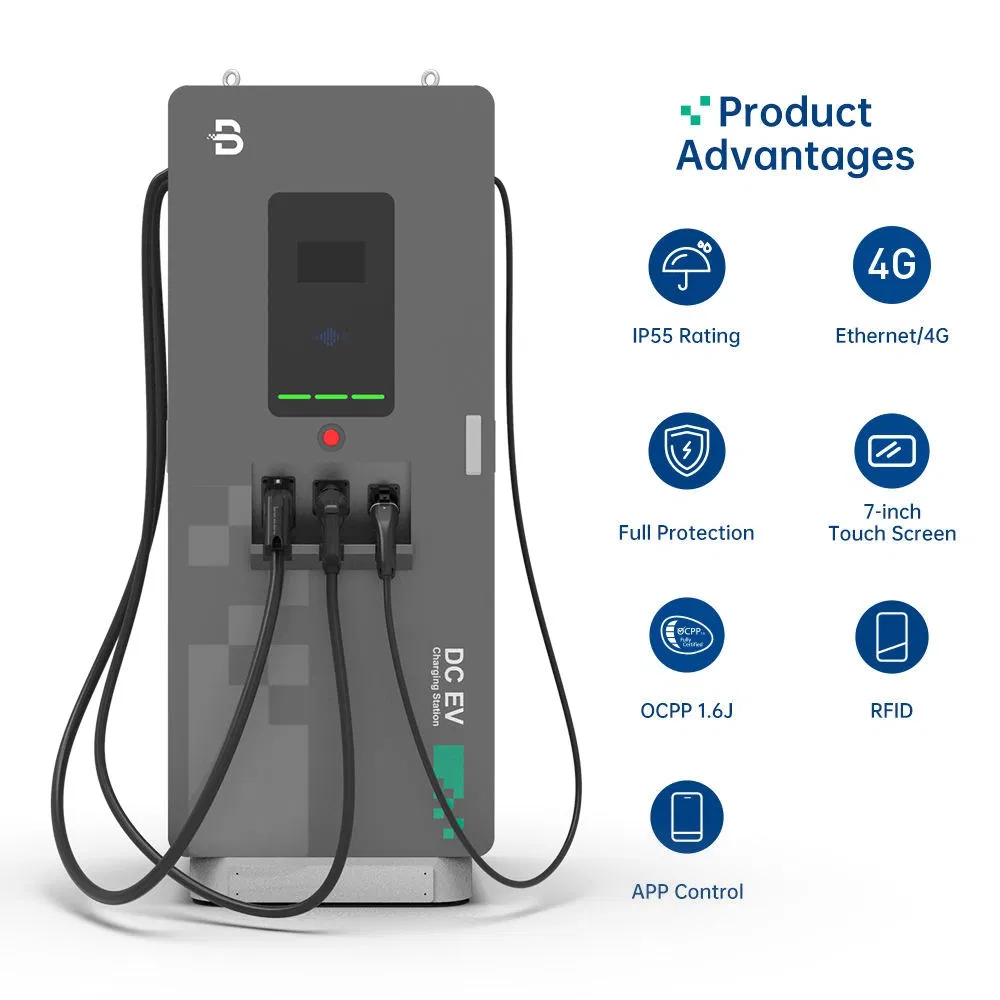

Product Highlights
- Power Options: 30kW to 262kW Optional

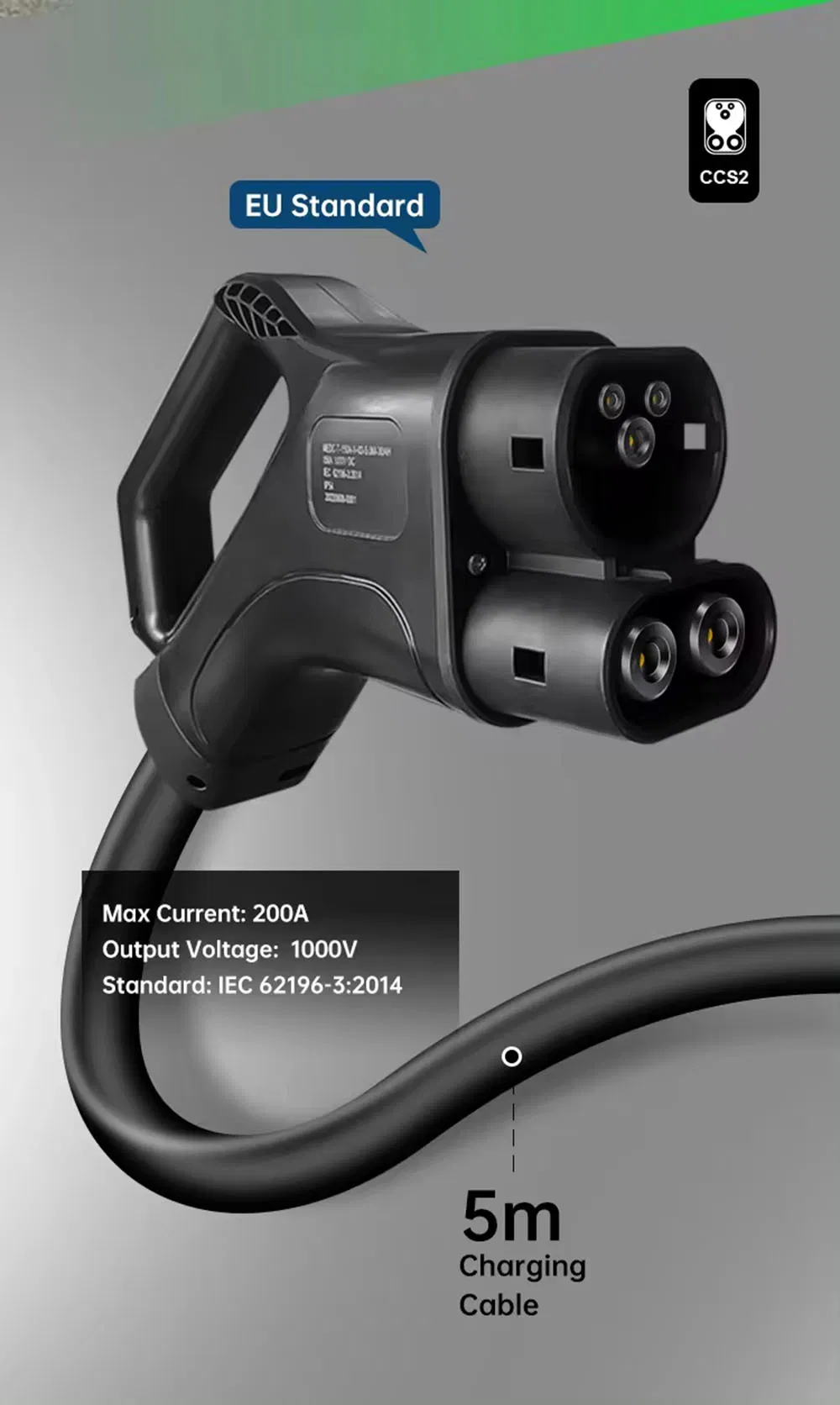

- Flexible Configuration: 1 to 3 Guns (CCS1, CCS2, Chademo, GBT, AC)
- Smart Control: 7-inch LCD screen & OCPP 1.6J support
- Time-saving: High-speed DC Fast charging capability
- Power-saving: High conversion efficiency & low standby consumption
- Maximum Safety: Active protective functions for users and vehicles
Technical Parameters
| Models | BADC82-D | BADC112-D | BADC142-D | BADC172-D | BADC202-D | BADC262-D |
|---|---|---|---|---|---|---|
| Rated Power | 82kW | 112kW | 142kW | 172kW | 202kW | 262kW |

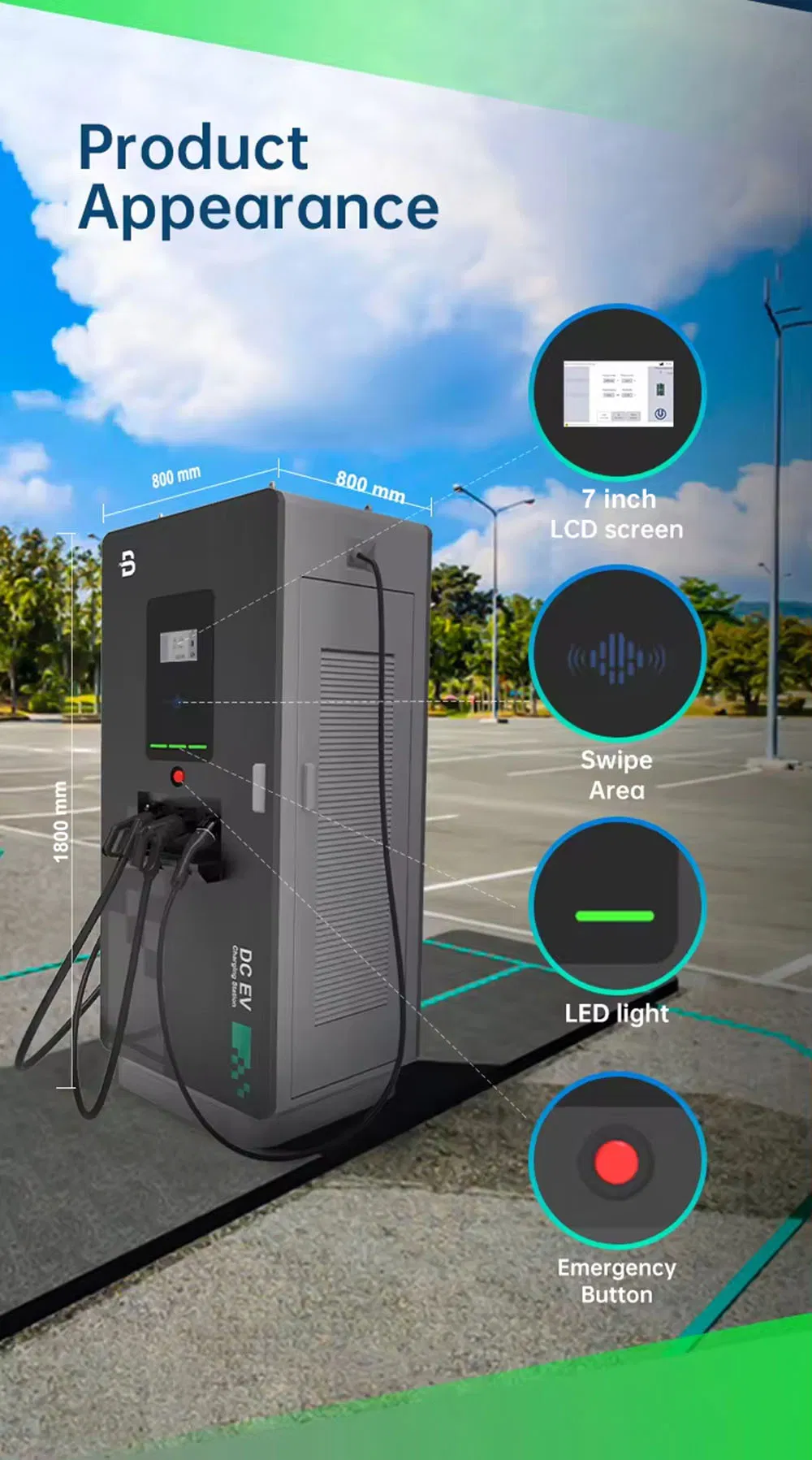

| Dimension | 800*800*1800 (L*W*T) | |||||
| Output Voltage | CCS: 150Vdc -1000Vdc; CHADEMO: 150Vdc -500Vdc | |||||
| Efficiency | ≥95% | |||||
| Protection | IP55 / Over-Voltage / Under-Voltage / Over-Temp / Lightning Surge | |||||

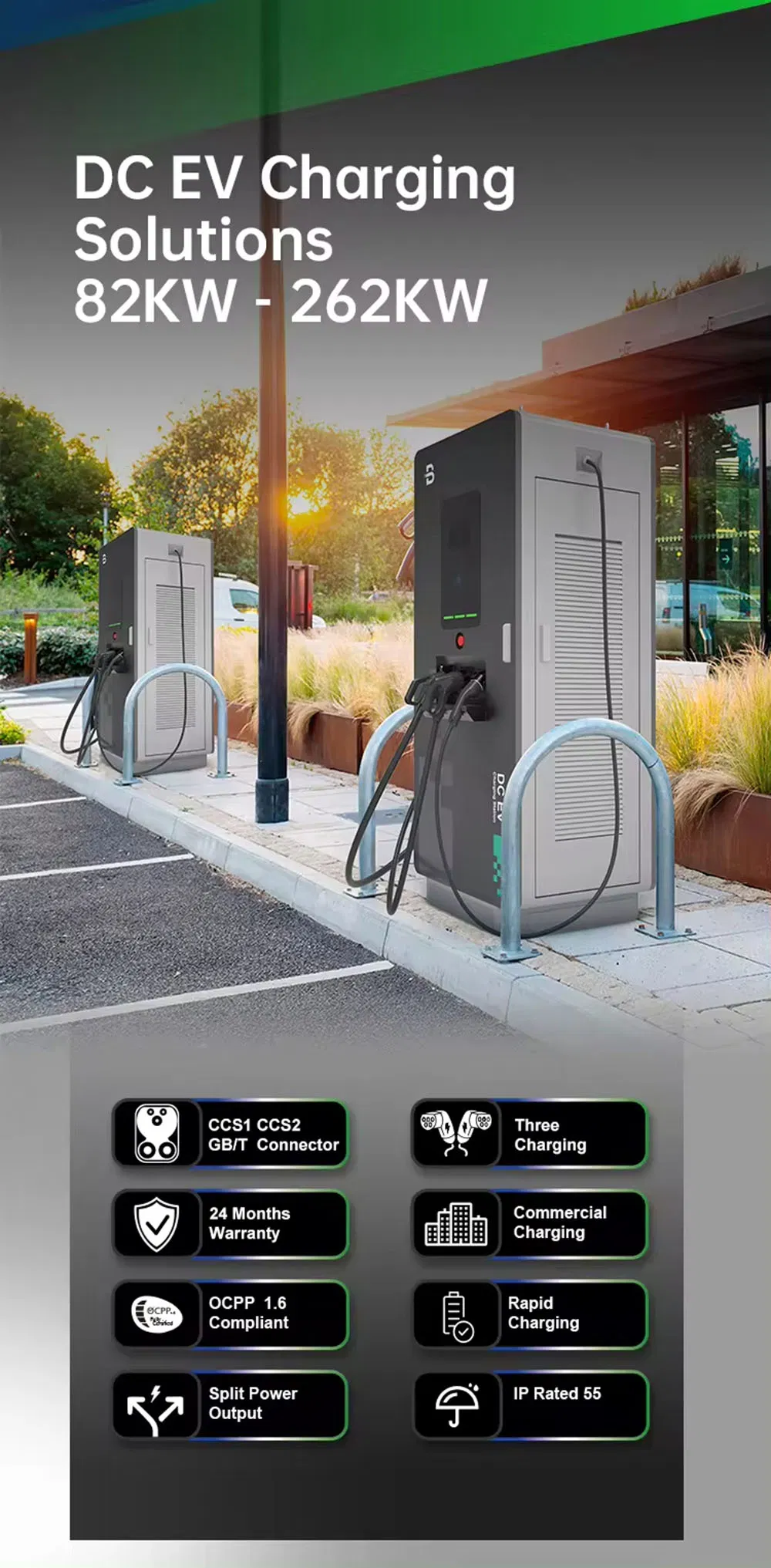

Detailed Visuals

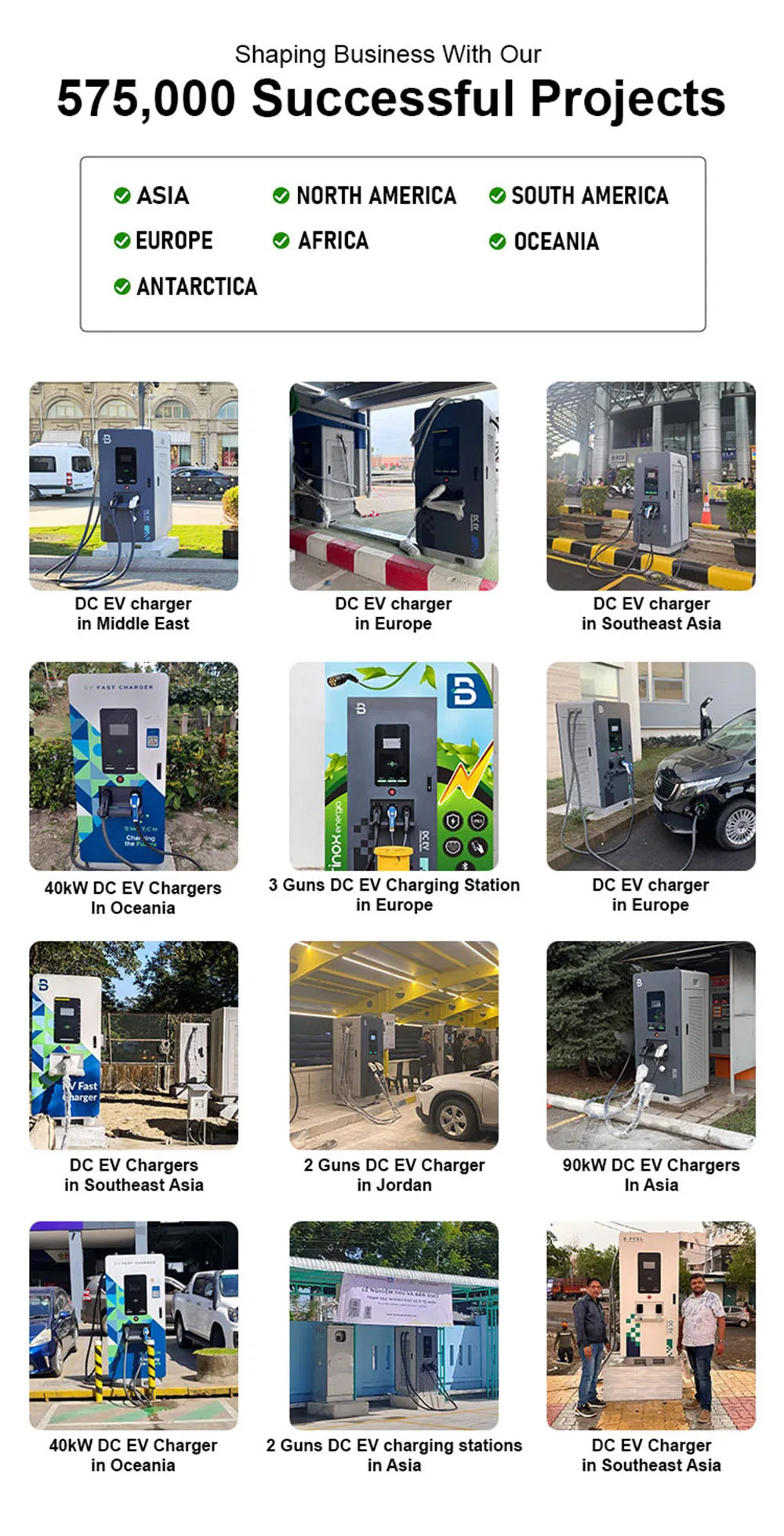

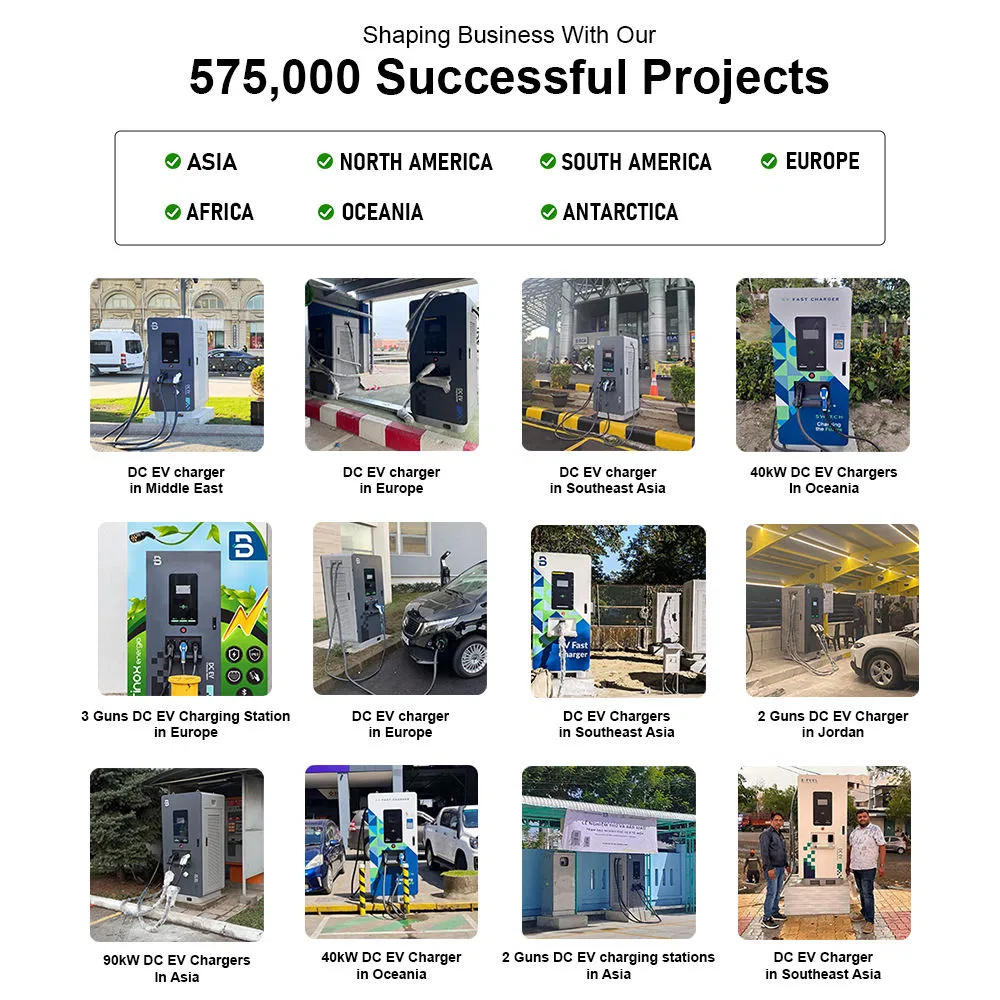

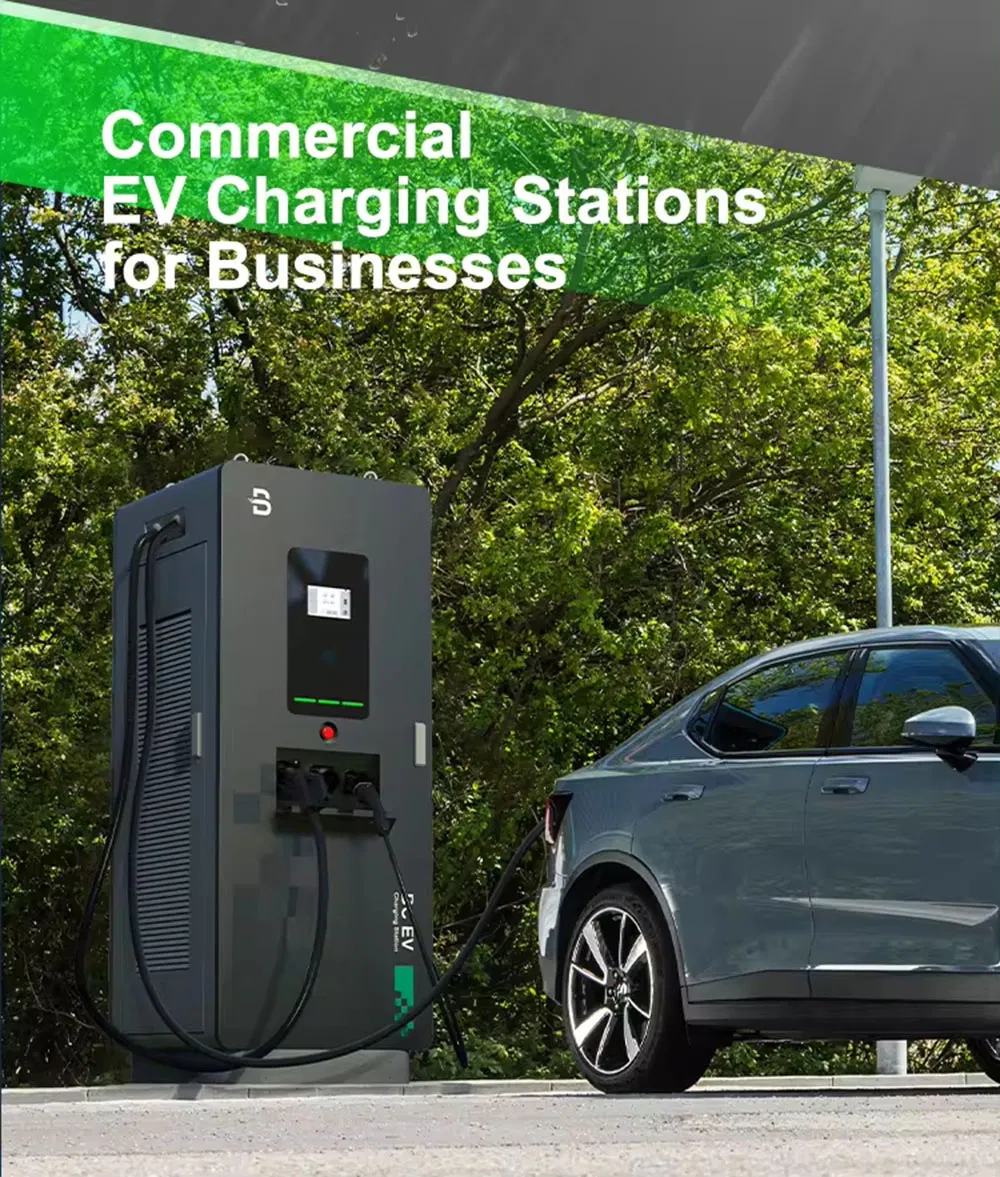

Product Application Cases
Across the globe, we have forged robust business relationships in the realm of EV charging station construction, offering comprehensive, cost-effective, instant charging solutions for various environments.
EV Charger Product Line
Our EV charger supplies power to any electrical vehicle. With more than 30 years of experience in manufacturing, our units surpass expectations in terms of service life and performance. Output power ranges from 16A AC up to 600kW DC fast charging.
Manufacturing Excellence & Exhibitions
Frequently Asked Questions
1. What charging standards do your DC chargers support?

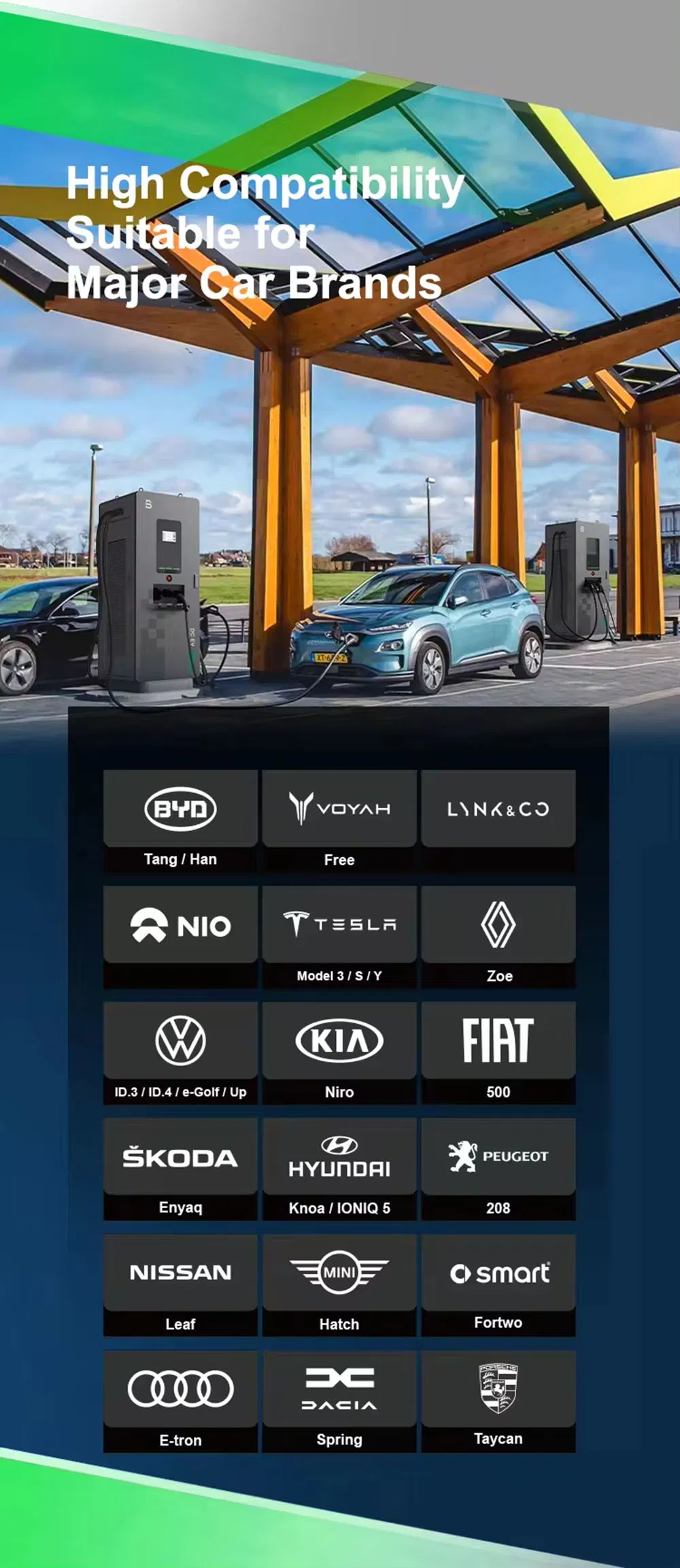

Our chargers support global standards including CCS1, CCS2, GB/T, and CHADEMO, ensuring compatibility with almost all electric vehicles.
2. Is the charging station suitable for outdoor installation?

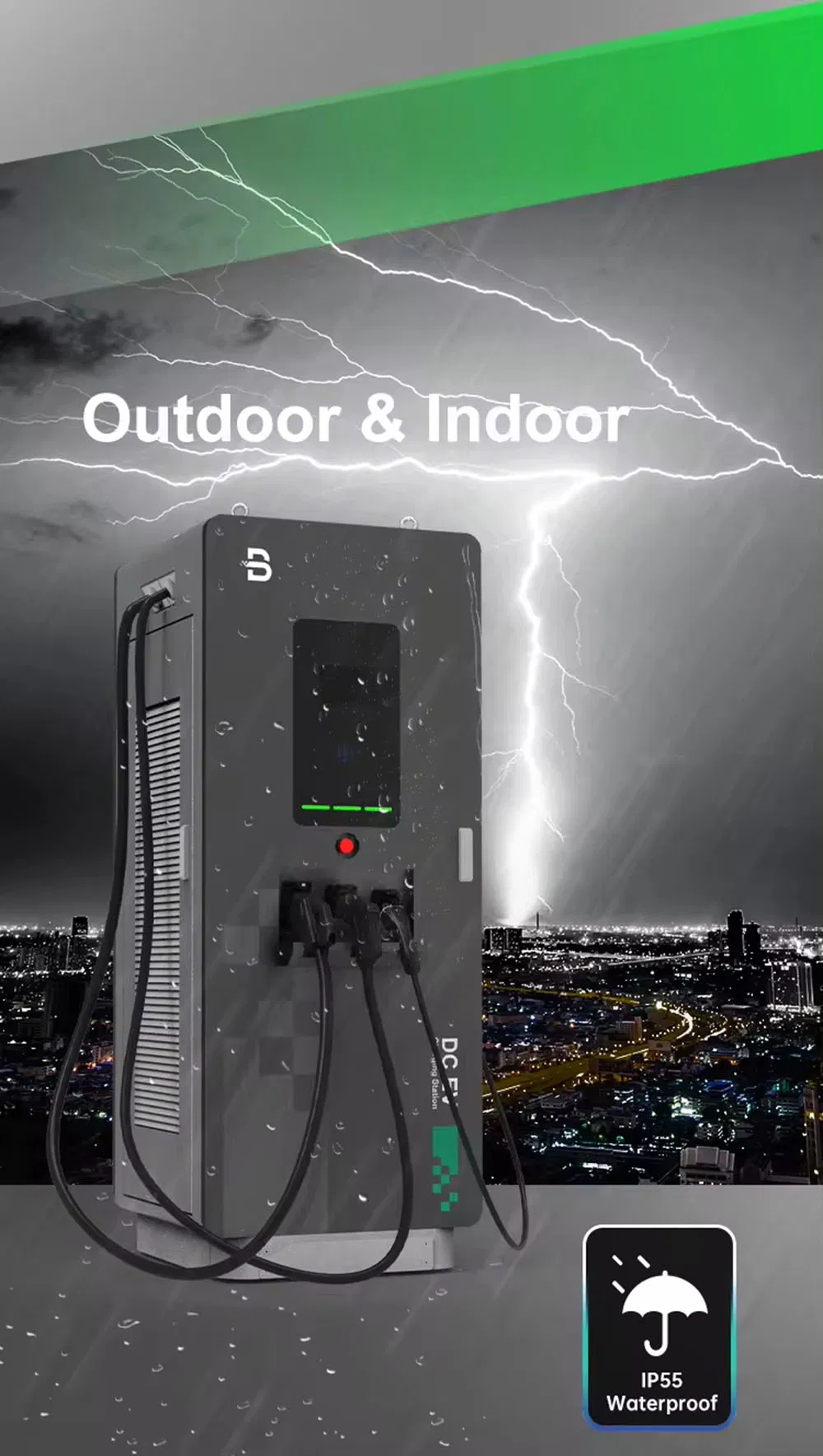

Yes, the units feature an IP55 protection rating and IK10 impact resistance, making them durable for both indoor and outdoor environments.
3. Does the charger support remote management?

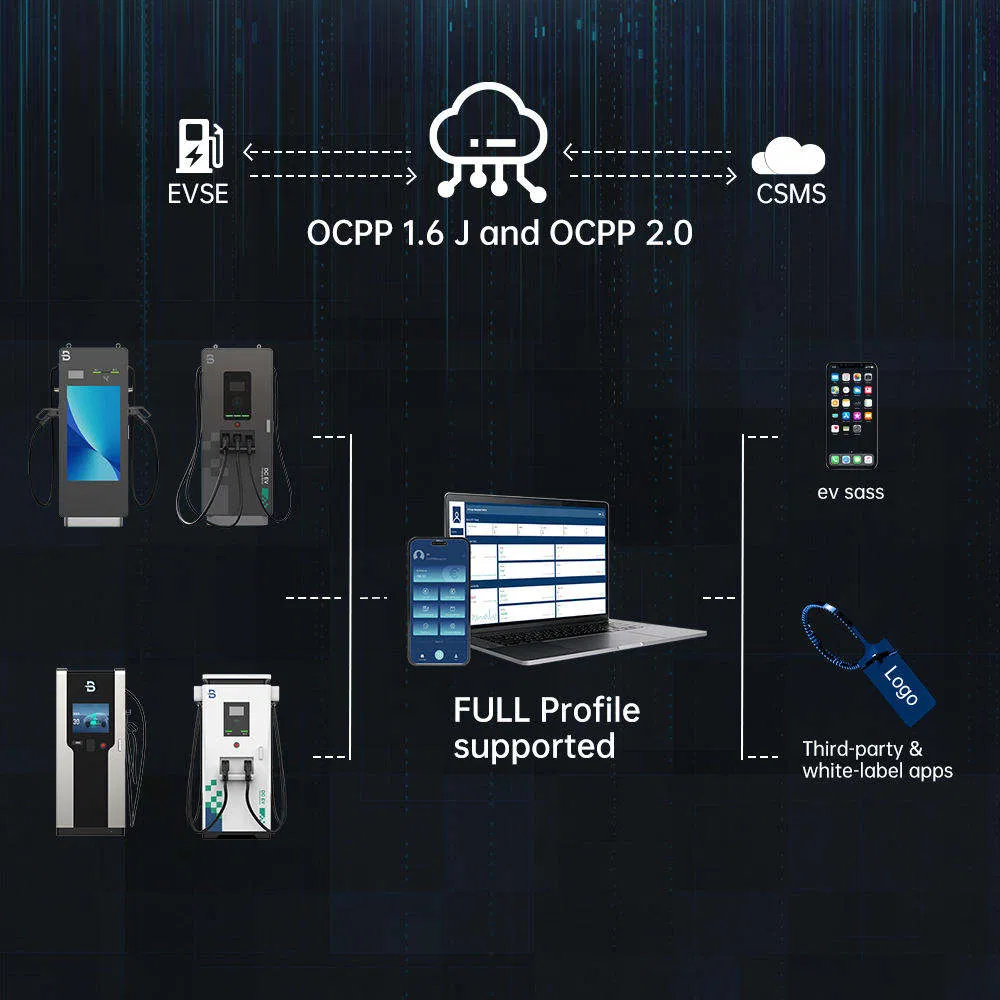

Absolutely. Integrated with OCPP 1.6J protocol, our chargers connect via 4G or Ethernet for remote monitoring, firmware updates, and billing management.
4. What is the standard warranty period?
We provide a 24-month (2 years) warranty on our DC charging stations, covering manufacturing defects and technical support.
5. Can the output power be customized?
Yes, we offer multiple power configurations from 30kW up to 262kW and beyond, depending on your site requirements and vehicle turnover needs.
6. How safe is the charging process?
Our chargers include multi-level protection: over/under voltage, overload, leakage current, grounding, over-temperature, and lightning surge protection.
