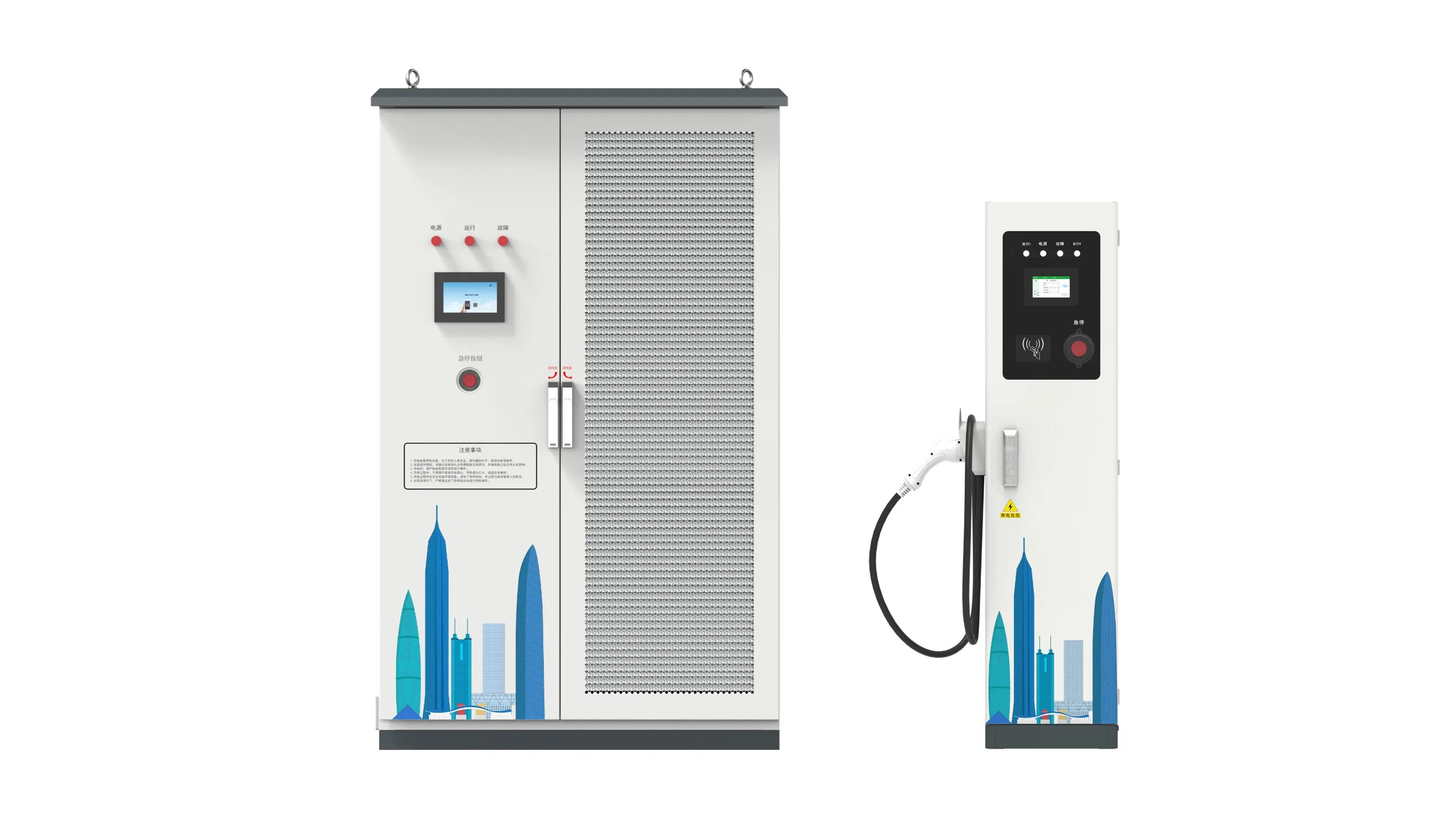

240kw 360kw 480kw 720kw Level 3 Rapid Commercial EV Charging Stations Split DC Charger
Product Description
Basic Information
Location
Public Use
Charging Interfaces
One Pile with Multiple Charges
Start Mode
RFID Authentic
Display
7 Inch
Input
380V
Output
DC200-1000V
UI Language
Russian, Japanese, English, Turkish, Germany, etc
Specification

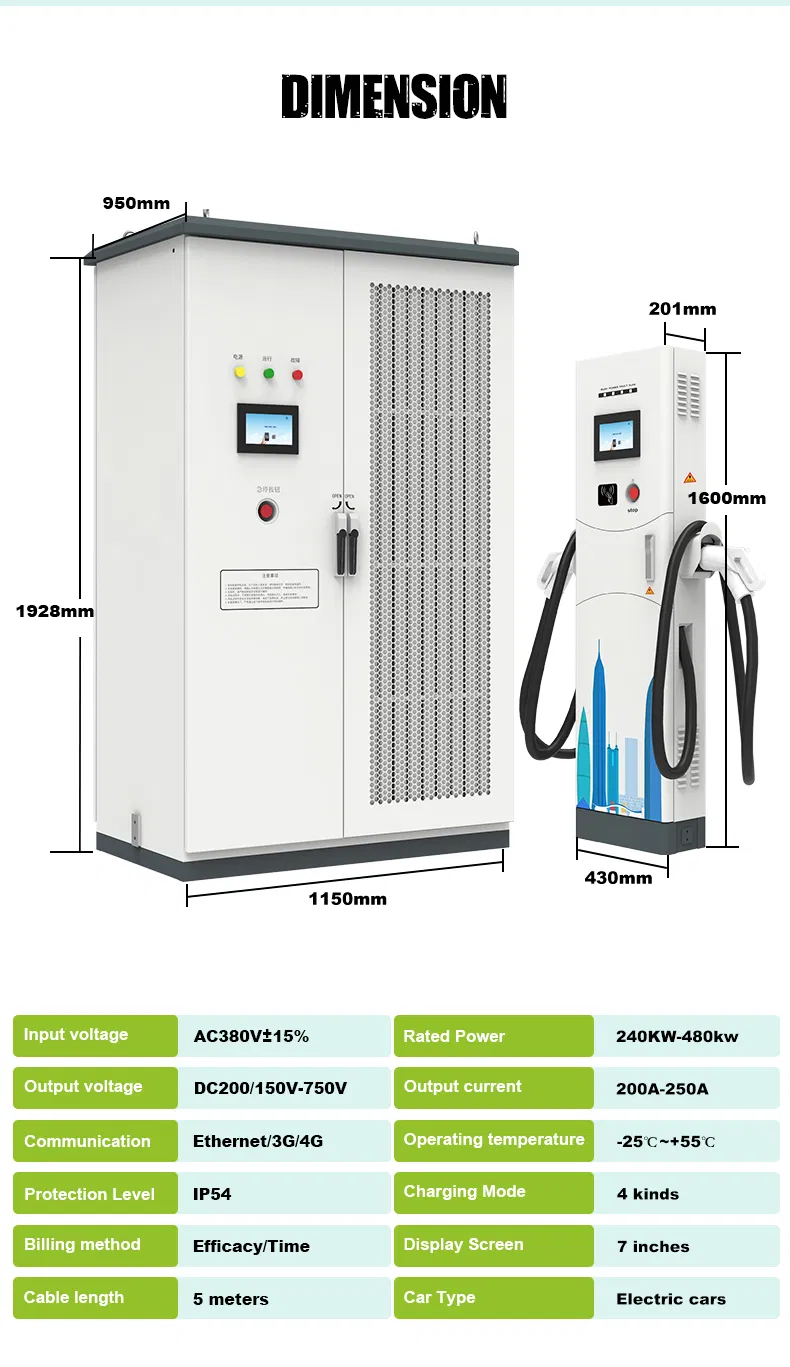

750*1200*1980mm
Trademark
OEM
Product Description

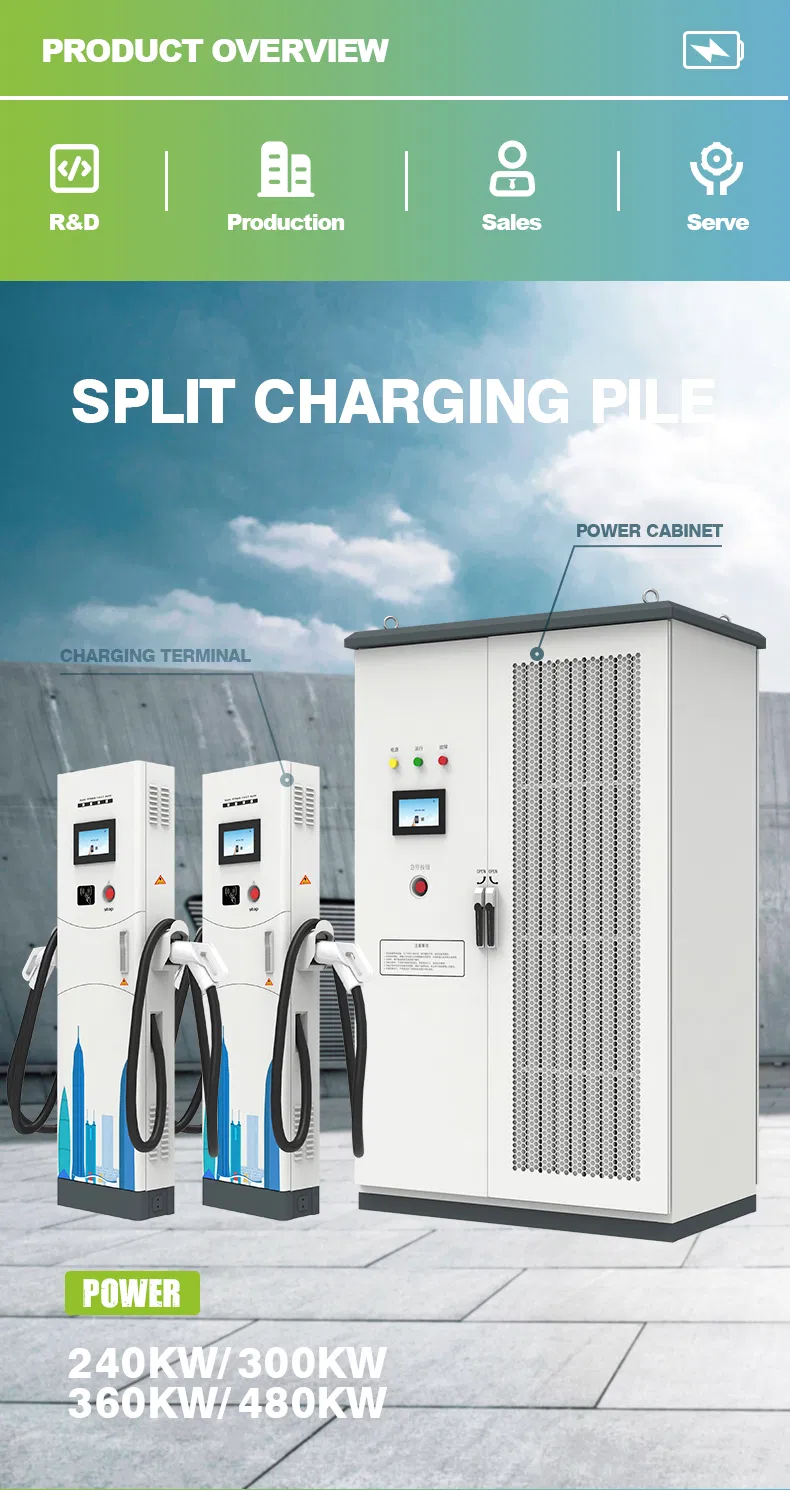

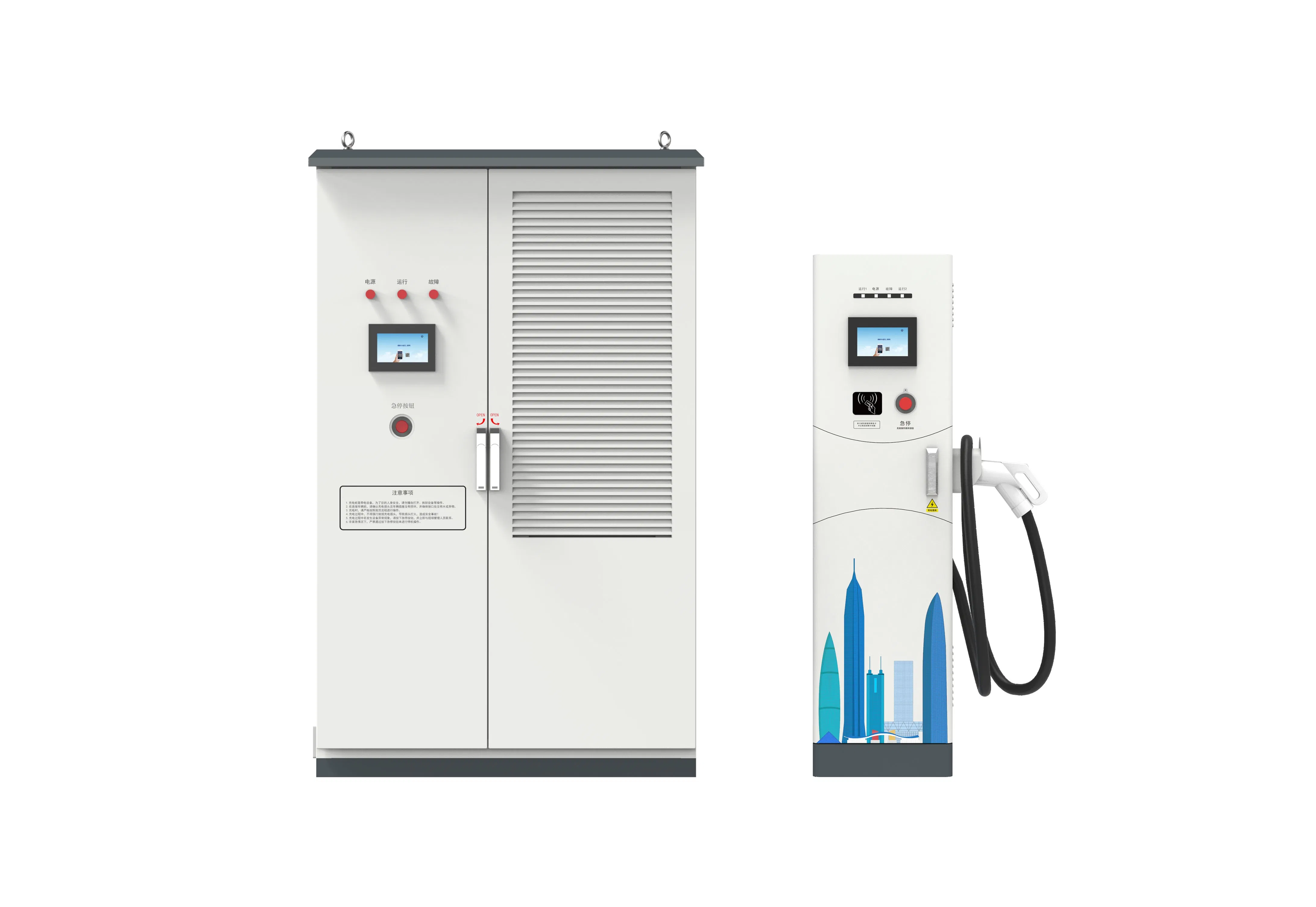

240KW, 360KW, 480KW Split Type EV Charging Station
Specialities:

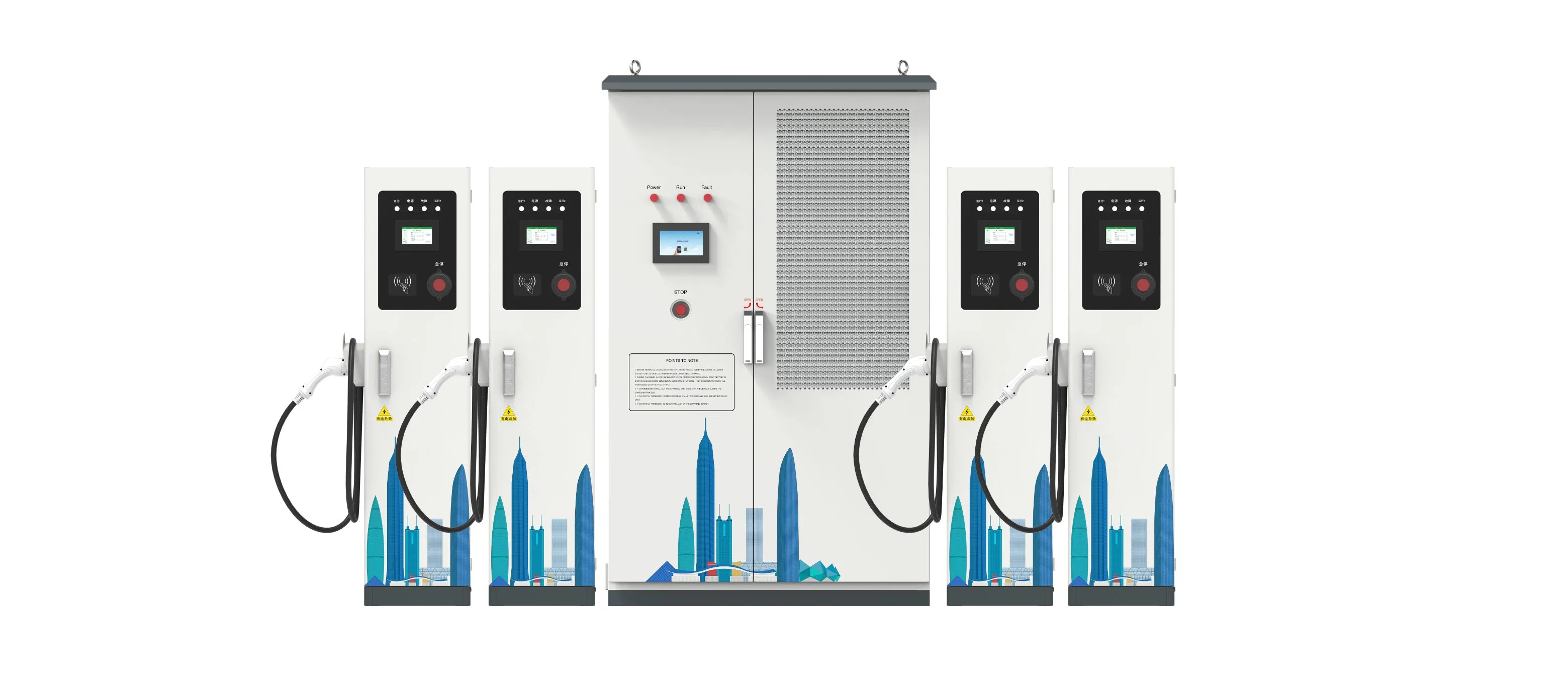

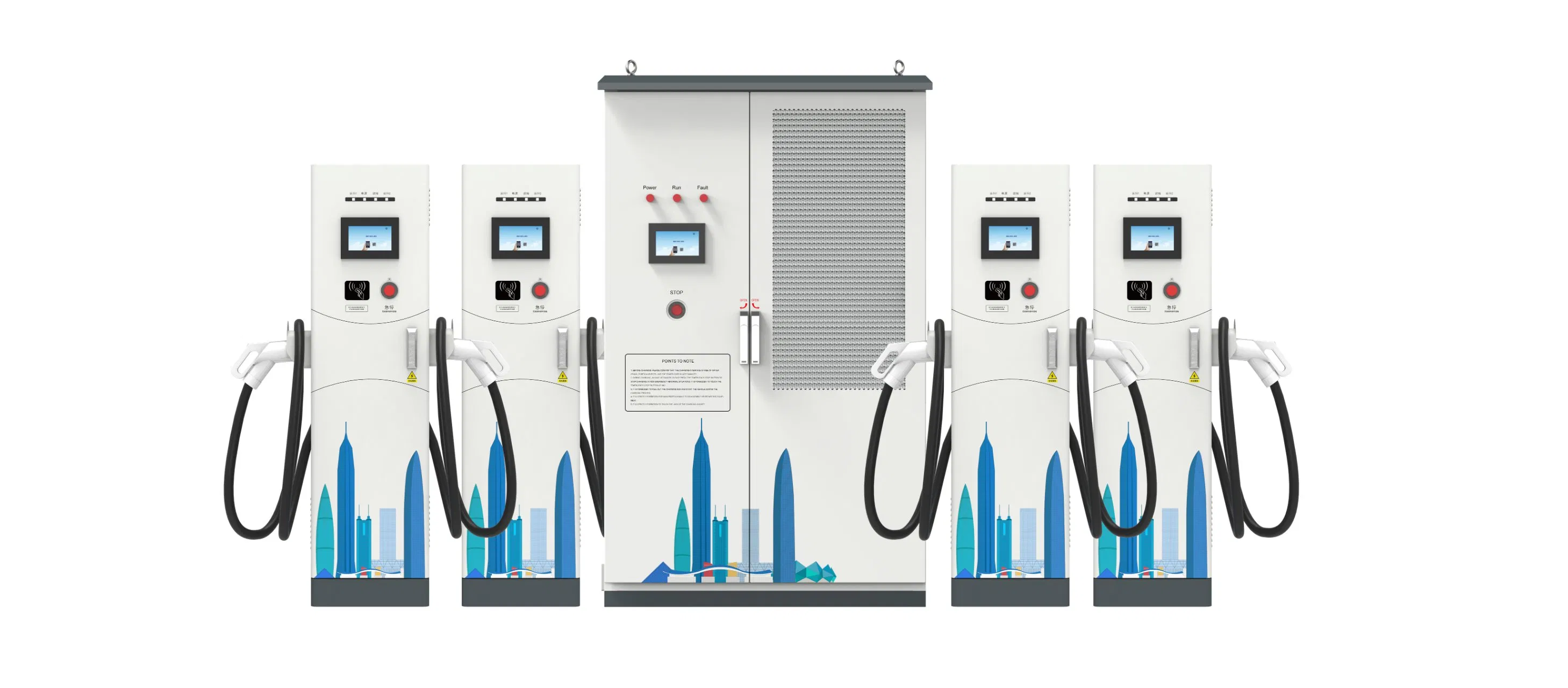

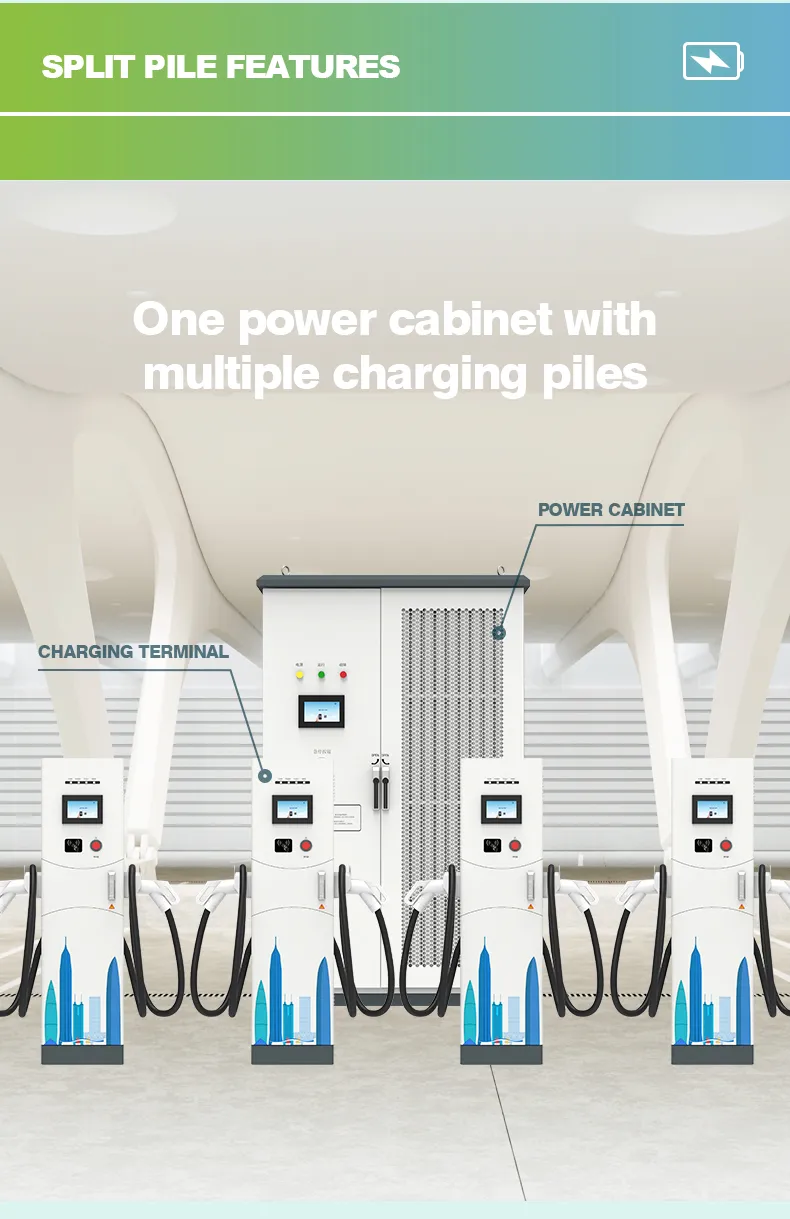

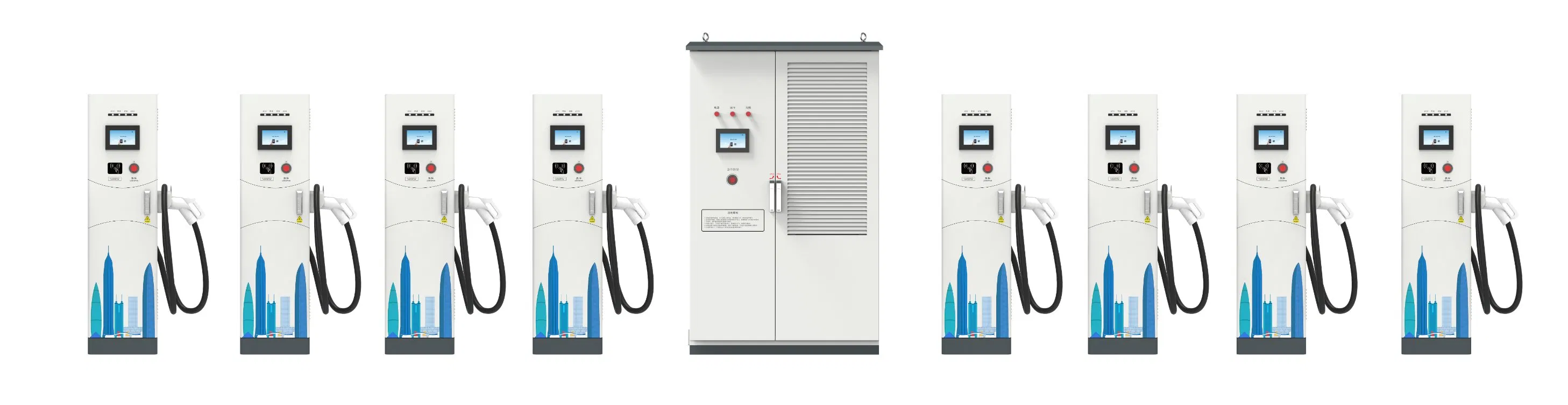

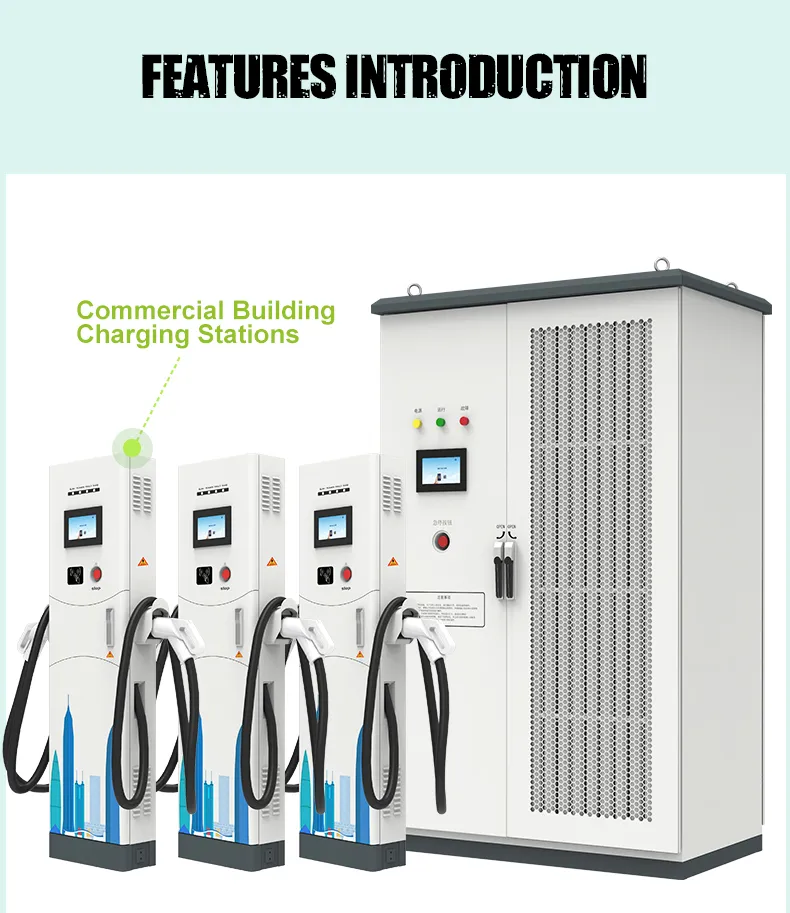

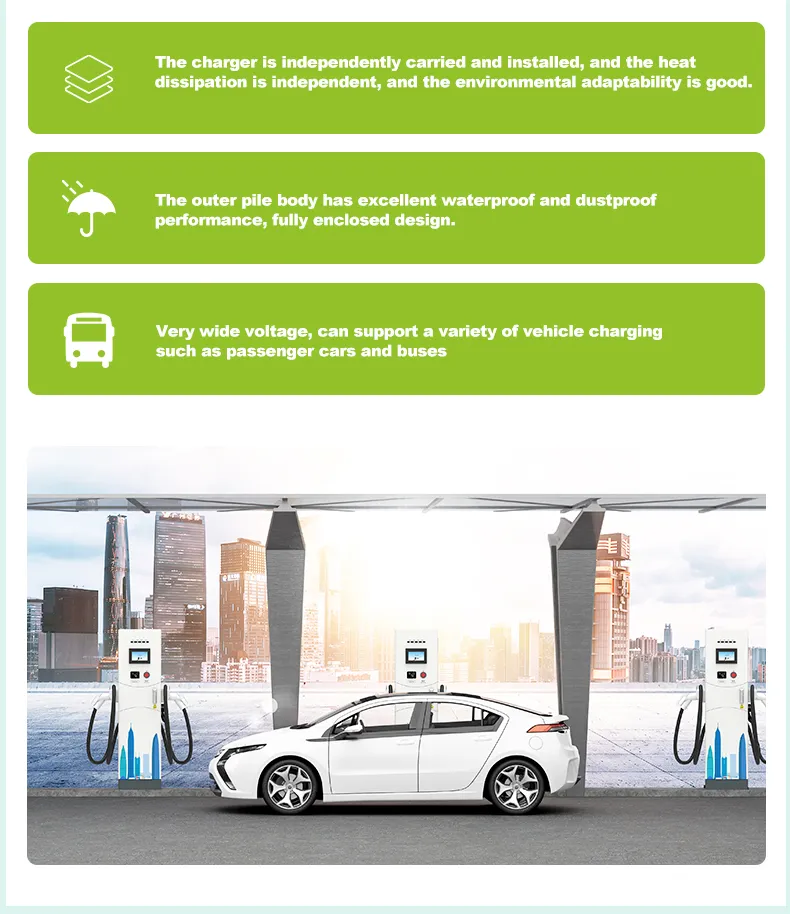

- ⚡- 1 Power Cabinet & 4-8 charging terminal machine: Separate heat dissipation, good environmental adaptability.

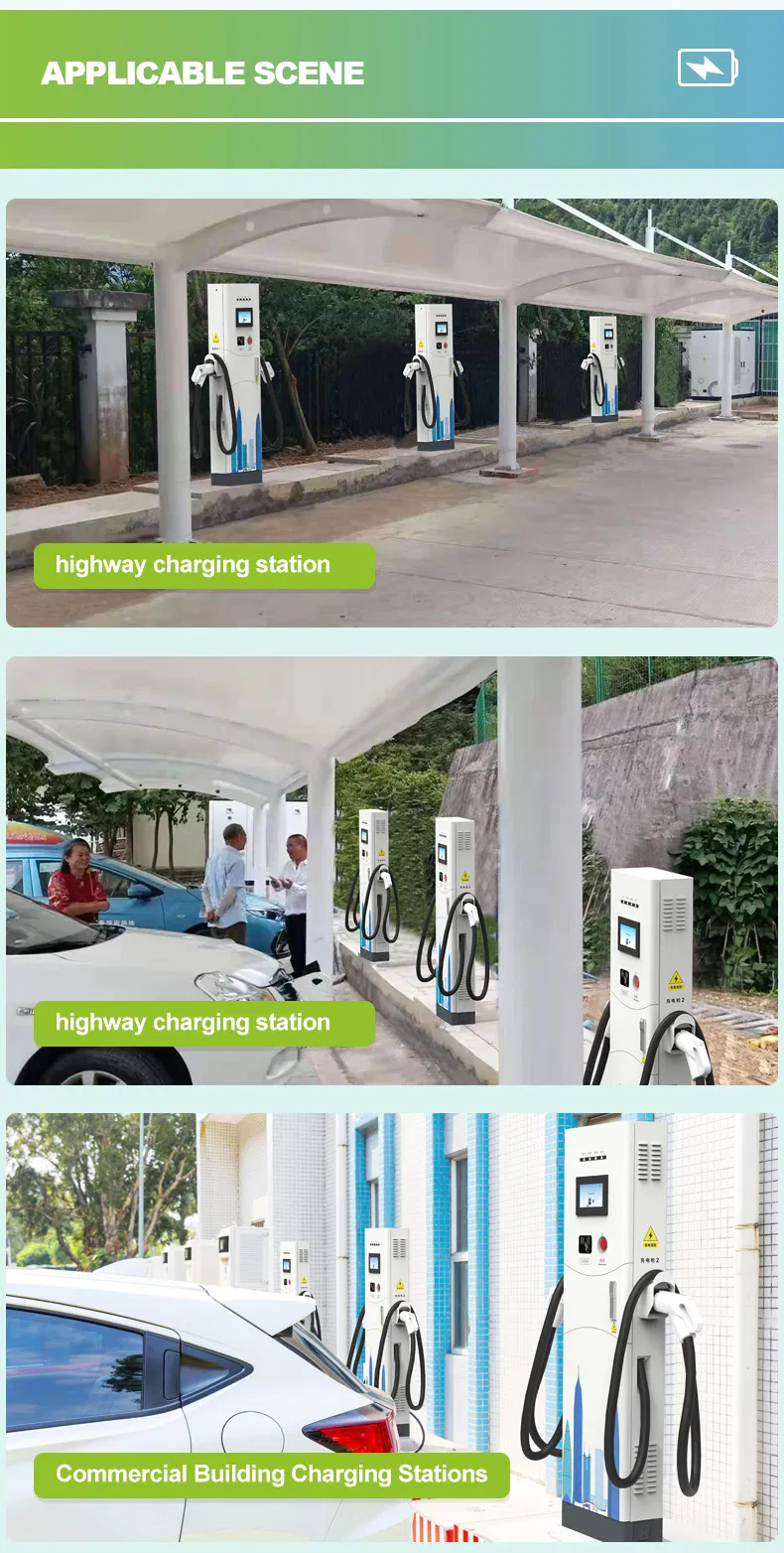

- ⚡- Professional multi-scenario solution: Enterprise/Logistics park, Bus/Taxi stations, Highway charging.
- ⚡- Ultra high power: Dynamic power allocation to support high-demand electric vehicles.
- ⚡- Simple operation & convenient installation.
- ⚡- Friendly 7-inch color touch screen interface.
- ⚡- Support multiple payment and operation management modes.
- ⚡- Connectivity: 3G/4G, Ethernet, or wireless telecommunication.
- ⚡- Support RFID Card/OCPP1.6J (optional).

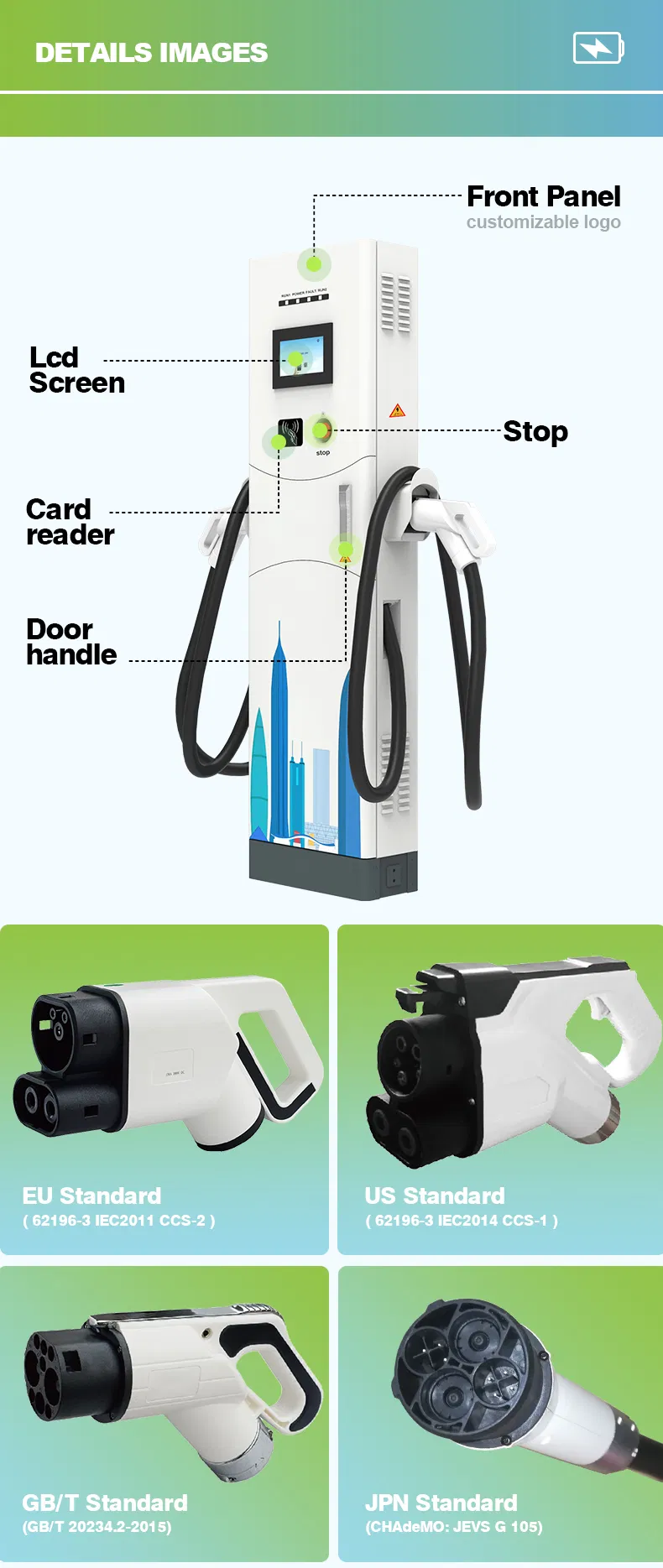

- ⚡- Connectors: CCS-2/CCS-1/CHAdeMO/GB/T optional.
- ⚡- Integrated Overload Protection and online data upgrade support.
Product Parameters
| NO. | Parameters | Requirements | |
|---|---|---|---|
| General Requirements | |||
| 1 | EV Charger Type | DC | |
| 2 | Charger Capacity | 360KW | 480KW |
| 3 | Product Model NO. | DCF360F | DCF480H |
| 4 | Mounting | Ground-Mounted (Sequential) | |
| Input Requirements | |||
| 5 | AC Supply System | Three-Phase, 5 Wire AC system | |
| 6 | Nominal Input Voltage | AC380V±15% | |
| 7 | Input Frequency | 45-65Hz | |
| Environmental Requirements | |||
| 8 | Ambient Temperature | -25 to 55°C | |
| 9 | Ambient Humidity | 5 to 95% | |
| Electrical Indicators | |||
| 11 | Current Limit Protection | ≥110% | |
| 12 | Steady Pressure Precision | ≤±0.5% | |
| 14 | Power Factor | ≥0.99 (50% load above) | |
| Mechanical Requirements | |||
| 15 | IP Ratings | IP 54 | |
| 16 | Cooling | Air-cooled | |
| Output Requirements | |||
| 18 | Number of Outputs | 6 | 8 |
| 19 | Type of Each Output | DC200-1000V | |
| 20 | Single Output Max Current | 200 Amp | |
| Safety Requirements | |||
| 22 | Safety Parameters | Over Current, Under Voltage, Surge Protection, Leakage Protection, Short Circuit, Over Temperature. | |
Frequently Asked Questions
What is the output voltage range of this charging station?
The station supports a wide DC output range from 200V to 1000V, making it compatible with various electric vehicle battery systems.
Does the station support dynamic power allocation?
Yes, the split type design features dynamic power allocation to efficiently distribute energy based on the connected vehicles' needs.
What types of connectors are available?
It supports CCS-2, CCS-1, CHAdeMO, and GB/T connectors, allowing for versatile charging across different EV standards.
Can the charging station be used outdoors?
Yes, with an IP54 rating and an operating temperature range of -25 to 55°C, it is designed for robust outdoor public and commercial use.
What communication protocols are supported for management?
The system supports OCPP 1.6J protocol (optional) and can connect via Ethernet, 3G, 4G, or Wi-Fi for remote monitoring and management.
How is the user authentication handled?
Users can authenticate via a mobile application, QR code, RFID card, or password login through the integrated 7-inch touch screen.
