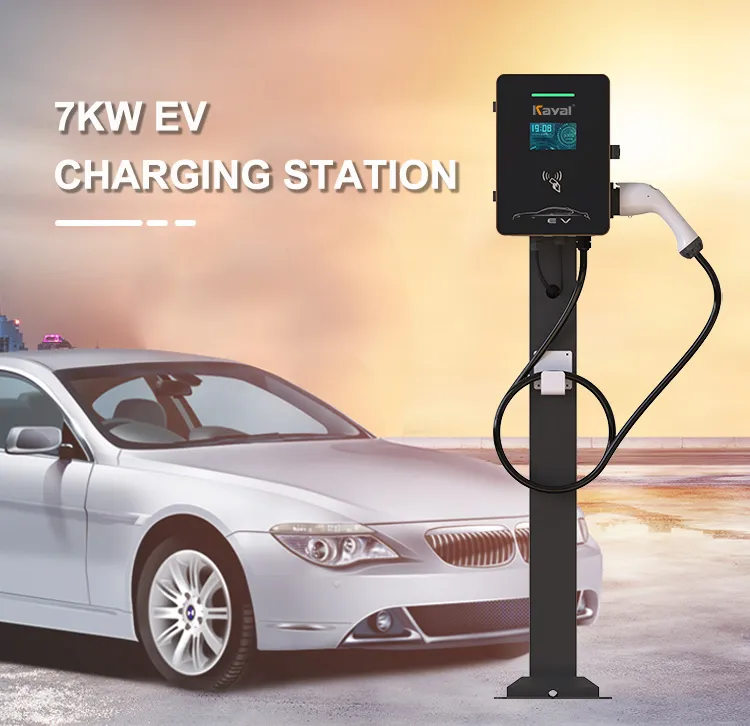

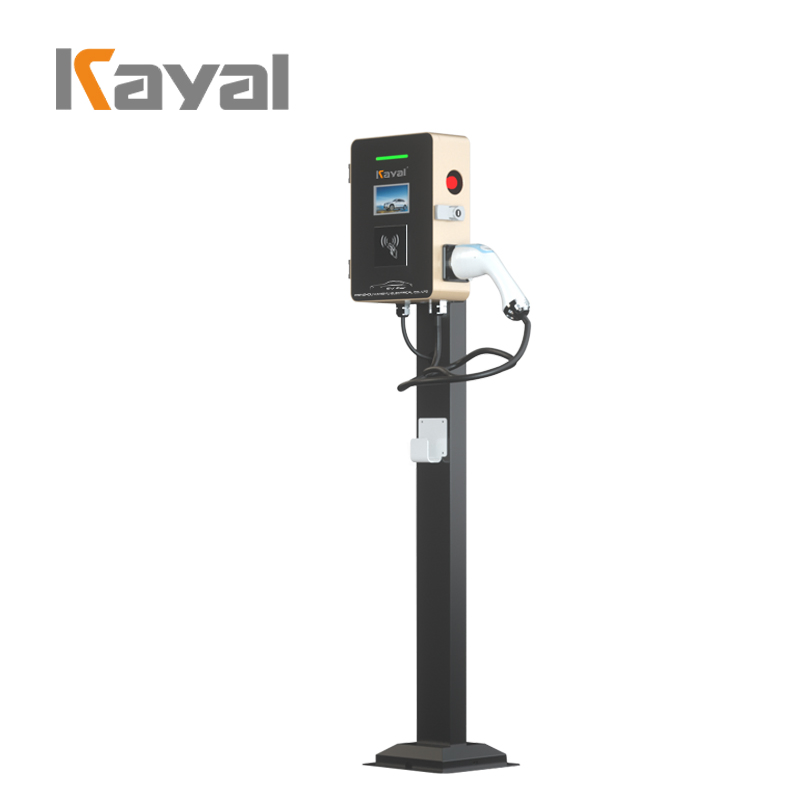

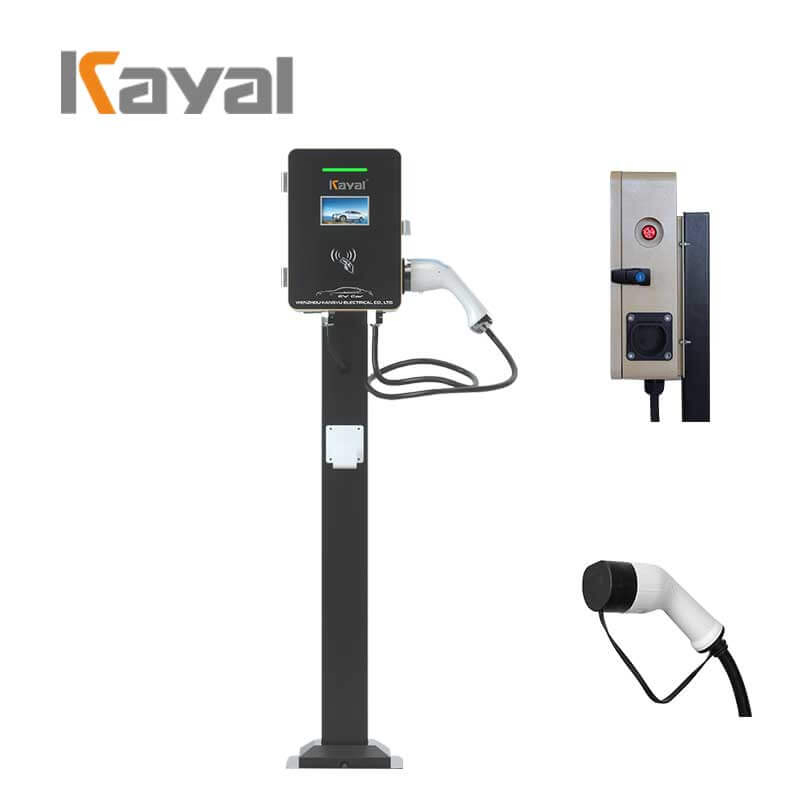

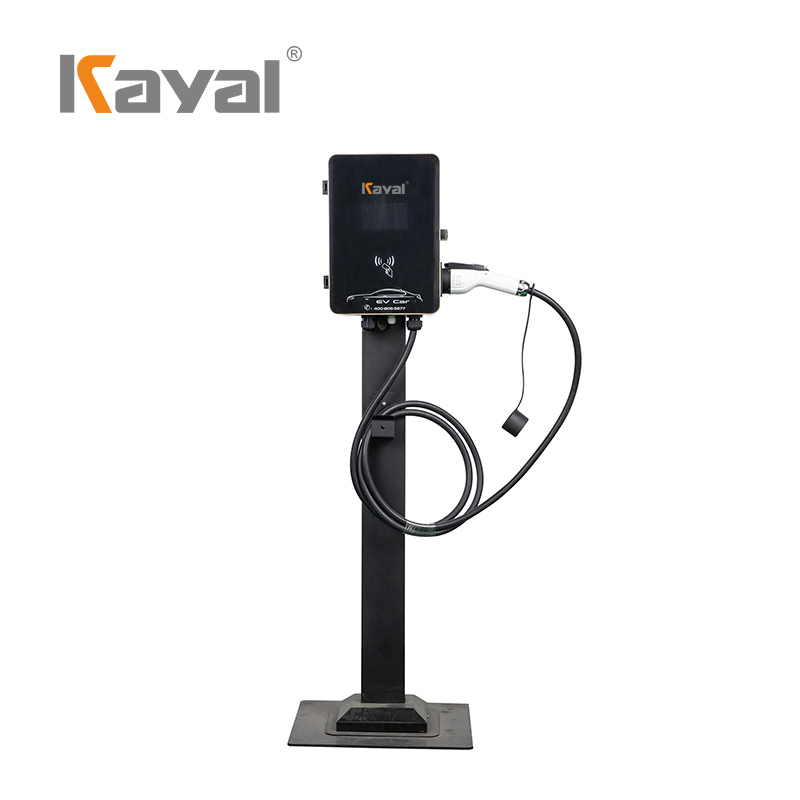

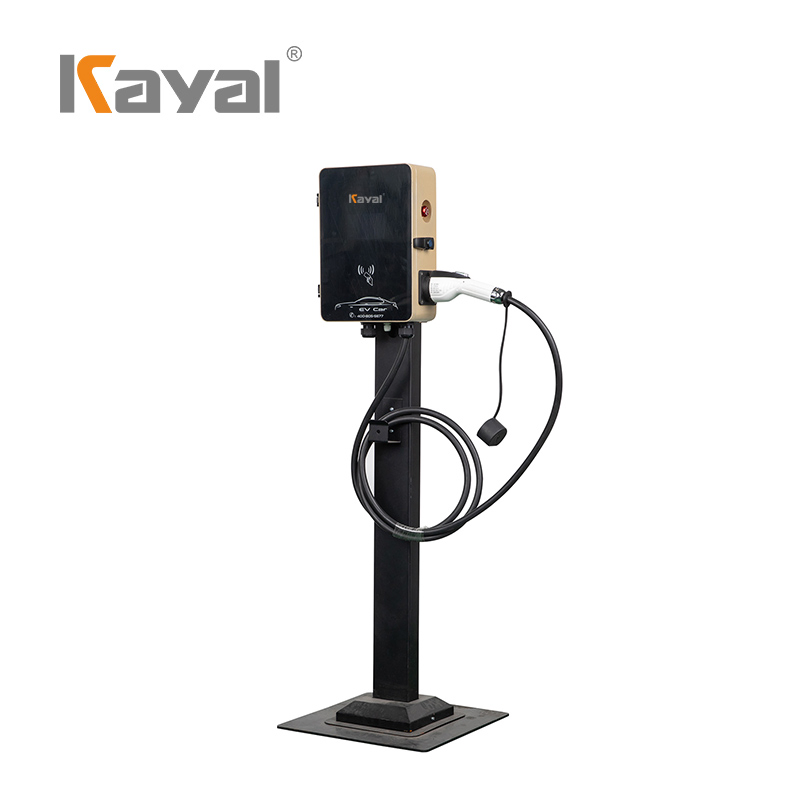

Kayal Commercial Level 3 Electric Car Charging EV Charging Stations
Product Description
📋
Basic Specifications
Model NO.
KY-AC
Installation
Wall Mounted
Charge Method
Normal Charge
MTBF
100,000 Hours
Cooling Method
Forced Air Cooling
Protection Level
Level IP55
Working Elevation
<2000m
Type
Fast EV Charging Station
Certification
CE, ISO
Warranty
24 Months
⚡
Product Highlights
📊
Technical Parameters
| Product Name | AC EV Charging Station | |
|---|---|---|
| Model | KY-AC7KW | KY-AC14KW |
| Dimensions (mm) | 340*240*110 | 480*350*120 |

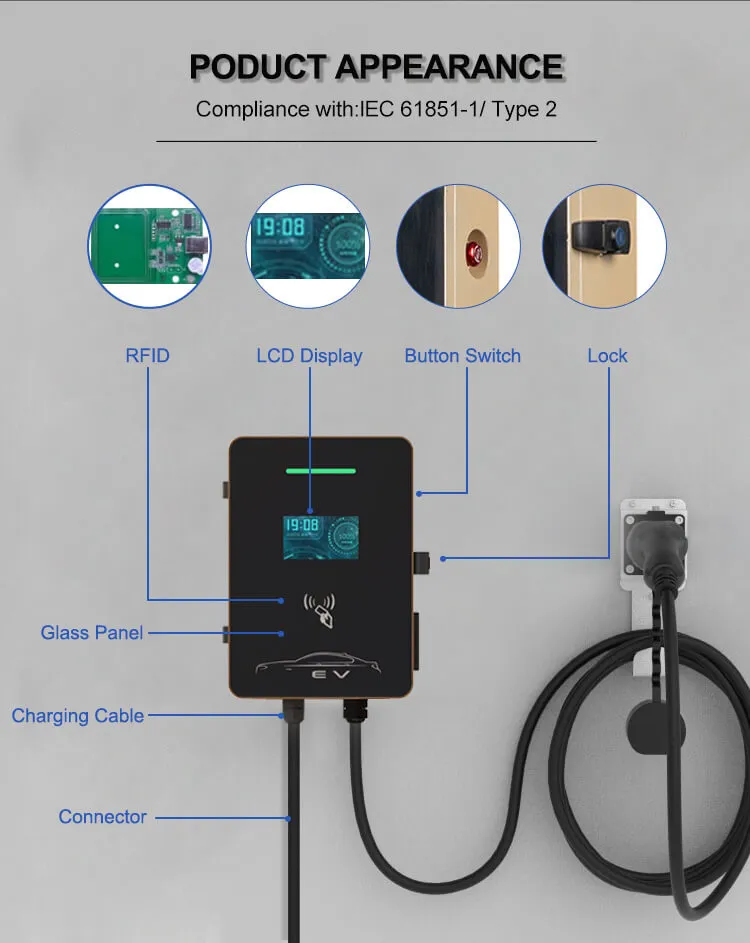

| HMI | 4.3 inch touch screen | |
| AC Power | 220Vac±20% ; 50Hz±10% ; L+N+PE | |
| Rated Current | 32A | |
| Output Power | 7KW | 14KW |

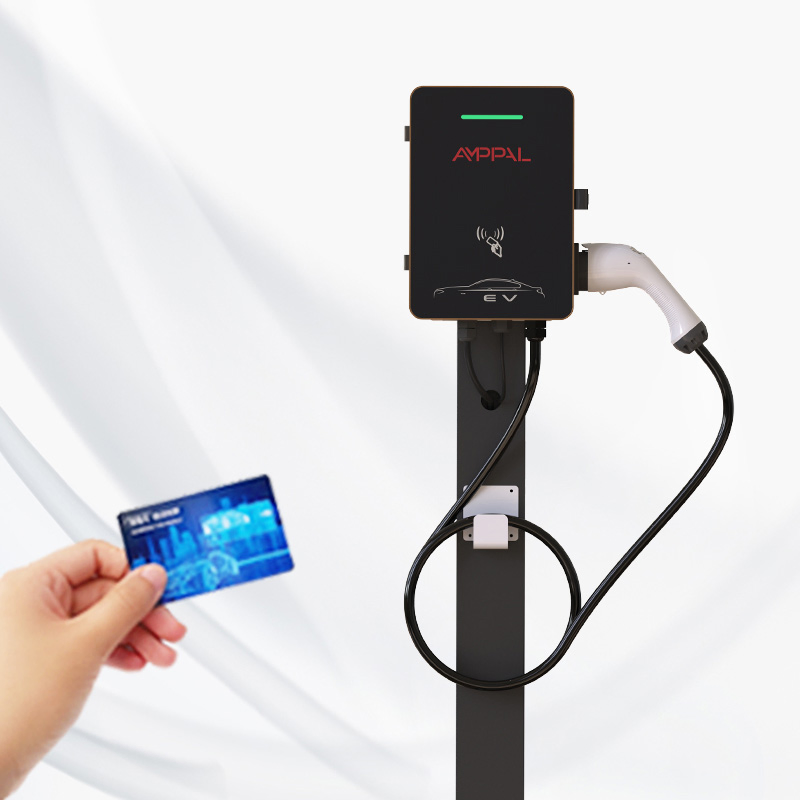

| Charging Method | Swipe card, scan code | |
| Networking | 2G, 4G, Wifi, Applet | |

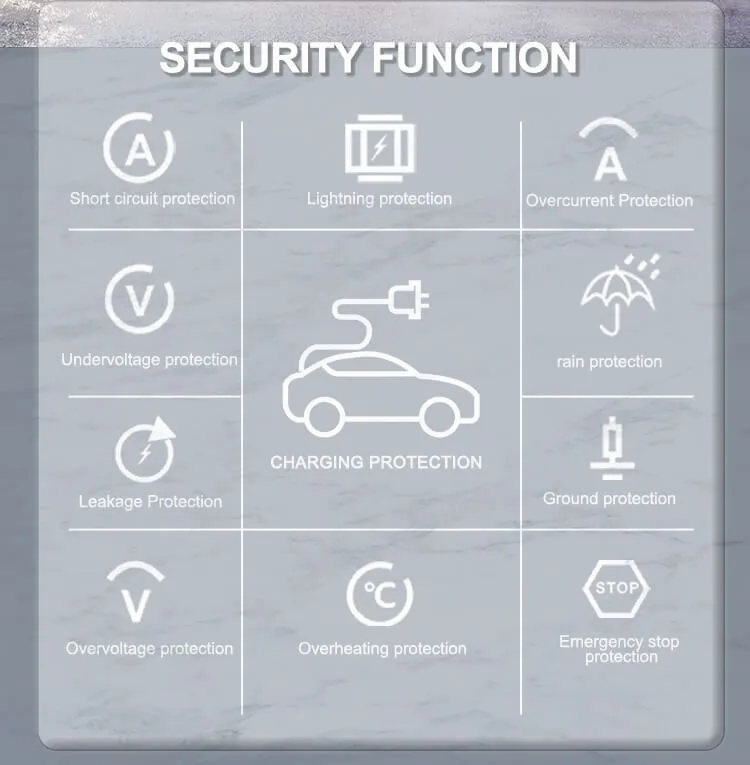

| Protection | Overvoltage, undervoltage, overcurrent, short circuit, surge, leakage, etc. | |

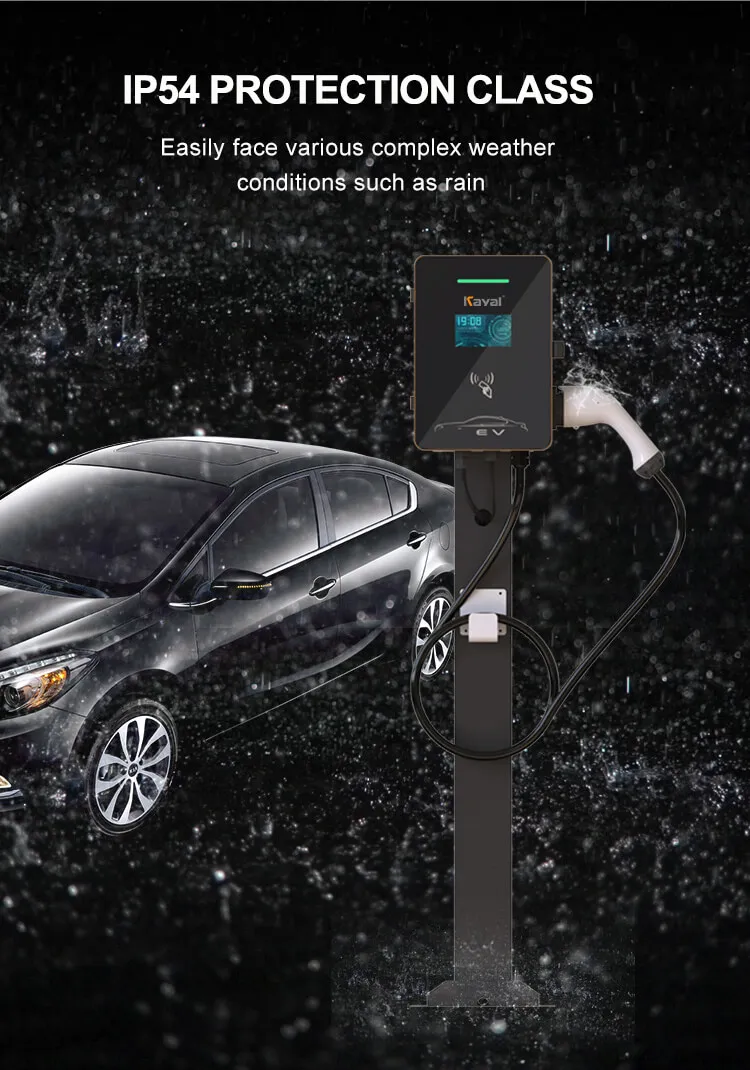

| Protection Level | IP54 | |
📦
Packaging & Quality
❓
Frequently Asked Questions
What are your terms of payment?
We accept online fast payments and T/T (Telegraphic Transfer).
Do you test all chargers before shipping?
Yes. All major components are tested before assembly, and each finished charger undergoes full testing before being dispatched.
Can I order samples and what is the lead time?
Yes, sample orders are welcome. Typically, production takes 7-10 days, with an additional 7-10 days for express delivery.
How long does it take to fully charge an electric car?
The charging time depends on the battery capacity (kWh) and the power of the charger or the car's On-Board Charger (OBC). For example, a 40kWh battery with a 7kW OBC will take approximately 5.7 hours to charge.
Are you a manufacturer?
Yes, we are a professional manufacturer specializing in EV charging solutions.
What safety protections are built into the charger?
Our chargers include comprehensive protection against overvoltage, undervoltage, overcurrent, short circuits, surges, and leakage.
