Highway 180kw DC EV Charger Nevi Compliant 200kw Fast Station Public Network CCS2
Product Description
Basic Information
| Model NO. | 60KW-600KW | Location | Public Use |
| Charging Interfaces | Multiple Charges | Start Mode | RFID, Credit Card, Mobile App |
| Rated Power | 40kw To 600kw | Weight | 194kg-274kg |
| Gun Barrel Length | 5 Meters / 7 Meters | Body Size | 750X410X1700(mm) |
| HMI | 7-Inch LCD Touch Screen | Connection | 4G / Ethernet |
Product Introduction

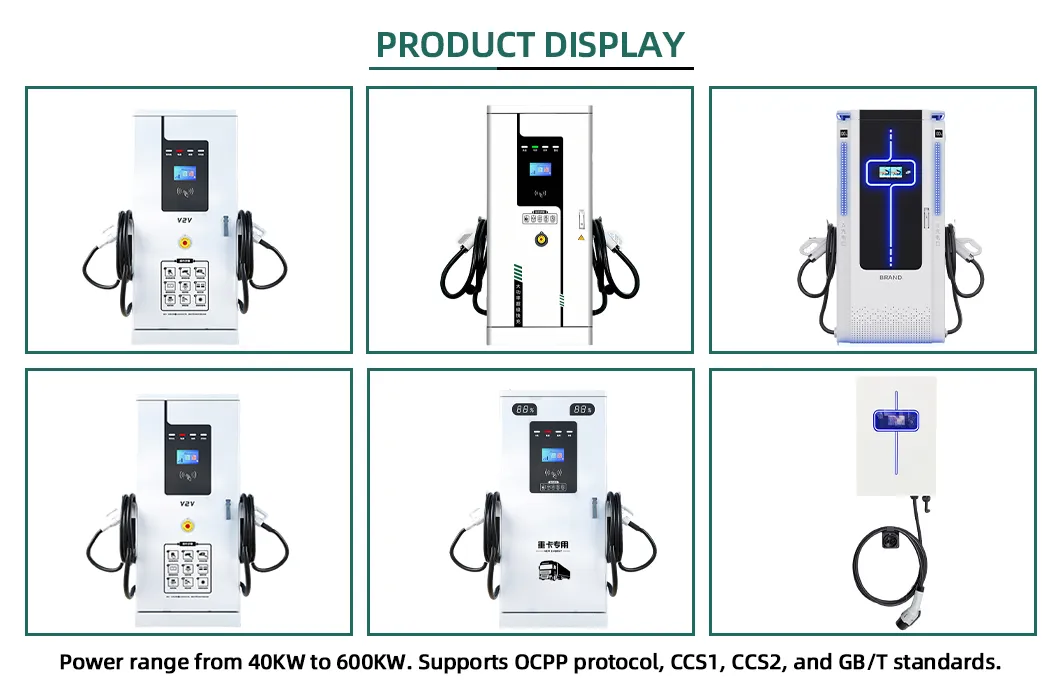

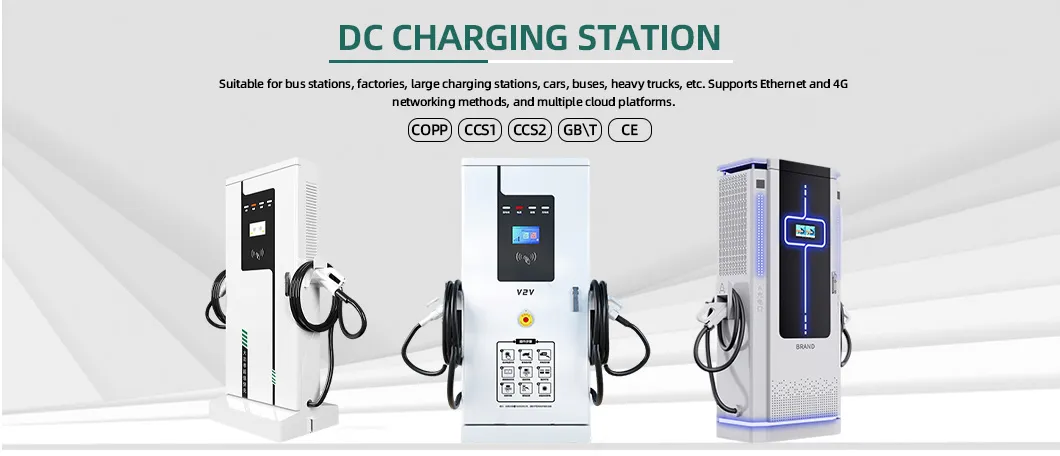

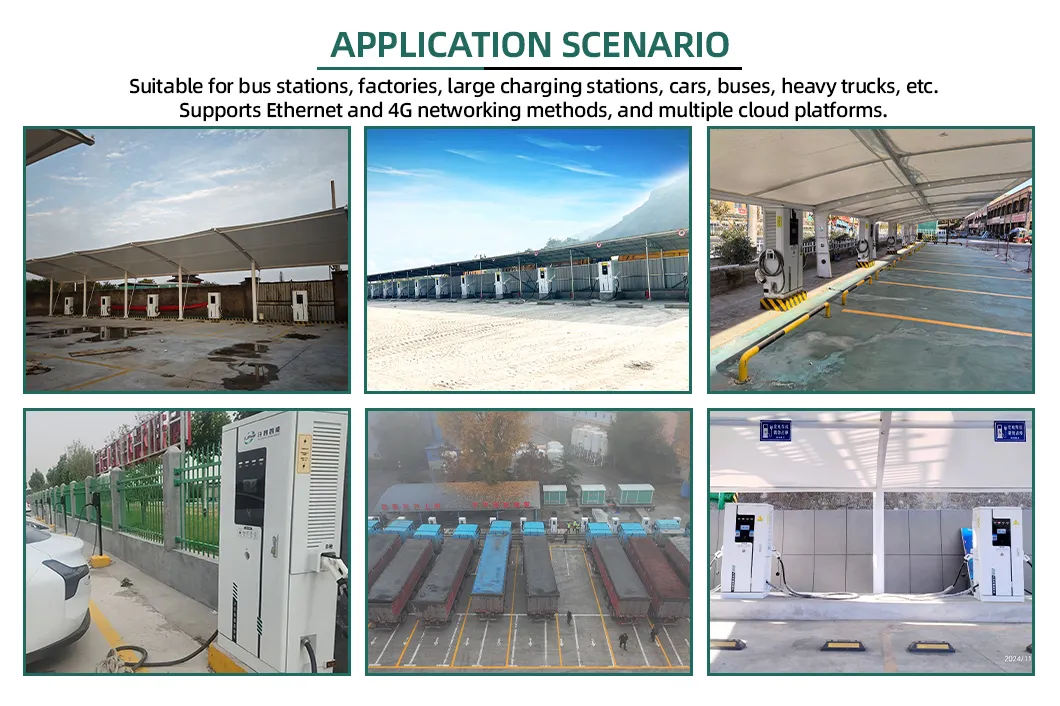

Power range from 40KW to 600KW. Supports OCPP protocol, CCS1, CCS2, and GB/T standards. Features IP54 waterproof rating, with a continuous adjustable voltage range of 50-1000V. Constant power voltage range is 200-1000V. Supports simultaneous charging with two guns. Suitable for bus stations, factories, large charging stations, cars, buses, heavy trucks, etc.
⚡
Fast Charging
DC Fast Tech
DC Fast Tech
🛡️
Full Protection
IP54 Waterproof
IP54 Waterproof
📱
Smart Control
4G/Ethernet
4G/Ethernet
🔌
Multi-Standard
CCS1, CCS2, GB/T
CCS1, CCS2, GB/T
Product Showcase Video

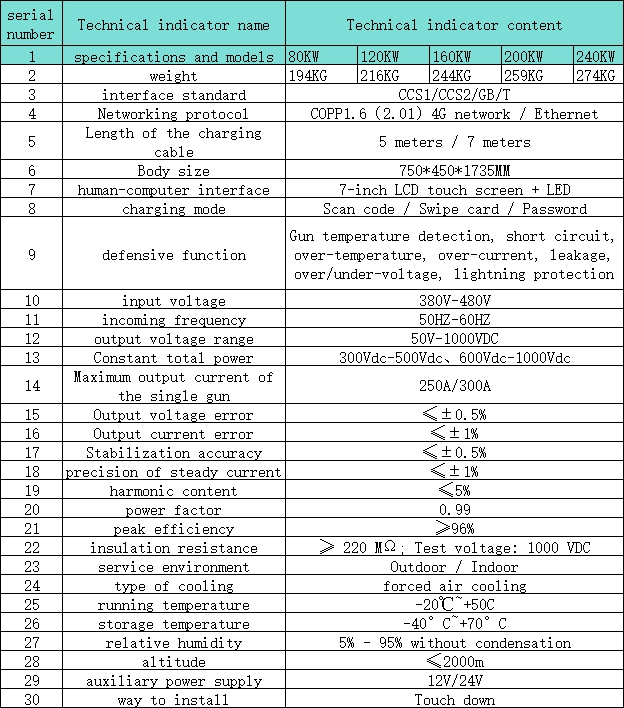

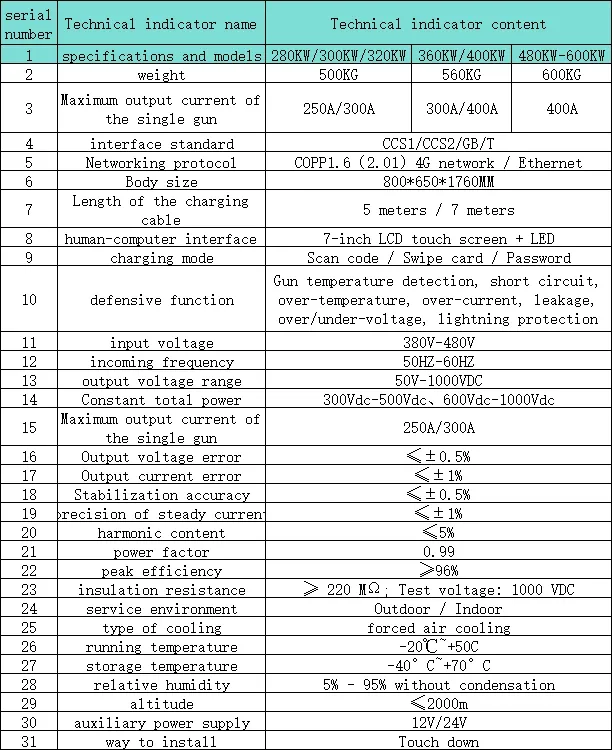

Technical Specifications
| Product Model | 40KW-600KW | External Dimension | 750x410x1700(mm) |
| Design Criterion | CCS1, CCS2, GB/T | Protection Level | IP54 |
| Charging Mode | Scan code, RFID Card, VIN code | Cloud Platform | OCPP 1.6 / 2.0.1 |
| Defensive Function | Gun temperature detection, short circuit, over-temperature, over-current, leakage, over/under-voltage, lightning protection | ||
Quality Assurance
We are a high-standard manufacturer holding ISO9001, ISO14001, and ISO45001 certifications. Our equipment undergoes rigorous third-party inspection. We actively participate in international exhibitions and have established partnerships with numerous renowned enterprises globally.
Packaging & Shipping
We adopt robust packaging methods to ensure equipment protection, supporting sea, air, and land transportation.
Frequently Asked Questions
Are you a factory or a trading company?
We are a professional manufacturer. You are welcome to visit our facility at any time to see our production lines.
What products can I purchase from you?

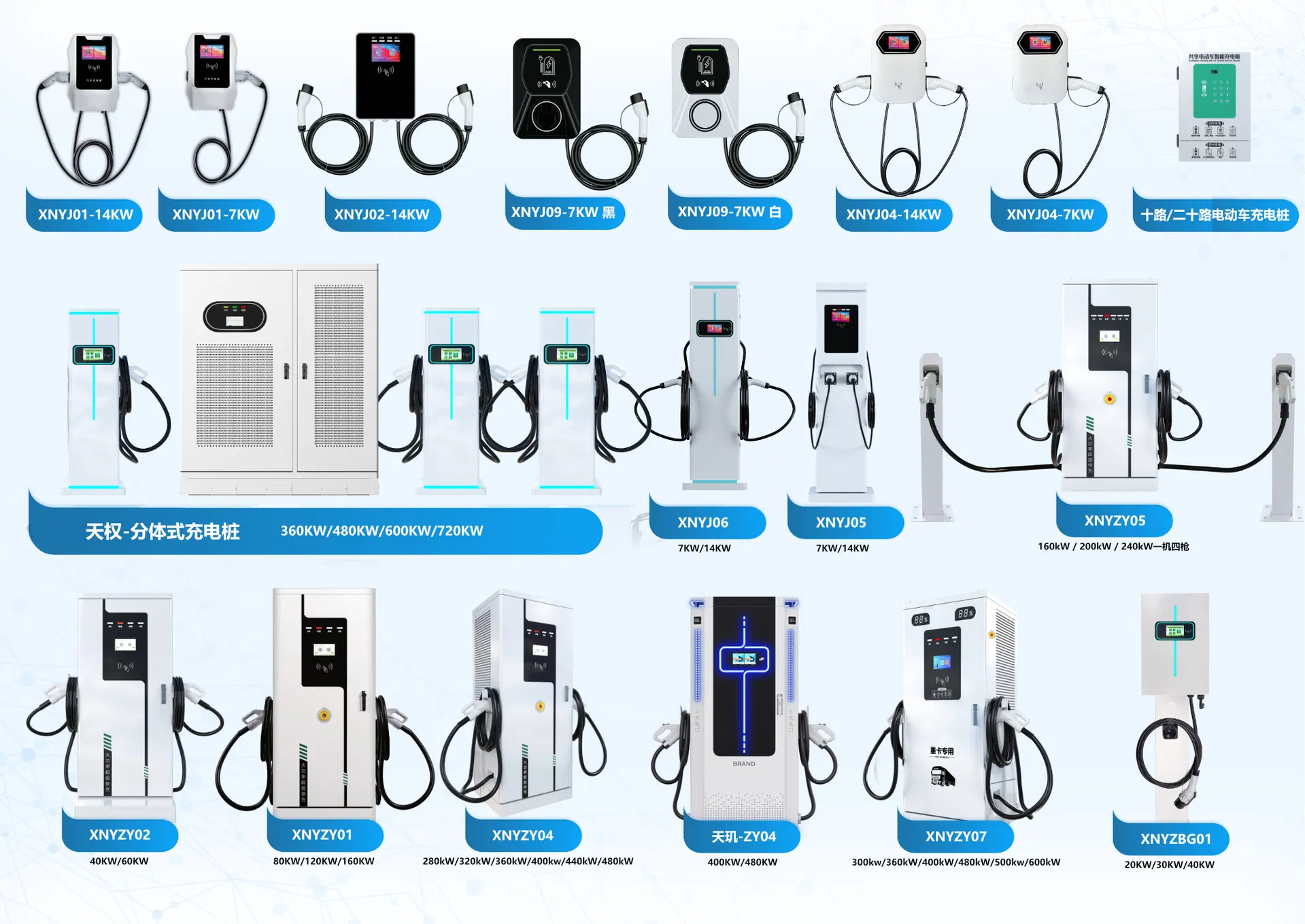

We offer a wide range of EV charging solutions, including AC Wallboxes (3.5kw-44kw), floor-mounted DC Fast Charging stations (30kw-480kw), and mobile chargers with energy storage.
Do you support OEM and custom branding?
Yes, we can customize the design and place your logo on the products to meet your branding requirements.
What are your standard payment terms?
Our standard terms are a 30% deposit via T/T, with the remaining 70% balance paid before delivery. We provide photos of products and packaging before final payment.
What is the estimated delivery time?
Generally, delivery takes between 7 to 35 days after receiving the advance payment, depending on the specific items and order quantity.
Do you test all goods before they are shipped?
Yes, we conduct a comprehensive final inspection and testing of all goods before they leave our factory to ensure quality.
