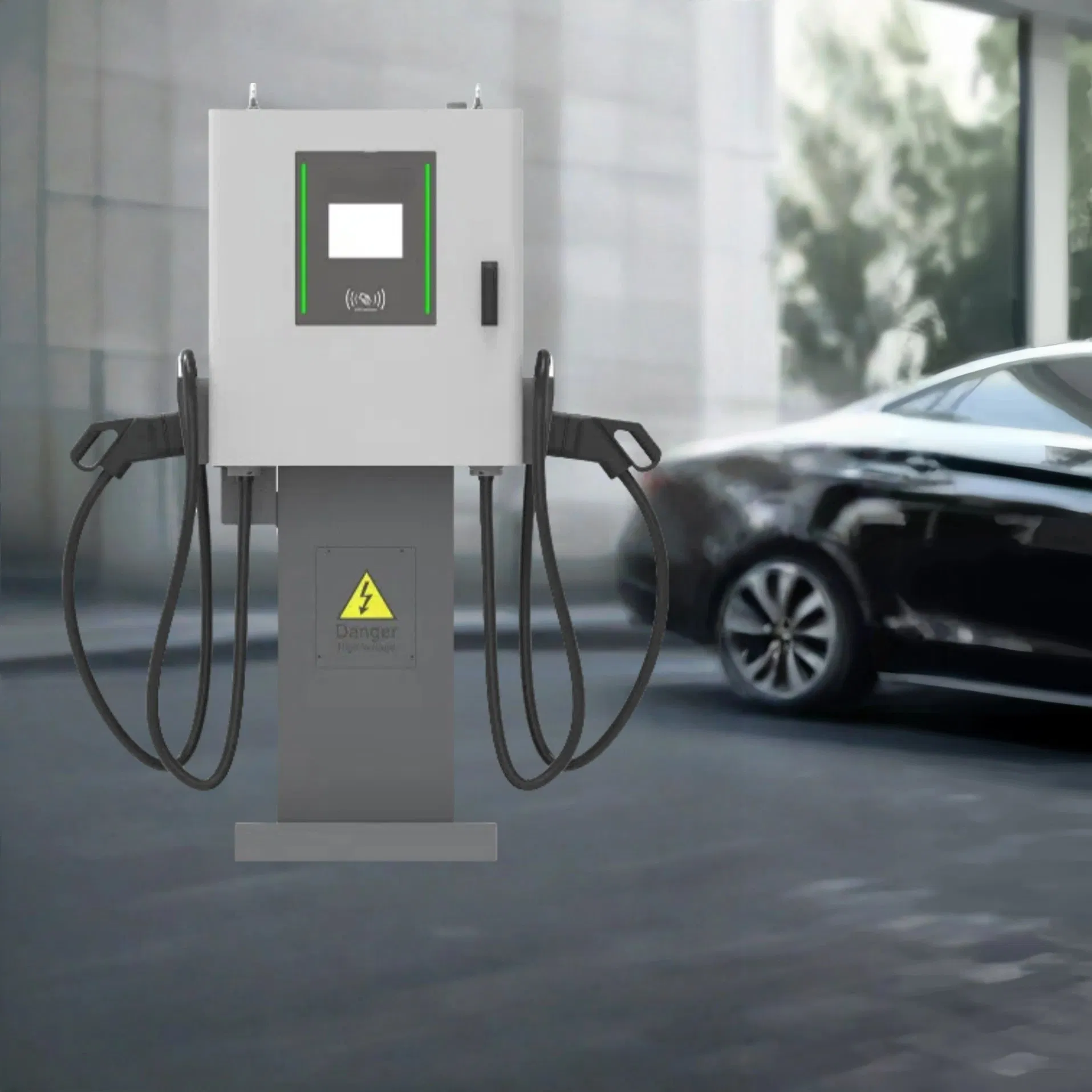

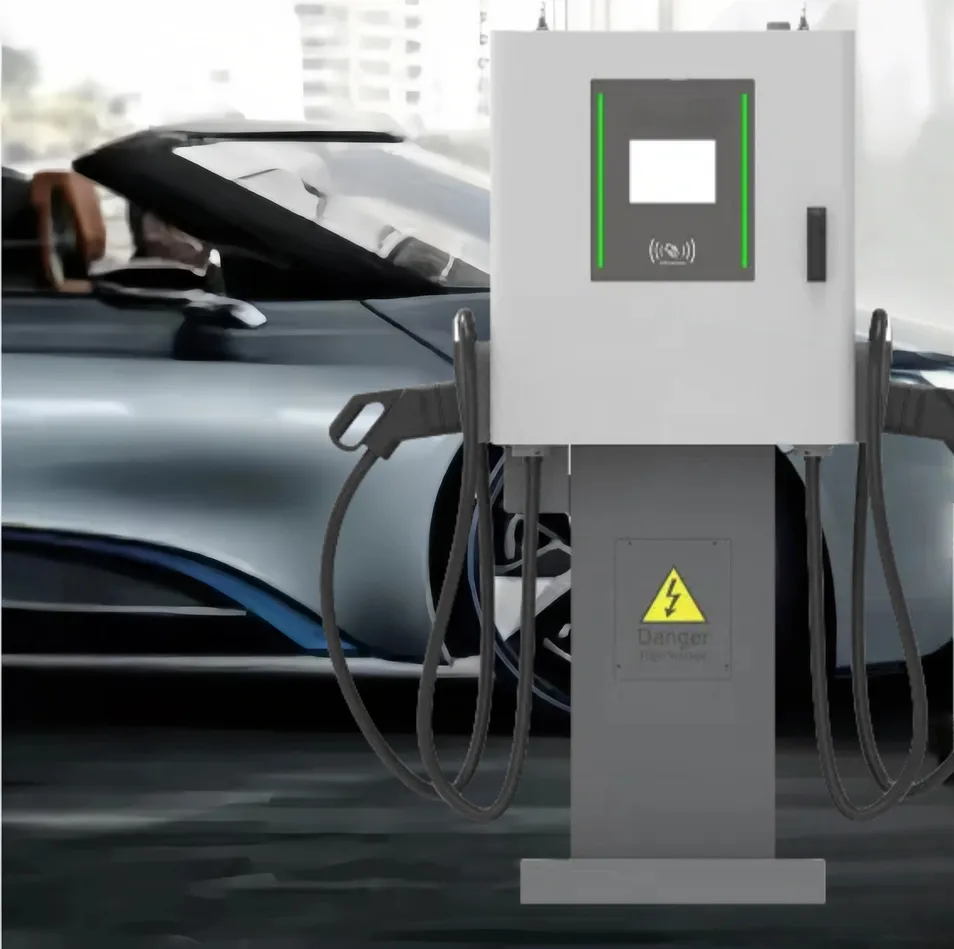

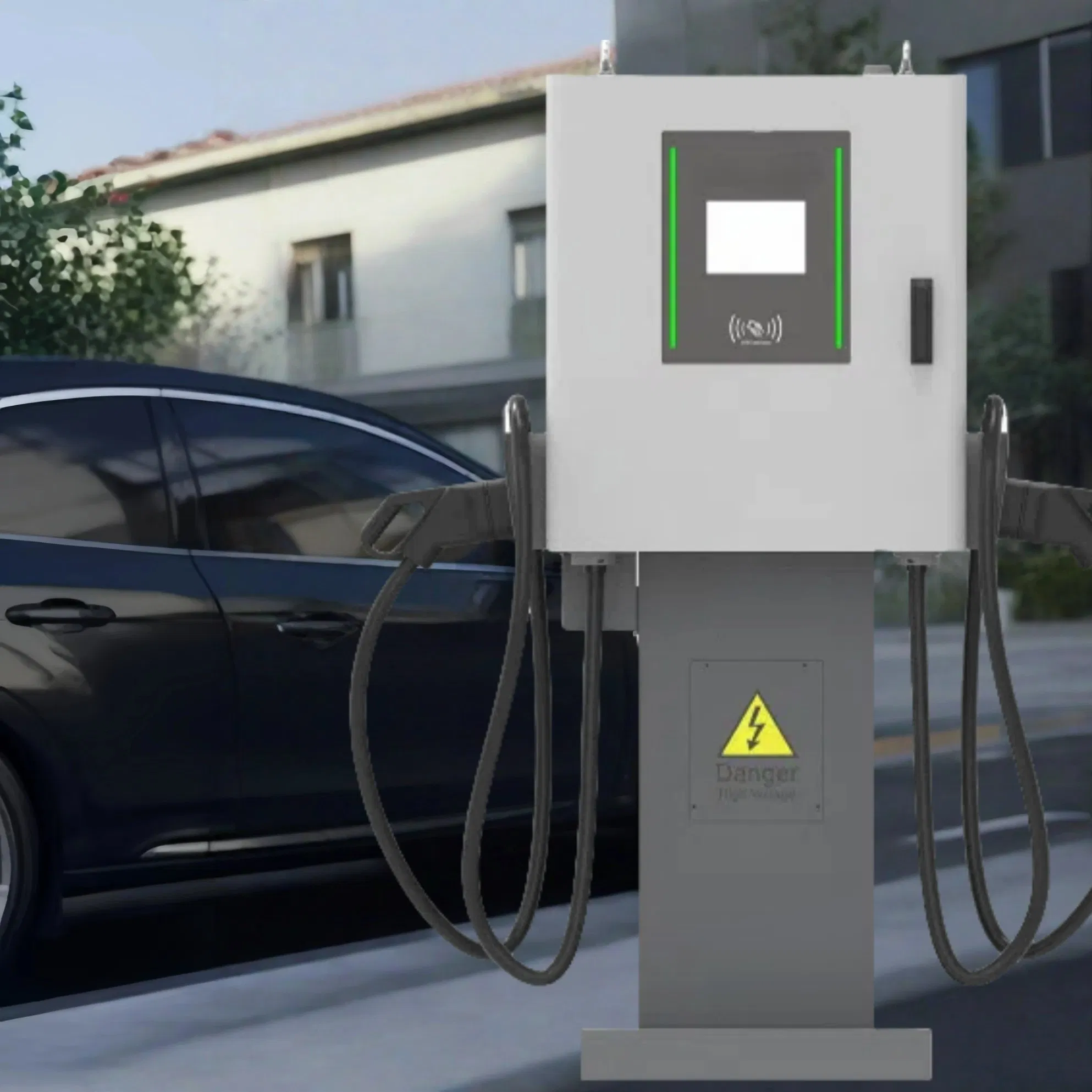

Guhe New 30kw Fast DC EV Charger Station Advertising Screen Floor-Mounted CCS Interface Chademo Compliant Ocpp Electric Cars
Product Description
| Model NO. | GHDC30K-J-L2 |
| Location | Private & Public |
| Charging Interfaces | One Pile with One Charge |
| Start Mode | Credit Card Payment, Mobile Remote Operation, RFID Authentic |
| Transport Package | Carton Box |
| Specification | Product Size: 690*357*1686mm |
| Origin | China |
| HS Code | 8504409990 |
| Production Capacity | 100/Month |

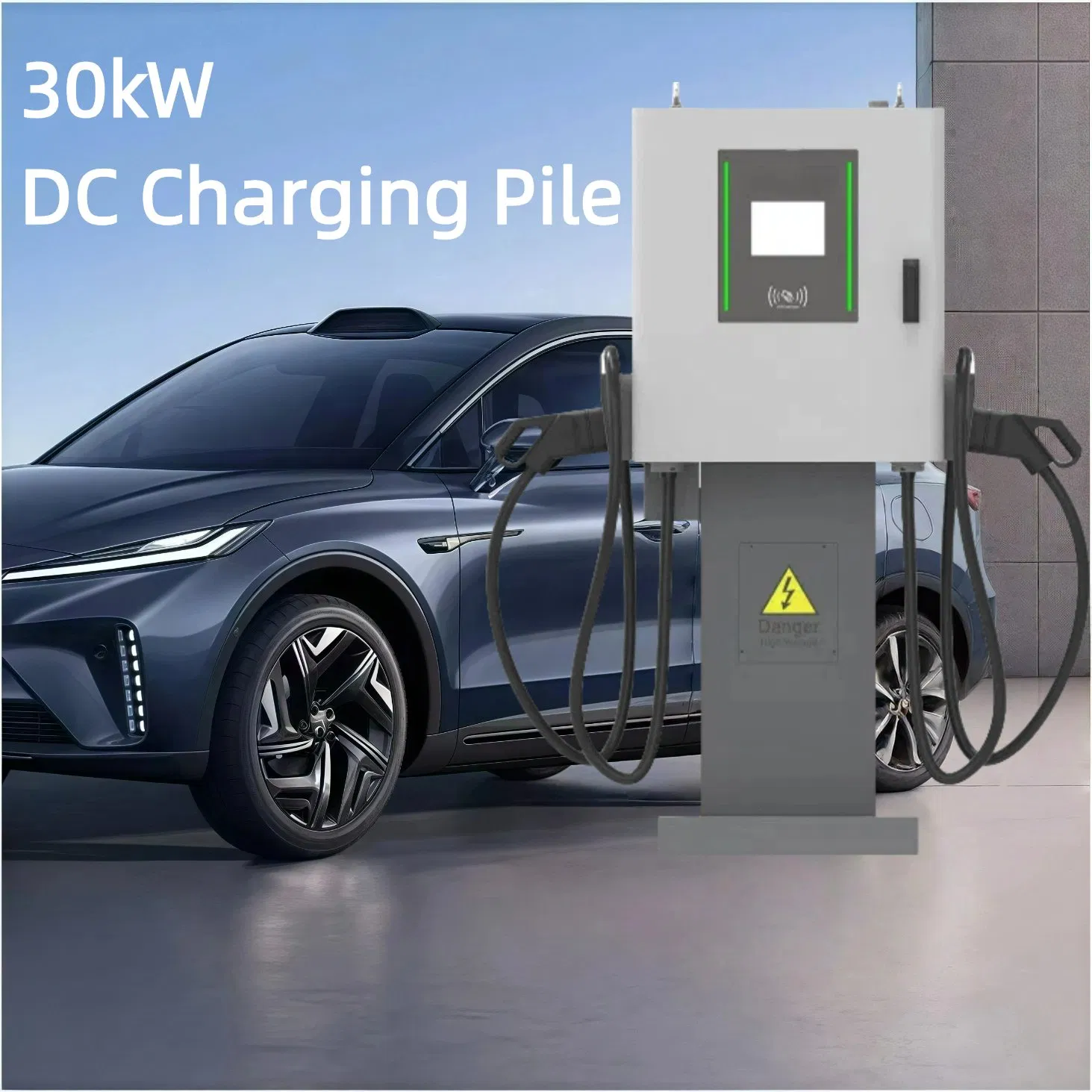

30kW 8 Inches LCD Screen DC CCS2 Smart Charger
125A, 30kW Smart Charger for Home or Commercial (with OCPP 1.6J) Use

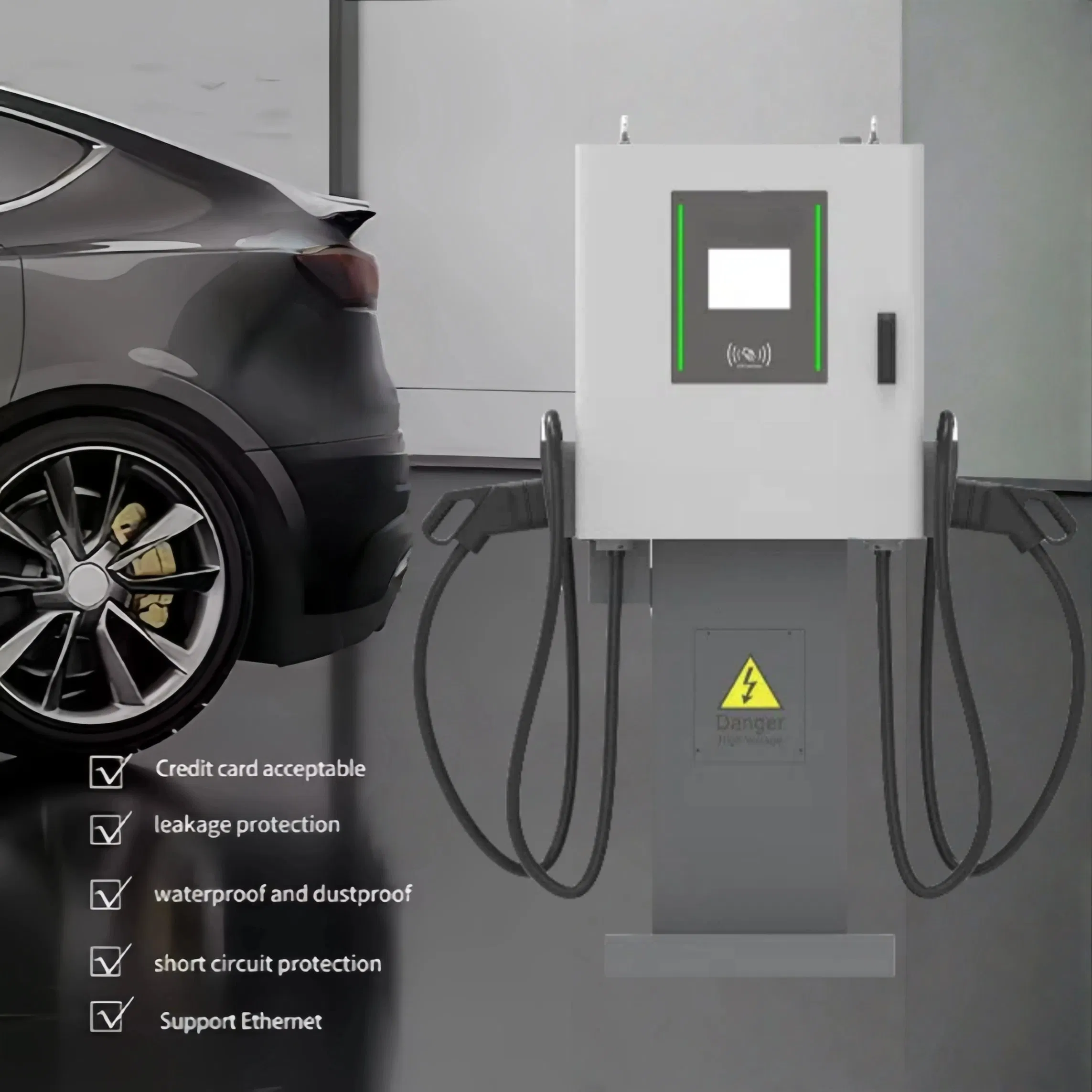

Multiple Protections:
- IP54 for Outdoor Use
- Emergency Stop Button
- Leakage & Over Temperature Protection
- Lightning & Over Current Protection
- Over/Under Voltage Protection
- Short Circuit Protection

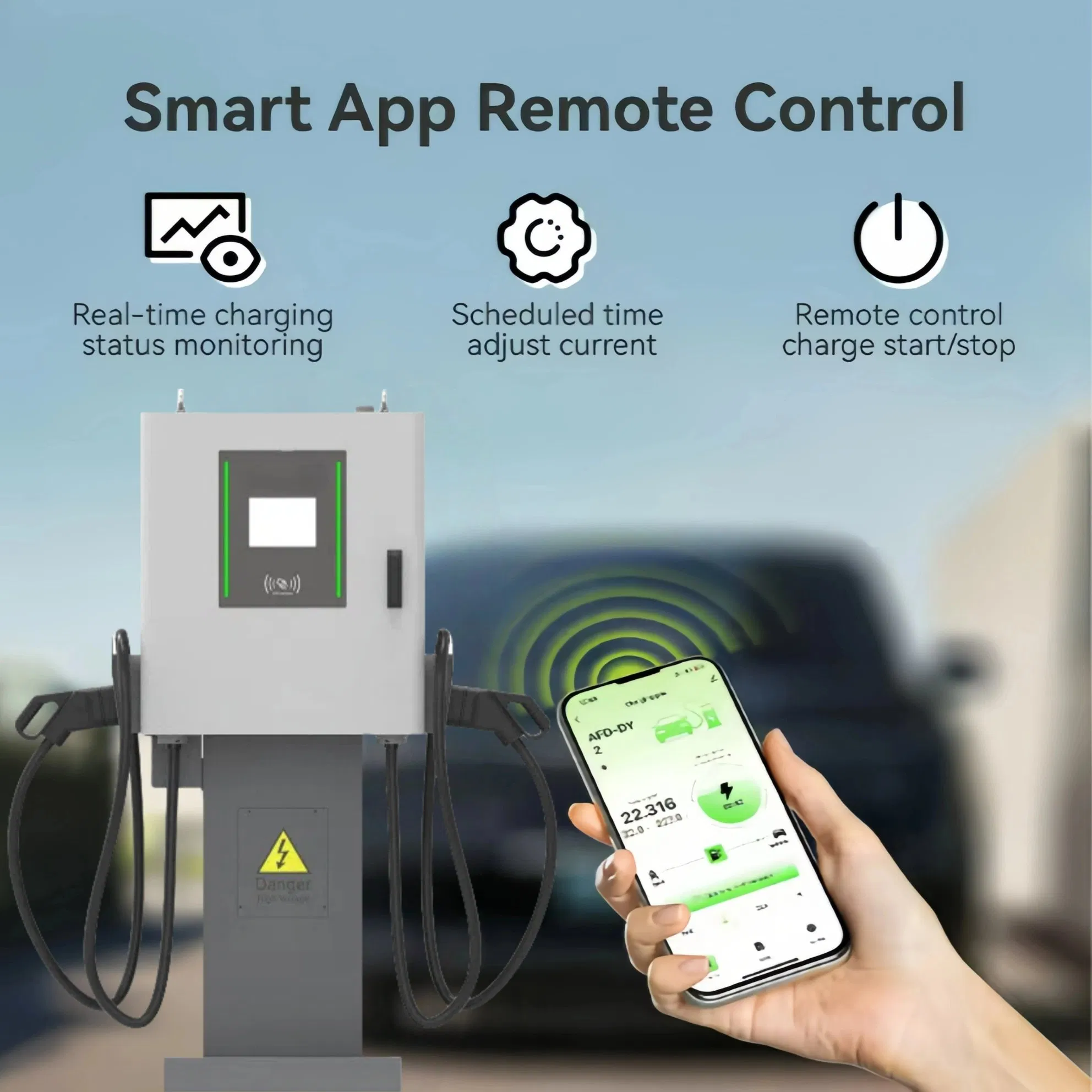

Multiple Control:
- App Remote Control via WiFi, Bluetooth
- RFID Card Control
- POS payment charging
| Power | 30kW, 40kW, 60kW |
| Input Voltage | AC 400V ±15% (30kW); AC440V±10% (40kW); AC480V±10% (60kW) |
| Operating Frequency | 45~65Hz |
| Input PF | ≥0.99 |
| Max Output Current | 125A (30kW), 200A (40kW), 200A (60kW) |
| Output Voltage Range | DC 150-1000V |
| Max Efficiency | ≥94% (100% Loading) |
| Communication Protocol | OCPP1.6 JSON |
| Start Mode | RFID, Plugin & Charging, APP |
| IP Rating | IP54 |
| LCD Display | 8 inches Touch LCD Screen |
| Operating Temperature | -30℃~+50℃ |
🛡
24-Month Warranty
Against Manufacturing Defects
🔄
Components Replacement
Core Components Replacement for Free
📞
Technical Support
Free Technical Support on Working Days

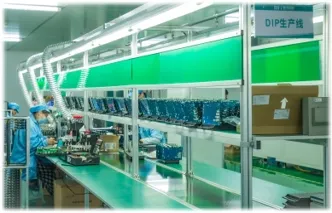

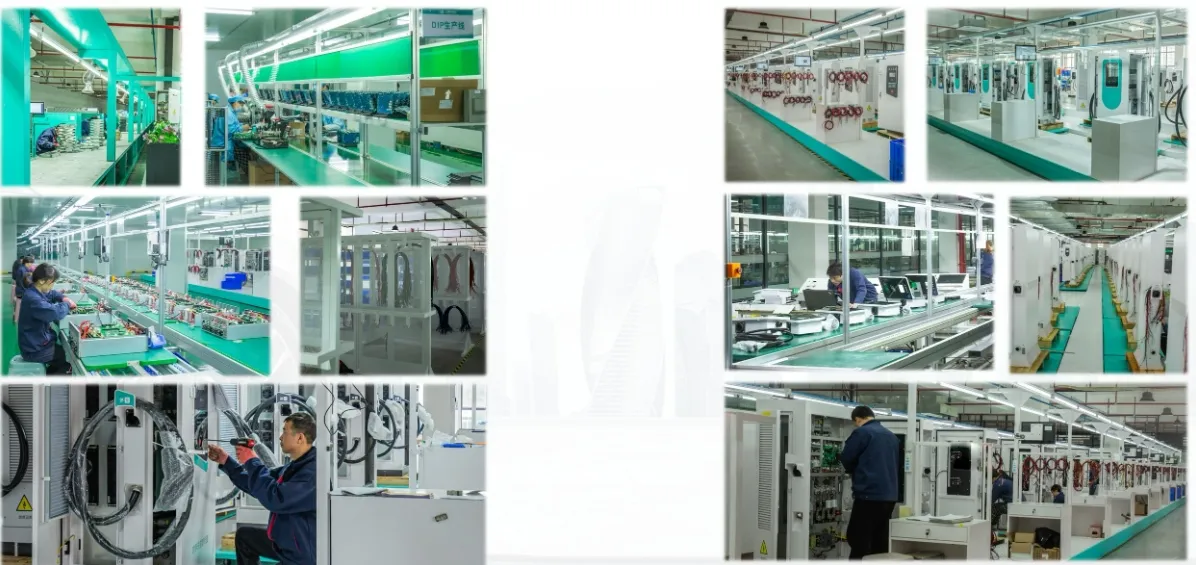

Focus: New Energy Products, including AC Chargers, DC Chargers, Solar Panels, Inverters, and Power Storage.
Capacity: 5,000 units/month
Certificates: ISO 9001, ISO 45001, IATF 16949 for Factory; CE, CB, UKCA, CoA and other customized certificates.
ISO9001
SGS Certificates
TUV Certificates
Q1: What is the standard length of the charging cable?
A: The standard charging cable is 5m, but we offer customization for 7m, 10m, or longer lengths based on your requirements.
Q2: Can the EV charger be customized with our branding?
A: Yes. We support customization for colors, logos, RFID cards, and even the mobile application interface.
Q3: Is this DC charger suitable for outdoor use?
A: Absolutely. It features an IP54 rating, providing protection against dust and water, making it ideal for both indoor and outdoor installations.
Q4: What communication protocols does the charger support?
A: The charger supports the OCPP 1.6 JSON protocol, allowing for seamless integration with various charging management systems.
Q5: What are the available power options for this model?
A: This series is available in 30kW, 40kW, and 60kW power configurations to suit different fast-charging needs.
Q6: What safety protections are built into the device?
A: It includes comprehensive safety features: Emergency stop, leakage protection, over-temperature, lightning, over-current, over/under voltage, and short-circuit protection.
