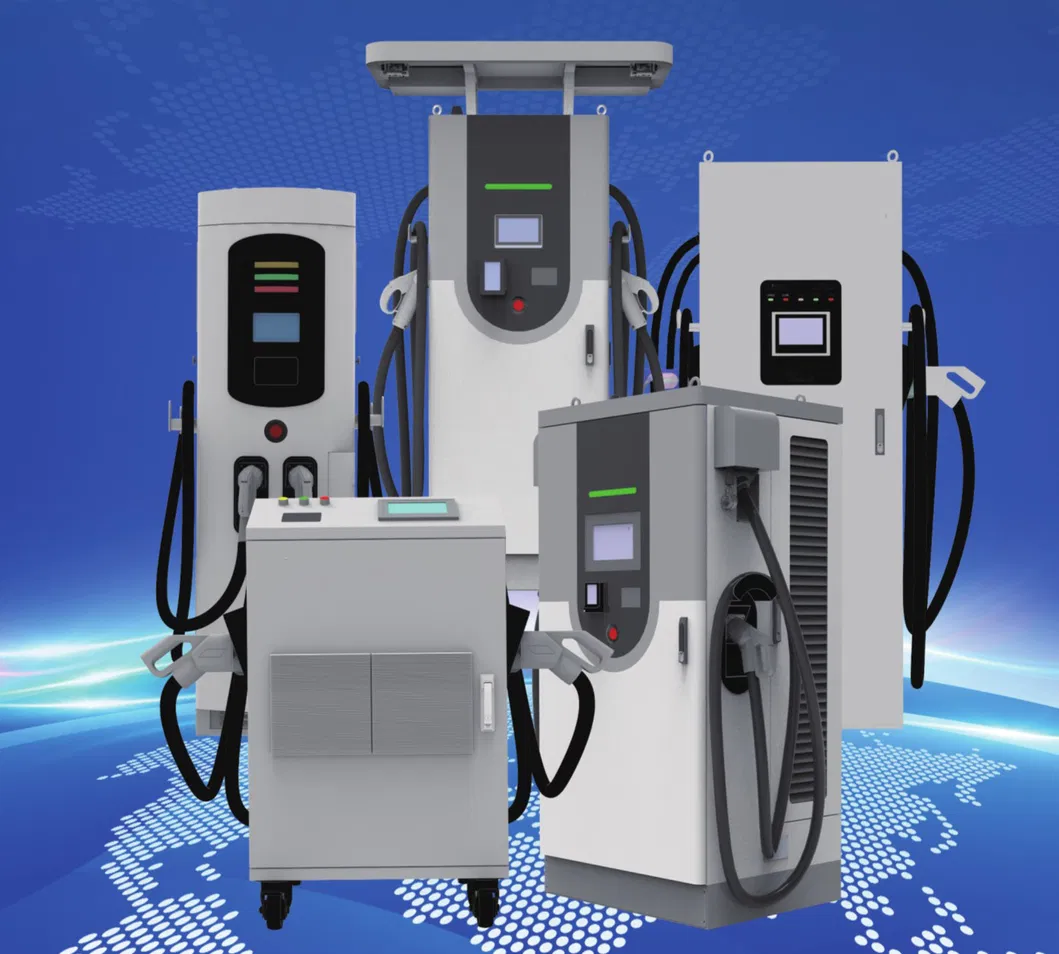

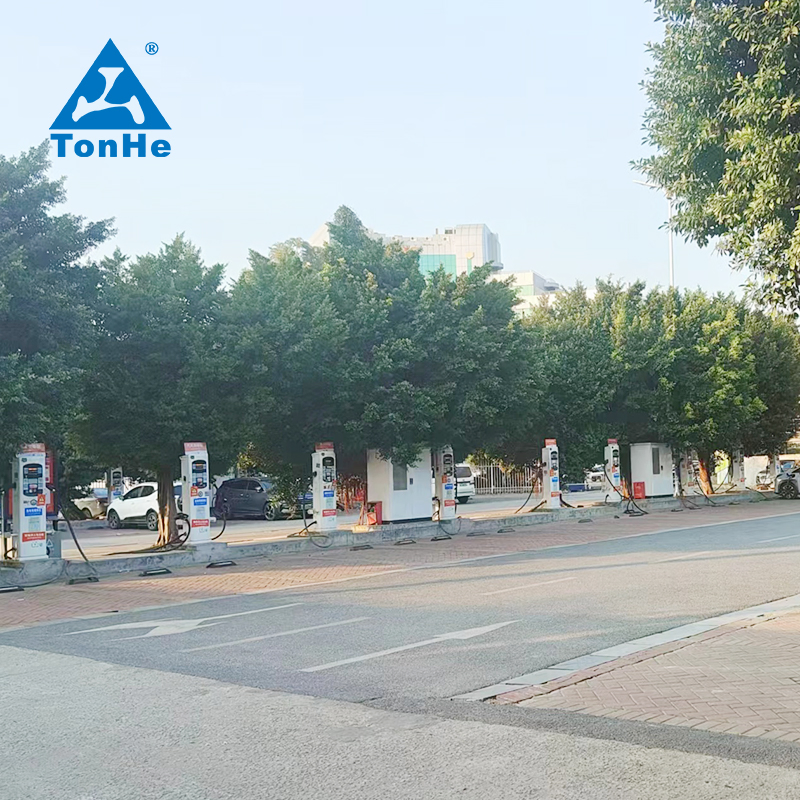

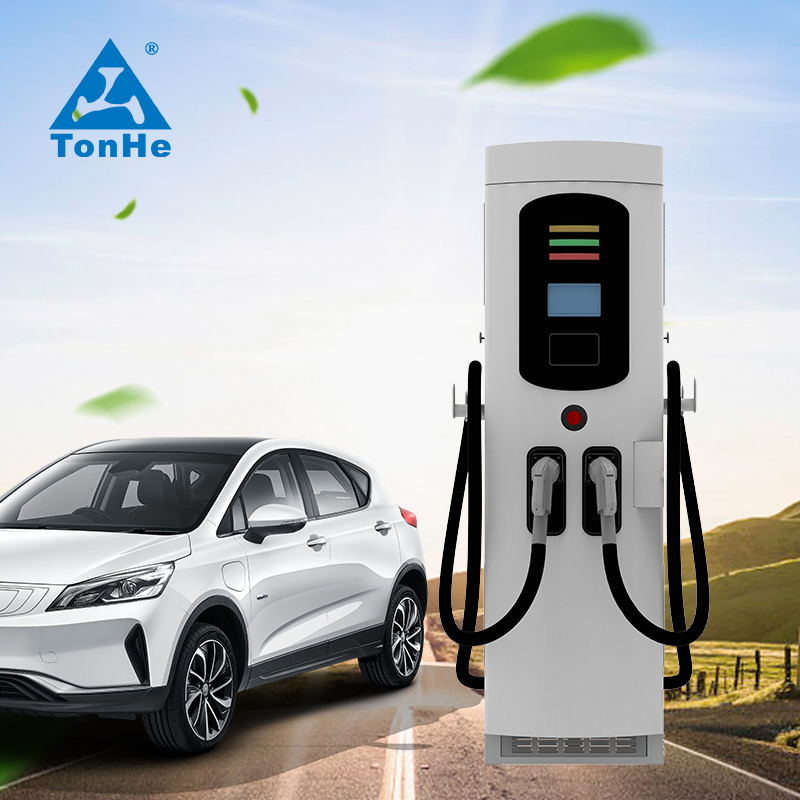

60kw 90kw 120kw 150kw 180kw Electric Vehicle DC Fast Charging Station Commercial Level 3 Floor-Mounted DC EV Charging Stations Solution
Product Description
Model NO.
EV Charger Solution
Location
Public Use
Interfaces
One Pile with Multiple Charges
Start Mode
RFID Authentic
Charge Method
Quick Charging
Power Range
60kw - 200kw
Output Voltage
200-1000VDC
Origin
China
- Constant power from 200-1000VDC
- Average efficiency ≥94% at nominal output power
- One charger with two outputs, simultaneously charging
- Ethernet/3G/4G communication
- High protection grade as IP54
- APP operation or RFID authentication
- CE certificate NB 1282
- OEM/ODM & LOGO customized
| Specification | Details | |
| AC Input | Phases/Lines | 3 phases+neutral+PE |
| Voltage | 380VAC±20% | |
| Frequency | 50Hz±10% | |
| DC Output | Power | 60/80/100/120/140/160/180/200kW |
| Voltage | 200-1000VDC | |

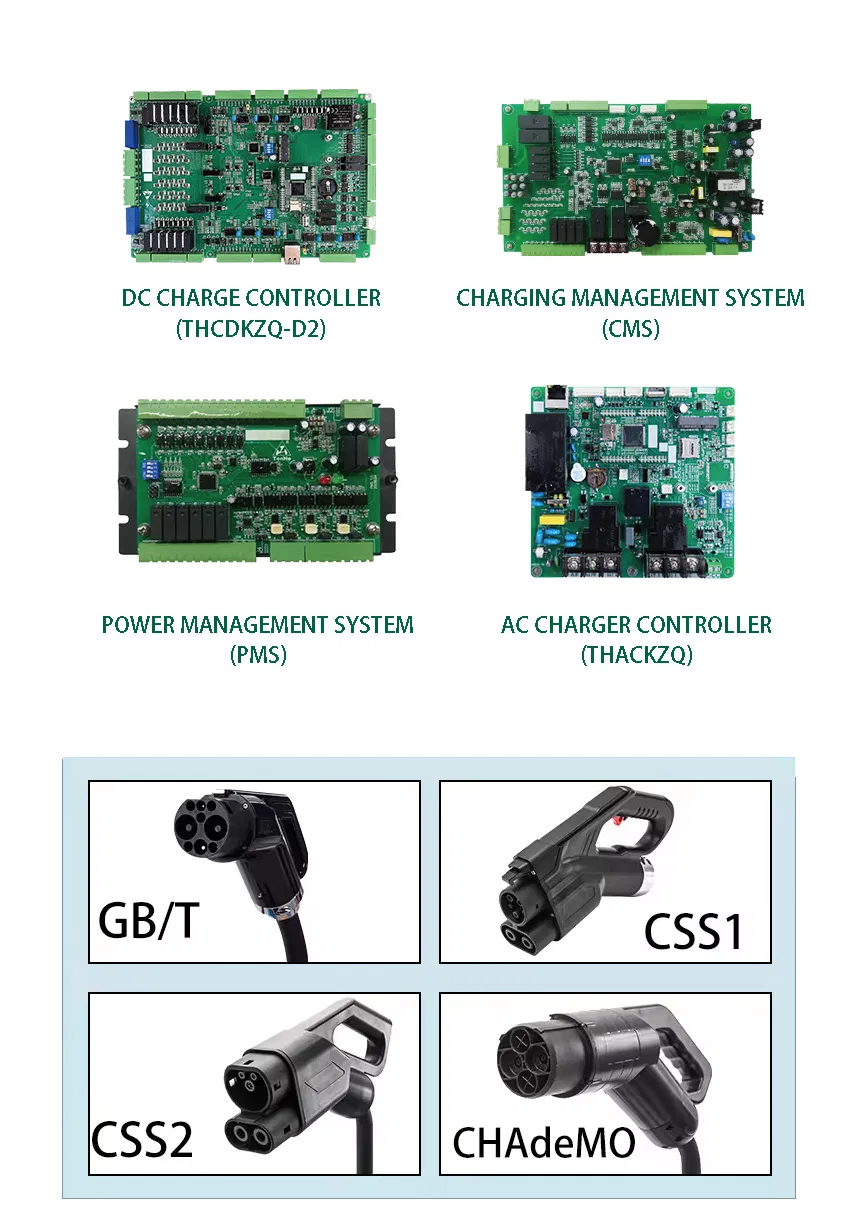

| Connector | CCS 2 or CHAdeMO or GB/T (Up to 2 guns) | |
| Communication | Protocol | OCPP1.6J |
| Environment | Protection | IP54 / -30ºC to +55ºC |
The company sticks to technological innovation, focusing on the field of high-frequency power conversion technology. It is the first power electronic enterprise in China to have realized soft switching technology for the whole process of power conversion. The company has a number of internationally advanced and domestically leading core technologies.
In the EV charging and swapping industry, we are committed to innovation in technology, products and management. EV charging power modules and EV charging system solutions are the focuses. We provide customers with "One-Stop Service" including R&D guidance, system solutions, technical training and after-sales services.
Do the modules support glue filling?
Yes, all series modules can support glue filling for enhanced protection.
What are the requirements for the installation method of the charging module?
The charging module can be installed horizontally, side standing, or upside down. For upside-down installation, please request a customized front panel without a handle.
How do you handle shipments?
Small orders are sent via express services like FedEx, DHL, or UPS (door-to-door). Large shipments are handled by sea or air in containers.
What is your delivery time?
Approximately 7 days for modules and 35 days for standard charging piles. Accurate timeframes are provided for customized or large quantity orders.
What is your term of payment?
Our standard term is 100% TT (Telegraphic Transfer) in advance with the order.
How long is the warranty?
The standard warranty is 12 months upon the receipt of the shipment.
