VoltNode Charger
120kw 160kw 180kw DC Fast Solar EV Charger Station Ocpp1.6 Dual Gun Chademo CCS
Product Description
Basic Information
Product Description

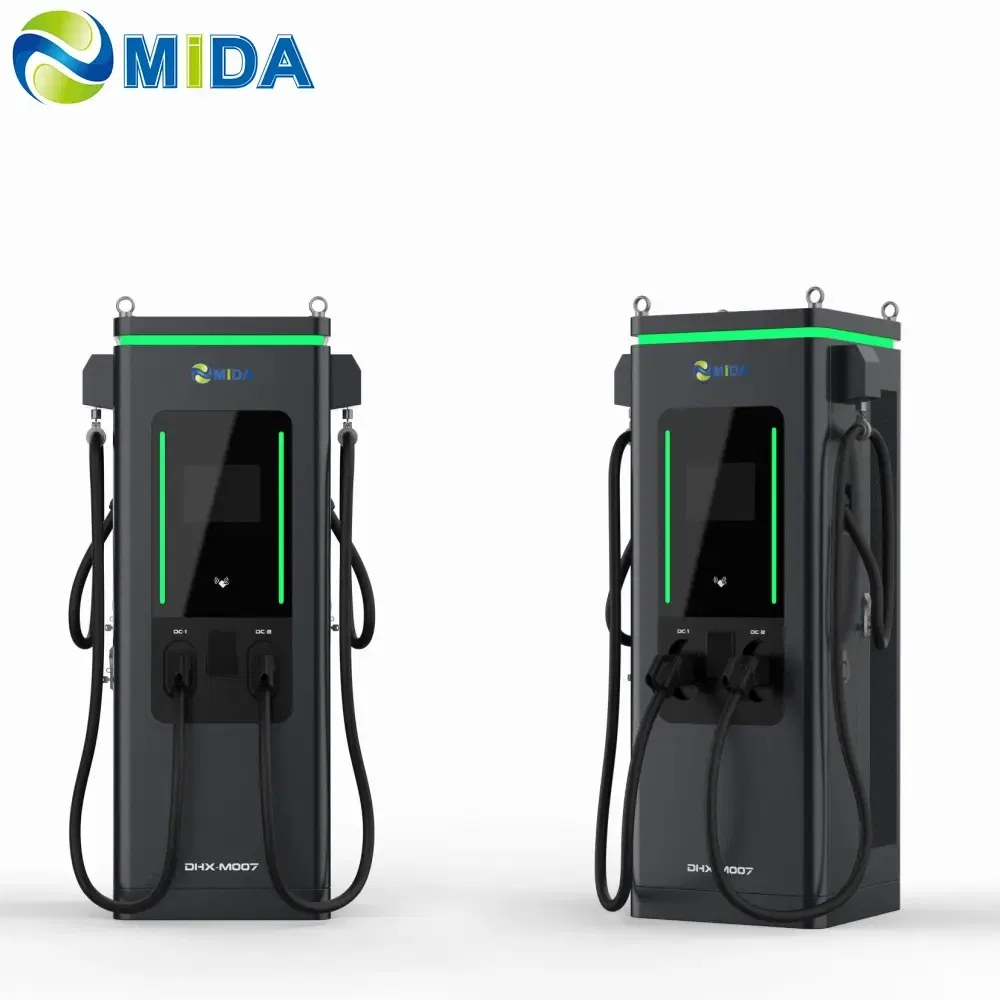

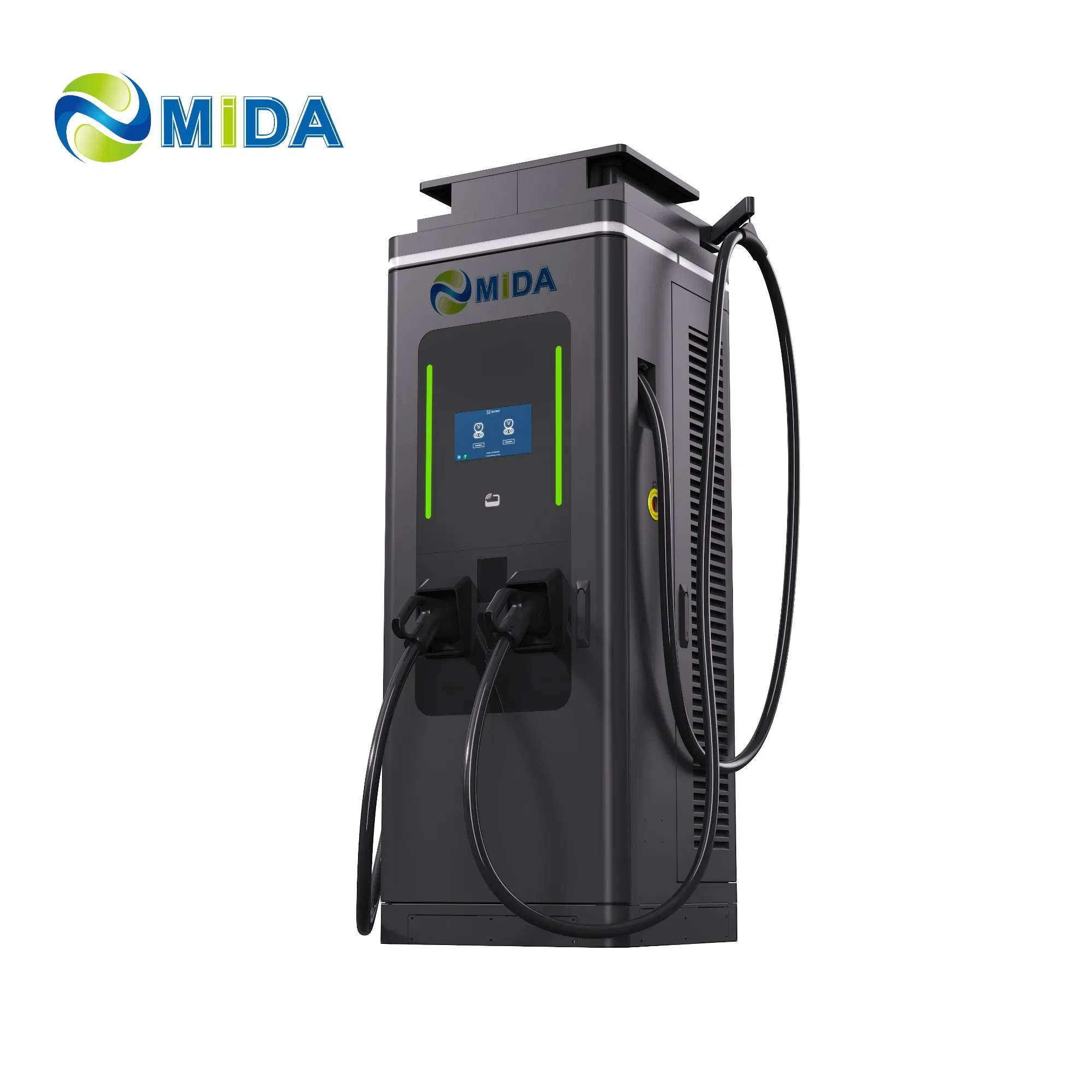

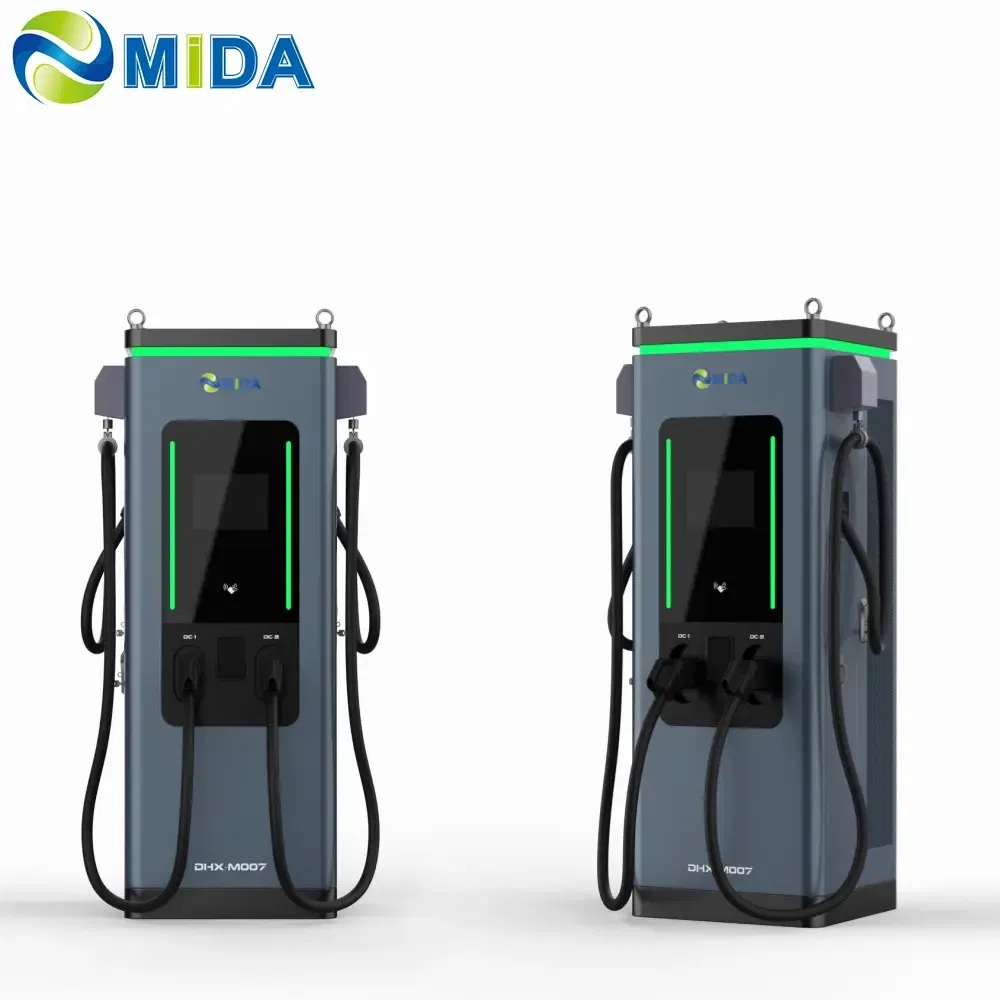

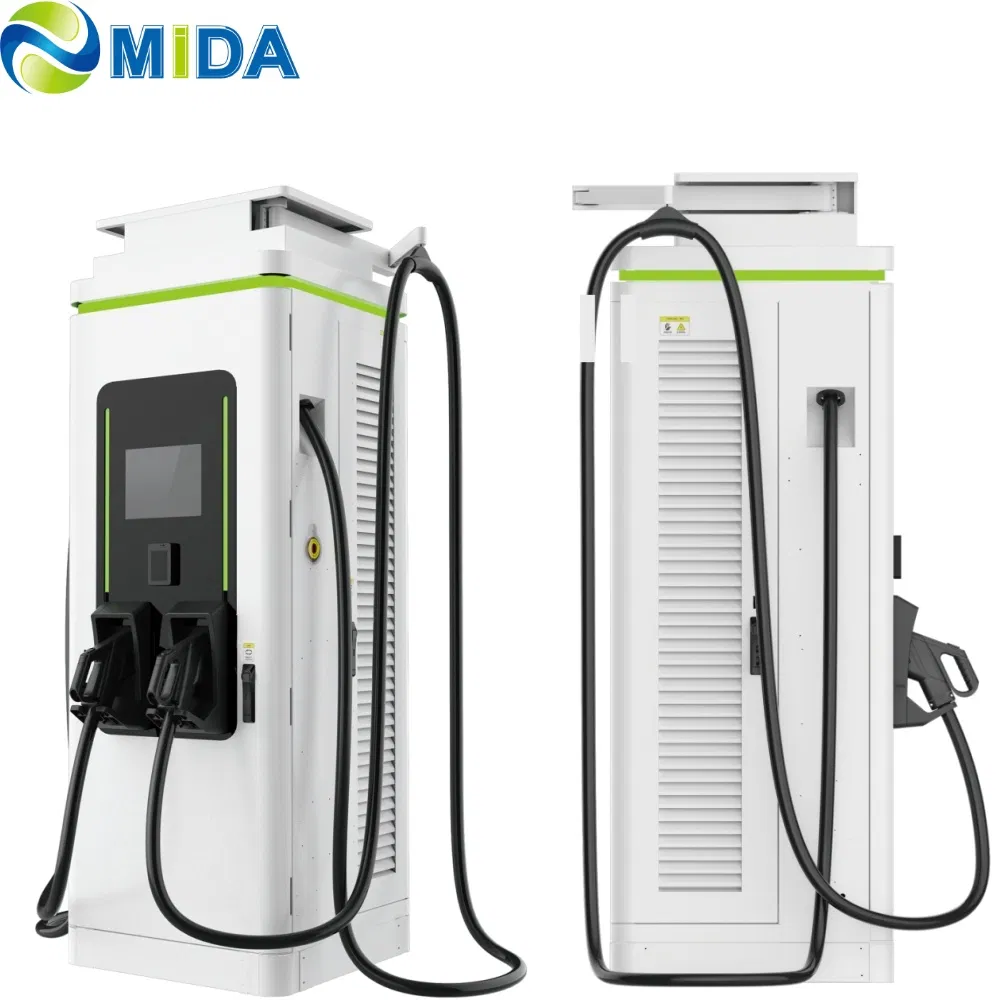

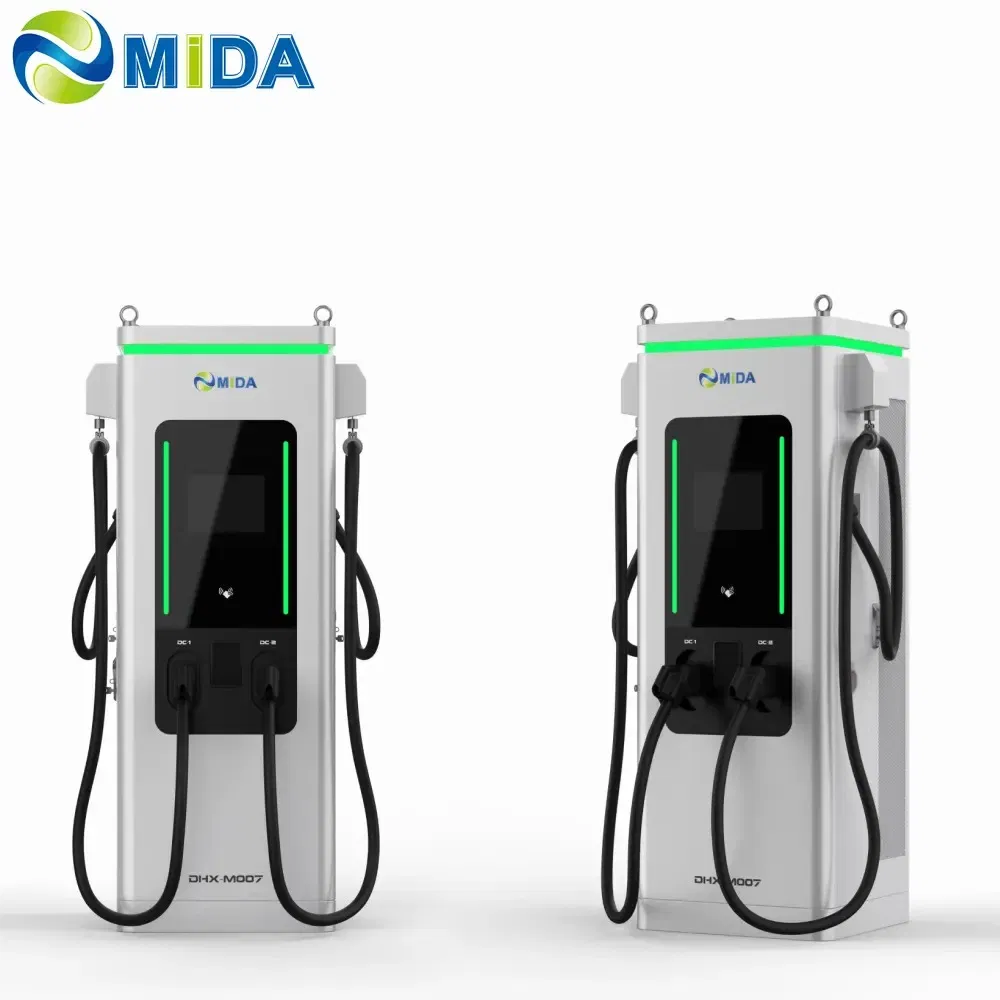

120kW 160kW 180kW DC Fast Solar EV Charger Station OCPP1.6 Dual Gun CHAdeMO CCS

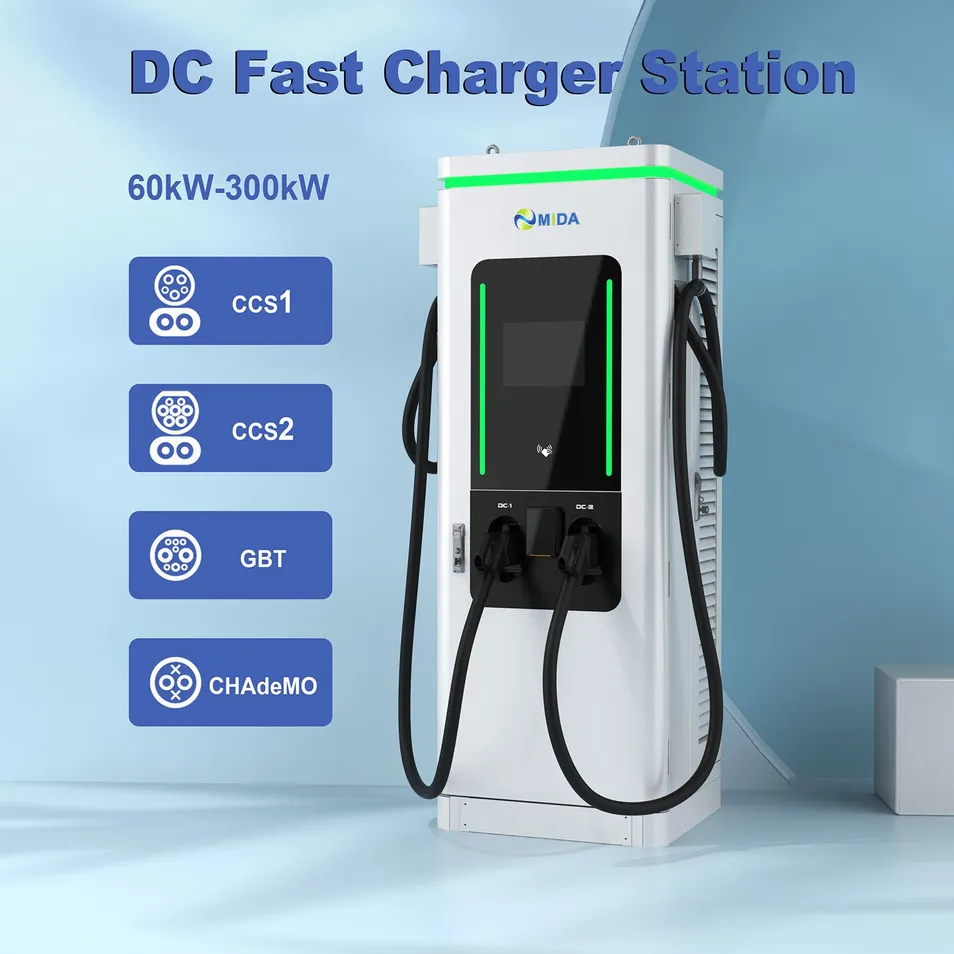

This multi-standard DC charging station is designed for outdoor public use, supporting CCS2, GB/T, and CHAdeMO standards. It is an ideal solution for electric car and bus fast charging requirements.
Guaranteed Security:
- Simultaneously charging up to 3 EVs
- Flexible configurations for various power needs
- Supporting CCS, CHAdeMO, GB/T, and Type 2 AC charging
- OCPP 1.6J & OCPP 2.0 Smart charging supports dynamic load balancing
Easy to Use:
- 8'' LCD touch screen with multi-language interface
- Secure authentication via RFID, mobile Apps, or POS
- Plug & Charge optional
Technical Specifications
| Feature | 120kW DC Charger | 160kW DC Charger | 180kW DC Charger |
|---|---|---|---|
| Input Voltage | 3-phase 400V ±15% AC (TN-S) | ||
| Efficiency | ≥94% | ||
| Max. Output Current | DC - CHAdeMO 125A; CCS 200A; GBT 250A | ||
| Display | 8'' LCD Touchscreen | ||
| Network | 4G / Ethernet / Wi-Fi | ||
| Protection Class | IP54 | ||
| Operating Temp | -30°C ~ +55°C | ||
About Our Solutions
We are a professional supplier of electric vehicle components, including all kinds of EV plugs and sockets, EV cables, EV connectors, and EV charging stations. All products come with CE, PSE, TUV, and UL certification. Our products are especially popular in Europe and America, focusing on the development of the new energy automotive industry.
We constantly strive to adhere to the business philosophy of "quality is the soul, the principle of good faith, and innovation leads the future." We offer competitive prices, high-quality products, and excellent after-sales service to achieve a win-win situation for our clients.
