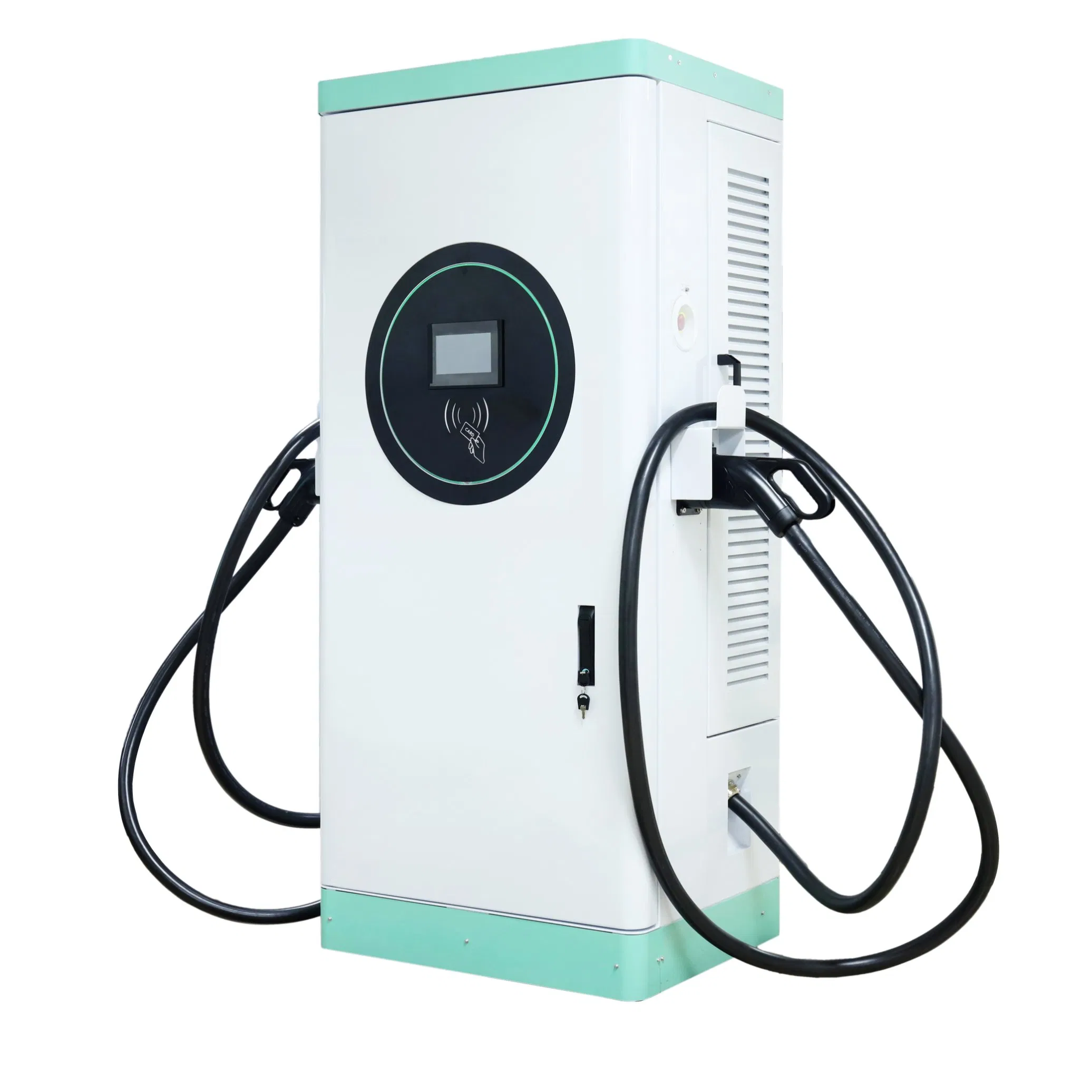

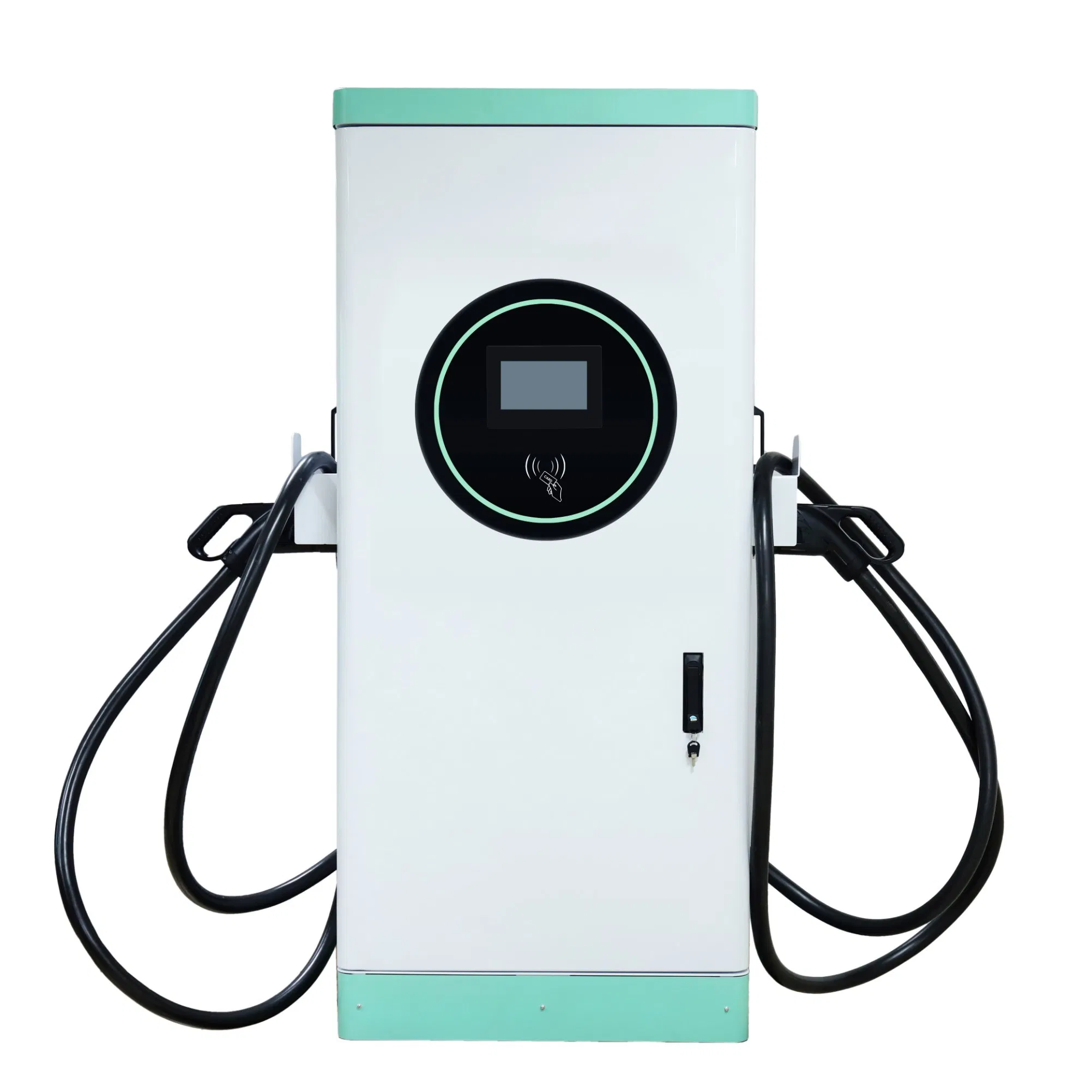

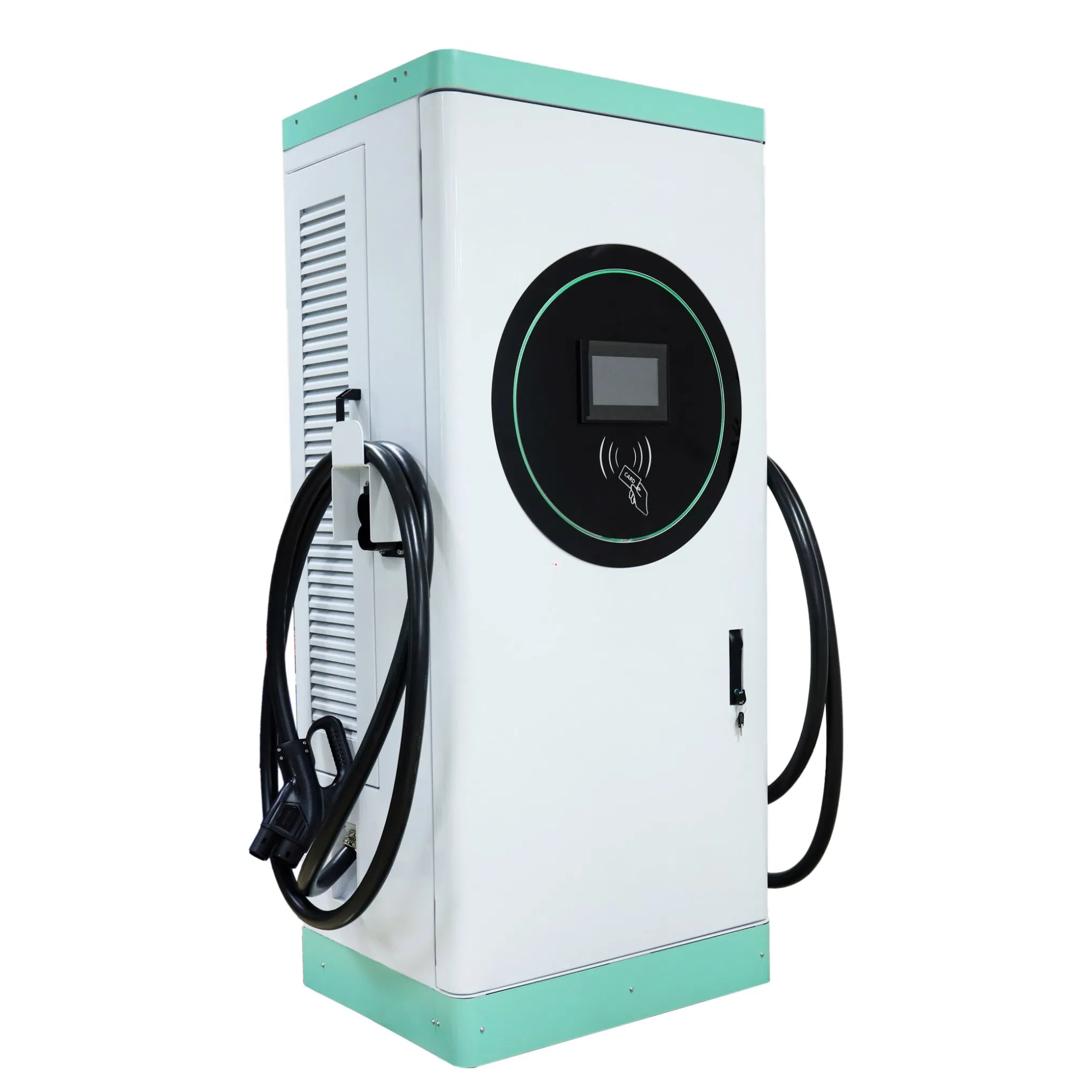

Commercial Level 3 Floor-Mounted 80kw Charging Stations CCS1
Product Description
⚡ Basic Information
Model NO.
HC801KHDAO
Location
Public Use
Charging Interfaces
One Pile with Multiple Charges
Start Mode
RFID, Credit Card, Mobile Remote
Charge Method
Quick Charge
Input Voltage
380VAC
Output Voltage
200-1000VDC
Output Power
80kw
Output Current
200A
Connectors
CCS1
IP Level
IP 54
Warranty
12 Months
📋 Product Description

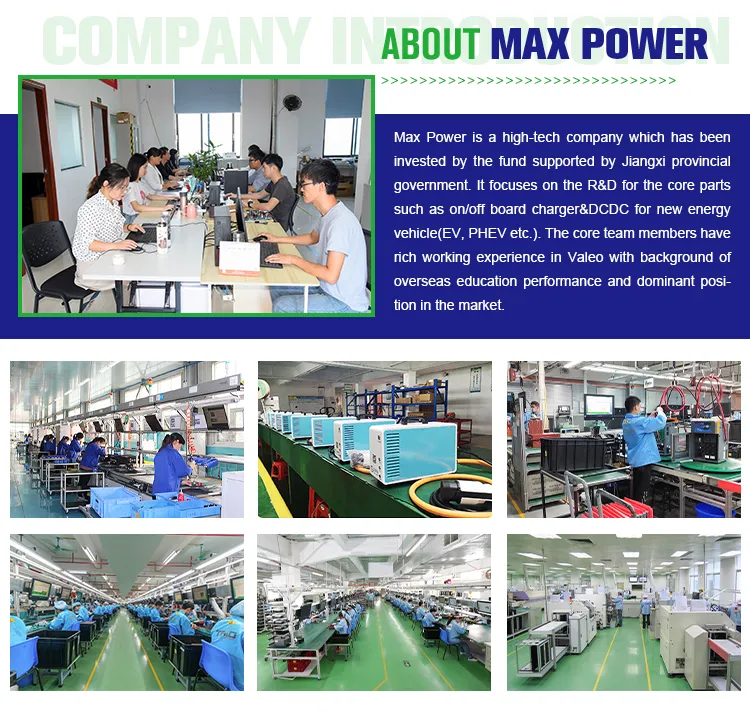

A high-tech focus on R&D for core parts such as on/off board chargers & DCDC for new energy vehicles (EV, PHEV etc.). Our products (OFBC, OBC & DCDC) deliver excellent performance and a dominant market position.
🚀 EV CHARGER 60KW-150KW Features

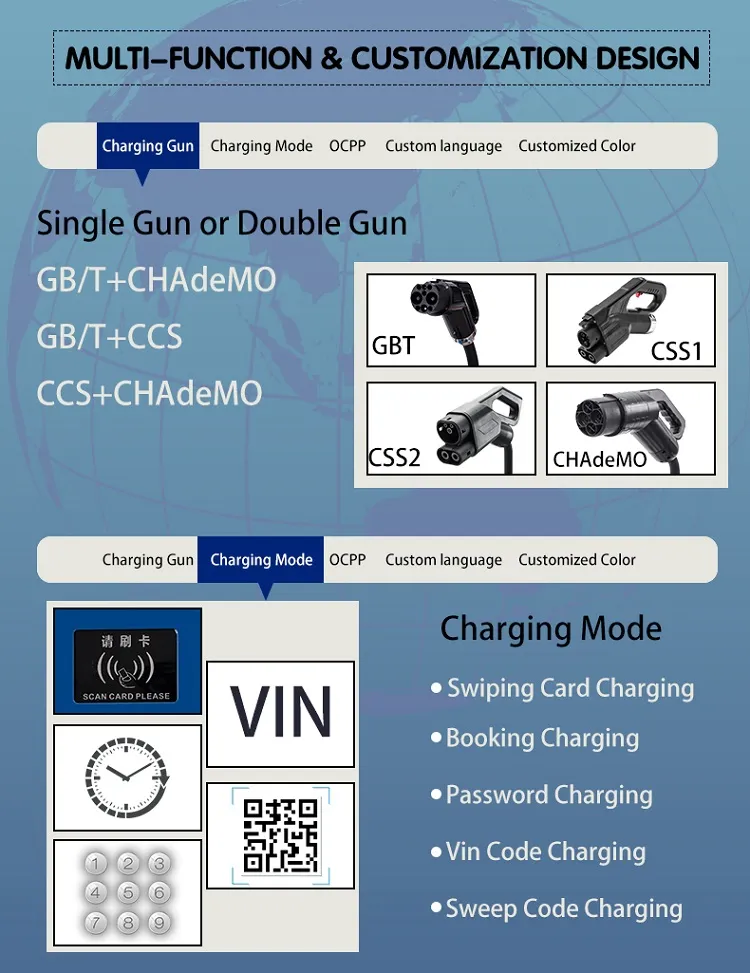

✔ Smart DC charger with configurable multiple outlets, ideal for public areas.
✔ Modular design: control system, power source, and distributed power system.
✔ Auto sleep mode after full charge (standby power <5W).
✔ Remote firmware and power module upgrades via APP.

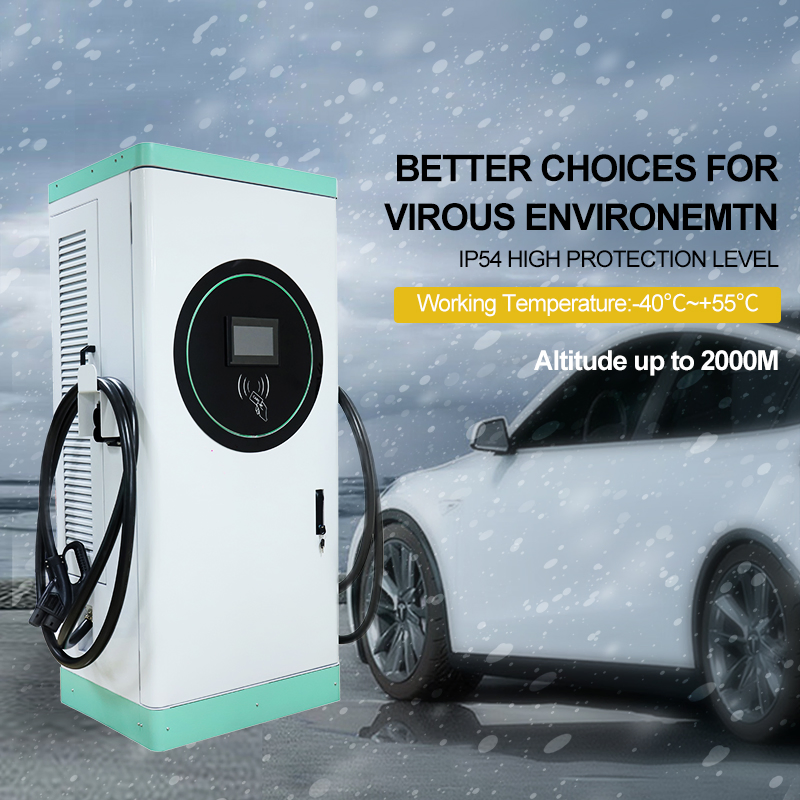

✔ IP54 protection and IK10 vandal-proof enclosure.

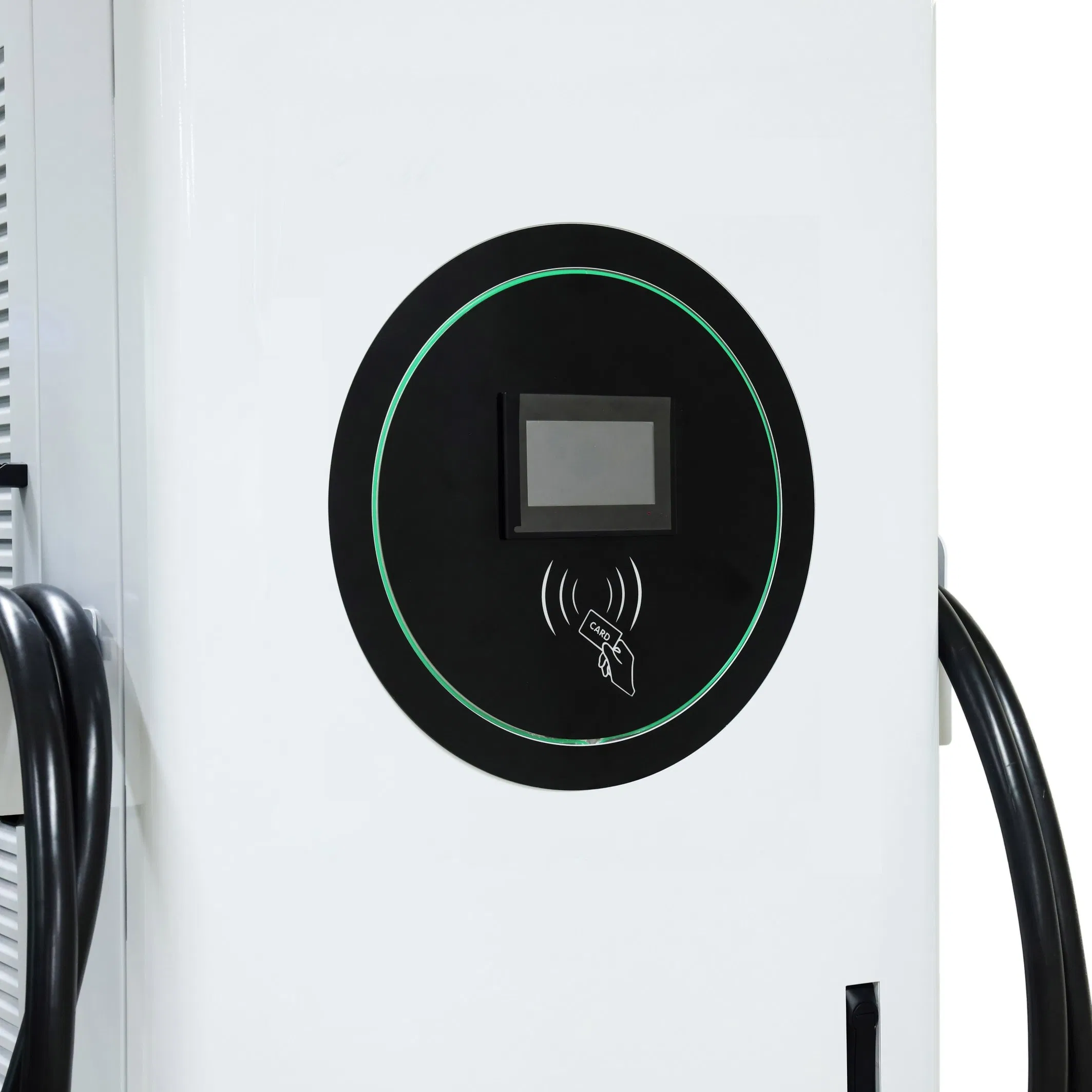

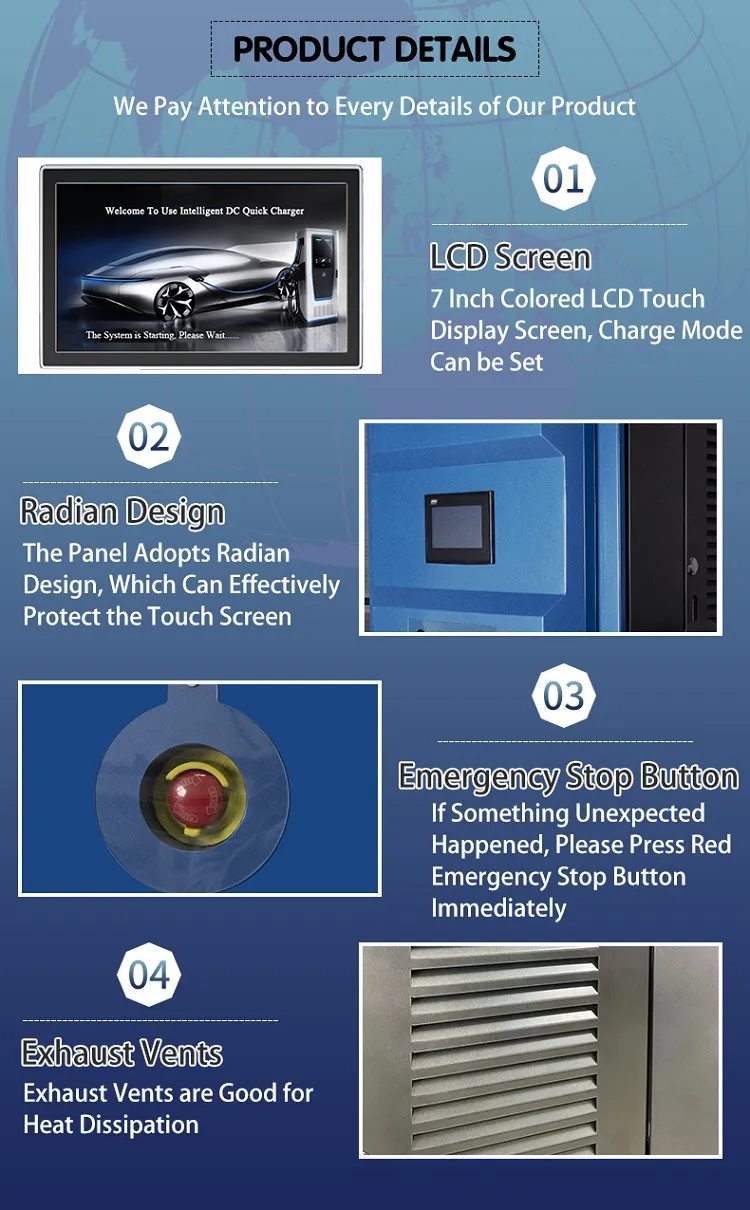

✔ 7" colored touch LCD display for easy configuration.
🛠️ Technical Specifications
| MODEL | 60KW | 120KW | 150KW |
|---|---|---|---|
| INPUT | |||
| Nominal Input Voltage | 380 VAC ± 15% | ||
| Input Power Factor | > 0.99 @nominal voltage | ||
| OUTPUT | |||
| Output Current Range | 2 ~ 100 A | 2 ~ 200 A | 2 ~ 250 A |
| Output Voltage Range | 200~750VDC | ||
| Efficiency | > 94% | ||
| PHYSICAL | |||
| IP Protection | IP54 | ||
| Dimension (mm) | 750 x 530 x 1685 | ||
| Net Weight (kgs) | 275 | 310 | 328 |
🛡️ Compliance Standards
◈ IEC 61851 Electric vehicle conductive charging system
◈ IEC 62196 plugs, socket-outlets, and vehicle connectors
◈ DIN 70121 Electromobility-Digital communication
◈ ISO 15118 Road vehicles-Vehicle-to-Grid Interface
❓ Frequently Asked Questions
Are you a factory or trading company?
We are a professional manufacturer of new and sustainable energy applications for over 18 years.
What is the warranty period?
The warranty is 12 months. During this period, we provide technical support and replace parts for free.
What are your terms of payment?
T/T 50% as deposit, and 50% before delivery. We'll show you photos of the products and packages before final payment.
How about your delivery time?
Generally, it takes 3 to 7 working days after receiving your advance payment, depending on the order quantity.
Do you test all your goods before delivery?
Yes, we conduct 100% testing on all products before they are dispatched.
What's the difference between Movable and Wallbox Chargers?
Wallbox chargers have an IP54 rating for outdoor use. Movable chargers are IP43 rated and should not be used outdoors during rain.
