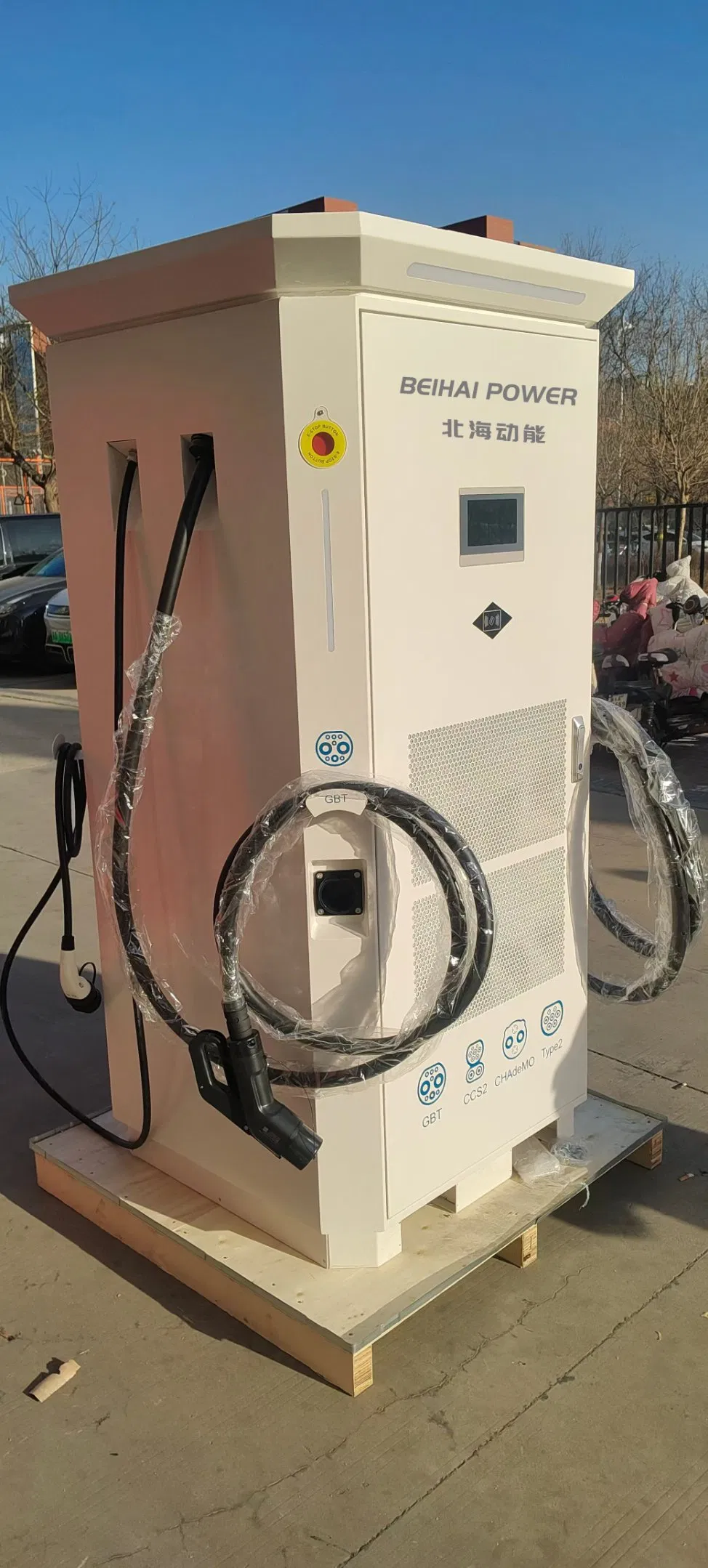

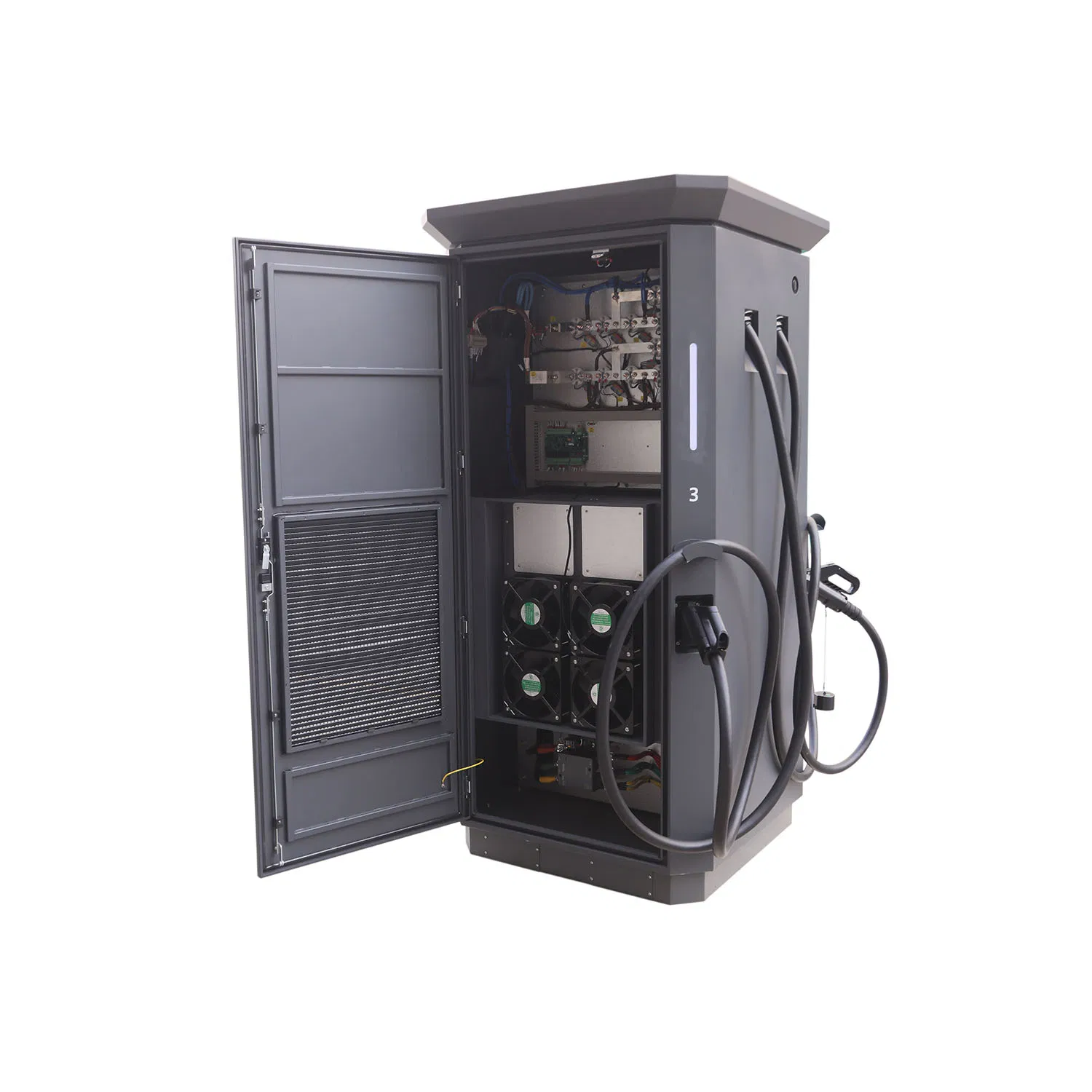

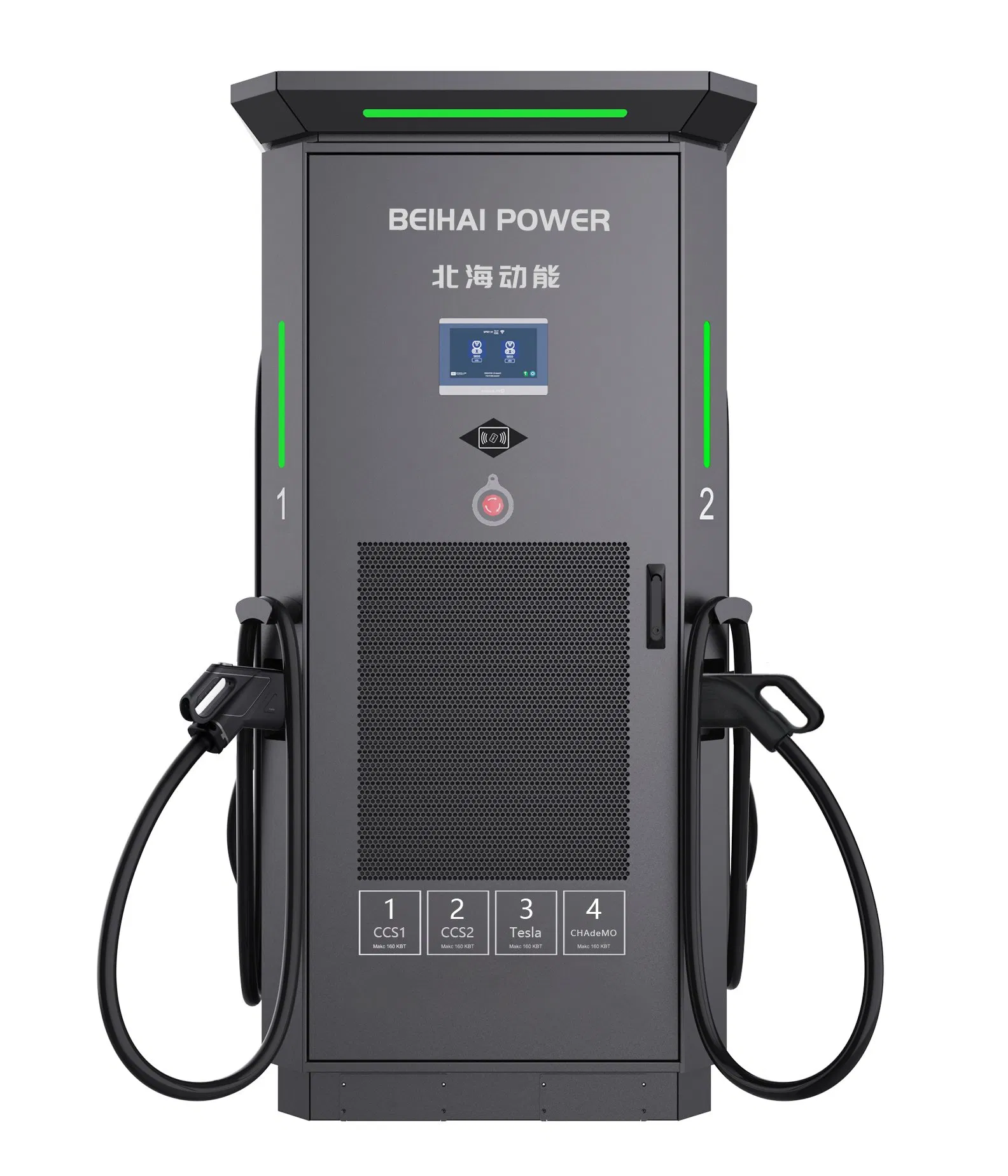

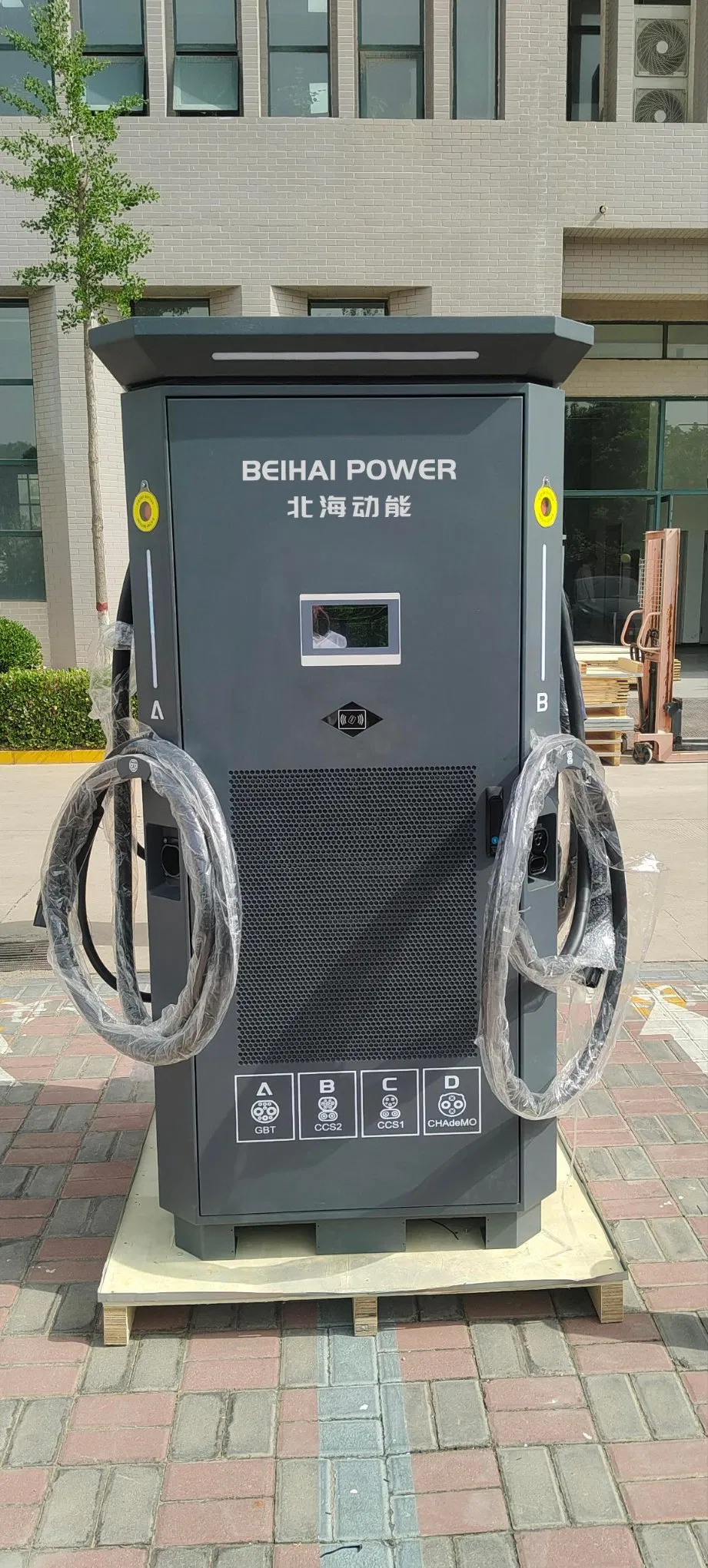

China Manufacturer OEM Level3 Four Plugs 120-480kw Electric Vehicle DC Fast Charger IP54 Floor DC EV Efficient Cars Charging Stations
Product Description
Product Introduction
120-480kW Series DC EV Charger
The Level 3 Four Plugs 120–480KW Electric Vehicle DC Fast Charger is a high-performance charging solution designed for large-scale and high-demand environments. With its powerful 120KW–480KW output and four-gun configuration, it can charge multiple electric vehicles simultaneously, making it ideal for commercial charging stations, highway service areas, logistics hubs, and fleet operations.

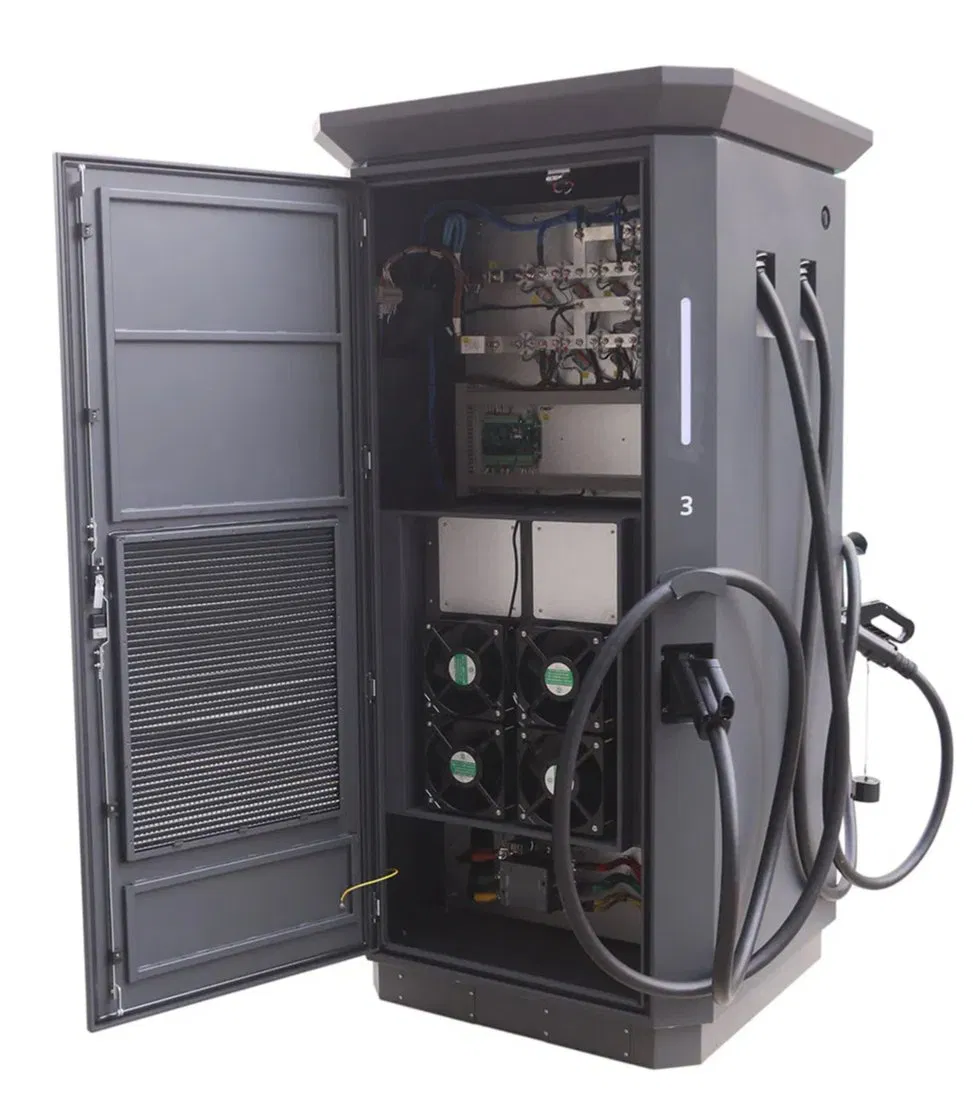

Built with an advanced control system and intelligent communication modules, this charger supports smart scheduling, remote monitoring, and automatic fault diagnosis. Its compatibility with major EV charging management platforms allows seamless integration into existing networks. The IP54-rated design ensures reliable outdoor operation under various weather conditions, while cloud connectivity enables operators to perform real-time monitoring, remote maintenance, and software upgrades — enhancing overall efficiency and reducing operational costs.
Global Compliance and Safety Assurance
Our High-Speed 240KW(120-480kw) DC Electric Car Charger is not only defined by its power and elegant design but also by its adherence to the highest international quality and safety standards. This commercial DC EV Charging Pile is fully certified, demonstrating our commitment to reliability and global market access. We hold the ISO 9001 certification, ensuring our design and manufacturing processes meet stringent quality management requirements. Furthermore, the product proudly carries the CE certificate and TÜV certificate, providing comprehensive assurance.
Our Partners
Product Parameters
| Category | Specifications | Data Parameters |
|---|---|---|
| Appearance structure | Dimensions (L x D x H) | 900 * 900 * 1975mm |
| Weight | 480kg | |
| Length of charging cable | 5m | |
| Connectors | CCS1 || CCS2 || CHAdeMO || GBT (Three/Four Guns) | |
| Electrical indicators | Input Voltage | 400VAC / 480VAC (3P+N+PE) |
| Output Voltage | 200 - 1000VDC | |
| Rated Power | 120-480kW | |
| Efficiency | ≥94% at nominal output power | |
| Power Factor | >0.98 | |
| Communication Protocol | OCPP 1.6J | |
| Work environment | Operating Temperature | -30 °C to 55°C |
| Altitude | < 2000m | |
| Ingress Protection | IP54 || IK10 |
Product Feature
High Power OutputFlexible charging power from 120KW to 480KW, supporting fast and efficient charging for multiple EVs simultaneously.

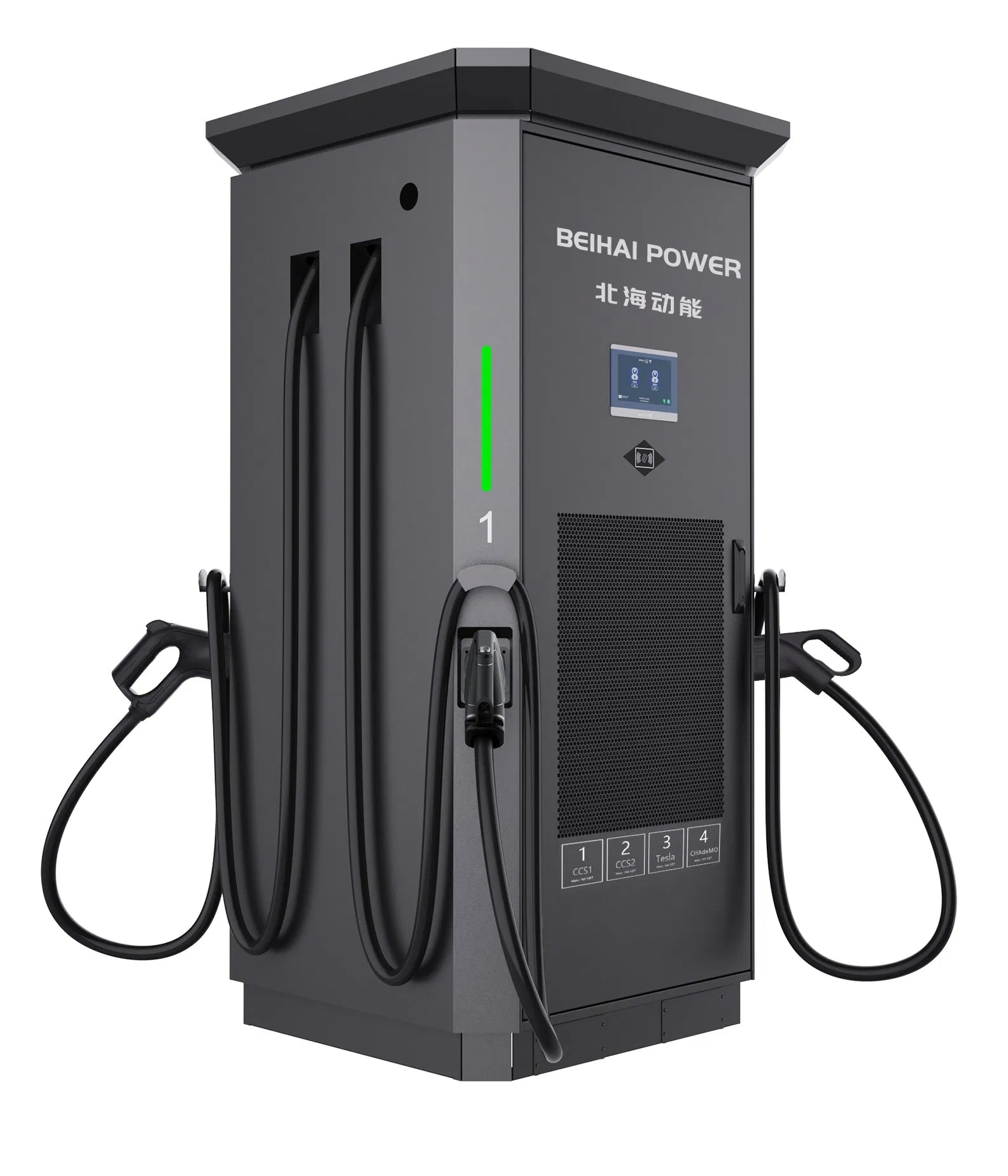

Four-Gun DesignEquipped with four charging connectors to serve multiple vehicles at once, maximizing station utilization.
Smart Control SystemFeatures intelligent scheduling, remote monitoring, and automatic fault diagnosis for optimized operation.
Cloud ConnectivityIntegrates with major EV management platforms for real-time data tracking and remote upgrades.
Durable ConstructionIP54-rated enclosure ensures safe performance in various outdoor environments and weather conditions.
Modular DesignSupports flexible configuration and easy scalability to meet future capacity expansion.

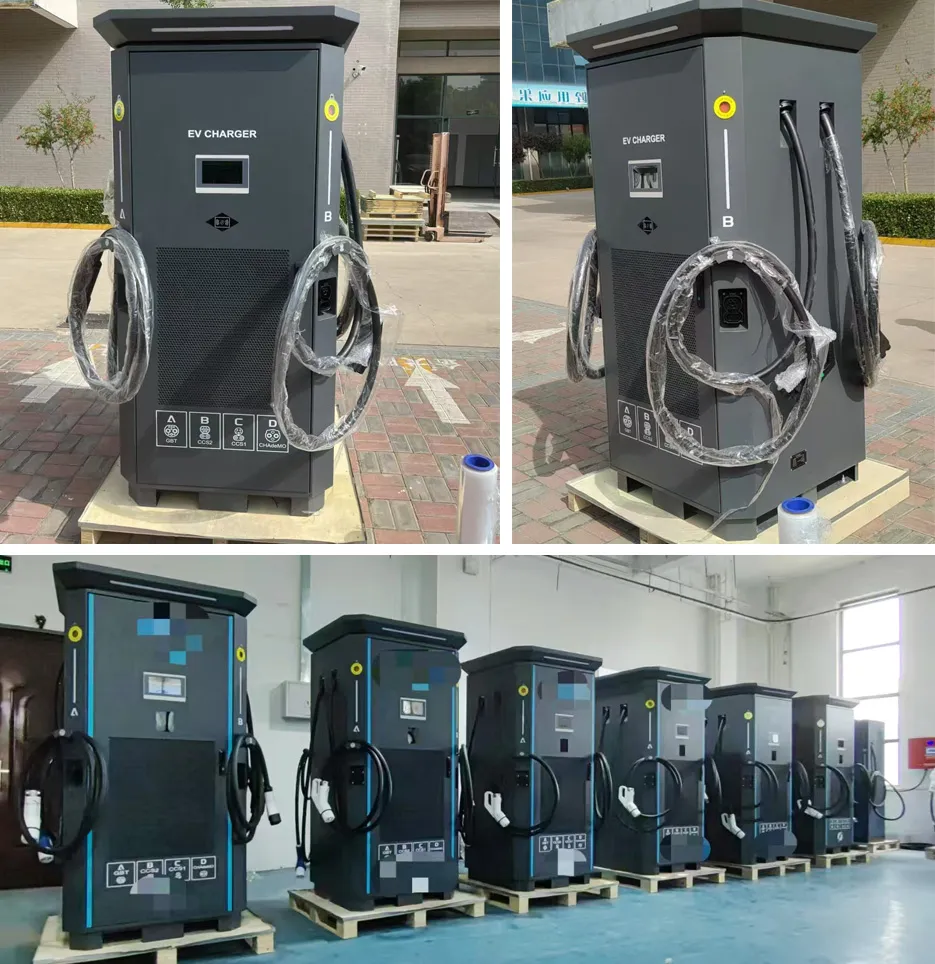

Application
The 120KW–480KW DC Fast Charging Station is specifically designed for high-traffic and high-demand environments.
- Public Charging Stations: Rapid and simultaneous charging for urban/suburban networks.
- Highway Service Areas: Providing quick top-up for electric cars, buses, and trucks.
- Fleet and Logistics Centers: Large-scale charging solutions to keep commercial vehicles running.
- Commercial Facilities: Ideal for shopping malls, office buildings, and industrial parks.
Packaging & Shipping
Frequently Asked Questions
What is the maximum output power of this charging station?
The station offers a flexible high-power output ranging from 120kW up to 480kW, depending on the configuration.
How many electric vehicles can be charged simultaneously?
With its four-gun design, the station can charge up to four electric vehicles at the same time, maximizing efficiency.
Does the charger support remote monitoring?
Yes, it features cloud connectivity and supports OCPP 1.6J, allowing for real-time monitoring, remote maintenance, and software upgrades.
Is it suitable for outdoor installation in harsh weather?
Yes, the unit is IP54-rated for ingress protection and IK10-rated for impact resistance, ensuring stable performance in various outdoor environments.

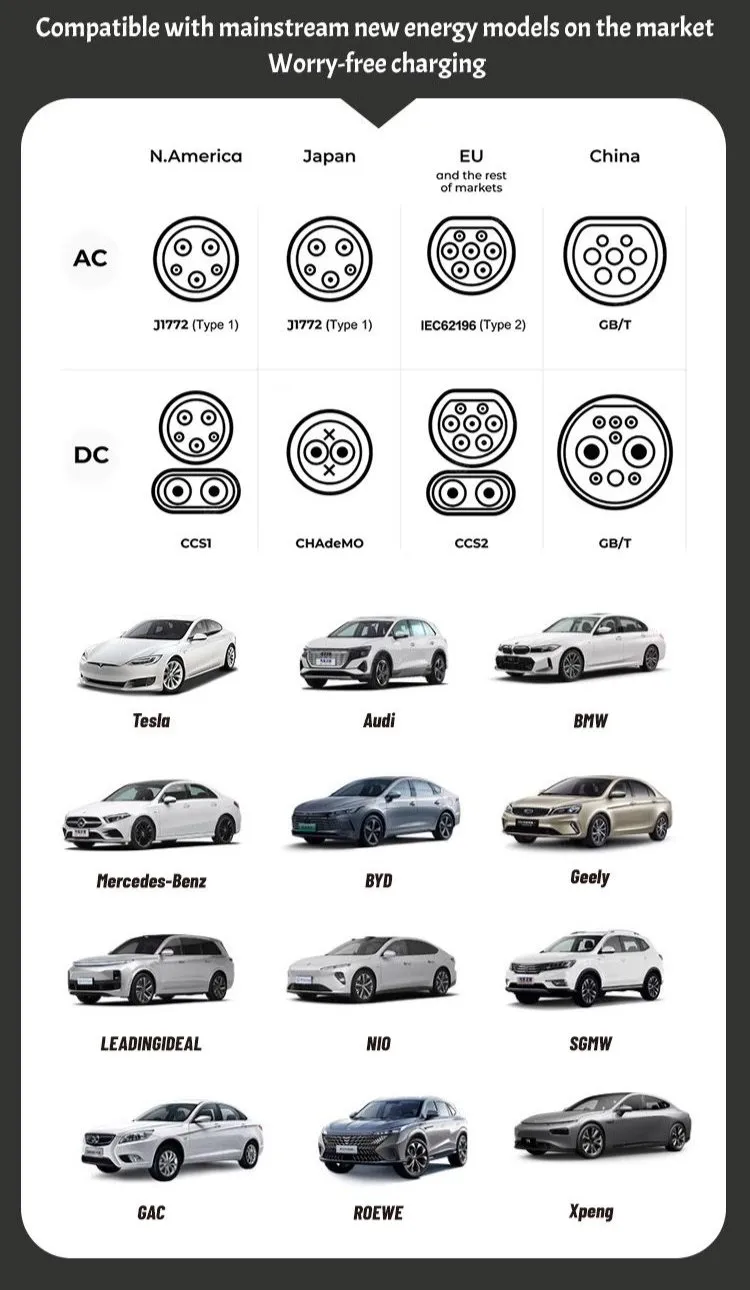

Which charging connector standards are compatible?
The charger supports all major global standards including CCS1, CCS2, CHAdeMO, GBT, and NACS.
What safety protections are included?
It includes overvoltage, lightning, overcurrent, leakage, and waterproof protection, along with an emergency stop button.
