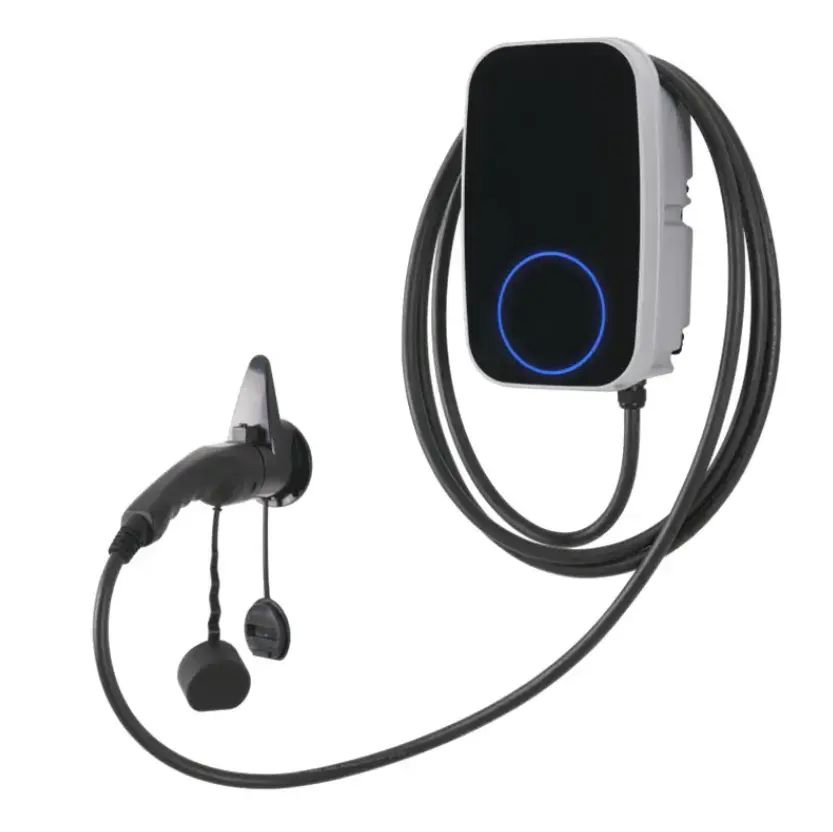

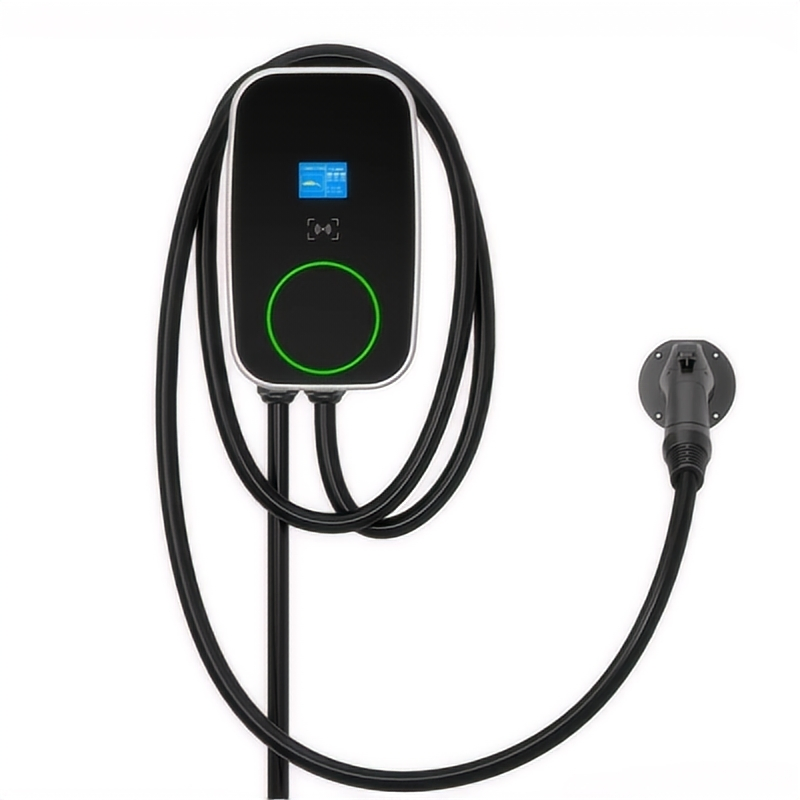

Business Ocpp Type2 22kw AC Charging Station Electric Vehicles Wallbox EV Charger
Product Description
| Model NO. | xb7 |
| Charging Interface | One Pile with One Charge |

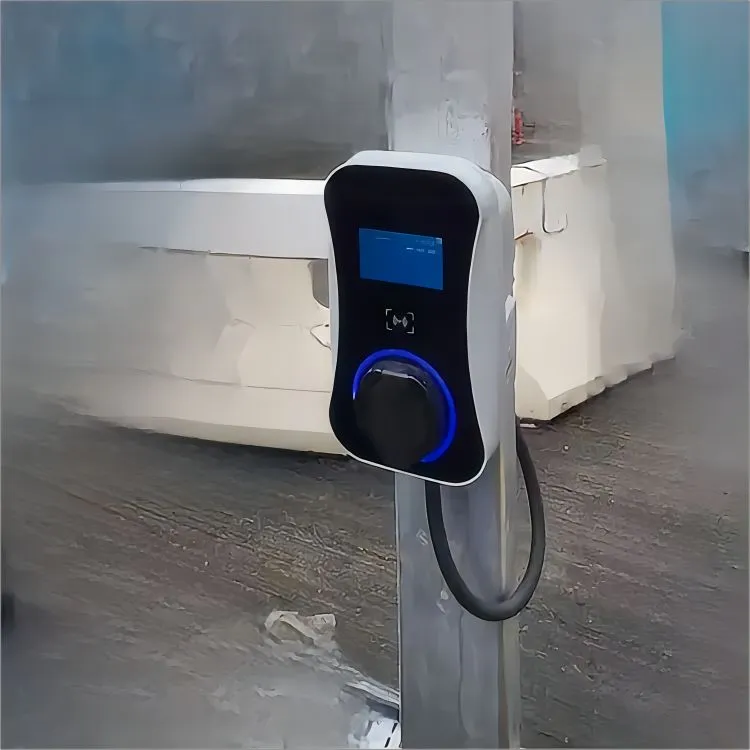

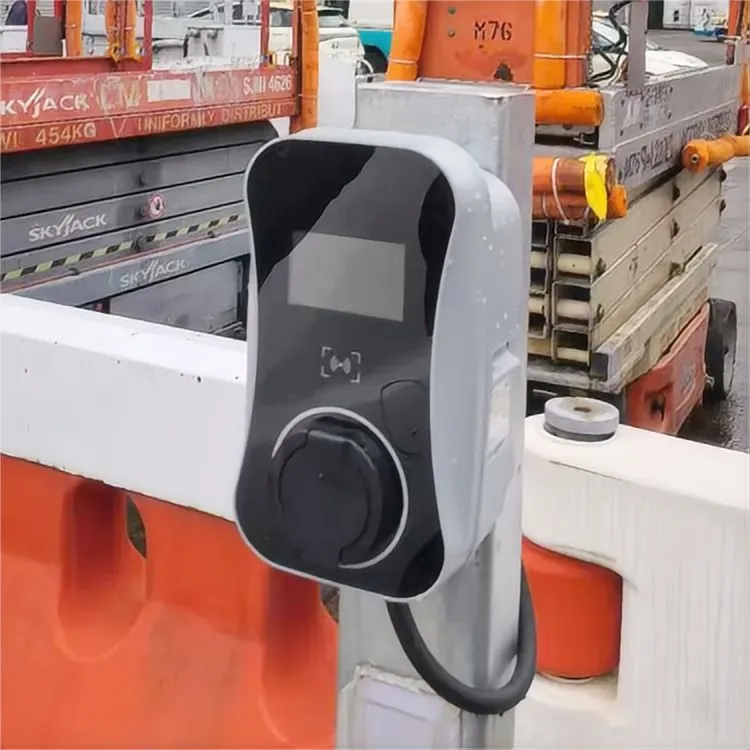

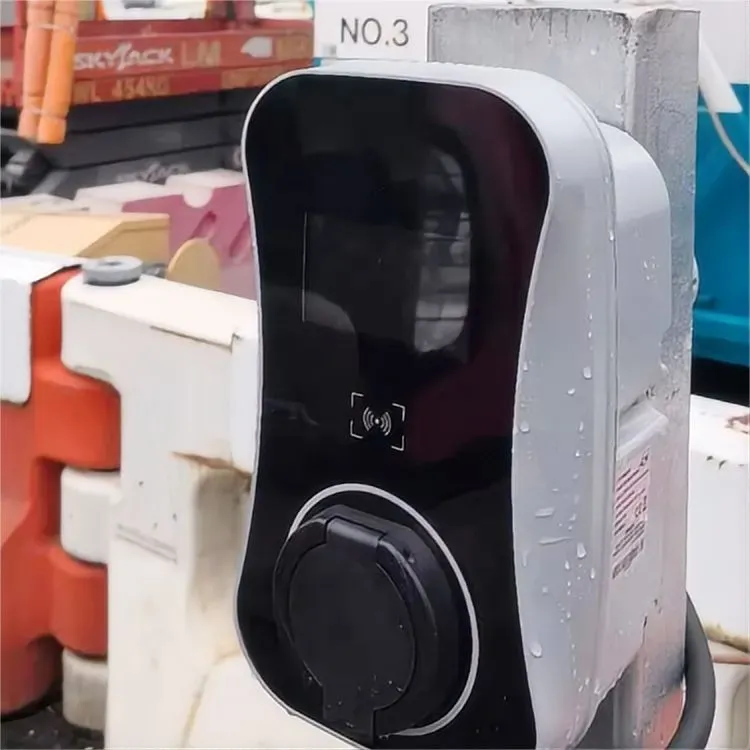

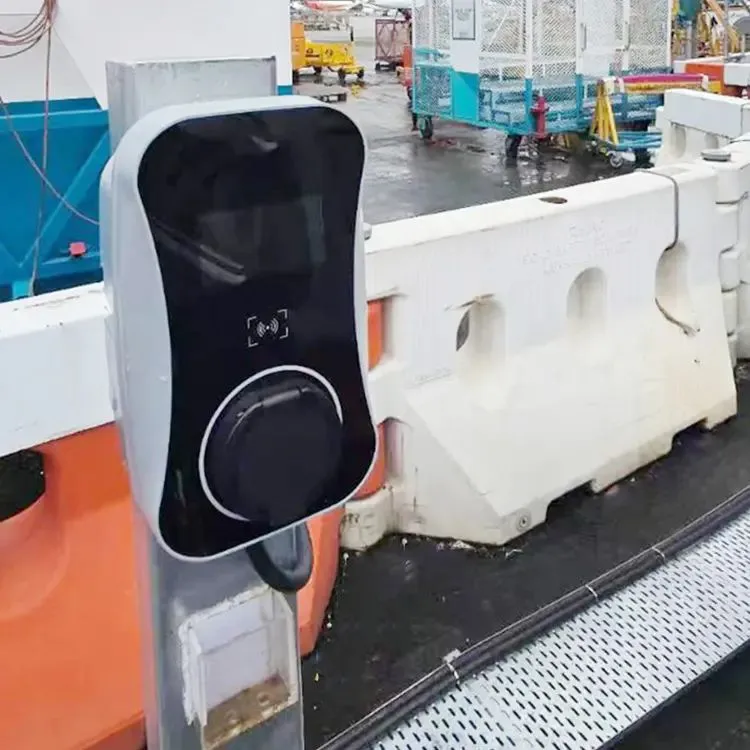

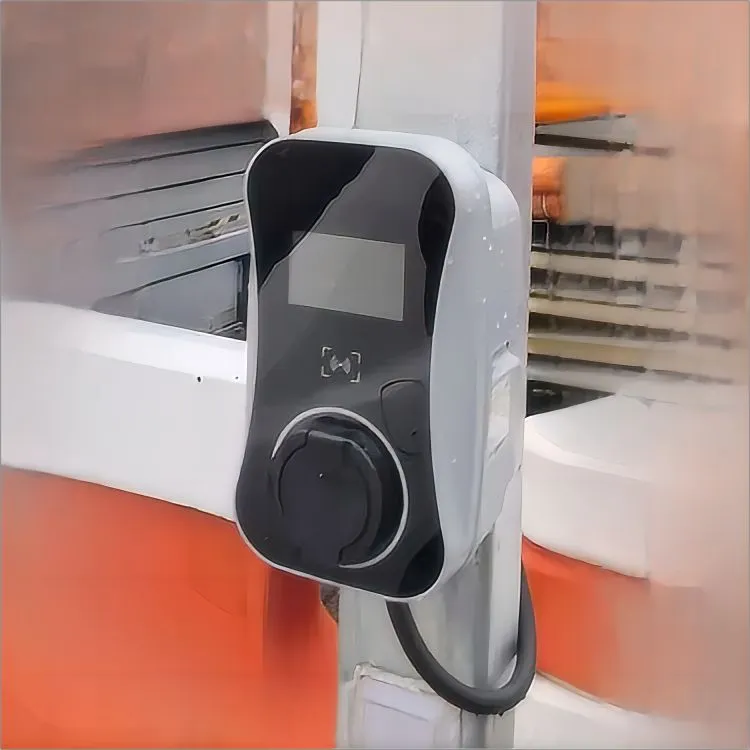

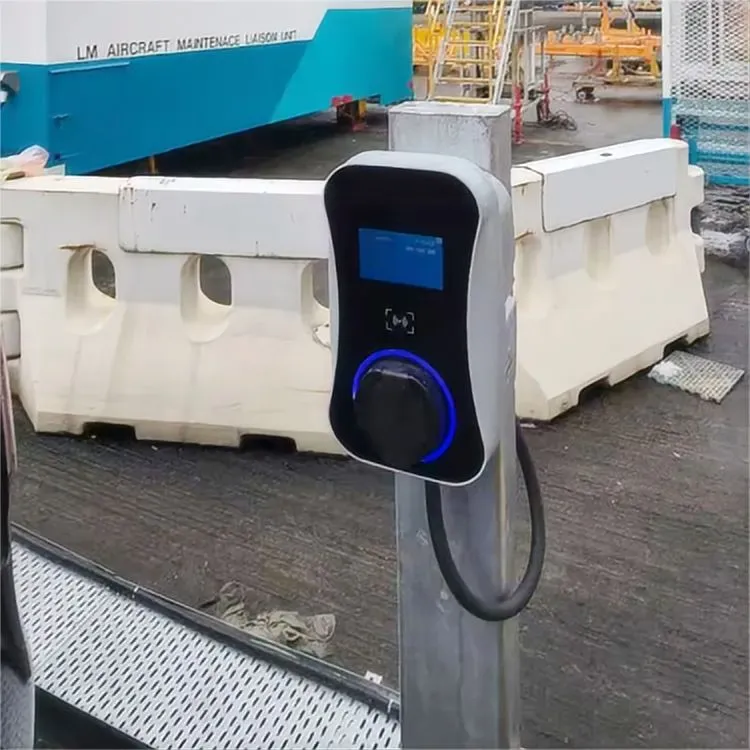

| Installation | Wall-Mount/Pole-Mount |
| Charge Method | Quick Charge |
| Rated Power | 7.4kw/11kw/22kw |
| Rated Voltage | AC220~240V |
| Rated Current | 32A (16A, 13A, 10A adjustable) |

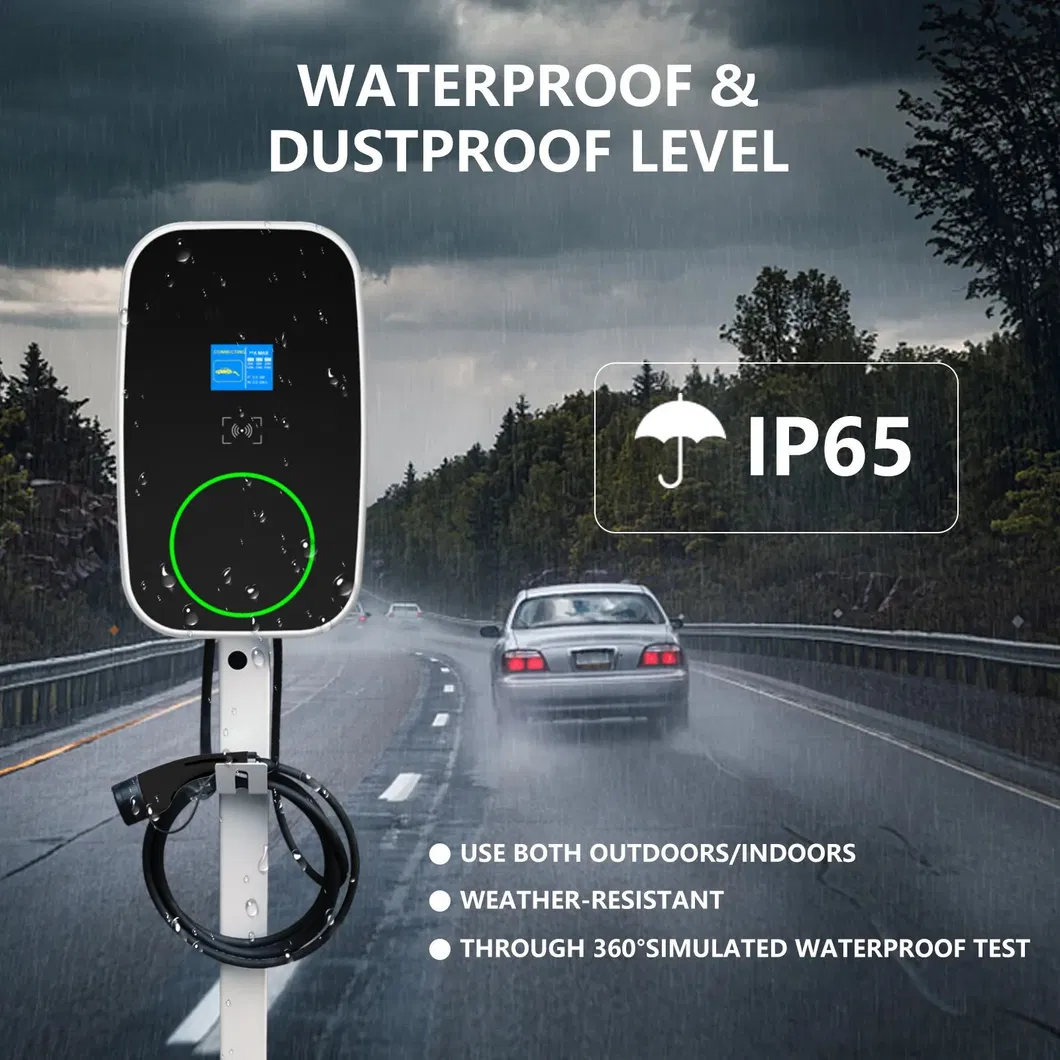

| Ingress Protection | IP65 |

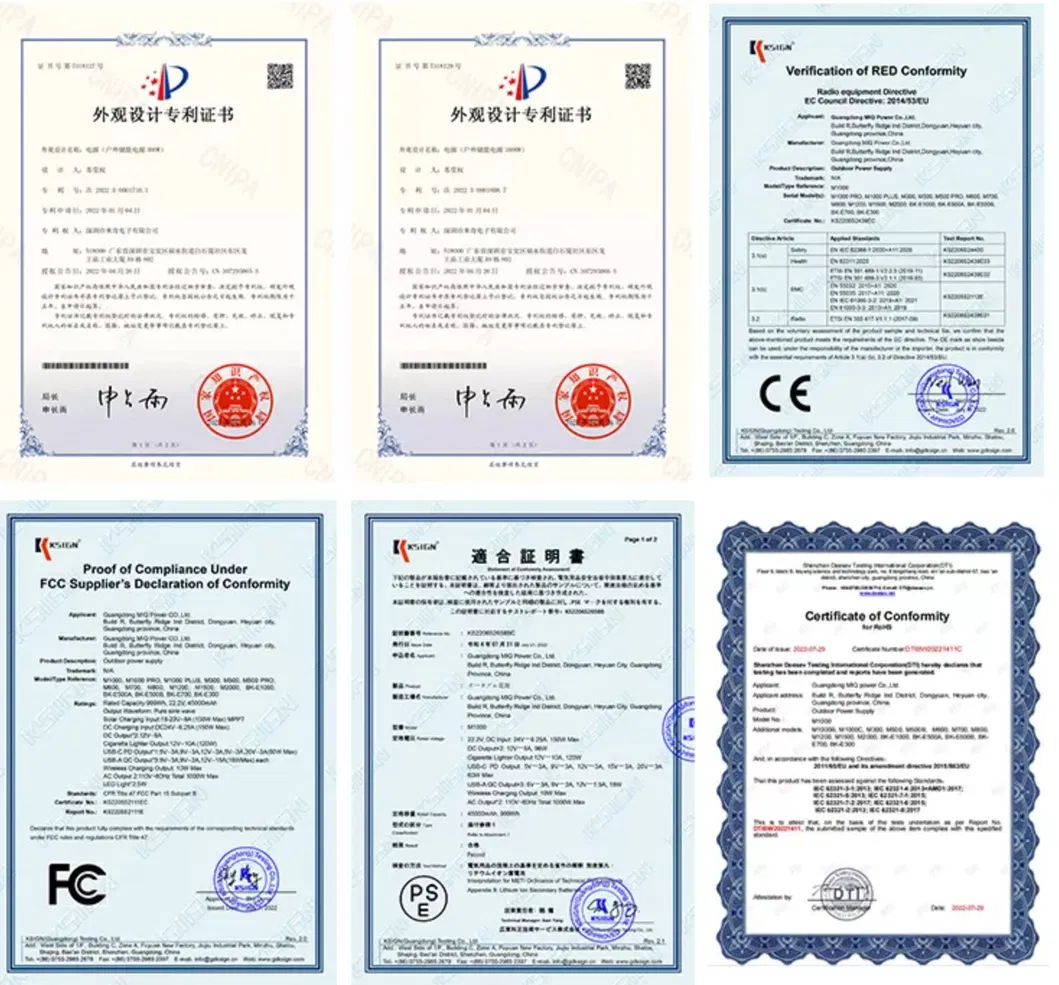

| Certification | CE / UKCA (Dekra) |
| Dimensions | 350*200*105mm |

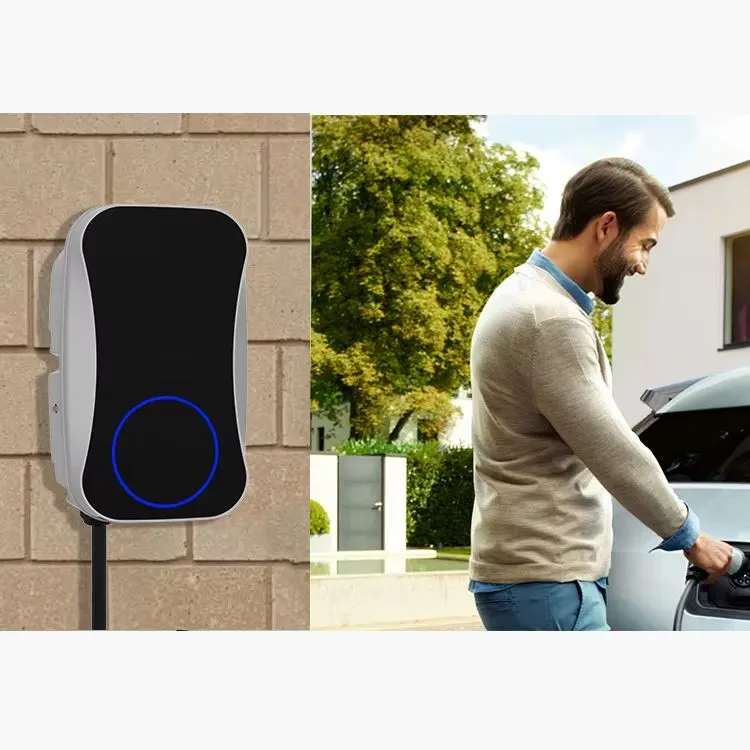

Top Quality EV Charger Type 2 available in 7KW, 11KW, and 22KW models. This wall-mounted electric fast AC charging station is designed for both residential and commercial use, providing an affordable charging solution without compromising on quality.
Smart Control & Compatibility

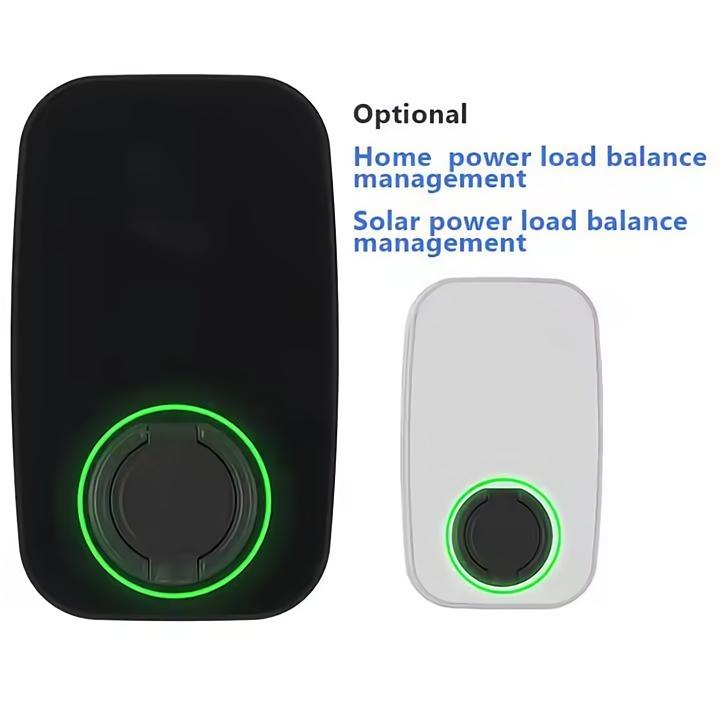

Compatible with all EVs and PHEVs on the market, and supports Solar power integration. The smart app gives you full control, allowing you to schedule sessions when electricity is cheapest, adjust power ratings, and monitor energy usage.

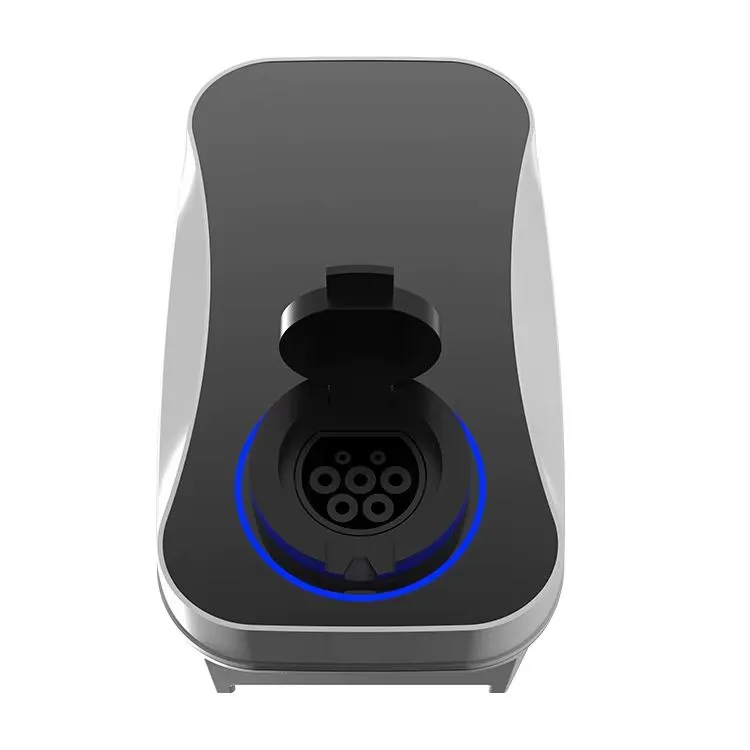

Adjustable Power Settings

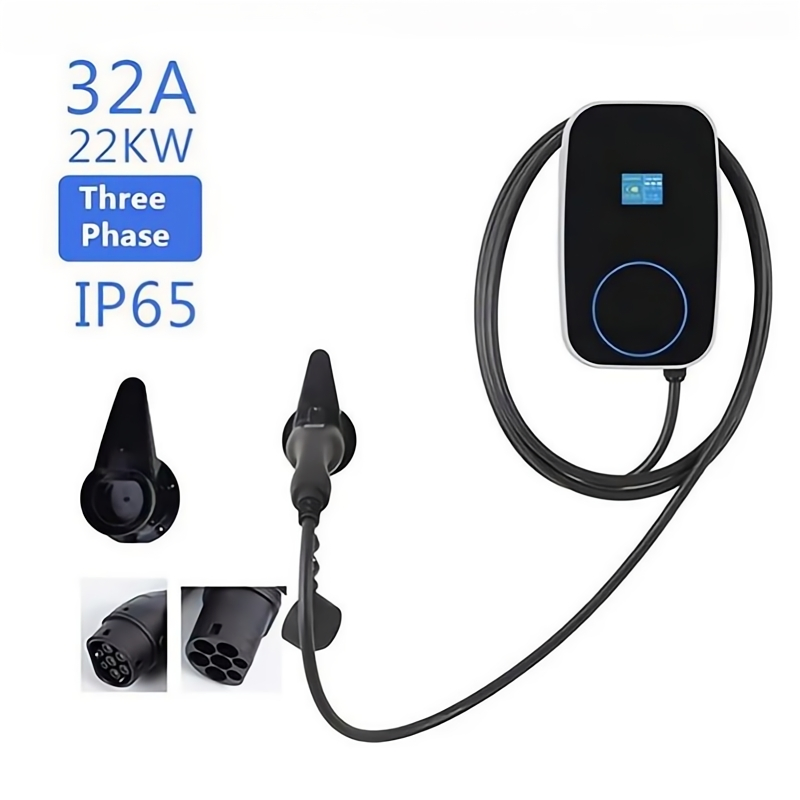

Choose from 7.4kW single-phase or 22kW three-phase models. While set to 32A by default, the power rating can be adjusted between 10A, 13A, 16A & 32A using the internal selector to meet your specific requirements.

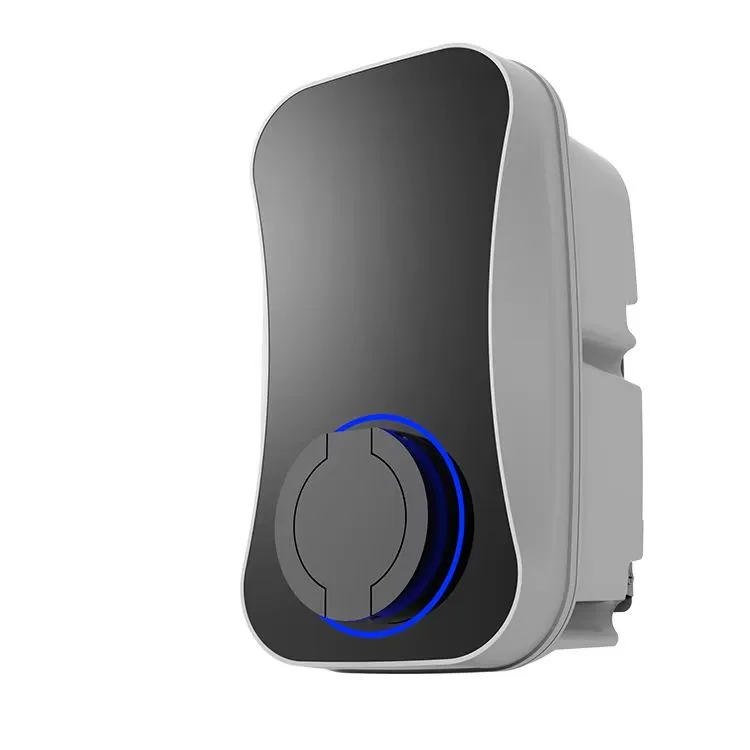

Safe & Durable Design
IP54 weatherproof rated enclosure made from durable ABS and Polycarbonate. Packed with the latest safety features including security logs and alerts, fully complying with Smart Charge Points Regulations.
| Connector Type | Type 2 / T2S Socket |
| Residual Current Protection | AC 30mA & DC 6mA |
| Working Temperature | -25ºC to 50ºC |
| Working Humidity | 3% ~ 95% |
| Communication | Supports 4G/5G and OCPP1.6J Protocol |
| Standards | EN IEC 61851, EN 62196 |
