VoltNode Charger

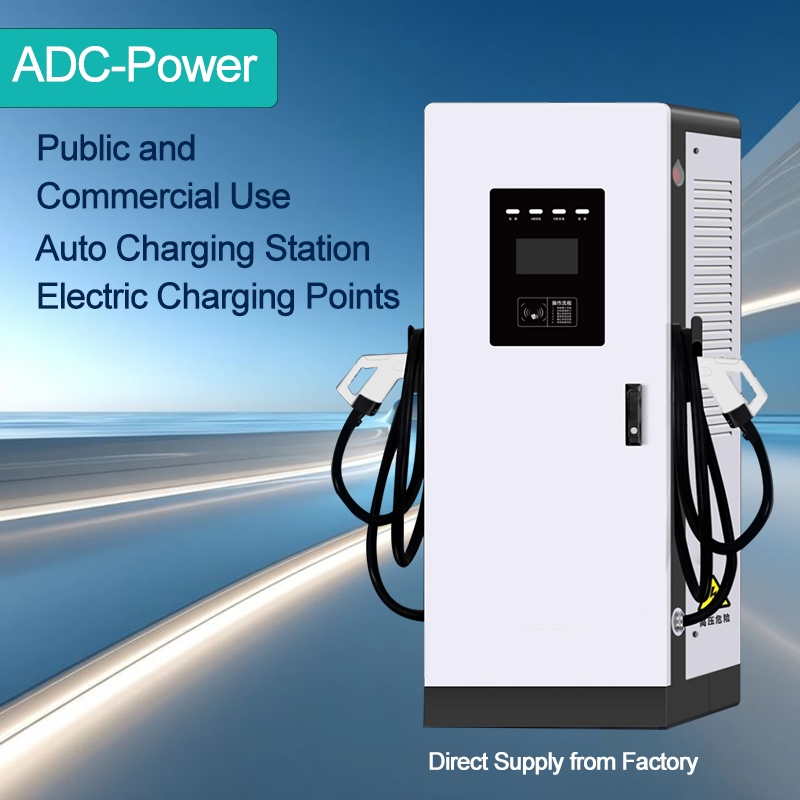

Auto Charging Station/Electric Charging Points for Public and Commercial Use with Level 3 Car Charger
Product Description
Basic Information
Product Description

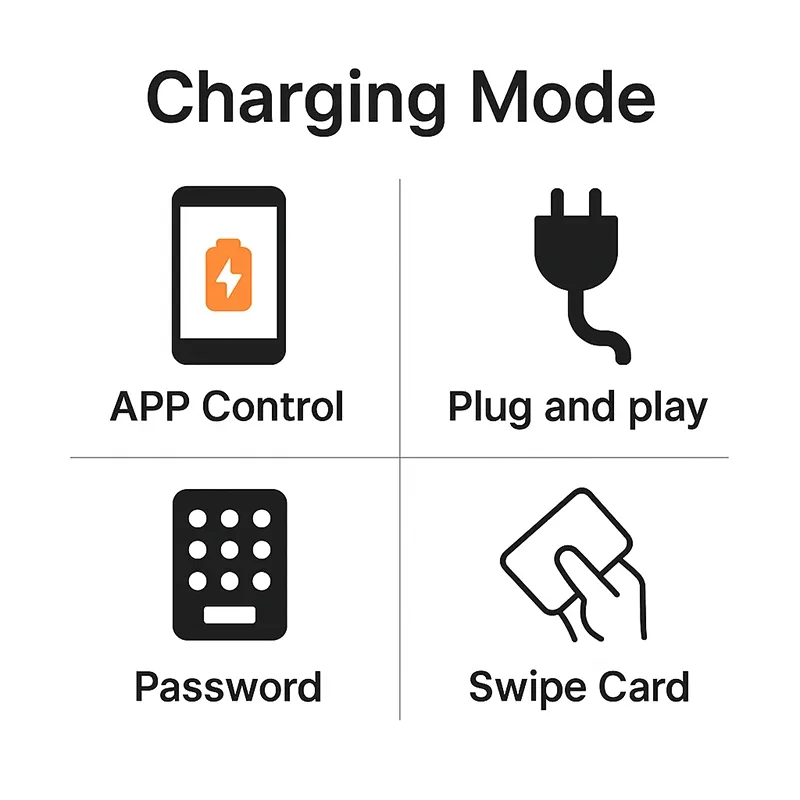

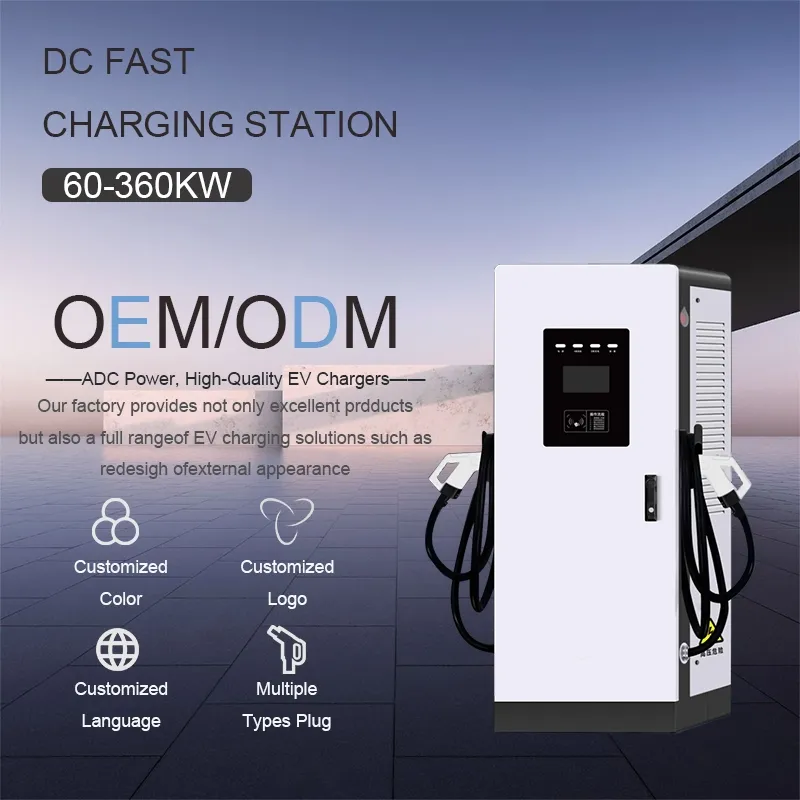

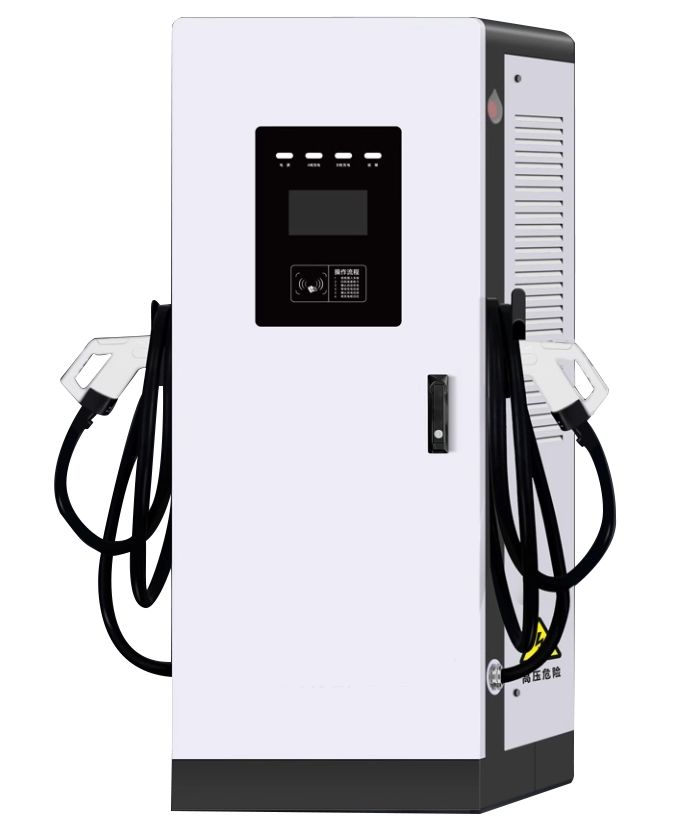

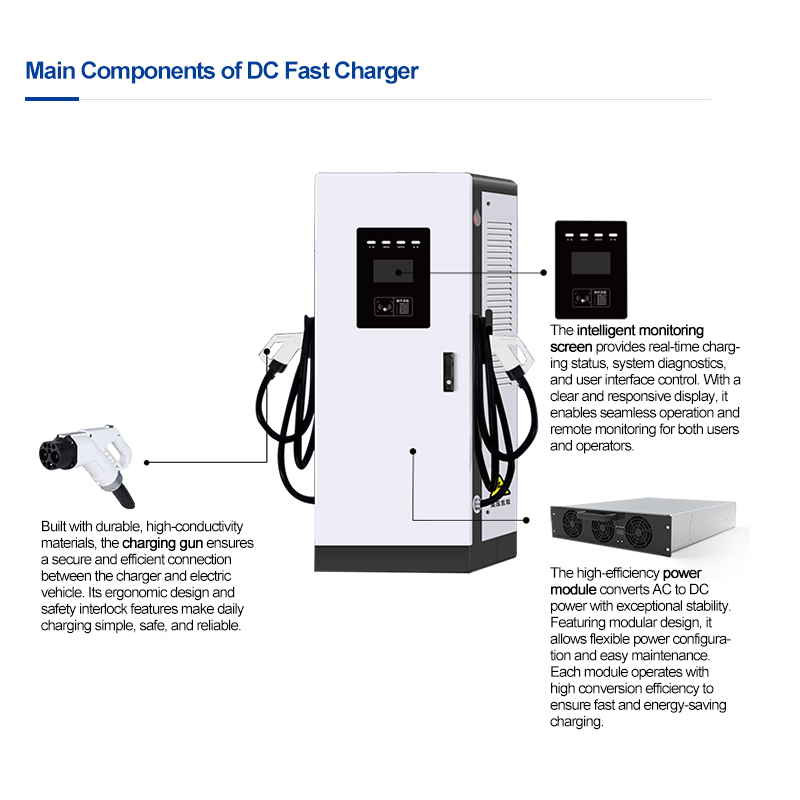

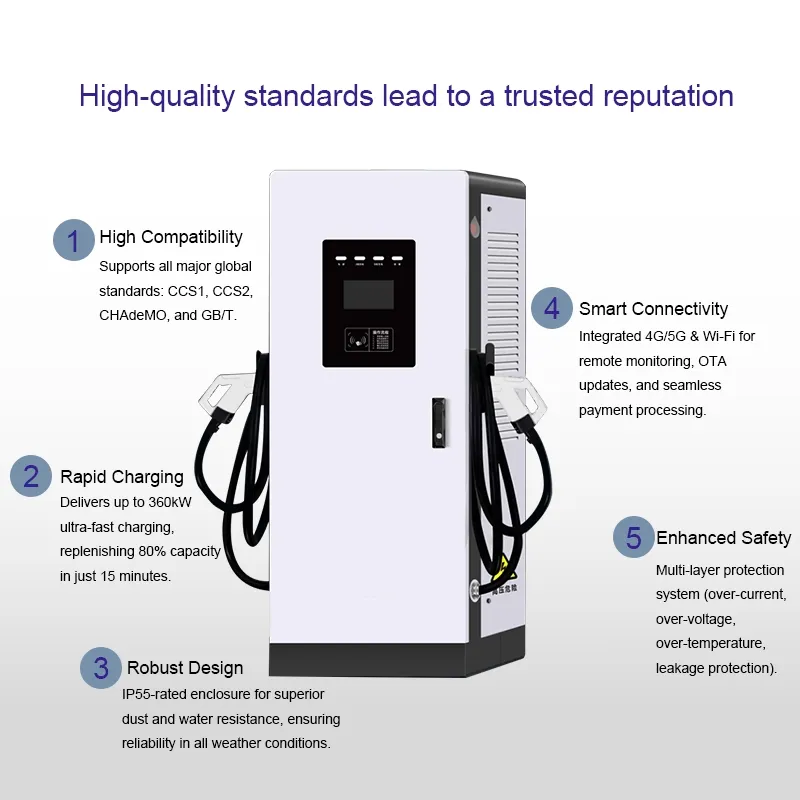

Our DC fast charging station is designed for efficient and reliable EV charging. It supports output power from 60kW to 720kW, with voltage range from 200V to 1000V. Featuring advanced protection, intelligent monitoring, and multiple charging modes (APP control, RFID, password, plug & play), it ensures safe and convenient operation for all kinds of electric vehicles. OEM/ODM customization is available.
Technical Specification
| Parameter Item | Detailed Specifications | Standard Values | Notes |
|---|---|---|---|
| Rated Power | 60kW / 120kW / 160kW / 240kW | Customizable up to 720kW | Vertical Installation |

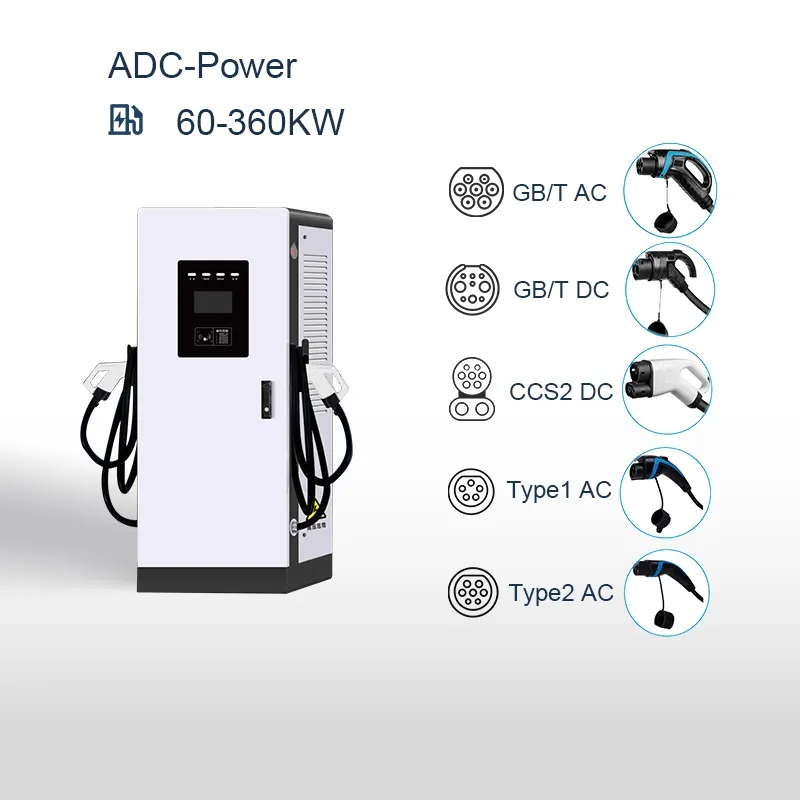

| Connector Type | CCS1, CCS2, Chademo, GB/T | Multi-standard Support | 5m Cable length |
| Input Voltage | AC380V±20% | 3P+N+PE | 45-65Hz |
| Output Voltage | 200-1000VDC | Efficiency ≥95% | Measurement 1.0 level |
| Protections | Overvoltage, undervoltage, overload, short circuit, grounding, over temperature, low temperature, insulation monitoring, polarity reverse, lightning, emergency stop, and leakage protection. | ||
| Environment | Operating Temp: -20ºC~+50ºC | IP55 Protection Level | Air-cooled, Noise ≤60dB |
Company Profile
With over 15 years in the power technology, our team specializes in the AC to DC, DC to AC, battery monitoring, solar power, and the new energy system developments. Our expertise covers industrial chargers, EV fast charging modules, inverters, and energy storage systems.

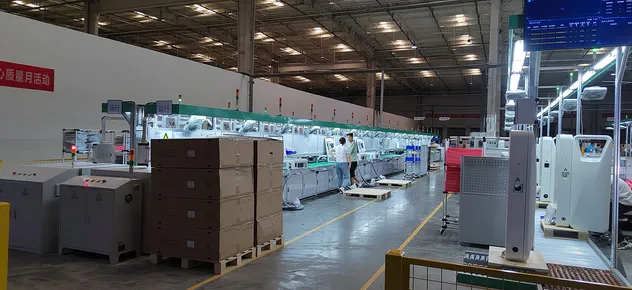

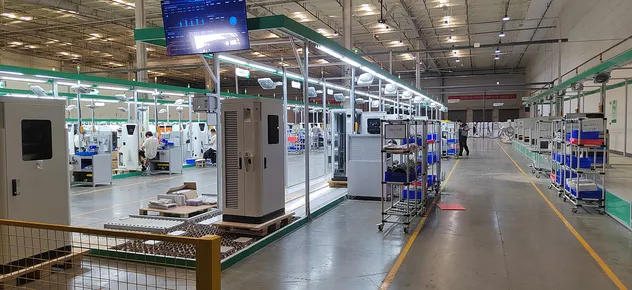

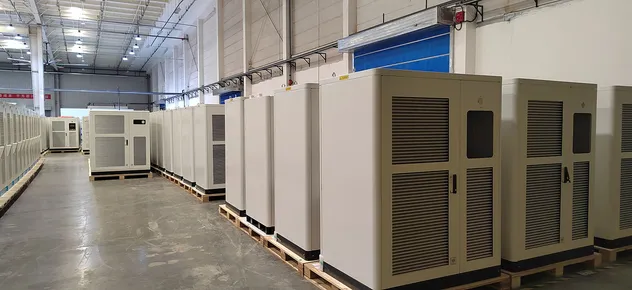

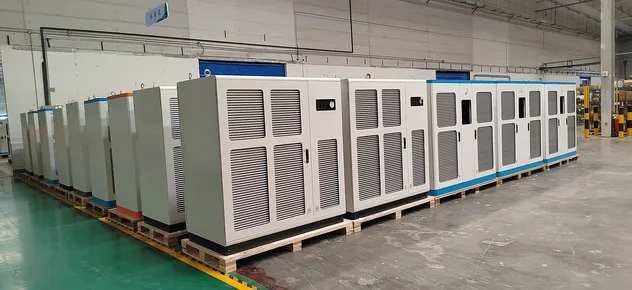

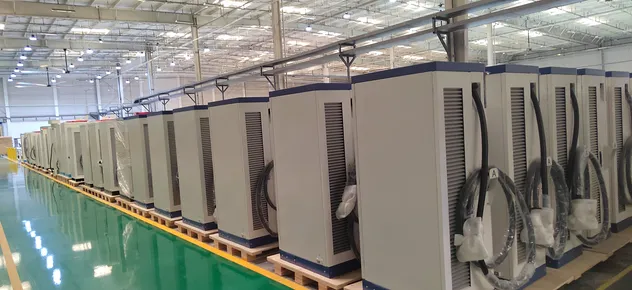

We maintain a production facility of 40,000 m² with over 70 R&D engineers and 200 production workers. Our operations are ISO9001 and ISO14001 certified, ensuring high-quality standards and timely delivery for our global markets in Europe, the Middle East, Asia, and Africa.

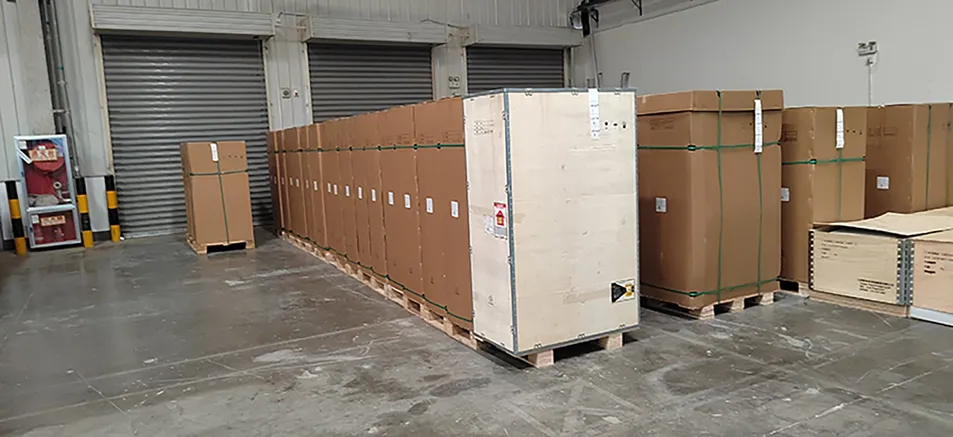

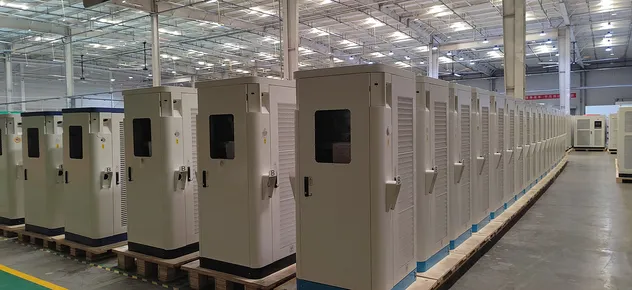

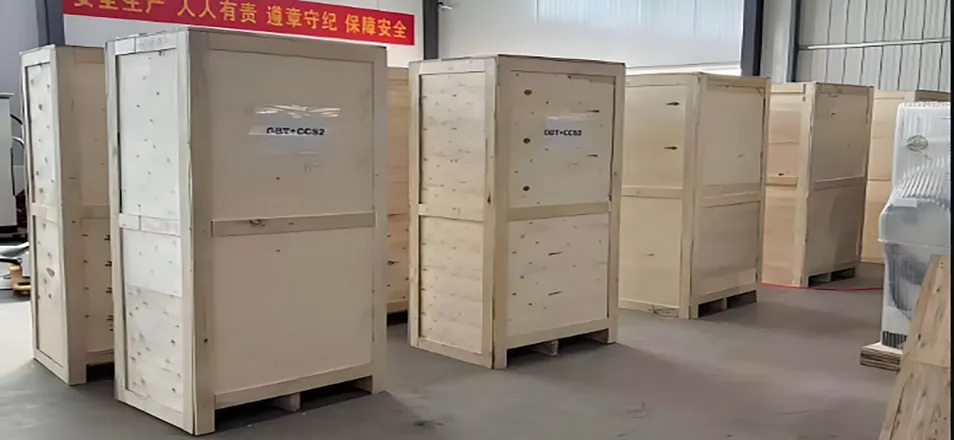

Packing & Delivery
Certifications
