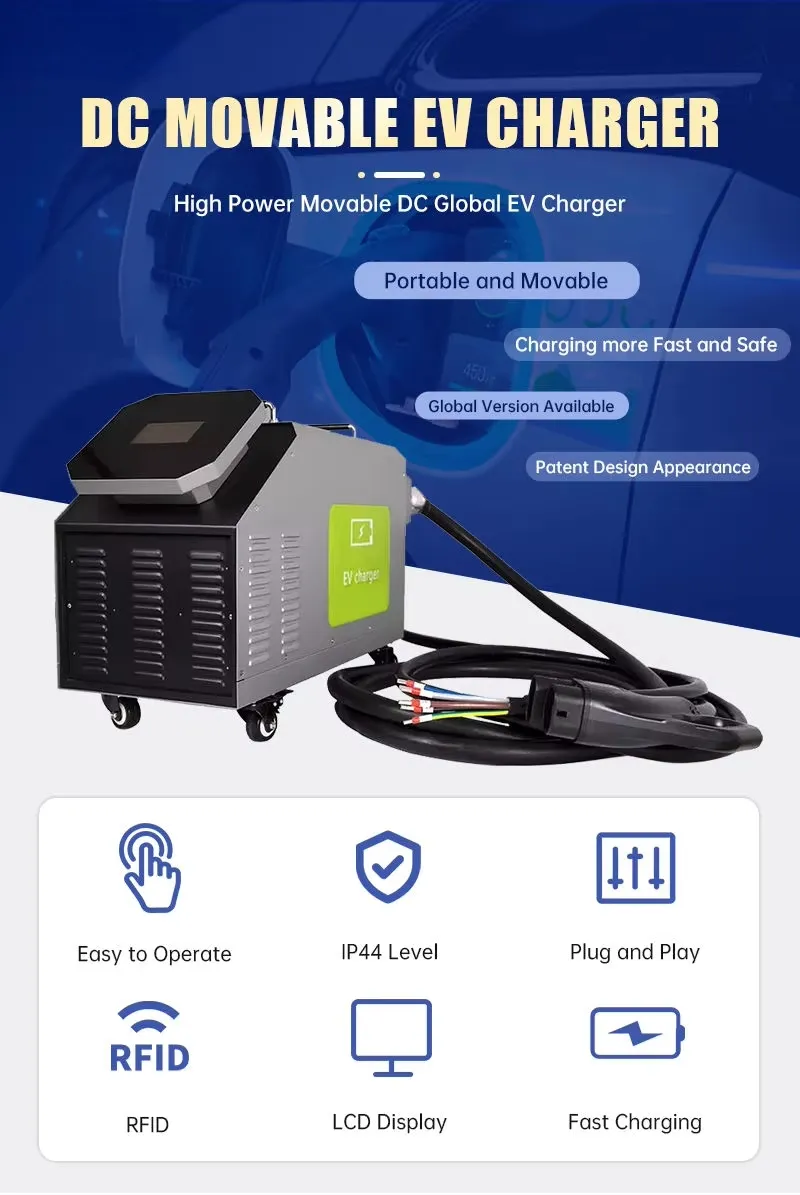

30kw Portable DC EV Charger GB/T Ocpp Mobile Fast Charging Station for Electric Car Emergency
Product Description
📋
Basic Specifications
Model NO.XC
LocationPortable
Charging InterfacesOne Pile with Multiple Charges
Start ModeCredit Card, Mobile Remote Operation
Output Power30kw
Input Voltage260V-475V
Output Current50A/100A
Output Voltage200-750V
IP LevelIP44

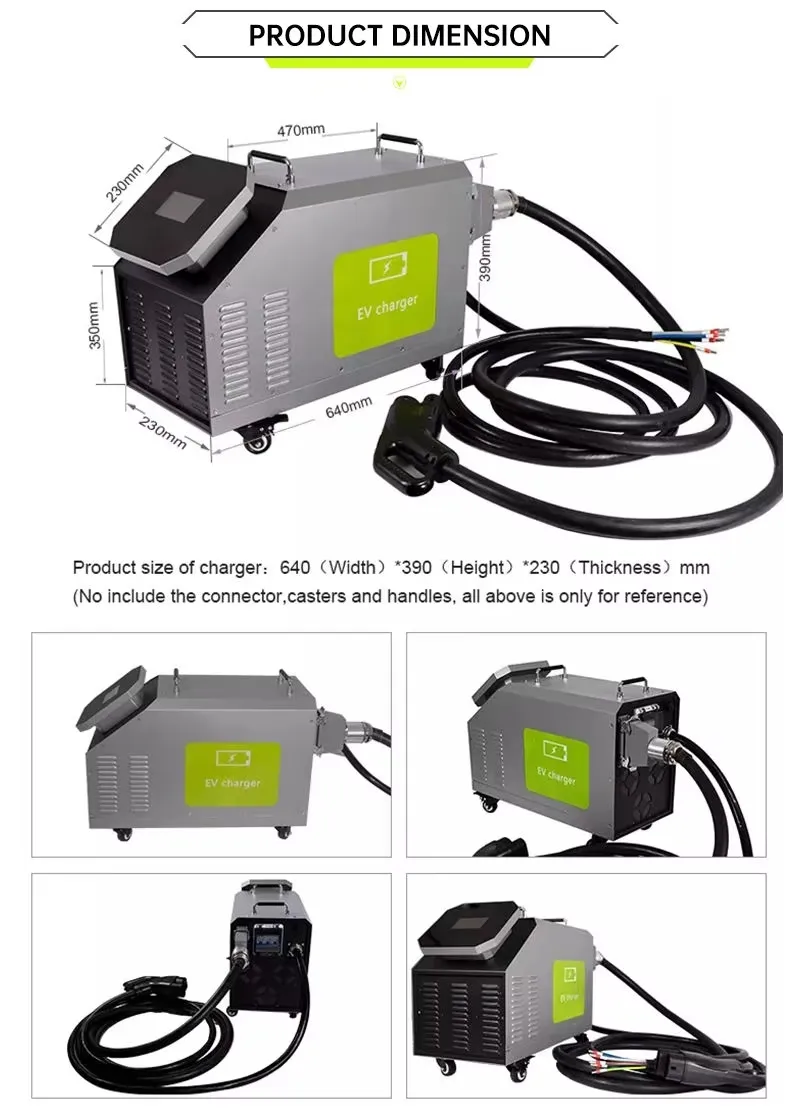

Package Size63.50cm * 29.50cm * 50.00cm
Gross Weight60.000kg
🚀
Product Introduction
This 30KW portable DC EV charging station is engineered for flexible on-the-go charging, compliant with GBT & OCPP standards and CE/ROHS certified. It features 50A/100A output current, 260-475V wide input voltage and optional CCS/CHAdeMO/Type connectors, fitting most electric vehicle models.
With IP44 protection and IK8 anti-collision grade, it resists dust, water and external impact, working stably in -40~85℃. Equipped with a 4.3-inch display, voice navigation and ≥95% charging efficiency, it's easy to operate and highly efficient. The 5M customizable cable adds convenience for diverse use scenarios.
📊

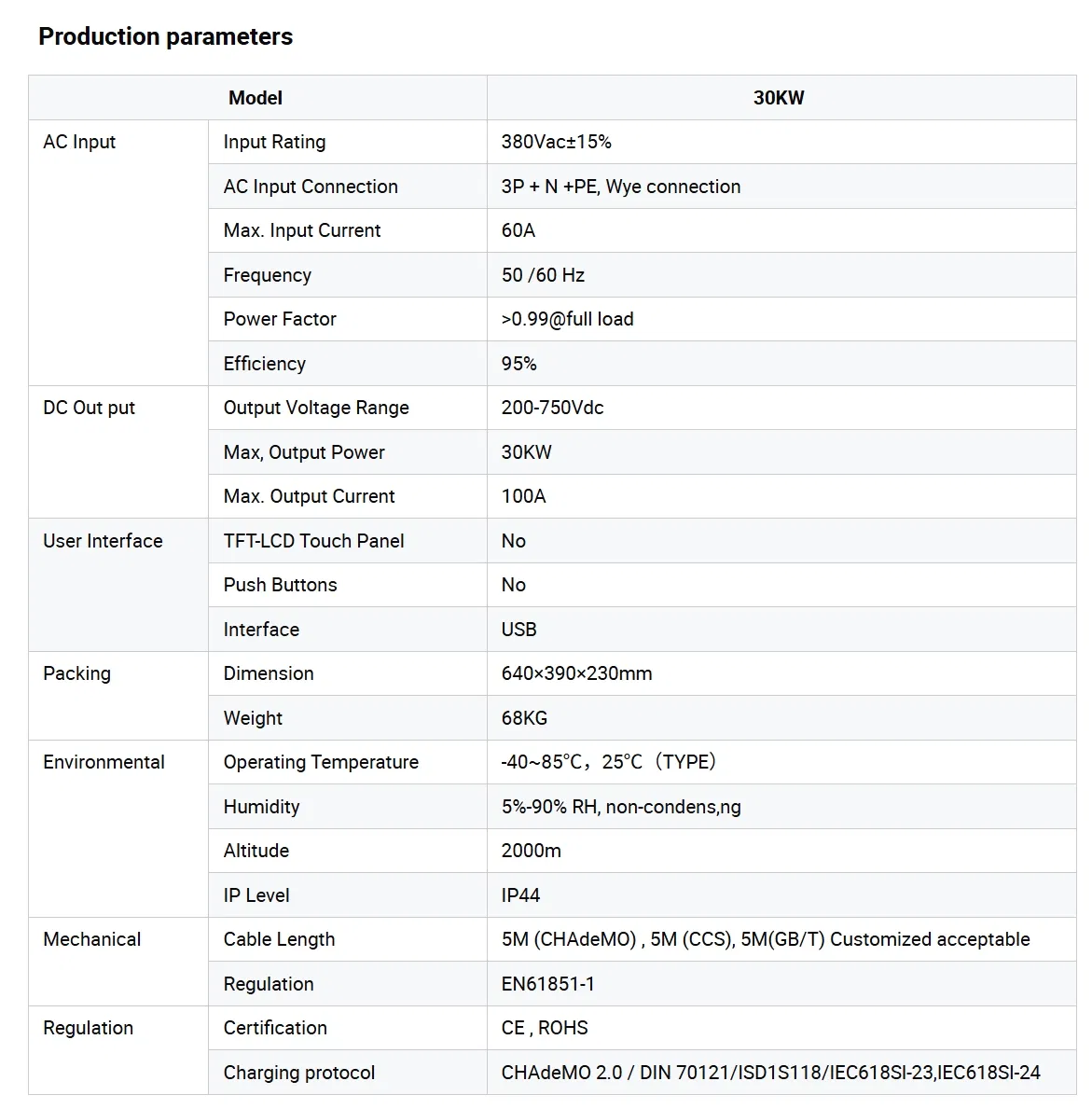

Technical Parameters

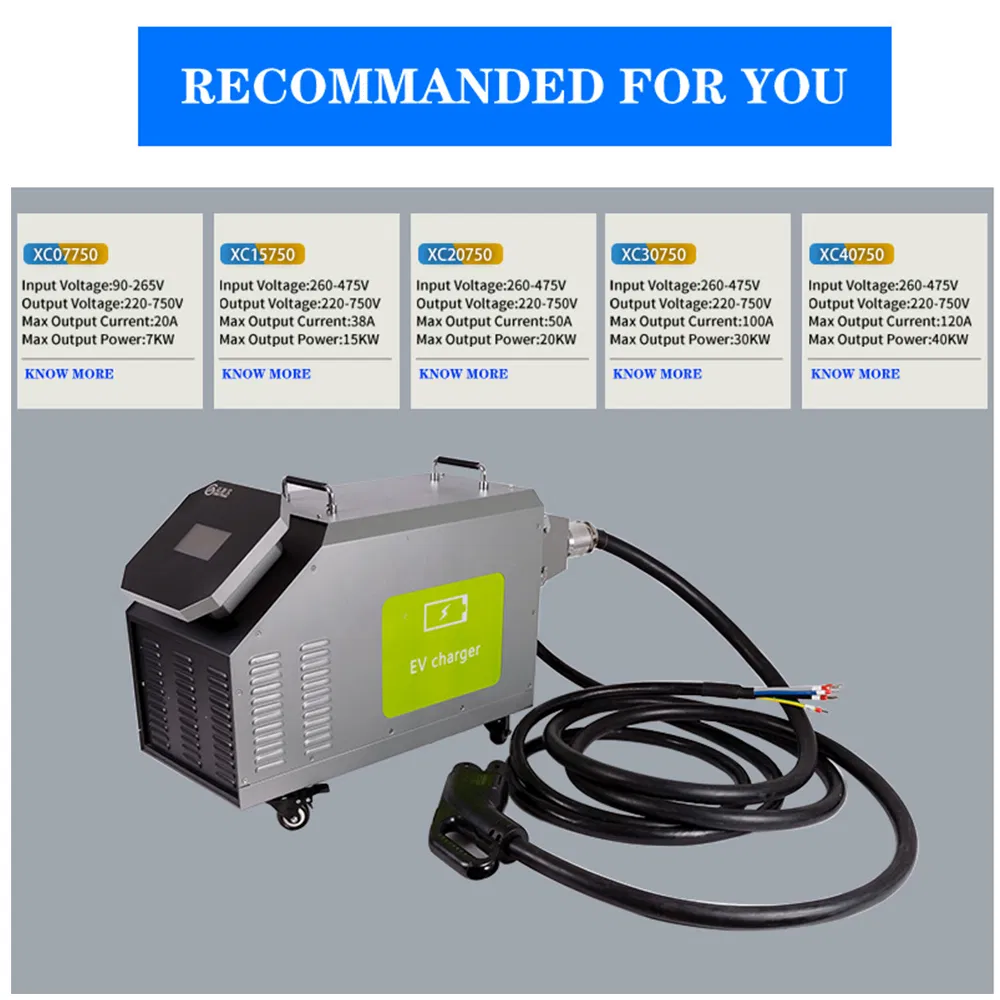

| Model | XC07750 | XC15750 | XC20750 | XC30750 | XC40750 |
|---|---|---|---|---|---|
| Output Power | 7KW | 15KW | 20KW | 30KW | 40KW |
| Input voltage | 90-265V | 260-475V | |||
| Input Connection | L+N+PE | 3P+N+PE | |||
| Output Voltage | 200-750V (200-1000V optional) | ||||
| Efficiency | 95% | ||||
| Protection | IP43 / IK8 | ||||
| Display | 4.3-inch TFT-LCD Touch Panel | ||||
📸

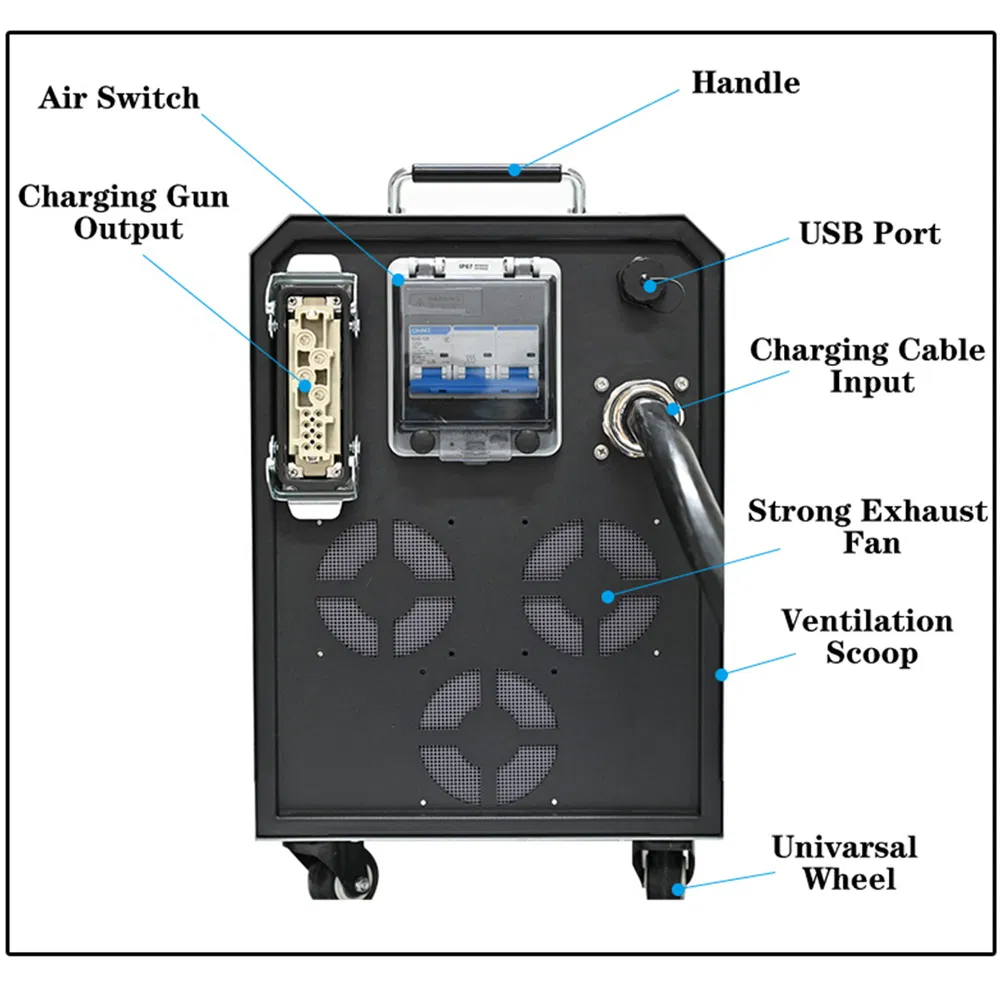

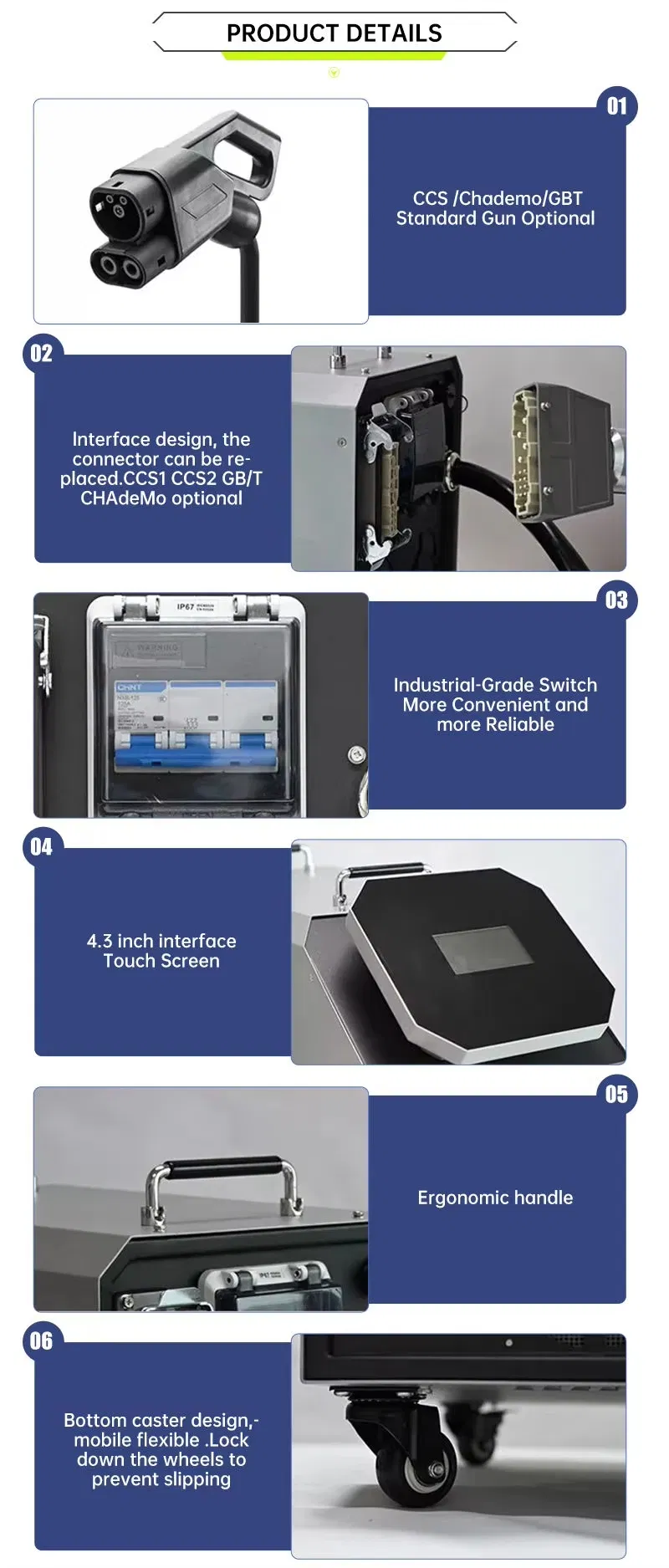

Product Details & Features
❓
Frequently Asked Questions
What is the charging efficiency of this 30kw DC charger?
This charger features a high efficiency of ≥95% at rated voltage, ensuring minimal energy loss during the charging process.
Is this portable charger suitable for outdoor use?
Yes, it is designed with an IP44 protection level and IK8 anti-collision grade, making it resistant to dust, water splashes, and physical impacts.
Which electric vehicle models are compatible with this station?

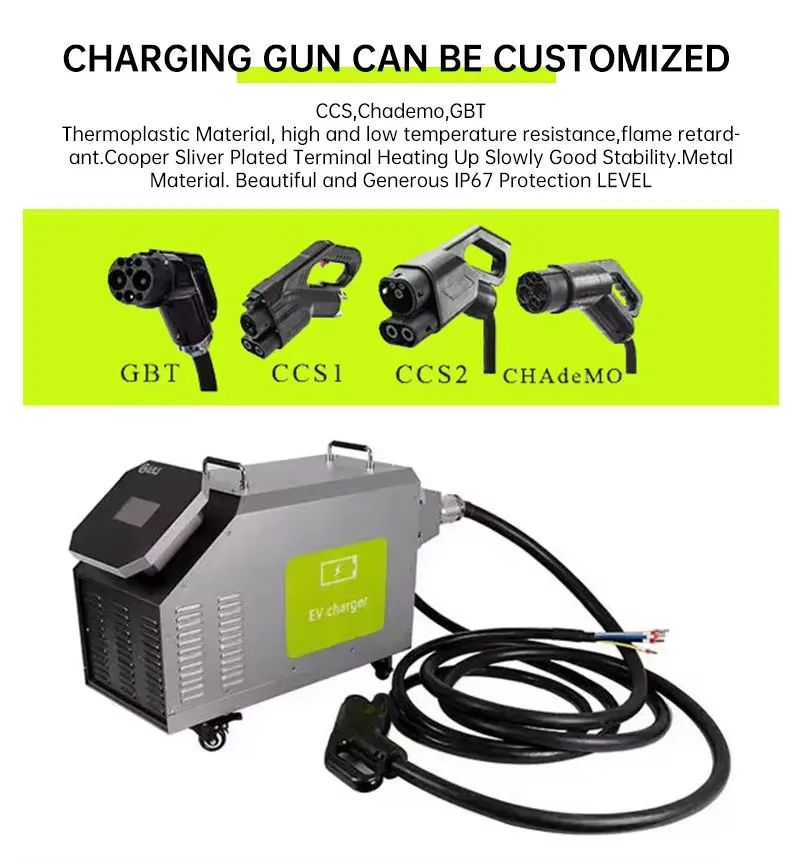

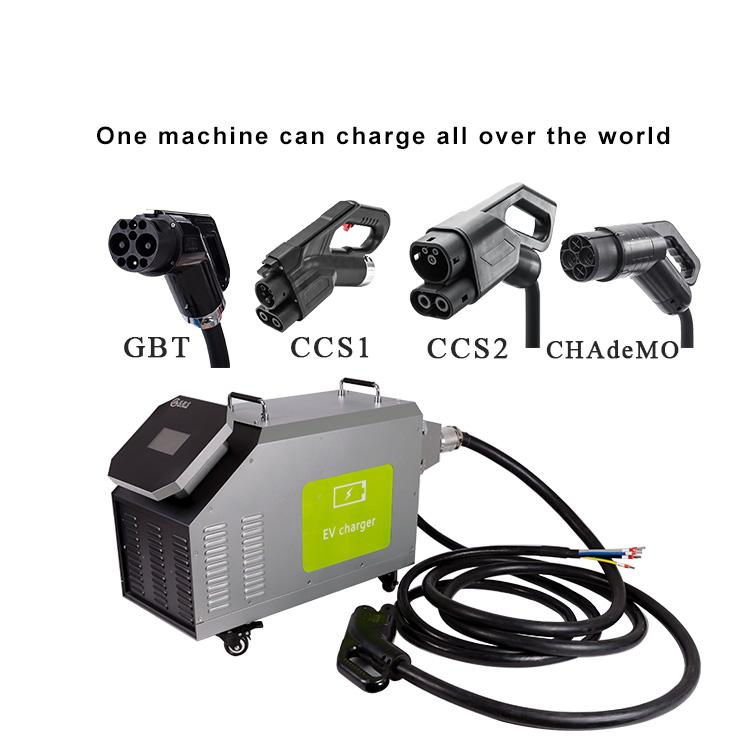

It supports GB/T, CCS, CHAdeMO, and Type connectors, making it compatible with most modern electric vehicles on the market.
Can the cable length be customized?
Standard input cable is 5M and gun cable is 3M, but customization is acceptable to meet your specific requirements.
What communication protocols does it support?
It supports multiple protocols including GBT27930, CHADEMO 2.0, DIN 70121, OCPP 1.6 (JSON), and ISO 15118.
What are the operating temperature limits?
The charger operates efficiently within a temperature range of -20°C to +50°C, suitable for various climatic conditions.
