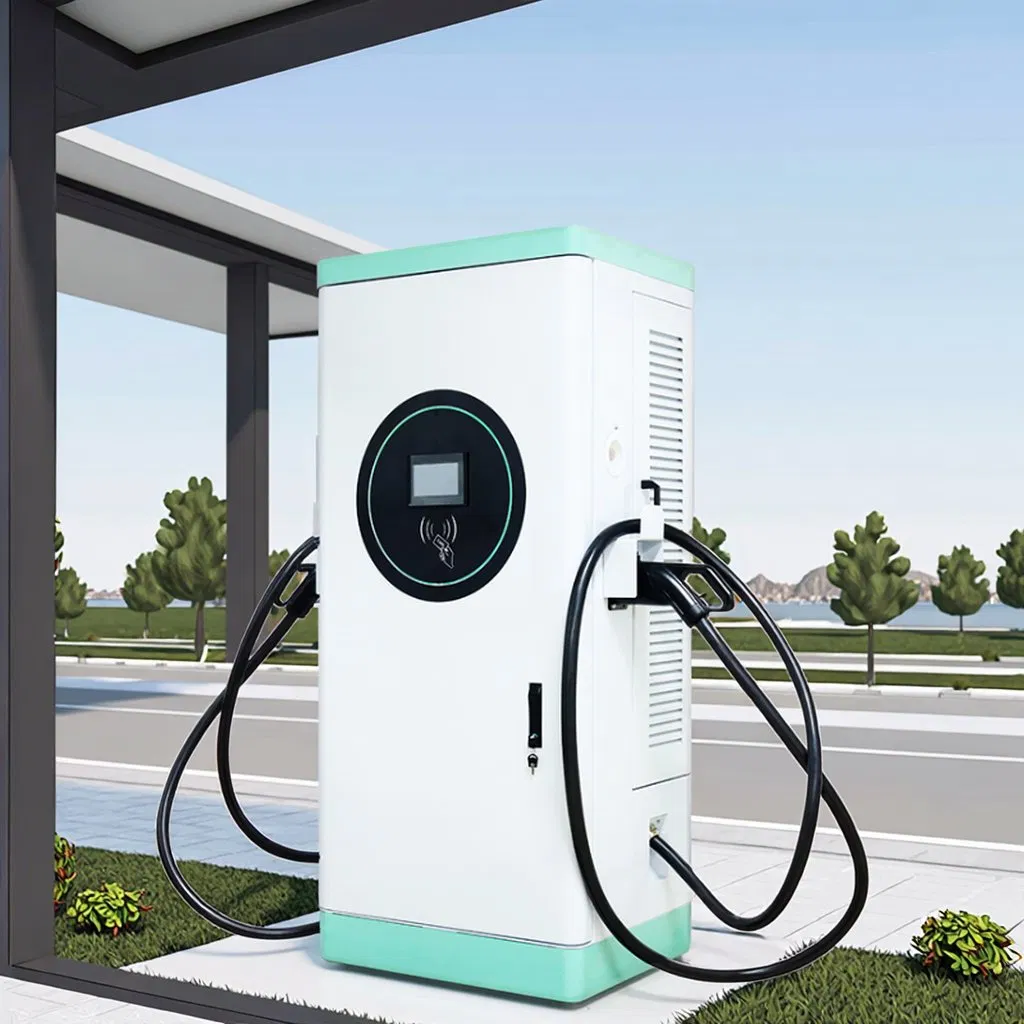

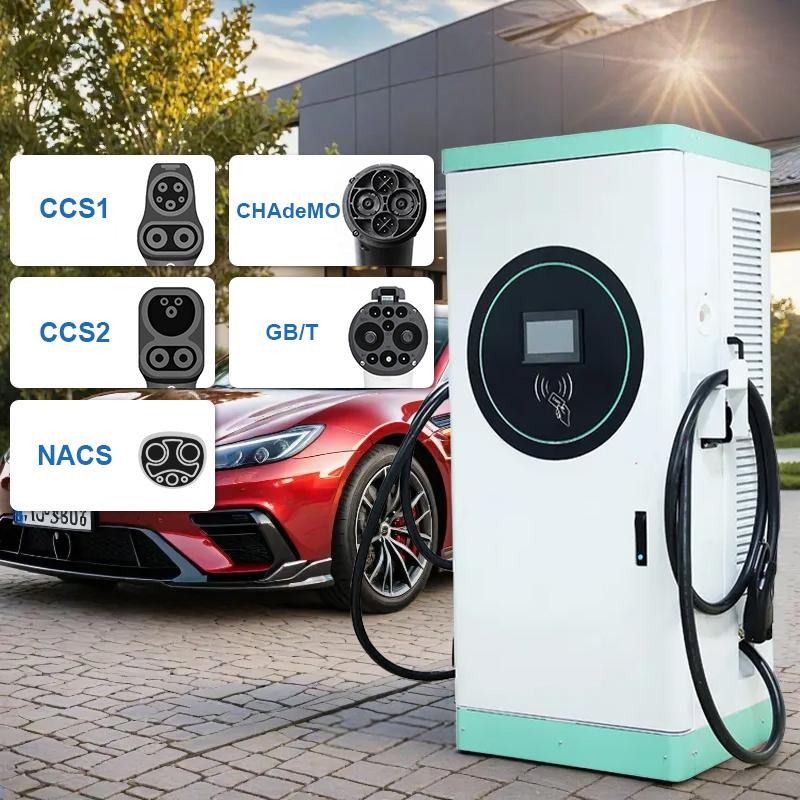

180kw Liquid Cooled Gun DC EV Charging Station Ocpp Gbt Commercial Floor Mounted Fast Charger
Product Description
Basic Specifications
| Model NO. | LC |
| Number of Charging Interfaces | One Pile with Multiple Charges |
| Input Voltage | AC380V +/- 20%(480V Optional) |
| Output Power | 180kw |
| Frequency | 45-65Hz |
| IP Grade | IP54 |
| Charging Mode | Ocpp / RFID / Password / Plug and Play |
| Package Size | 85.00cm * 58.50cm * 174.50cm |
| Gross Weight | 340.000kg |
Product Introduction

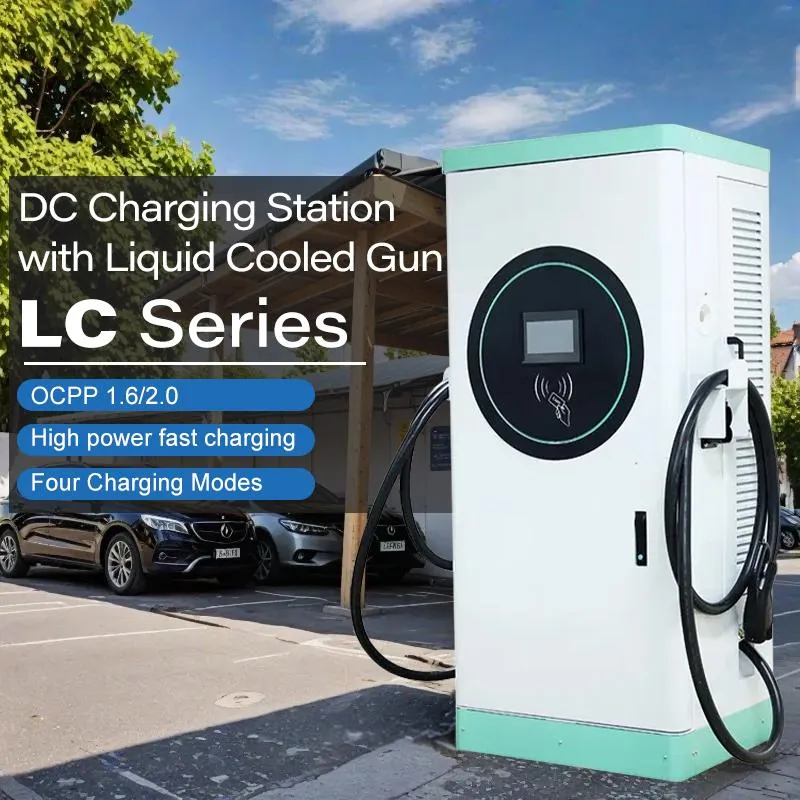

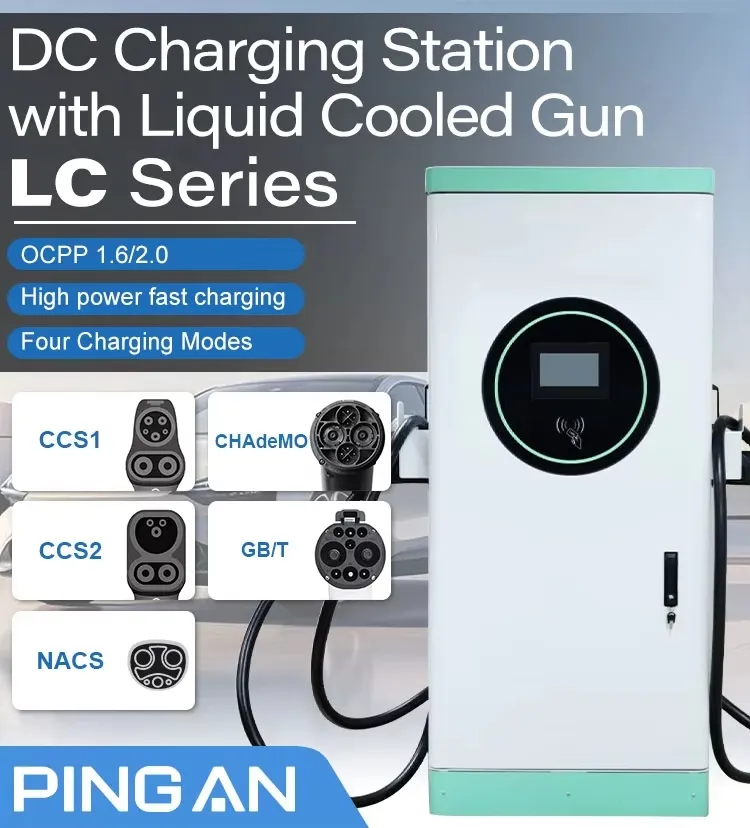

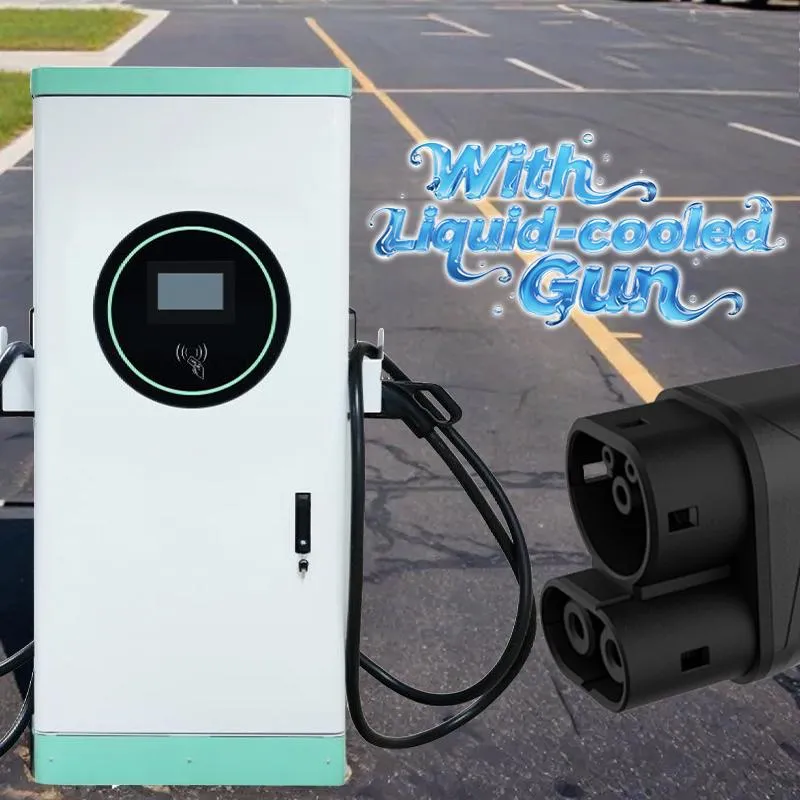

This 180KW floor mounted DC EV charging station is specially designed for commercial EV charging scenarios, equipped with a high-performance liquid cooled gun and compliant with GBT interface standard. It supports flexible AC380V input (480V optional) and is available in single or double charging gun configurations.

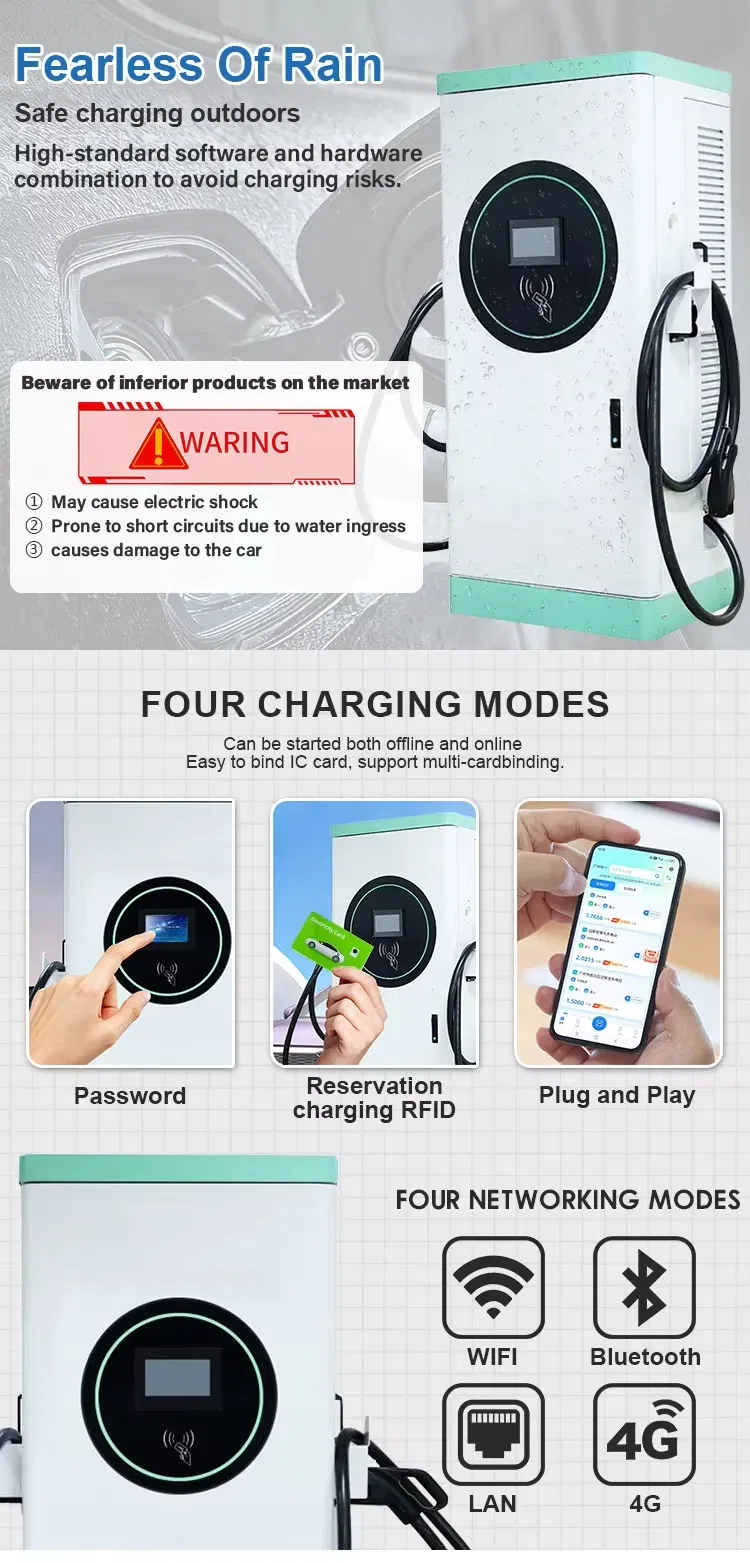

It features multiple intelligent charging modes including OCPP, RFID, password verification and plug-and-play, with ultra-fast charging efficiency that can provide 400KM driving range for electric vehicles in just 10 minutes.

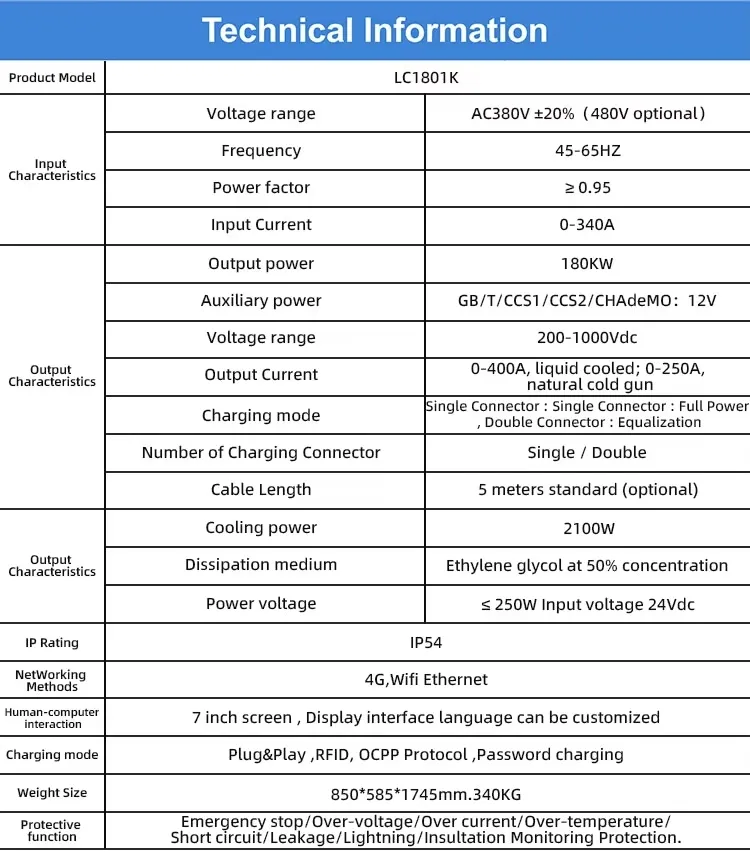

Technical Parameters
| Input | Voltage range | AC380V ± 20% (480V optional) |
| Frequency | 45 - 60Hz | |
| Power factor | ≥ 0.95 | |
| Input Current | 0 - 340A | |
| Output | Output power | 180KW |
| Output voltage | 200 - 1000V | |
| Output Current | 0 - 400A (Liquid Cooled) | |
| Connector Type | Single / Double | |
| Cable Length | 5 meters standard (Customizable) | |

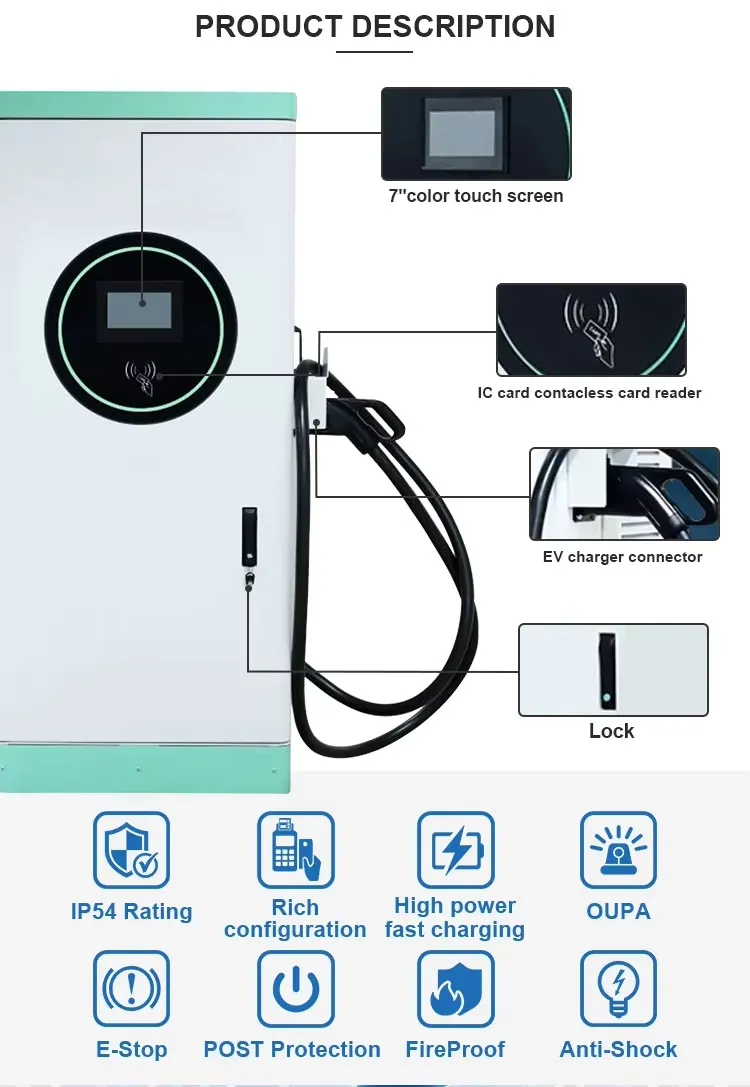

| Interface | Display | 7 inch screen, customized language |

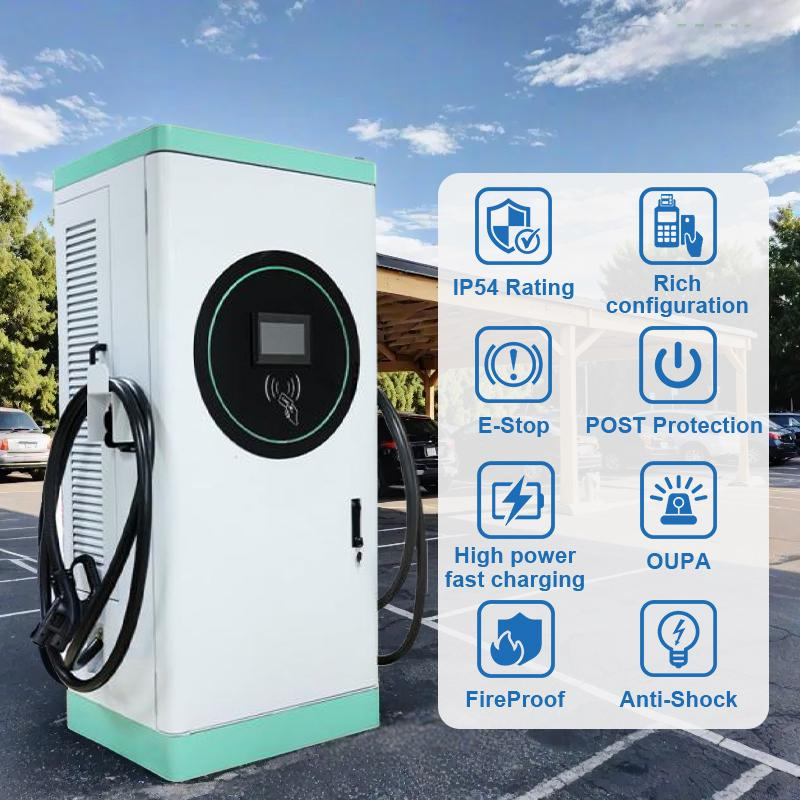

| Protection | Safety Functions | Emergency stop/Over-voltage/Over current/Over-temperature/Short circuit/Leakage/Lightning/Insulation Monitoring |
Product Details
Main Product & Capability
Our focus is on high-tech charging, discharging, and energy storage solutions for electric vehicles. Product range includes AC EV chargers, DC EV chargers, adapters, cables, V2L solutions, and mainboard hardware/software integration.

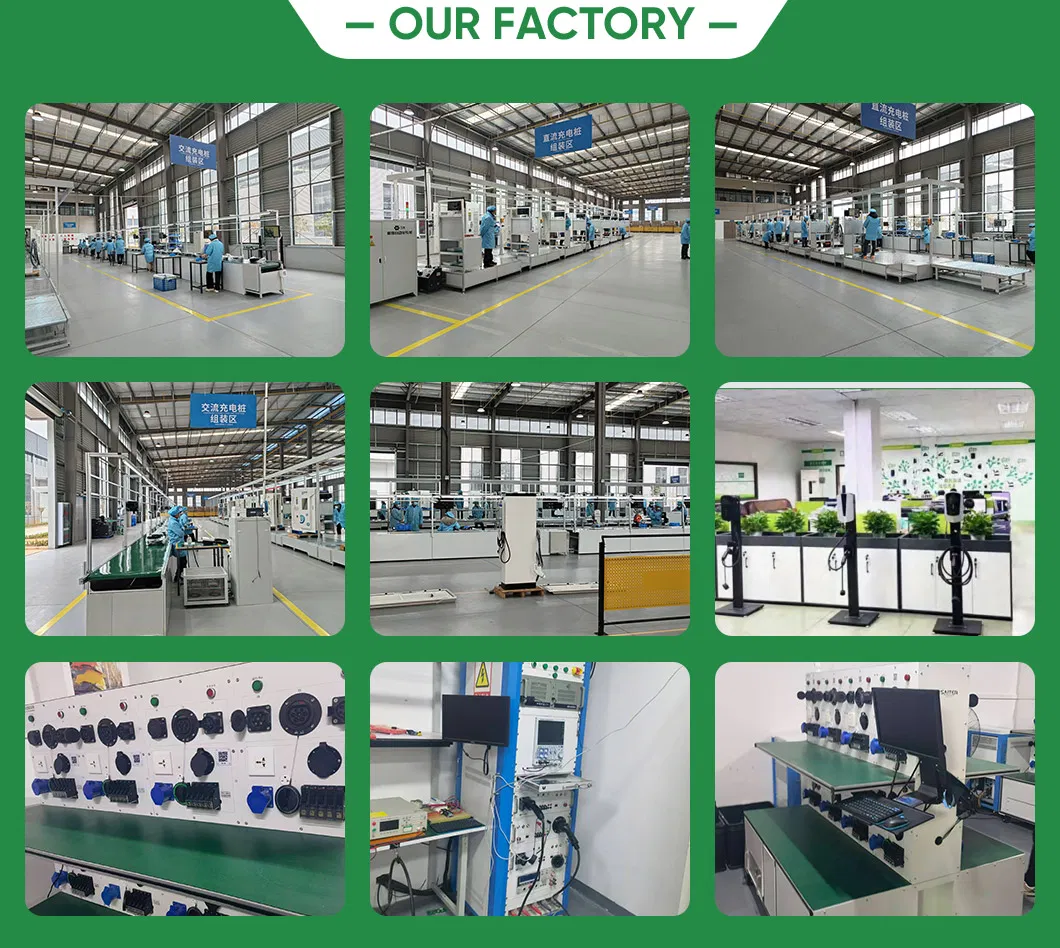

We operate modern production workshops ensuring stable mass production and reliable quality control. All products comply with domestic MA and CNAS certifications, and have obtained EU CE, RoHS, UKCA, North American FCC, and UL certifications.
