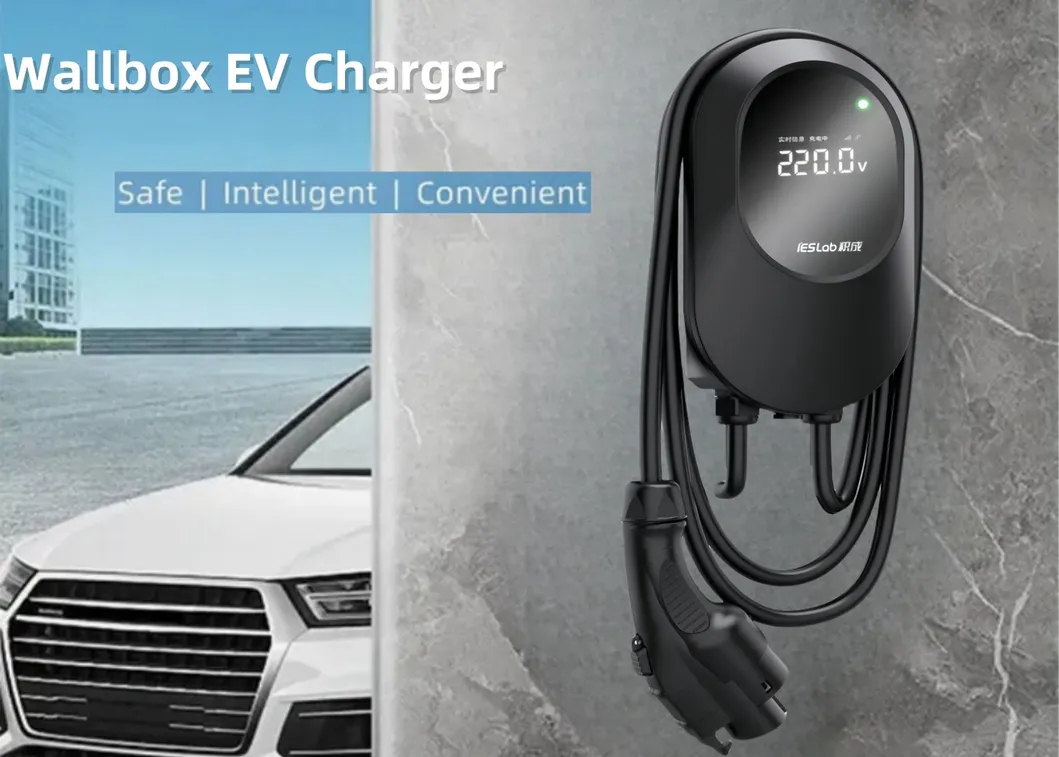

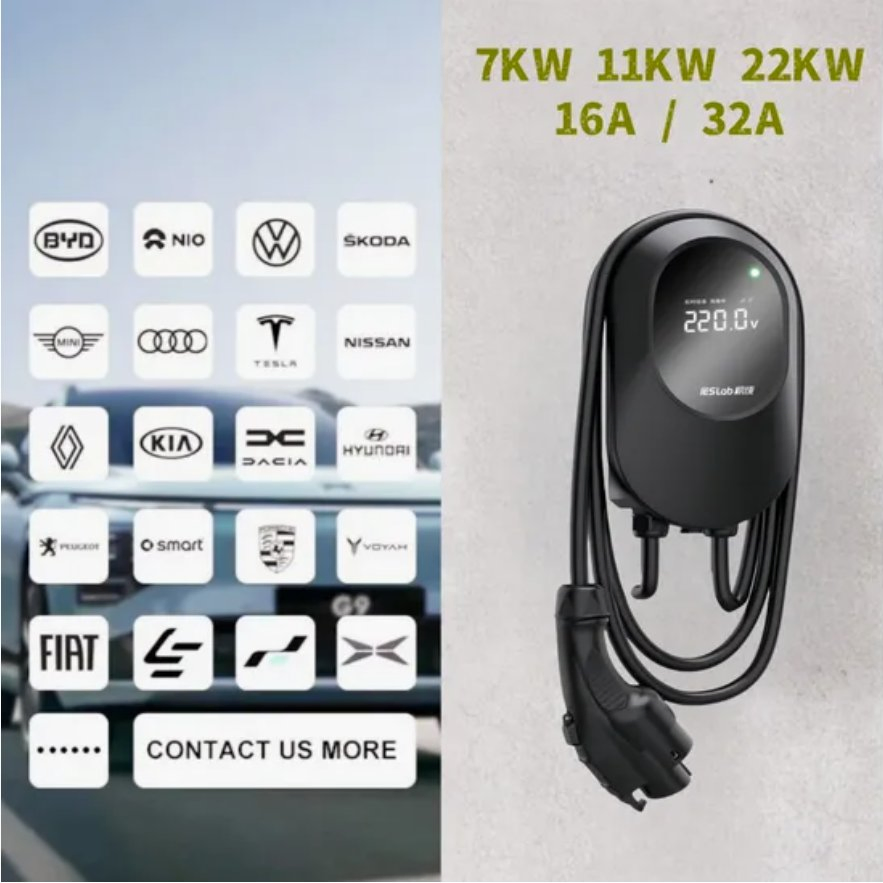

Wholesale 7/11/21kw Electric Car Charge Point AC EV Charger with Ocpp1.6j, WiFi, Ethernet/4G
Product Description
📋
Basic Information
Model NO.
7/11/22kw AC Charger
Charging Interfaces
One Pile with One Charge
Location
Indoor and Outdoor
Installation
Wall Mounted
Charge Method
Normal Charge
After-Sales Service
2 Years Warranty
Certification
CE, TUV, Ukca, RoHS, ISO
Net Weight
5kg
Rated Output Current
7kw:16A; 11/22kw:32A
Standard Compliance
IEC 61851-1, IEC 61851-21-2
Charging Connector
5m Tethered IEC Type 2 Lead
Charging Mode
Mode 3
Operating Temperature
-30°C to 50°C
Protection Rating
IP54
User Interface
Digital Screen
Data Connection

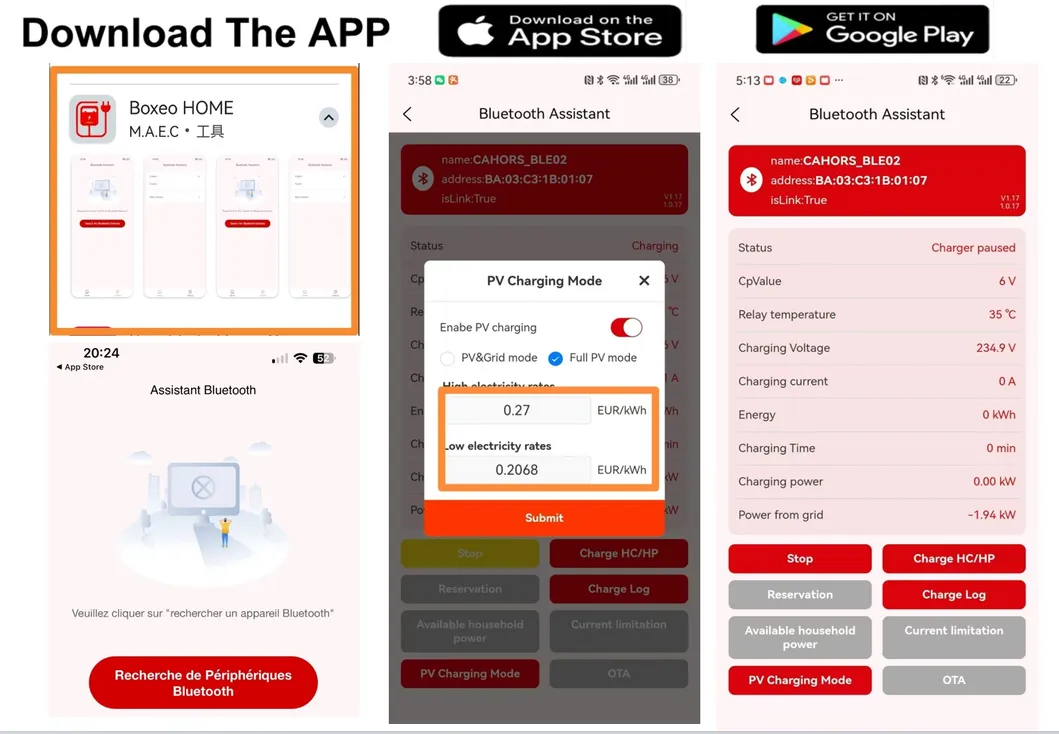

OCPP / Home APP
Network Gateway
Bluetooth / WiFi / 4G
Housing Material
PC with Anti-UV Treatment
Production Capacity
5000/Month
📦
Packaging & Delivery
Package Size
48.00cm * 32.00cm * 21.00cm
Package Gross Weight
5.000kg
Transport Package
Carton
✨
Product Description
📊
Product Parameters
| Parameter | Specification |
|---|---|
| Product Name | Wall-Mounted EU Standard AC Charger |
| Dimensions | 87mm x 190mm x 330mm |
| Housing Material | PC with Anti-UV Treatment |
| Rated Input Voltage | 7kw: 230Vac ± 10%; 11/22kw: 400Vac ± 10% |
| Rated Output Current | 7kW/32A; 11kW/16A; 22kW/32A |
| Standard Compliance | IEC 61851-1, IEC 61851-21-2 |

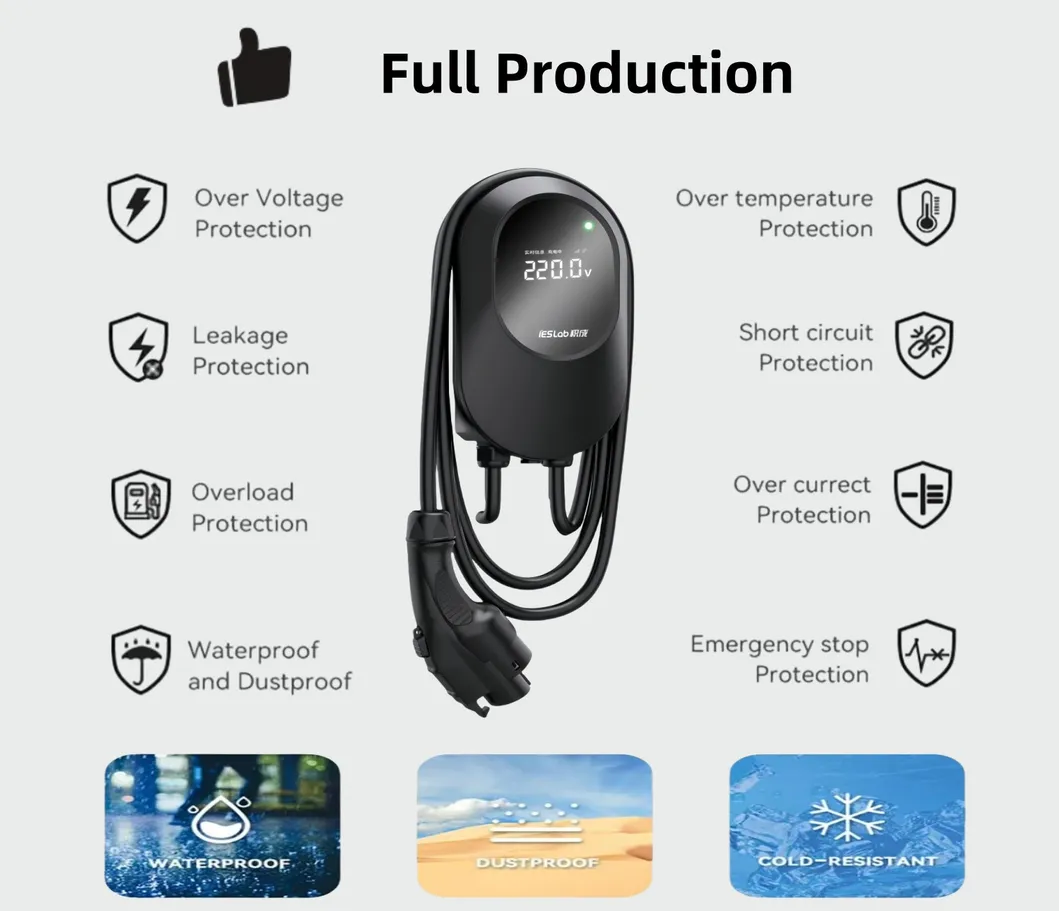

| Electrical Protection | UVP, OVP, RCD (DC 6mA), SPD, Ground Fault, OCP, OTP |
| Energy Meter | On-board Device +/- 1% Accuracy |
| Connectivity | LAN Ethernet / WiFi / 4G |
| Protection Rating | IP54 |
| Communication Protocol | OCPP1.6j |
⚡

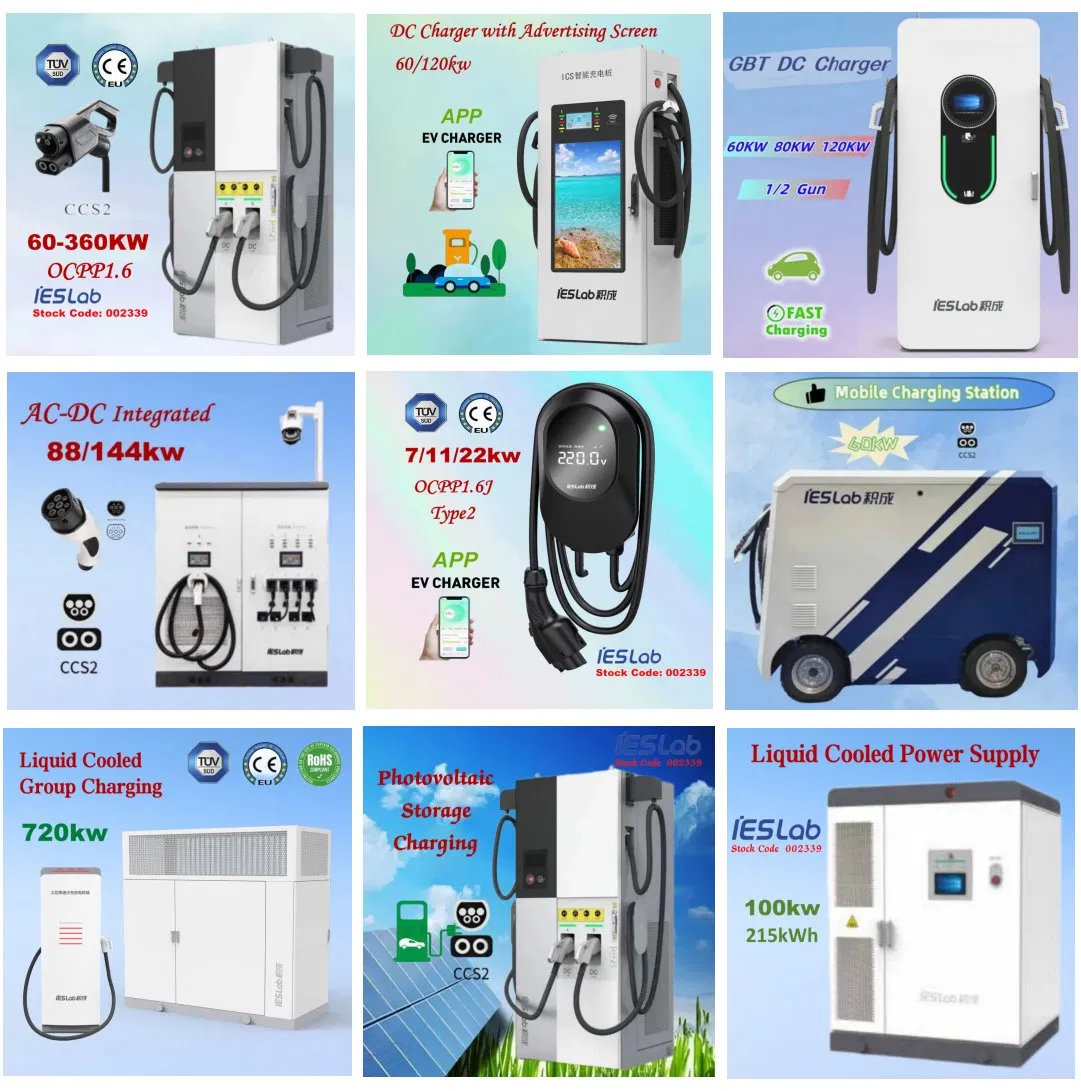

Main Products
🏭

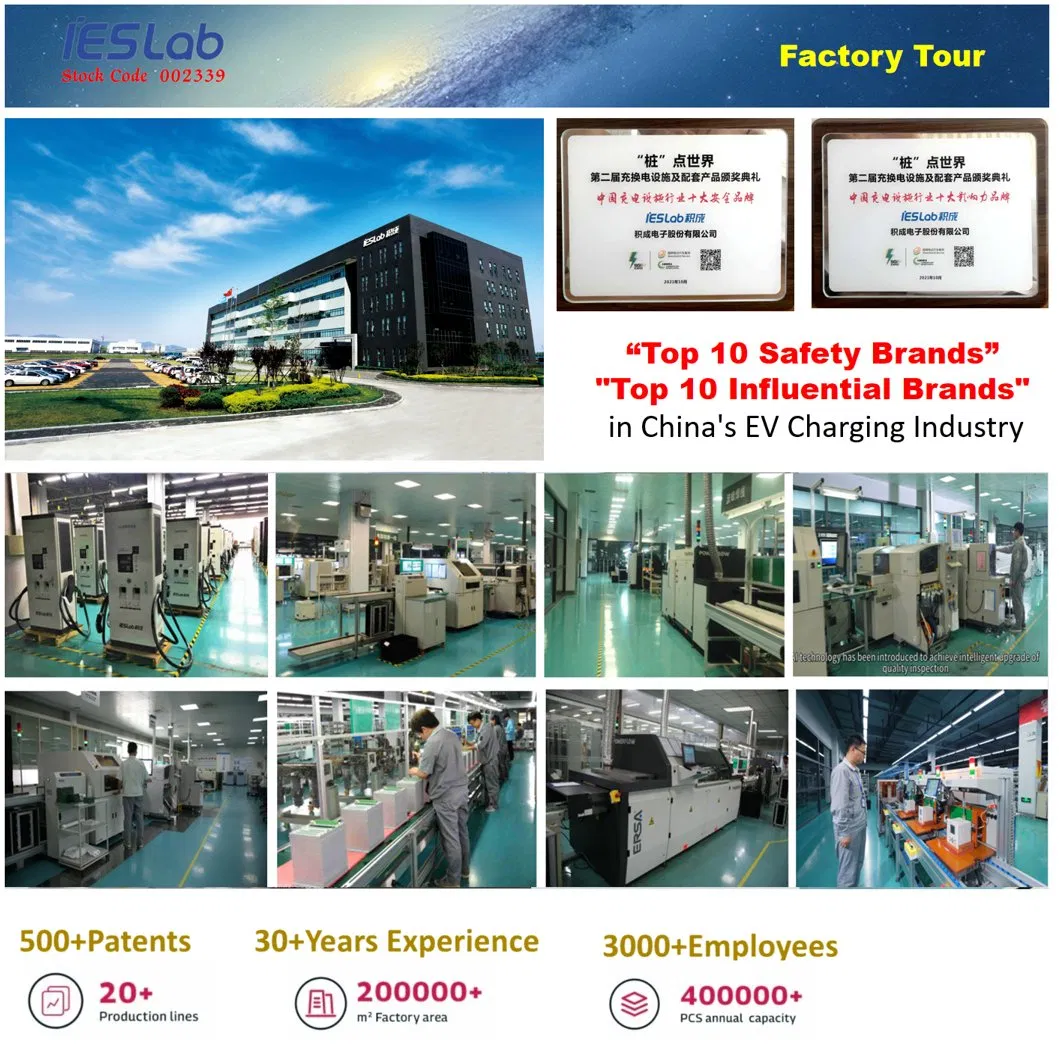

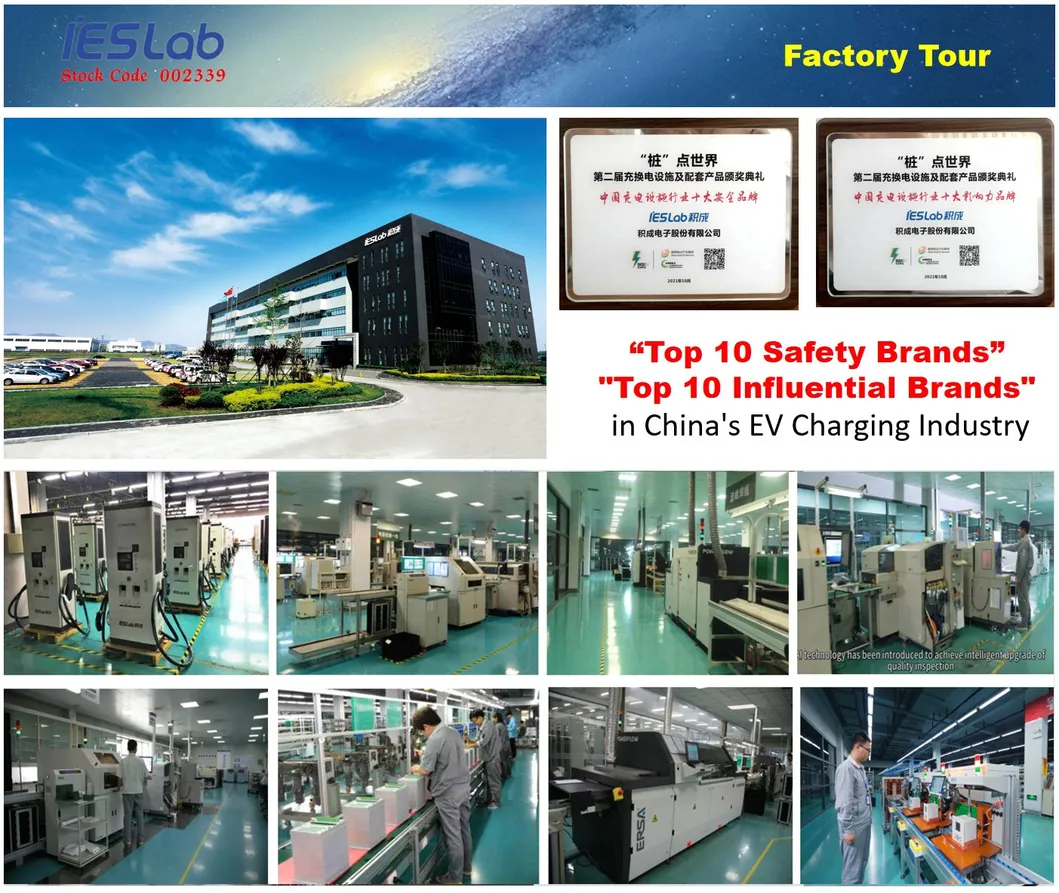

Factory Tour & Events
🏗️

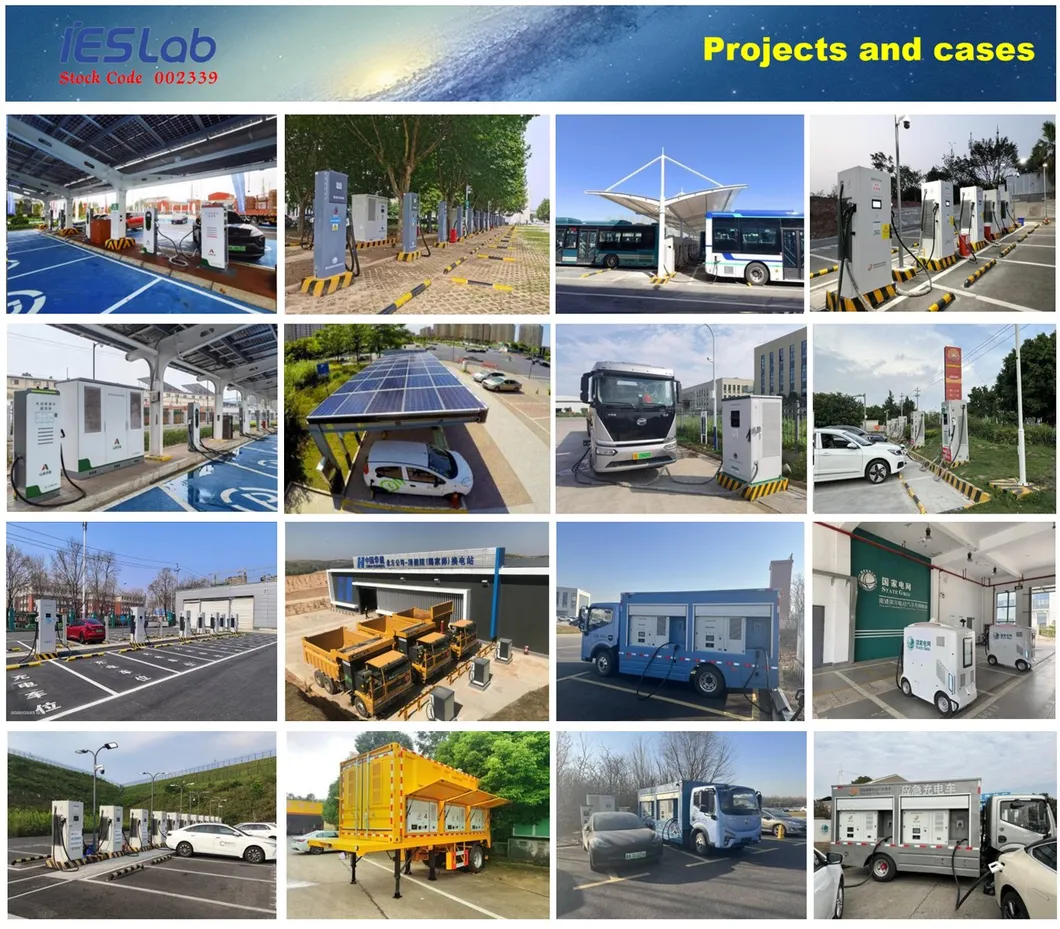

Projects and Cases
📜
Certifications
❓
Frequently Asked Questions
Q1: Can I visit your production facility?
A: You are highly welcomed to visit our factory at any time to see our production process and quality control measures.
Q2: Are you a manufacturer or a trading company?
A: We are a professional manufacturer with 30 years of R&D and production experience in the electrical industry.
Q3: Do you test all of your chargers before shipping?
A: Yes, all major components are tested before assembly, and each individual charger undergoes full functional testing before being shipped.
Q4: What is the warranty policy?
A: We provide a two-year warranty. During this period, if there are any product quality issues, we provide technical support and replacement parts.
Q5: Can you produce according to specific samples?
A: Yes, we can produce based on your samples or technical drawings. We have the capability to build necessary molds and fixtures for customization.
Q6: What is your monthly production capacity?
A: Our current production capacity is approximately 5,000 units per month, ensuring stable supply for large-scale projects.
