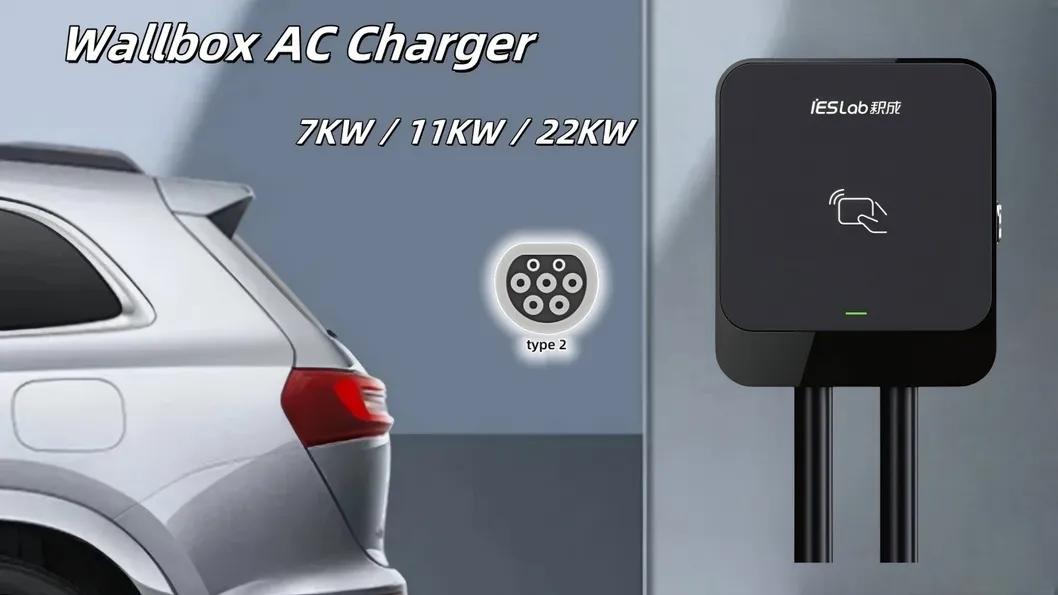

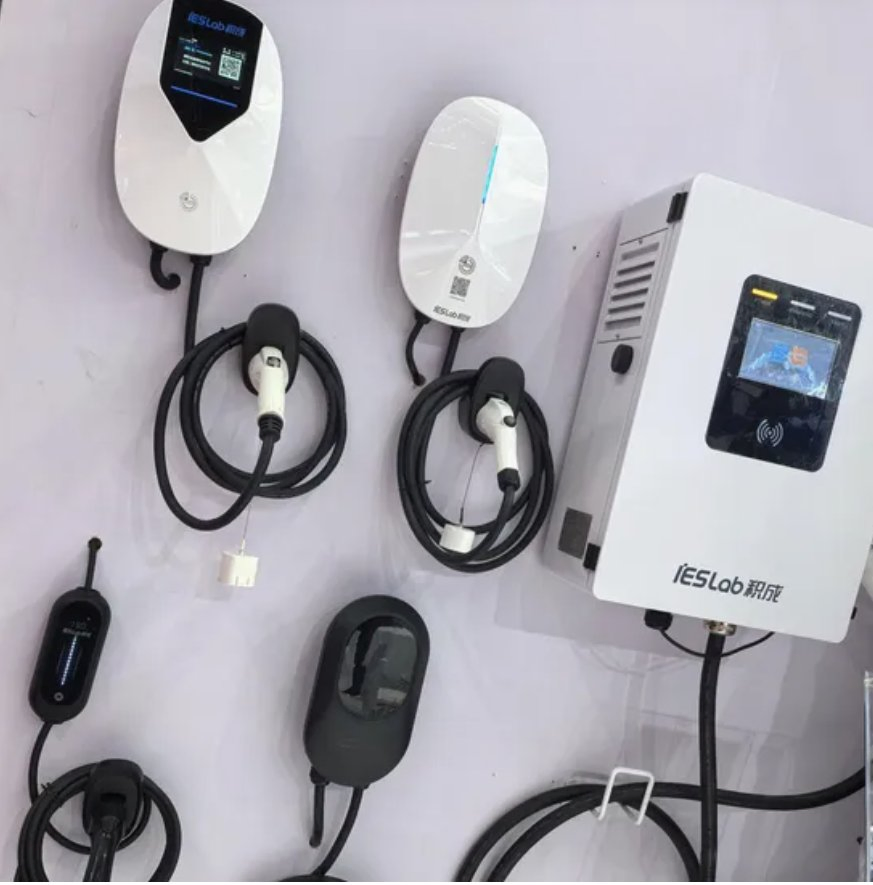

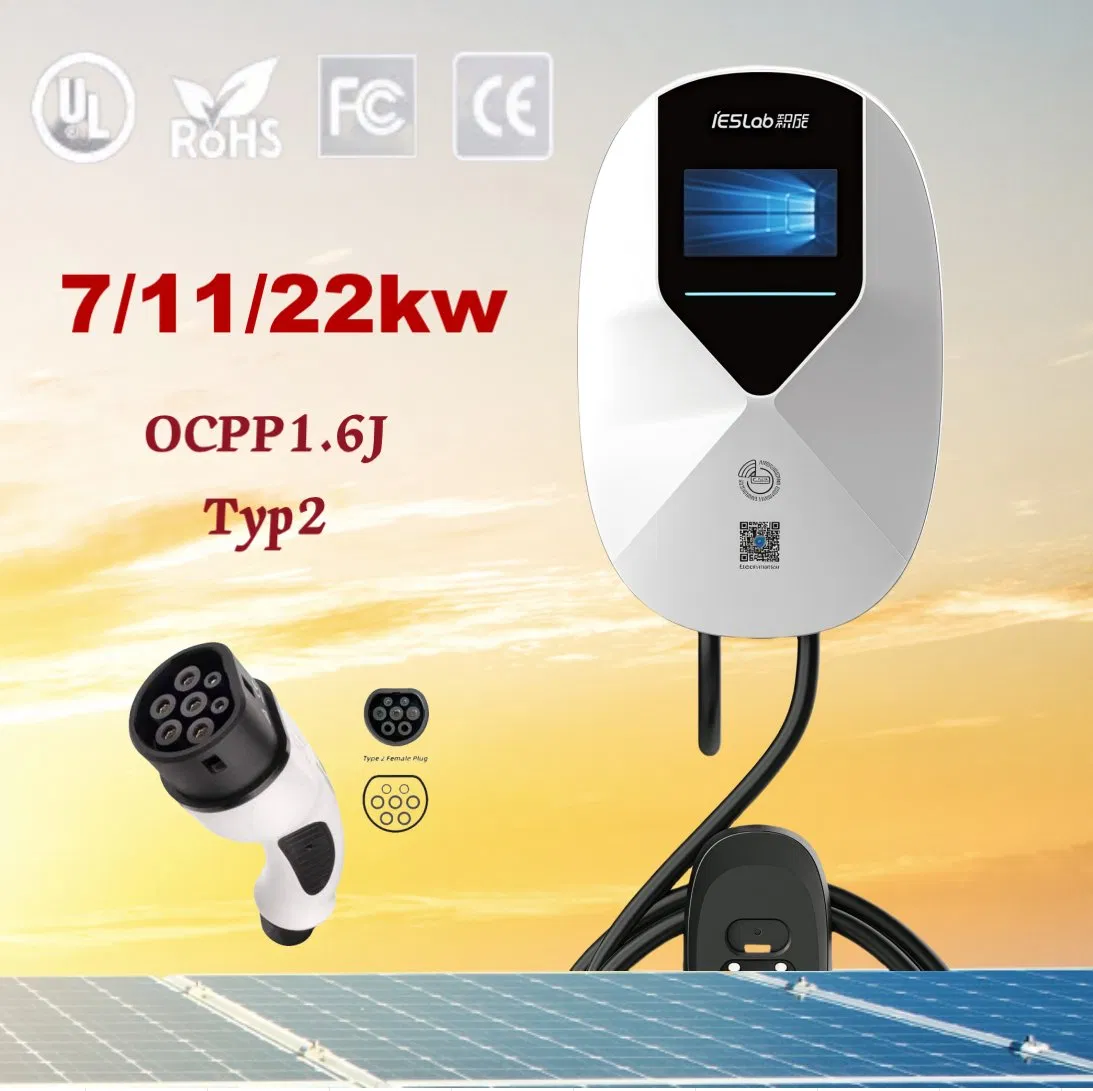

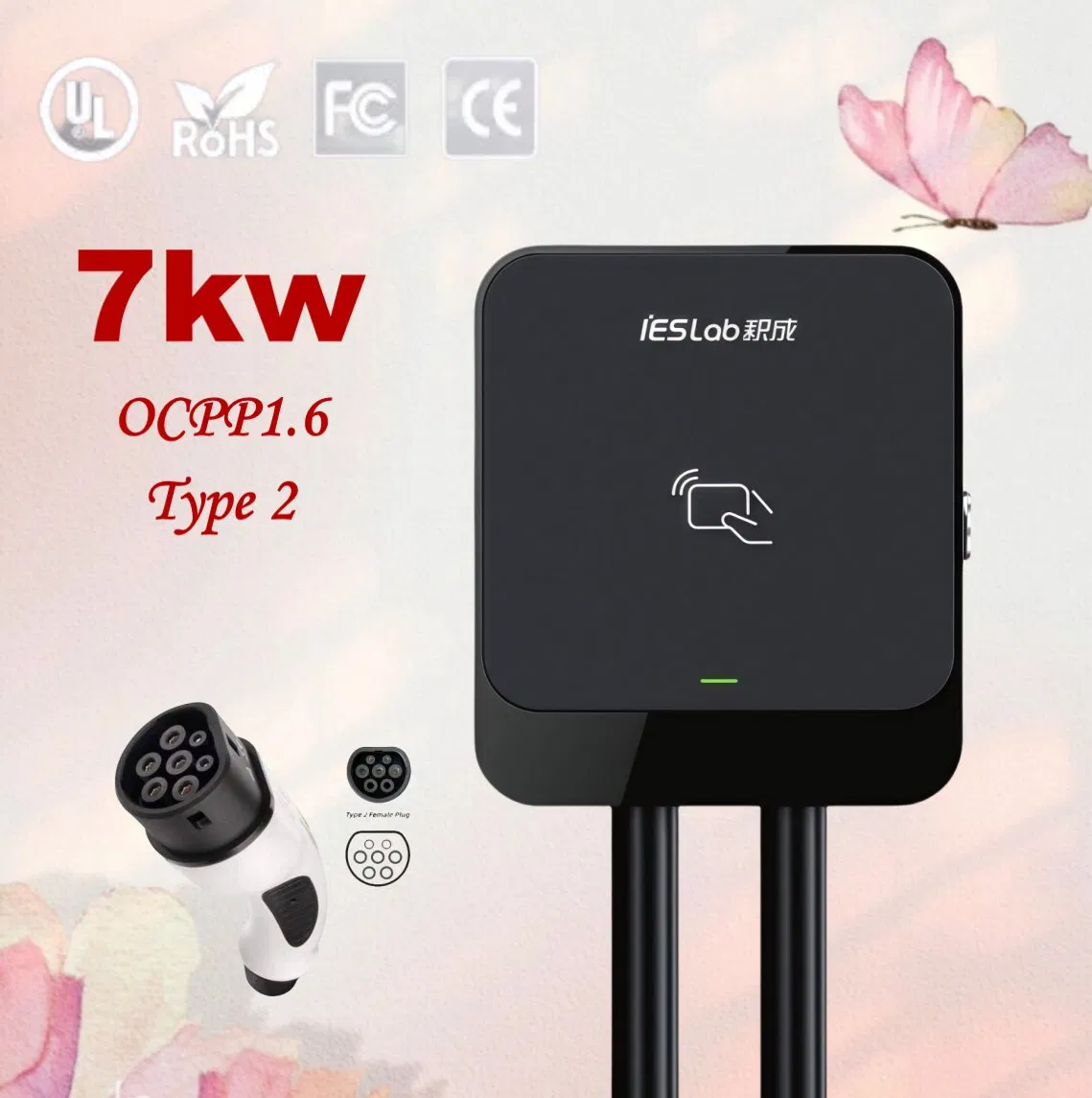

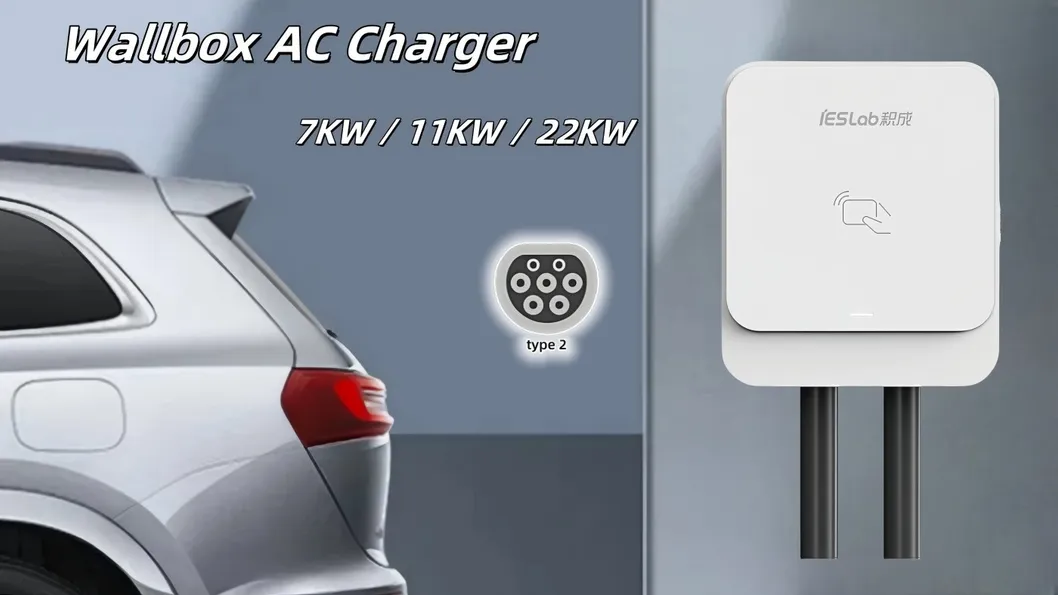

7kw Wall Mounted Type 2 Ocpp CE 32A 230V Electric Vehicle Car Battery Fast EV AC Charger Charging Points
Product Description
📋
Basic Information
Model NO.
7/11/22kw AC Charger
Charging Interfaces
One Pile with One Charge
Location
Indoor and Outdoor
Installation
Wall Mounted
Charge Method
Normal Charge
After-Sales Service
2 Years Warranty
Certification
CE, TUV, Ukca, RoHS, ISO
Net Weight
5kg
Rated Output Current
7kw:16A; 11/22kw:32A
Standard Compliance
IEC 61851-1, IEC 61851-21-2
Charging Connector
5m Tethered IEC Type 2 Lead
Charging Mode
Mode 3
Protection Rating
IP54
Housing Material
PC with Anti-UV Treatment
📦
Packaging & Delivery
Package Size
41.00cm * 32.00cm * 21.00cm
Package Gross Weight
4.800kg
⚡
Product Description
| Product Parameters | |
|---|---|
| Product name | Wall-Mounted EU Standard AC Charger |
| Overall Dimensions(LWH) | 87mm x 190mm x330mm |
| Net Weight | 4.8kg |
| Housing Material | PC with Anti-UV Treatment |
| Rated Input Voltage | 7kw:230Vac ± 10%; 11/22kw:400Vac ± 10% |
| Rated Output Current | 7kw:230Vac ± 10%; 11kW/16A; 22kW/32A |
| Standard Compliance | IEC 61851-1, IEC 61851-21-2 |
| Charging Mode | Mode 3 |
| Charging Connector | 5 Meter Tethered IEC Type 2 Lead |

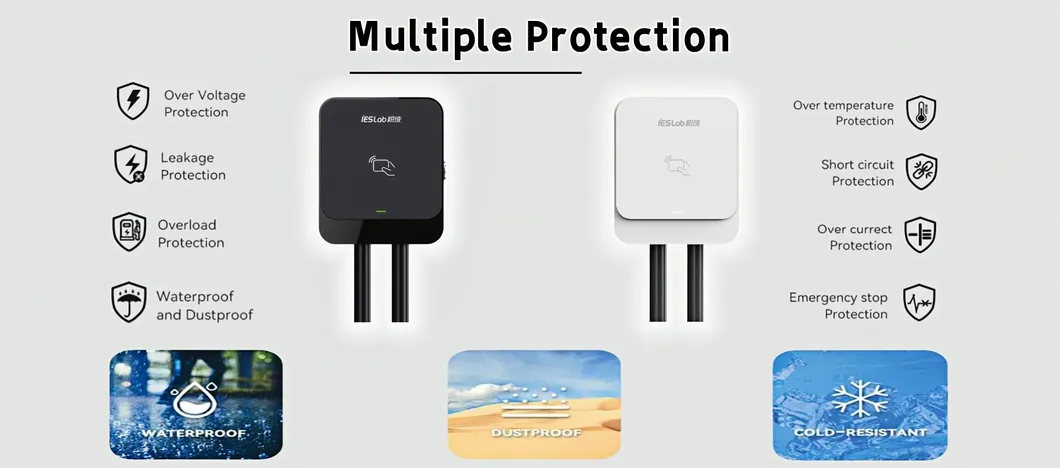

| Electrical Protection | UVP, OVP, RCD (DC 6mA), SPD, Ground Fault Protection OCP, OTP, Control Pilot Fault Protection |
| Energy Meter | On-board Device +/- 1% Accuracy |
| User Interface | Digital Screen |
| Connectivity | LAN Ethernet |
| Operating Temperature | -30°C~50°C |
| Protection rating | IP54 |
| Communication Protocol | OCPP1.6j |
🔋
Main Products
📜
Certifications
🏭

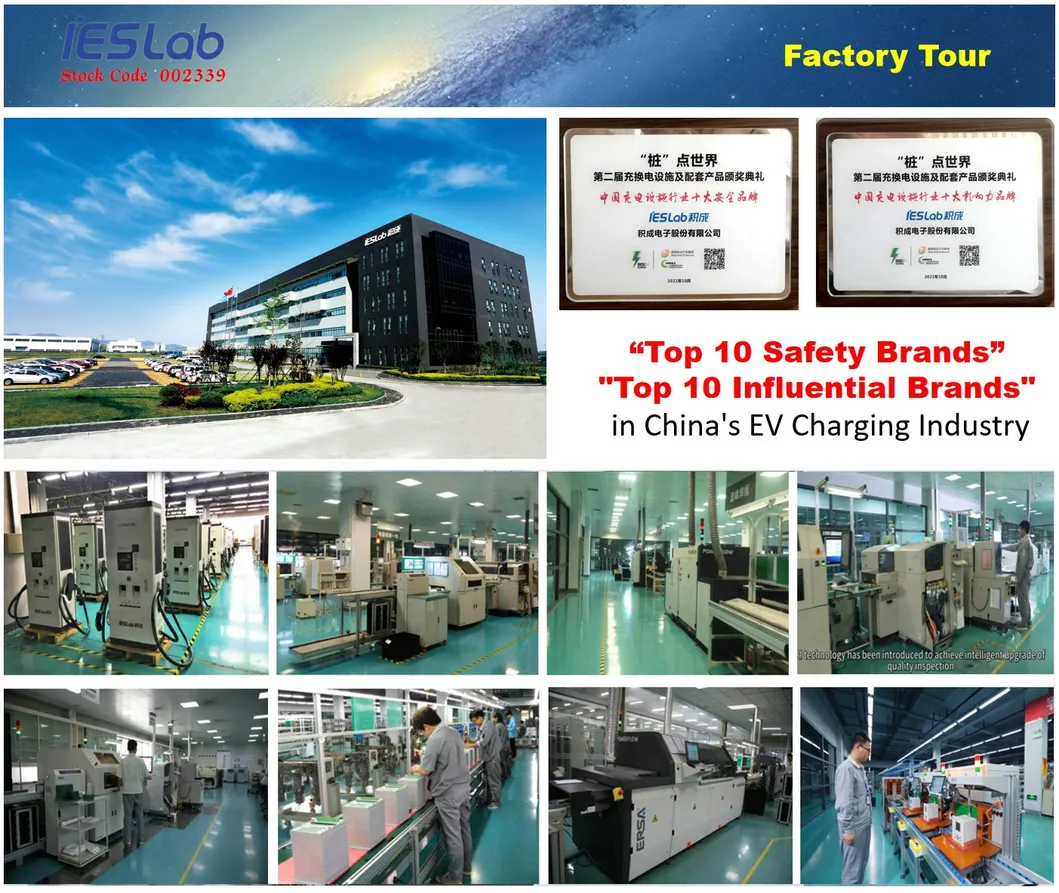

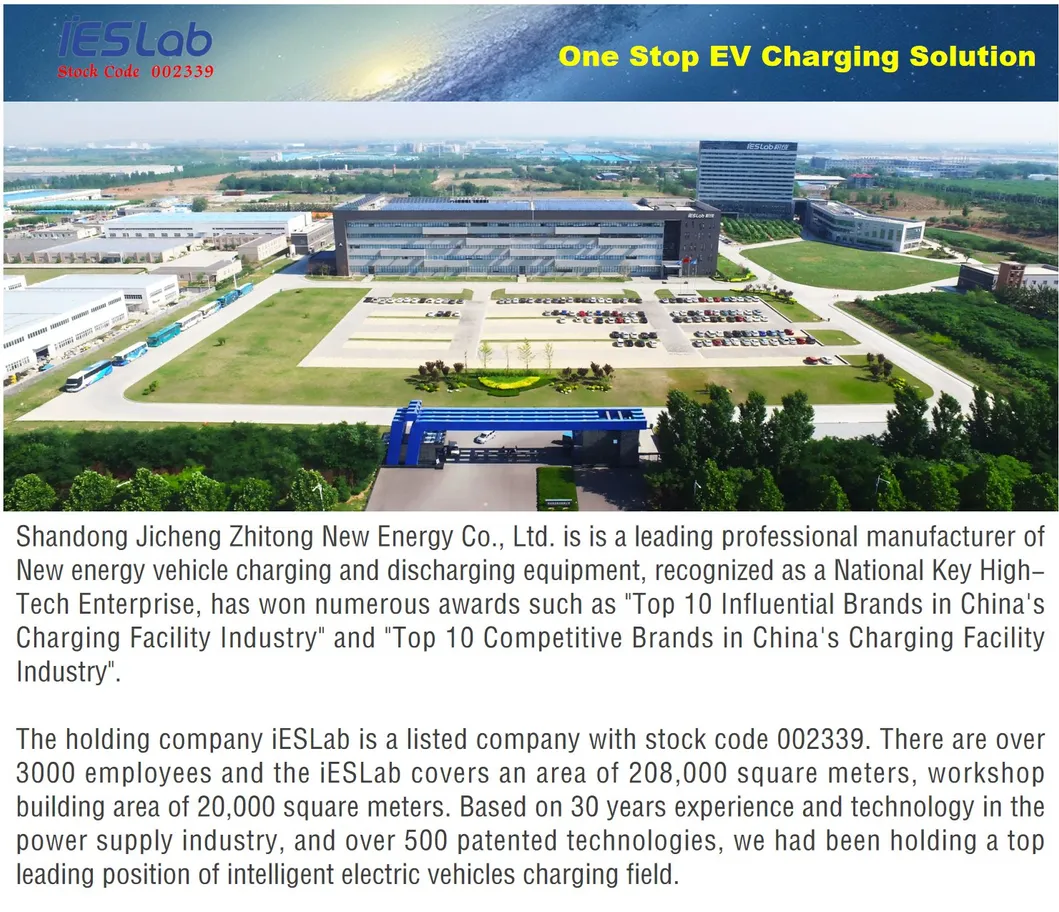

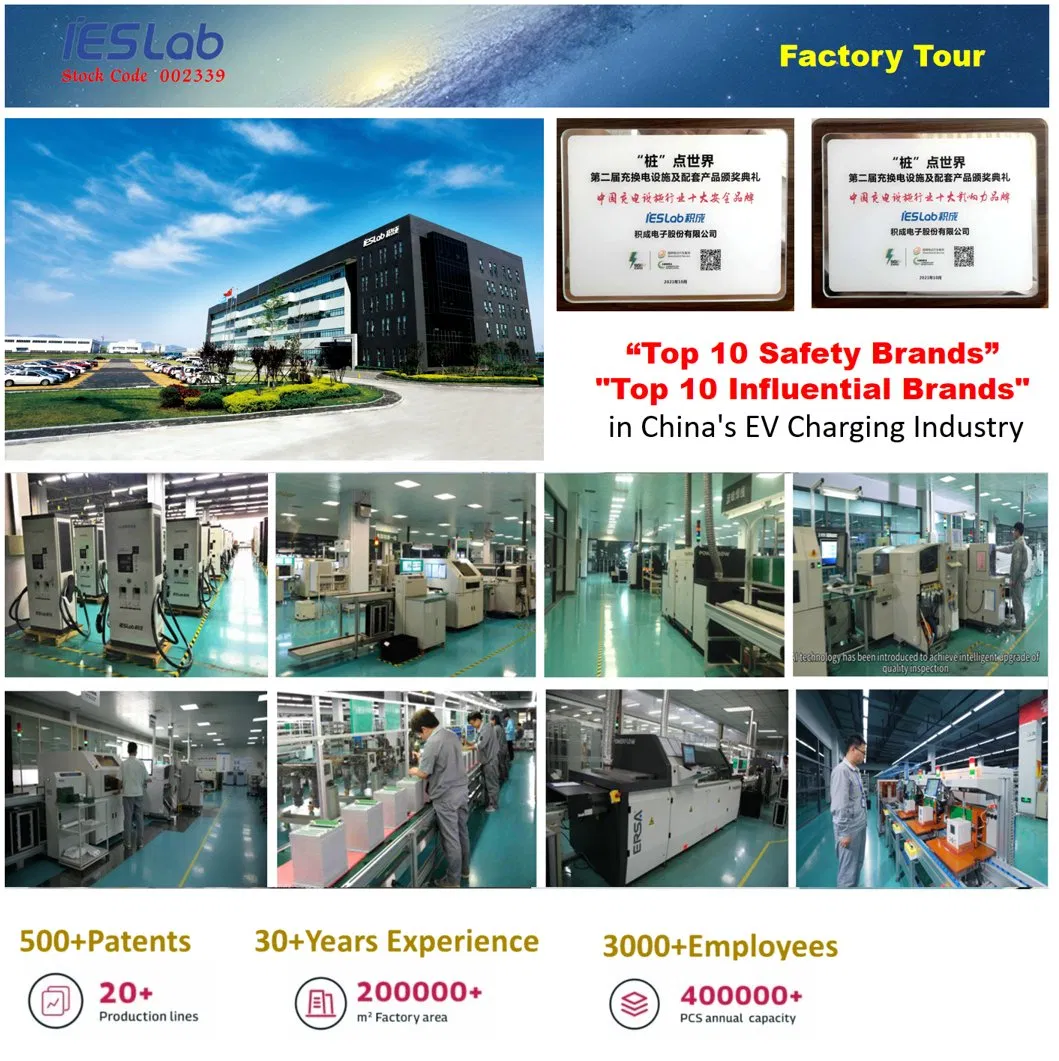

Factory Tour & Profile
🌍

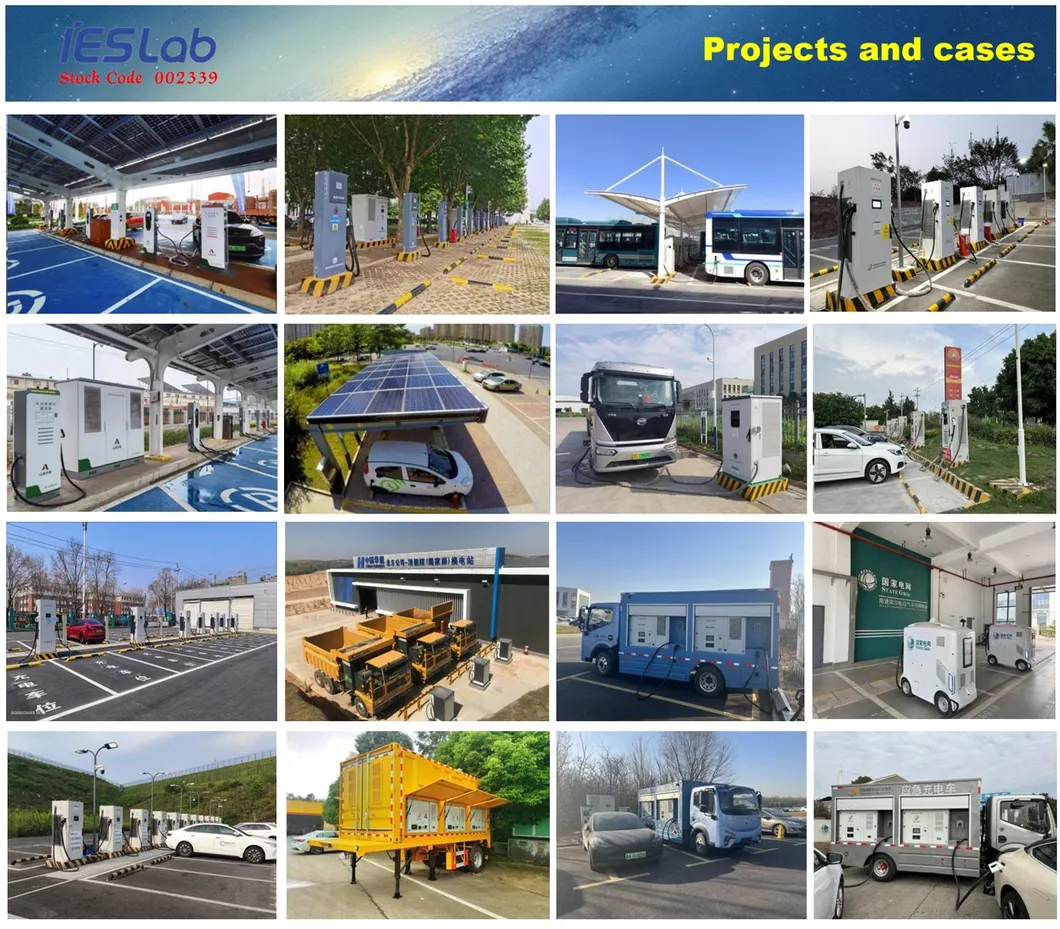

Fairs, Events & Projects
❓

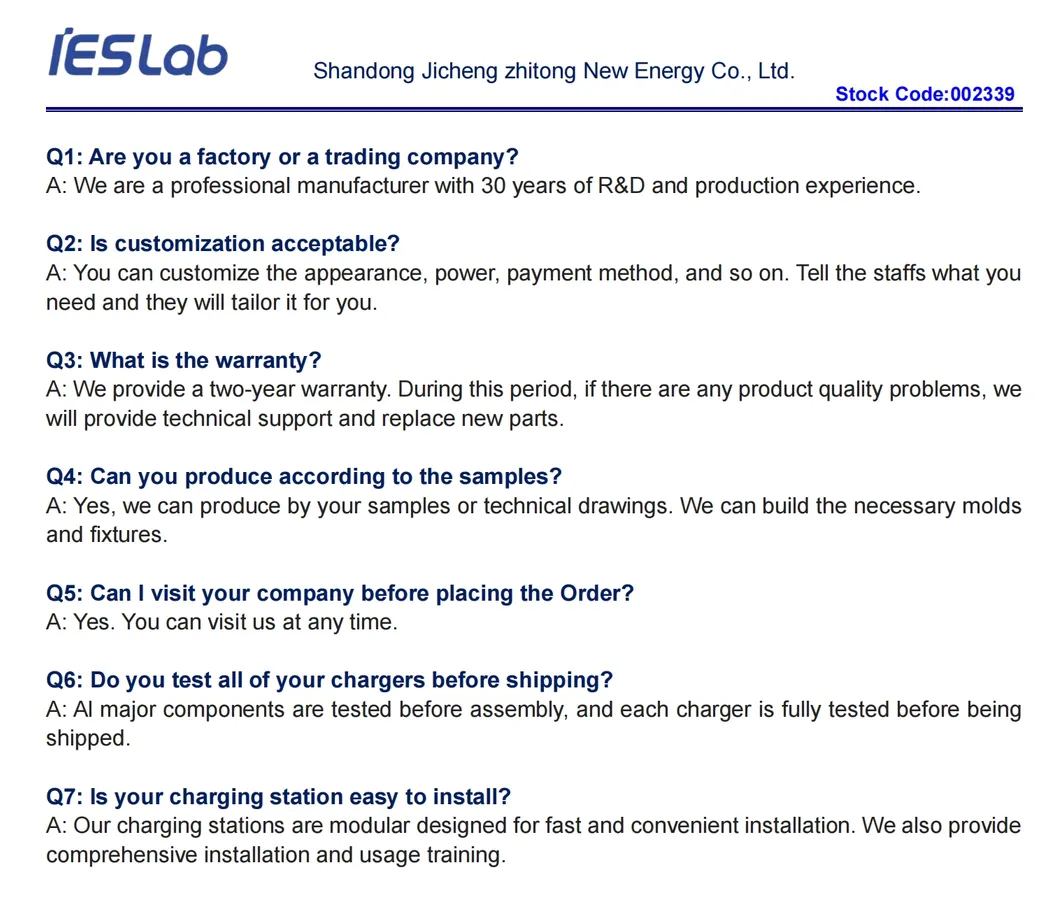

Frequently Asked Questions
Q1: Can I visit your company?
A: You are highly welcomed to visit our factory at any time!
Q2: Are you a factory or a trading company?
A: We are a professional manufacturer with 30 years of R&D and production experience.
Q3: Do you test all of your chargers before shipping?
A: All major components are tested before assembly, and each charger is fully tested before being shipped.
Q4: What is the warranty?
A: We provide a two-year warranty. During this period, if there are any product quality problems, we will provide technical support and replace new parts.
Q5: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the necessary molds and fixtures.
Q6: How is the quality of your housing material?
A: Our housing is made of high-quality PC with Anti-UV treatment, ensuring durability for both indoor and outdoor environments.
