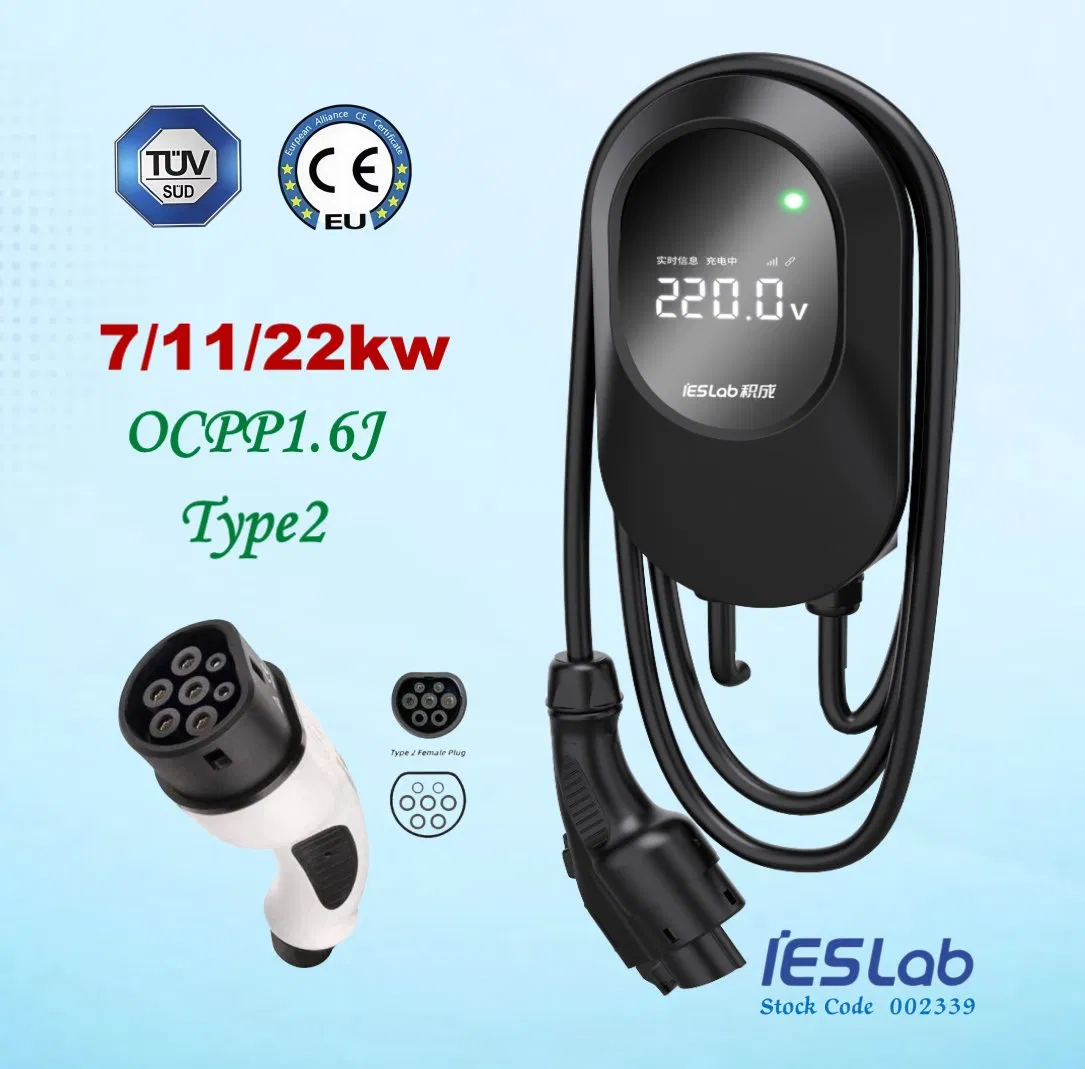

Wholesale Electric Car Charge Point AC EV Charger with Ocpp1.6j, WiFi, Ethernet/4G
Product Description
⚡
Product Overview
Model NO.
7/11/22kw AC Charger
Interfaces
One Pile with One Charge
Location
Indoor and Outdoor
Installation

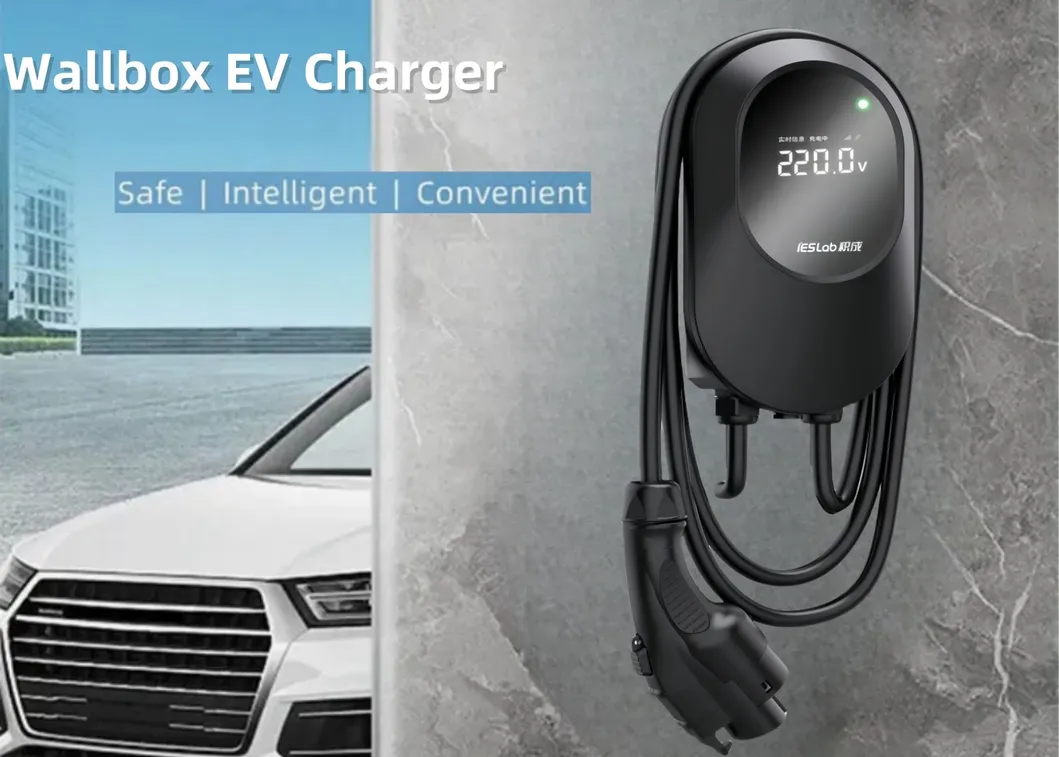

Wall Mounted
Charge Method
Normal Charge
Warranty
2 Years
Certification
CE, TUV, UKCA, RoHS, ISO
Net Weight
5kg
Standard
IEC 61851-1, IEC 61851-21-2
Protection
IP54
User Interface
Digital Screen
Connectivity

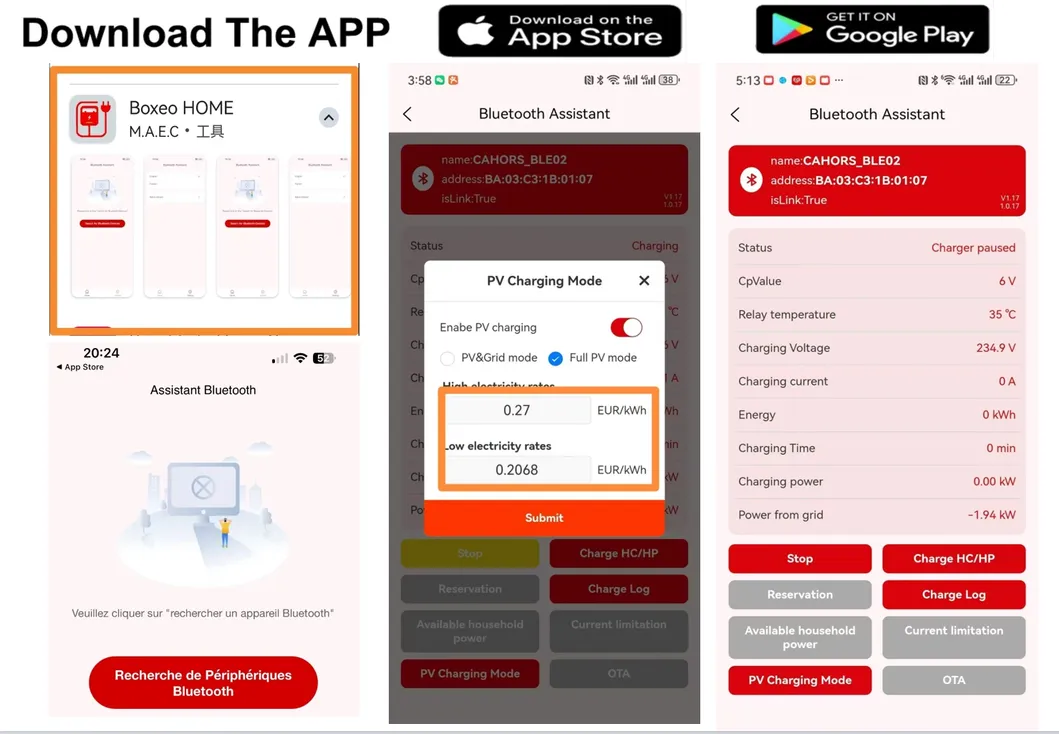

Bluetooth / WiFi / 4G / OCPP
📦

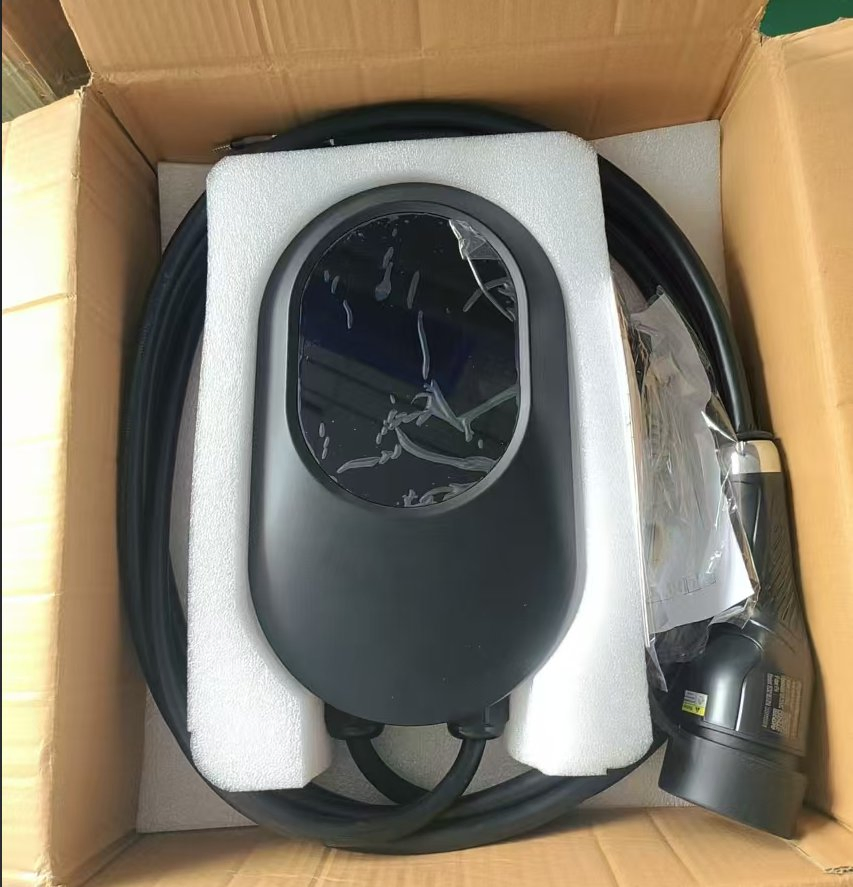

Packaging & Delivery
Package Size
48.00cm * 32.00cm * 21.00cm
Gross Weight
5.000kg
🔍
Product Description
| Product Parameters | |
|---|---|
| Product Name | Wall-Mounted EU Standard AC Charger |
| Overall Dimensions | 87mm x 190mm x 330mm |
| Housing Material | PC with Anti-UV Treatment |
| Rated Input Voltage | 7kw: 230Vac ± 10%; 11/22kw: 400Vac ± 10% |
| Rated Output Current | 16A (11kW) / 32A (22kW) |
| Charging Connector | 5 Meter Tethered IEC Type 2 Lead |

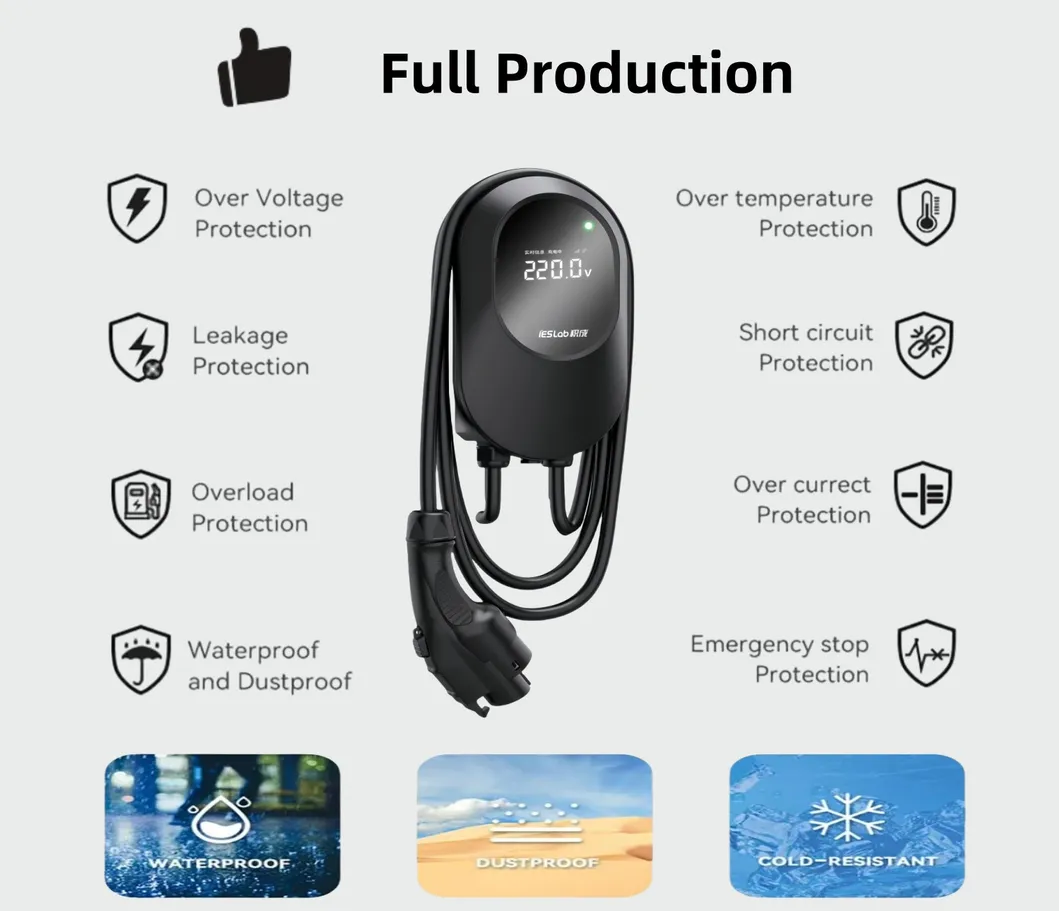

| Electrical Protection | UVP, OVP, RCD (DC 6mA), SPD, Ground Fault, OCP, OTP |
| Communication Protocol | OCPP 1.6j |
| Authentication | NFC (ISO / IEC 14443A / MIFARE) |
🏆

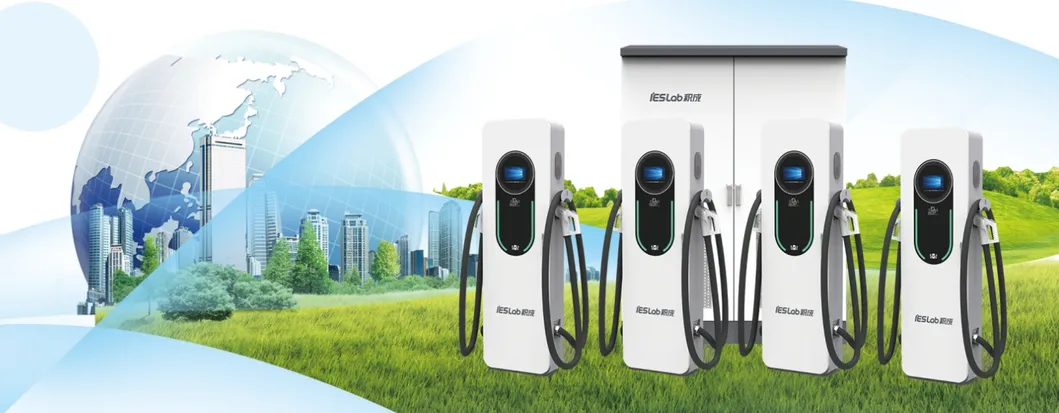

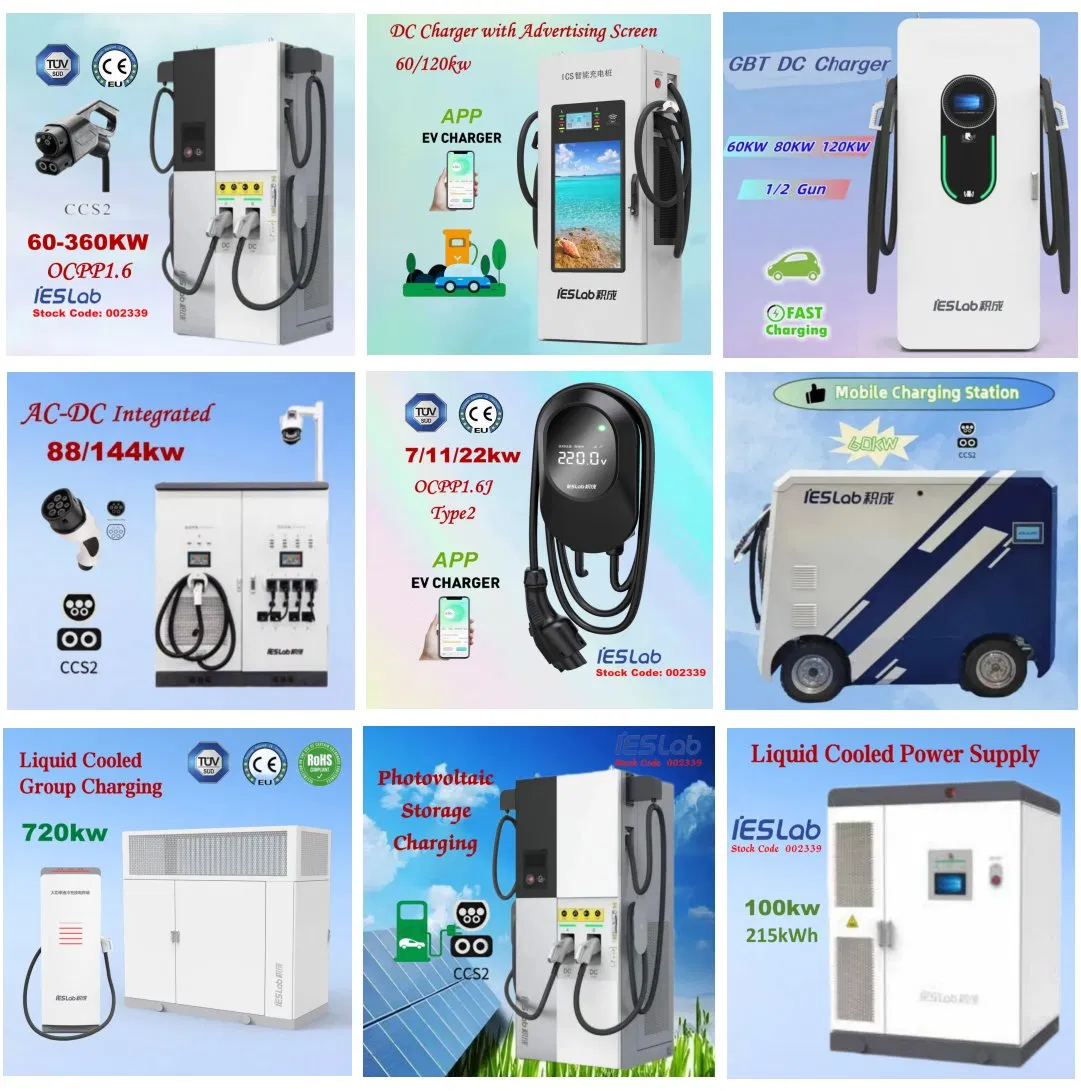

Main Products & Certifications
🏭

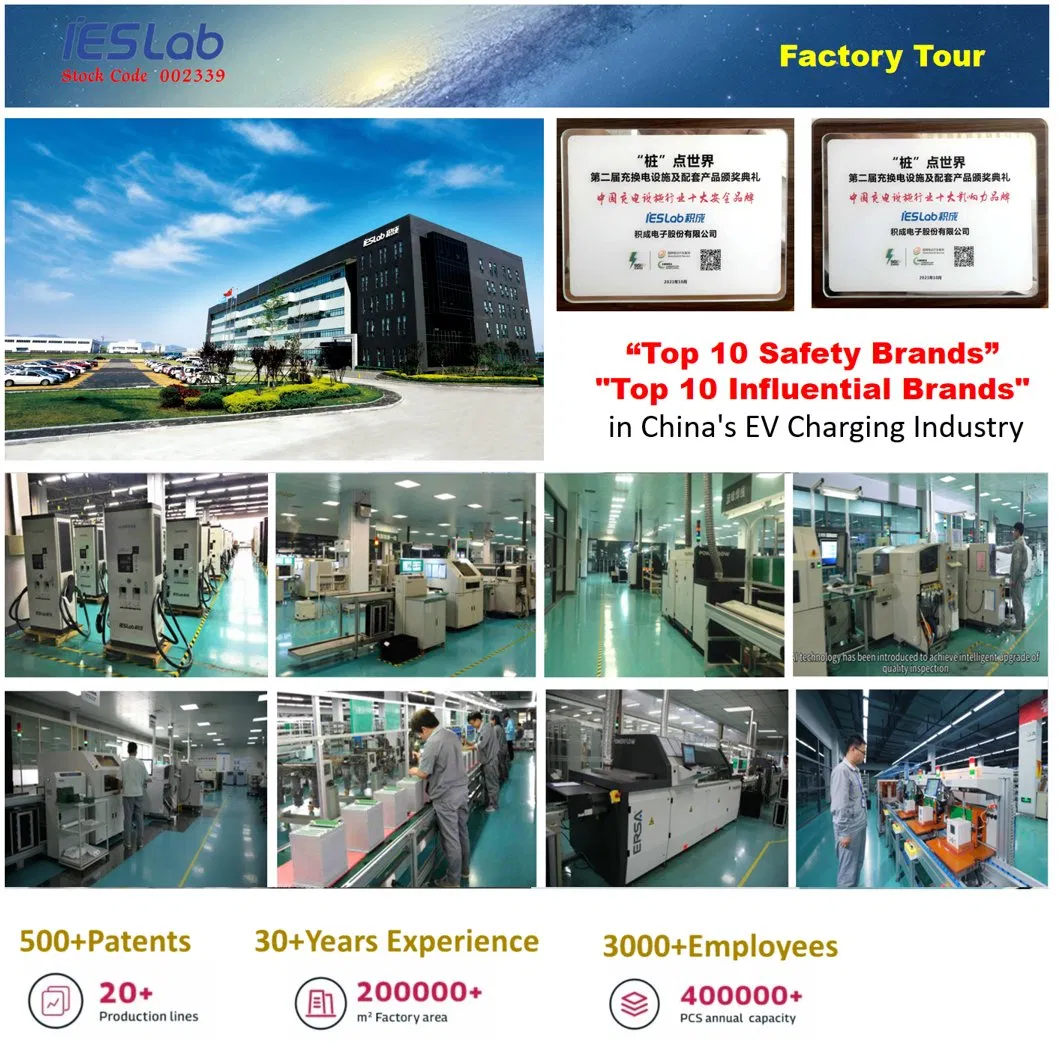

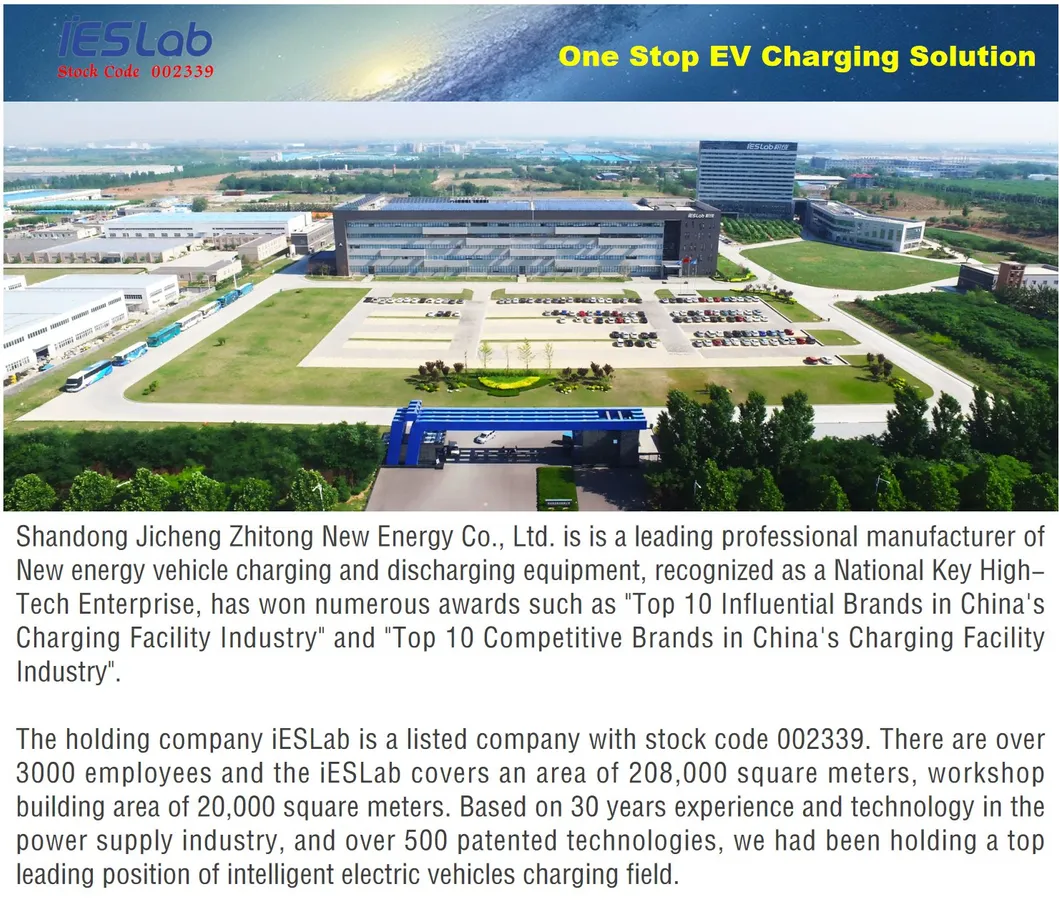

Factory Tour & Events
🚩

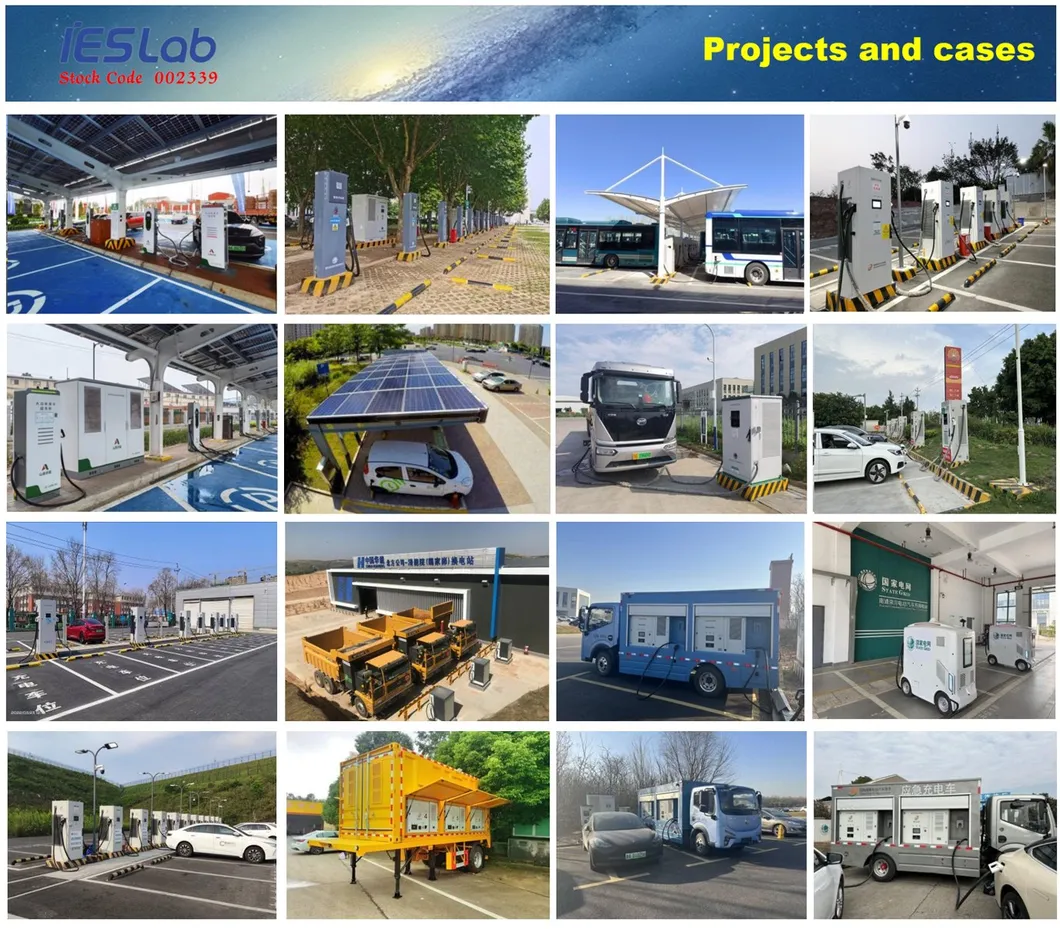

Projects and Cases
❓
Frequently Asked Questions
Q1: Can I visit your factory?
A: You are highly welcomed to visit our factory at any time to see our production process and quality control firsthand.
Q2: Are you a factory or a trading company?
A: We are a professional manufacturer with 30 years of R&D and production experience in the electrical industry.
Q3: Do you test all of your chargers before shipping?
A: Yes, all major components are tested before assembly, and each finished charger undergoes full functional testing before being shipped.
Q4: What is the warranty period?
A: We provide a two-year warranty. During this period, we offer technical support and replacement parts for any quality issues.
Q5: Can you produce according to specific samples?
A: Yes, we can produce based on your samples or technical drawings. We have the capability to build necessary molds and fixtures for customization.
Q6: What certifications do your products hold?
A: Our chargers are fully certified with CE, TUV, UKCA, RoHS, and ISO standards to ensure global compliance and safety.
