VoltNode Charger
1 / 5

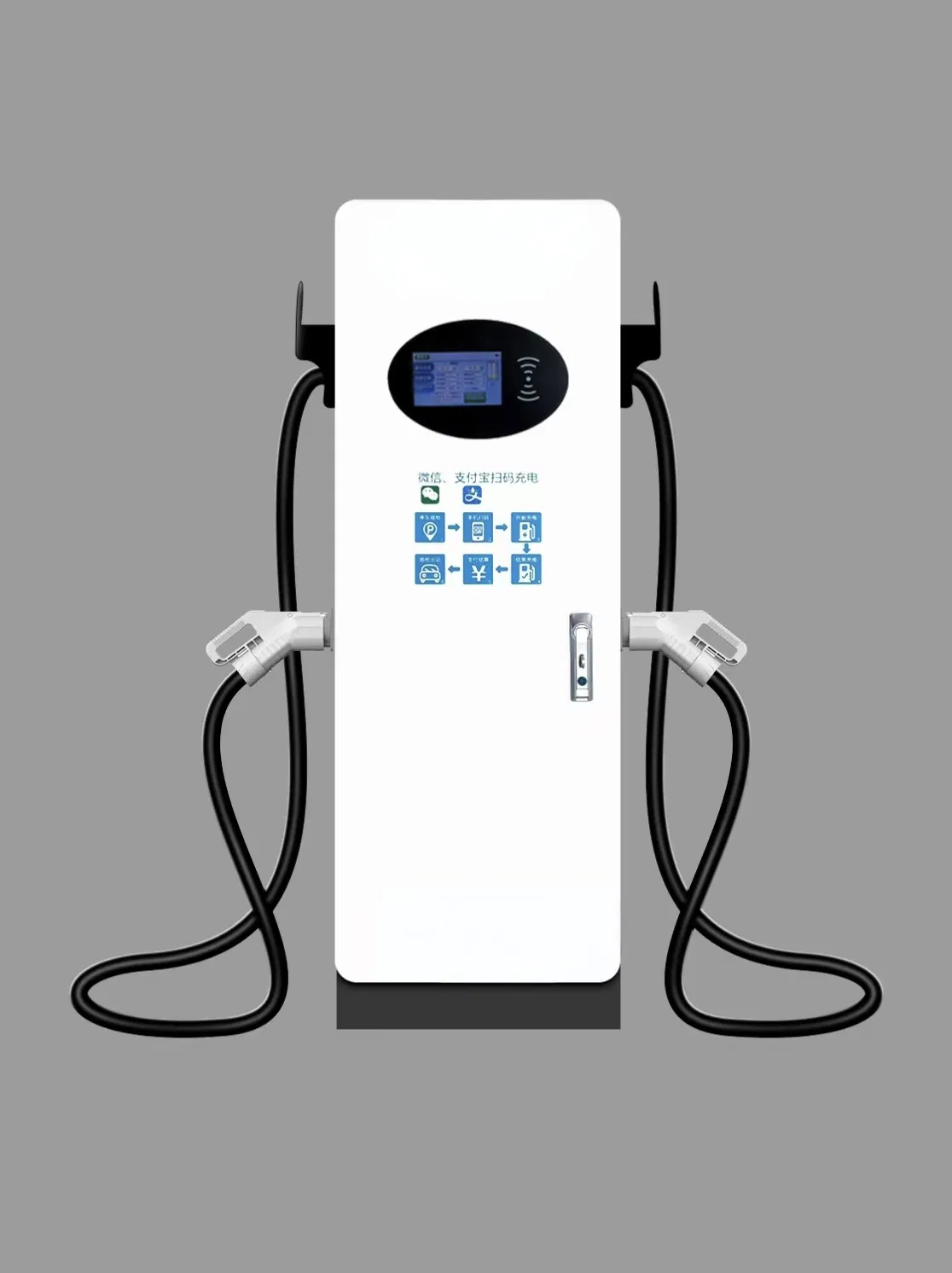

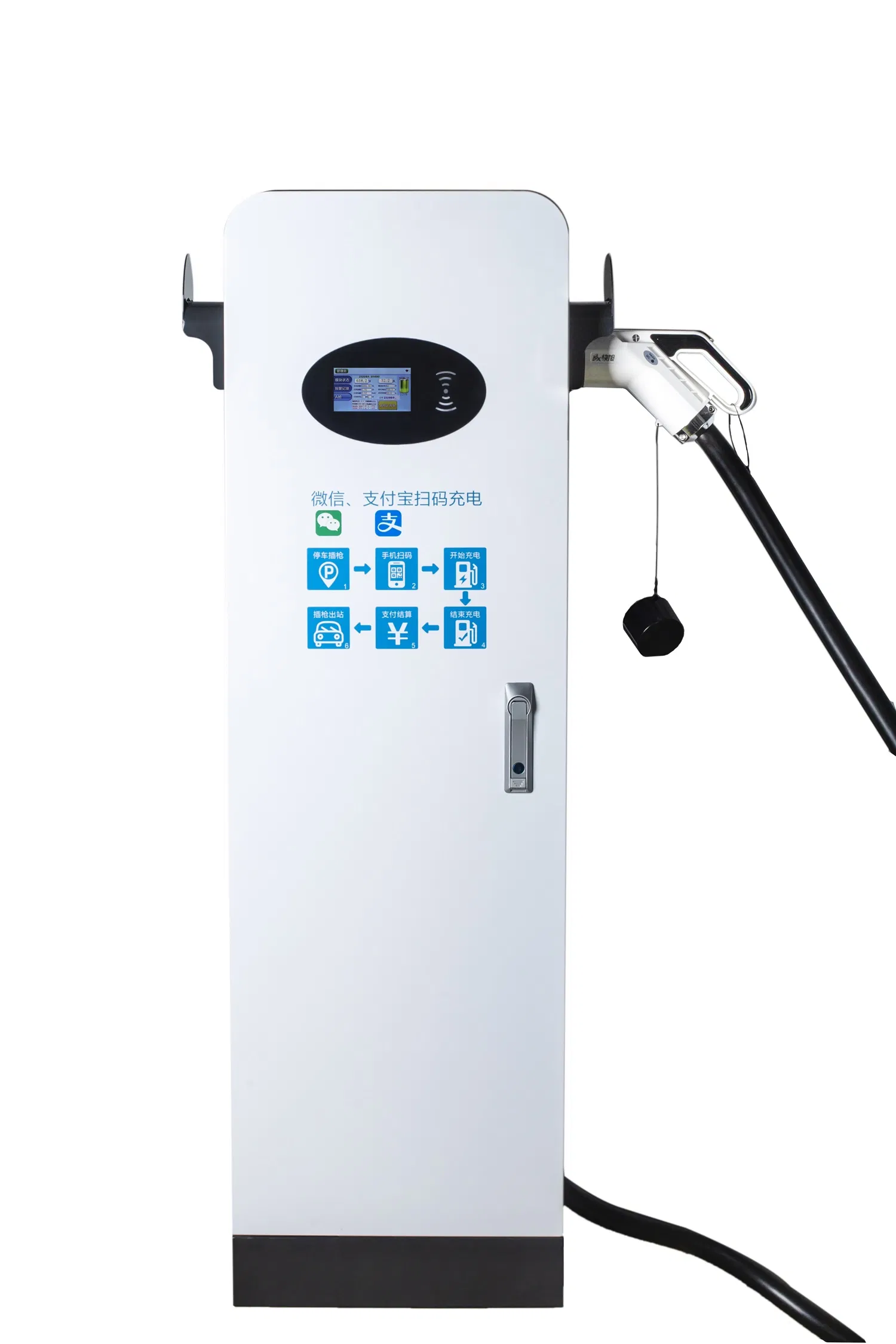

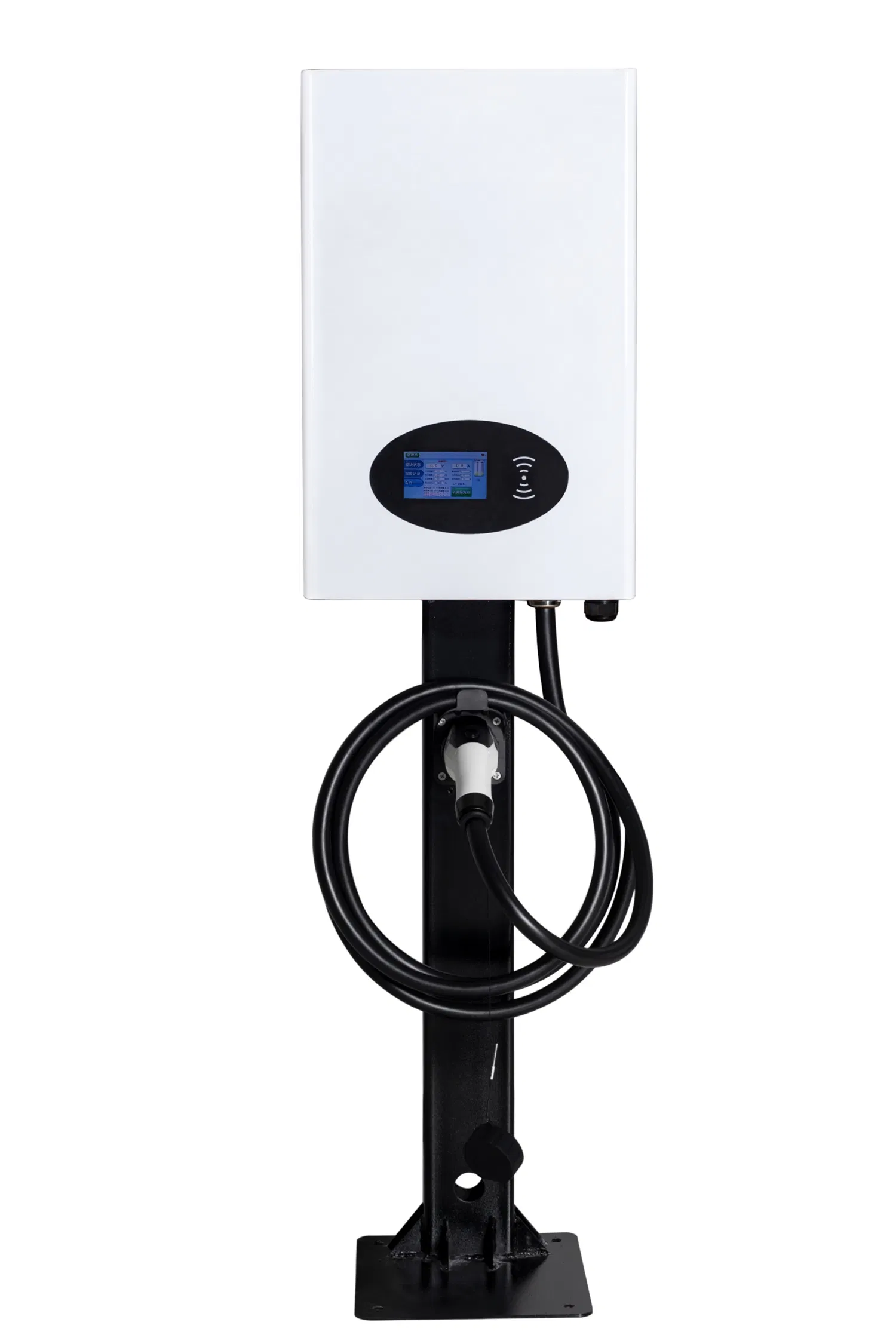

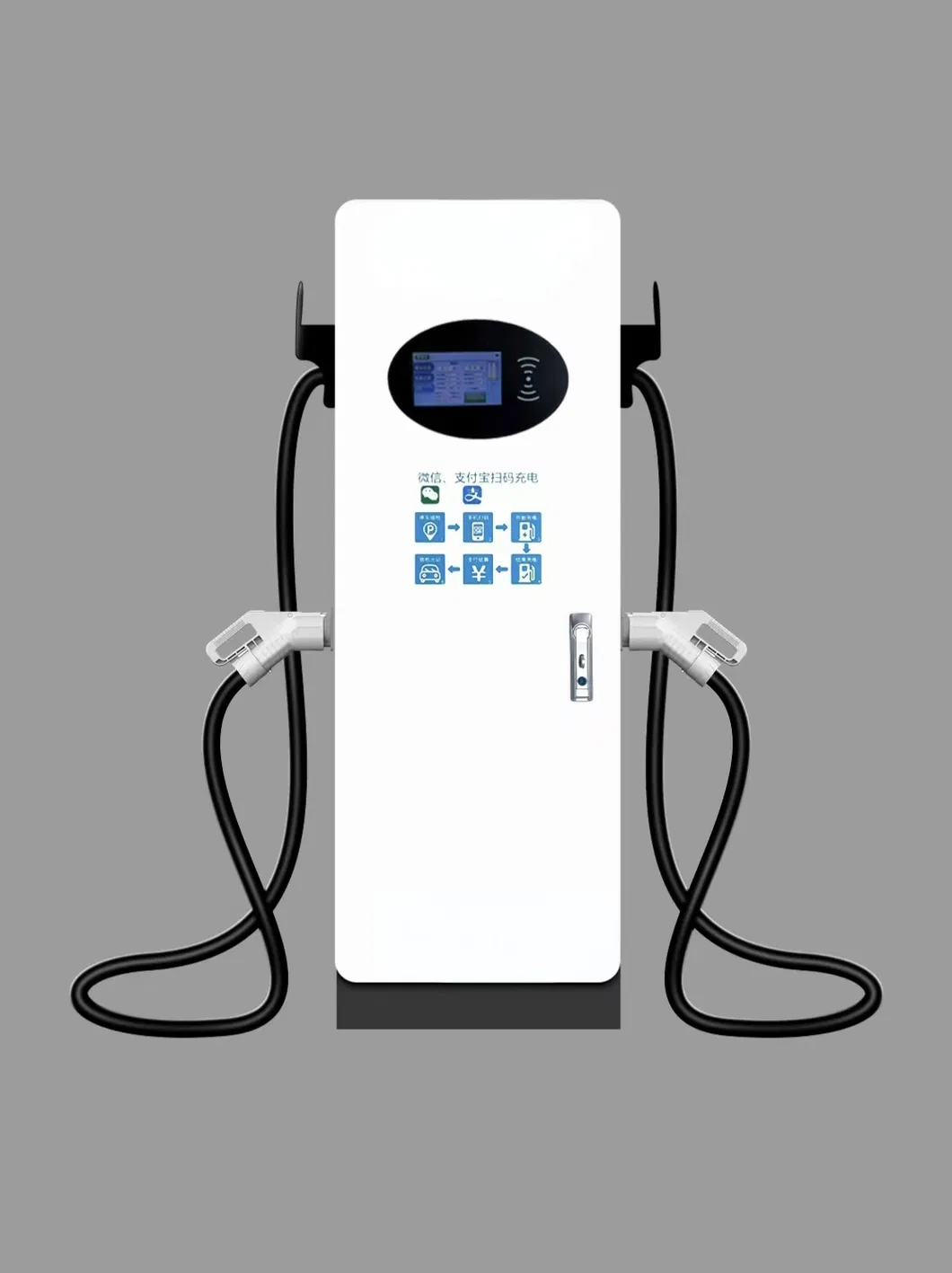

Wall Mounted Small DC Fast Charging Pile
Product Description
📋
Basic Information
Charging Interfaces
One Pile with Multiple Charges
Start Mode
Credit Card Payment, Mobile Remote Operation, RFID Authentic
Transport Package
Carton Box
Trademark
stone
Origin
China
HS Code
85371090
Production Capacity
20000PCS/Year
💡
Product Introduction
Wall mounted small DC fast charging pile, can be fully charged in 1-3 hours, with a simple and beautiful design, easy operation, and reliable quality.
🛡️ Compatible & Safe
Meets requirements of both new and old national standard vehicles. 12 layers of safety protection, anti-theft design, and IP54 level protection for outdoor use.
⚙️ Reliability
Designed with a lifespan higher than the national standard and a low failure rate during use.
✅ Convenient & Worry-free
Features a 4.3-inch color touch screen display. Comes with a 2-year warranty and easy maintenance system.
🚗
Applications & Scenarios

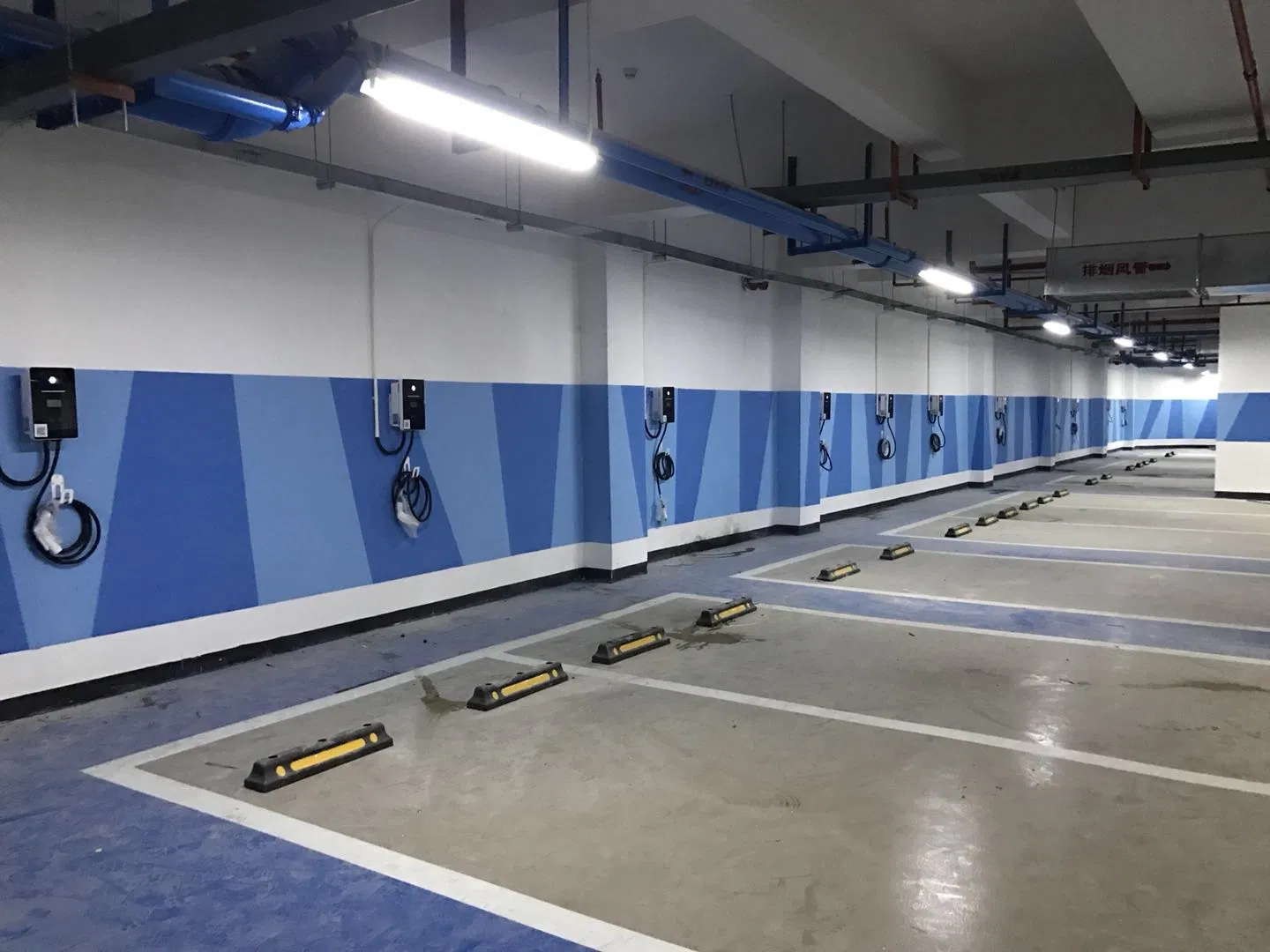

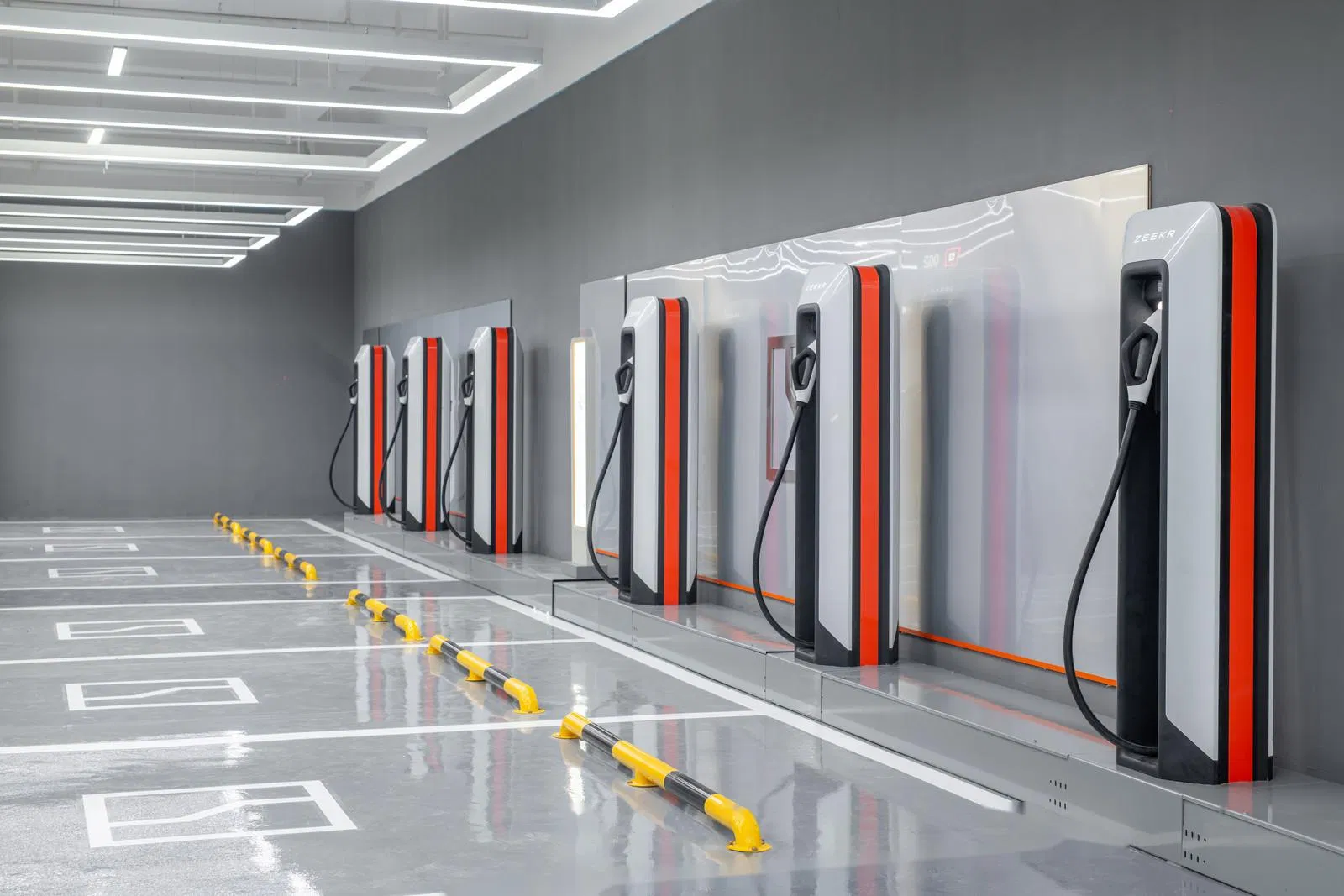

Applicable Scenarios: Home fast charging for personal use; Enterprise supporting self-use for fleets; Construction and operation of property park destination stations.
Applications: Passenger cars, sanitation vehicles, buses, dump trucks.
📊
Technical Specifications
| Input | INPUT VOLTAGE | AC220V±20% |
| Input Frequency | 50Hz±10% | |
| Output | Rated Power | 7KW |
| Output Voltage | DC150V-750V (adjustable) | |
| Output Current | 20A | |
| Electrical | Cable Length | 5m (optional extension) |
| Number of Charging Guns | Single-gun | |
| Working Efficiency | ≥95% | |
| Functional | HMI | 4.3-inch color touch screen |
| Charge Mode | Fully charged auto stop, press time, press battery | |
| Charging Method | Password, scheduled, one-click, plug and play | |
| Safety | Execution Standards | GB/T18487.1-2015 |
| Safety Functions | Short circuit, overvoltage, undervoltage, overtemperature, overcurrent, emergency stop, leakage fault | |
| Environment | Operation Temp | -20ºC ~ 50ºC |
| Protection Grade | IP54 | |
| Equipment Size | 520*280*155 (H*W*D) | |
| Equipment Weight | 19KG |
🖼️
Product Gallery
❓
Frequently Asked Questions
How long does it take to fully charge a vehicle?
Depending on the battery capacity, this small DC fast charging pile can typically charge a vehicle in 1 to 3 hours.
Can this charging pile be installed outdoors?
Yes, it features an IP54 protection level and is made of sheet metal and acrylic panels, making it resistant to high and low temperatures and suitable for outdoor use.
What types of vehicles are compatible with this charger?
It is compatible with both new and old national standard vehicles, including passenger cars, buses, sanitation vehicles, and dump trucks.
What safety protections are integrated into the system?
The product includes 12 layers of safety protection, covering short circuits, overvoltage, undervoltage, overtemperature, overcurrent, and emergency stop scenarios.
What are the available starting methods for charging?
Users can start charging via credit card payment, RFID authentication, mobile remote operation, or simple plug-and-play.
Is the charging cable length customizable?
The standard cable length is 5 meters, but an optional extension is available based on your specific requirements.
