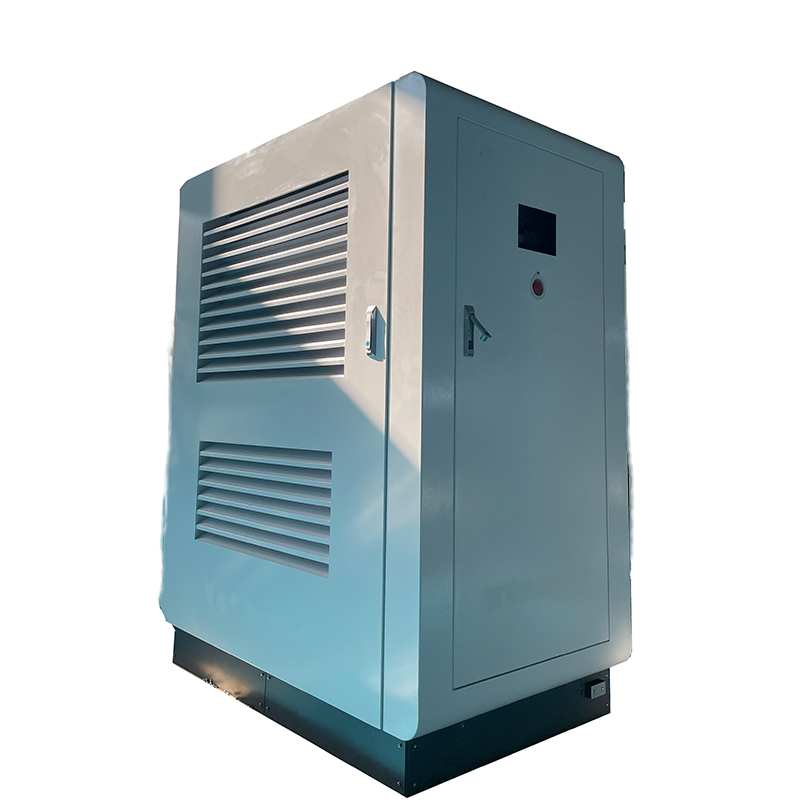

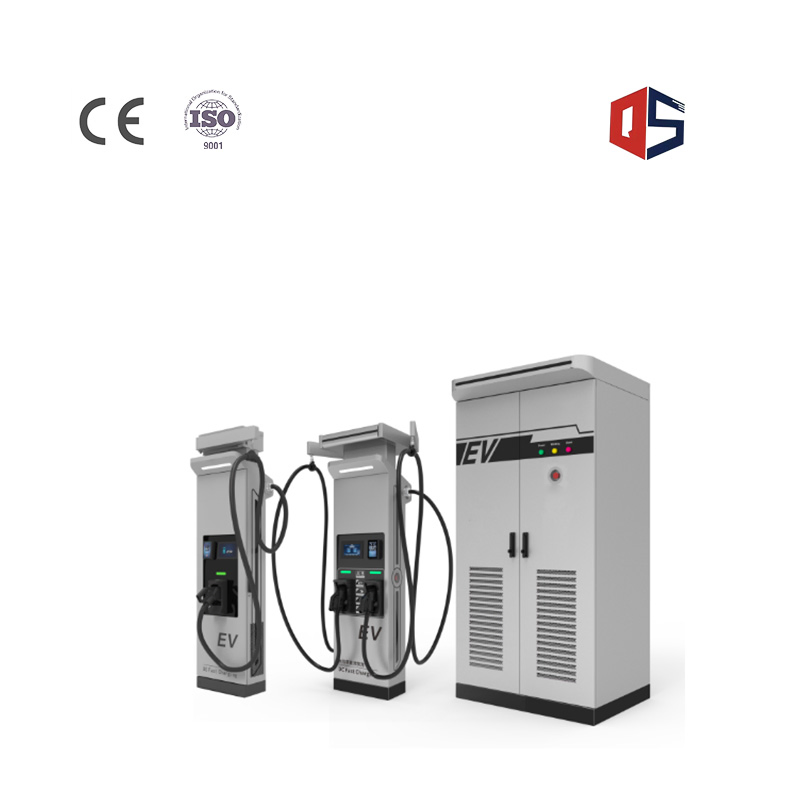

Ultra-Fast DC EV Charging Pile for High Power Applications

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊

Basic Information

Model NO.	QSCDD	Rated Current	2A; 63A; 100A; 200A; 300A
Rated Power	7kw; 11kw; 22kw; 60kw; 120kw; 180kw; 240kw	Protection Grade	IP54 / IP65 Universal Outdoor
Charging Type	AC / DC / Integrated Charging	Efficiency	≥93% (AC); ≥95% (DC)
Service Life	8 - 10 Years	Power Factor	≥0.95 (Rated Load)
Transport Package	Wooden Box	HS Code	8504409999

⚡

Product Description

High-Performance Charging Pile

Flexible Expansion & Wide Compatibility
Certified Safety & Rock-Solid Reliability
Effortless Operation & Low-Maintenance Design
Consistently Stable Performance for Efficient Charging

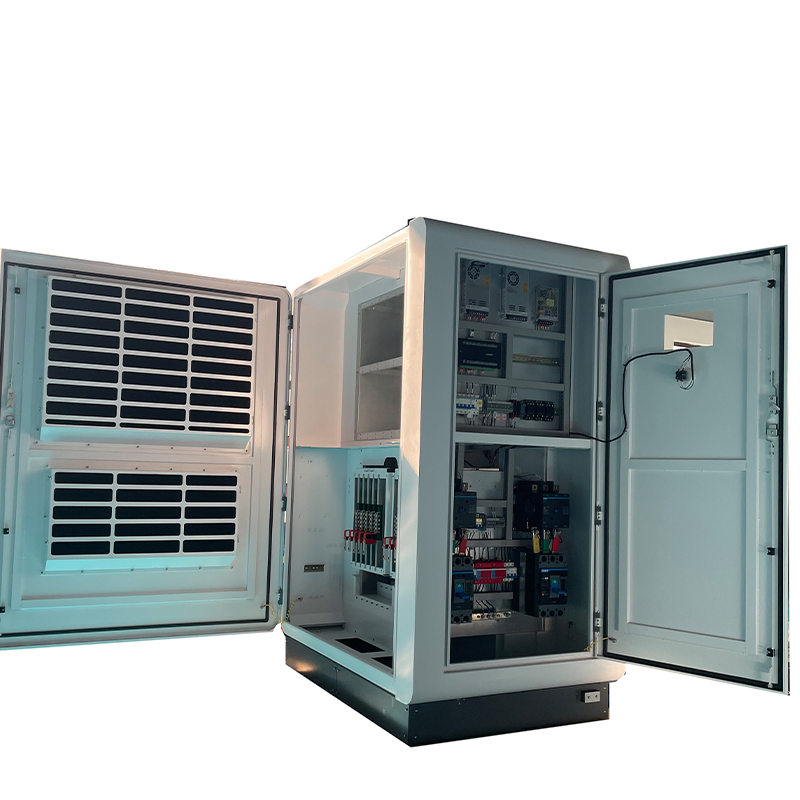

Our charging pile series includes multiple models, with wall-mounted and floor-standing options to meet different installation needs. Featuring stylish designs, stable frameworks, and modular power configuration for easy maintenance. Ideal for both residential and commercial use.

📋

Technical Specifications

Type	EV charging station
Power Options	20KW / 40KW / 120KW / 160KW / 240KW
Input Rating	110V/220V/380V±15%
Output Voltage	200~1000V
Connectors	CCS1, CCS2, GB/T, J1772, IEC62196, CHADEMO
Display	7" LCD Touch Screen
Communication	OCPP1.6J (OCPP2.0 upgradable)
Protection	IP55

⭐

Best Sellers

7KW AC Charger

Compatible with global certifications (CE/UL/PSE/KC). Supports ISO 15118-20 standard and PNC Plug & Charge. Billing accuracy ±0.5%.

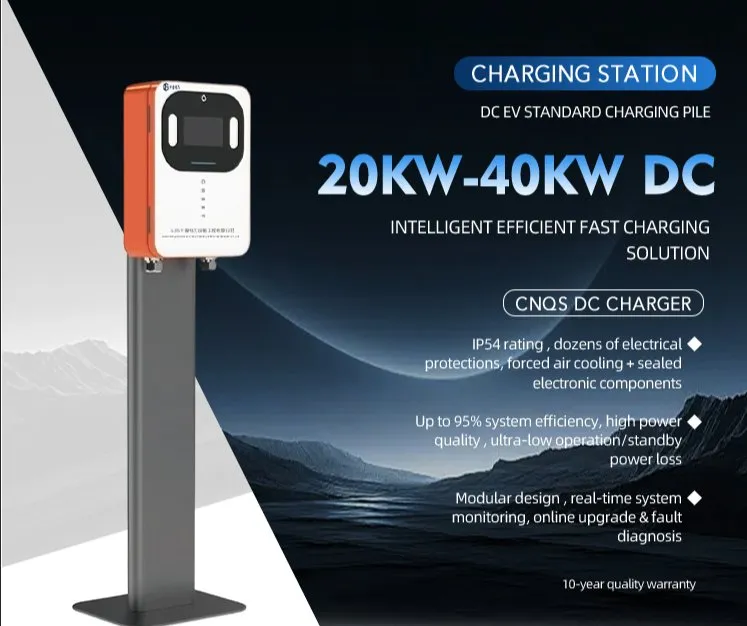

20KW-40KW DC Fast Charger

Replenishes 80% power in 30 mins. IP65 rated for harsh environments (-30℃ to 60℃). Supports Apple Pay/Google Pay.

120/160/240KW DC Station

Dual-gun simultaneous charging with modular design. 240kW ultra-fast charge reaches 80% battery in 15 mins. V2G supported.

🔍

Product Details

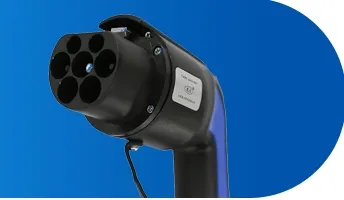

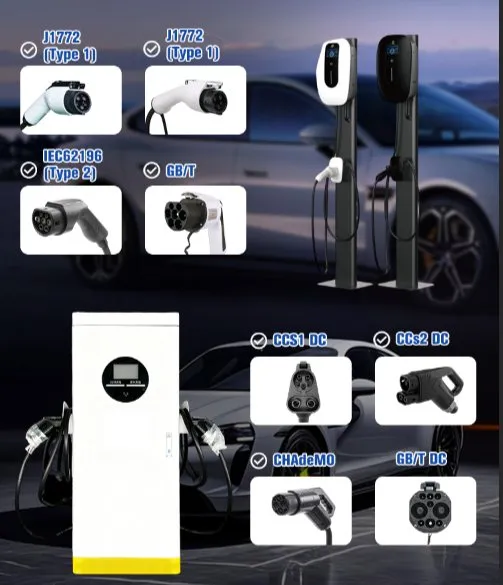

Multi-standard fast charging connectors (CCS2/Type2/CHAdeMO).

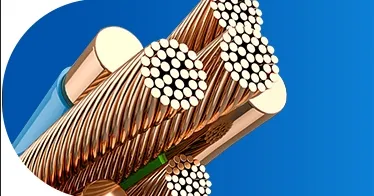

Thickened high-temperature resistant special cables, anti-aging & anti-stretching.
Customizable cable length with self-locking anti-drop connectors.

💡

Key Features

📦

Packaging & Shipping

Package Size	120.00cm * 45.00cm * 155.00cm
Gross Weight	60.000kg

🏢

Company Profile

We are an experienced power equipment manufacturer with over 20 years of industry expertise, serving global markets with reliable power distribution and new energy solutions.

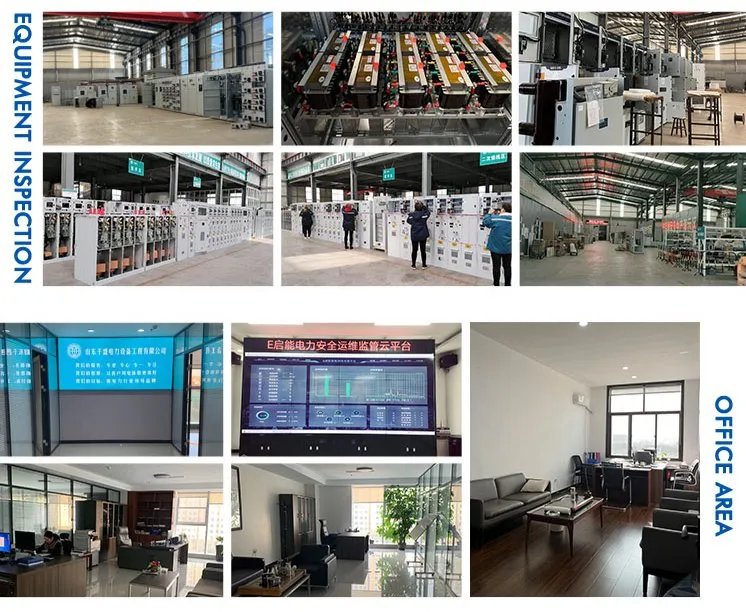

Our facility covers over 16,000 square meters and employs a professional team of managers and senior technicians. We hold ISO9001:2000, Environmental Management, and Occupational Health certifications, alongside CCC and CQC product approvals.

❓

Frequently Asked Questions

What situations are not covered by the warranty?

Warranty excludes human damage, unauthorized disassembly/modification, use of non-genuine parts, improper installation/maintenance, external voltage abnormalities, and force majeure events like fire or earthquakes.

Is regular maintenance service provided?

Yes, we provide free annual inspections including electrical safety testing, mechanical tightening, cleaning, and software updates. Quarterly maintenance packages are also available for commercial units.

Does the service comply with local data security requirements?

Our systems are fully compliant with EU GDPR and local safety certifications (CE/UL/PSE). Maintenance data is encrypted and stored to protect user privacy.

Can the warranty period be extended?

Paid extensions are available: 2 years for residential chargers and 1-3 years for commercial chargers, covering the main unit and core components.

Is after-sales service universal across regions?

Yes, our global warranty system covers major markets in Europe, America, Asia-Pacific, and the Middle East. Services are available locally using the equipment serial number.

What is the typical production capacity?

Our current production capacity is approximately 5,000 units per year, ensuring stable supply and on-time delivery for global partners.
