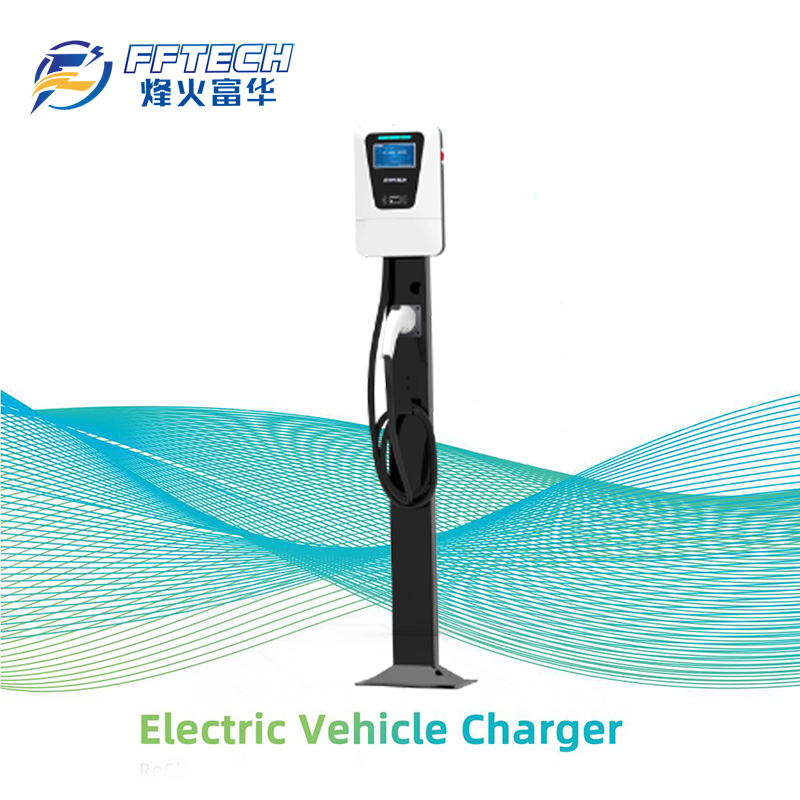

Ultra-Fast 7kw Home EV Charger for Electric Vehicles
Product Description
⚡ Basic Information
Model NO.
FH-EA-7kW, FH-EA-11kW, FH-EA-22kW
Installation

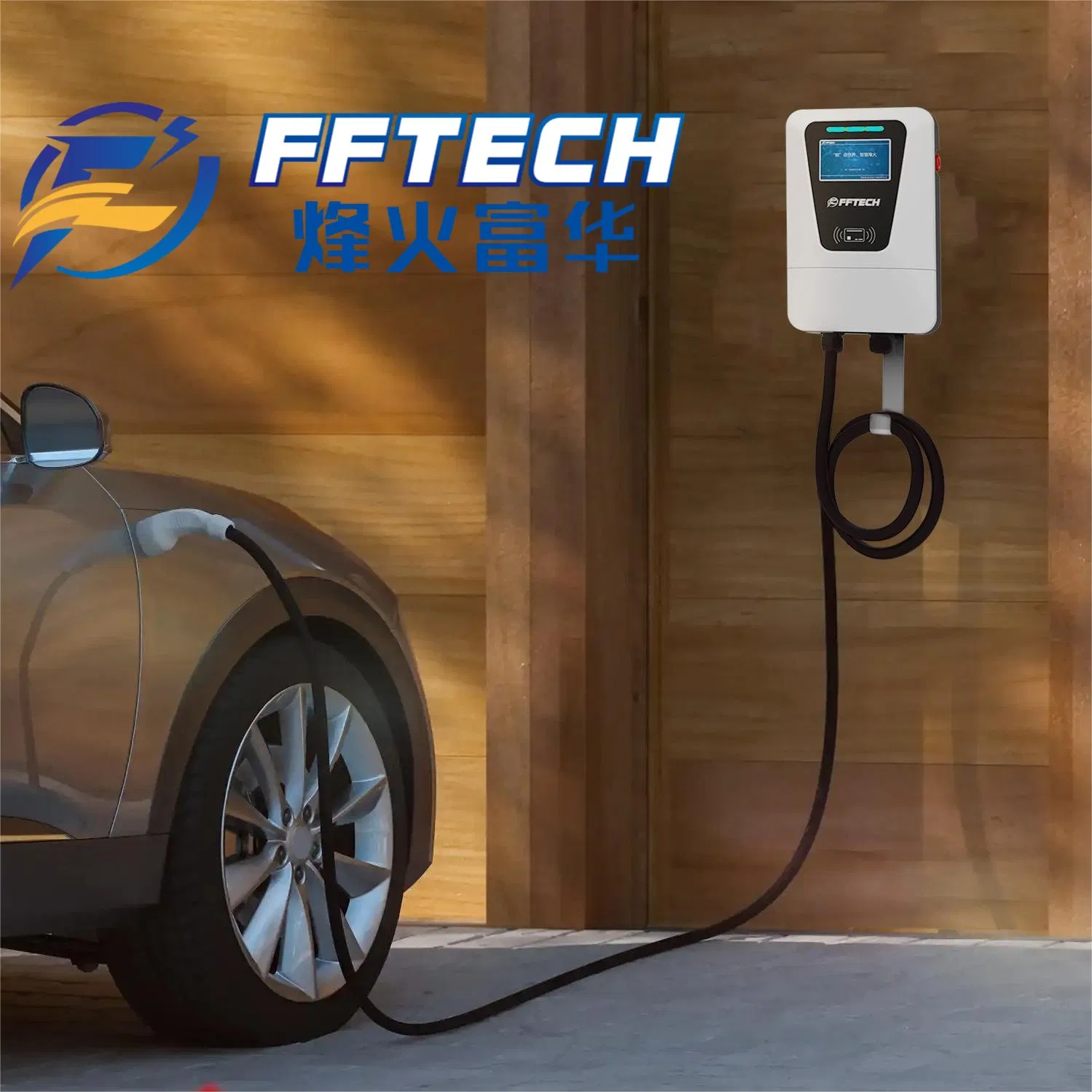

Wall Mounted
Charge Method
Normal Charge
AC Input Voltage
230VAC /Single Phase ; 400VAC/Three Phase
Output Power
7kw 11kw 22kw
Cable Length
Rated 5m, Customized 10m Max
Authentication
4G, Ethernet, WiFi, Bluetooth
Certification
EMC Class B, TUV CE, Cqm, ISO and UL
Specification
300*315*120(mm)(L*W*H)
Protection
IP54 Rated

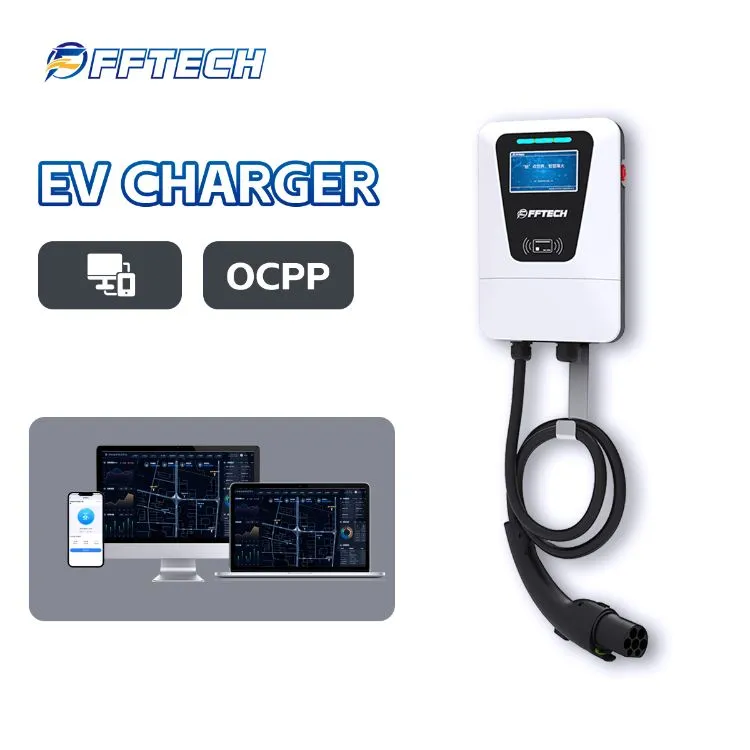

State-of-the-Art Smart Home EV Charging Stations
Experience the future of electric vehicle charging with our 7kW, 11kW, and 22kW AC Home EV Charging Stations. Adhering to the IEC62196 standard, this Wallbox features the CCS2 TYPE2 gun for unparalleled performance.
⭐ Key Features & Advantages
-
🔌

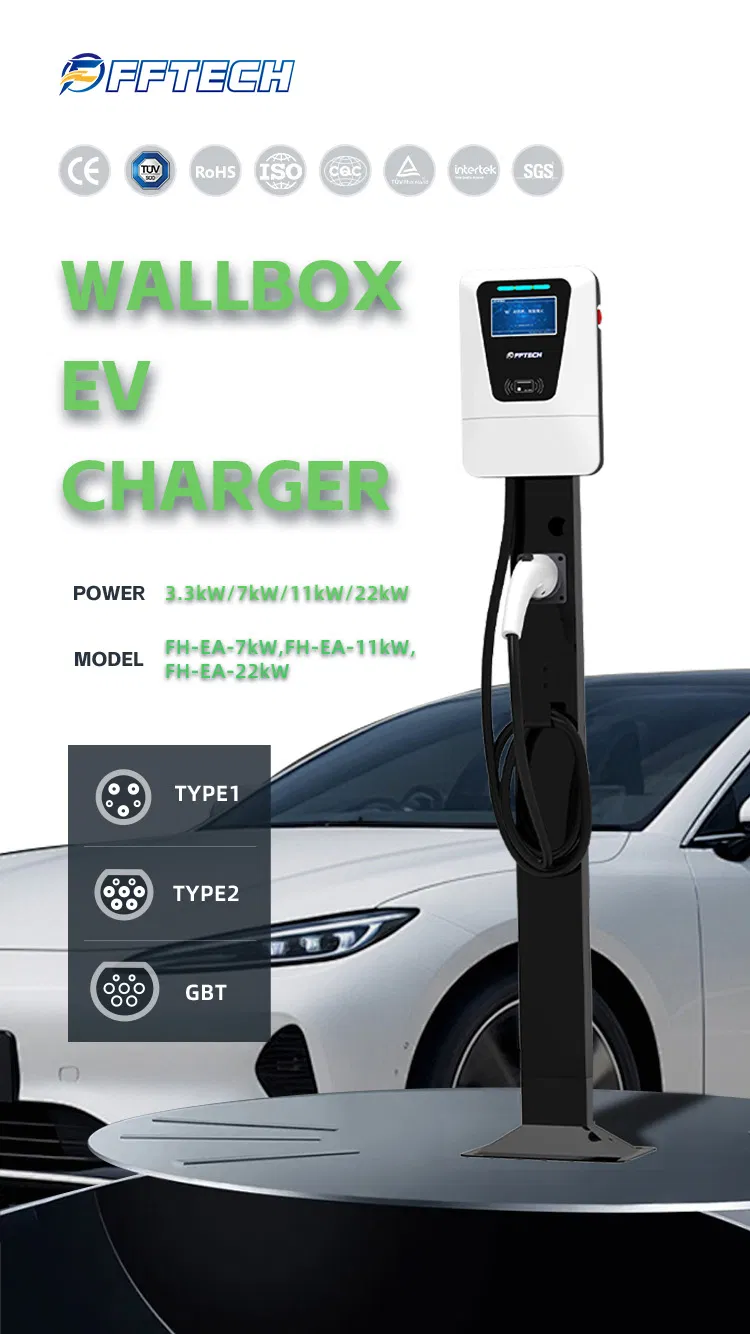

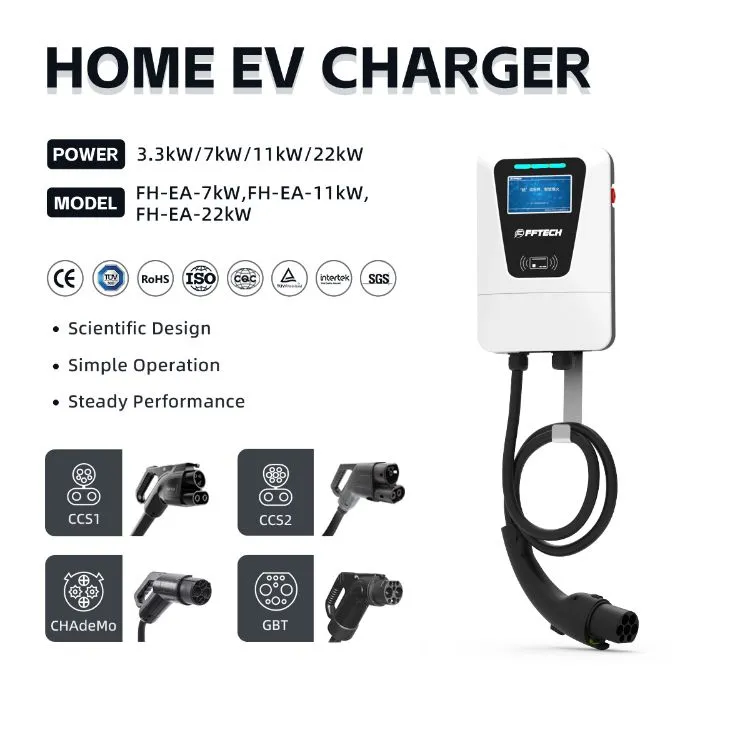

Supports TYPE1, TYPE2, or GBT connectors for universal compatibility.
-
🛡️

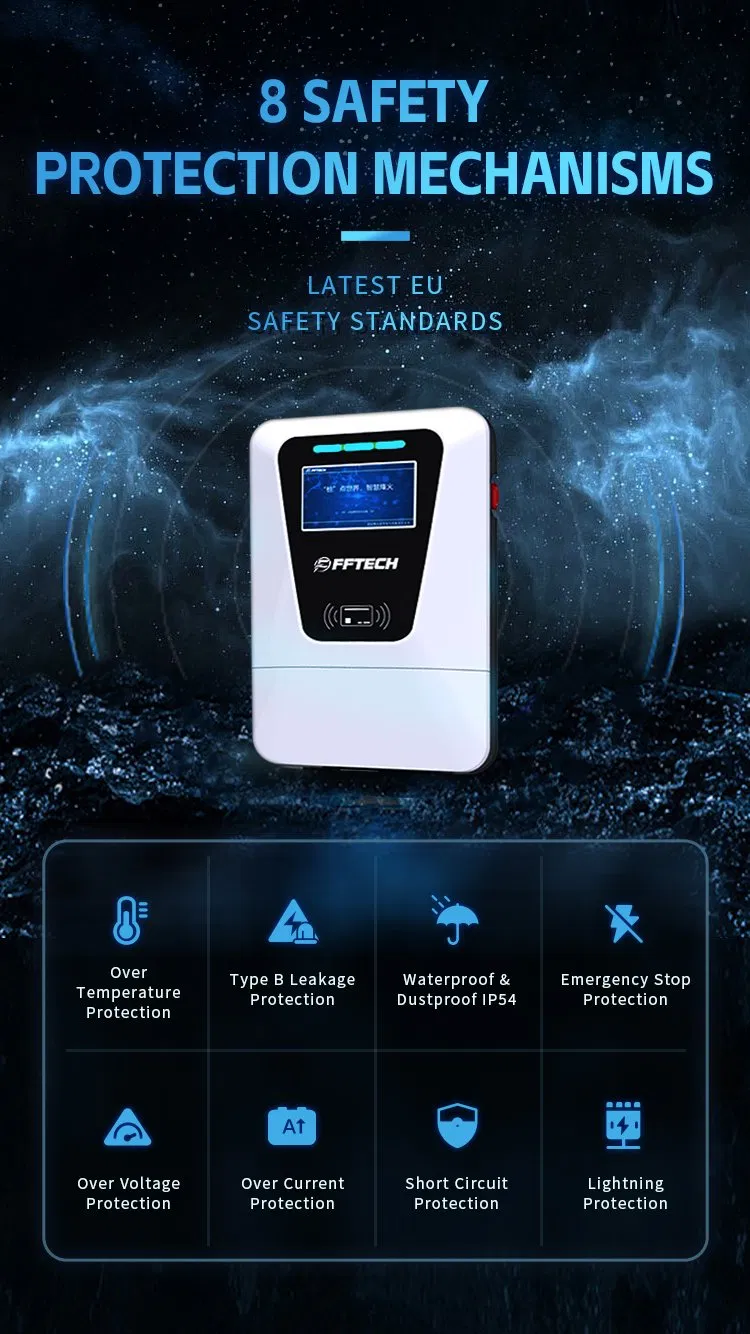

IP54-rated design ensures high protection and reliability in harsh environments.
-
📱

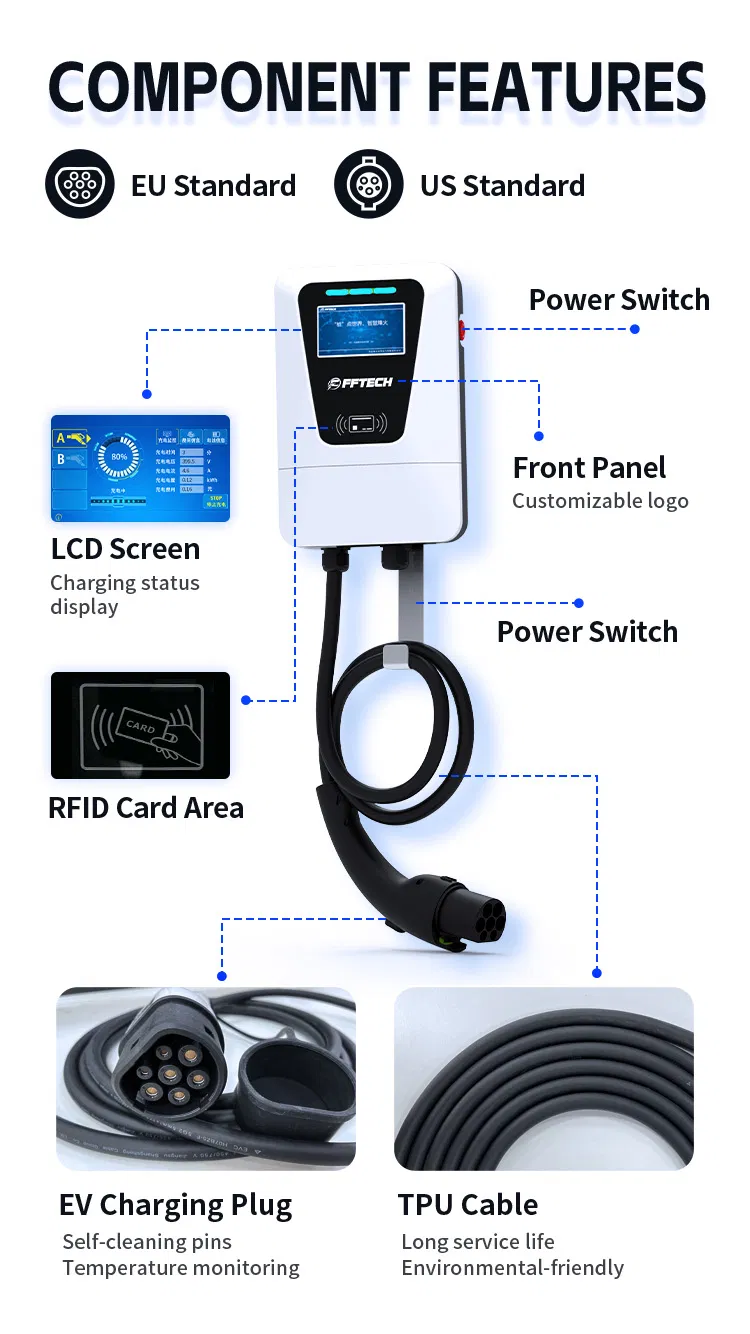

User-friendly 7'' TFT capacitive touch screen LCD with tempered glass protection.
-
🌐
Multiple communication protocols: CAN, RS485, WiFi, LAN, and optional LTE.
-
⚙️

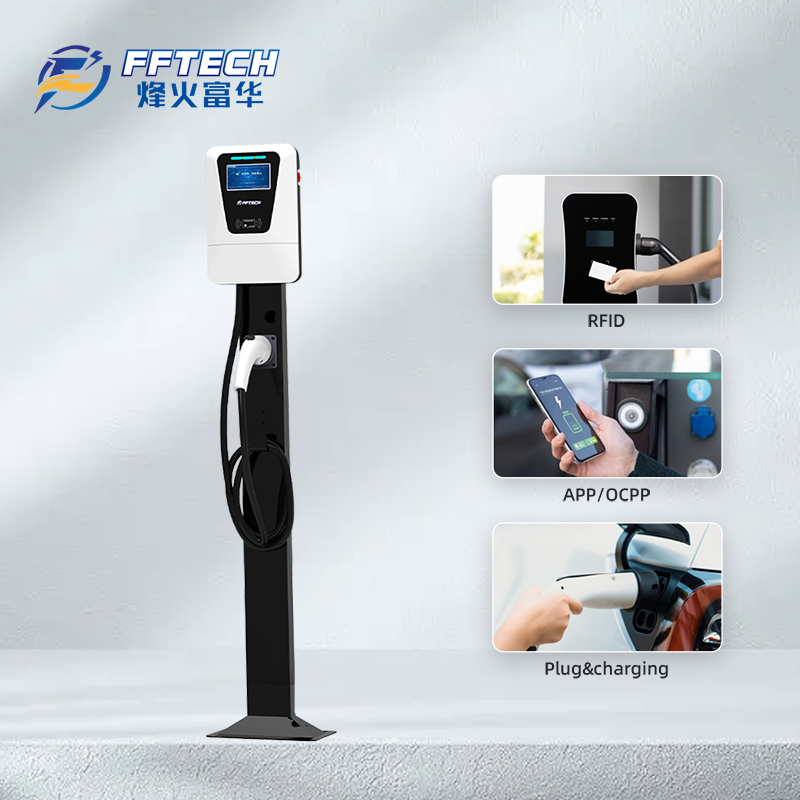

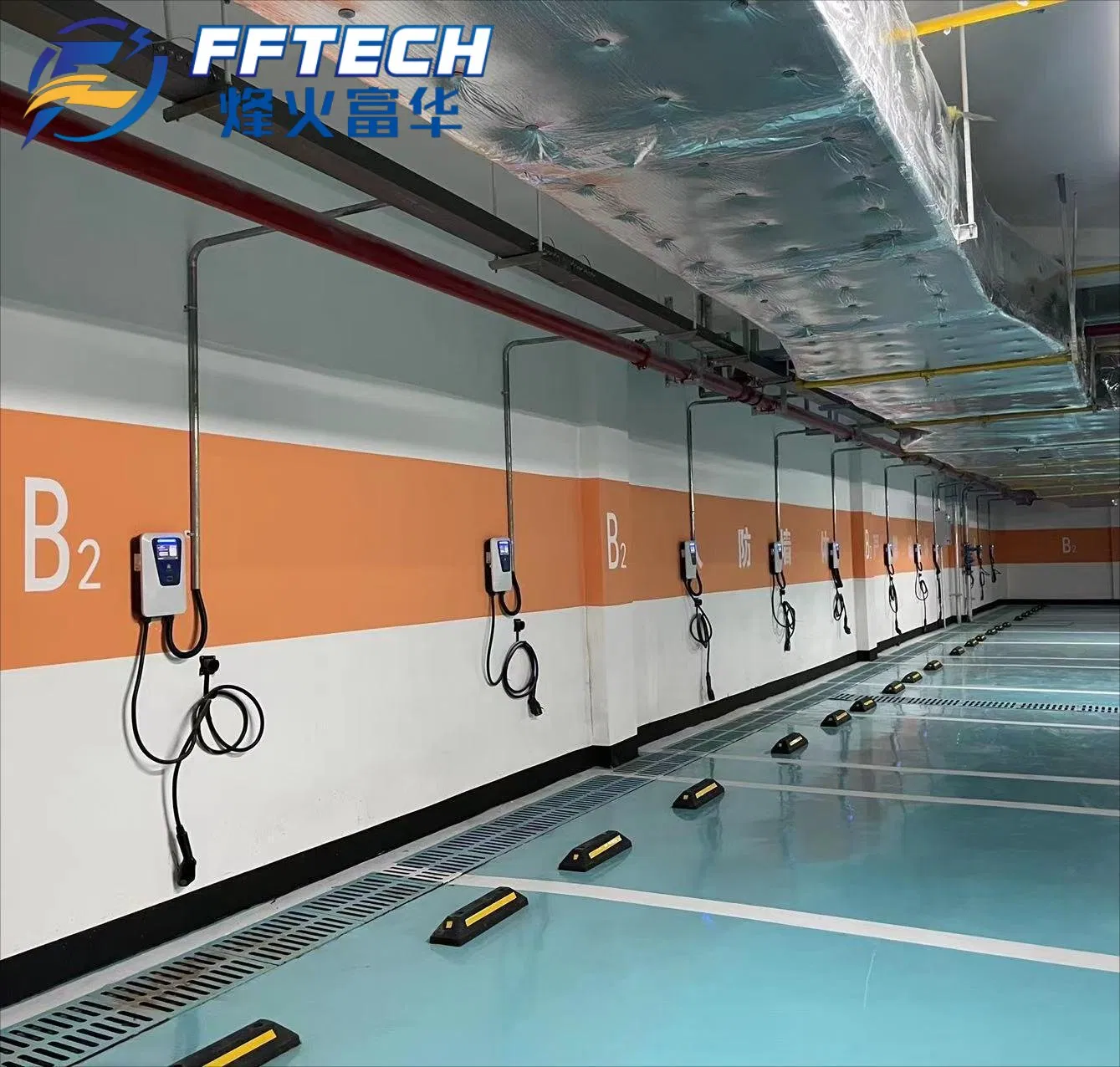

Flexible installation: Choose between wall-mounted or optional stand-column.
-
📊
Internal high-precision AC and DC energy meters for accurate monitoring.
📸 Product Showcase

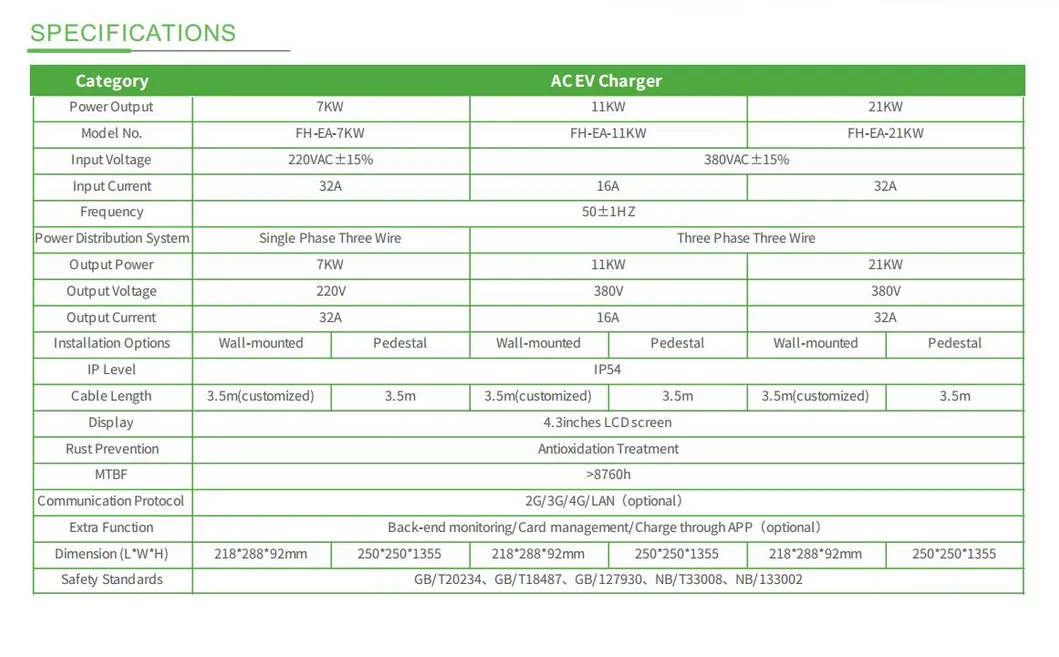

🔍 Technical Specifications
❓ Frequently Asked Questions
What power outputs are available for this EV charger?
The station is available in three power capacities: 7kW (Single Phase), 11kW (Three Phase), and 22kW (Three Phase) to suit different home charging needs.
Can this charger be installed outdoors?
Yes, it features an IP54-rated design, which ensures high protection and reliability even in harsh environments.
What charging standards and connectors does it support?
It adheres to the IEC62196 standard and supports TYPE1, TYPE2, or GBT connectors, including the CCS2 TYPE2 gun.
What are the connectivity and payment options?
The charger supports LAN, WiFi, 4G, and Bluetooth. It also features RFID authorization and Mobile App payment support.

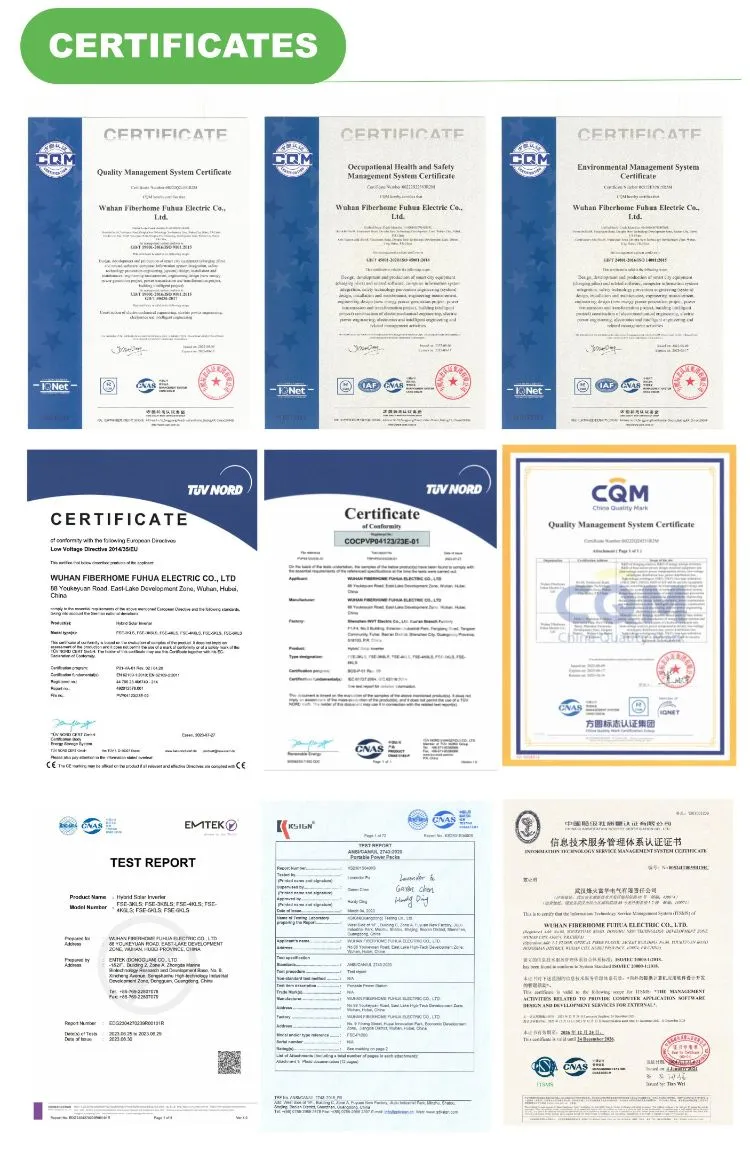

What safety certifications does the product have?
The charging station is technically robust and meets EMC Class B, TUV CE, CQM, ISO, and UL certification standards.
Is the charging cable length customizable?
The standard cable length is 5 meters, but it can be customized up to a maximum of 10 meters.
