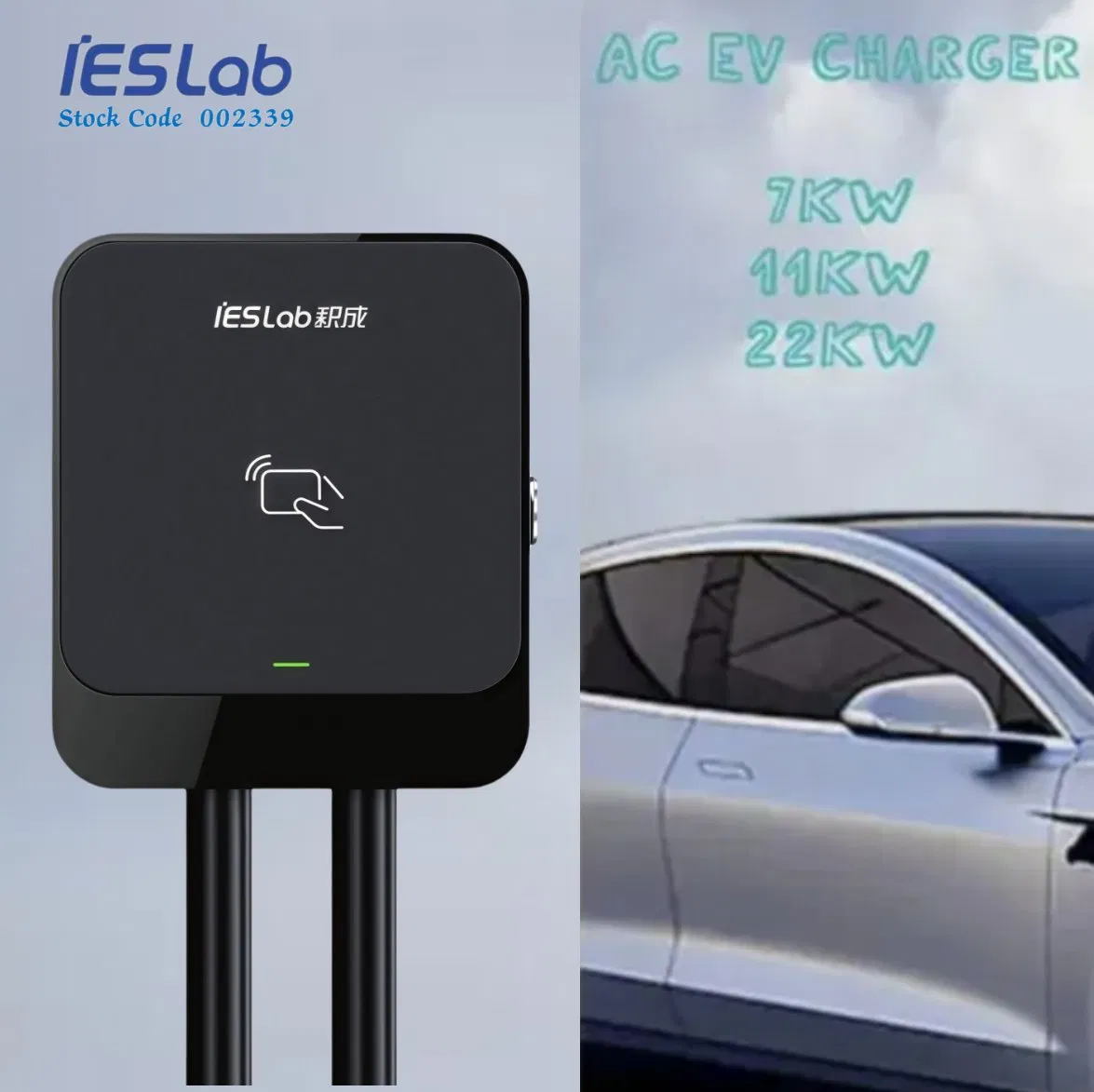

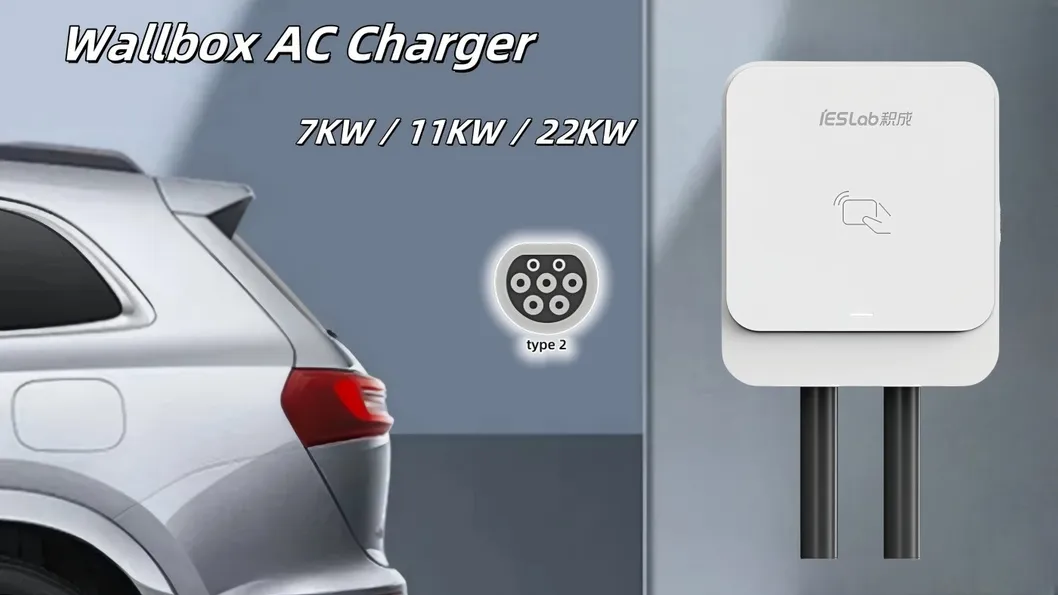

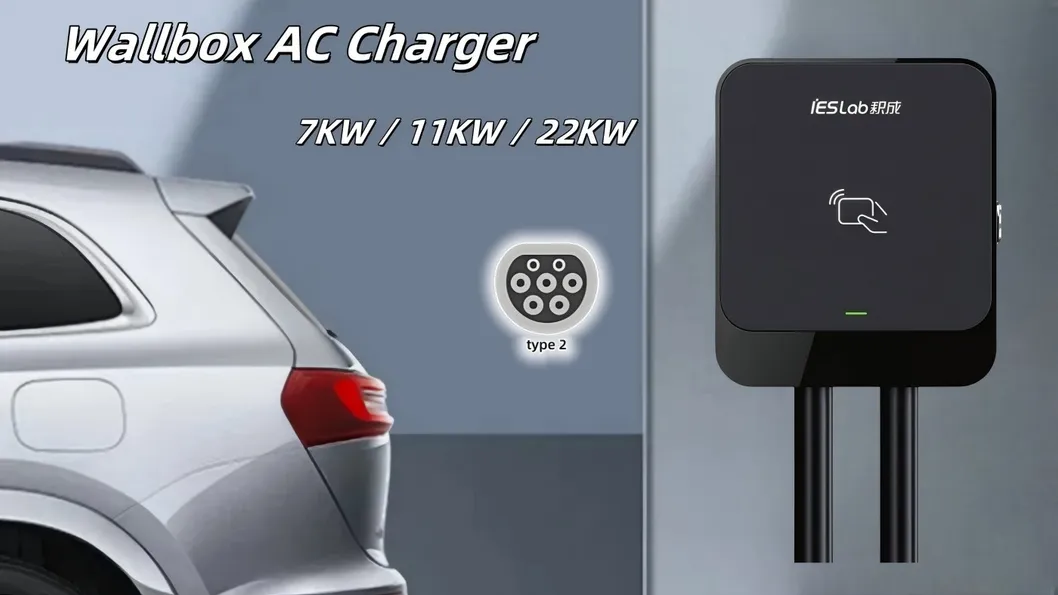

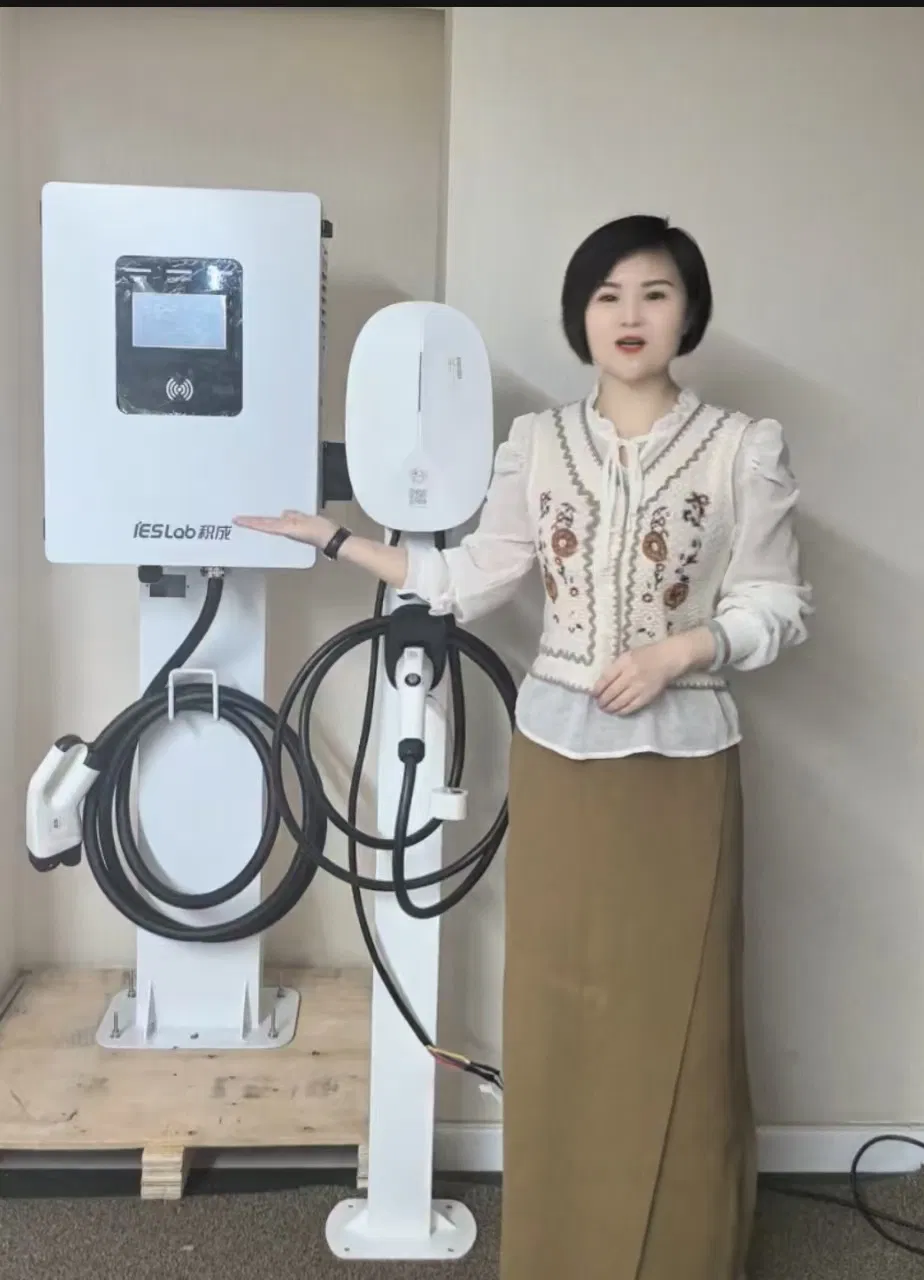

Type 2 Ocpp Commercial Wall Mounted AC EV Charger Fast Charging AC Electric Vehicle Charging Point
Product Description
📊
Basic Information
Model NO.
7/11/22kw AC Charger
Charging Interfaces
One Pile with One Charge
Location
Indoor and Outdoor
Installation
Wall Mounted
Charge Method
Normal Charge
After-Sales Service
2 Years Warranty
Certification
CE, TUV, Ukca, RoHS, ISO
Net Weight
5kg
Rated Output Current
7kw:16A; 11/22kw:32A
Standard Compliance
IEC 61851-1, IEC 61851-21-2
Charging Connector
5m Tethered IEC Type 2 Lead
Charging Mode
Mode 3
Protection Rating
IP54
Housing Material
PC with Anti-UV Treatment
Specification
87 x 190 x 330 (DxWxH)
📦
Packaging & Delivery
Package Size
41.00cm * 32.00cm * 21.00cm
Package Gross Weight
4.800kg
⚡
Product Description
| Product Parameters | |
|---|---|
| Product name | Wall-Mounted EU Standard AC Charger |
| Overall Dimensions(LWH) | 87mm x 190mm x 330mm |
| Housing Material | PC with Anti-UV Treatment |
| Rated Input Voltage | 7kw:230Vac ± 10%; 11/22kw:400Vac ± 10% |
| Rated Output Current | 7kw:230Vac ± 10%; 11kW/16A; 22kW/32A |
| Standard Compliance | IEC 61851-1, IEC 61851-21-2 |

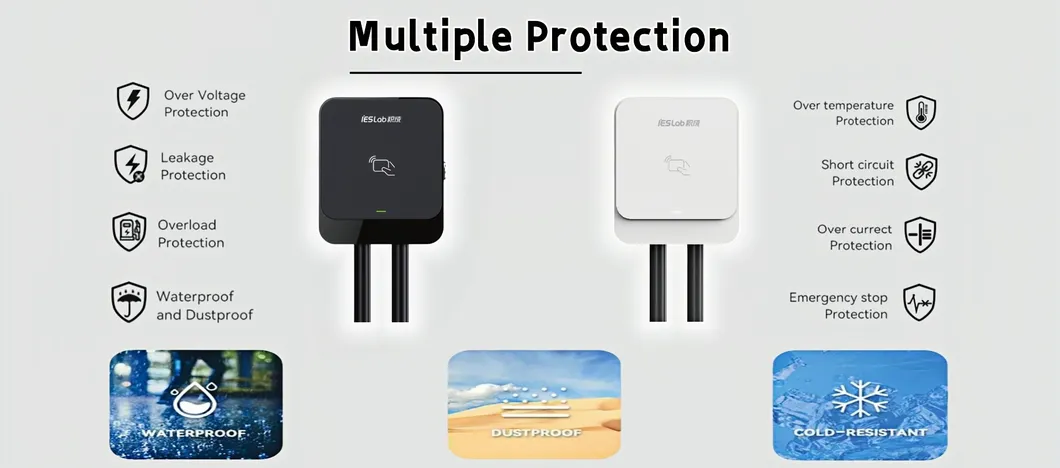

| Electrical Protection | UVP, OVP, RCD (DC 6mA), SPD, Ground Fault Protection, OCP, OTP |
| Protection rating | IP54 |

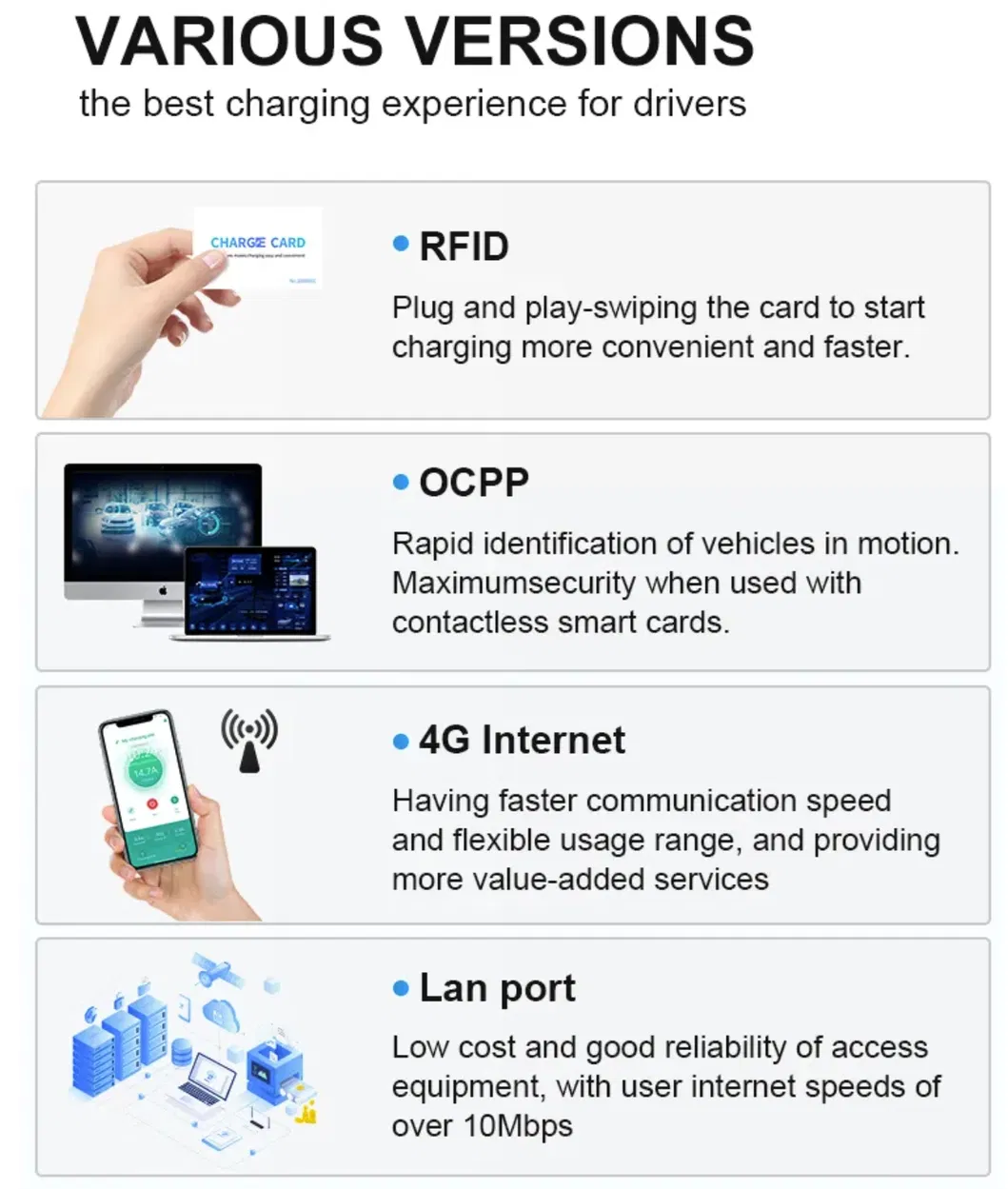

| Communication Protocol | OCPP1.6j |

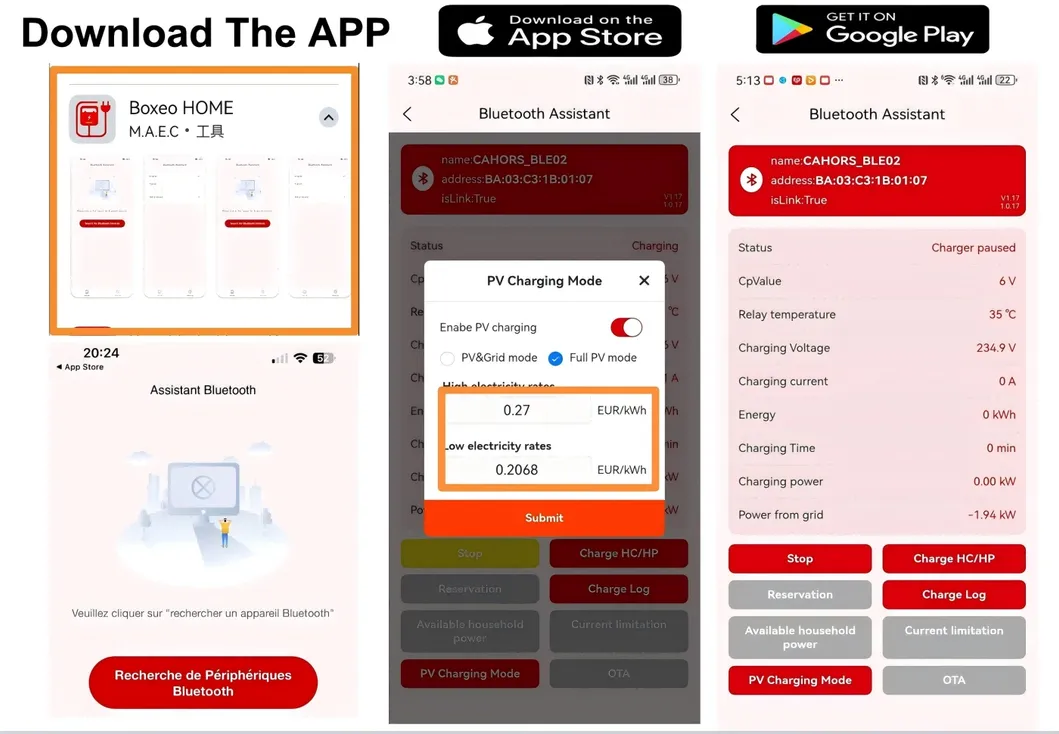

| Data Connection | Back-end Service via OCPP / Home App |
🔌

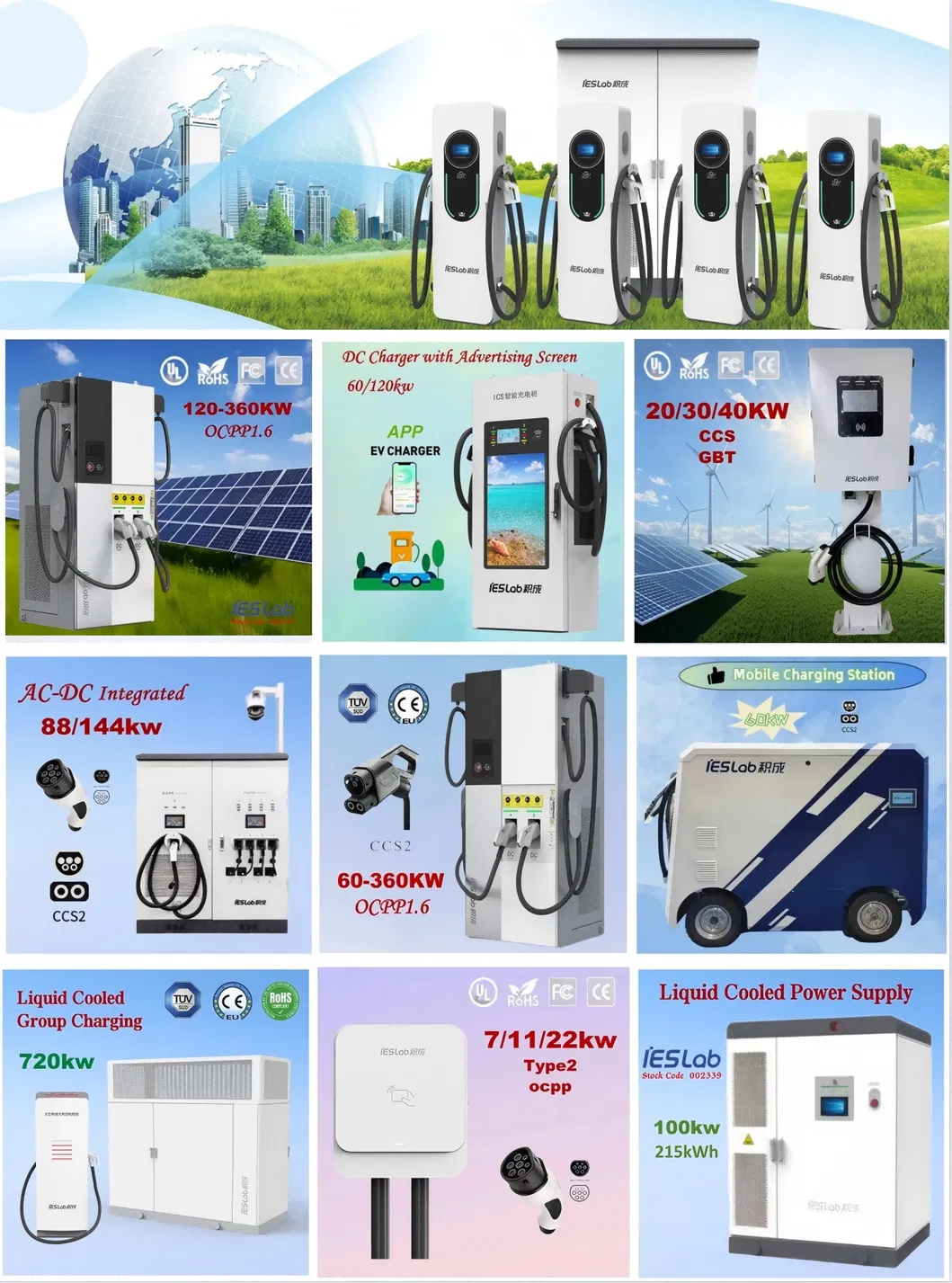

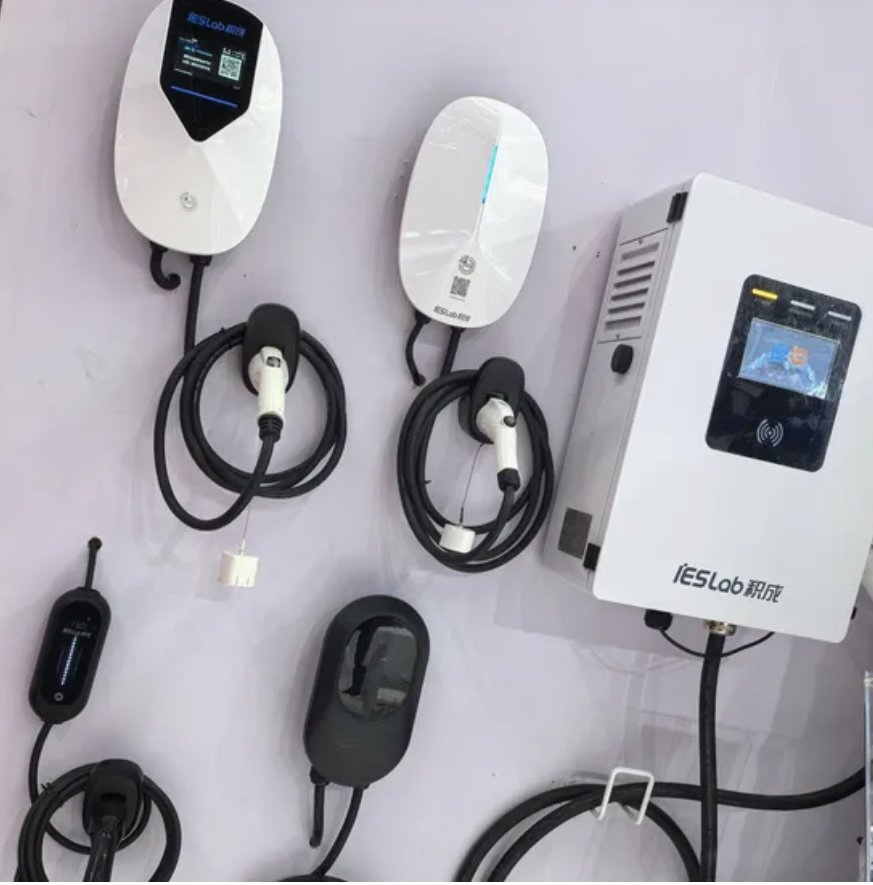

Main Products
📜
Certifications
🏭

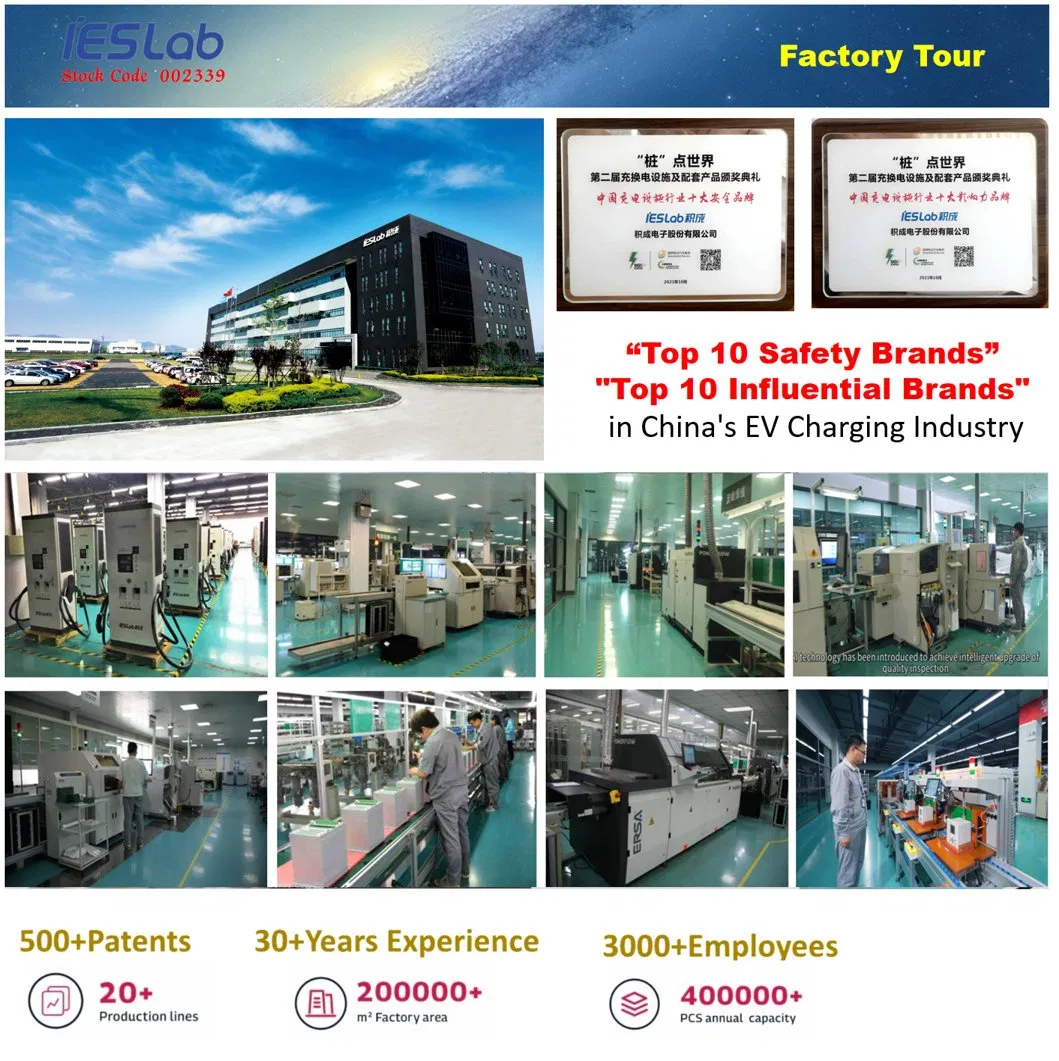

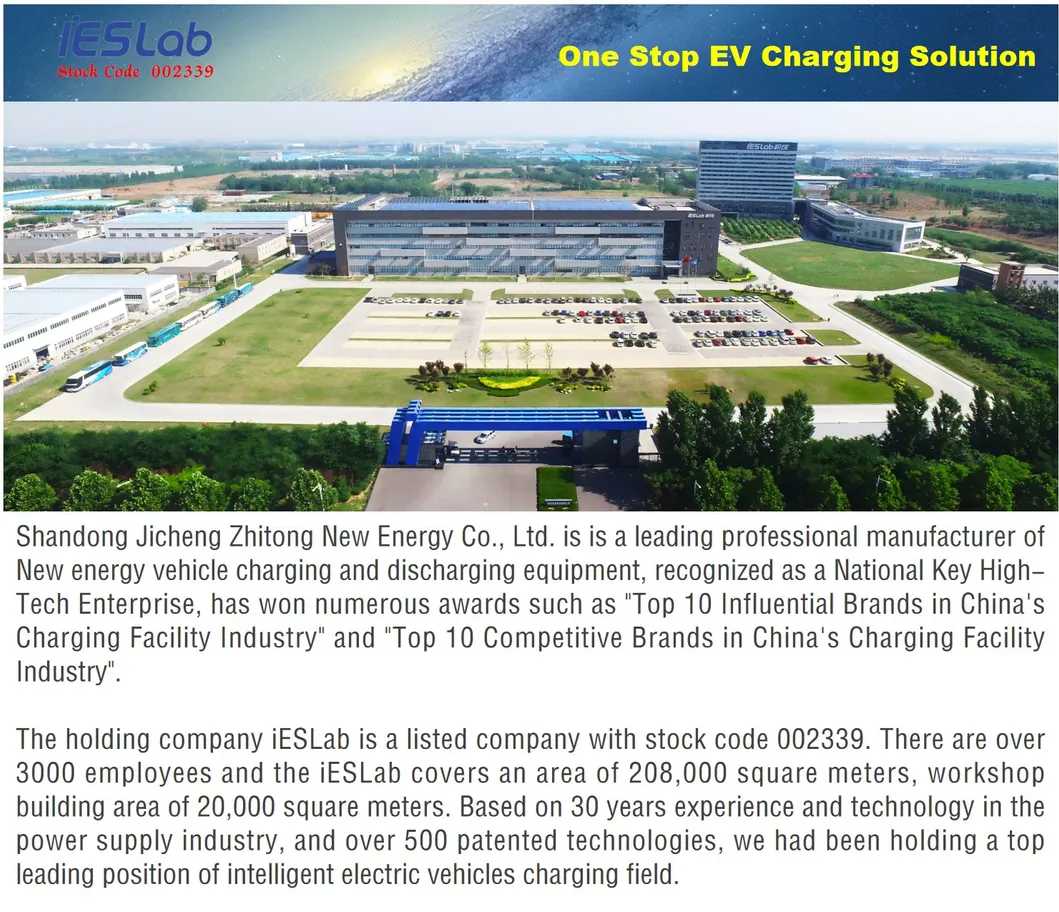

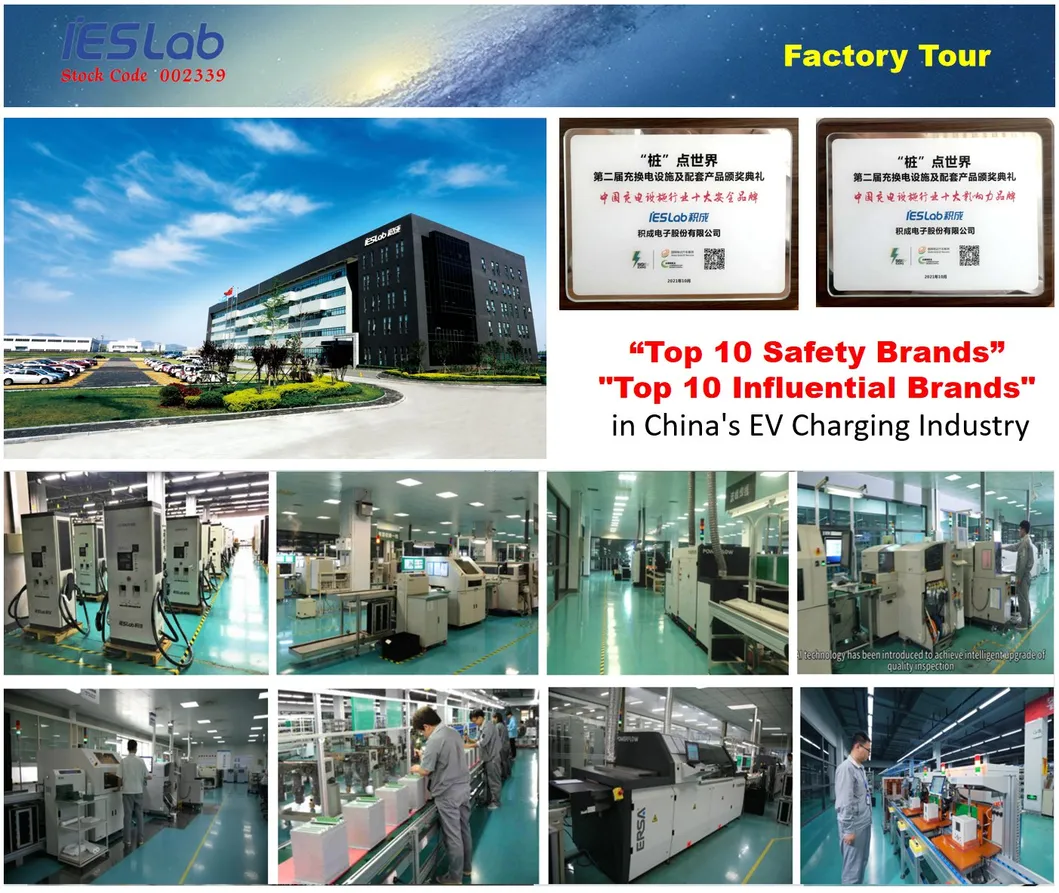

Factory Tour & Profile
🌍

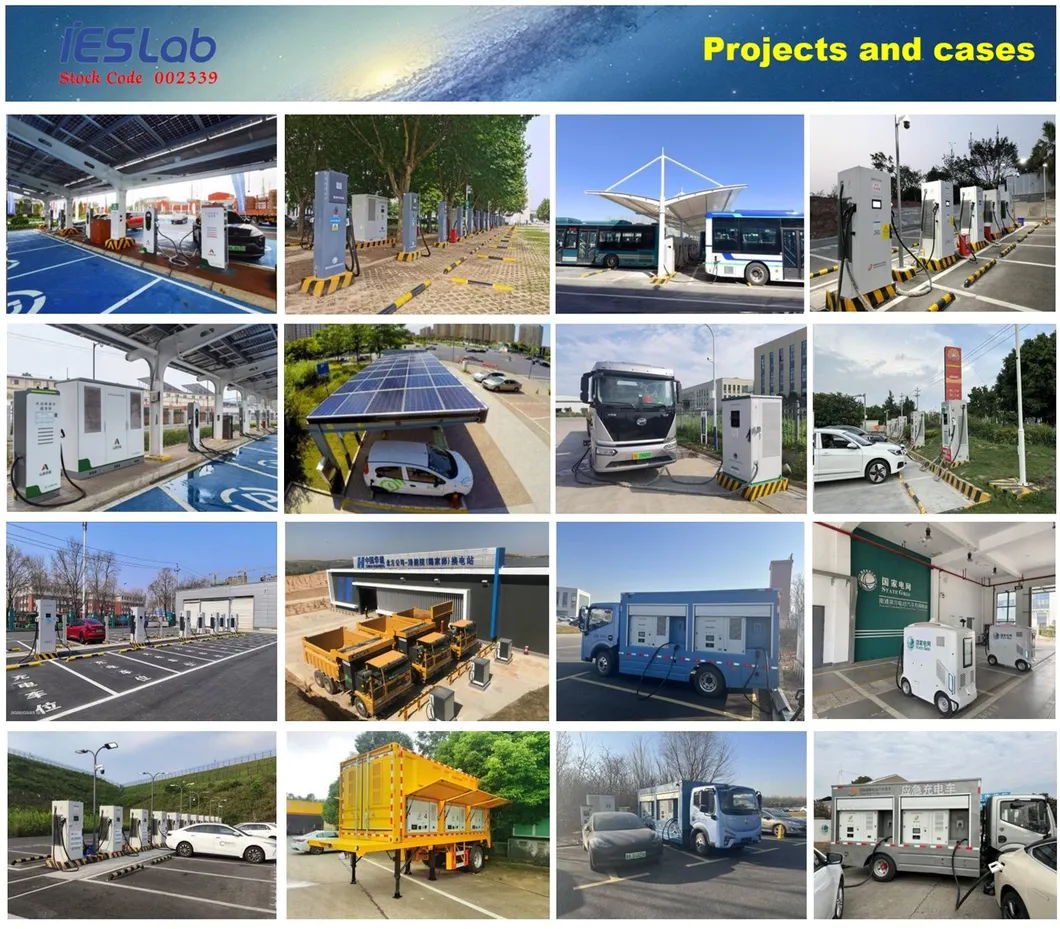

Projects and Events
❓

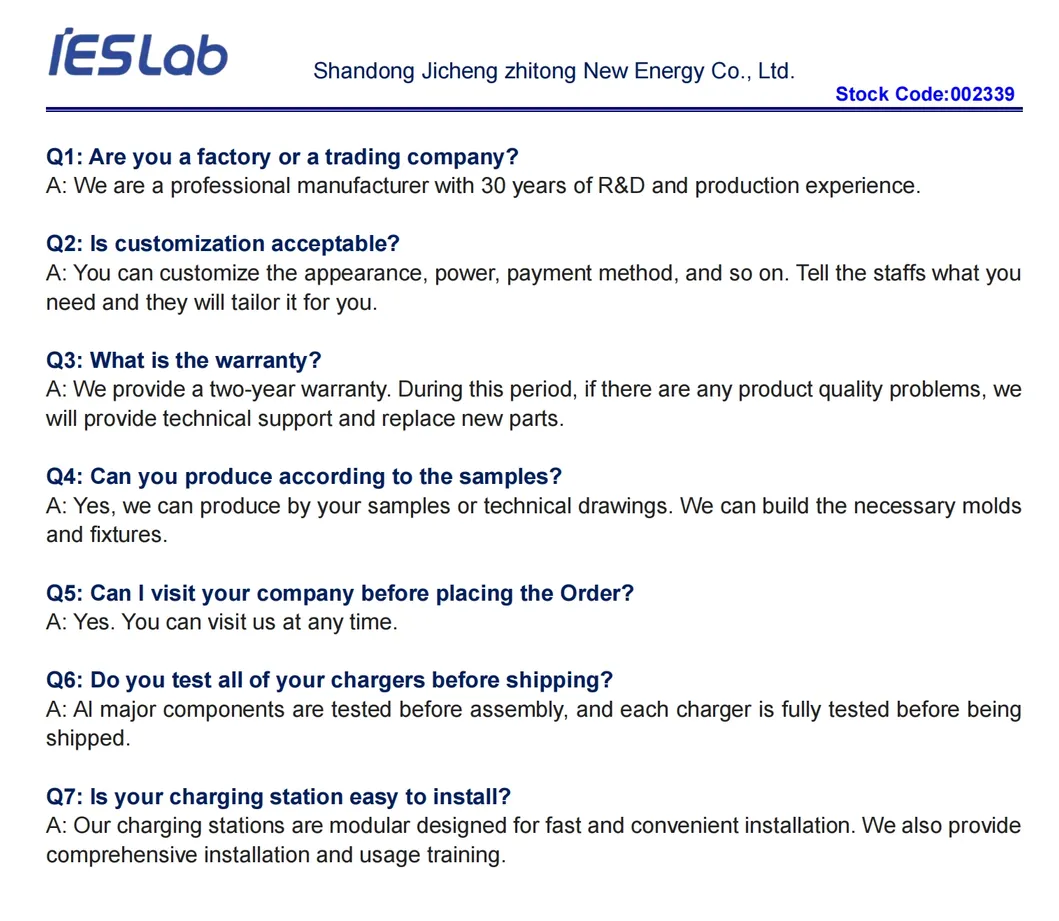

Frequently Asked Questions
Q1: Can I visit your company?
A: You are highly welcomed to visit our factory at any time! If you are looking for a reliable business partner with guaranteed quality and after-sales service, please contact us.
Q2: Are you a factory or a trading company?
A: We are a professional manufacturer with 30 years of R&D and production experience.
Q3: Do you test all of your chargers before shipping?
A: All major components are tested before assembly, and each charger is fully tested before being shipped.
Q4: What is the warranty?
A: We provide a two-year warranty. During this period, if there are any product quality problems, we will provide technical support and replace new parts.
Q5: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the necessary molds and fixtures.
Q6: What is the protection rating for outdoor use?
A: Our chargers come with an IP54 protection rating, making them suitable for both indoor and outdoor installations.
