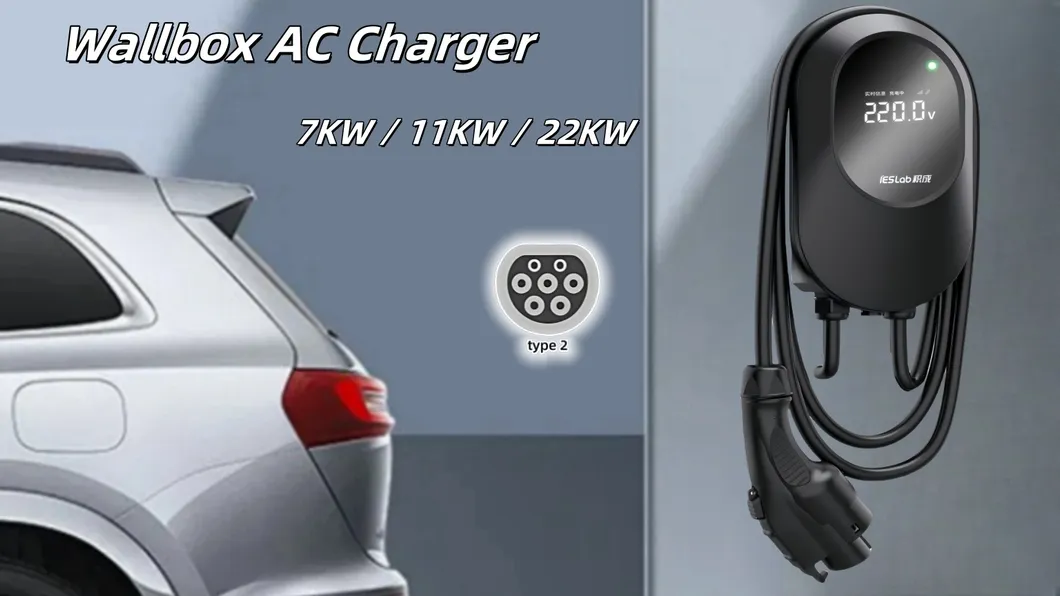

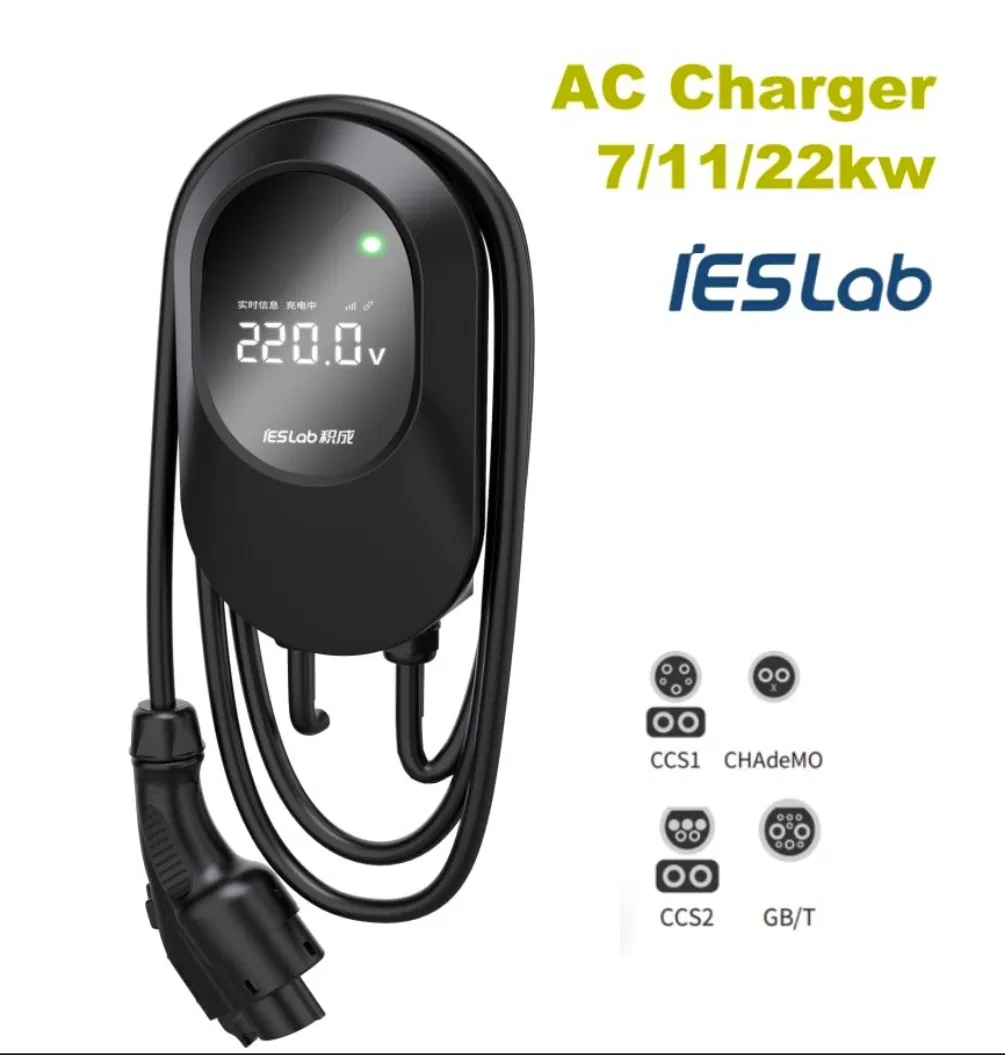

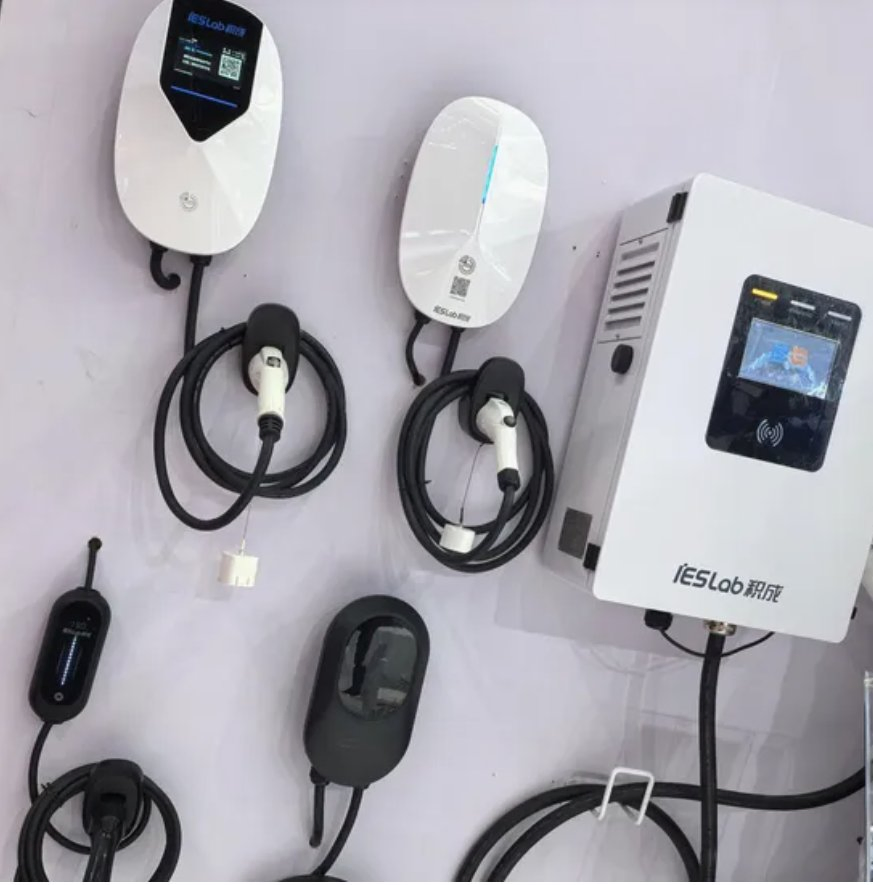

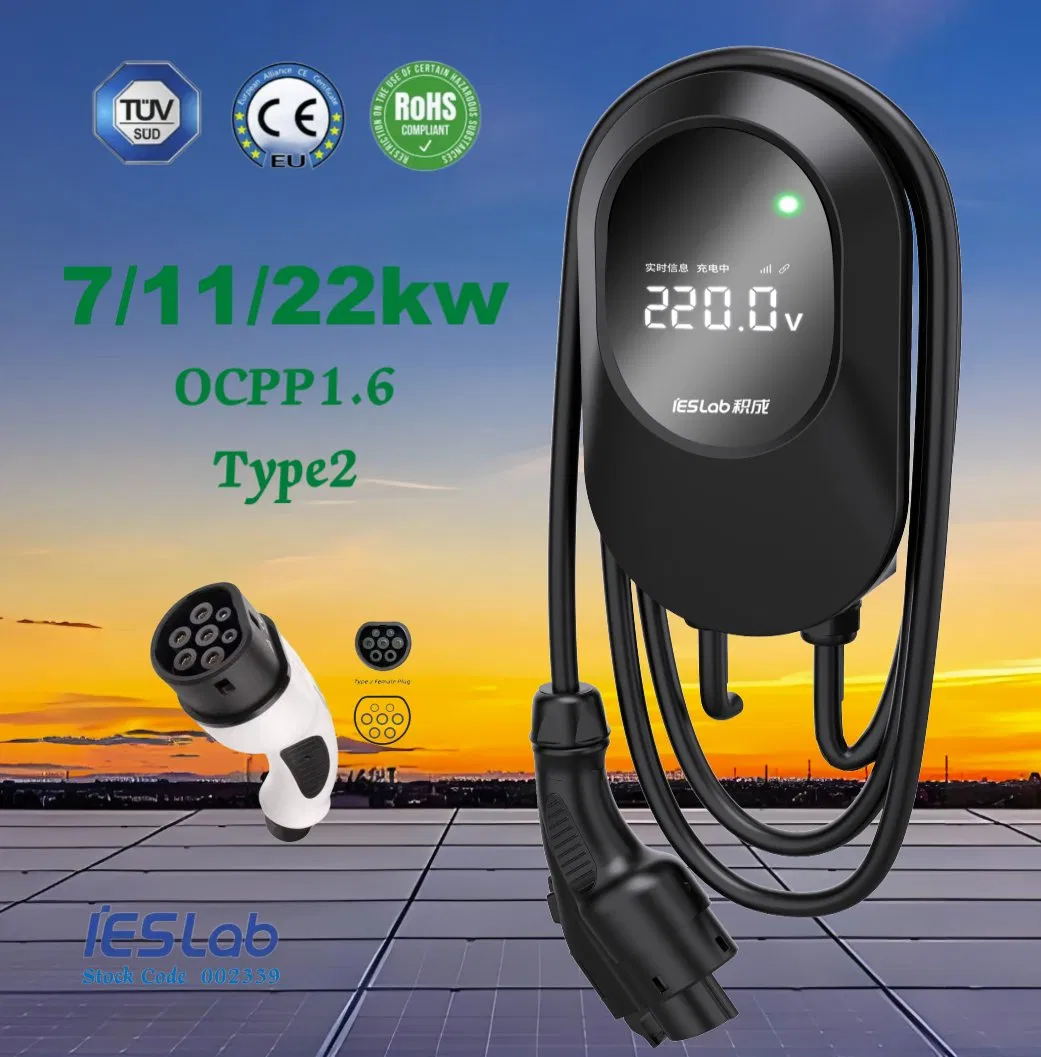

Factory Direct AC Plug Customizable 7kw/11kw/22kw 32A EV Charger Point Car Battery Electric Vehicle Charging Point
Product Description
i
Overview & Basic Info
| Model NO. | 7/11/22kw AC Charger |
| Interfaces | One Pile with One Charge |
| Location | Public Use, Private Use |
| Installation | Wall Mounted |
| Output Power | 7kw / 11kw / 22kw |
| Rated Input Voltage | 7kw: 230VAC; 11/22kw: 400VAC |
| Protection Rating | IP54 |
| Network Gateway | Bluetooth / WiFi / 4G |
| Charging Mode | Mode 3 |
| Standard Compliance | IEC 61851-1, IEC 61851-21-2 |
| Operating Temperature | -30 Degree to +50 Degree |
| Certification | CE, TUV, Ukca, RoHS, ISO |
| Production Capacity | 5000 Sets/Month |
P

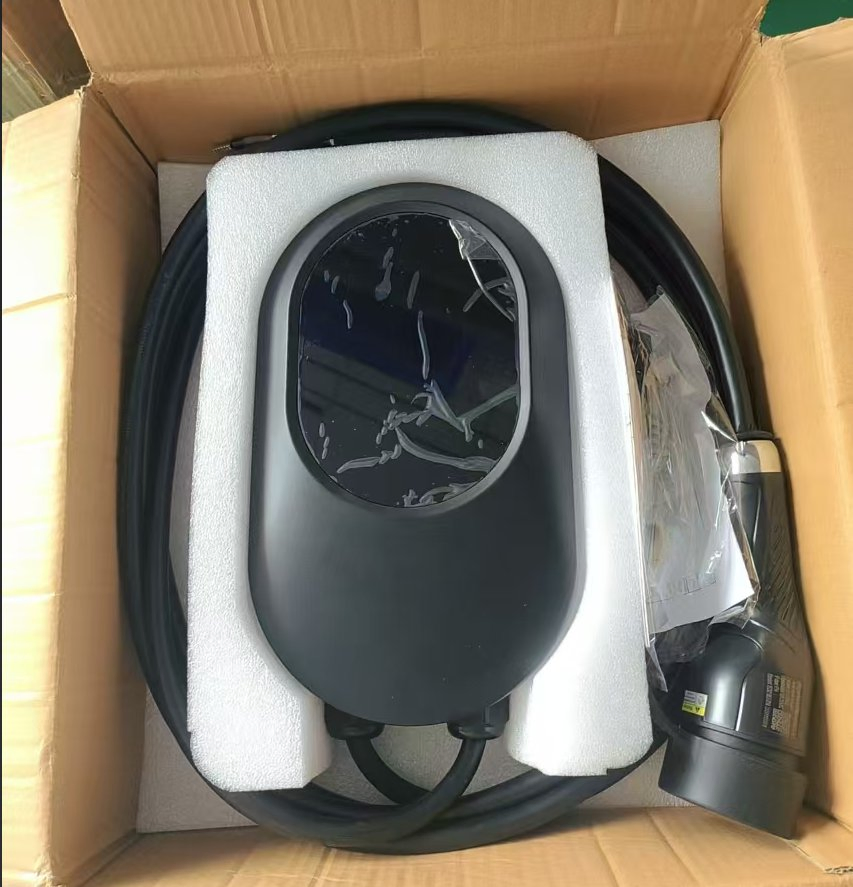

Packaging & Delivery
| Package Size | 48.00cm * 32.00cm * 21.00cm |
| Package Gross Weight | 5.000kg |
| Transport Package | Carton |
D

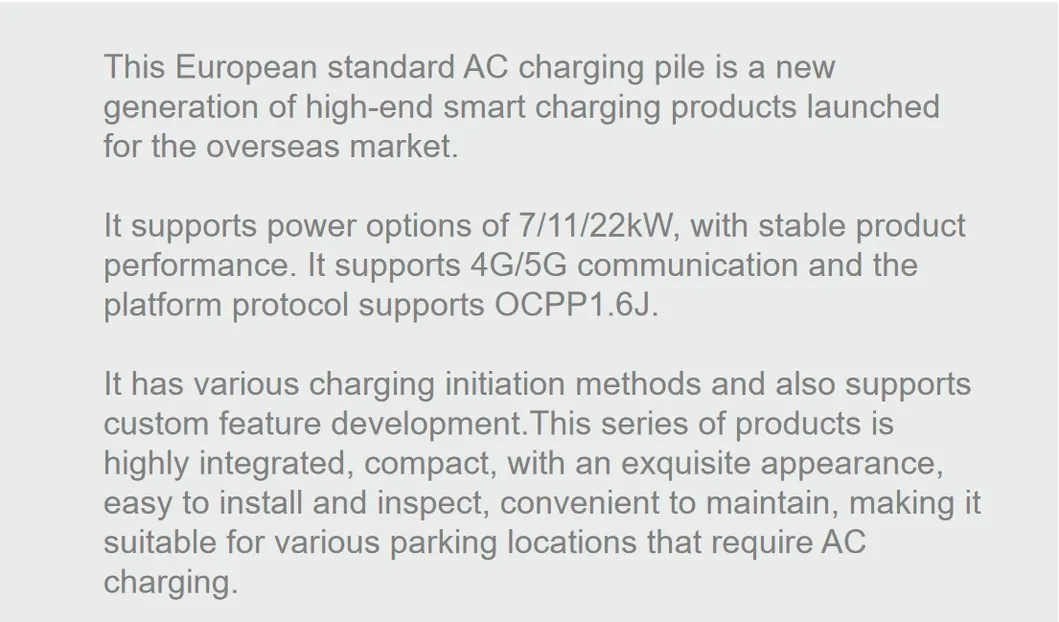

Product Description
| Technical Parameters | |
| Product name | Wall-Mounted EU Standard AC Charger |
| Overall Dimensions | 87mm x 190mm x330mm |
| Housing Material | PC with Anti-UV Treatment |
| Charging Connector | 5 Meter Tethered IEC Type 2 Lead |

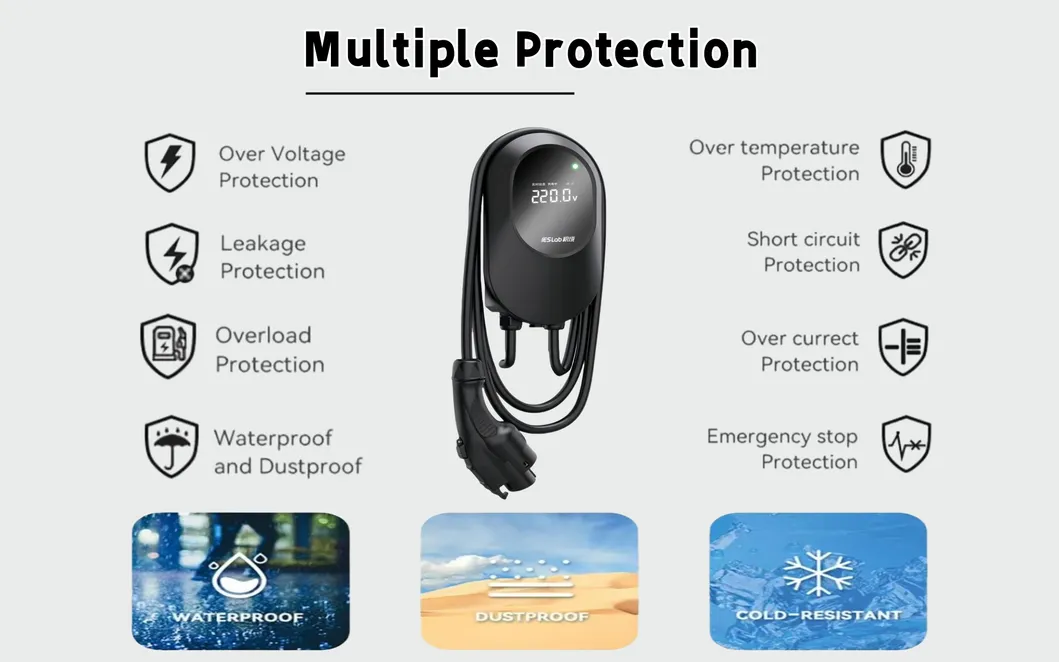

| Electrical Protection | UVP, OVP, RCD (DC 6mA), SPD, Ground Fault Protection, OCP, OTP |
| Energy Meter | On-board Device +/- 1% Accuracy |
| User Interface | Digital Screen |
| Communication Protocol | OCPP1.6j |
| Authentication | NFC (ISO / IEC 14443A / MIFARE) |
M

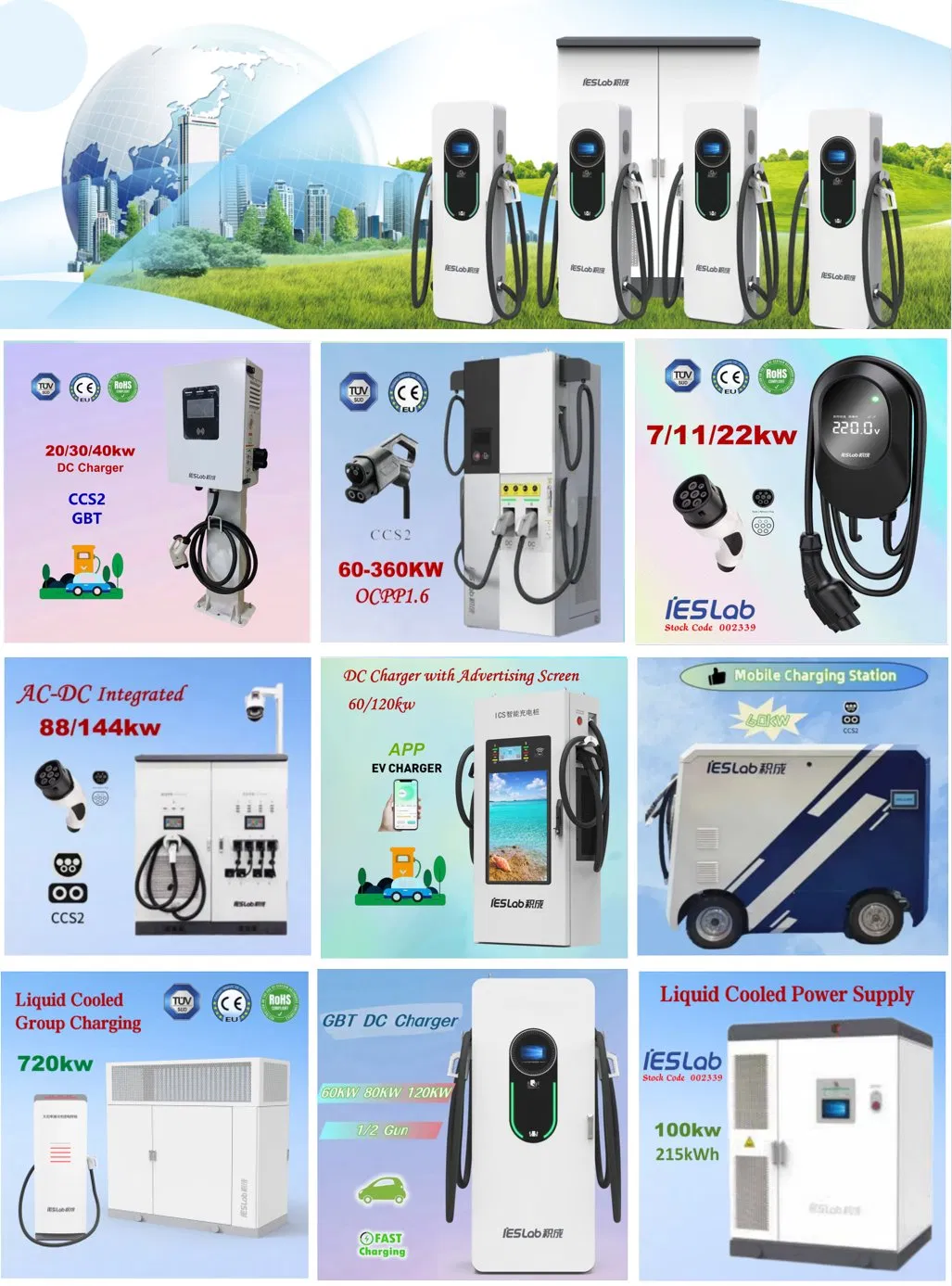

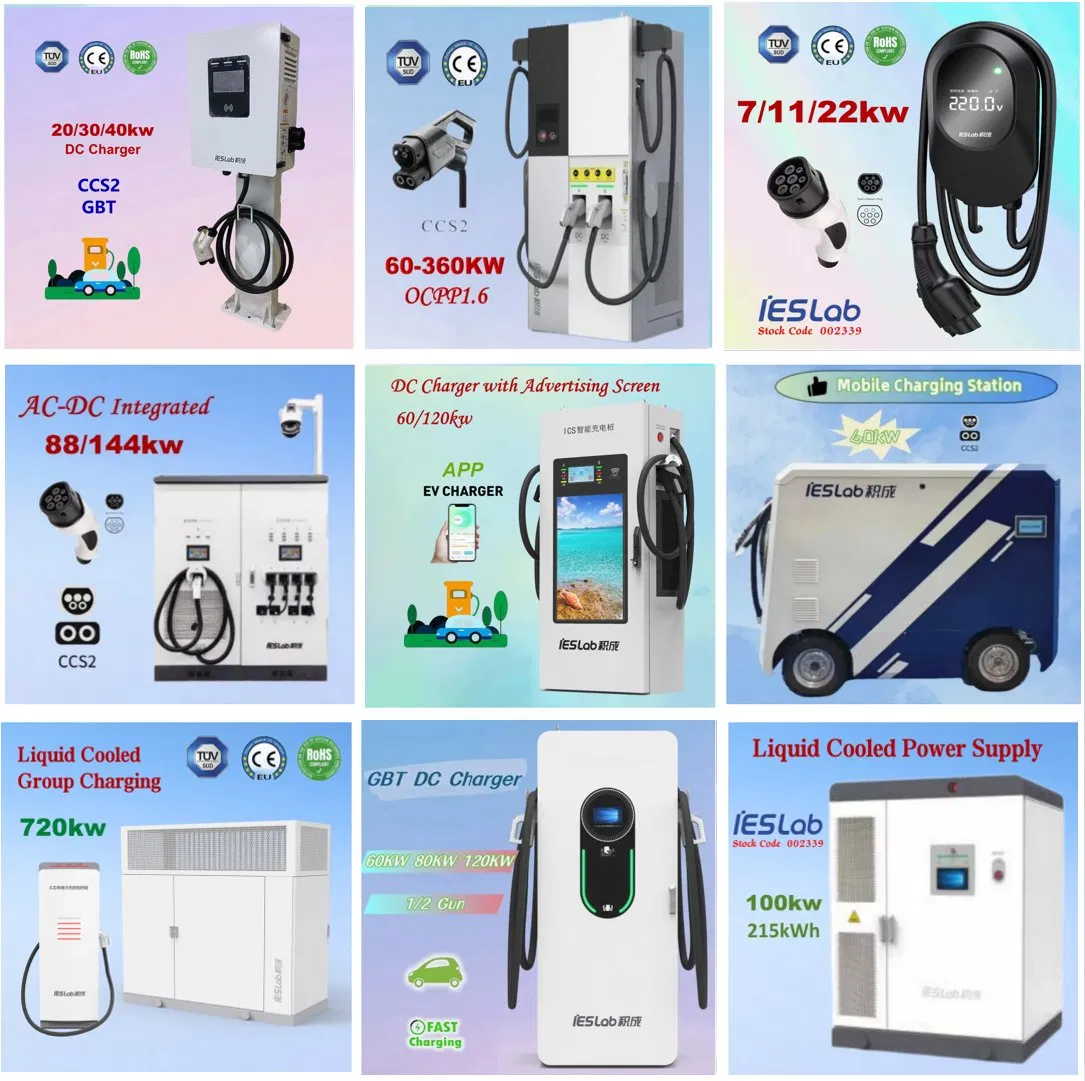

Main Products Range
C
Certifications
F

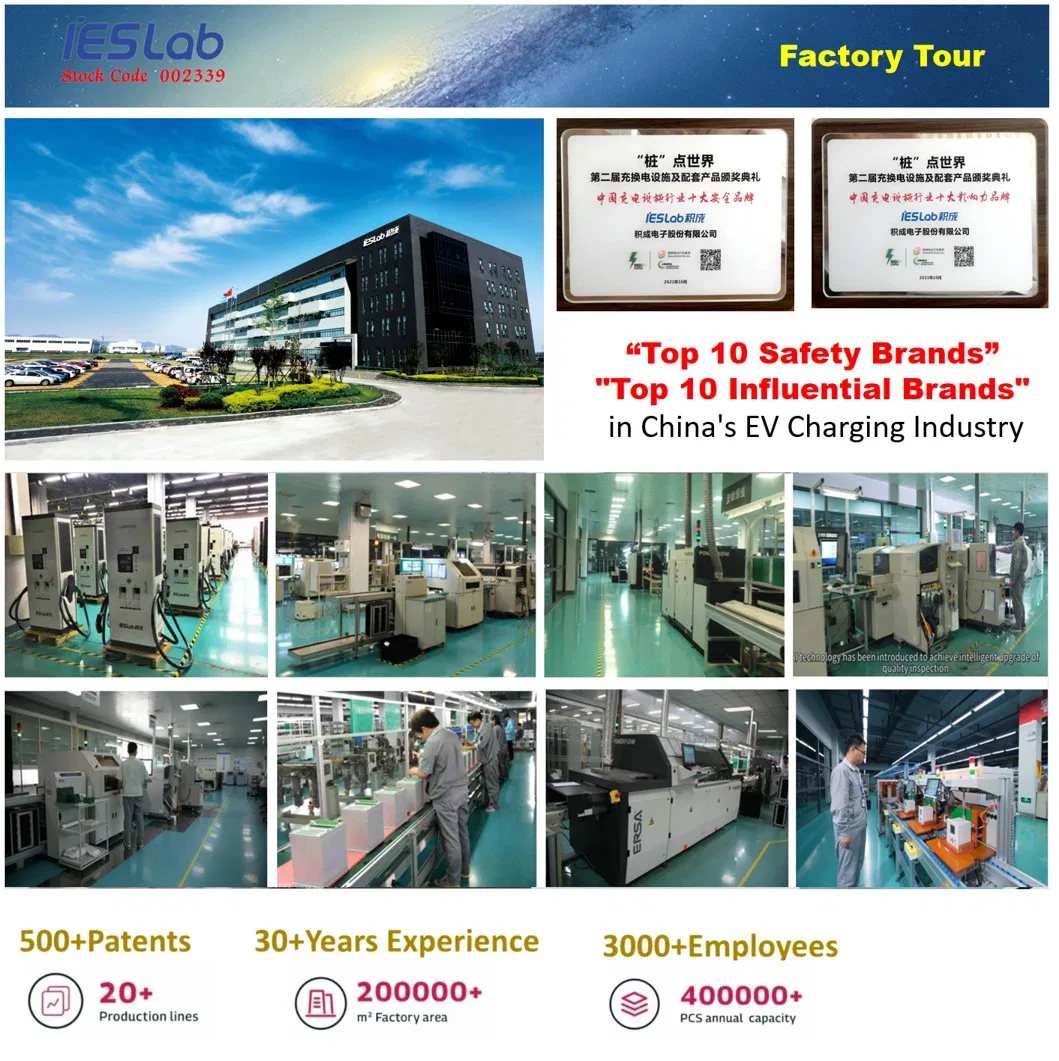

Factory & Exhibition
A

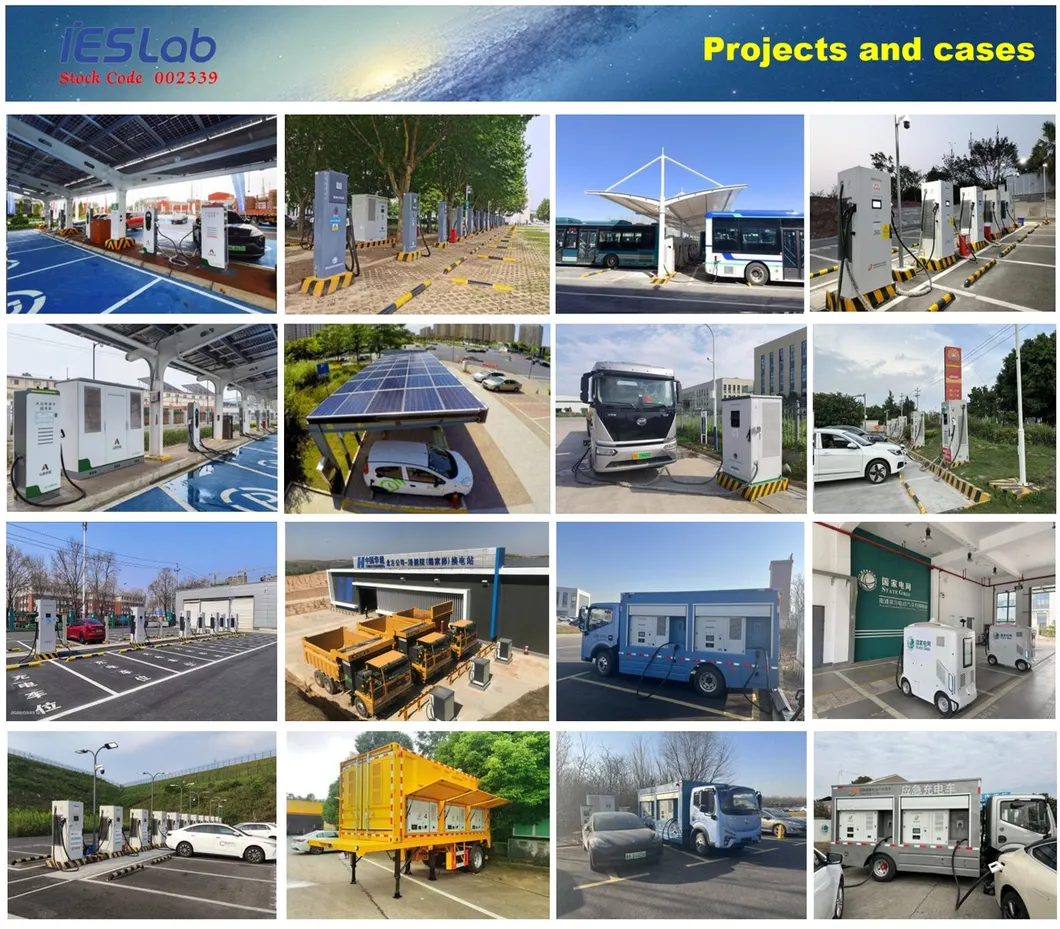

Application Cases
?

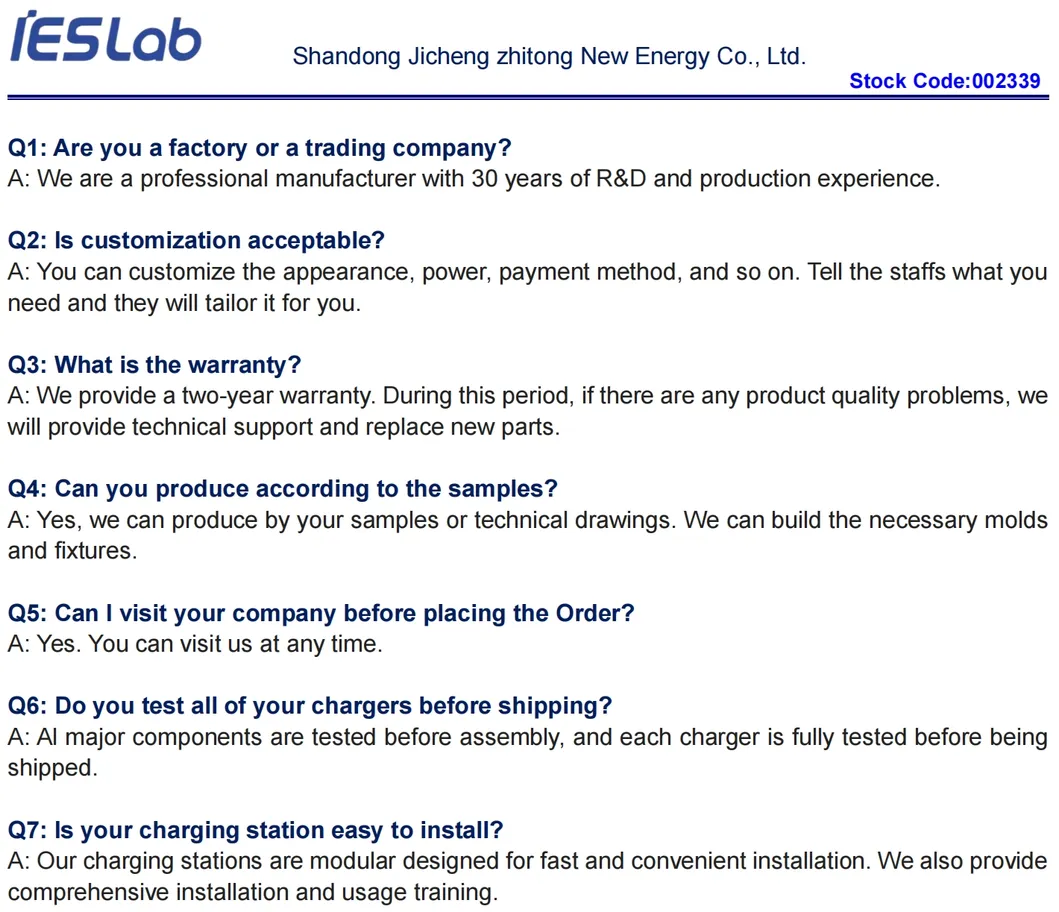

Frequently Asked Questions
Can I visit your facility?
You are highly welcomed to visit our factory at any time to see our production process first-hand.
Are you a manufacturer or a trading company?
We are a professional manufacturer with 30 years of R&D and production experience in the electrical industry.
Do you test all of your chargers before shipping?
Yes, all major components are tested before assembly, and each finished charger undergoes full testing before being shipped to ensure quality.
What is the standard warranty for your EV chargers?
We provide a two-year warranty. During this period, we offer technical support and replacement parts for any product quality issues.
Can you produce chargers according to specific samples or drawings?
Yes, we can produce based on your technical drawings or physical samples. We have the capability to build necessary molds and fixtures for custom requirements.
What standards do your charging points comply with?
Our products are fully compliant with IEC 61851-1 and IEC 61851-21-2 standards, carrying certifications like CE, TUV, and RoHS.
