Evse DC 30kw 1000V EV Charging Point Fast Electric Vehicle Charging Pile Modular Design AC 22kw Option
Product Description

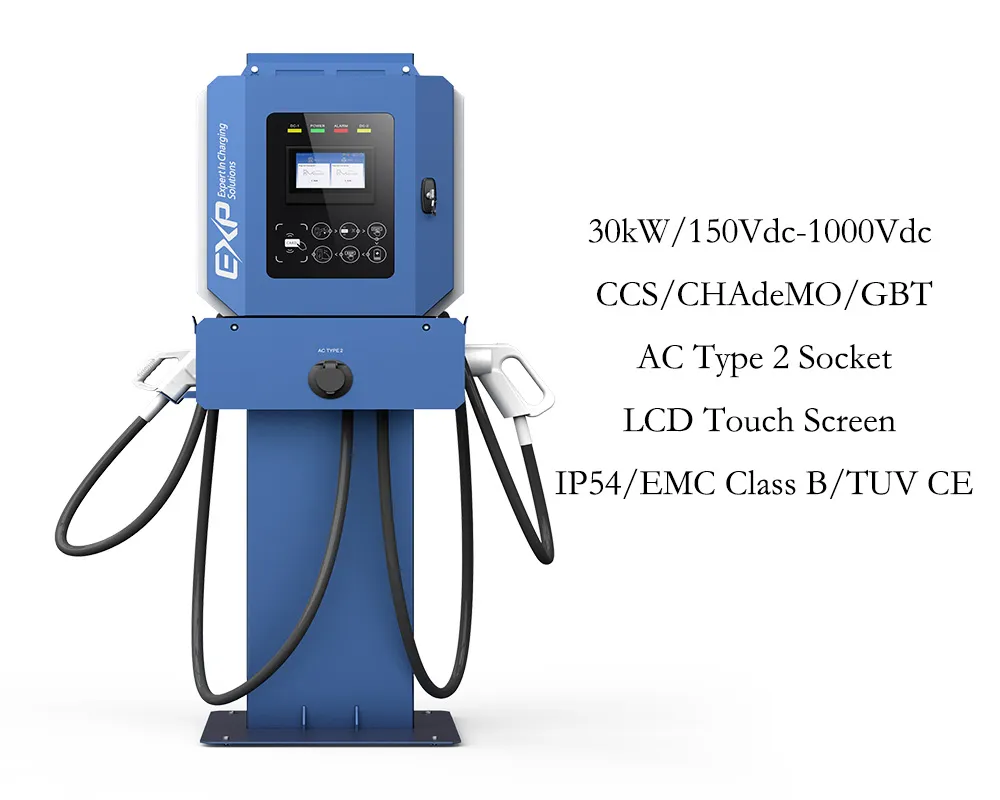

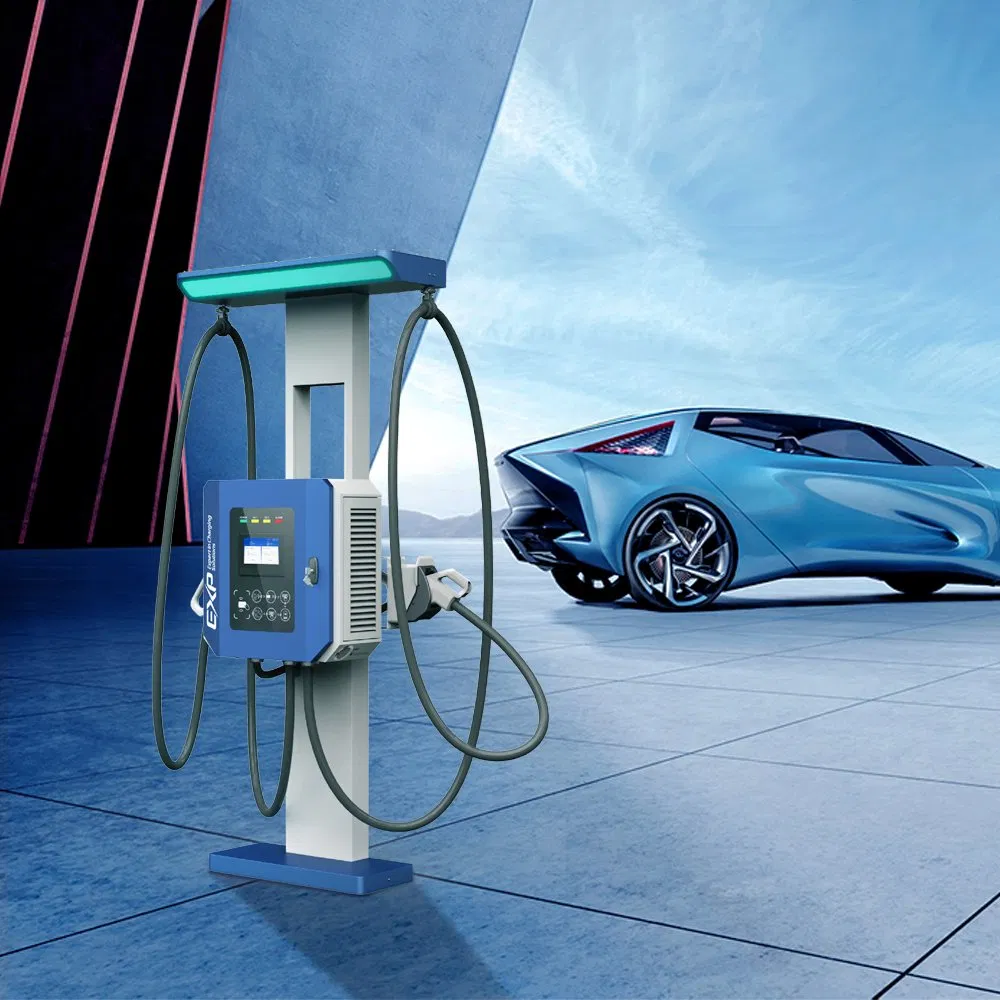

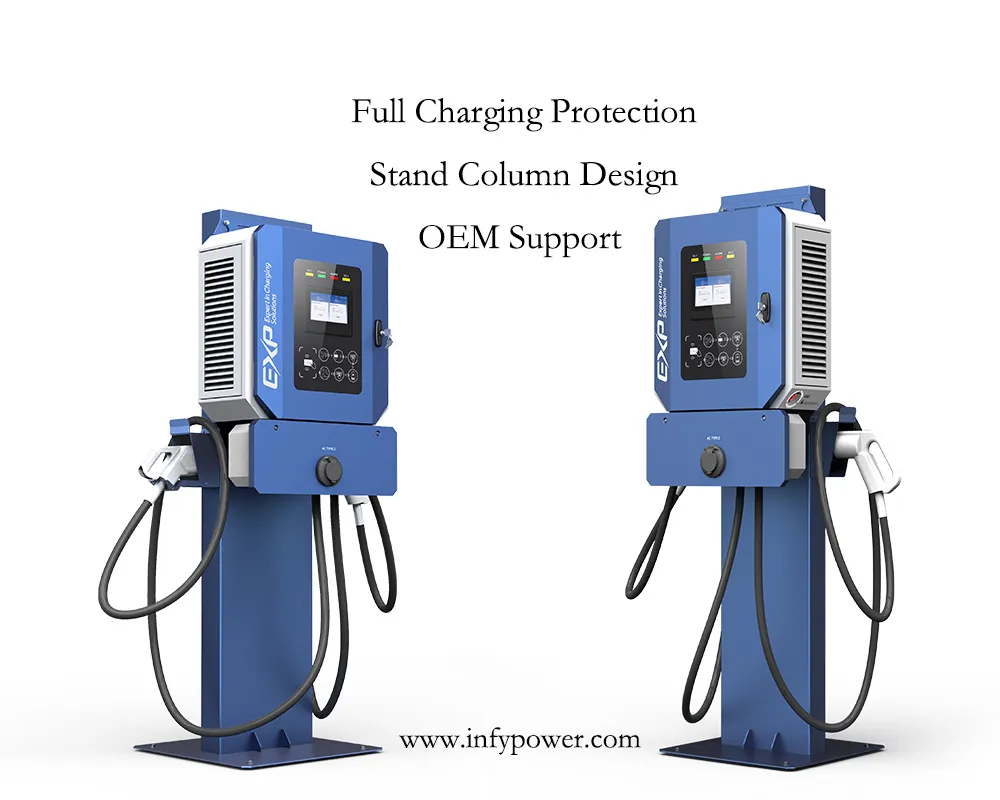

The EXP30K2-FDW is a bestselling electric vehicle DC charger qualified for CCS, CHAdeMO, and GBT charging standards. This EV charging station features a perfect combination of classic stand column design, IP54 protection, a user-friendly 7" LCD touch screen display, and multiple charging modes, along with LAN and optional LTE wireless communication.
Technically, the fast EV DC charger supports a maximum DC output power capacity of 30kW, a maximum DC output current of 100A, and a wide output voltage range from 150Vdc to 1000Vdc. It also includes an AC Type 2 socket for 22kW output.
- CCS1 or CCS2, CHAdeMO and GBT charging standard compatibility.
- Optional AC charging socket (32A/3P/22kW).
- IP54 robust design, operating from -20ºC to 50ºC.
- Smart charging and advanced power management support.

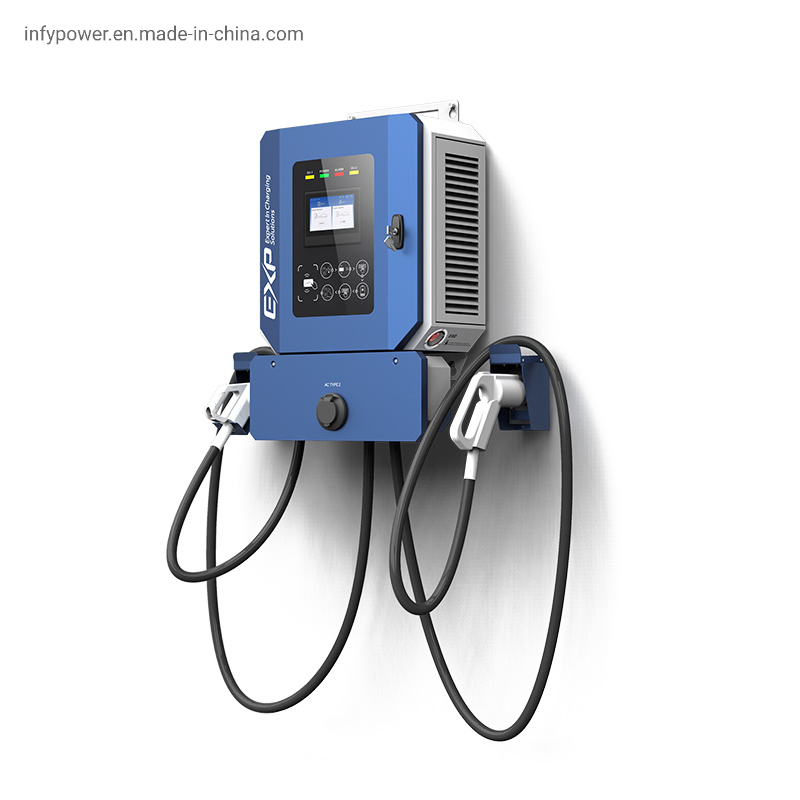

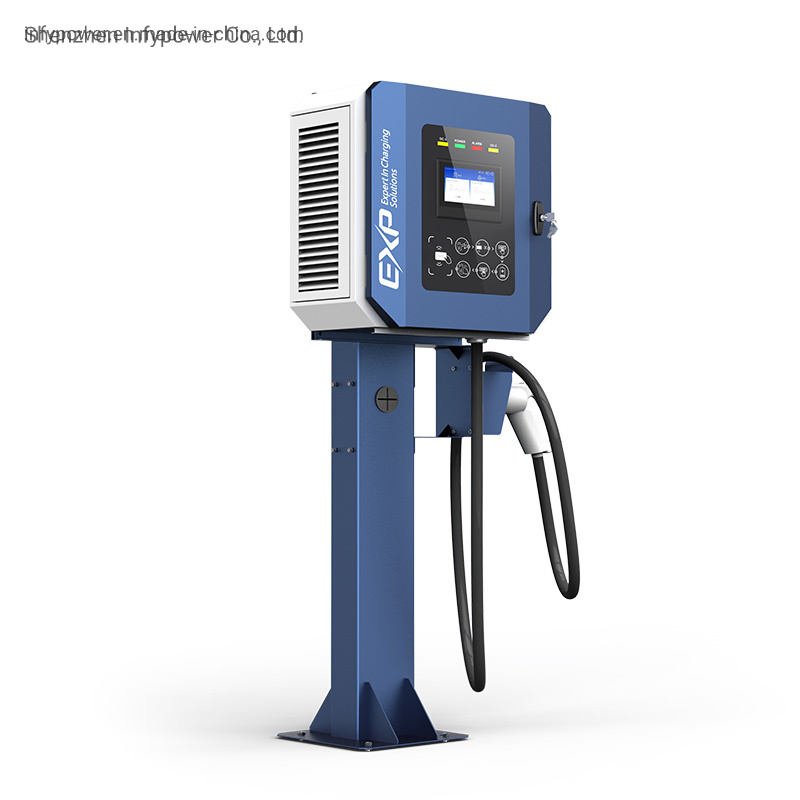

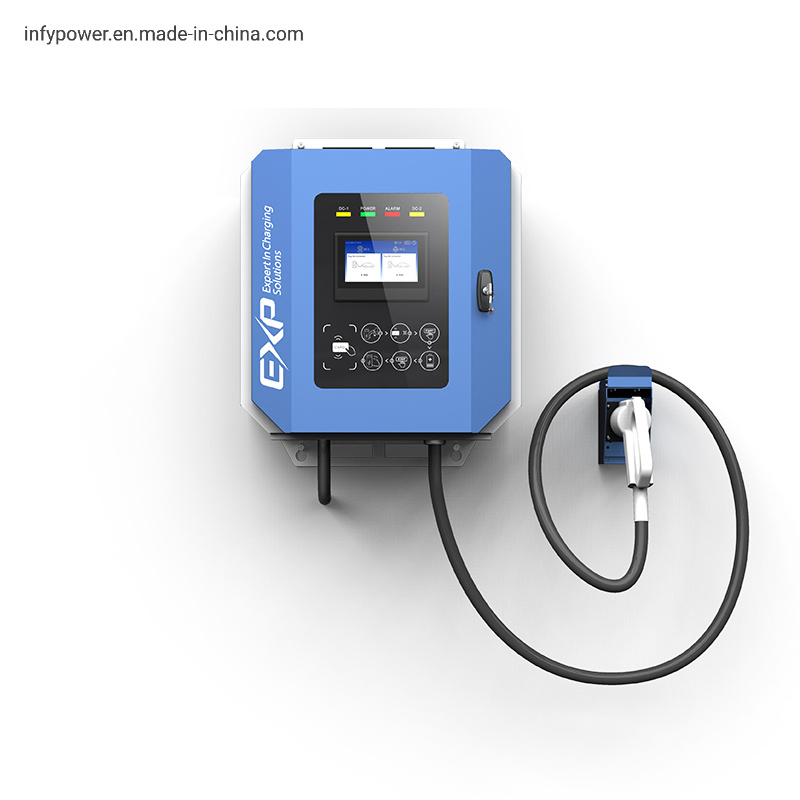

- Flexible installation: Wall mount, stand column, or portable wheeled options.
- 30kW capacity with 100A max current and 150V-1000V voltage range.
- User-friendly 7'' TFT capacitive touch screen with tempered glass.
- Multiple modes: Auto, Time, Amount, Energy, and SOC basis.
- Internal high-precision AC and DC energy meters.
- LAN/LTE support, OTA updates, RFID, and Mobile App payment integration.
| Rated Power | DC 30kW |
| AC Side | 3-phase+N+PE, 260Vac-530Vac |
| DC Voltage | 150Vdc-1000Vdc |
| Max DC Output Current | 100A |
| Charging Standard | CCS, GBT, CHAdeMO, AC Type 2 |

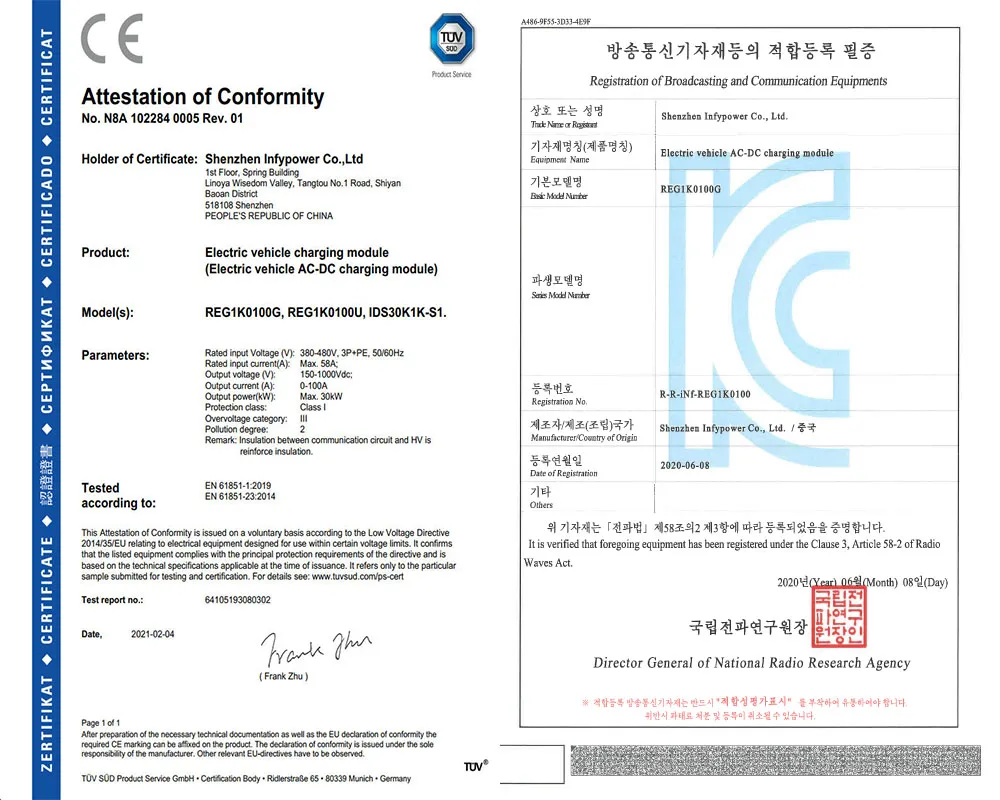

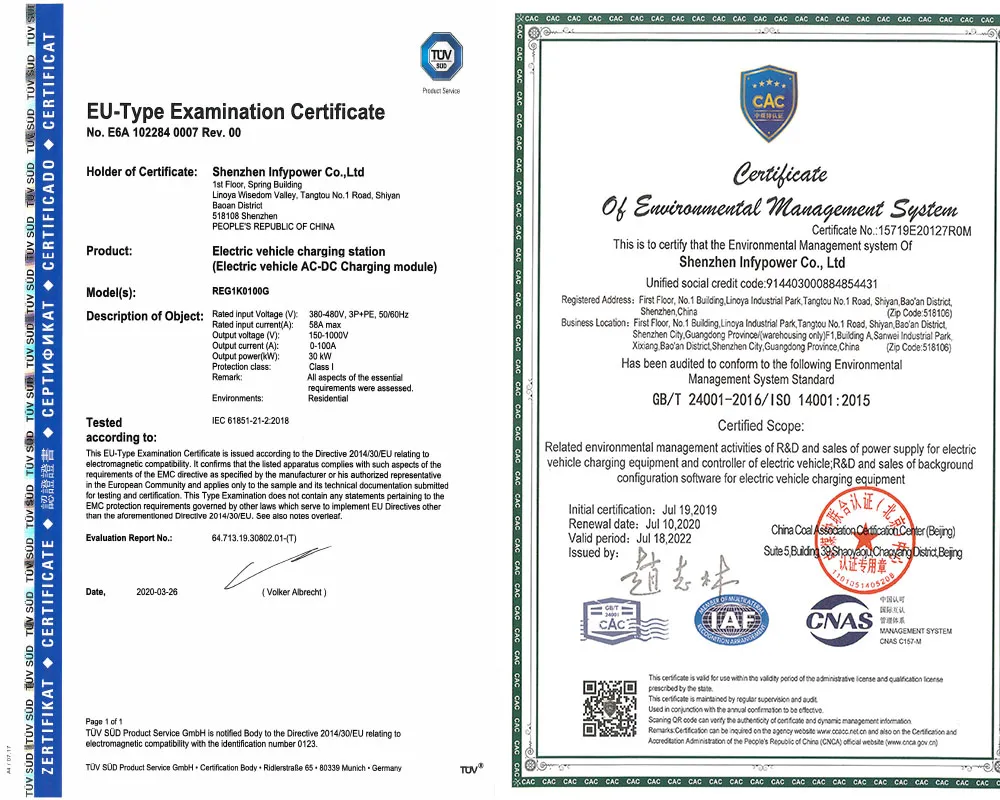

| Certification | TUV CE, EMC Class B |
| Dimension & Weight | 610mm*610mm*270mm / 81kg |
As a high-tech enterprise professionally engaged in power modules and power system solutions, we have gained abundant experience in power electronics and intelligent control technology. Our specialty lies in electric vehicle charging and energy storage solutions. Our products cover a wide range of power modules and converters, recognized for high reliability and efficiency.
With over 70% of our team dedicated to R&D, we have published more than 150 authorized patents. Our goal is to provide sustainable energy solutions to build a greener planet together with our global partners.
