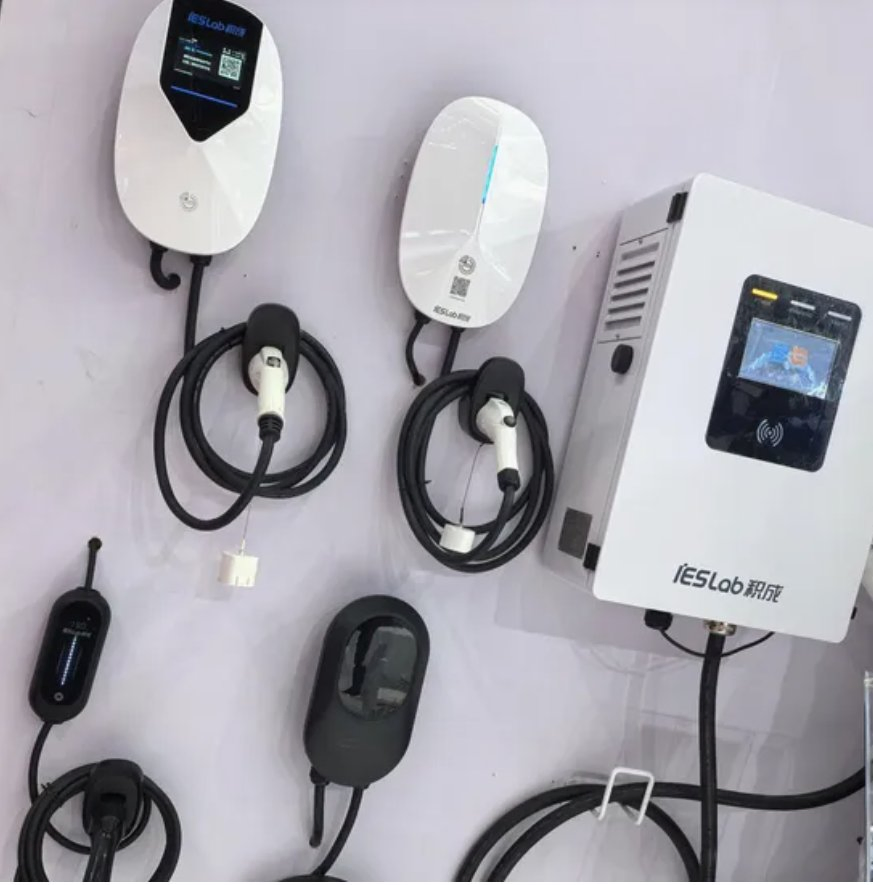

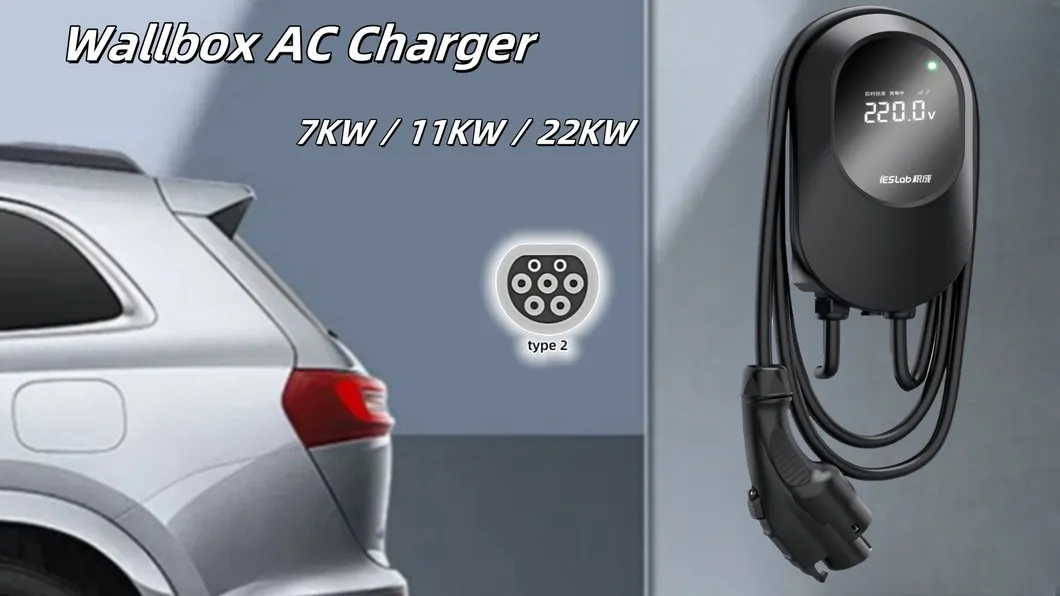

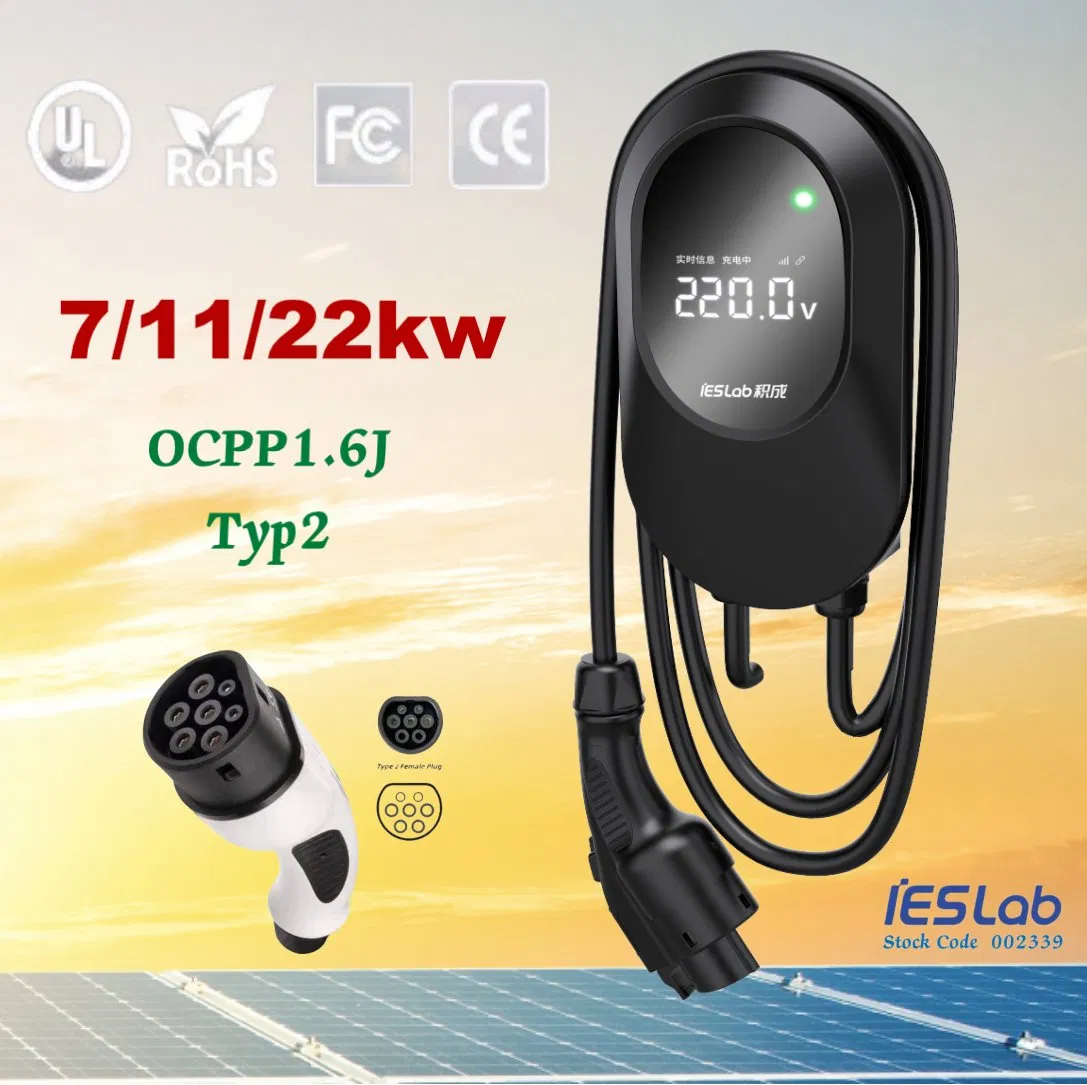

Factory Price EV Charge CE Ocpp WiFi 4G RFID Type2 GB/T IP54 3 Phase 7kw 22kw AC Electric Vehicle EV Car Charger Charging Point
Product Description
i
Basic Info
Model NO.7/11/22kw AC Charger
Charging InterfacesOne Pile with One Charge
LocationPublic Use, Private Use
InstallationWall Mounted
Output Power7kw/11kw/22kw
Protection RatingIP54
Network GatewayBluetooth / WiFi/ 4G
Charging ModeMode 3
Standard ComplianceIEC 61851-1, IEC 61851-21-2
Operating Temp.-30 to +50 Degree
Warranty2 Years
OriginChina
P

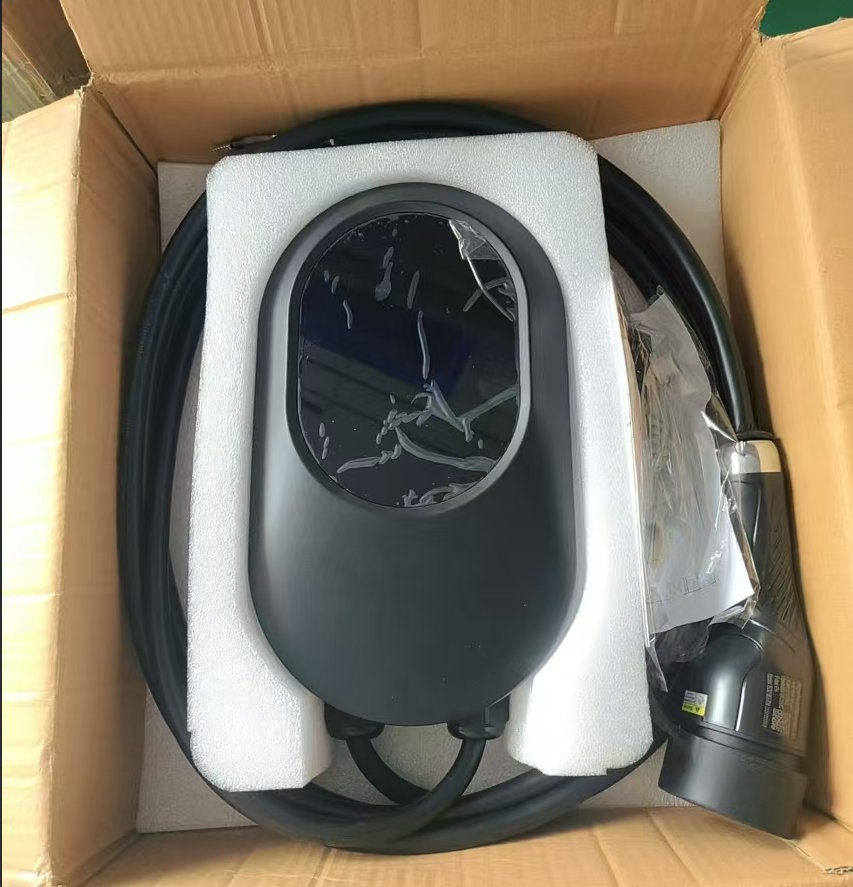

Packaging & Delivery
Package Size48.00cm * 32.00cm * 21.00cm
Gross Weight5.000kg
D
Product Description
| Detailed Product Parameters | |
|---|---|

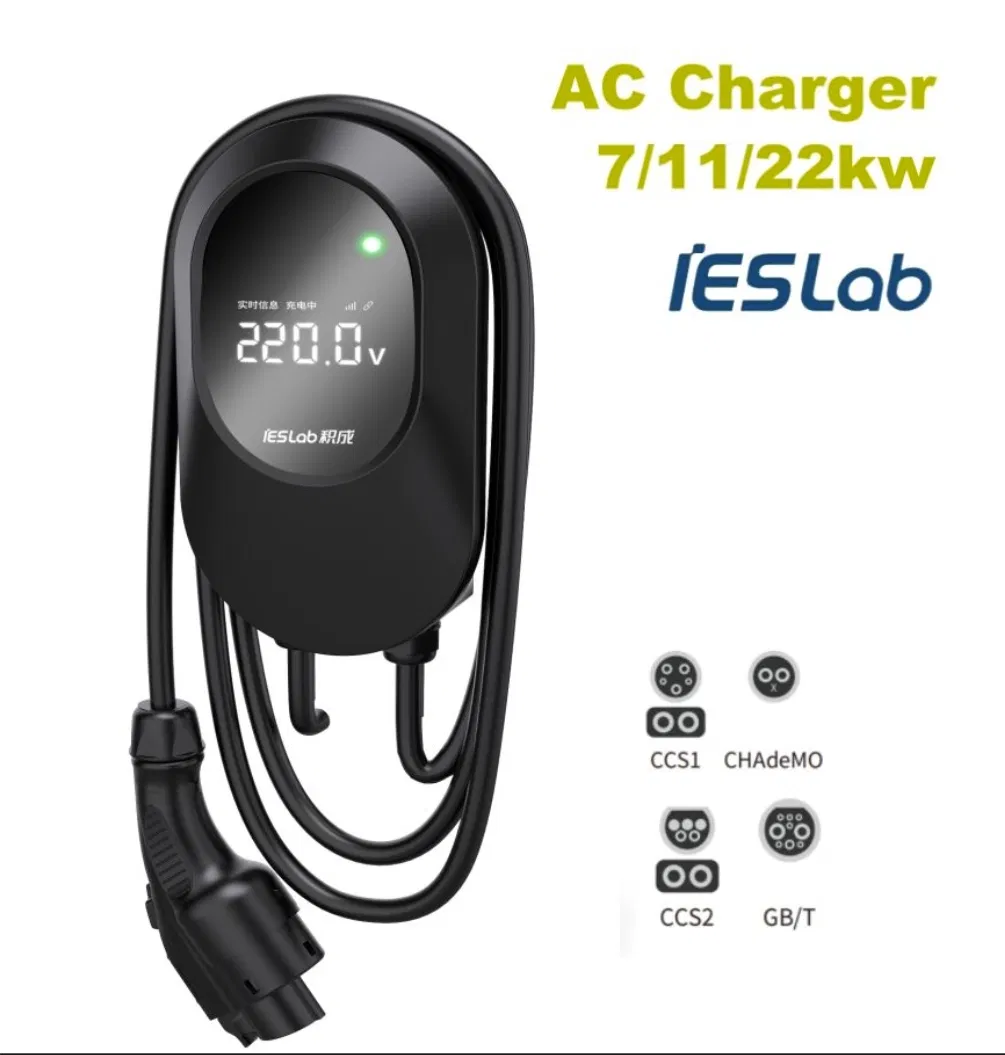

| Product Name | Wall-Mounted EU Standard AC Charger |
| Overall Dimensions | 87mm x 190mm x 330mm |
| Housing Material | PC with Anti-UV Treatment |
| Rated Input Voltage | 7kw: 230Vac ± 10%; 11/22kw: 400Vac ± 10% |

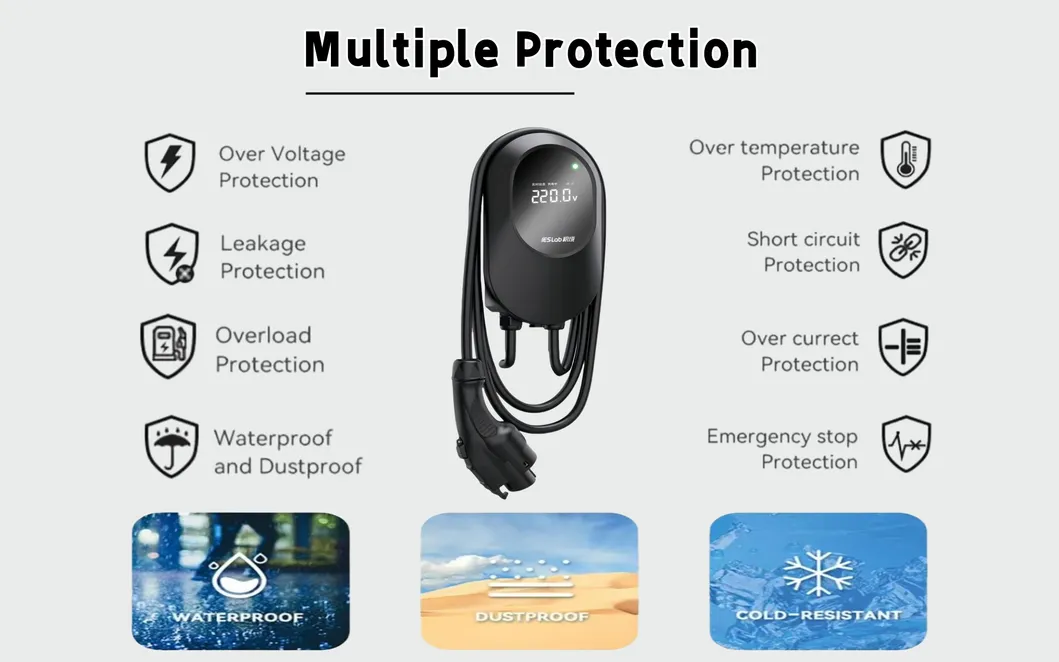

| Electrical Protection | UVP, OVP, RCD (DC 6mA), SPD, Ground Fault Protection, OCP, OTP |
| Connectivity | LAN Ethernet / WiFi / 4G / Bluetooth |
| Communication Protocol | OCPP1.6j |
| Authentication | NFC / ISO / IEC 14443A / MIFARE |
M

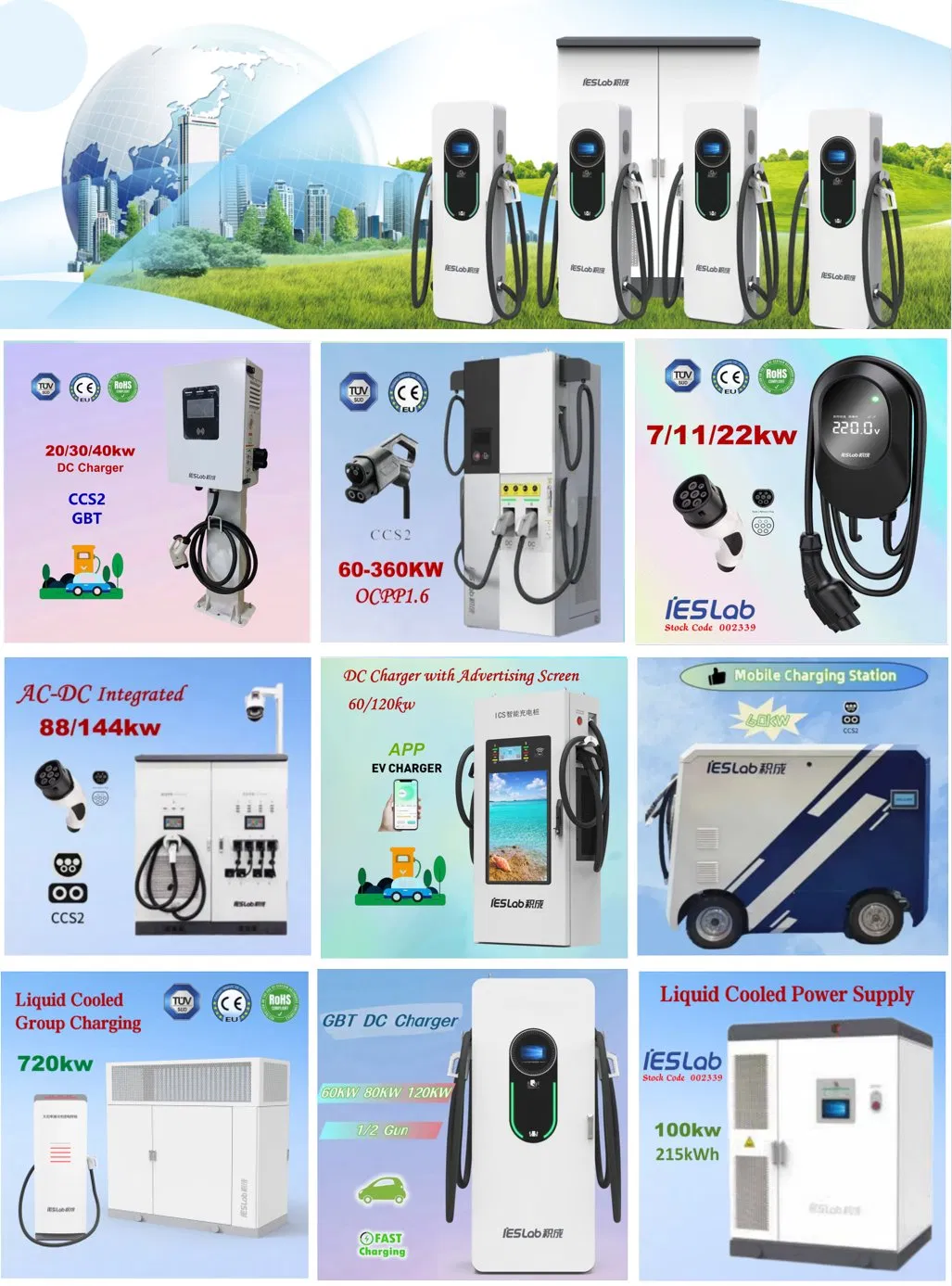

Main Products
C

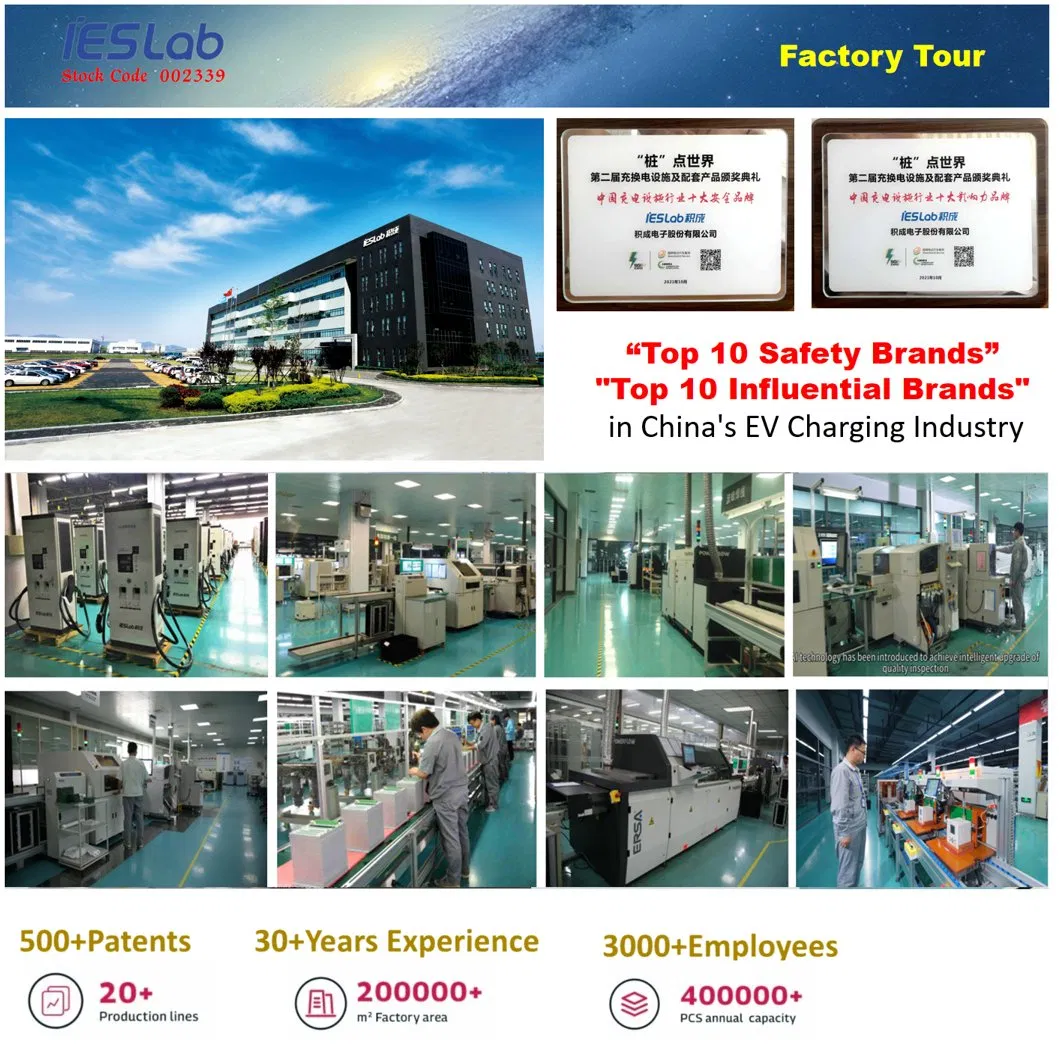

Certifications & Factory

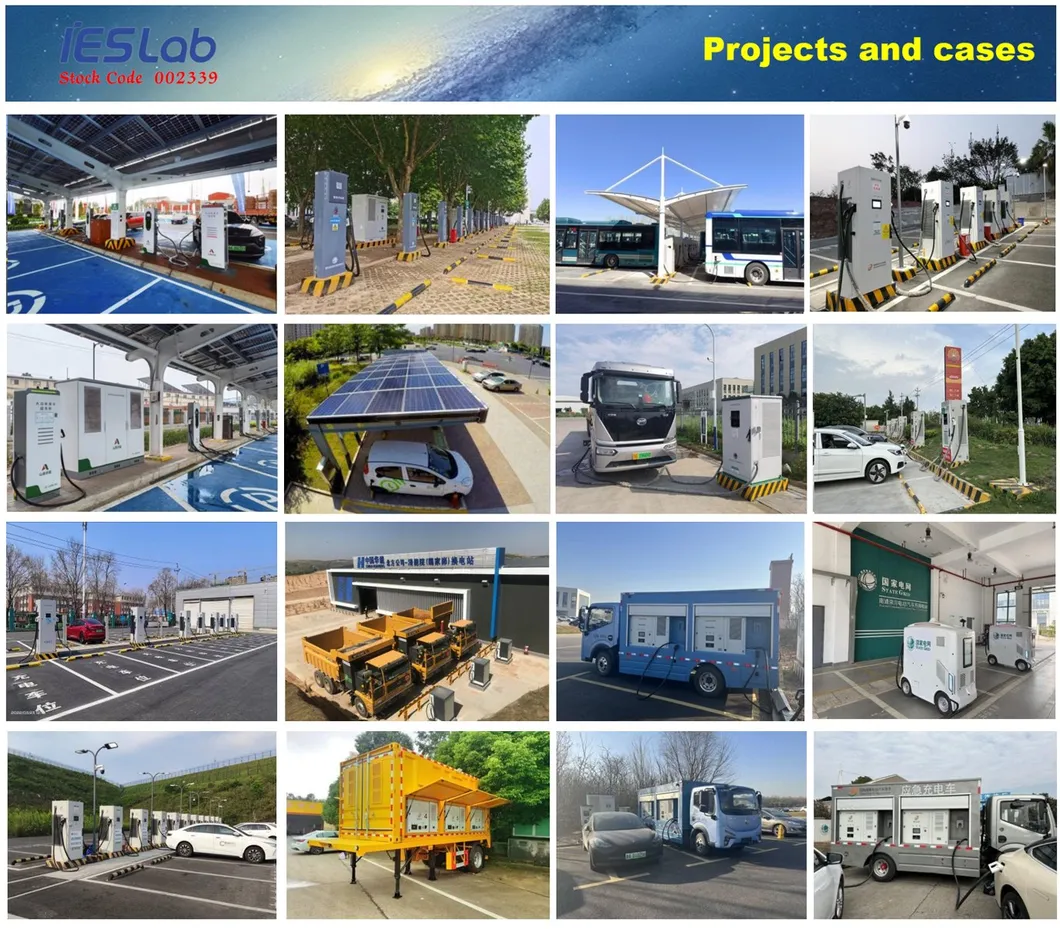

A
Application Cases
F
FAQ

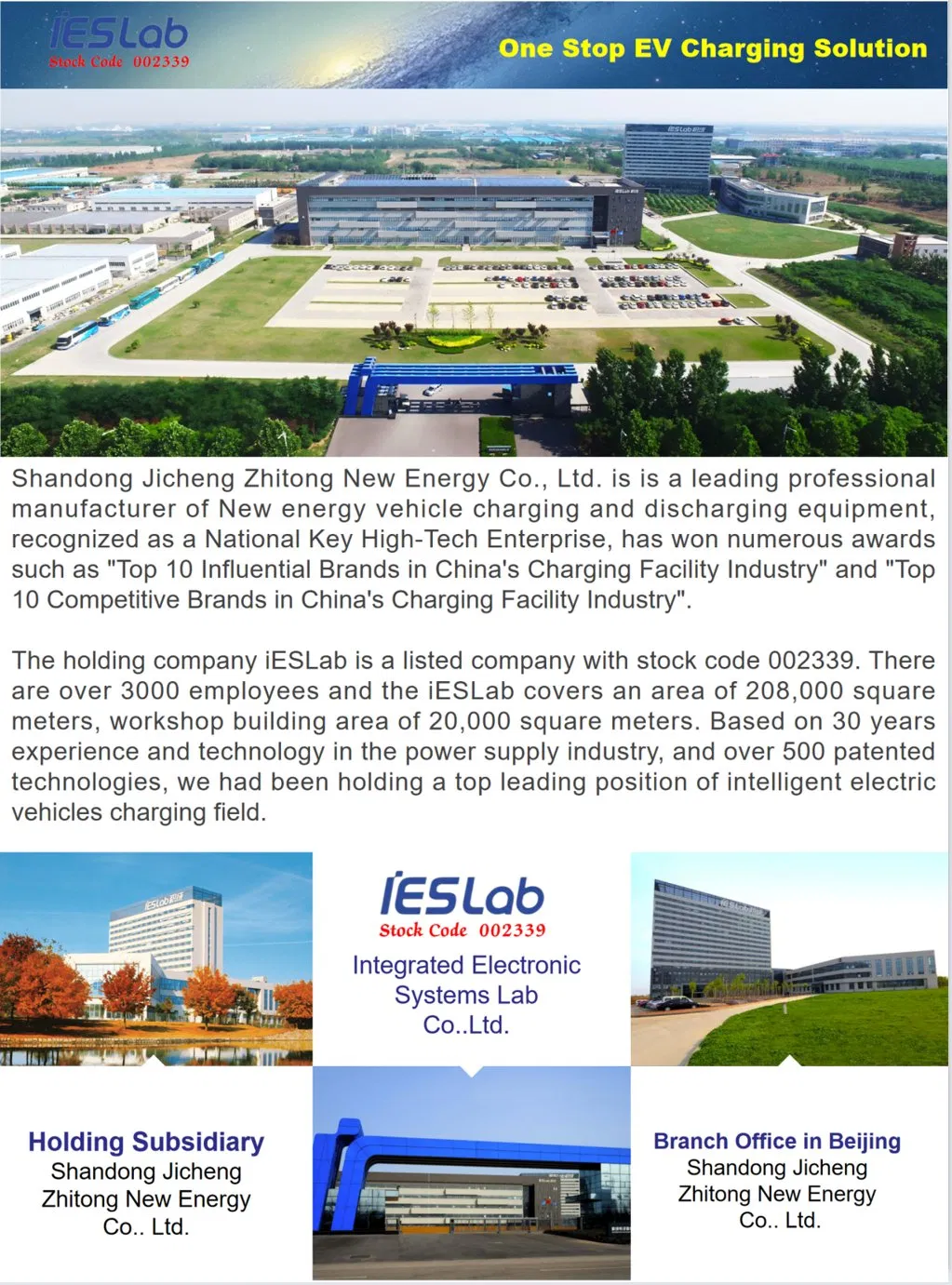

Can I visit the production facility?
You are highly welcomed to visit the factory at any time to see our production processes.
Are you a manufacturer or a trading company?
We are a professional manufacturer with 30 years of R&D and production experience in the electrical industry.
Do you test all of your chargers before shipping?
Yes, all major components are tested before assembly, and each charger is fully tested before being shipped.
What is the warranty period?
We provide a two-year warranty. During this period, if there are any product quality problems, we provide technical support and replacement parts.
Can you produce according to specific samples?
Yes, we can produce based on your samples or technical drawings. We can build the necessary molds and fixtures.
What standards do your products comply with?
Our chargers comply with IEC 61851-1 and IEC 61851-21-2 international standards and hold CE, TUV, and RoHS certifications.
