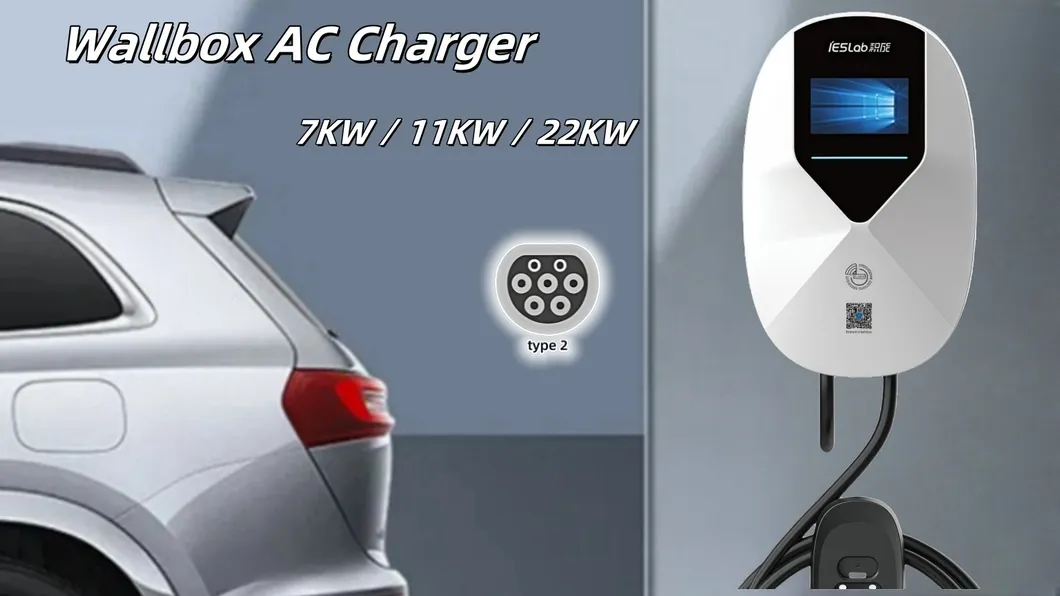

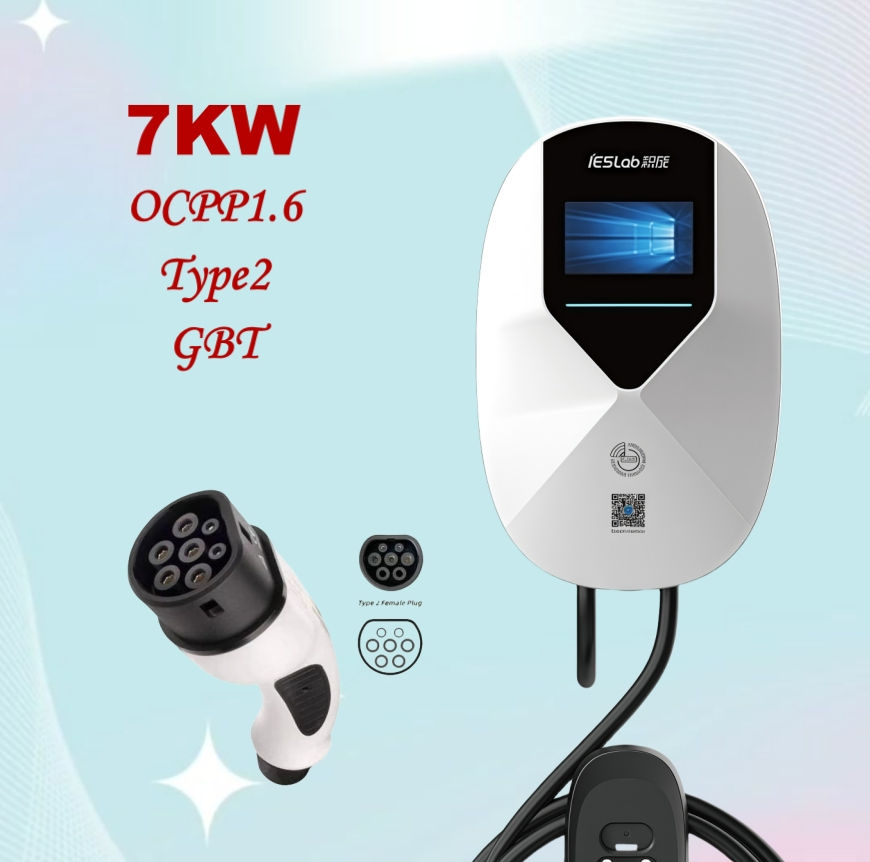

EV Charge Infrastructure Wall Pole Mounted Type 2 Gbt Commercial Home Use 7kw 22kw Electric Vehicle Car Battery Fast AC EV Charger Charging Station
Product Description
Overview & Basic Info
Model NO.
7/11/22kw AC Charger
Interfaces
One Pile with One Charge
Installation
Wall Mounted
Output Power
7kw/11kw/22kw
Rated Input Voltage
7kw: 230VAC; 11/22kw: 400VAC
Protection Rating
IP66 / IP54

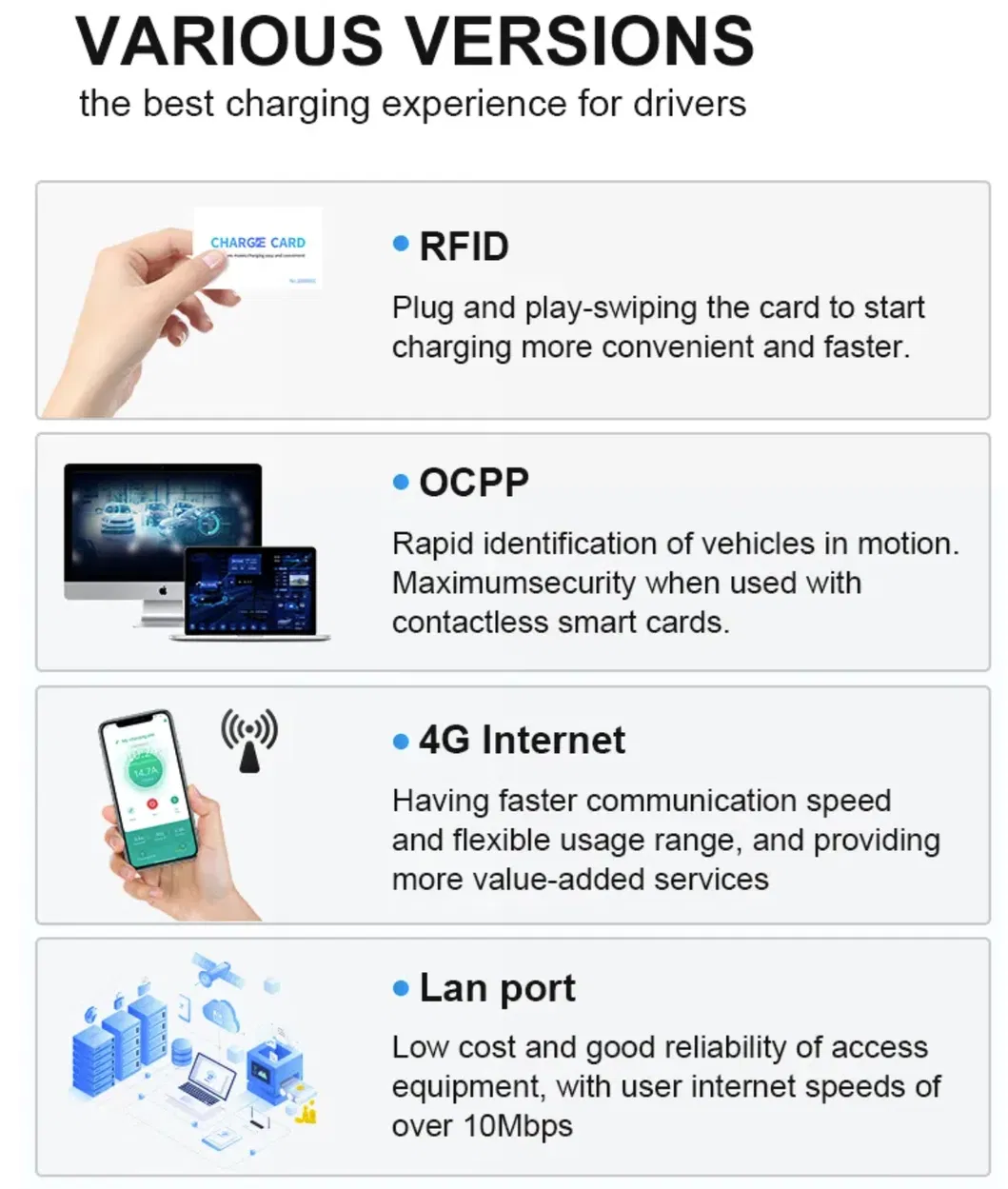

Network
Bluetooth / WiFi / 4G / Ethernet
Protocol
OCPP 1.6J
Operating Temp
-30°C to +50°C
Certification
CE, TUV, UKCA, RoHS, ISO
Warranty
2 Years
Net Weight
4.6kg - 4.8kg
Product Description
| Detailed Parameters | |
|---|---|
| Product Name | Wall-Mounted EU Standard AC Charger |
| Dimensions | 87mm x 190mm x 330mm |
| Housing Material | PC with Anti-UV Treatment |
| Charging Mode | Mode 3 |
| Charging Connector | 5 Meter Tethered IEC Type 2 Lead |

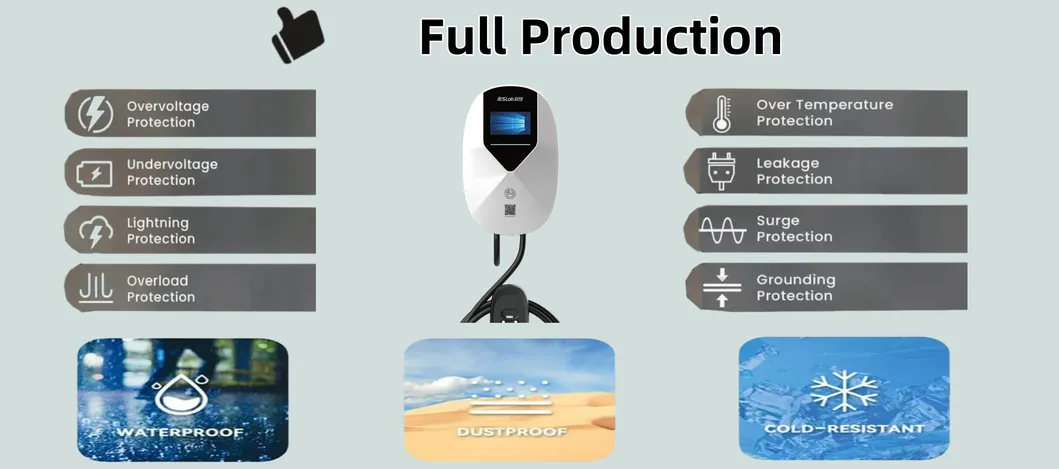

| Electrical Protection | UVP, OVP, RCD (DC 6mA), SPD, Ground Fault, OCP, OTP |
| User Interface | Digital Screen |
| Authentication | NFC (ISO / IEC 14443A / MIFARE) |

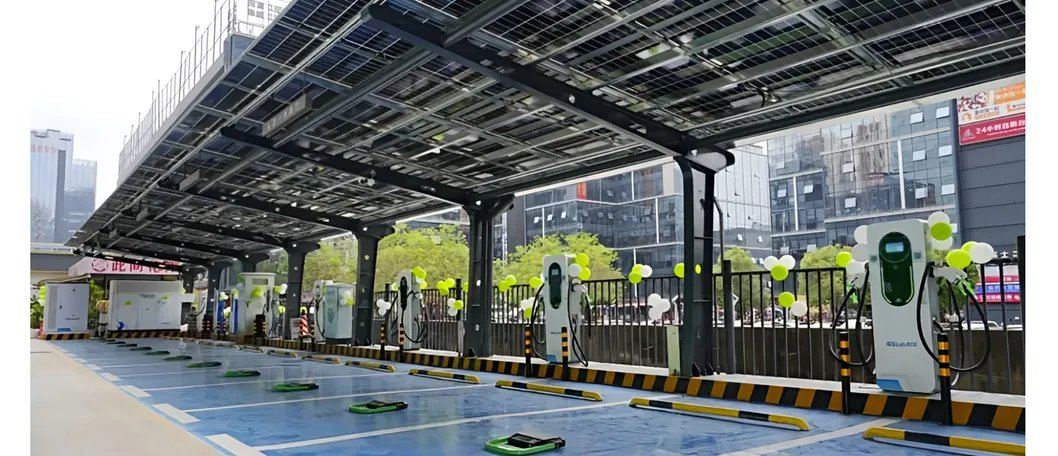

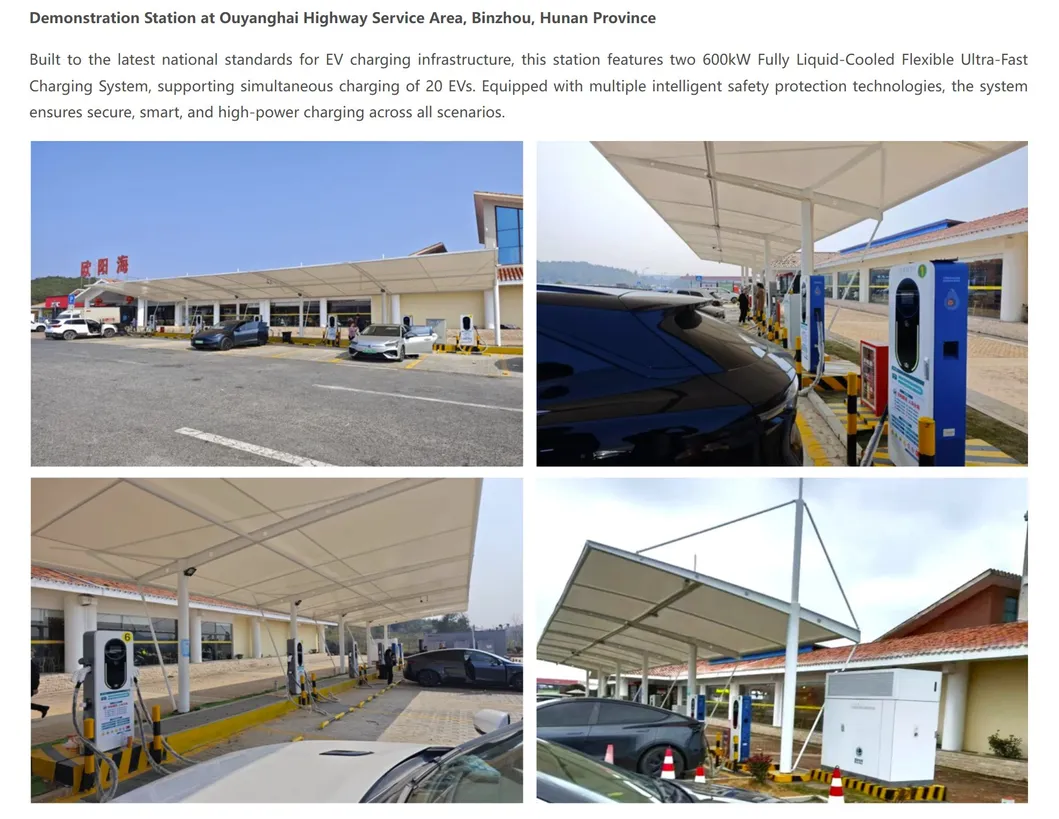

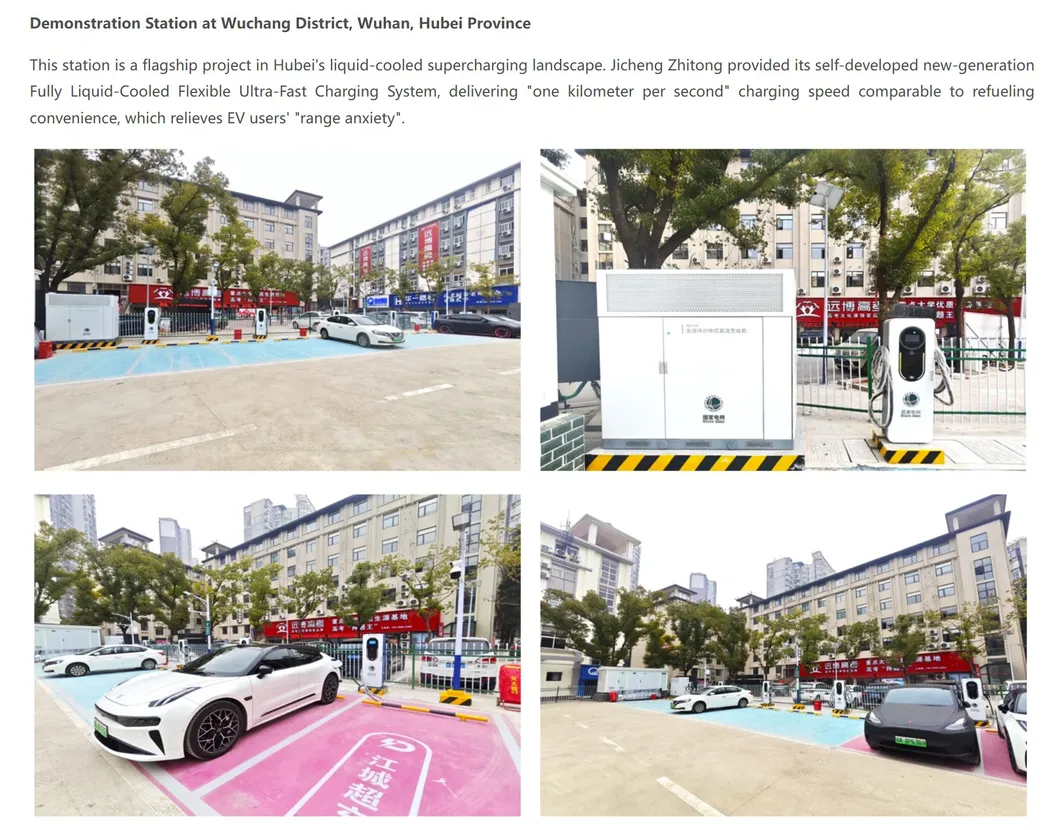

Applications & Range

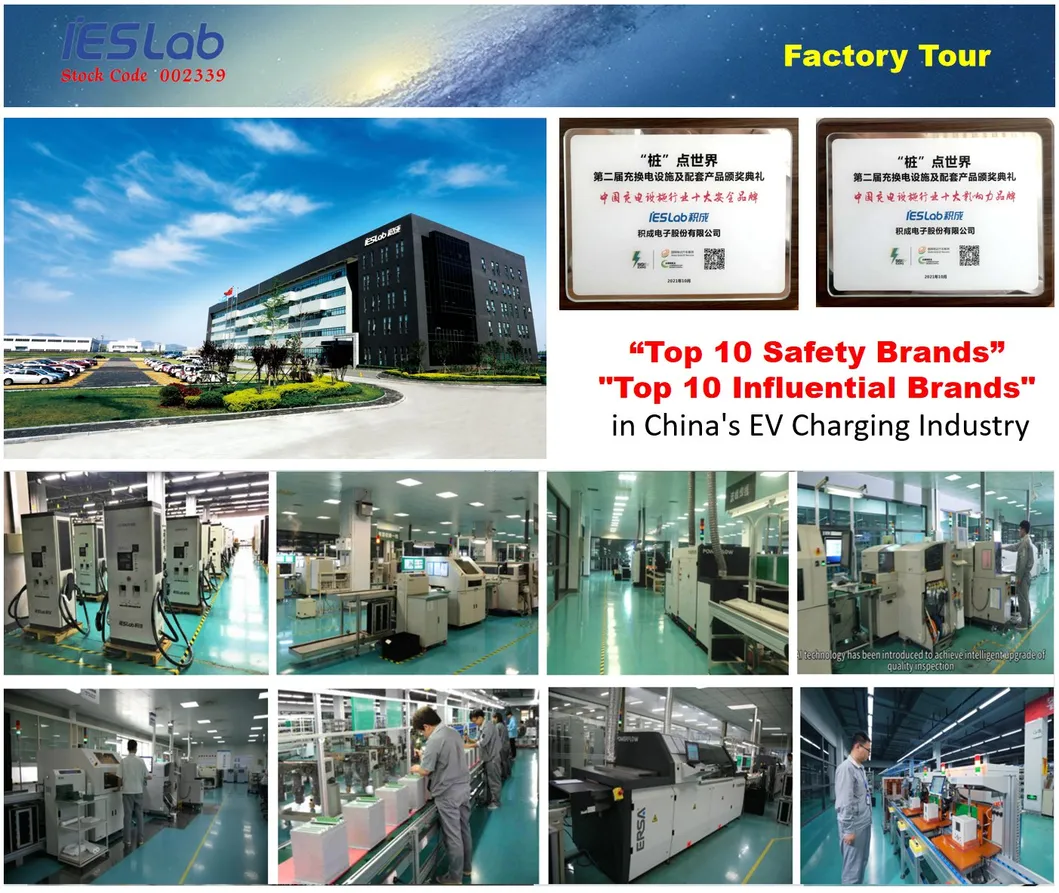

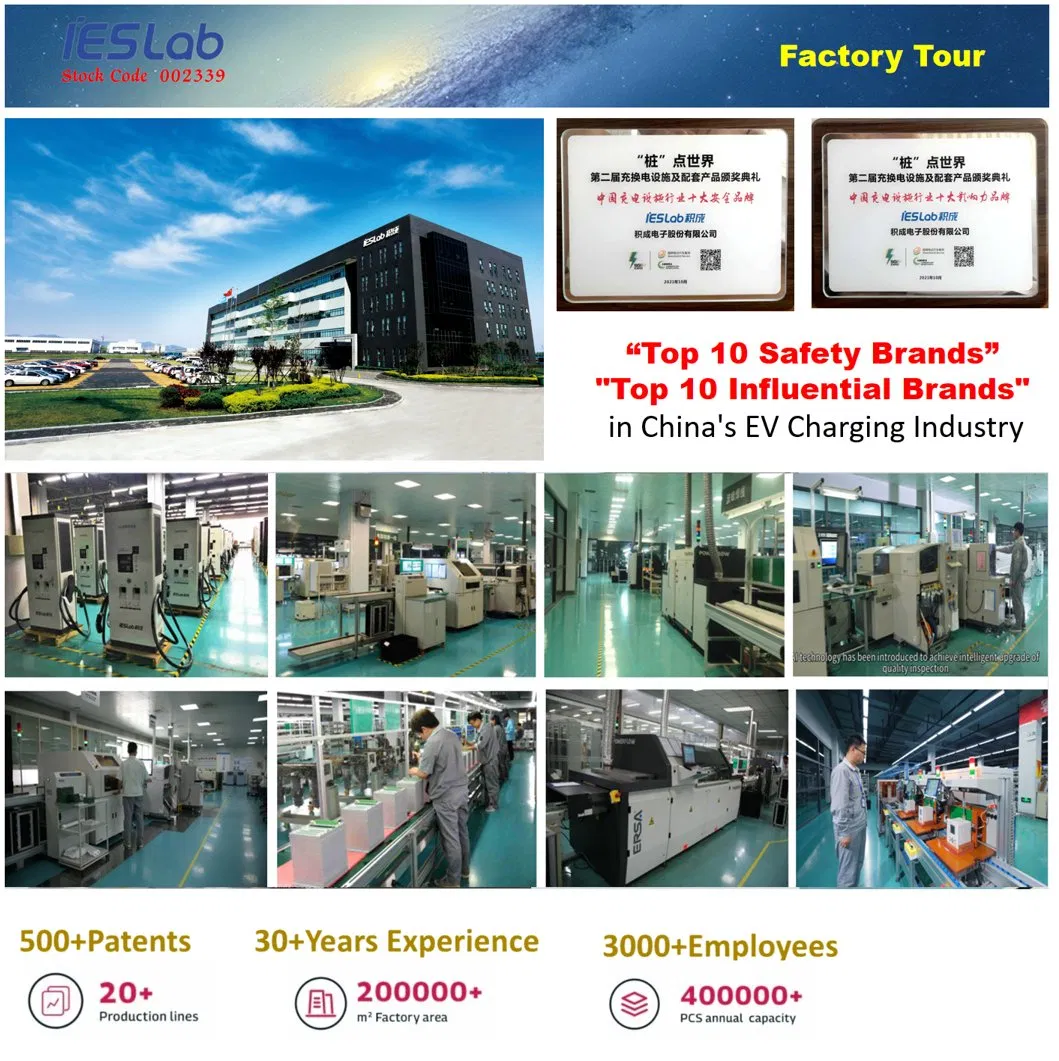

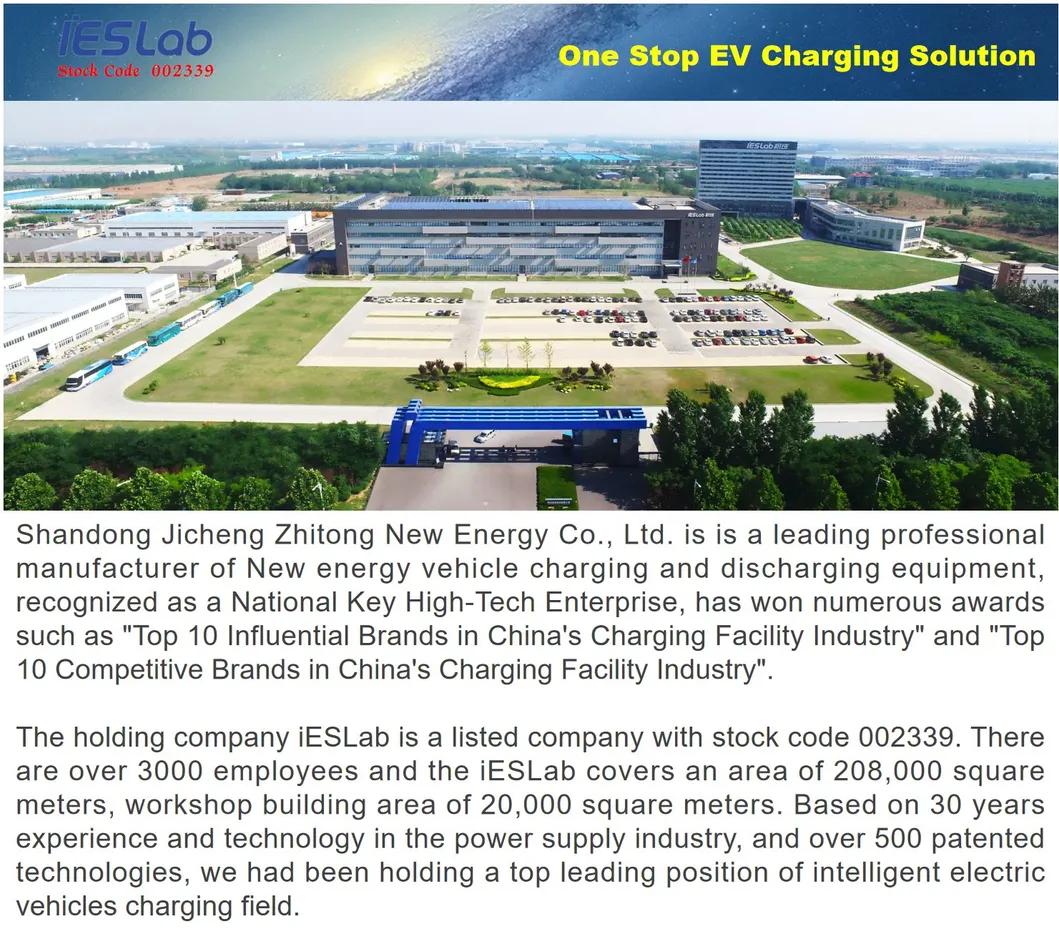

Professional Expertise & Certifications
Professional manufacturer with 30 years of R&D and production experience in the electrical industry.
Frequently Asked Questions
Q1: Can I visit your company?
A: You are highly welcomed to visit our factory at any time!
Q2: Are you a factory or a trading company?
A: We are a professional manufacturer with 30 years of R&D and production experience.
Q3: Do you test all of your chargers before shipping?
A: All major components are tested before assembly, and each charger is fully tested before being shipped.
Q4: What is the warranty?
A: We provide a two-year warranty. During this period, if there are any product quality problems, we will provide technical support and replace new parts.
Q5: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the necessary molds and fixtures.
Q6: What standards do your products comply with?
A: Our products comply with IEC 61851-1 and IEC 61851-21-2 standards and hold CE, TUV, and RoHS certifications.
