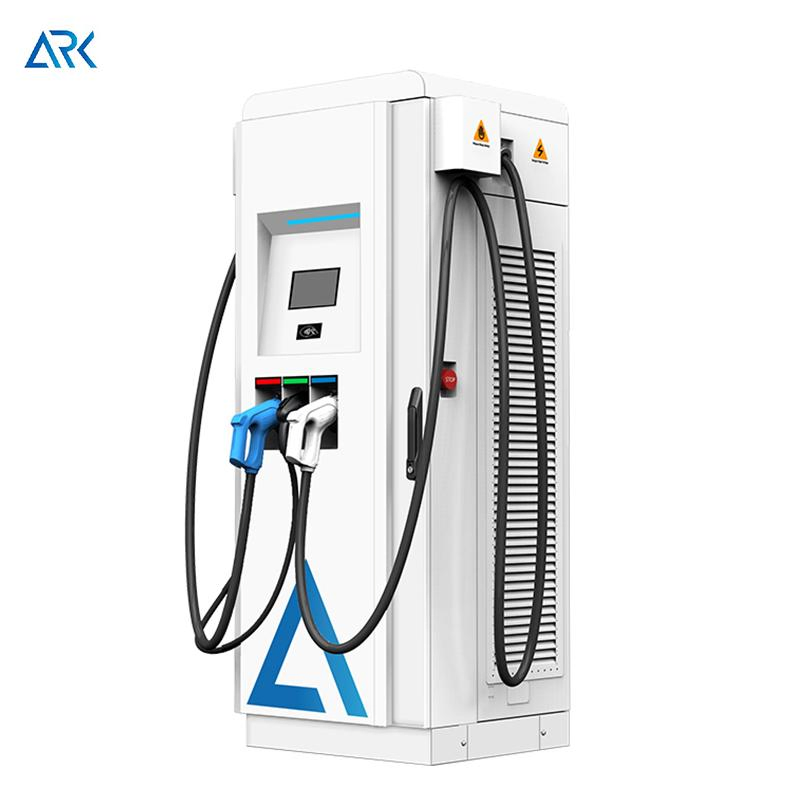

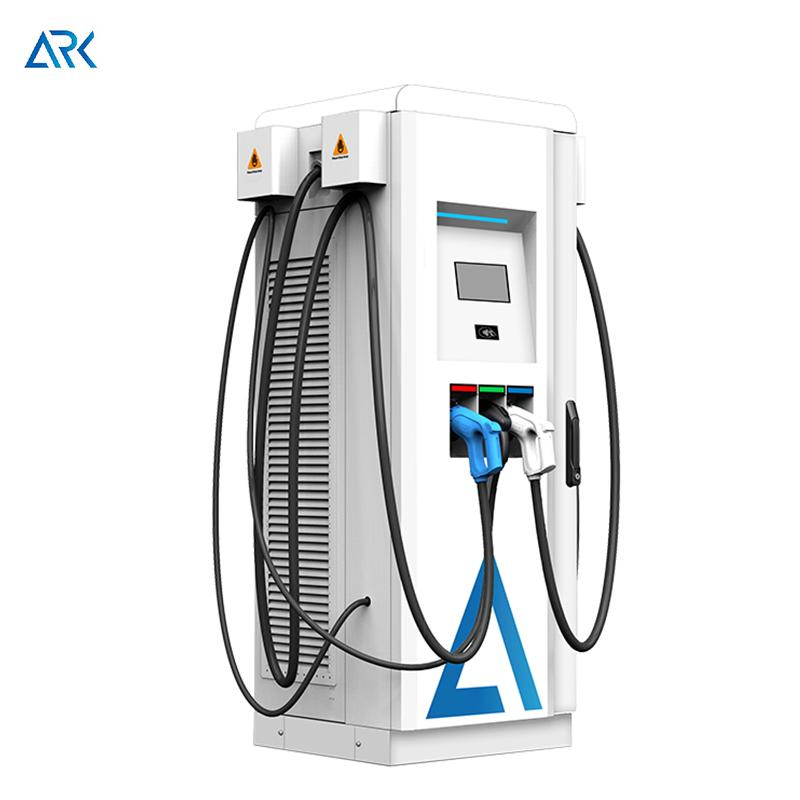

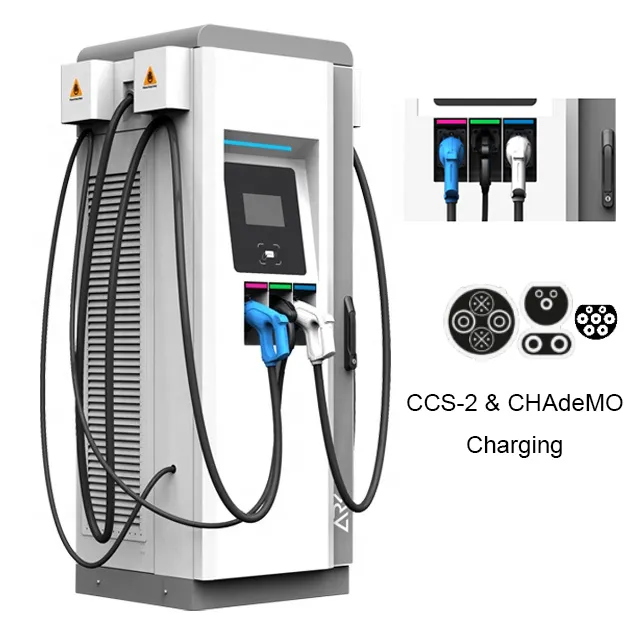

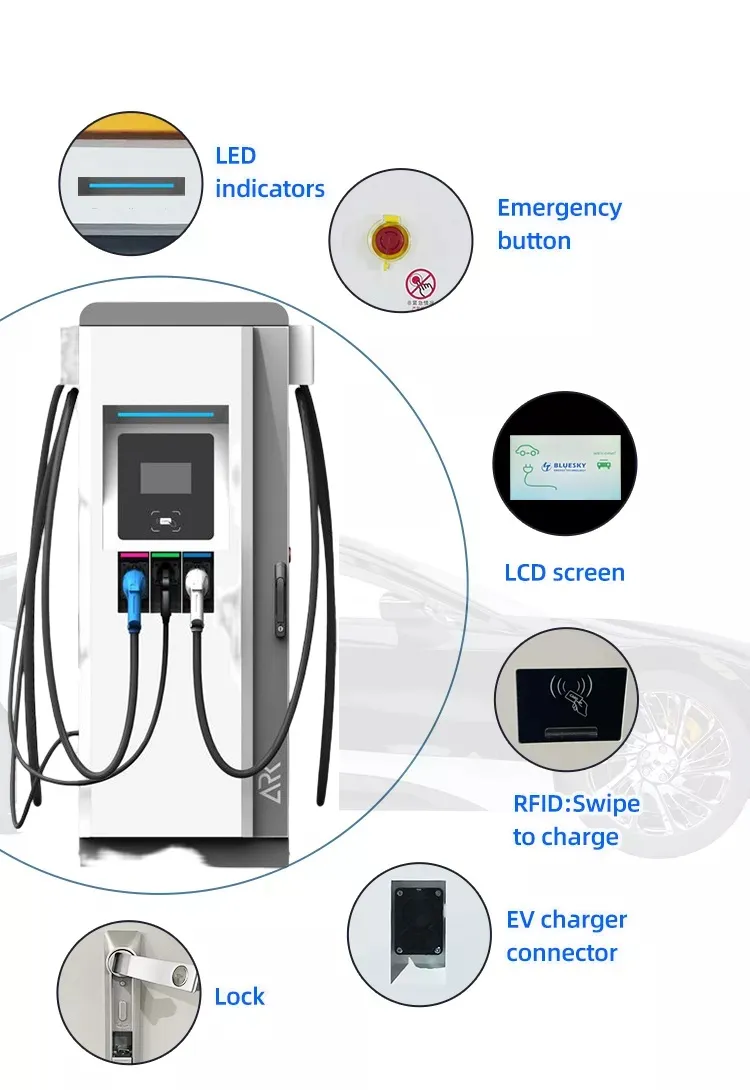

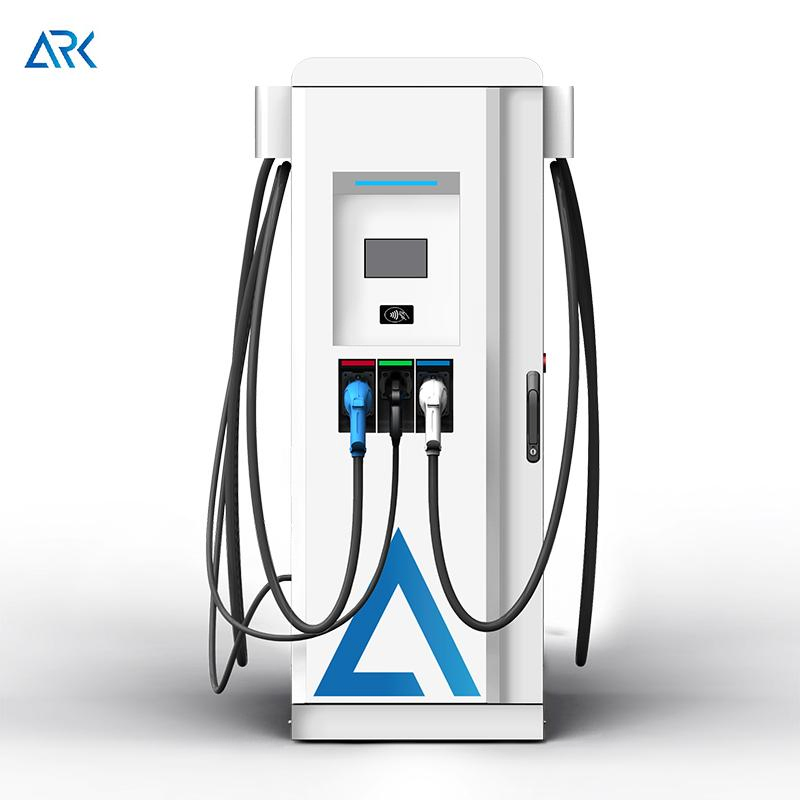

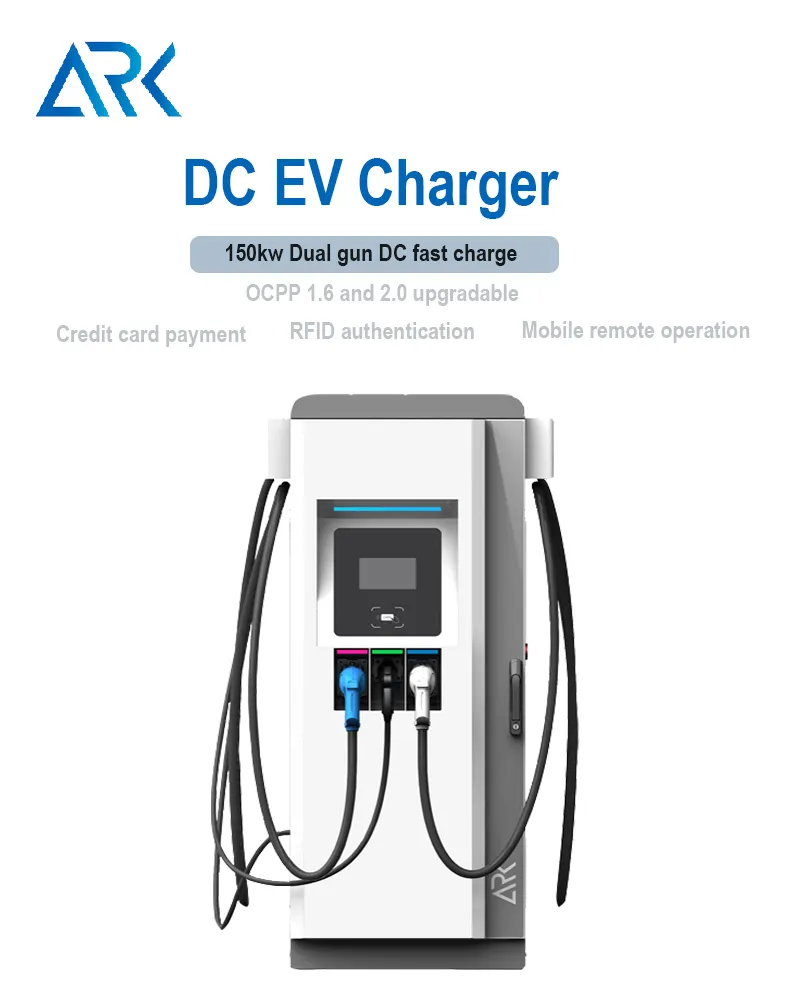

Electric Vehicle Charging Station DC Fast Pile
Product Description
i
Basic Information
Model NO.
EF160
OCPP
Ocpp1.6j Supported
Screen
7 Inch Touch Screen
Protection
IP54, IK10
Charging Type
Mode 4
Standard
IEC 61851-1, IEC 61851-23, CHAdeMO
Type
Fast EV Charging Station
Certification
CE, TUV
Warranty
12 Months
Specification
1900 x 725 x 700mm
Capacity
1000 Units Per Month
★
Product Description
📋
Technical Parameters
| Category | Feature | Details |
|---|---|---|
| Electrical Specifications | Input Voltage | 400Vac 3-phase |
| Frequency | 50Hz/60Hz | |
| Rated Power | 60kW or 120KW DC | |
| Output Voltage | CCS: 200 - 1000VDC, CHAdeMO: 200 - 500VDC | |
| Output Current | CCS: 0 - 200A, CHAdeMO: 0 - 125A | |
| Efficiency | ≥ 94% | |
| Power Factor | ≥ 0.99 | |
| Structure | Material | Metal case |

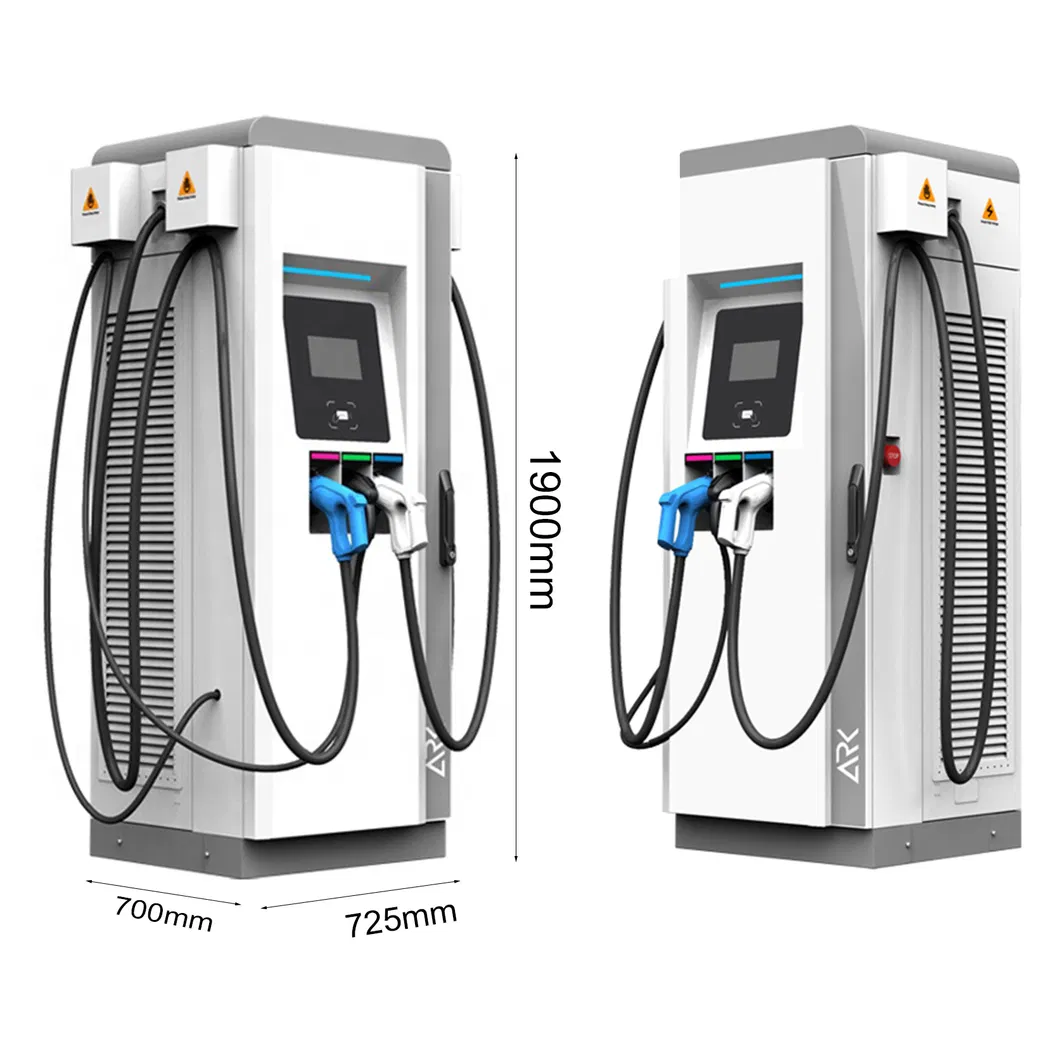

| Dimension | 1900 x 725 x 700mm | |
| Weight | 380kgs | |
| Cable Length | 5m (3 Outlets) | |
| Environment | Temperature | -30°C to +55°C |
| Protection | IP54 | |
| Safety Standards | IEC 61851-1, IEC 61851-23, DIN 70121 |
🏢
Professional Production
📦

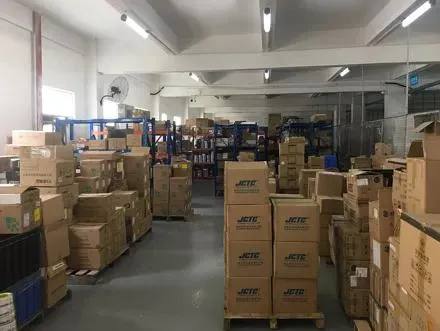

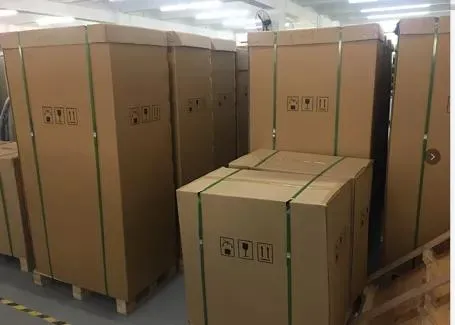

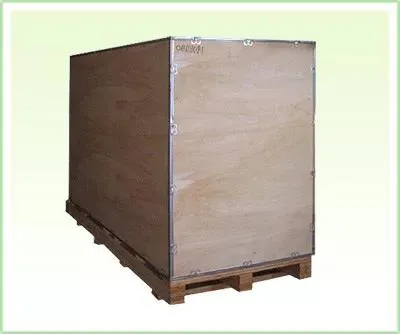

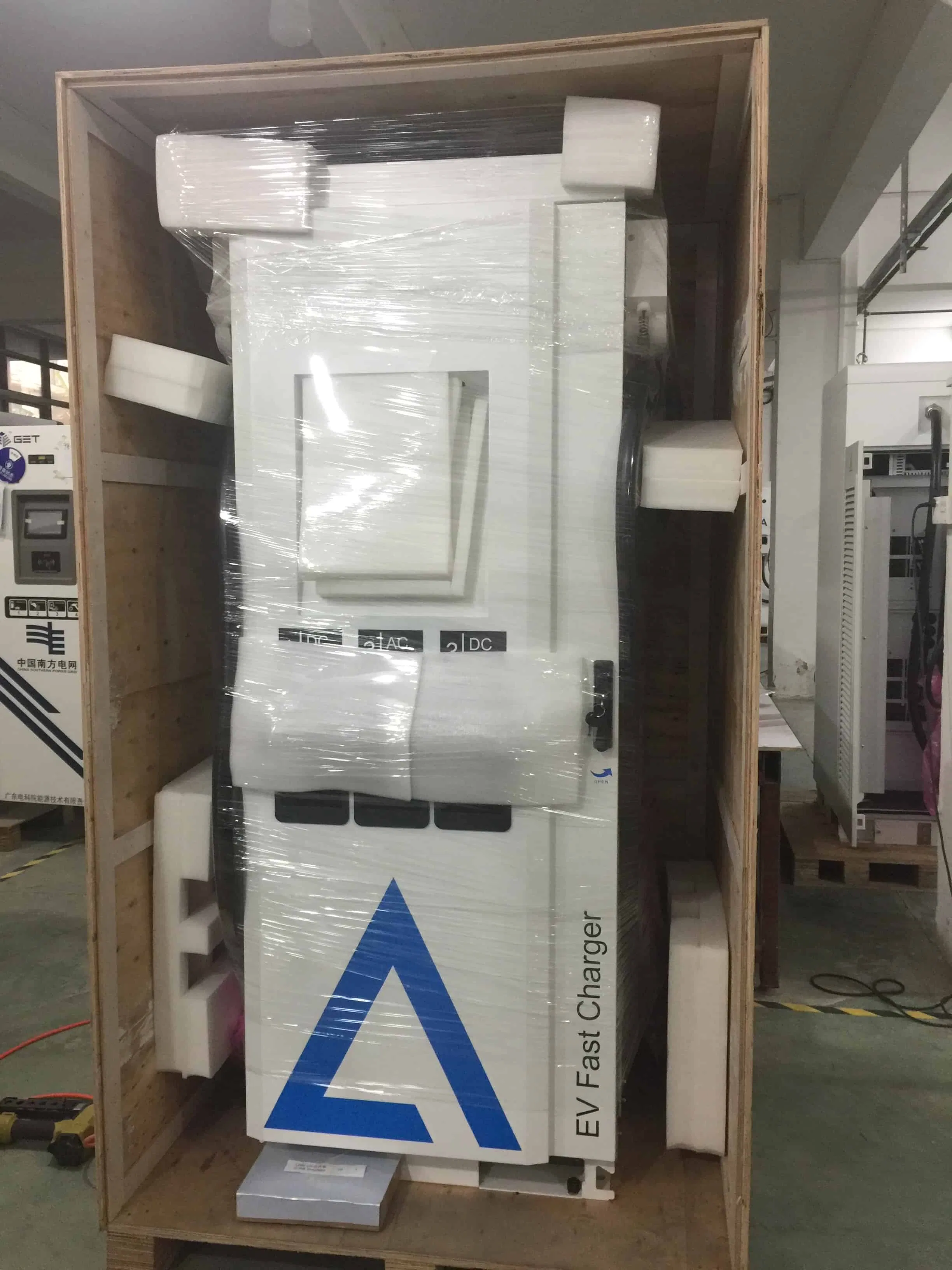

Packaging & Shipping
?
Frequently Asked Questions
Why choose us as your preferred EV Charger supplier?
Our professional technical team and long-term industry vision ensure a leading position. We offer a wide range of international standard products and smart back-end services. All products undergo rigorous laboratory and application testing for guaranteed reliability.
Do you have experience with overseas charging projects?

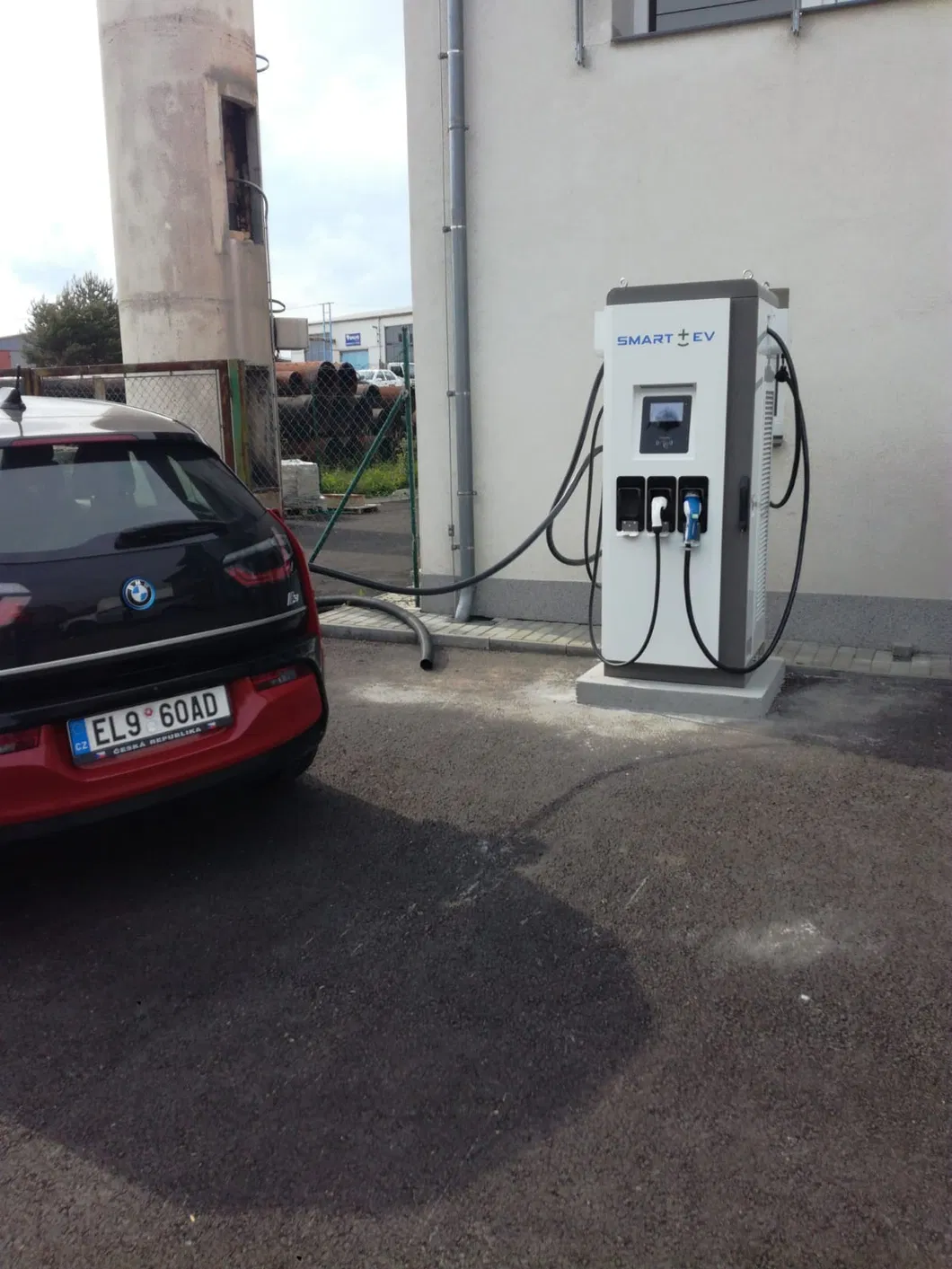

Yes, we are pioneers in overseas projects, collaborating with UK power companies for PV system integration, US operators for highway fast-charging networks, and global automakers for fleet charging services.
What are the advantages of your EV charging products?
We provide telecom-level design, support for multiple standards (CCS-1/2, CHAdeMO, GB/T), wider voltage ranges, superior temperature adaptation, and advanced modular design for fast technical support.
What are the differences between global DC fast charging standards?
There are 5 main standards: CCS-1 (North America), CCS-2 (Europe), CHAdeMO (Japan), GB/T (China), and Tesla. We support the major international standards to ensure compatibility across different regions.
Does higher output power always mean faster charging?
Not necessarily. Charging speed is often limited by the vehicle's battery capacity. However, high-power chargers are significant as they can support dual connectors to charge two vehicles simultaneously and provide future-proofing for next-generation batteries.
How do you provide after-sales support?
We provide comprehensive technical training through written materials, videos, and face-to-face sessions to help clients master maintenance and parts replacement. Professional technicians are also available for on-site support in urgent situations.
