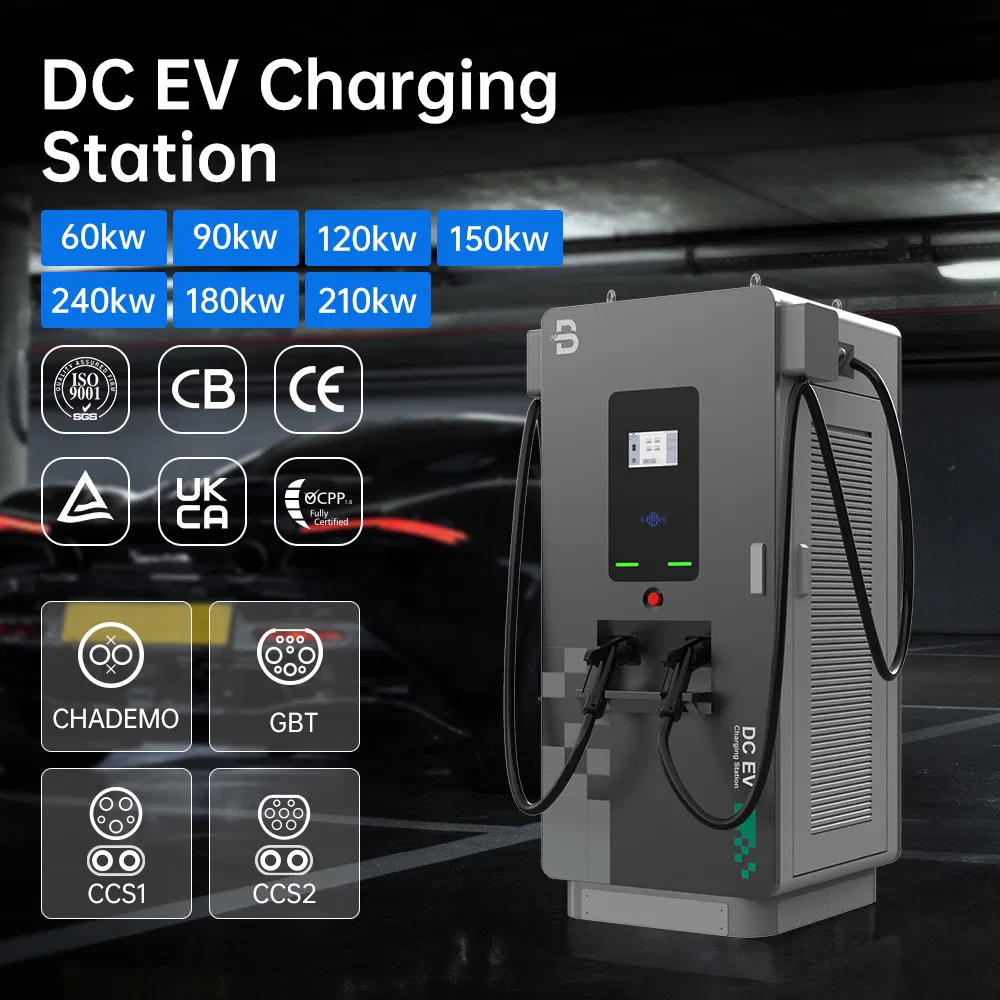

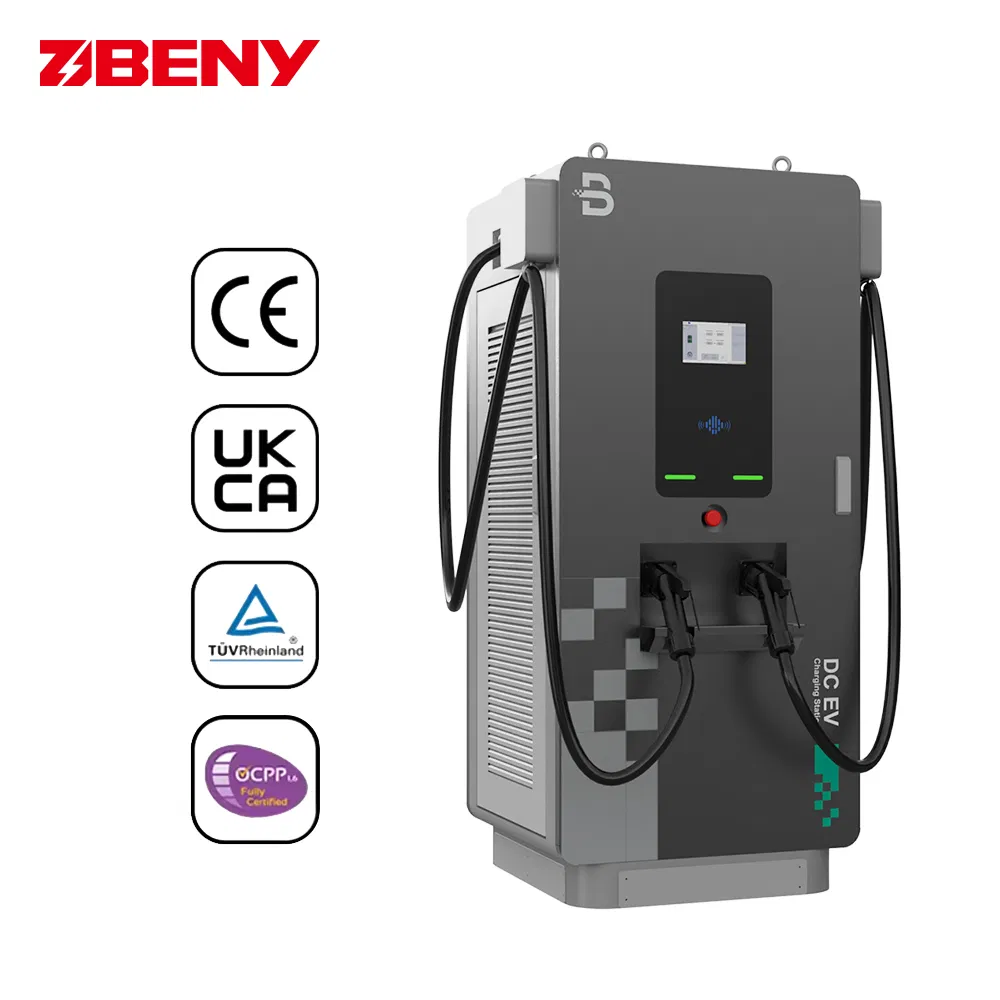

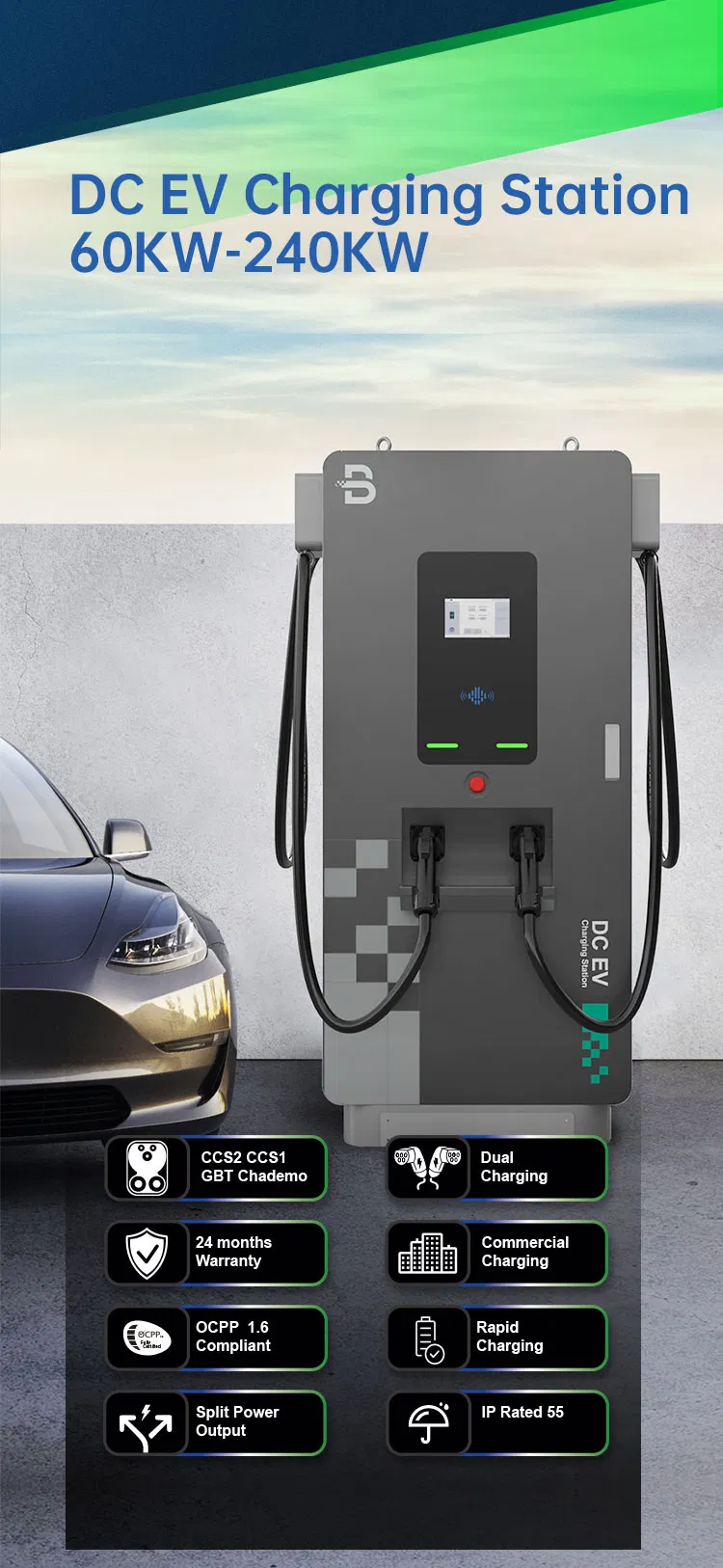

Beny Efficient and Fast Electric Vehicle Charging Station New Energy 240kw Floor Mounted DC Charging Pile with Ocpp 1.6
Product Description
We provide quality PV protection products and EV chargers. As a leading manufacturer, we produce hundreds of thousands of quality DC protection products and EV charging stations annually for solar photovoltaic, battery energy storage, and EV systems. Our products are certified by UL, SAA, CB, CE, TUV, UKCA, ISO, and RoHS.

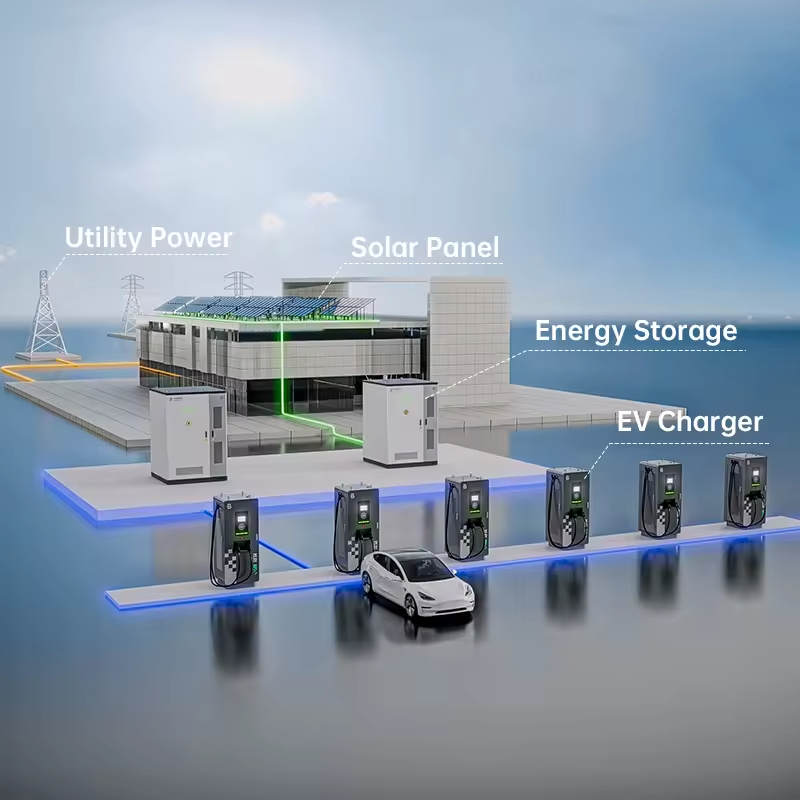

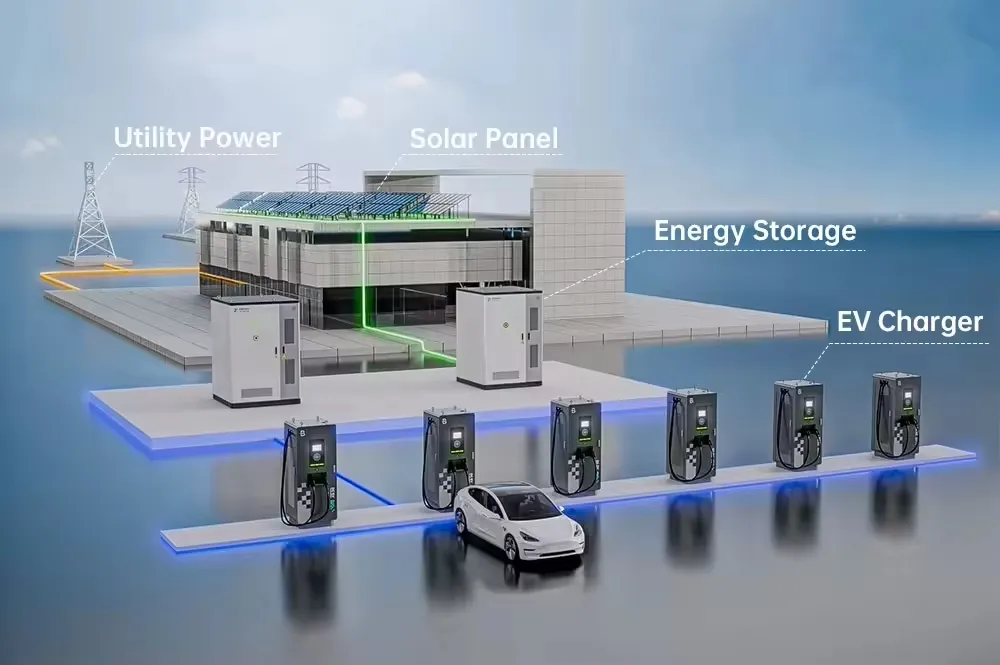

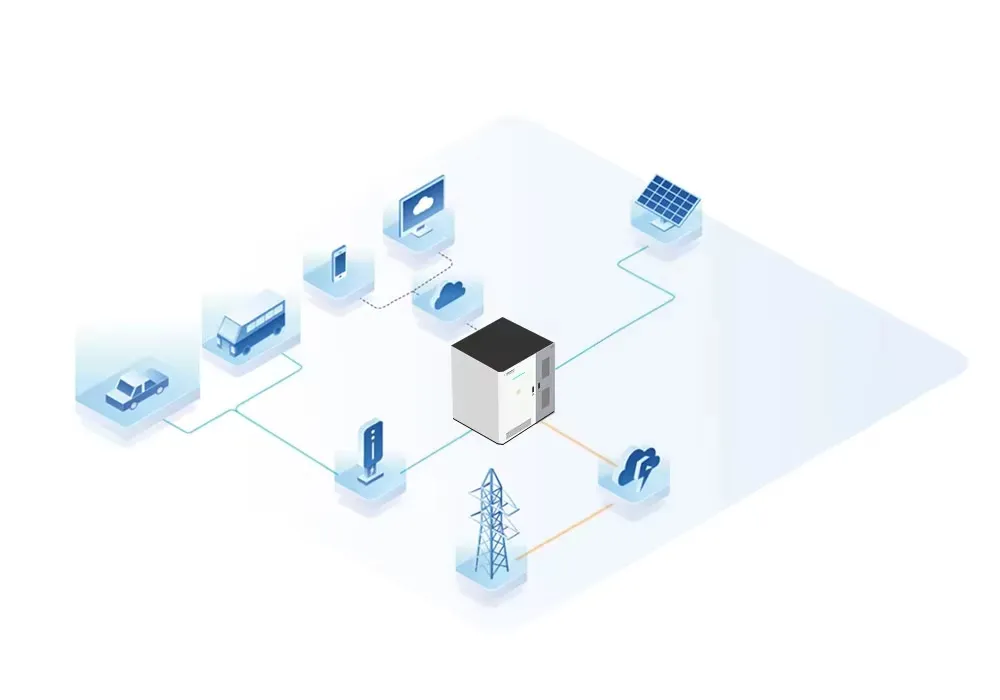

EVB+ESS integrates distributed power sources like PV systems, electrical loads, and monitoring. This configuration addresses land and grid constraints, balancing local energy production with consumption needs efficiently.
Working Modes:
- New Energy: PV components deliver AC power through the controller with real-time monitoring.
- Battery Discharge: Sustains power when natural energy is inadequate. Transitions to grid if battery falls below 30%.
- Auxiliary Energy: Solar and storage batteries supply power concurrently during peak loads.

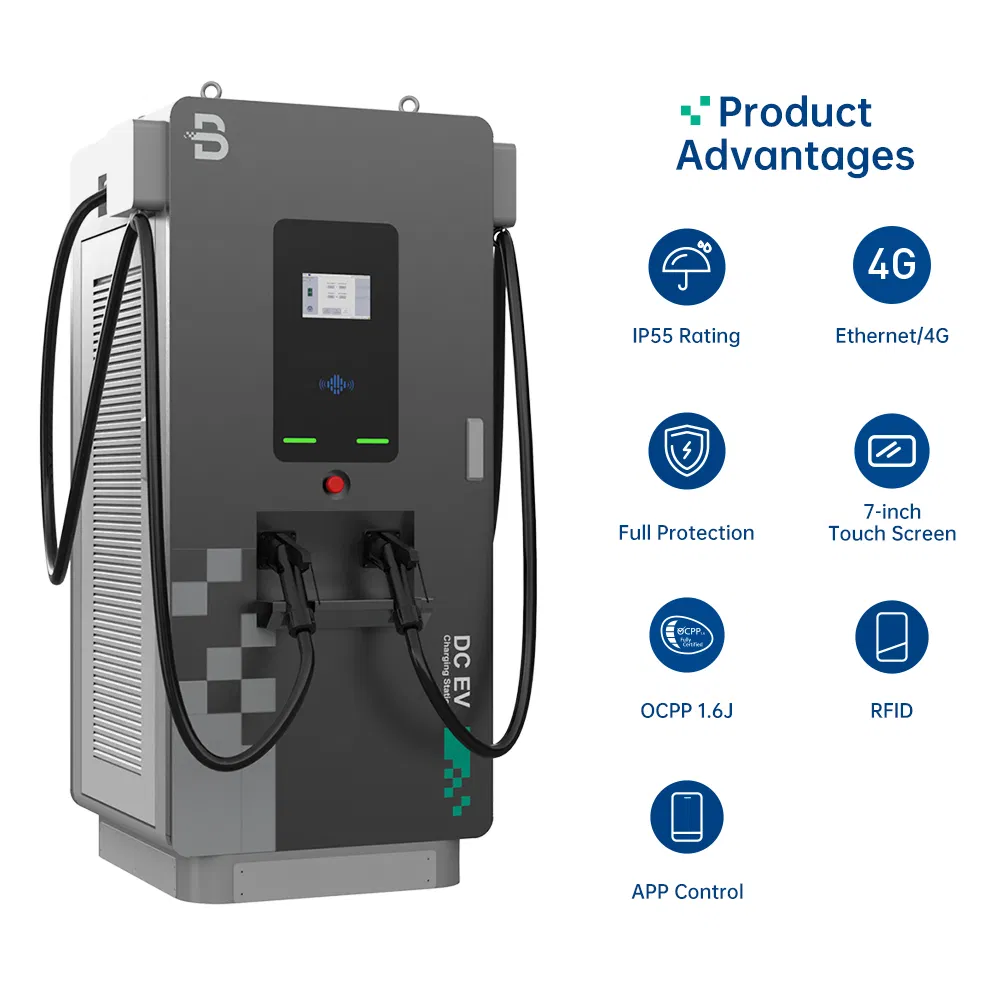

- 30kW to 240kW Optional Power

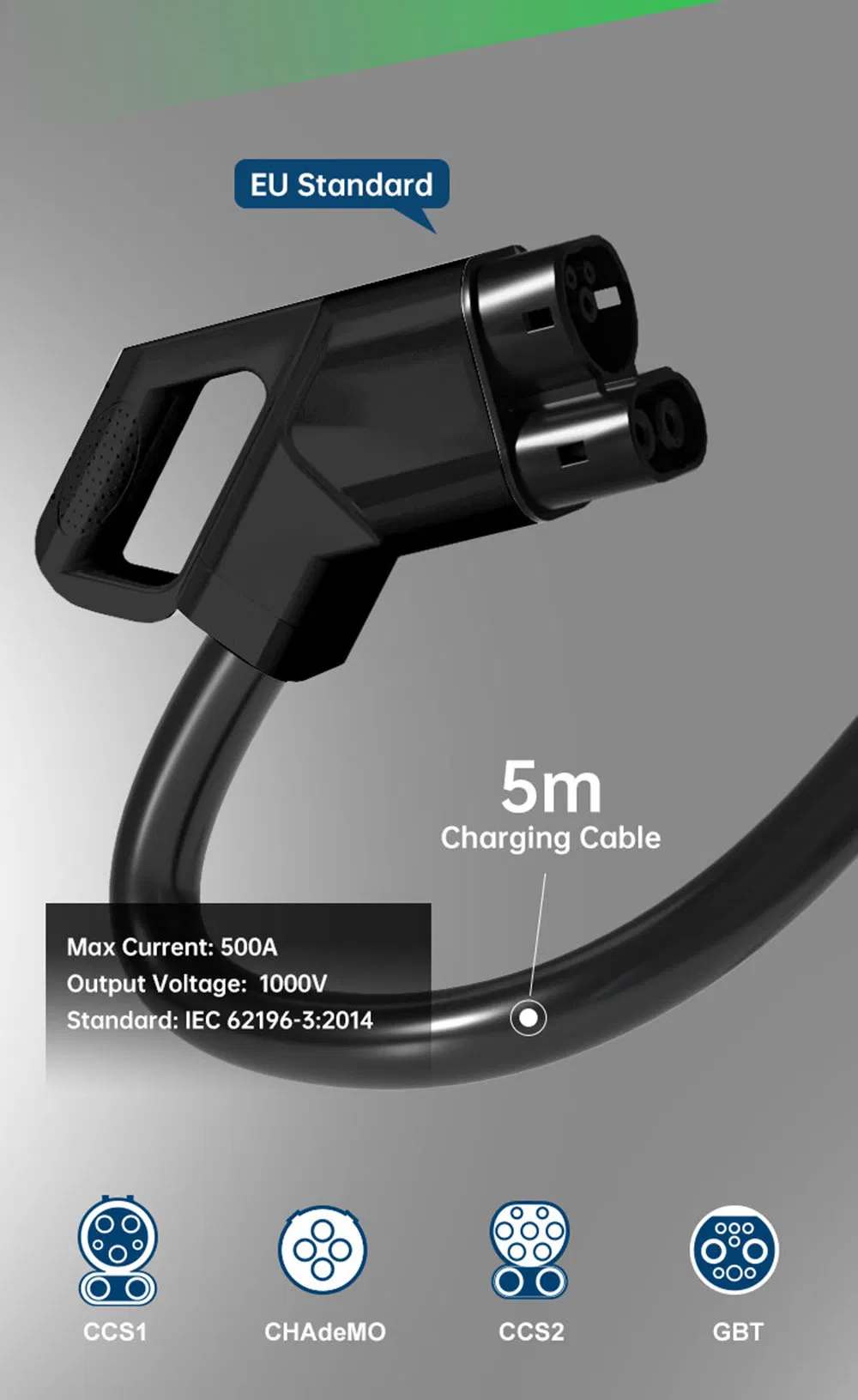

- 1, 2, or 3 Guns (CCS1, CCS2, Chademo, GBT, AC)

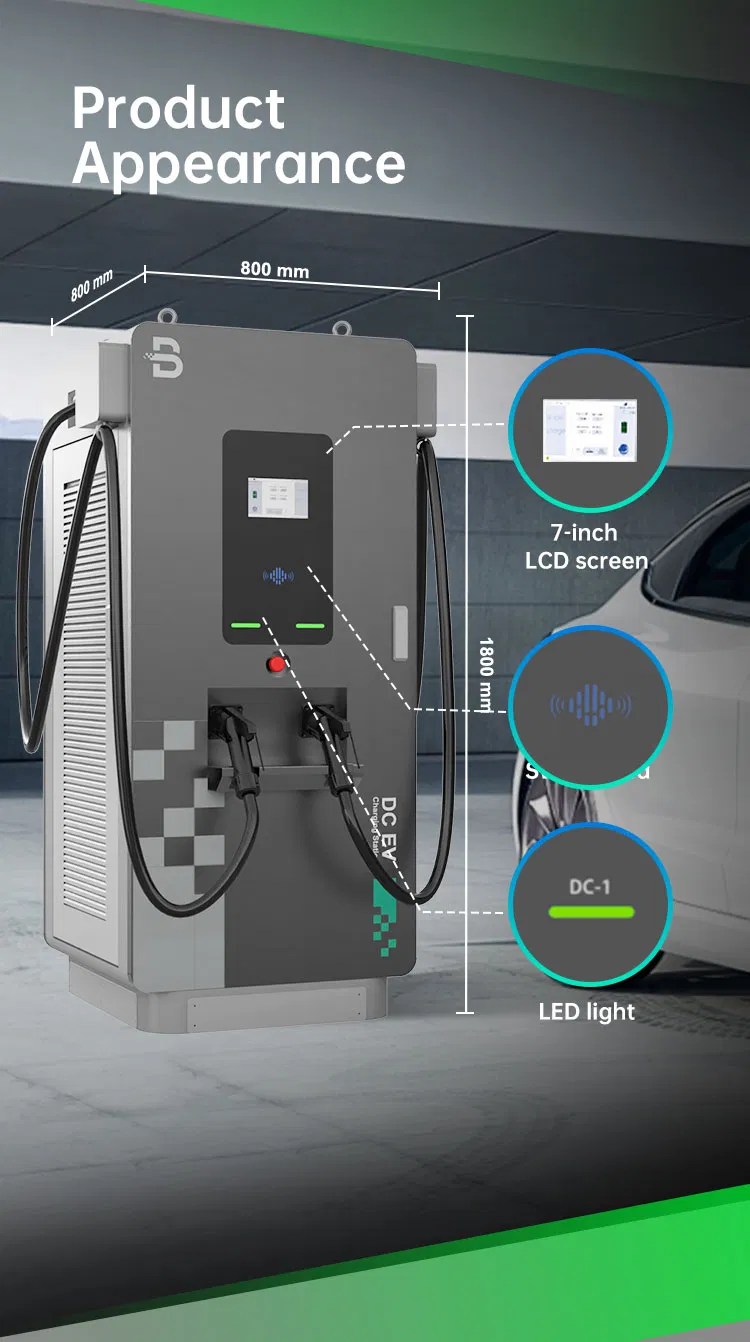

- Floor-stand Installation
- 7-inch LCD screen / LED light
- OCPP 1.6 / IP55 Rated
- High conversion efficiency (>95%)
- 24 Months Warranty
| Models | BDC60-D | BDC90-D | BDC120-D | BDC150-D | BDC180-D | BDC240-D |
|---|---|---|---|---|---|---|
| Rated Power | 60kW | 90kW | 120kW | 150kW | 180kW | 240kW |
| Shell Material | Sheet Metal | |||||
| Dimension | 800*800*1800 (L*W*T) | |||||
| AC Input | AC380V±15% , 3P+N+PE | |||||
| Output Voltage | CCS/GBT: 150Vdc - 1000Vdc; CHADEMO: 150Vdc - 500Vdc | |||||
| Protection | Over/Under Voltage, Overload, Leakage, Grounding, Over Temp, Surge Protection | |||||

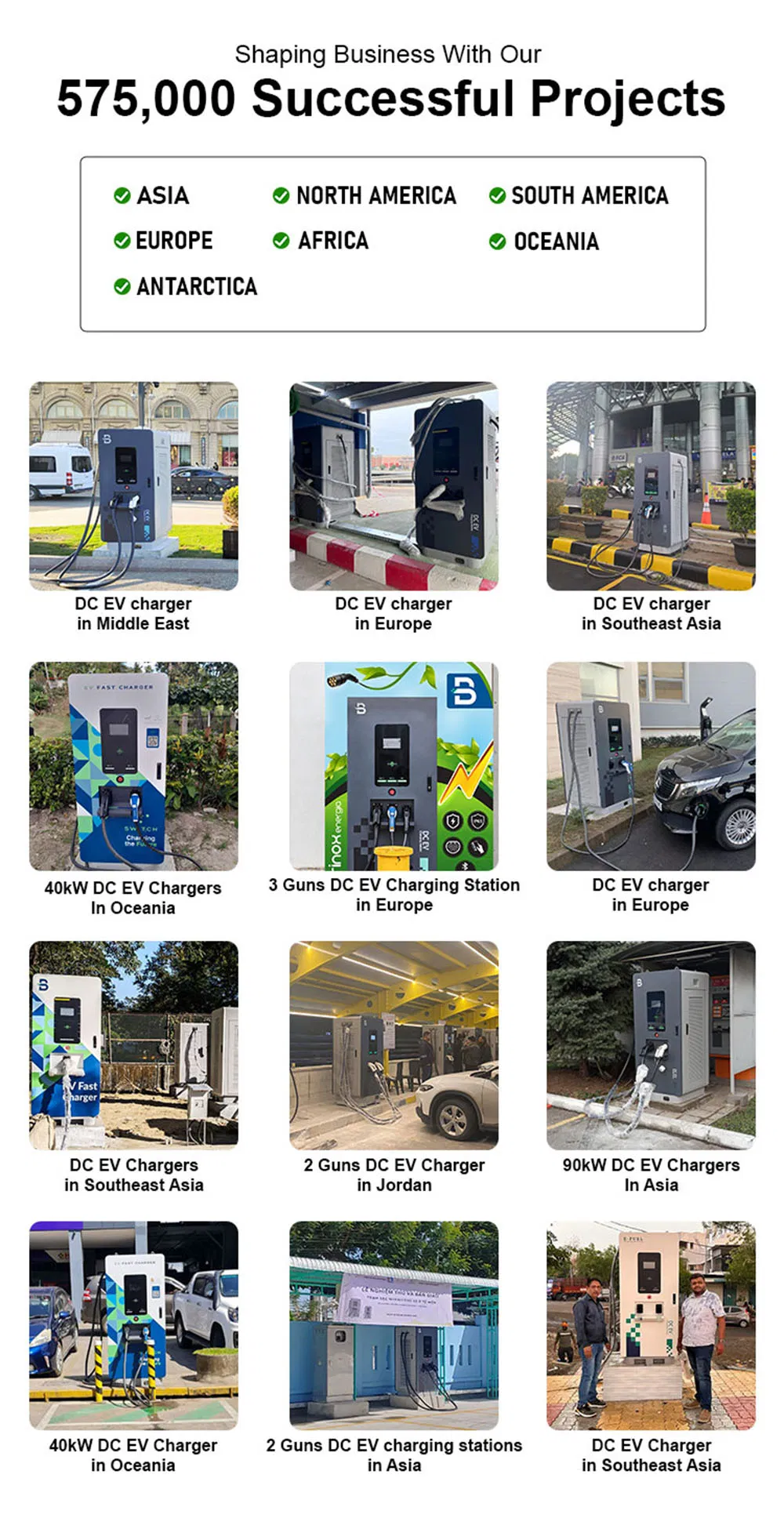

Our global expertise in EV charging projects empowers individuals and businesses worldwide. These projects showcase how innovative charging solutions are applied to diverse environments, contributing to robust EV infrastructure.

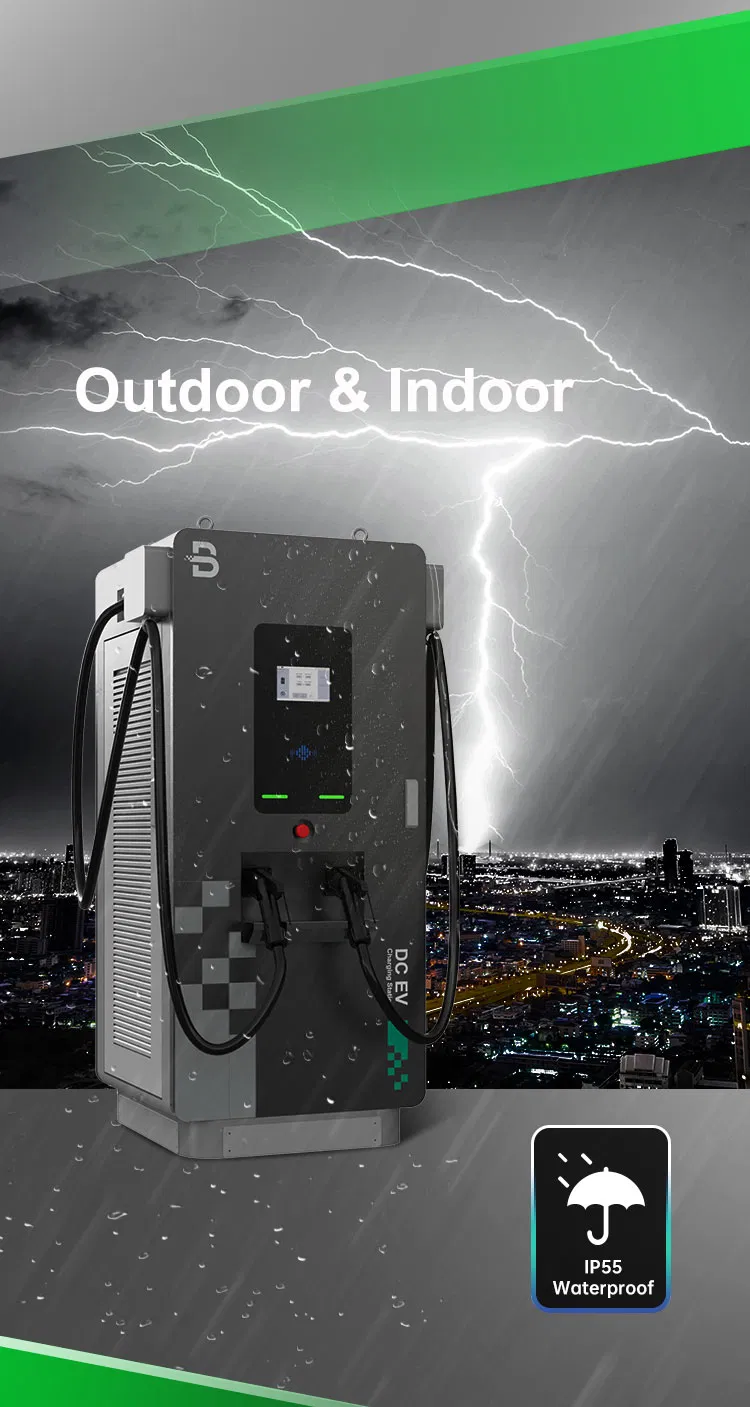

Our EV charger supplies power to any electrical vehicle. Wall-mounted and floor-mounted designs with IP65/IP55 housing make them suitable for both outdoor and indoor spaces. AC outputs range from 16A to 32A, while DC fast charging reaches up to 600kW.
