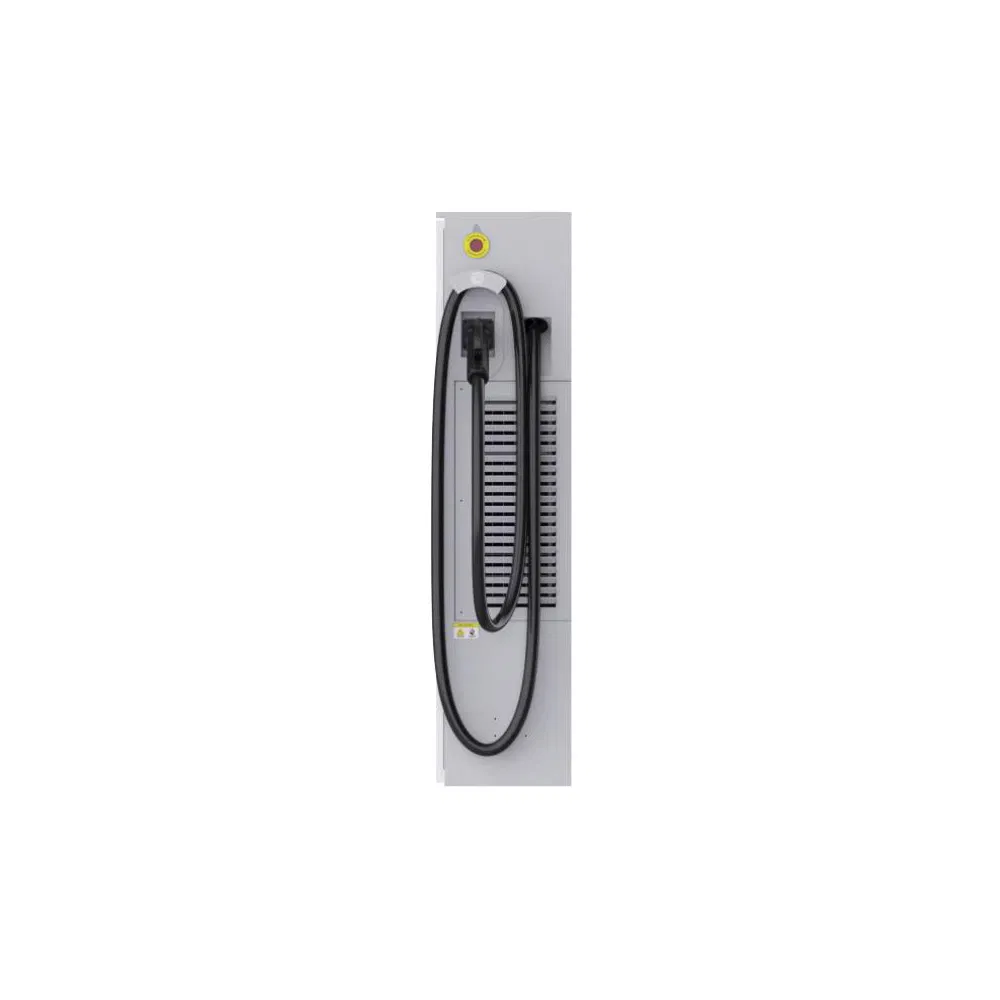

Double Gun 120kw DC Charging Pile Fast Charging Station Electric Vehicle Charging Pile Quick Charging Pile Fast Charging
Product Description
📋
Basic Information
Model NO.BHDC-BH-06
LocationPublic Use
Charging InterfacesOne Pile with Multiple Charges
Start ModeRFID, Mobile Remote, Credit Card
Output Voltage200 - 1000VDC
Output Power120kw
Output Current0-400A
ConnectorsCCS1, CCS2, Chademo, GBT
Cooling SystemAir Cooled
ProtocolOcpp 1.6j
ProtectionIP54 / IK10
Display7'' LCD Touch Screen
⚡
Product Introduction

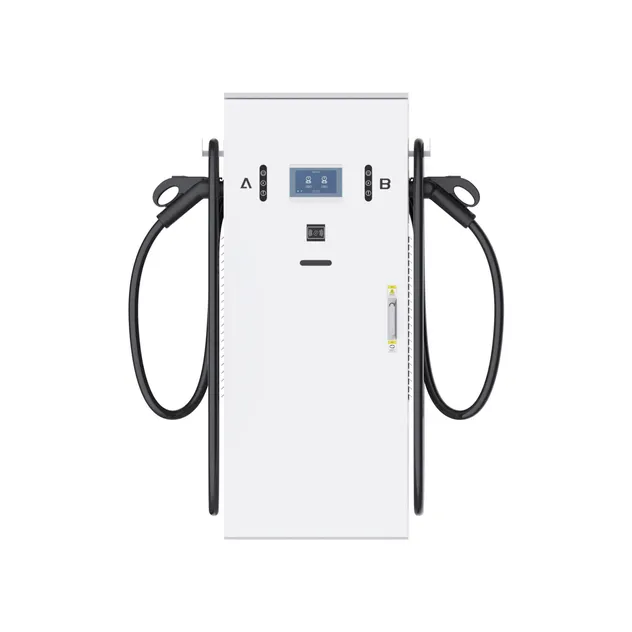

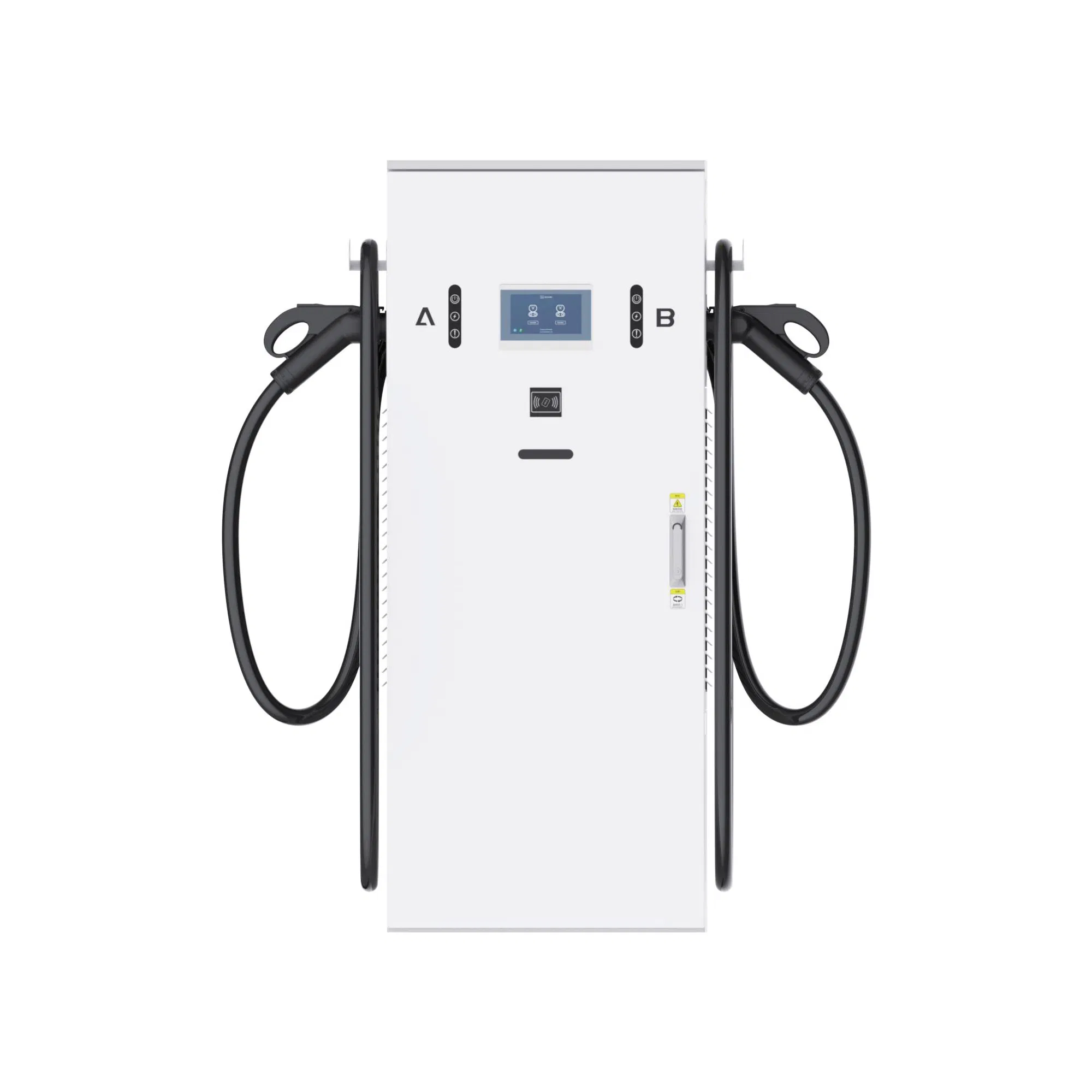

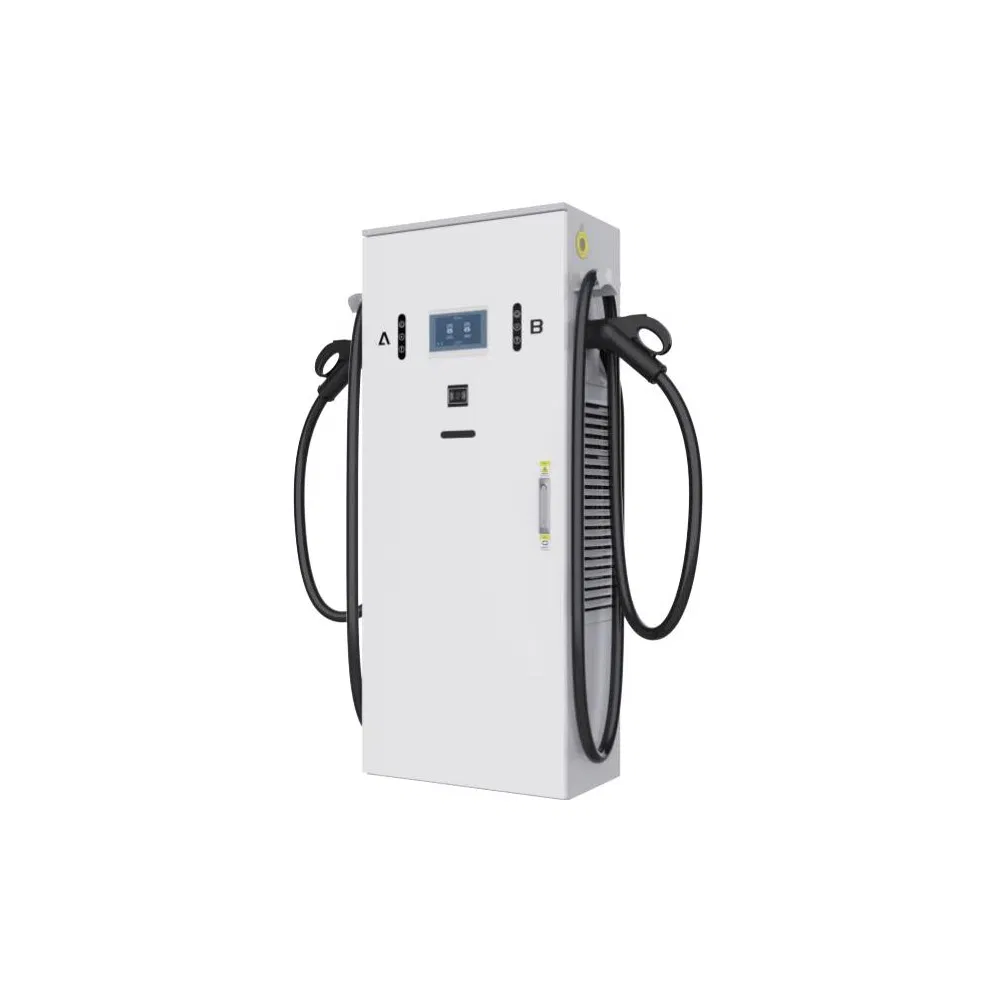

120 kW Series DC EV Charger
This charging station boasts fast charging speed and supports dual-gun charging, enabling quick charging for vehicles with high power and large battery capacity. Equipped with an advanced control system and communication module, the product offers features such as intelligent scheduling, remote monitoring, and fault diagnosis. It supports connectivity with major mainstream charging station management platforms. By connecting to the cloud platform, operators can monitor the real-time operational status of the charging station and perform remote maintenance and upgrades.
🤝
Our Partners
📊
Product Parameters
| Category | Specifications | Data Parameters |
|---|---|---|
| Appearance Structure | Dimensions (L x D x H) | 700mm x 400mm x 1700mm |
| Weight | 200kg | |
| Cable Length | 5m | |
| Connectors | CCS1 / CCS2 / CHAdeMO / GBT | |
| Electrical Indicators | Input Voltage | 400VAC / 480VAC (3P+N+PE) |
| Output Voltage | 200-1000VDC | |
| Rated Power | 120kW | |
| Efficiency | ≥94% | |
| Protocol | OCPP 1.6J | |
| Environment & Safety | Operating Temp | -30 °C to 55°C |
| Protection | IP54 / IK10 | |
| Safety Standards | GB/T, CCS2, CCS1, CHAdeMo, NACS |
🌟
Product Features
✔ Single and Dual Connectors
✔ Support V2G/V2L/V2H
✔ Parallel Charging Capability
✔ Configurable Output Power
✔ RFID & Credit Card Reader
✔ OCPP 1.6J Compliant
✔ FRU Onboard Diagnostics
✔ CE Certified
🚀

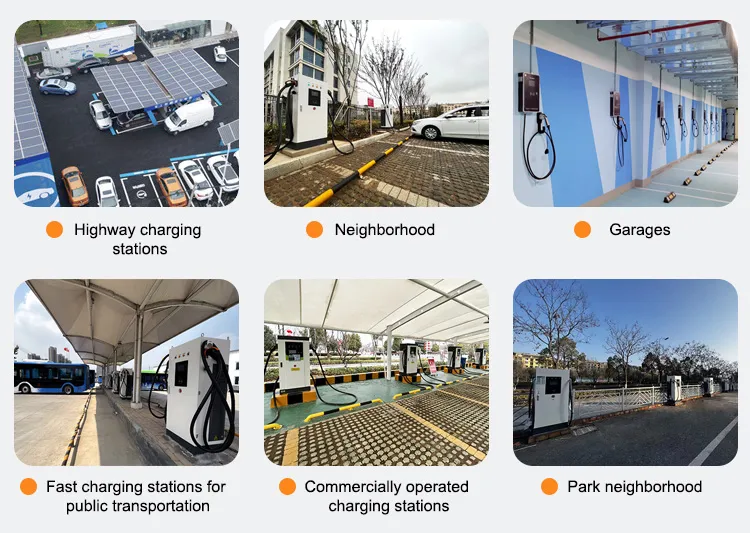

Application Scenarios
DC charging piles are versatile and widely used across various sectors:
- Public Charging: Urban parking lots, gas stations, and commercial centers.
- Highway Stations: Fast charging for long-distance travel.
- Logistics Parks: Efficient fleet management and charging.
- Leasing Places: Convenient charging for rental electric vehicles.
- Enterprise Use: Internal charging for employees and corporate fleets.
📦

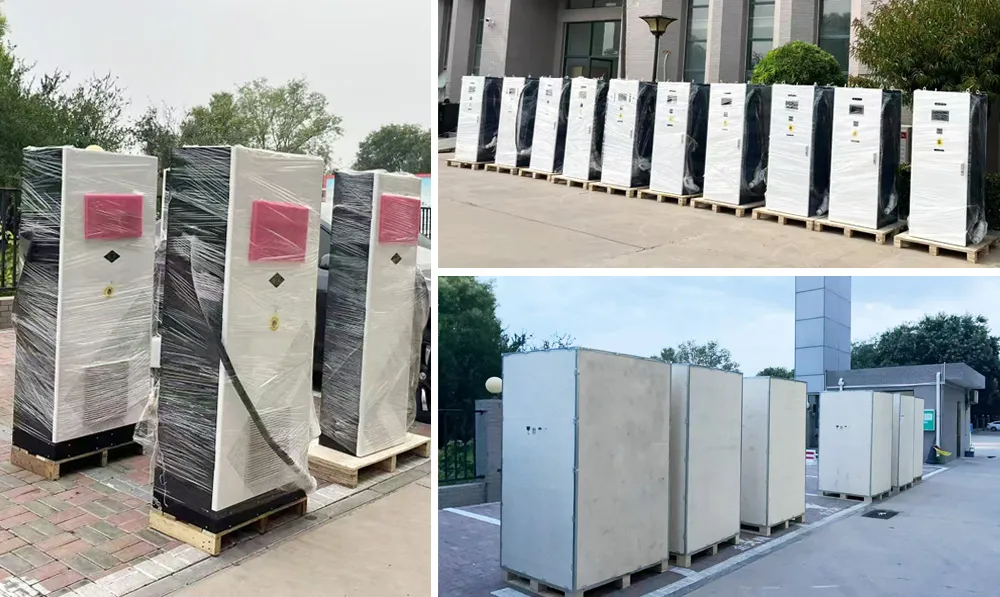

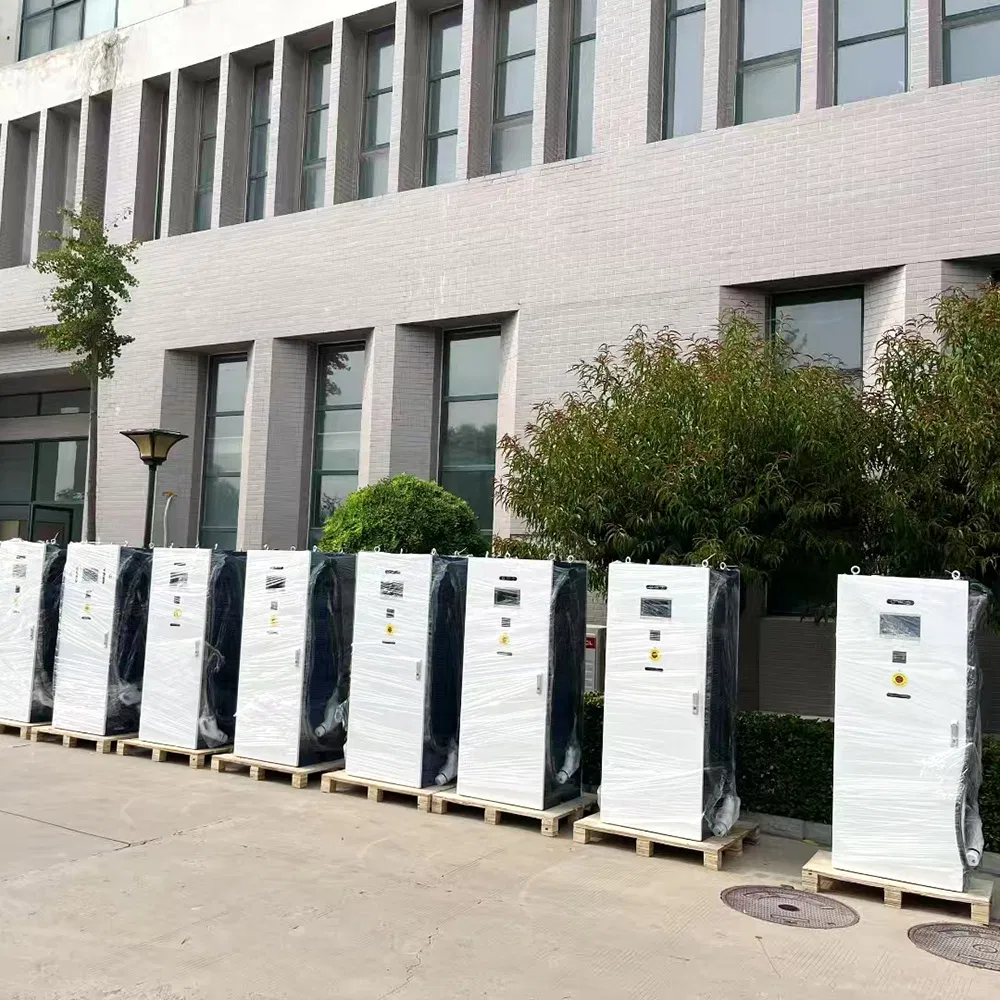

Packaging & Shipping
Package Size70.00cm * 40.00cm * 170.00cm
Gross Weight200.00kg
Package TypeWooden Crate
❓
Frequently Asked Questions
What is the maximum output power of this charging station?
The station provides a powerful 120kW DC output, suitable for fast-charging electric vehicles with large battery capacities.

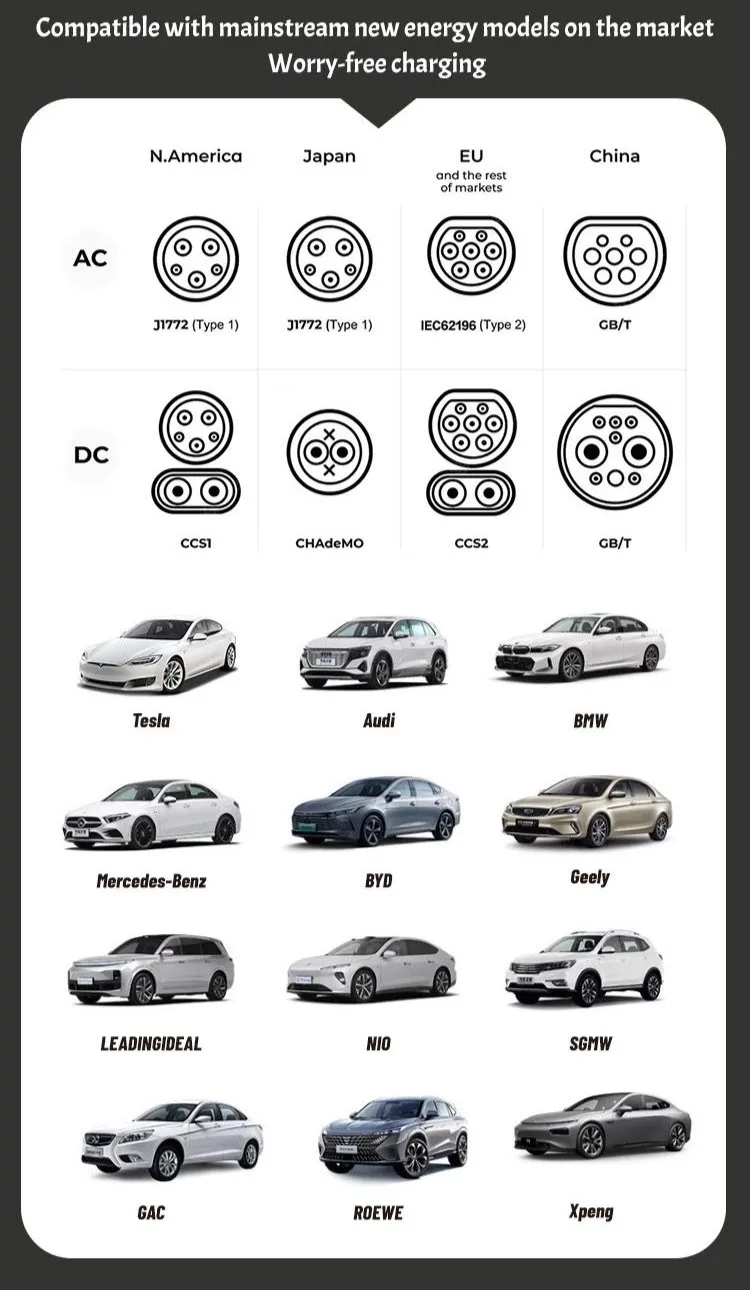

Which charging connector standards are supported?
It supports all major global standards including CCS1, CCS2, CHAdeMO, and GBT.
Is the charger suitable for outdoor installation?
Yes, it features an IP54 ingress protection rating and IK10 impact resistance, making it durable for outdoor public use.
Does it support remote management?
Absolutely. It is fully compliant with the OCPP 1.6J protocol, allowing for remote monitoring, intelligent scheduling, and fault diagnosis via cloud platforms.
Can it charge two vehicles at the same time?
Yes, the dual-gun configuration allows for parallel charging, enabling two vehicles to be serviced simultaneously.
What are the available start modes for users?
Users can start charging via RFID cards, mobile remote operation, or an optional credit card reader.
