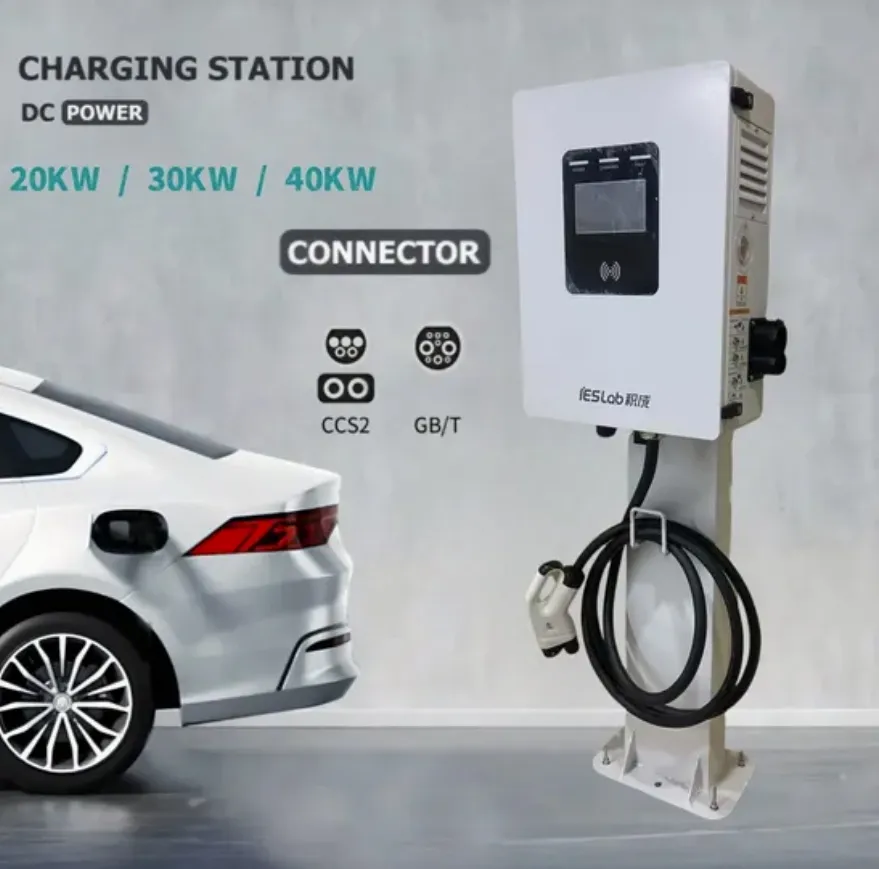

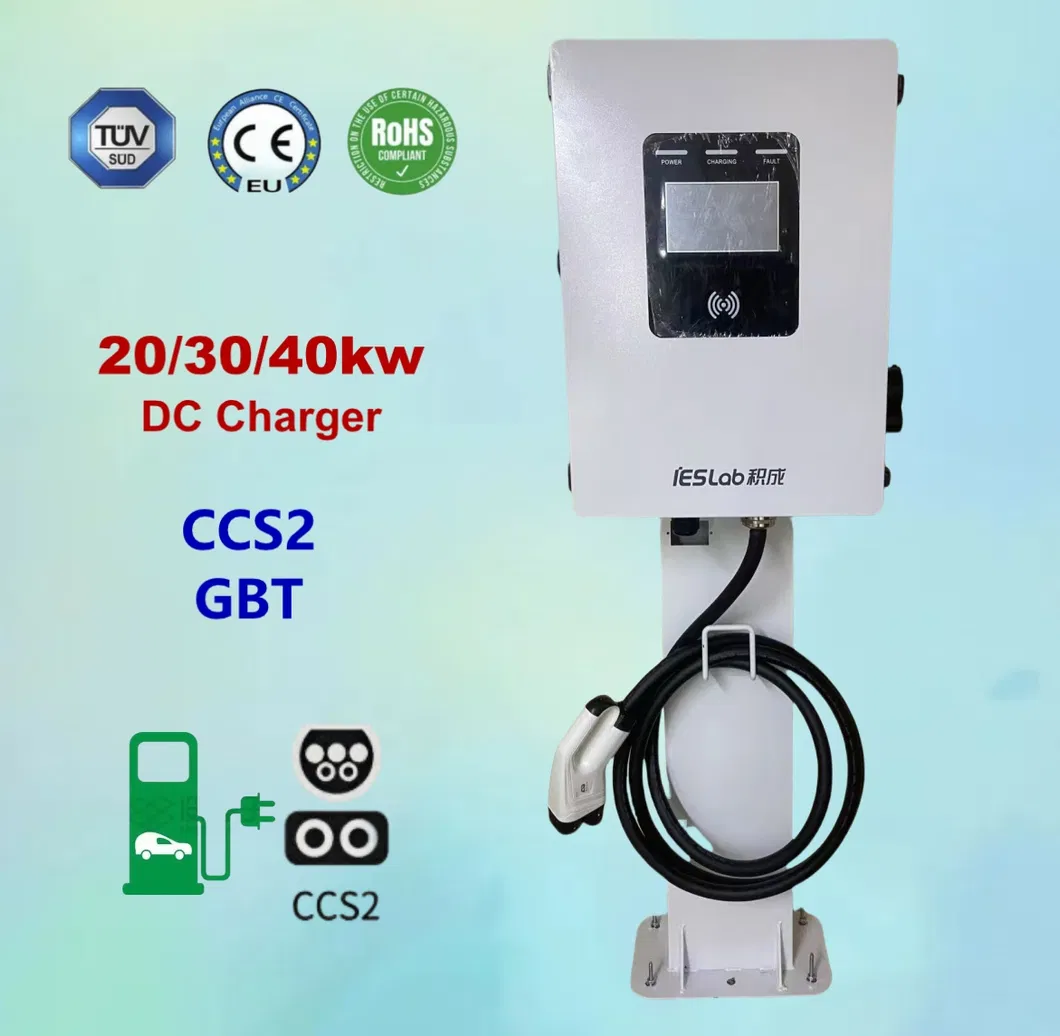

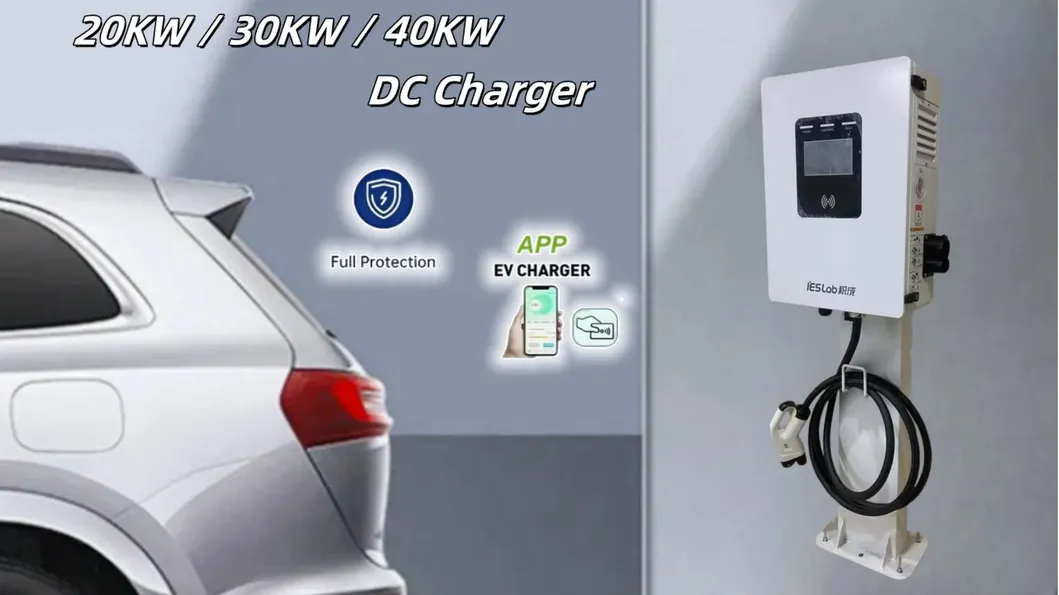

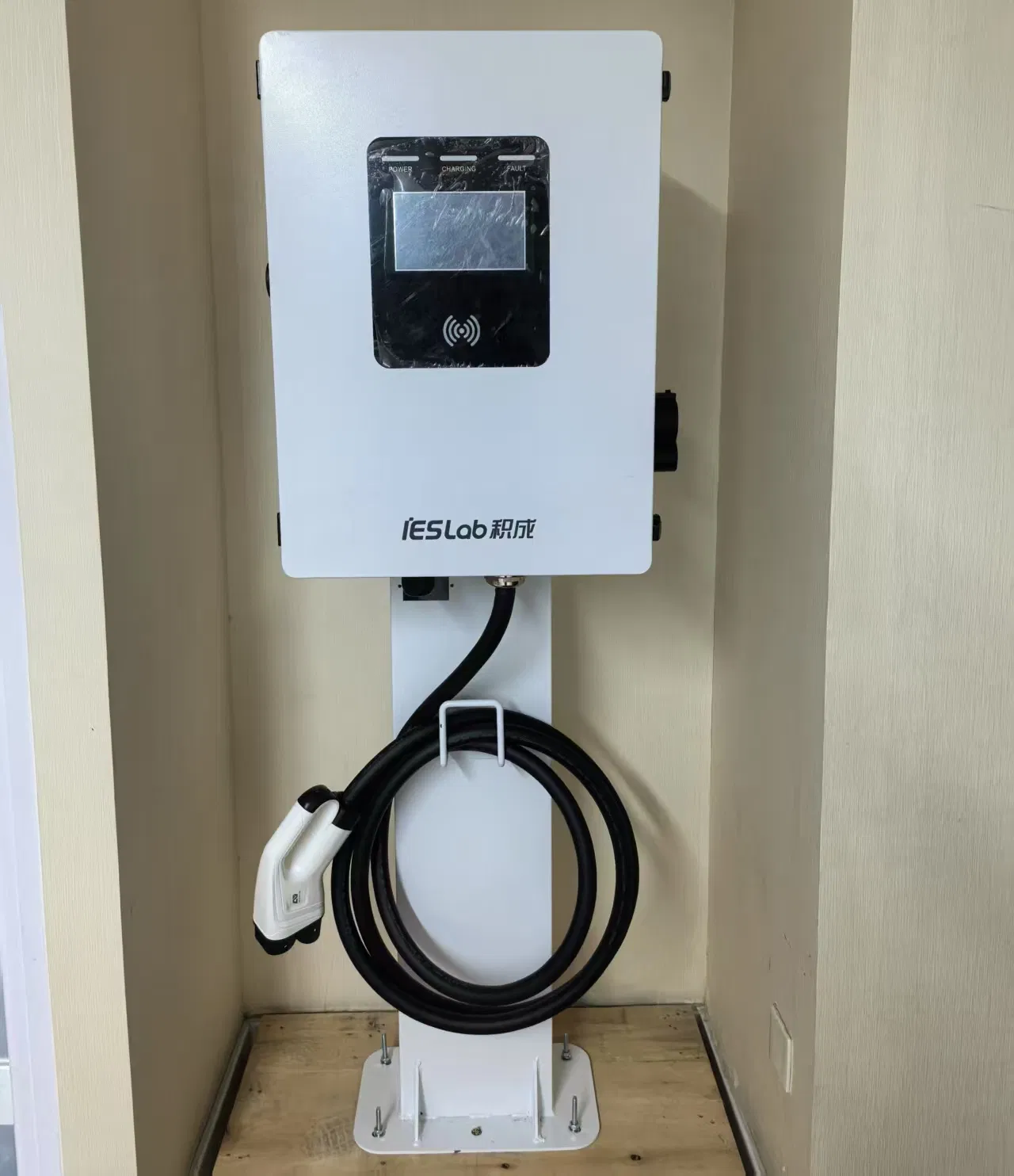

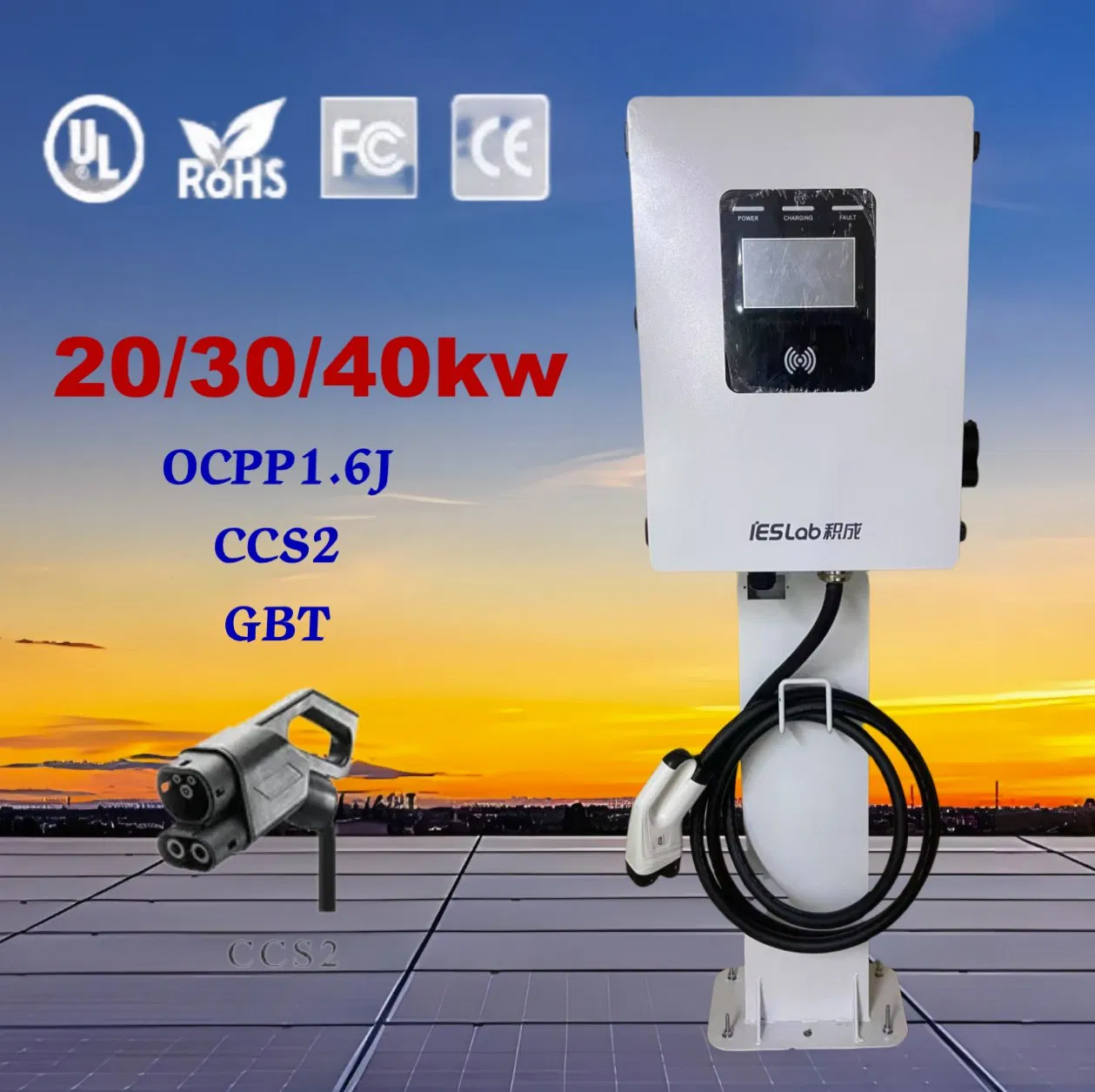

DC Wall Mount EV Charger with APP Ocpp 30kw 40kw DC Fast EV Car Charger Pile Wallbox Electric Car Charging Pile
Product Description
i
Basic Information
| Model NO. | 20/30/40kw DC EV Charging Station |
|---|---|
| Location | Public/Private |
| Charging Interfaces | One Pile with One Charge |
| Start Mode | Credit Card Payment, Mobile Remote Operation, RFID Authentic |
| Output Power | 20kw / 30kw / 40kw |
| Protection Rating | IP54 |
| Output Voltage | 200V-1000V |
| Operating Temp | -20°C ~ 50°C |
| Screen | 7 Inch Color LCD Screen (Customizable) |
| Network | Ethernet / 4G |
| Warranty | 2 Years Warranty |
| Cooling Method | Forced Air Cooling |
P
Packaging & Delivery
| Package Size | 100.00cm * 90.00cm * 50.00cm |
|---|---|
| Gross Weight | 90.000kg |
| Transport Package | Wooden Box |
D
Product Description
| Product Parameters | |||
| Product Model | EVSED29A-EU: 20kw | EVSED43A-EU: 30kw | EVSED58A-EU: 40kw |
| User Interface | 7-inch LCD color display touch screen | ||
| Installation | Wall mounting | ||
| Output Voltage | 1000V | ||
| Output Current | 0-125A | ||
| Electrical Indicators | |||

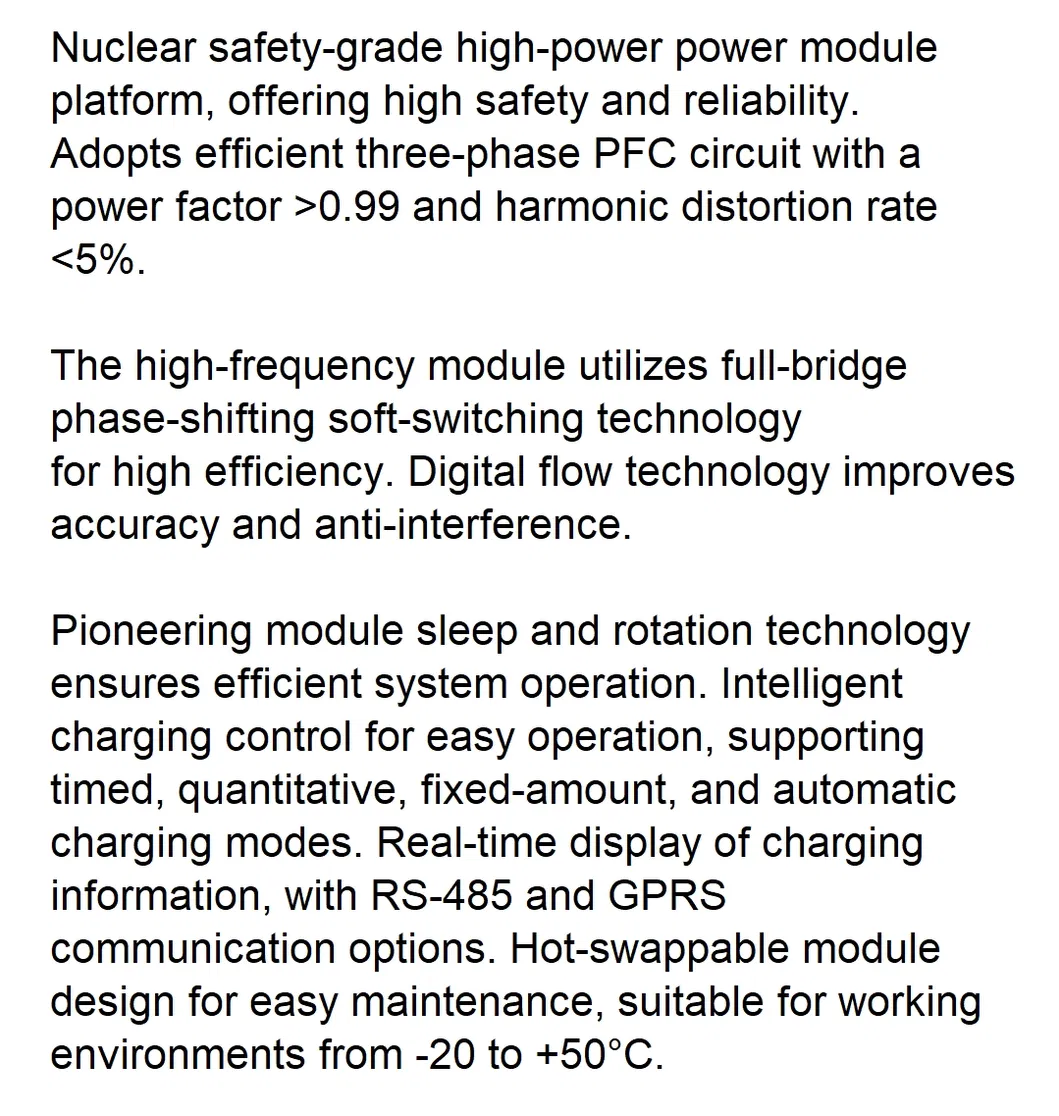

| Efficiency | ≥94.5% | ||
| Power Factor | ≥0.99 (Above 50% load) | ||
| THD | ≤5% (Above 50% load) | ||
| Functional Design | |||

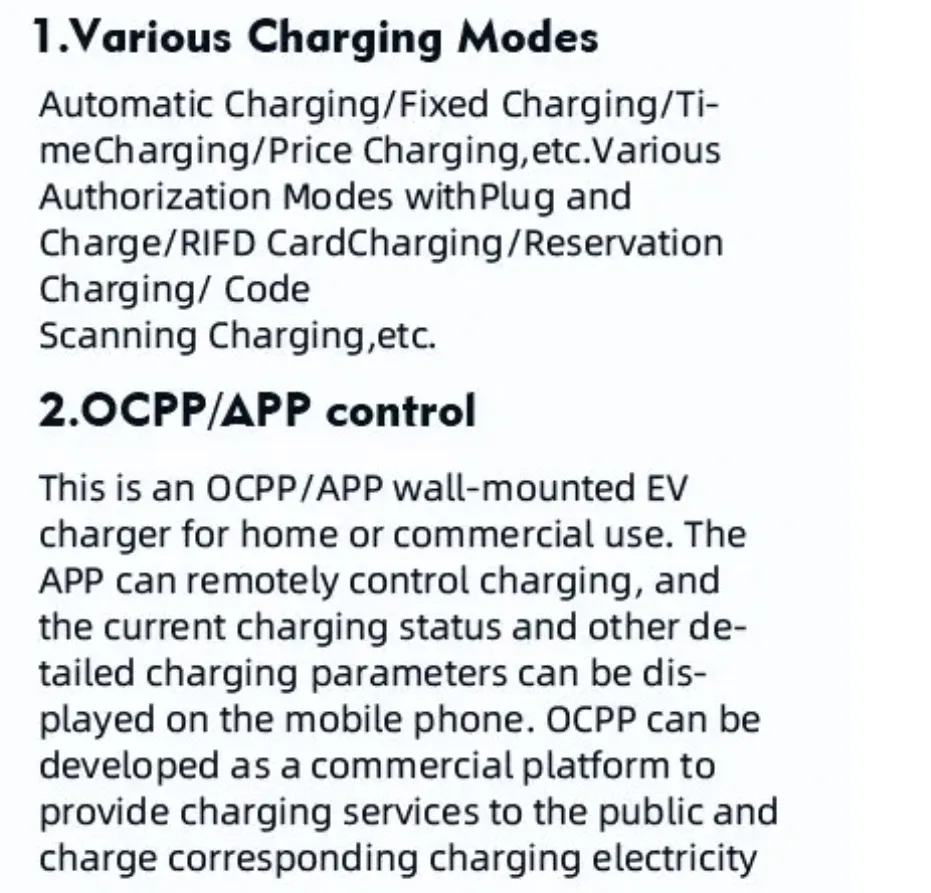

| Charging Mode | Automatic full charge / fixed charge / fixed amount / fixed time | ||
| Payment | Swipe card / APP payment / Scanning code | ||
| Safety Design | IEC/EN 61851, IEC/EN 62196 | ||
| Safety Functions | Temperature detection, Over/Undervoltage, Overload, Short circuit, Grounding, Overtemperature, Low temperature, Insulation monitoring, Polarity reverse, Lightning, Emergency stop, Leakage protection. | ||
M

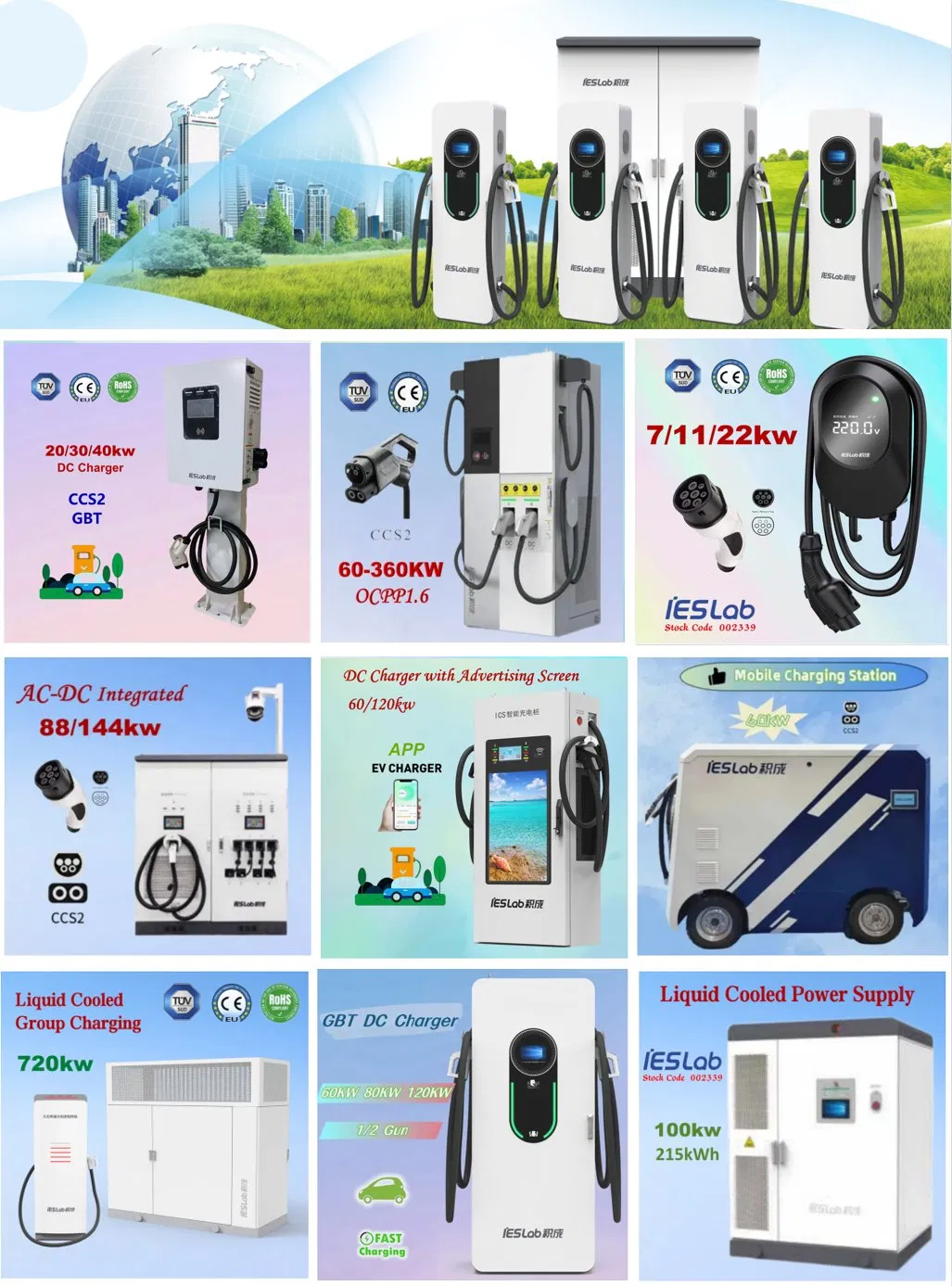

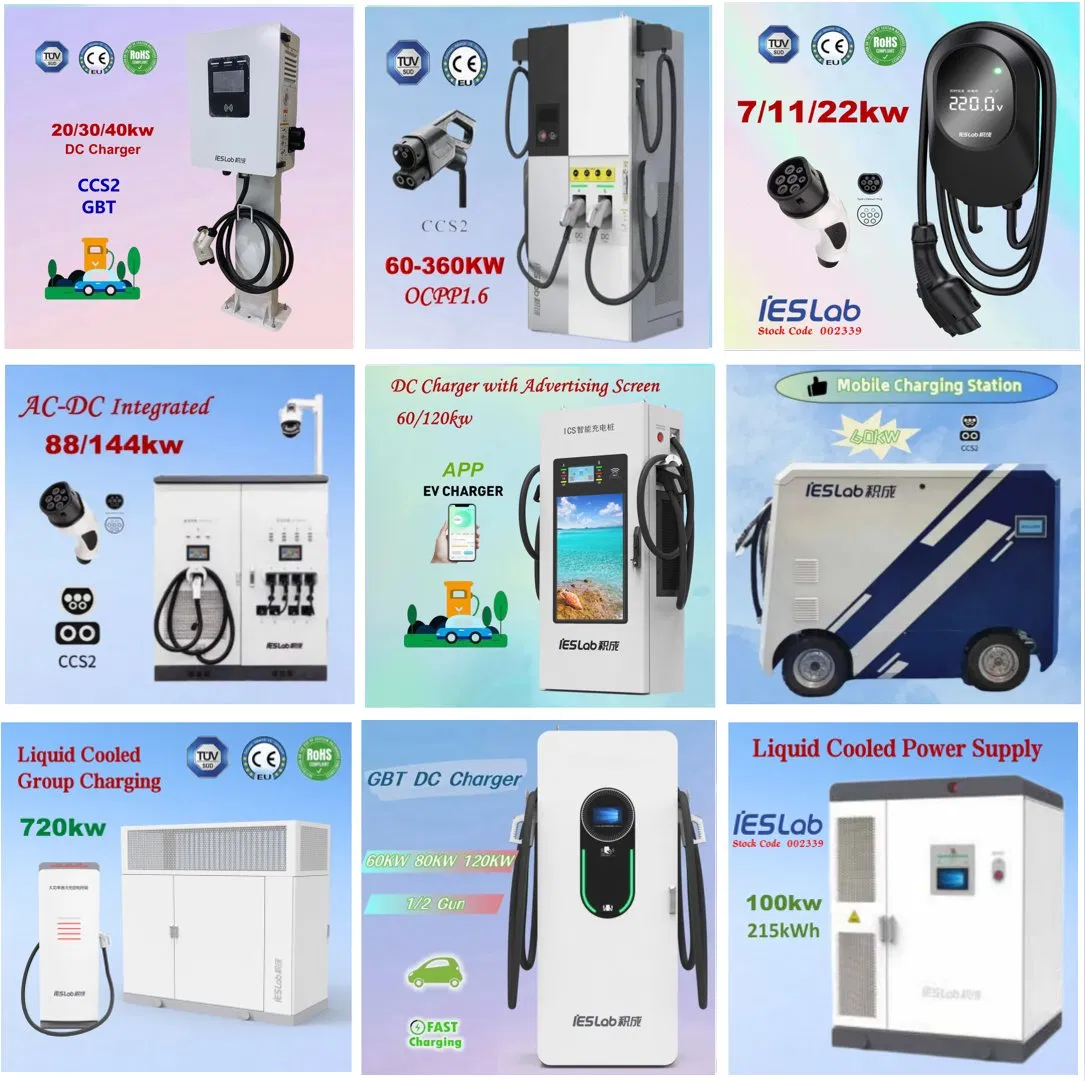

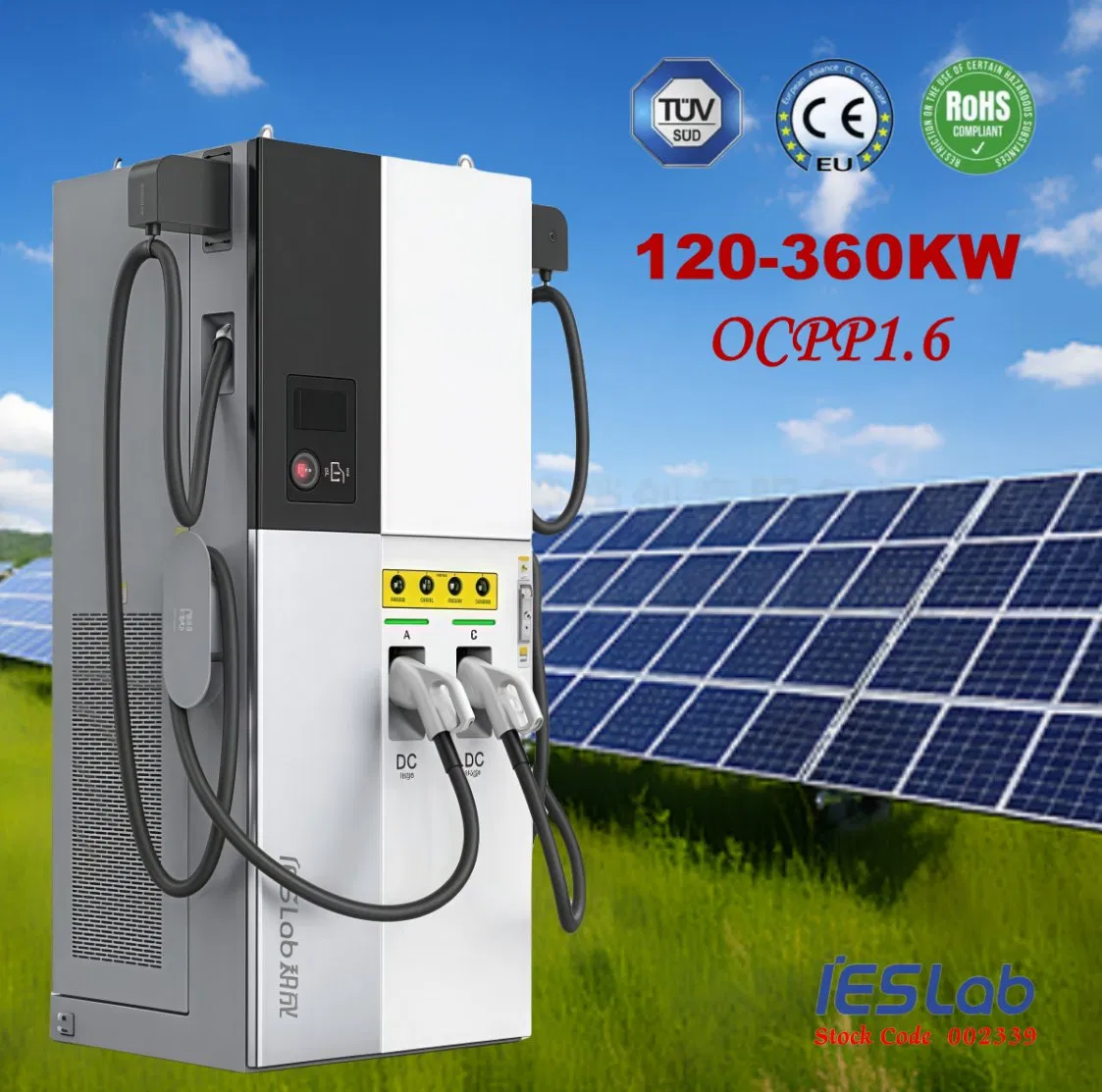

Main Products
F

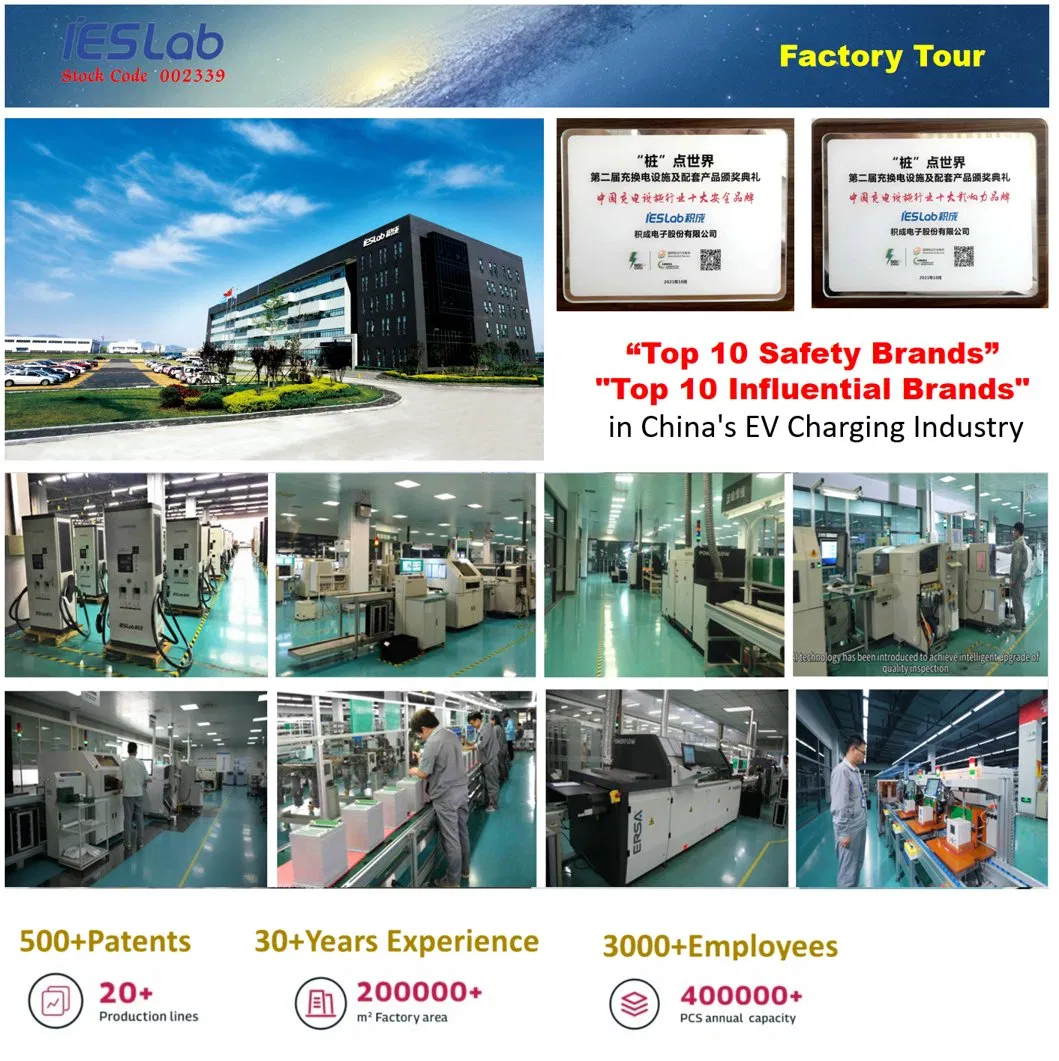

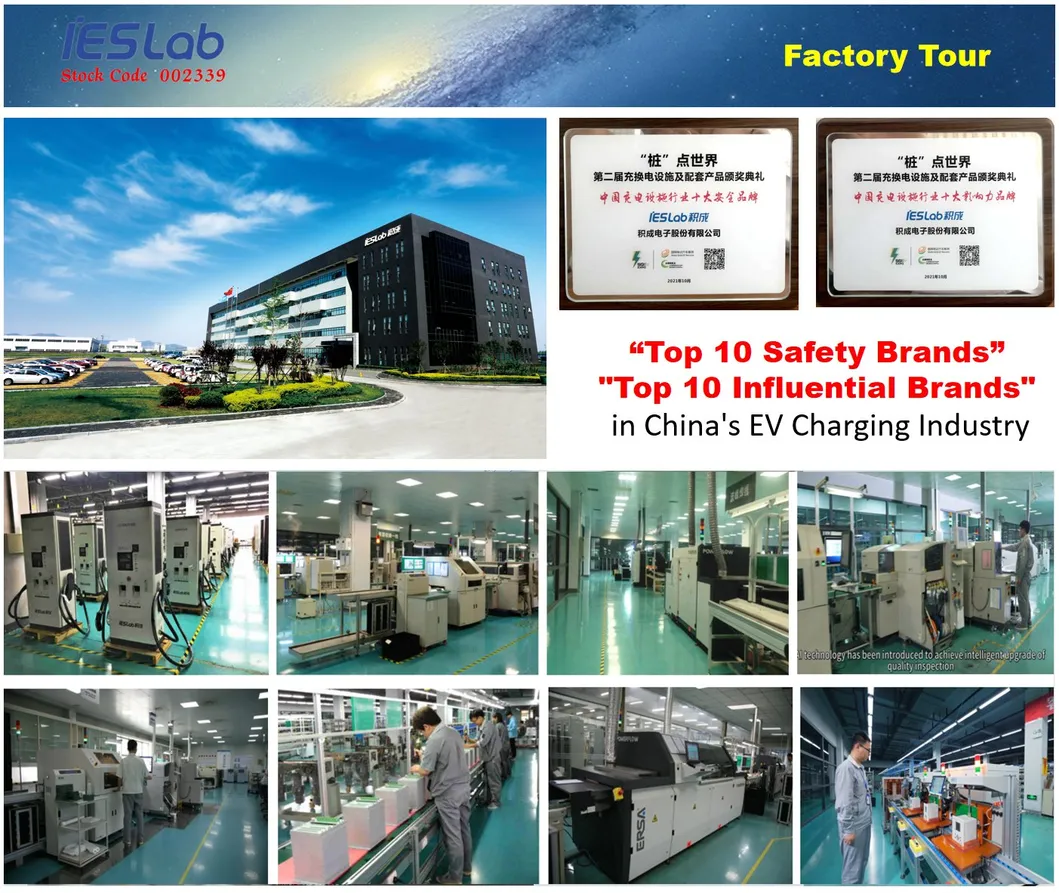

Factory Tour & Company Profile
E

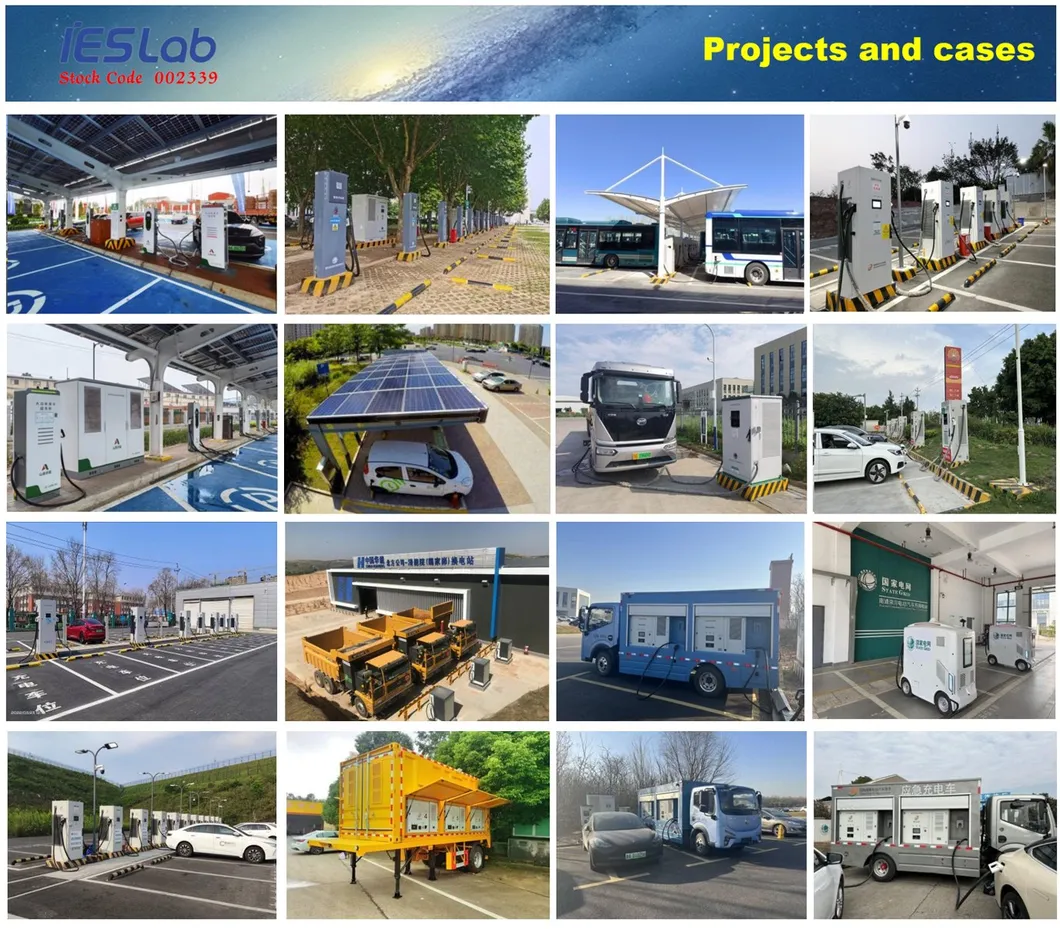

Fair Events & Applications
C
Certifications
?

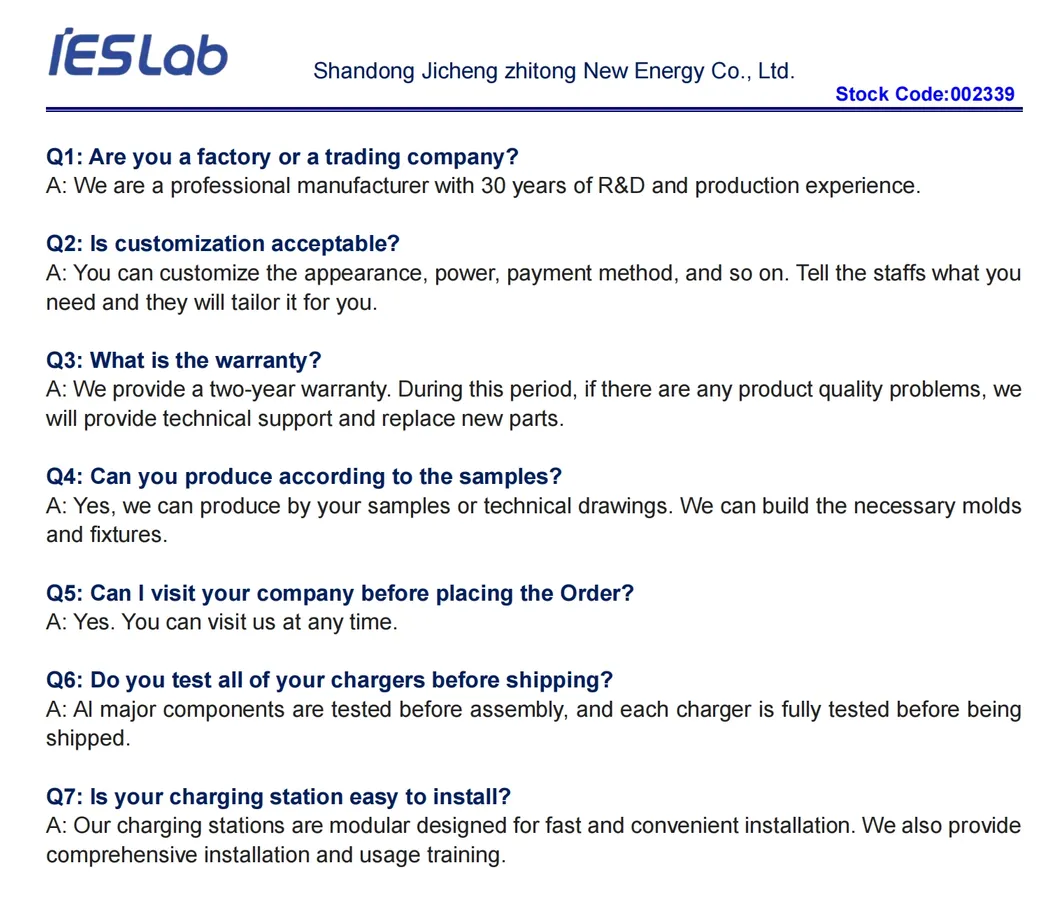

Frequently Asked Questions
Are you a factory or a trading company?
We are a professional manufacturer with 20 years of R&D and production experience. You are highly welcomed to visit our factory at any time!
Is customization acceptable for the chargers?
Yes, you can customize the appearance, power, payment method, and more. Our staff will tailor the solution to your specific needs.
What is the warranty period for your products?
We provide a 2-year warranty. During this period, we offer technical support and replacement parts for any product quality issues.
Can you produce according to specific samples?
Yes, we can produce based on your samples or technical drawings. We have the capability to build necessary molds and fixtures.
Do you test all chargers before shipping?
All major components are tested before assembly, and every single charger undergoes full functional testing before being shipped to ensure quality.
Is the charging station easy to install?
Our charging stations feature a modular design for fast and convenient installation. We also provide comprehensive installation and usage training.
