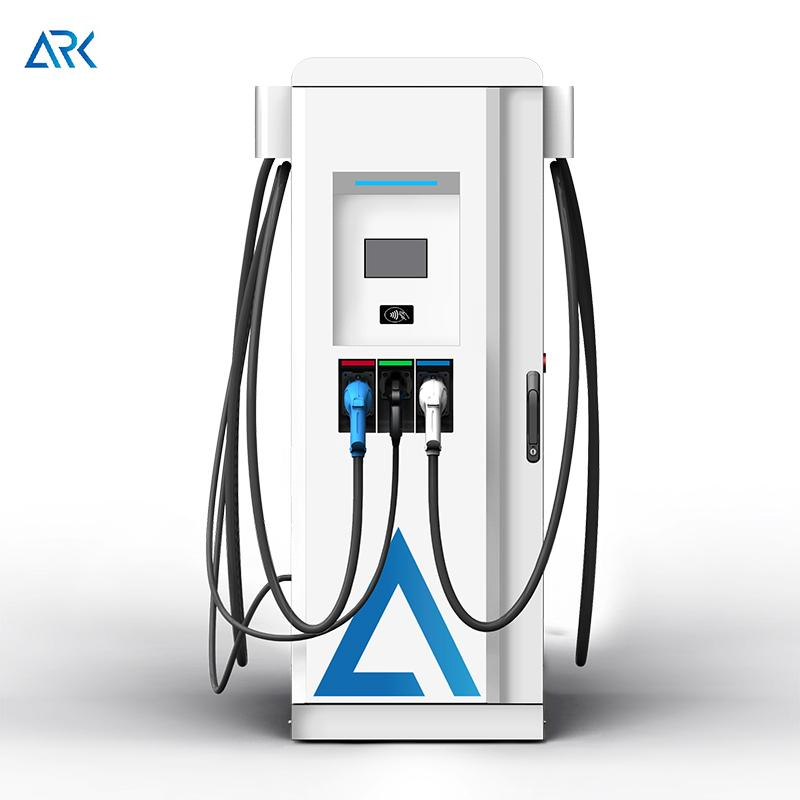

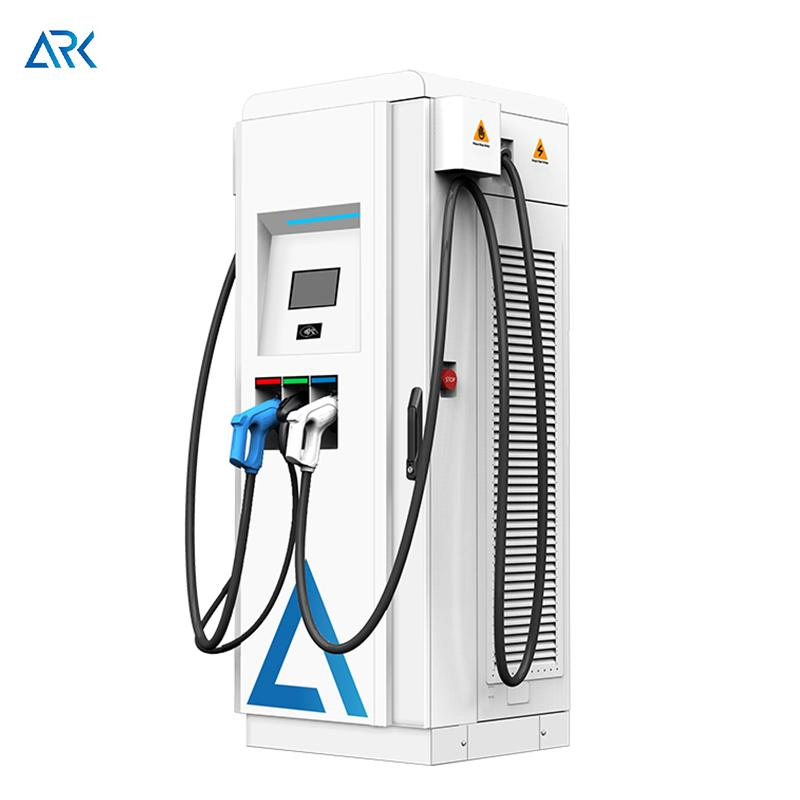

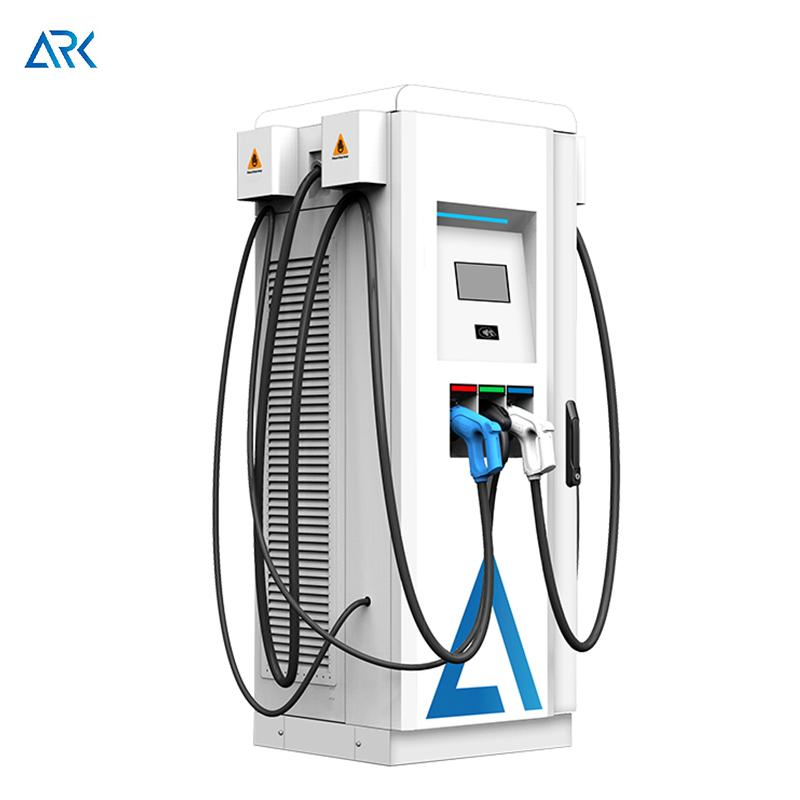

EV Charging Manufacturer DC Fast Electric Vehicles Charging Pile with Chademo / CCS Standard
Product Description
⚡
Basic Information
Model NO.EF160
OcppOcpp1.6j Supported
Screen7 Inch Touch Screen
Protection GradeIP54, IK10
Charging TypeMode 4
StandardIEC 61851-1, IEC 61851-23, CHAdeMO
TypeFast EV Charging Station
CertificationCE, TUV
Warranty12 Months

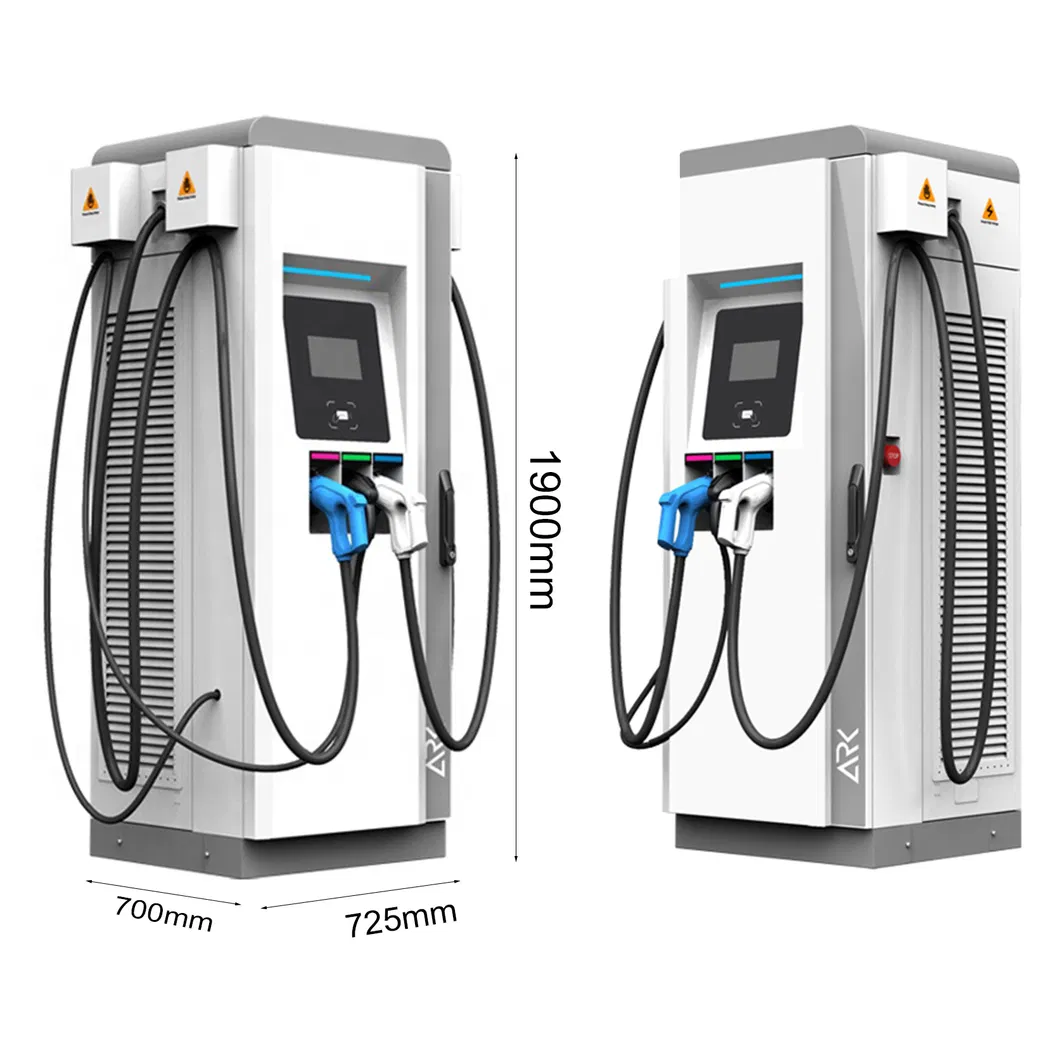

Dimension1900 x 725 x 700mm
OriginChina
Capacity1000 Units Per Month
🔍
Product Description
⚙️
Product Parameters
| Spec | Model | EF160 CJ082 |
| Electrical | Input Voltage | 400Vac 3-phase, 50Hz/60Hz |
| Rated Power | 60kW or 120KW DC | |
| Output Voltage | CCS: 200 - 1000VDC, CHAdeMO: 200 - 500VDC | |
| Efficiency | ≥ 94% | |
| Structure | Material | Metal Case (Floor-stand type) |
| Dimension | 1900 x 725 x 700mm | |
| Weight | 380kgs | |
| Cable Length | 5m (3 Outlets) | |

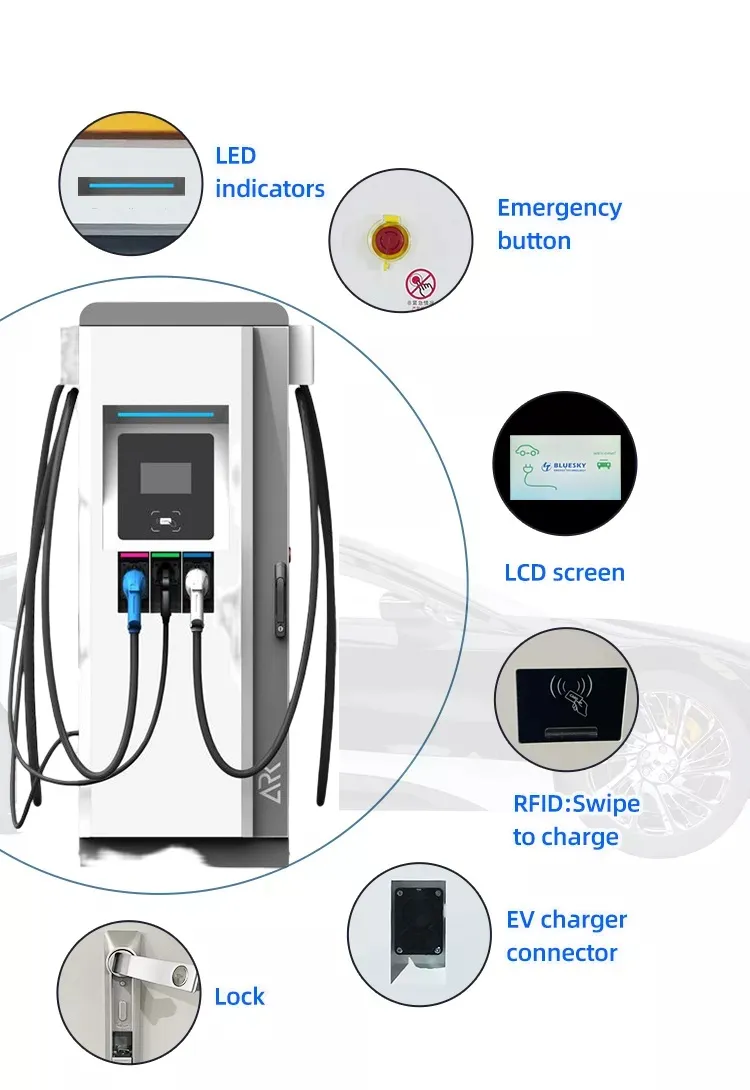

| Function | User Interface | Emergency button, LED, RFID, 7" Touch screen |

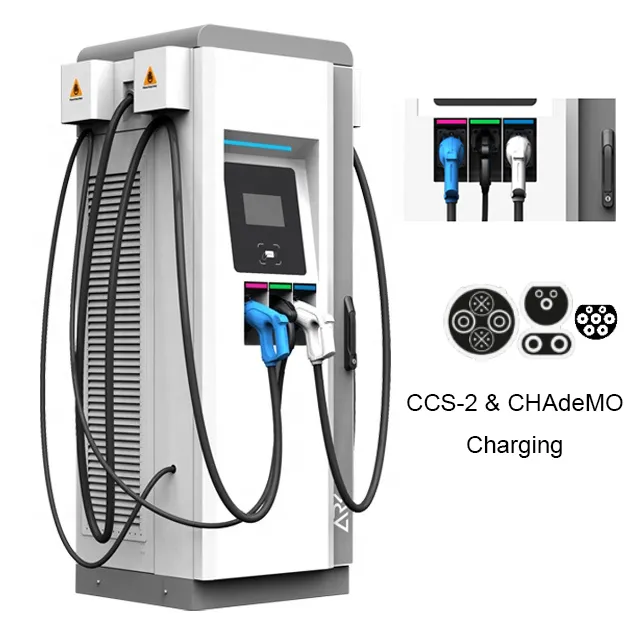

| Standards | CCS-1/2, CHAdeMO | |
| Comm. | PLC, CAN, Wifi, 4G, OCPP 1.6 | |
| Environment | Working Temp | -30°C to +55°C |
| Protection | IP54, Fan cooling | |
| Security | Over/Under voltage, Overload, Leakage, Lightning protection |
📦

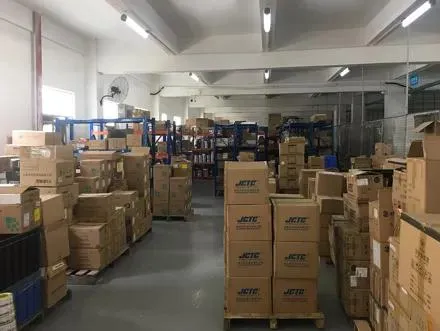

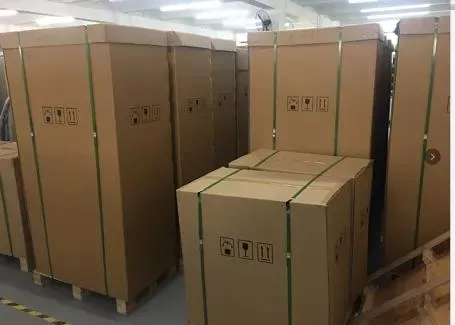

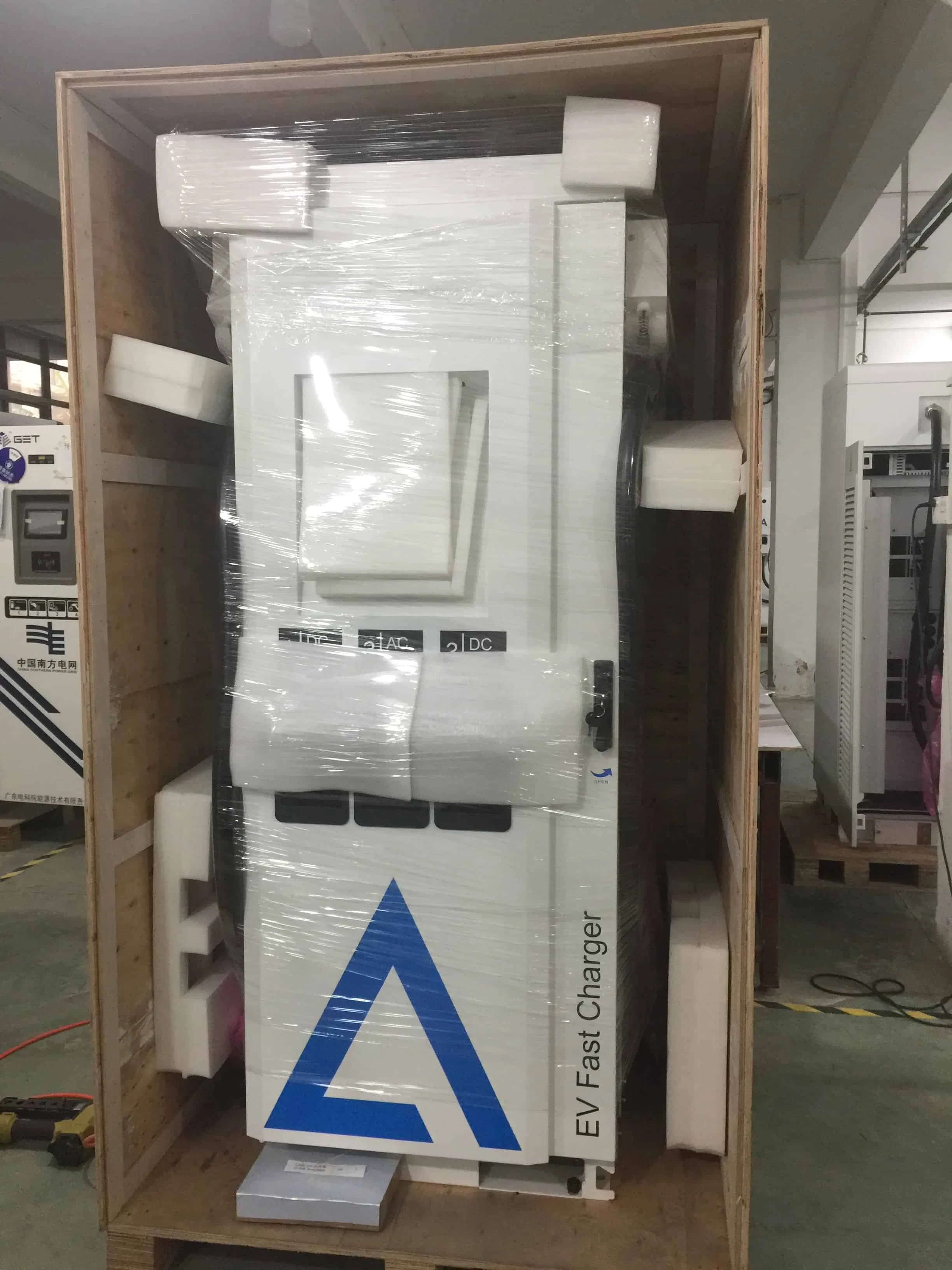

Packaging & Shipping
❓
Frequently Asked Questions
Why choose this EV Charger solution?
We provide professional technical expertise with a wide range of products following international standards. Our chargers have passed rigorous laboratory tests and support various application scenarios with smart back-end services.
Is there experience with global charging projects?

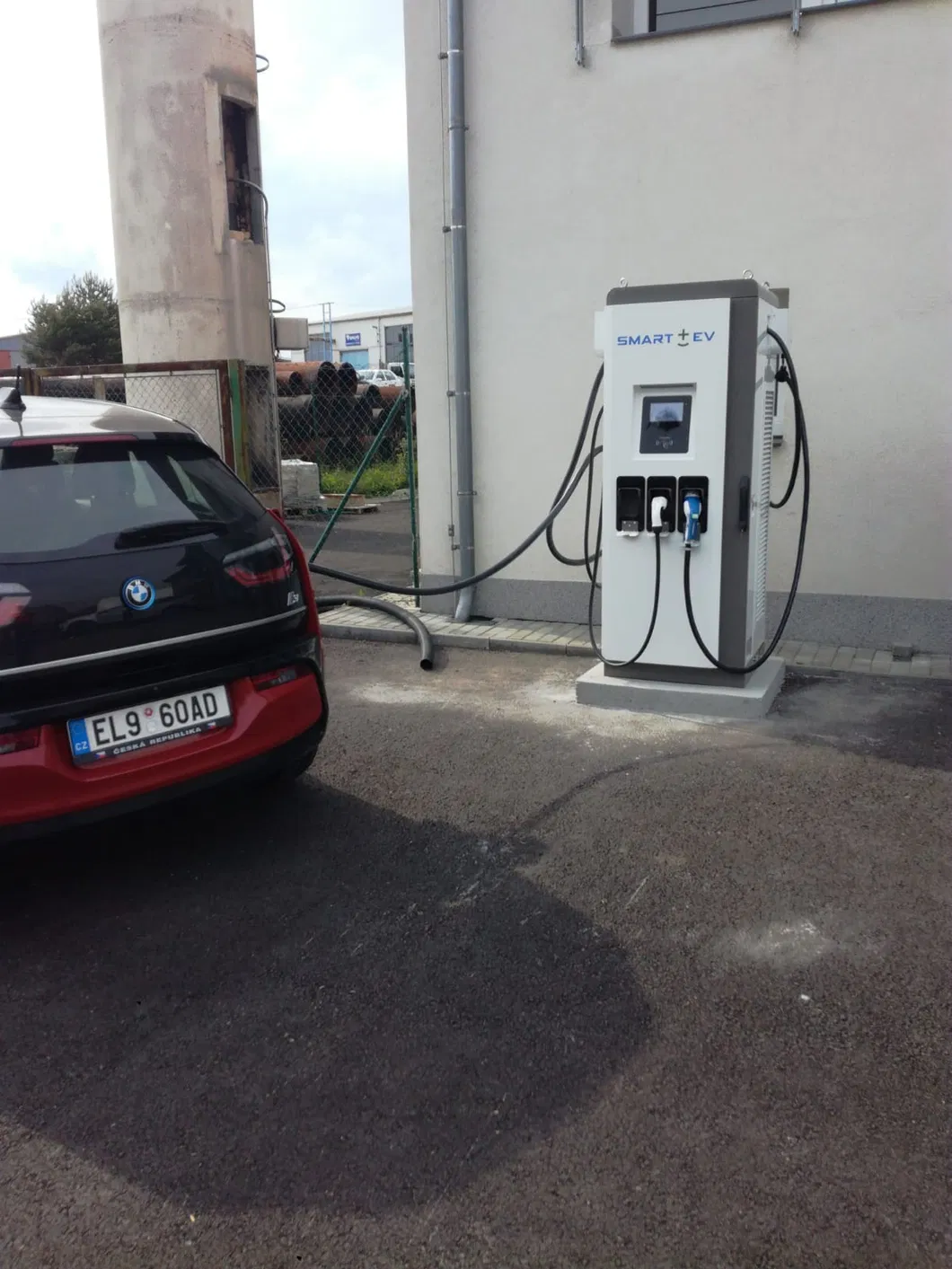

Yes, there is extensive experience implementing projects worldwide, including integrating EV chargers with PV systems in the UK, freeway installations in the US (LA to San Francisco), and supporting major automaker fleets.
What are the technical advantages of these chargers?
The products feature telecom-level design, multiple standard support (CCS-1/2, CHAdeMO, GB/T), wider voltage ranges, high protection grades (IP54), and an advanced modular design for better reliability.
What are the differences between global DC standards?
CCS-1 is for North America; CCS-2 is the European standard; CHAdeMO is used primarily by Japanese manufacturers; GB/T is the Chinese standard; and Tesla has its proprietary standard. Our equipment supports most of these major protocols.
Does higher output power always mean faster charging?
Not necessarily. Charging speed is often limited by the vehicle's battery. However, high-power chargers allow for dual-connector output to charge two vehicles simultaneously at high speeds and offer future-proofing as battery technology evolves.
How is after-sales technical support handled?
Comprehensive support includes technical training materials, instructional videos, and professional training for maintenance. In urgent cases, professional technicians are available to provide direct assistance.
