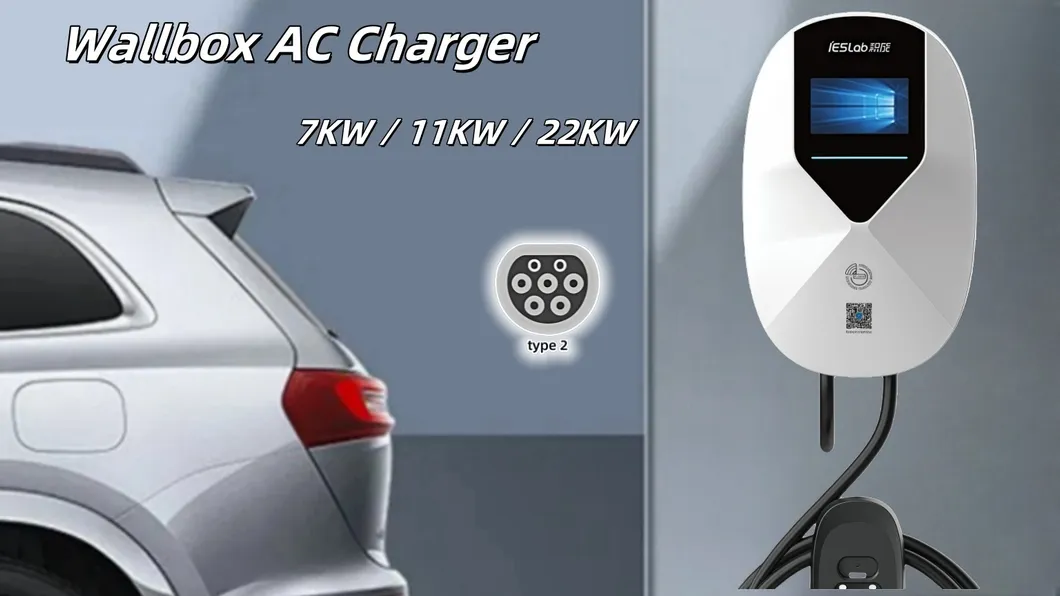

Commercial Home Use 1/3 Phase Type 2 / Gbt Connector 7kw 11kw 22kw Ocpp Electric Car Vehicle Battery EV Charging Station
Product Description
Basic Information
Model NO.
7/11/22kw AC Charger
Charging Interfaces
One Pile with One Charge
Location
Public Use, Private Use
Installation
Wall Mounted
Output Power
7kw/11kw/22kw
Protection Rating
IP66
Network Gateway
Bluetooth / WiFi/ 4G
Standard Compliance
IEC 61851-1, IEC 61851-21-2
Warranty
2 Years
Origin
China
Packaging & Delivery
Package Size
48.00cm * 32.00cm * 21.00cm
Package Gross Weight
5.000kg
Product Description
| Product Parameters | |
|---|---|
| Product name | Wall-Mounted EU Standard AC Charger |
| Overall Dimensions(LWH) | 87mm x 190mm x330mm |
| Net Weight | 4.8kg |
| Housing Material | PC with Anti-UV Treatment |
| Rated Input Voltage | 7kw:230Vac ± 10%; 11/22kw:400Vac ± 10% |
| Rated Output Current | 7kw:32A; 11kW/16A; 22kW/32A |
| Standard Compliance | IEC 61851-1, IEC 61851-21-2 |
| Charging Mode | Mode 3 |
| Charging Connector | 5 Meter Tethered IEC Type 2 Lead |

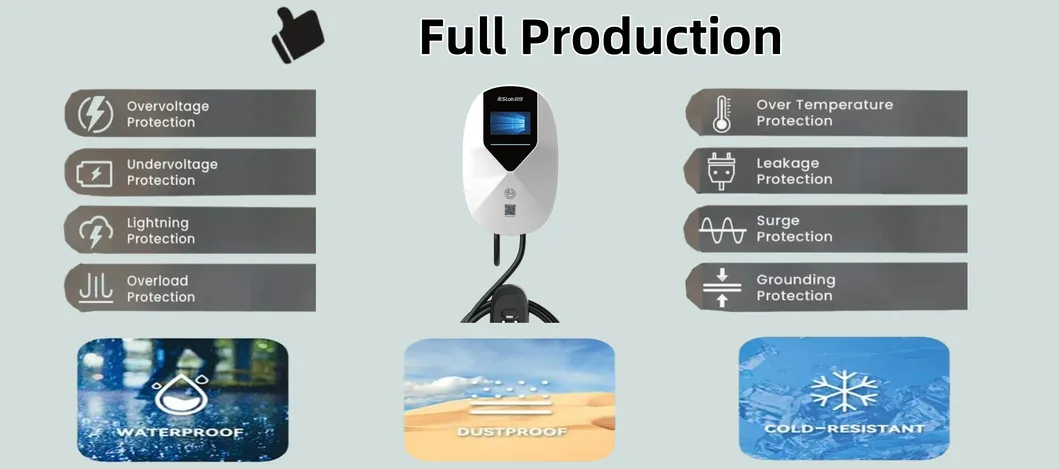

| Electrical Protection | UVP, OVP, RCD (DC 6mA), SPD, Ground Fault Protection, OCP, OTP |
| Protection rating | IP54 |
| Communication Protocol | OCPP1.6j |

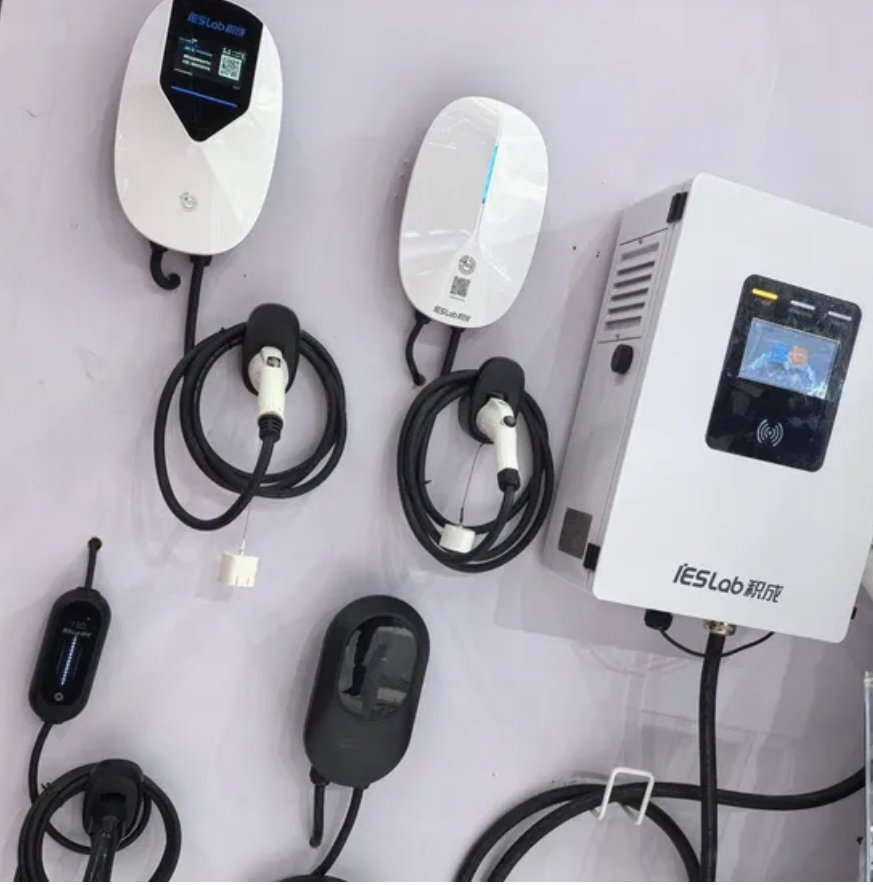

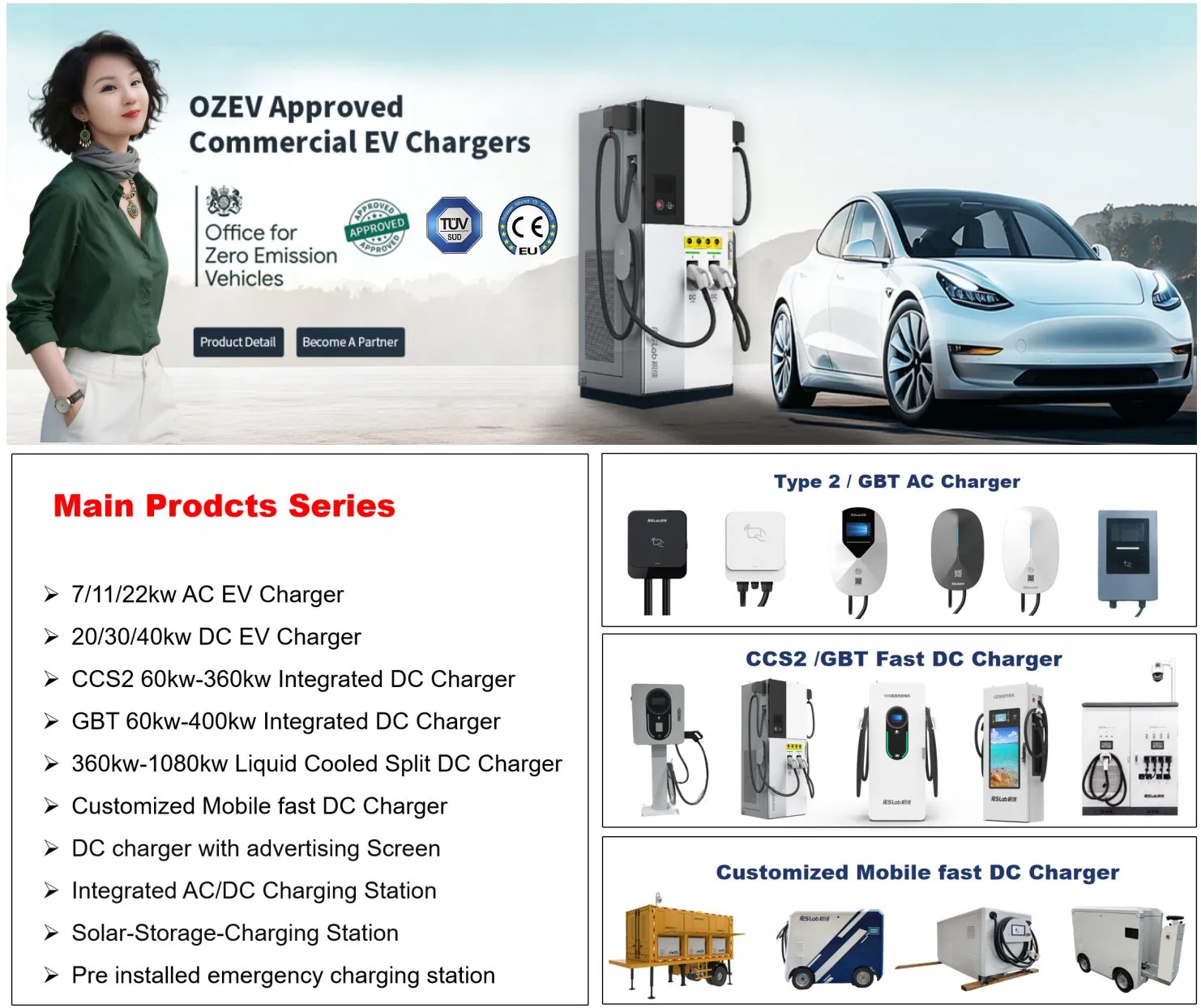

Main Products

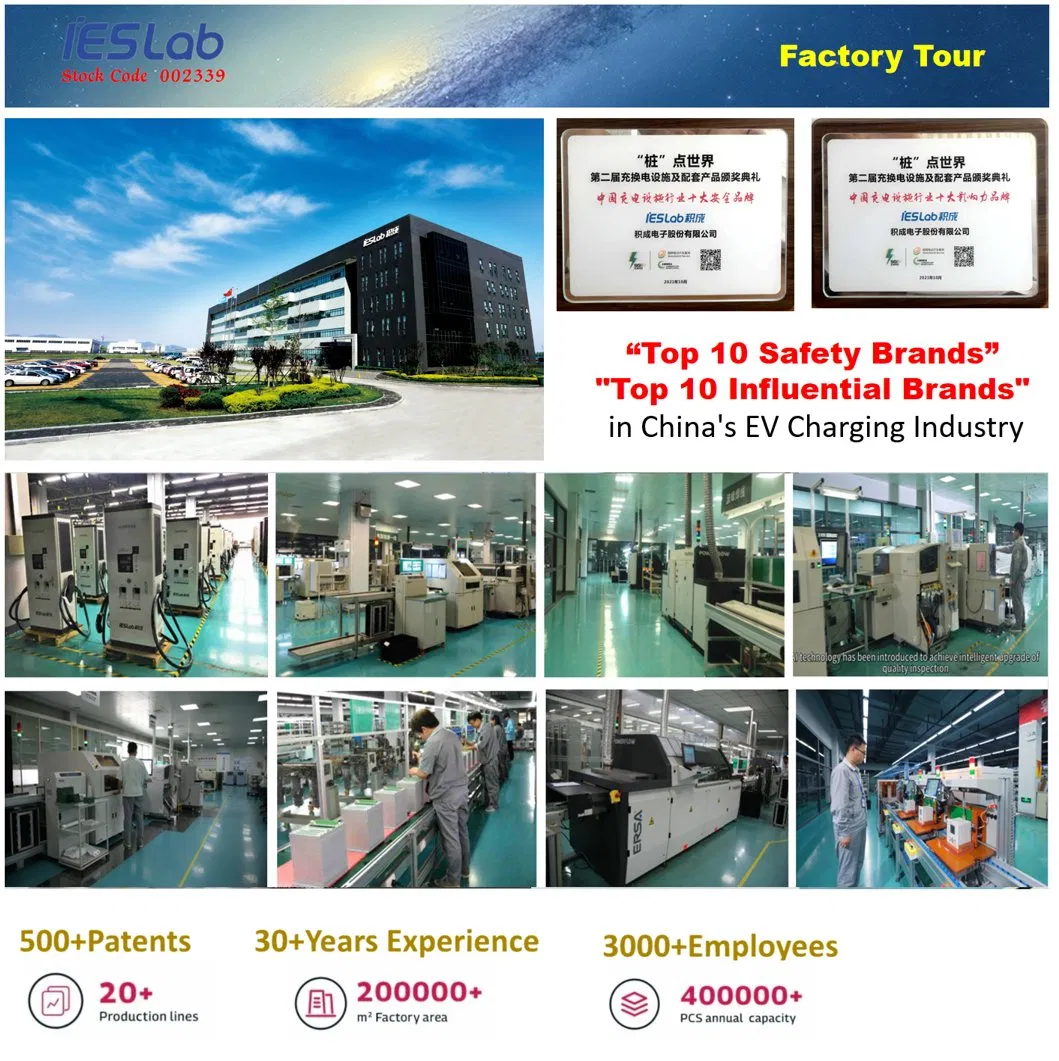

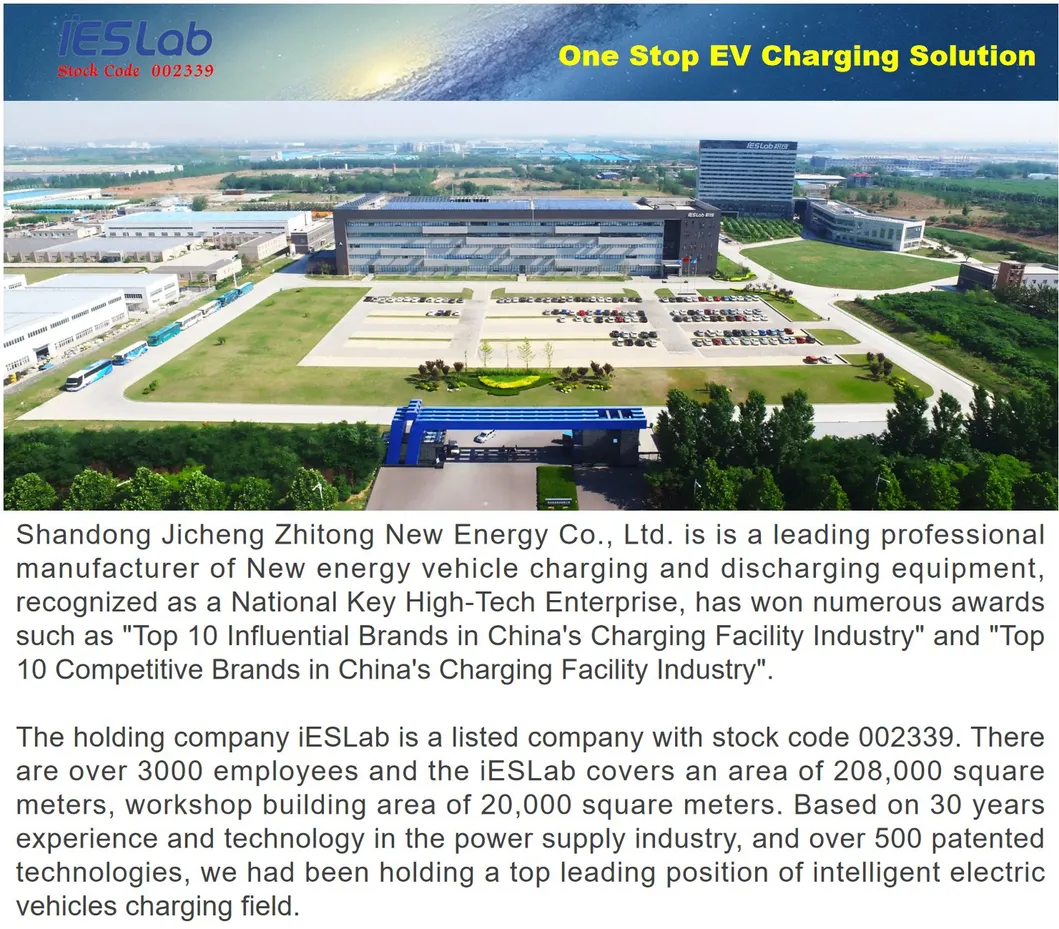

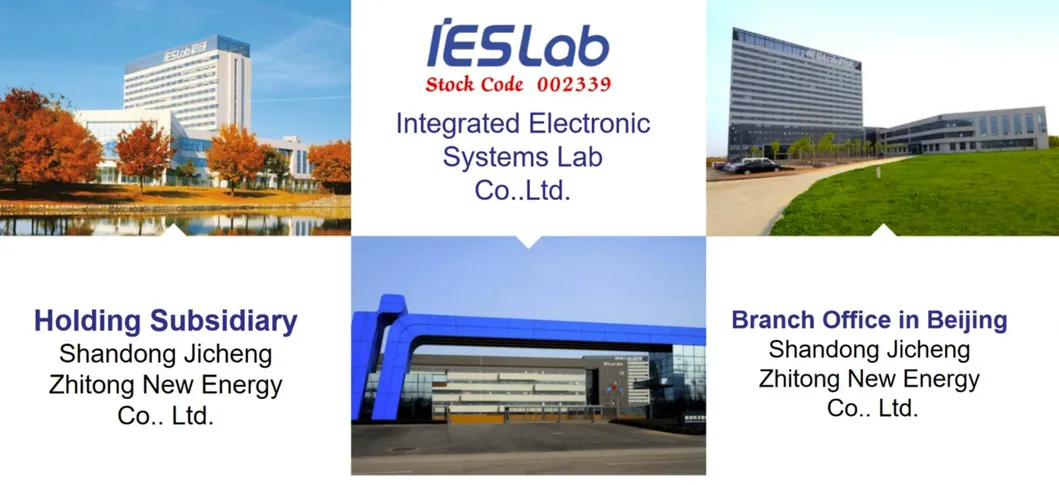

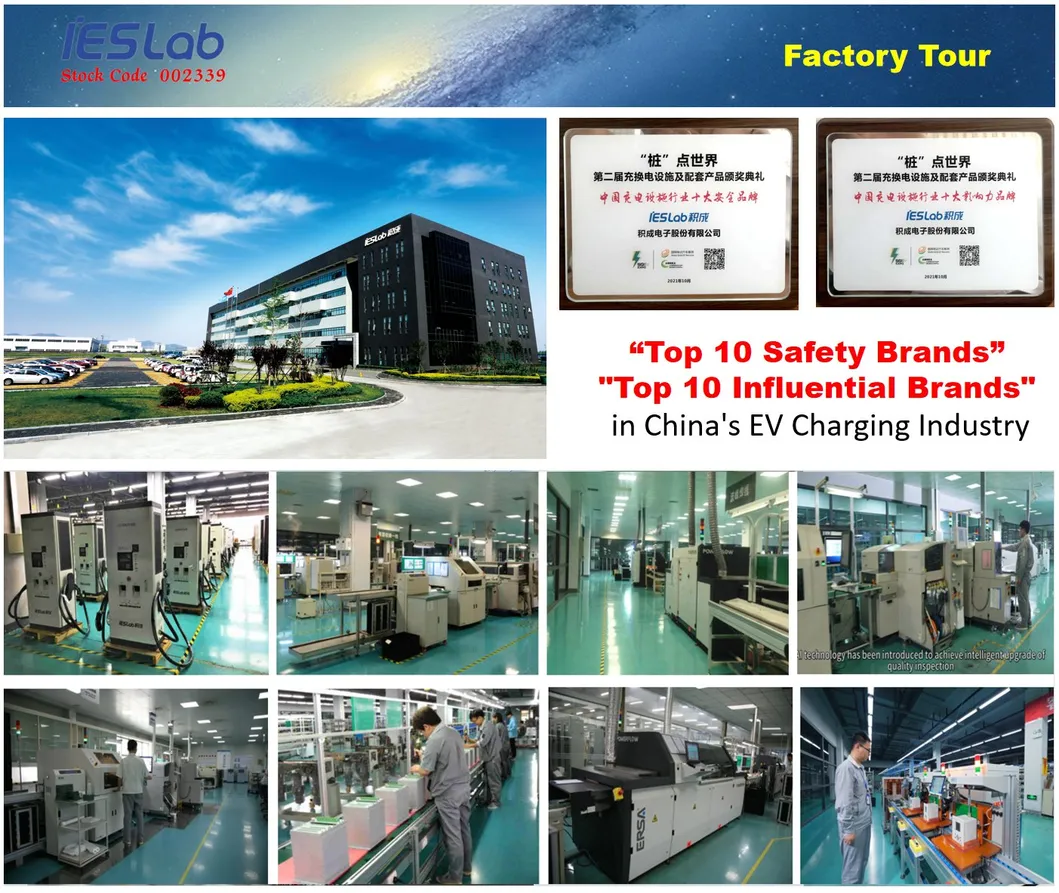

Company Profile

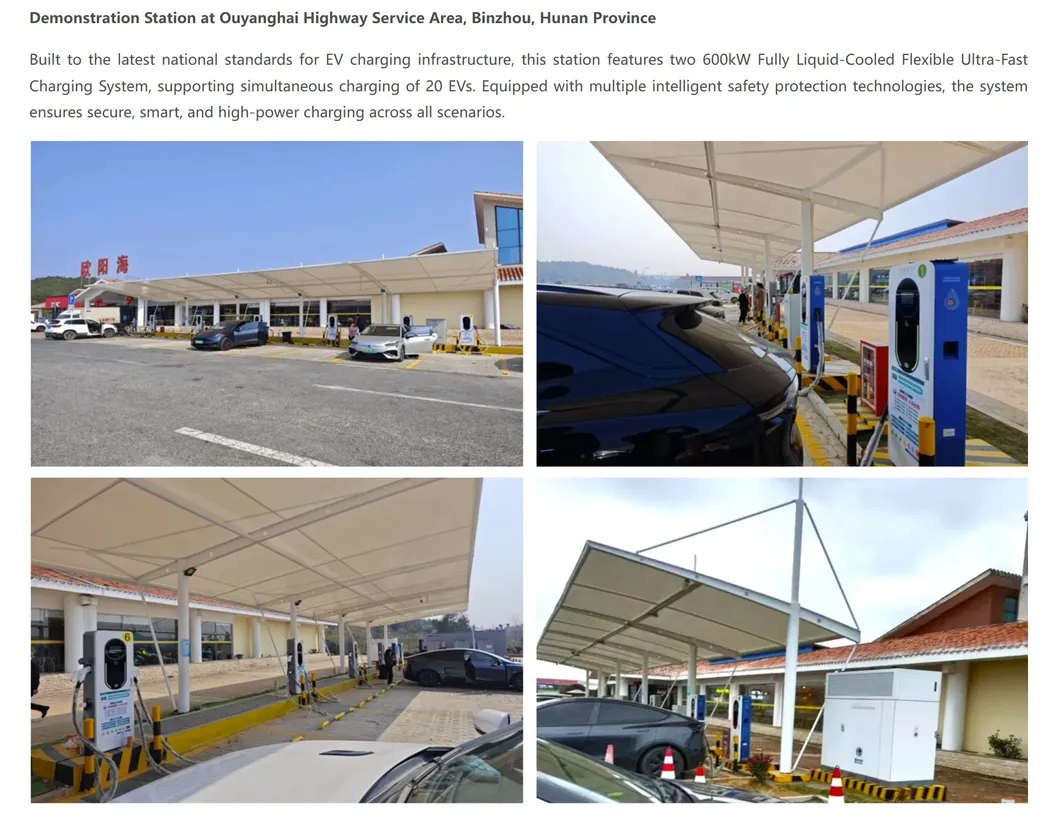

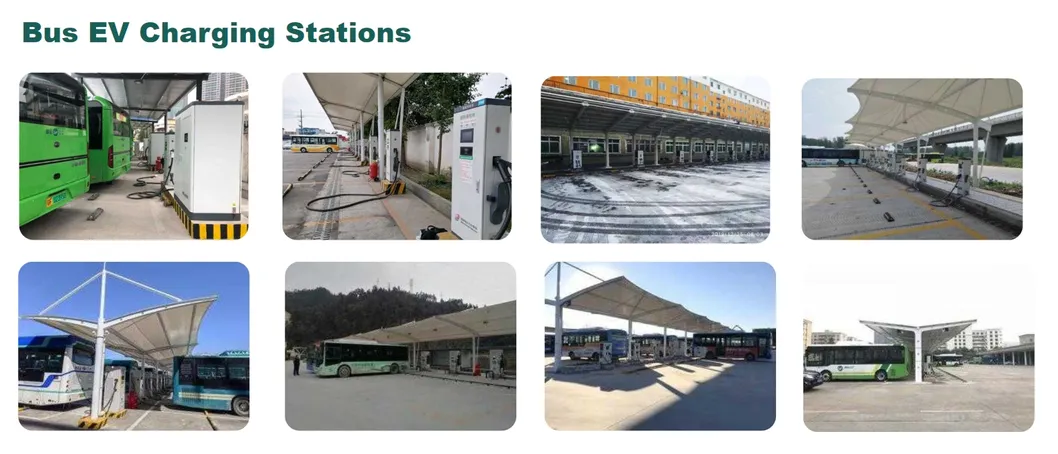

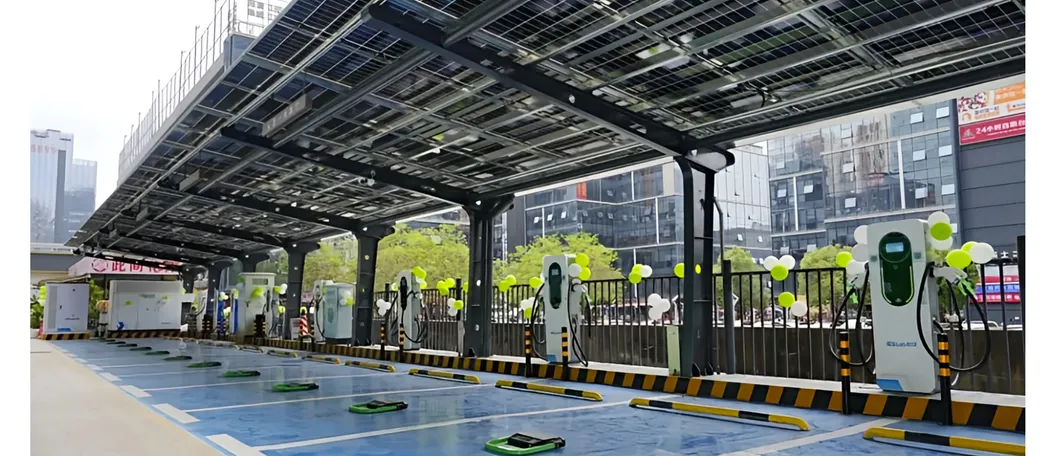

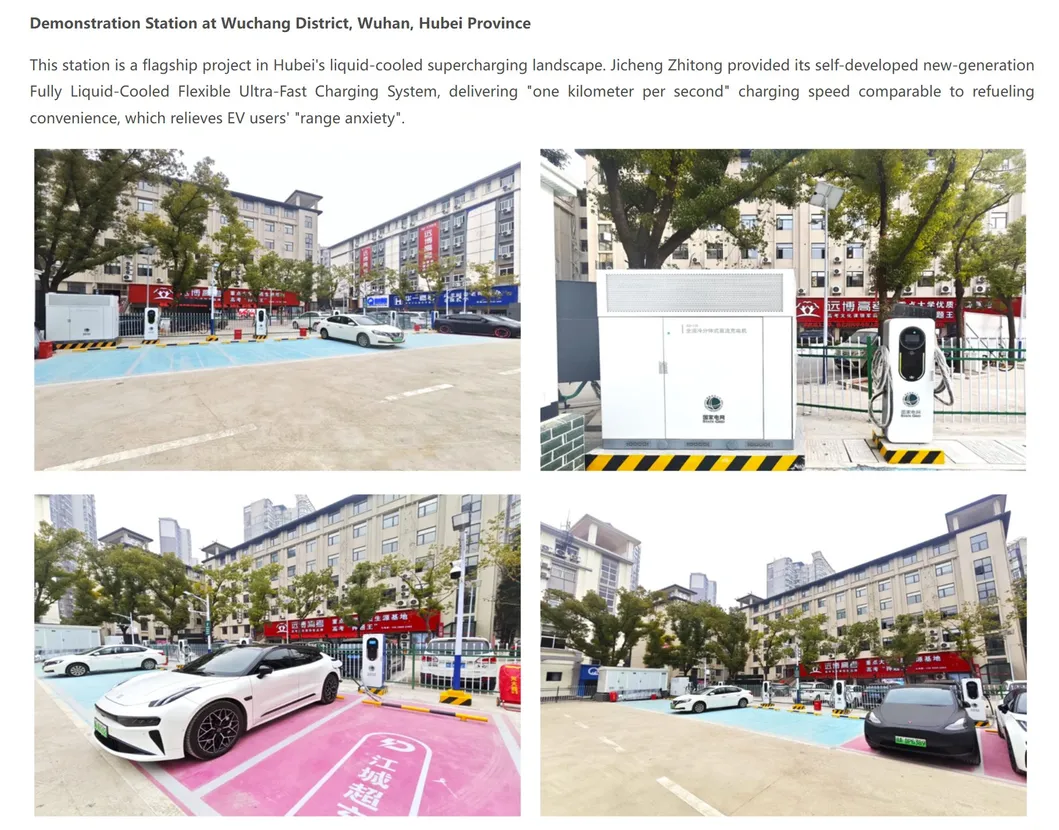

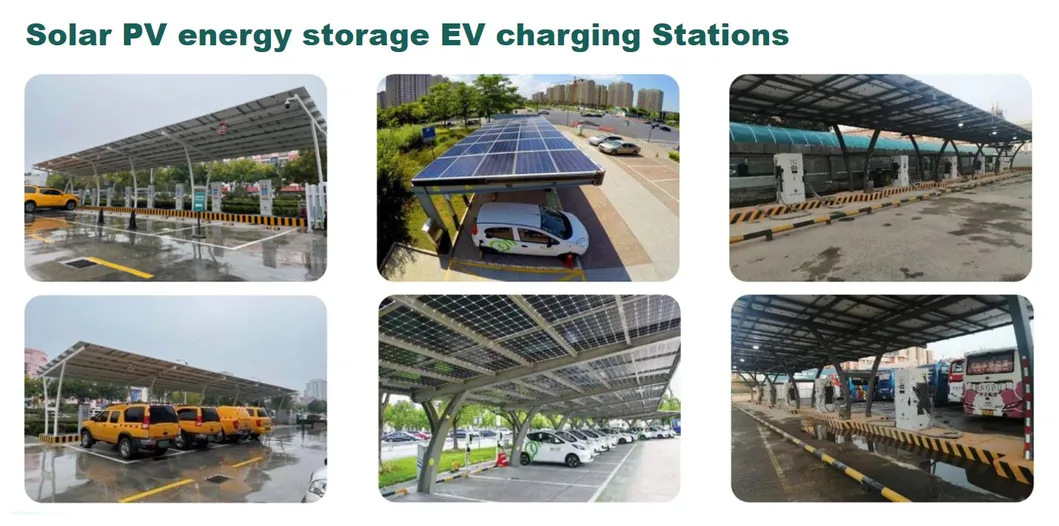

Application Cases
Certifications
Frequently Asked Questions
Can I visit your company?
You are highly welcomed to visit our factory at any time! We value building long-term relationships with our partners.
Are you a factory or a trading company?
We are a professional manufacturer with 30 years of R&D and production experience in the electrical industry.
Do you test all of your chargers before shipping?
All major components are tested before assembly, and each charger is fully tested before being shipped to ensure quality and safety.
What is the warranty period?
We provide a two-year warranty. During this period, if there are any product quality problems, we will provide technical support and replace new parts.
Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can build the necessary molds and fixtures to meet your specific requirements.
What standards do your chargers comply with?
Our chargers are strictly manufactured in compliance with IEC 61851-1 and IEC 61851-21-2 standards, ensuring international compatibility and safety.
