AC Quick 20kw 30kw 40kw AC EV Fast Car EV Charging Point Manufacturer CCS GB/T EV AC Fast Electric Car/Vehicle/Battery Charging Points
Product Description
Overview & Basic Info
Charging Interfaces
One Pile with One Charge
Location
Public Use, Private Use
Installation
Wall Mounted
Charge Method
Normal Charge
Output Power
7kw/11kw/22kw
Rated Output Current
7kw:16A; 11/22kw:32A
Rated Input Voltage
7kw: 230VAC; 11/22kw:400VAC
Protection Rating
IP54
Network Gateway
Bluetooth / WiFi/ 4G
Charging Mode
Mode 3
Data Connection
Back-End Service Via Ocpp /Home APP
Standard Compliance
IEC 61851-1, IEC 61851-21-2
User Interface
Digital Screen
Operating Humidity
up to Rh 95% Non-Condensing
Net Weight
4.6kg
Warranty
2 Years
Operating Temperature
-30 Degree to +50 Degree
Certification
CE, TUV, Ukca, RoHS, ISO
Charging Connector
5m Tethered Lec Type 2 Lead
Specification
87*190 *330mm
HS Code
8537109090
Production Capacity
5000 Sets/Month
Packaging & Delivery
Package Size
48.00cm * 32.00cm * 21.00cm
Package Gross Weight
5.000kg

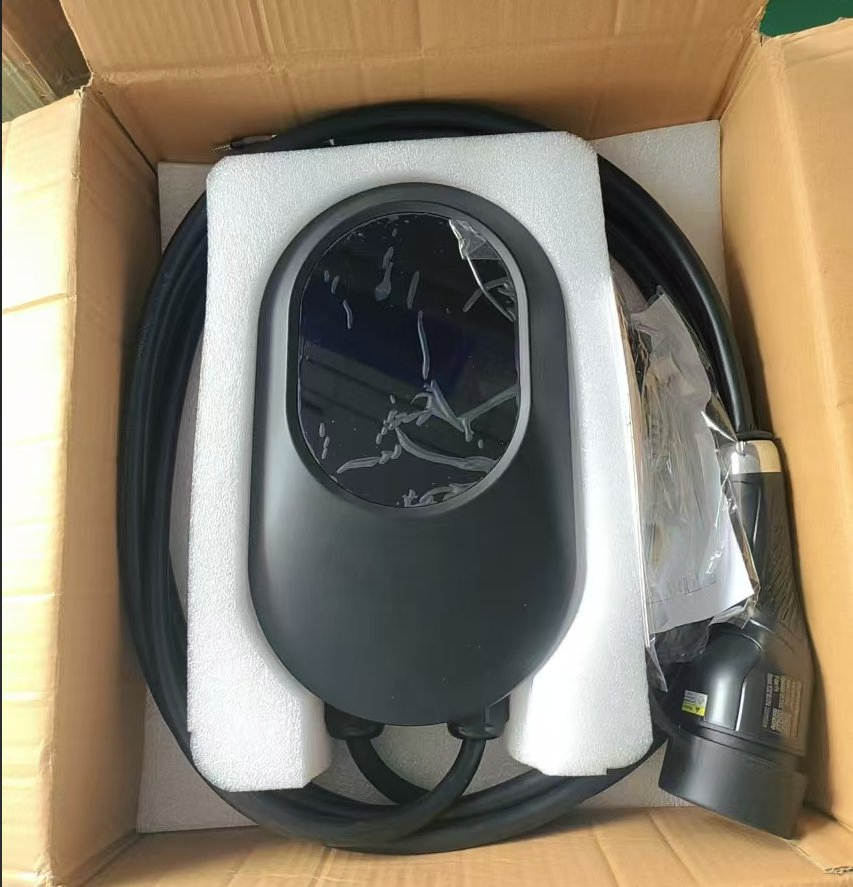

Transport Package
Carton

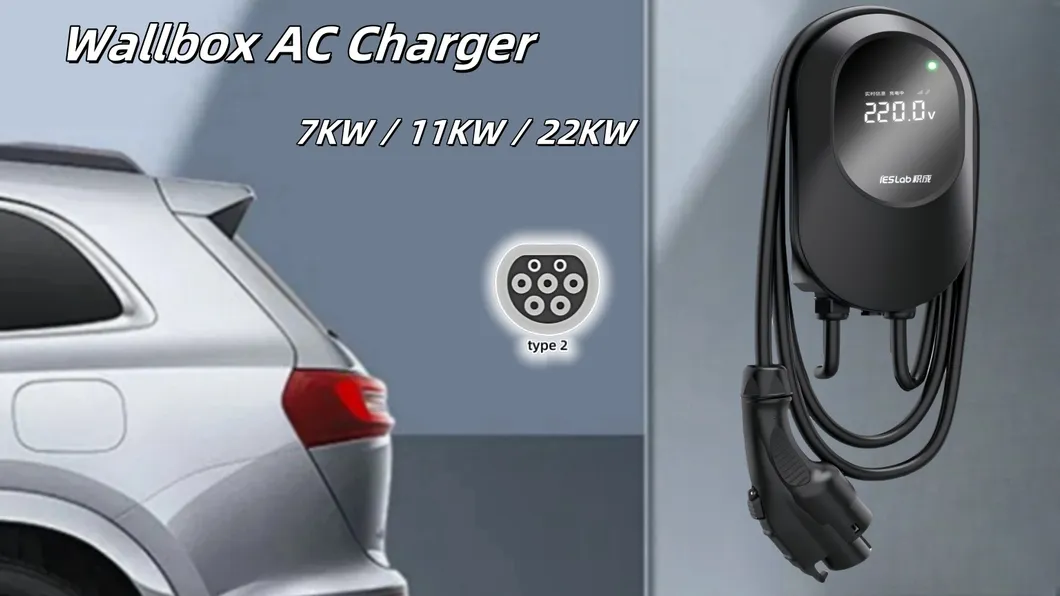

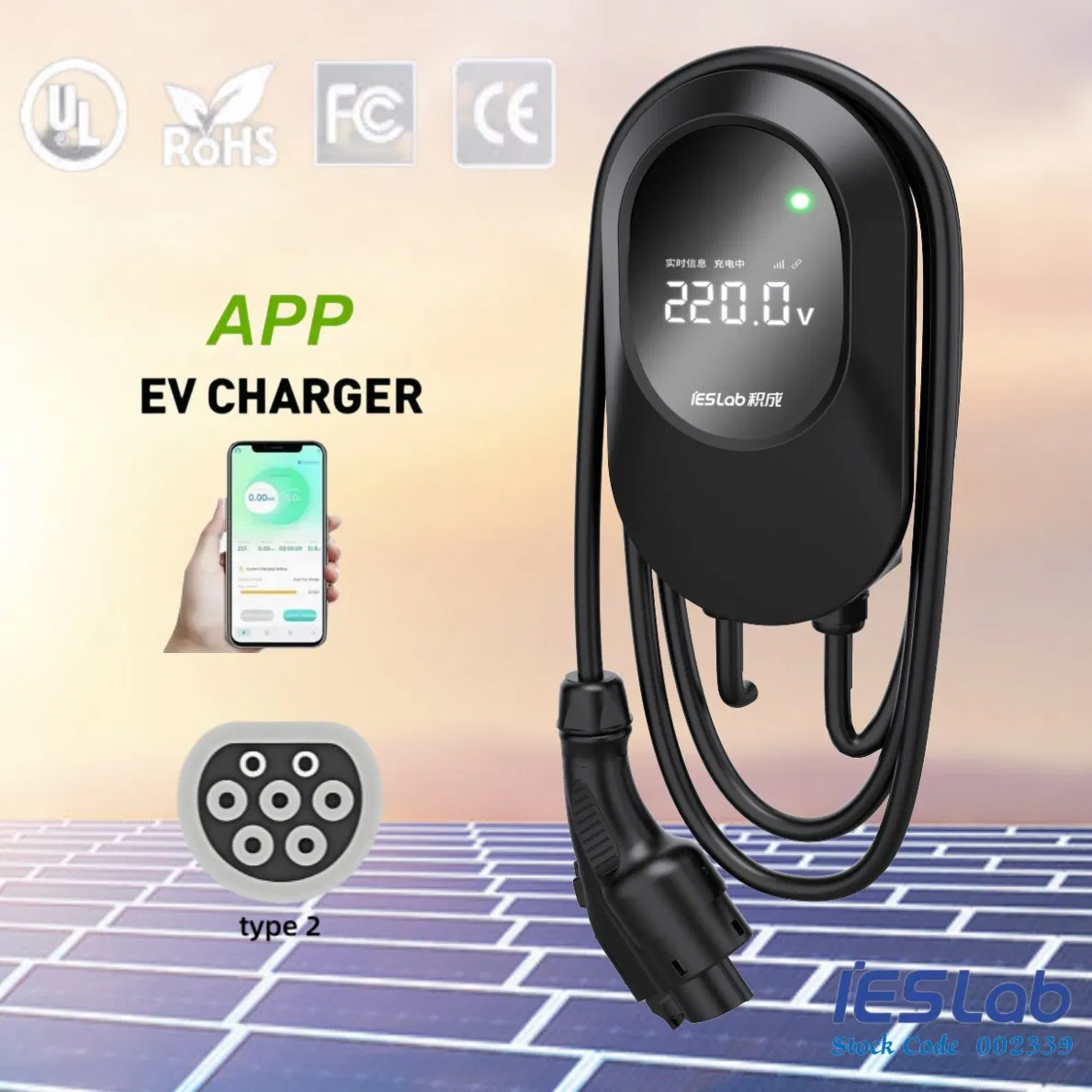

Product Gallery
| Product Parameters | |
|---|---|
| Product name | Wall-Mounted EU Standard AC Charger |
| Overall Dimensions(LWH) | 87mm x 190mm x 330mm |
| Net Weight | 4.8kg |
| Housing Material | PC with Anti-UV Treatment |
| Rated Input Voltage | 7kw:230Vac ± 10%; 11/22kw:400Vac ± 10% |
| Rated Output Current | 7kw:230Vac ± 10%; 11kW/16A; 22kW/32A |
| Standard Compliance | IEC 61851-1, IEC 61851-21-2 |
| Charging Mode | Mode 3 |
| Charging Connector | 5 Meter Tethered IEC Type 2 Lead |

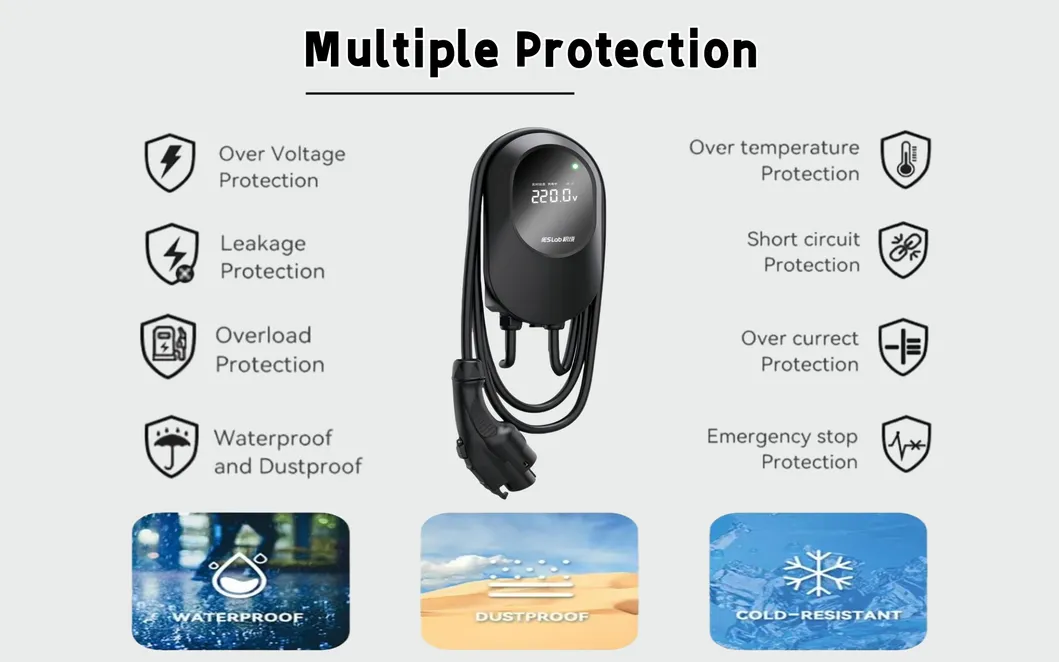

| Electrical Protection | UVP, OVP, RCD (DC 6mA), SPD, Ground Fault Protection, OCP, OTP, Control Pilot Fault Protection |
| Energy Meter | On-board Device +/- 1% Accuracy |
| User Interface | Digital Screen |
| Connectivity | LAN Ethernet |
| Operating Temperature | -30°C~50°C |
| Protection rating | IP54 |
| Communication Protocol | OCPP1.6j |
| NFC Authentication | ISO / IEC 14443A / MIFARE (13.56 MHz) |

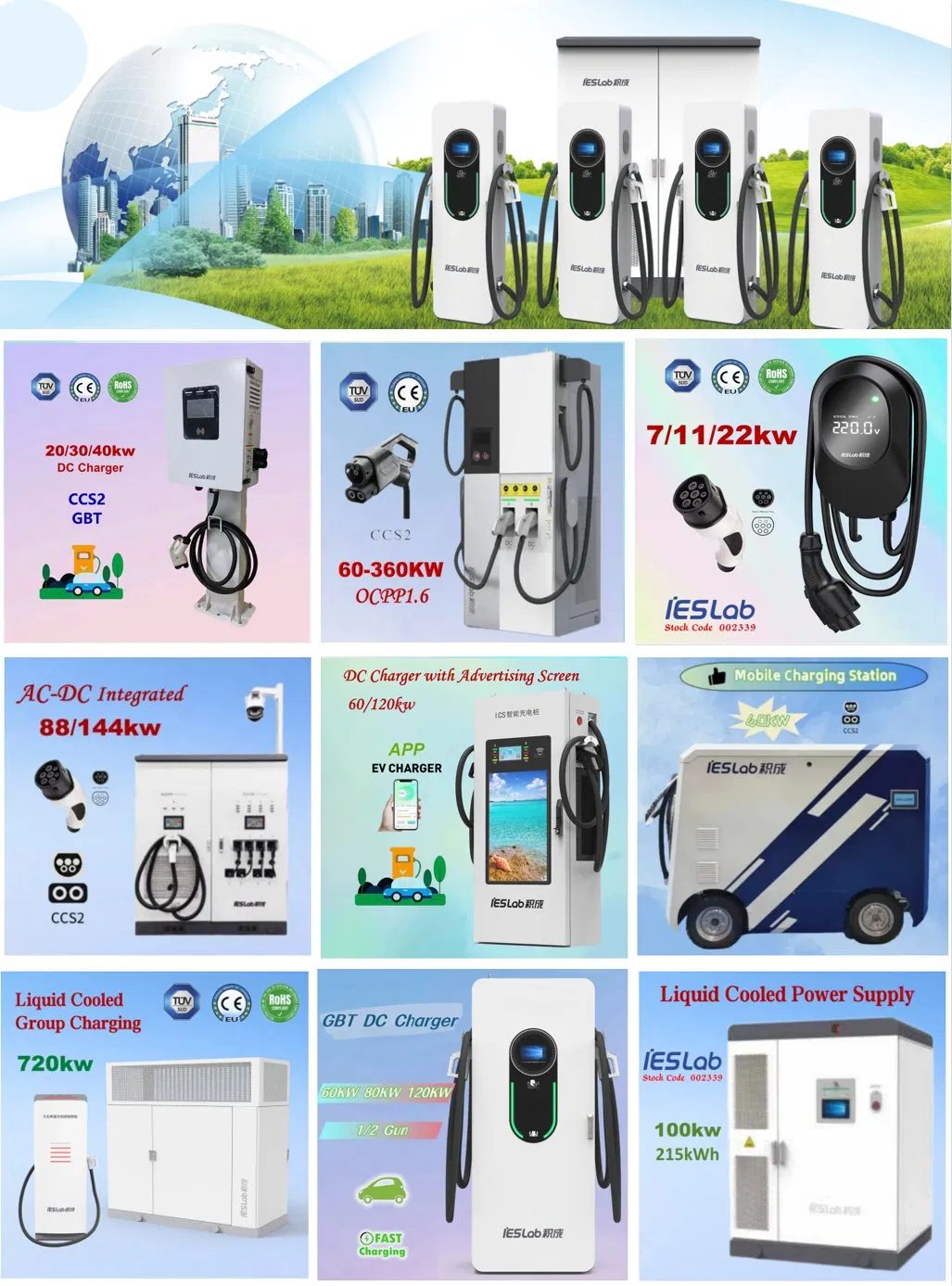

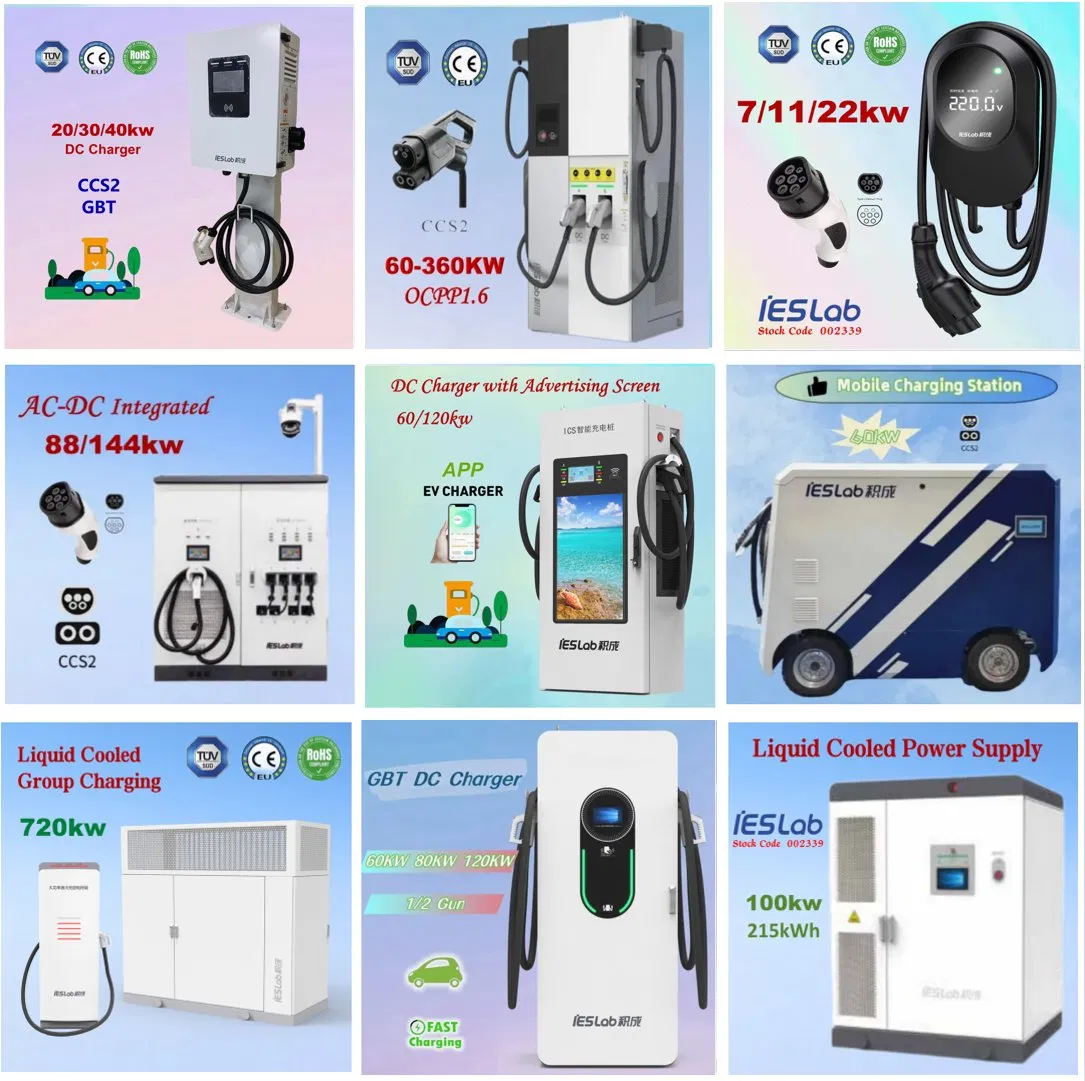

Main Products
Certifications

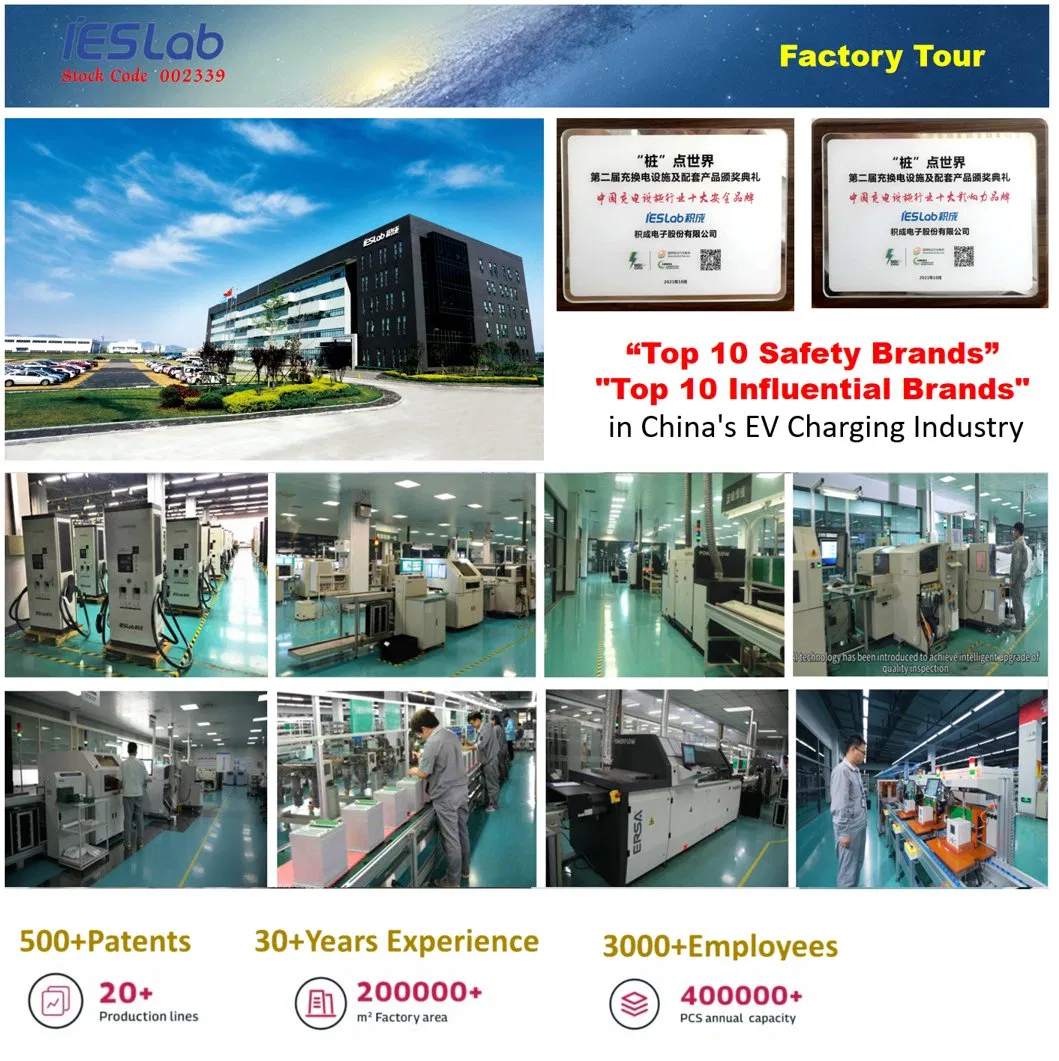

Manufacturing Facility

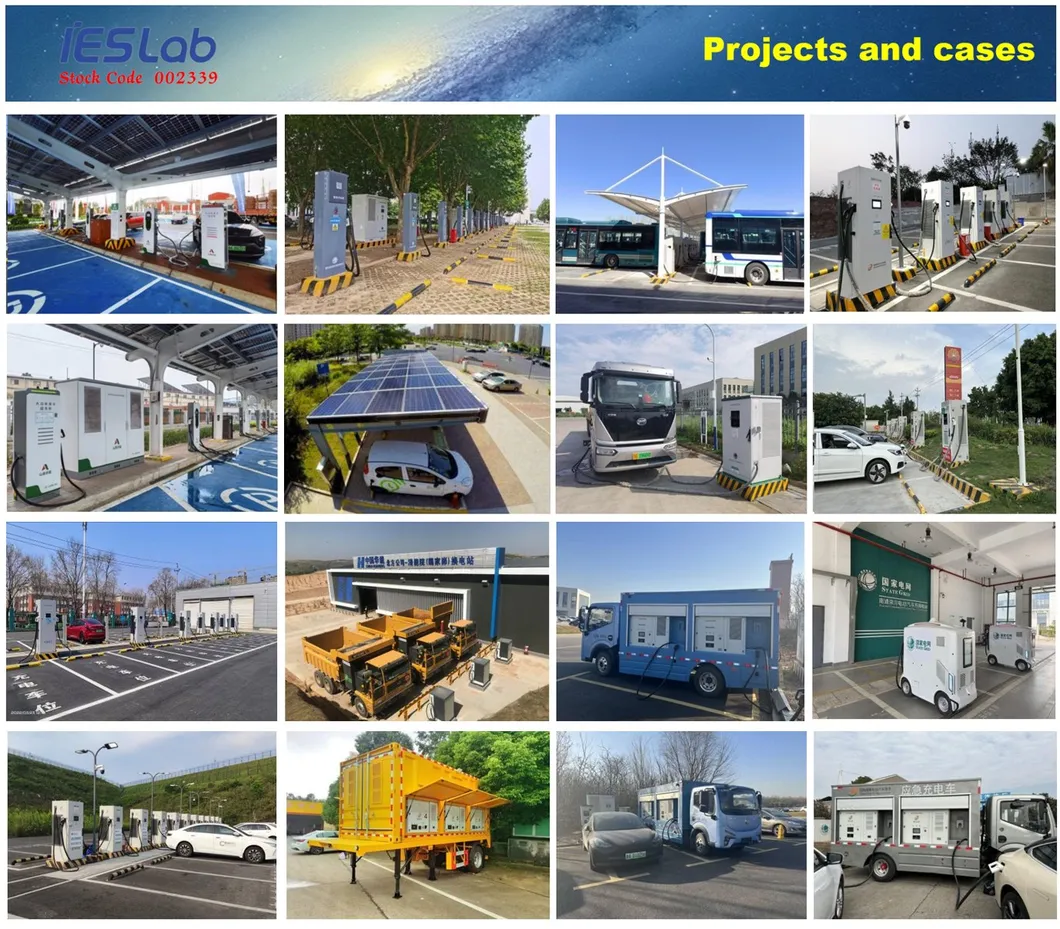

Fair Events & Application Cases
Frequently Asked Questions
Can I visit your company?
You are highly welcomed to visit our factory at any time!
Are you a factory or a trading company?
We are a professional manufacturer with 30 years of R&D and production experience.
Do you test all of your chargers before shipping?
All major components are tested before assembly, and each charger is fully tested before being shipped.
What is the warranty period?
We provide a two-year warranty. During this period, if there are any product quality problems, we will provide technical support and replace new parts.
Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can build the necessary molds and fixtures.
What charging modes are supported?
The devices support Mode 3 charging, complying with international standards IEC 61851-1 and IEC 61851-21-2.
